USER MANUAL DigiLevel Pro 120 Laserliner

DigiLevel Pro 40/60/80/100/120

mm/m SET DigiLevel Pro

mm/m SET DigiLevel Pro

mm/m SET DigiLevel Pro

– Attention: Do not look into the direct or reected beam. – Do not point the laser beam towards persons.

If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam. – Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reections. – Do not use the laser at eye level (1.40 ... 1.90 m) – Reective, specular or shiny surfaces must be covered whilst laser devices are in operation. Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 635 nm EN 60825-1:2014/AC:2017 Safety instructions Using class 2 lasers Digital electronic spirit level with red laser technology – Point laser for optical extension of the spirit level – Horizontal and vertical angle display – The slope memory allows angles to be easily transferred – Measured data transfer via Bluetooth

interface General safety instructions – The device must only be used in accordance with its intendedpurpose and within the scope of the specications. – The measuring tools and accessories are not toys. Keep out of reach of children. – Modications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specications.

Do not expose the device to mechanical stress, extreme temperatures, moisture or signicant vibration. – The device must no longer be used if one or more of its functions fail or the battery charge is weak. Function / application Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

EN10 – The measuring device complies with electromagnetic compatibi- lity regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU. – Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or inter- ference or be subject to hazards or interference. – The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating elds. – The measuring device is equipped with a wireless interface. – The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU. – Umarex GmbH & Co. KG hereby declares that the DigiLevel Pro 40/60/80/100/120 radio equipment complies with the essential re- quirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=AHJ Safety instructions Dealing with electromagnetic radiation Safety instructions Dealing with RF radiation

1 Inserting batteries Open the battery compartment and insert batteries according

the symbols. Be sure to pay attention to polarity. Laser 635 nm Laser outlet

In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs. ENDigiLevel Pro 40/60/80/100/120

mm/m SET DigiLevel Pro

mm/m SET DigiLevel Pro

Horizontal vial Vertical vial Laser outlet Magnets Battery compartment (Rear) Measuring surface Measuring scale (DigiLevel Pro 40 / 60 only) Slope direction Bluetooth

function activated Gradient function set HOLD: current measured value is held Unit of measurement % Digital bubble level Unit of measurement mm/m Angle reference set Battery charge Unit of measurement ° degrees Acoustic signal generator active Slope angle Laser active ON/OFF button / READ: Transfer measured data via Bluetooth

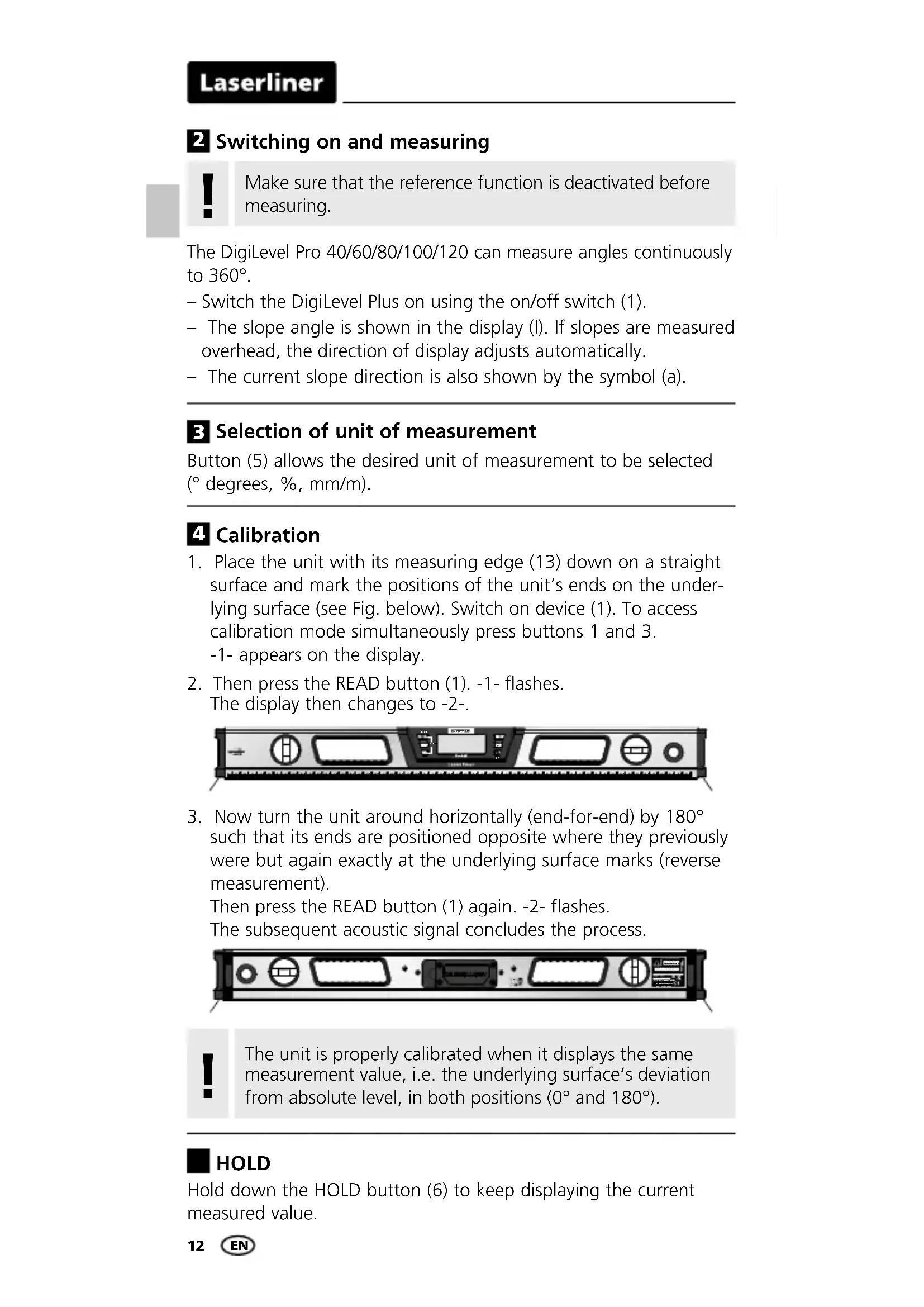

The unit is properly calibrated when it displays the same measurement value, i.e. the underlying surface‘s deviation from absolute level, in both positions (0° and 180°).

3. Now turn the unit around horizontally (end-for-end) by 180°

such that its ends are positioned opposite where they previously were but again exactly at the underlying surface marks (reverse measurement). Then press the READ button (1) again. -2- ashes. The subsequent acoustic signal concludes the process.

1. Place the unit with its measuring edge (13) down on a straight

surface and mark the positions of the unit‘s ends on the under- lying surface (see Fig. below). Switch on device (1). To access calibration mode simultaneously press buttons 1 and 3. -1- appears on the display.

2. Then press the READ button (1). -1- ashes.

The display then changes to -2-. Calibration Button (5) allows the desired unit of measurement to be selected (° degrees, %, mm/m). Selection of unit of measurement The DigiLevel Pro 40/60/80/100/120 can measure angles continuously to 360°. – Switch the DigiLevel Plus on using the on/off switch (1). – The slope angle is shown in the display (l). If slopes are measured overhead, the direction of display adjusts automatically. – The current slope direction is also shown by the symbol (a). Make sure that the reference function is deactivated before measuring.

Switching on and measuring ENDigiLevel Pro 40/60/80/100/120

Data transfer The device features a Bluetooth

function that enables wireless data transfer to mobile devices with a Bluetooth

interface (such as a smartphone or tablet). The system prerequisites for a Bluetooth

connection are specified at http://laserliner.com/info?an=ble The device can set up a Bluetooth

connection with Bluetooth 4.0 compatible devices. The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device. Once it has been activated, Bluetooth

remains switched on inde- nitely as the radio system is designed with exceptionally low power consumption. Preset gradients of 1%, 2%, 3% and 4% can be set using the button (3). Keep pressing the button until the required value is displayed. The gradient function is switched off by pressing and hol- ding button (3). Gradient function In order to preserve the batteries, the measuring device switches off automatically if it is left idle for 10 minutes. Backlighting switches off after 1 minute. AUTO OFF function When working with a changed angle reference value, the acoustic signal is activated on reaching the new reference value (0°, 45°, 90° display).

The acoustic signal can be switched on or off with button (6). When the angle of slope stands at 0°, 45°, 90° or the most recently stored value, this is indicated by an acoustic signal. Acoustic signal With button (2), it is possible to transfer angles elsewhere. To do so, set the device to the desired slope and press button (2). The display then changes to „0.00°“, „REF“ appears on the display and the required reference angle is set. The slope can now be transferred to other objects. Press button (2) again to deactivate the angle reference. 6 Changing the angle reference value EN14

word mark and the logo are registered trademarks of Bluetooth SIG Inc. A mobile device can link up to the active measuring device via an app.

• The Bluetooth® word mark and the logo are registered trademarks of Bluetooth SIG Inc. After starting the app and activating the Bluetooth

function, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device. This measuring device can be connected automatically the next time it is switched on. An app is required to use the Bluetooth

function. You can download the app from the corresponding stores for the specic type of terminal device: Application (app) Make sure that the Bluetooth

interface of the mobile device is activated.

Danger – powerful magnetic fields Powerful magnetic elds can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mecha- nics, hard disks). With regard to the effect of powerful magnetic elds on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic elds“ (occupational health and safety - electromagnetic elds) in the Federal Republic of Germany. To avoid interference/disruption, always keep the implant or device a safe distance of at least 30cm away from the magnet. Information on maintenance and care Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place. ENDigiLevel Pro 40/60/80/100/120
