Technical features	Cordless grass trimmer, brushless motor, 10.8 V voltage, 260 mm cutting width, lightweight for optimal maneuverability.
Usage	Ideal for garden maintenance, edges and green spaces, easy to maneuver in hard-to-reach areas.
Maintenance and repair	Regularly check the condition of the blade and battery, clean after each use, replace worn parts according to the manufacturer\'s recommendations.
Safety	Wear safety glasses and gloves, do not use in the rain, follow the safety instructions provided in the user manual.
General information	Lightweight and ergonomic product, compatible with other tools in the Makita range, battery life optimized for extended use.

Frequently Asked Questions - UR100D MAKITA

How do I charge the MAKITA UR100D battery?

To charge the battery, remove it from the device and place it in the appropriate Makita charger. Make sure the charger is plugged into an electrical outlet. The indicator light on the charger will inform you when the battery is fully charged.

What type of cutting line should I use with the MAKITA UR100D?

Use 1.6 mm diameter cutting line for the MAKITA UR100D. Be sure to follow the manufacturer\'s recommendations for optimal performance.

How do I replace the cutting line on the MAKITA UR100D?

To replace the cutting line, remove the protective cover and take out the worn line. Then, insert a new cutting line into the designated holes and make sure it is securely fixed before replacing the cover.

The MAKITA UR100D won\'t start, what should I do?

Check that the battery is properly charged and inserted. Also ensure that the safety switch is activated. If the problem persists, consult the user manual for further troubleshooting steps.

How do I clean the MAKITA UR100D after use?

After use, unplug the battery and use a soft brush or cloth to remove dirt and debris. Avoid using water or harsh chemicals.

What is the battery life of the MAKITA UR100D?

Battery life depends on usage conditions and the type of vegetation being cut, but generally it can last up to 30 minutes on a full charge.

Can I use the MAKITA UR100D in the rain?

The MAKITA UR100D is not designed for use in rain or wet conditions. It is recommended to use it in dry conditions to avoid damaging the device.

Where can I buy spare parts for the MAKITA UR100D?

Spare parts can be purchased from authorized Makita dealers, online on the official Makita website, or in stores specializing in gardening tools.

USER MANUAL UR100D MAKITA

Model: UR100D
No load speed(without cutting tool)		\( 10,000\ min^{-1} \)
Overall length(without cutting tool)		835 - 1,185 mm
Nylon cord diameter 1.65 mm
Applicable cutting tool andcutting diameter	Nylon cutting head (P/N198852-2 / 198853-0)	260 mm
	Plastic blade head (P/N198847-5 / 198848-3)	230 mm
Rated voltage D.C. 10.8 V - 12 V max
Net weight 1.9 - 2.1 kg

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
  The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combinations, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge and charger

Battery cartridge BL1016 / BL1021B / BL1041B / BL1050B
Charger DC10SA / DC10SB / DC10WC / DC10WD / DC18RE

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
  WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

Noise
Applicable standard: EN50636

Type Sound pressure	level average
	LpA(dB(A)) Uncertainty K (dB(A))
Nylon cutting head 74 0.74
Plastic blade 75.8 2.84

• Even if the sound pressure level listed above is 80 dB (A) or less, the level under working may exceed 80 dB (A). Wear ear protection.

Vibration
Applicable standard: EN50636

Type	Left hand		Right hand
	ah,w(m/s2)	Uncertainty K (m/s2)	ah,w(m/s2)	Uncertainty K (m/s2)
Nylon cutting head	≤ 2.5	0.1	≤ 2.5	0.5
Plastic blade	≤ 2.5	0.1	≤ 2.5	0.1

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Symbols

The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use.

Take particular care and attention.

Read instruction manual.

Danger; be aware of thrown objects.

The distance between the tool and bystanders must be at least 15m

Keep bystanders away.

Keep distance at least 15m

Wear safety glasses.

Wear ear protection.

Wear a helmet, goggles and ear protection.

Wear protective gloves.

Wear sturdy boots with nonslip soles. Steeltoed safety boots are recommended.

Do not expose to moisture.

Never use metal blade.

Ni-MH Li-ion

Only for EU countries

Due to the presence of hazardous components in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste!

In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection.

This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.

Declarations of Conformity

For European countries only

The Declarations of conformity are included in Annex A to this instruction manual.

SAFETYWARNINGS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1. Be familiar with the controls and proper use of the equipment.
2. Cutting elements continue to rotate after the motor is switched off.
3. Never allow children or people unfamiliar with the instructions to use the machine. Local regulations may restrict the age of the operator.
4. Stop using the machine while people, especially children, or pets are nearby.
5. Only use the machine in daylight or good artificial light. Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
6. Before using the machine and after any impact, check for signs of wear or damage and

repair as necessary.

1. Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on.
2. Never fit metal cutting elements.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Use the tool with the utmost care and attention.
5. Operate the tool only if you are in good physical condition. Perform all work calmly and carefully. Use common sense and keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
6. Never operate the tool when tired, feeling ill or under the influence of alcohol or drugs.
7. The tool should be switched off immediately if it shows any signs of unusual operation.
8. Keep fingers away from switch trigger when not operating the tool and when moving from one operating position to another.

Intended use of the tool

1. Use right tool. The cordless grass trimmer is only intended for cutting grass, light weeds. It should not be used for any other purpose such as hedge cutting as this may cause injury.

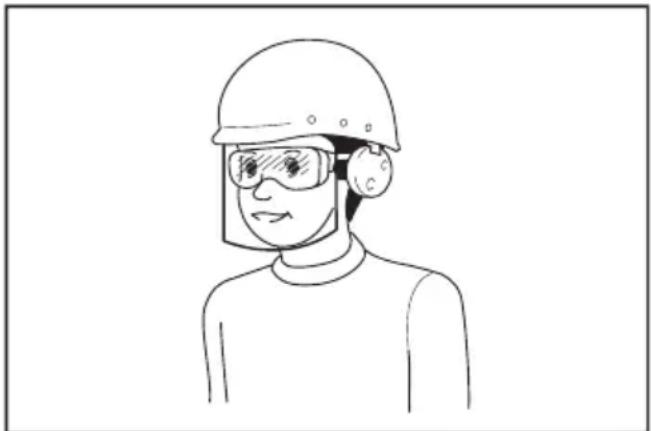

Personal protective equipment

Fig.1
Fig.2
1. Dress Properly. The clothing worn should be functional and appropriate, i.e. it should be tight-fitting but not cause hindrance. Do not wear either jewelry or clothing which could become entangled with high grass. Wear protective hair covering to contain long hair.
2. When using the tool, always wear sturdy shoes with a non-slip sole. This protects against injuries and ensures a good footing.
3. Always wear protective goggles to protect your eyes from injury when using power tools. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too.

It is an employer's responsibility to enforce the use of appropriate safety protective equipments by the tool operators and by other persons in the immediate working area.

Electrical and battery safety

1. Avoid dangerous environment. Don't use the tool in damp or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.
2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
3. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
4. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
5. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.
6. Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
7. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
8. Do not charge battery in rain, or in wet locations.

Starting up the tool

Fig.3

1. Make sure that there are no children or other people within a working range of 15 meters (50 ft), also pay attention to any animals in the working vicinity. Otherwise stop using the tool.
2. Before use always check that the tool is safe for operation. Check the security of the cutting tool and the guard and the switch trigger/lever for easy and proper action. Check for clean and dry handles and test the on/off function of the switch.
3. Check damaged parts before further use of

the tool. A guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by our authorized service center unless indicated elsewhere in this manual.

1. Switch on the motor only when hands and feet are away from the cutting tool.
2. Before starting make sure that the cutting tool has no contact with hard objects such as branches, stones etc. as the cutting tool will revolve when starting.
3. Make sure there are no electrical cables, water pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool.

Method of operation

1. Never operate the machine with damaged guards or without the guards in place.
2. Only use the tool in good light and visibility. During the winter season, beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing.
3. Take care against injury to feet and hands from the cutting tool.
4. Keep hands and feet away from the cutting means at all times and especially when switching on the motor.
5. Never cut above waist height.
6. Never stand on a ladder and run the tool.
7. Never work on unstable surfaces.
8. Don't overreach. Keep proper footing and balance at all times.
9. Remove sand, stones, nails etc. found within the working range. Foreign particles may damage the cutting tool and can cause to be thrown away, resulting in a serious injury.
10. Should the cutting tool hit stones or other hard objects, immediately switch off the motor and inspect the cutting tool.
11. Before commencing cutting, the cutting tool must have reached full working speed.
12. During operation always hold the tool with both hands. Never hold the tool with one hand during use. Always ensure a safe footing.
13. All protective equipment such as guards supplied with the tool must be used during operation.
14. Except in case of emergency, never drop or cast the tool to the ground or this may severely damage the tool.
15. Never drag the tool on the ground when moving from place to place, the tool may become damaged if moved in this manner.
16. Always remove the battery cartridge from the tool:

whenever leaving the tool unattended;
before clearing a blockage;
before checking, cleaning or working on

the tool;

before making any adjustments, changing accessories or storing;
whenever the tool starts vibrating unusually;

whenever transporting the tool.

1. Don't force the tool. It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Take a rest to prevent loss of control caused by fatigue. We recommend to take a 10 to 20-minute rest every hour.
4. Do not use the tool on steep slopes.
5. The shoulder harness must be used during operation, if supplied with the tool.

Maintenance instructions

1. The condition of the cutting tool, protective devices and shoulder harness must be checked before commencing work.
2. Turn off the motor and remove the battery cartridge before carrying out maintenance, replacing the cutting tool and cleaning the tool.
3. After use, disconnect the battery cartridge from the tool and check for damage.
4. Check for loose fasteners and damaged parts such as nearly halfway cut-off state in the cutting tool.
5. When not in use store the equipment in a dry location that is locked up or out of children's reach.
6. Use only the manufacturer's recommended replacement parts and accessories.
7. Always ensure that ventilation openings are kept clear of debris.
8. Inspect and maintain the tool regularly, especially before/after use. Have the tool repaired only by our authorized service center.
9. Keep handles dry, clean and free from oil and grease.

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery cartridge. It may result in a fire, excessive heat,

or explosion.

1. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
2. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
3. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store and use the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Do not nail, cut, crush, throw, drop the battery cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a fire, excessive heat, or explosion.
4. Do not use a damaged battery.
5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required.

Please also observe possibly more detailed national regulations.

Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

1. When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.
2. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.
3. If the tool is not used for a long period of time, the battery must be removed from the tool.
4. During and after use, the battery cartridge may take on heat which can cause burns or low temperature burns. Pay attention to the handling of hot battery cartridges.
5. Do not touch the terminal of the tool immediately after use as it may get hot enough to cause burns.
6. Do not allow chips, dust, or soil stuck into the terminals, holes, and grooves of the battery cartridge. It may cause heating, catching fire,

burst and malfunction of the tool or battery cartridge, resulting in burns or personal injury.

1. Unless the tool supports the use near high-voltage electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.
2. Keep the battery away from children.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ - 40^ (50°F - 104°F). Let a hot battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove it from the tool or the charger.

PARTS DESCRIPTION

Parts description (with nylon cutting head)

Fig.4

1 S	switch trigger 2 Battery cartridge
3 Lock lever 4 Protector
5 Nylon cutting head 6 Nylon cord
7 Wire guard 8 Thumb nut
9 Front grip 10 Hanger for shoulder		harness
11 Indication lamp 12 Lock-off button

Parts description (with plastic blade)

Fig.5

1 S	switch trigger 2 Battery cartridge
3 B	blade holder	4 Lock	lever
5 P	protector	6 Plastic blade head
7 P	plastic blade	8 Wire	guard
9 T	thumb nut	10 Front grip
11 H	anger for shoulder harness	12 Indication lamp

FUNCTIONAL DESCRIPTION

WARNING: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up.

Installing or removing battery cartridge

CAUTION: Always switch off the tool before installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as shown in the figure, it is not locked completely.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

Fig.6: 1. Red indicator 2. Button 3. Battery cartridge

CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

Battery protection system

The tool is equipped with a battery protection system. This system automatically cuts off power to the motor to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before turning the tool on again.

Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. If you turn the tool on, the motor runs again but stops soon. In this situation, remove and recharge the battery.

Indicating the remaining battery capacity

Only for battery cartridges with the indicator

Fig.7: 1. Indicator lamps 2. Check button

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

Indicator lamps Remaining		capacity
Lighted Off	□
		75% to 100%
		50% to 75%
		25% to 50%
		0% to 25%

NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

Switch action

WARNING: Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.
WARNING: For your safety, this tool is equipped with the lock-off button which prevents the tool from unintended starting. Never use the tool if it starts when you pull the switch trigger without pressing the lock-off button. Ask your local Makita Service Center for repairs.
WARNING: Never disable the lock function or tape down the lock-off button.

NOTICE: Do not pull the switch trigger forcibly without pressing the lock-off button. The switch may break.

Fig.8: 1. Switch trigger 2. Lock-off button

To prevent the switch trigger from being accidentally pulled, a lock-off button is provided.

To start the tool, press the lock-off button and pull the switch trigger. Release the switch trigger to stop. The lock-off button can be pressed from either the right or left side.

Indication lamp

Running the tool allows the indication lamp to show the battery cartridge capacity status.

Fig.9: 1. Lamp

When the tool is also overloaded and has stopped during operation, the lamp lights up in red. Refer to the following table for the status and action to be taken for the indication lamp.

Indication lamp Status	Action to be taken
The lamp blinks in red.	This indicates the appropriate time to replace the battery cartridge when the battery power becomes low.	Recharge the battery cartridge.
The lamp lights up in red. (Note 1)	This function works when the battery power is almost used up. At this time, tool stops immediately.	Recharge the battery cartridge.
The lamp lights up in red. (Note 1)	Autostop due to overload.	Turn off the tool.

Note 1: The time at which the indication lamp lights up varies by the temperature around the work area and the battery cartridge conditions.

Nylon cutting head

NOTICE: Do not bump the tool to the concrete or asphalt surface. Bumping to this kind of objects may cause the tool damage.

NOTE: If the nylon cord does not feed out while bumping the head, rewind or replace the nylon cord by following the procedures in this manual.

NOTE: The bump and feed mechanism will not work properly if the nylon cutting head is not rotating.

Fig.10: 1. Nylon cutting head 2. Cutter

The nylon cutting head has a bump and feed mechanism. To feed the nylon cord, bump the cutting head against the ground while the tool is running. As the nylon cord is feeding out, it will automatically be cut to the proper length by the cutter.

Plastic blade storage

Fig.11: 1. Plastic blade 2. Blade holder

A plastic blade for replacement can be stored in the blade holder of the tool. When storing or taking out the blade, remove the battery cartridge.

Adjusting the position of the handle and front grip

CAUTION: Before adjusting the shaft length, be sure to switch off the tool and remove the battery cartridge from the tool. Failure to do so may cause a personal injury.

Adjust the length of the shaft so that you can hold the handle when lowering your right hand.

Fig.12: 1. Handle

To adjust the shaft length, open the lock lever, then adjust the length of the shaft, and then close the lock lever.

Fig.13: 1. Lock lever

Adjust the position of the front grip so that you can hold the front grip when lowering your left hand.
Fig.14: 1. Front grip

ASSEMBLY

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.
CAUTION: Never start the tool unless it is completely assembled. Operation of the tool in a partially assembled state may result in serious personal injury from accidental start-up.

Installing the front grip

Attach the front grip to the front grip holder and secure it with a hex bolt and the thumb nut as shown in the figure.

Fig.15: 1. Front grip 2. Thumb nut 3. Hex bolt

The front grip angle is adjustable. To adjust the front grip angle, loosen the thumb nut, set the front grip at an proper angle according to your work and then tighten the thumb nut clockwise firmly.

Installing the wire guard

NOTICE: Do not expand the wire guard outward too much. Otherwise it may break.

Fig.16

To reduce the risk of damaging the objects in front of the cutting head, attach the wire guard to the protector so that it controls the cutting range.

Slightly expand the wire guard outward and then insert it into the holes of the protector.

For nylon cutting head:

Attach the wire guard to the holes on the front side of the protector. The nylon cord mark on the protector indicates the hole to be used.

Fig.17: 1.Hole

For plastic blade head:

Attach the wire guard to the holes on the rear side of the protector. The blade mark on the protector indicates the hole to be used.

Fig.18: 1.Hole

When wire guard is not in use, lift it for the idle position.
Fig.19: 1. Wire guard

Installing the protector

CAUTION: While installing the protector, be careful not to contact the nylon cord cutter on the protector. Contact with the cutter could result in personal injury.

Fig.20: 1. Screw 2. Protector

Mount the protector by fitting it on to the motor housing, and then secure it with two screws.

Installing nylon cutting head

Optional accessory

CAUTION: If the nylon cutting head accidentally impacts a rock or hard object during operation, stop the tool and inspect for any damage. If the nylon cutting head is damaged, replace it immediately. Use of a damaged cutting tool could result in serious personal injury.
CAUTION: Be sure to remove the hex wrench after installation.
CAUTION: When installing or removing the nylon cutting head, be careful not to contact the nylon cord cutter on the protector. Contact with the cutter may result in personal injury.

NOTICE: Be sure to use genuine Makita nylon cutting head.

1. Turn the tool upside down so that you can replace the cutting tool easily.
2. Insert the hex wrench through the hole on the motor housing and rotate the spindle until the spindle is locked.

Fig.21: 1. Hex wrench 2. Hole 3. Spindle

1. Place the nylon cutting head onto the spindle and tighten it by turning it clockwise.
   Fig.22: 1. Nylon cutting head
2. Remove the hex wrench.

To remove the nylon cutting head, turn it counterclockwise while locking the spindle with the hex wrench.

Installing plastic blade head

Optional accessory

CAUTION: If the plastic blade accidentally impacts a rock or hard object during operation, stop the tool and inspect for any damage. If the plastic blade is damaged, replace it immediately. Use of a damaged cutting tool could result in serious personal injury.
CAUTION: Be sure to remove the hex wrench after installation.
CAUTION: When installing or removing the plastic blade head, be careful not to contact the nylon cord cutter on the protector. Contact with the cutter may result in personal injury.
CAUTION: If the plastic blade head is worn out, replace it with a new one. If it is worn out, the plastic blade may be thrown away from the plastic blade head during operation and cause an injury.

NOTICE: Be sure to use genuine Makita plastic blade.

1. Turn the tool upside down so that you can replace the cutting tool easily.
2. Insert the hex wrench through the hole on the motor housing and rotate the spindle until the spindle is locked.

Fig.23: 1. Hex wrench 2. Hole 3. Spindle

1. Place the plastic blade head onto the spindle and tighten it by turning it clockwise.
   Fig.24: 1. Plastic blade head
2. Remove the hex wrench.

To remove the plastic blade, turn it counterclockwise while locking the spindle with the hex wrench.

Attaching the shoulder harness

Fig.25:1.Hook

Attach the hooks of the shoulder harness to the tool as shown in the figure.

CAUTION: Be sure to attach the hooks of the shoulder harness to the tool securely. If the hooks are attached incompletely, they may come off and cause injury.

Hex wrench storage

CAUTION: Be careful not to leave the hex wrench inserted in the tool head. It may cause injury and/or damage to the tool.

When not in use, store the hex wrench as shown in the figure to keep it from being lost.

Fig.26: 1. Hex wrench

OPERATION

Cutting the grass

Hold the grass trimmer at the angle of about 50^ to the ground. Move the grass trimmer from right to left slowly. Cut the grass a few times from the top of the grass at the tip of the nylon cord or with the blade.

NOTICE: Do not cut high grass at a time. Cutting the high grass at a time near the root may cause the nylon cutting head or plastic blade to be entangled by grass. This may cause the motor overload, resulting in damage to the grass trimmer.

NOTICE: Use the grass trimmer without getting the spool or plastic blade into a contact with the ground surface. Using the spool or plastic blade contacting the ground surface may cause the motor under overload resulting in damage to the grass trimmer.

Fig.27
NOTICE: Do not force the trimmer in densely growing grass.
Fig.28
NOTICE: Do not use the trimmer as if you dig out the ground.
Fig.29

Cutting the grass near tree, block, brick, or stone

Hold and tilt the grass trimmer at a height where the spool or blade does not touch the ground. Cut the grass using the nylon cord tip or plastic blade like knocking the ground.

Fig.30

NOTICE: When cutting the grass, move the grass trimmer around the tree or blocks so that the nylon cord or blade does not touch the tree or blocks. It is recommended to keep the tool more than 5 cm away from the tree or block. If the nylon cord or blade touch the tree or block, the nylon cord may be torn or the blade may wear out rapidly. If the nylon cord is torn in the spool, set the nylon cord again referring to the replacement procedure in this manual.

Using the grass trimmer as an edge

Using the grass trimmer as an edge is suitable for cutting the grass growing along the bricks or blocks.

Pull down the wire guard and rotate the grass trimmer 180^ .

As shown in the figure, while contacting the wire guard with the ground, move the grass trimmer to cut the grass. You can cut the grass efficiently by walking in parallel along the bricks or blocks.

Fig.31: 1. Wire guards

Detaching the shoulder harness

WARNING: Be extremely careful to maintain control of the machine when detaching the shoulder harness.
CAUTION: Before operation, adjust the shoulder harness to the proper length to prevent fatigue.
CAUTION: Be sure that the tool is held securely by the shoulder harness before operation.

The shoulder harness features a means of quick release. Squeeze the sides of the buckle to release the tool from the shoulder harness.

Fig.32: 1. Buckle

MAINTENANCE

WARNING: Always be sure that the tool is switched off and battery cartridge is removed before attempting to perform inspection or maintenance on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up.

NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

Cleaning the tool

Clean the tool by wiping off dust, dirt, or cut off grass with a dry cloth or one dipped in soapy water and wrung out. If the cut off grass is adhered to the motor housing, be sure to remove it.

Fig.33: 1. Motor housing

Storage

The hole in the handle is convenient for hanging the tool from a nail or screw on the wall. Before storing the tool, raise the wire guard, shorten the shaft, and then fold the front grip.

Fig.34: 1. Wire guard
Fig.35: 1. Front grip 2. Shaft
Fig.36:1.Hole

Replacing the plastic blade

If the plastic blade is worn out, replace it with a new one. To install the plastic blade, align the direction of the blade with the mark on the plastic blade head, and then insert it all the way until it locks in place with a little click. To remove the plastic blade, perform the installation procedure in reverse.

Fig.37: 1. Blade 2. Mark

NOTE: If the plastic blade is worn out, the vibration increases when the machine is operated with no-load.

Replacing the nylon cord

WARNING: Use nylon cord with diameter specified in "SPECIFICATIONS" only. Never use heavier line, metal wire, rope or the like. Use recommended nylon cord only, otherwise it may cause damage to the tool and result in serious personal injury.
WARNING: Make sure that the cover of the nylon cutting head is secured to the housing properly as described below. Failure to properly secure the cover may cause the nylon cutting head to fly apart resulting in serious personal injury.

Replace the nylon cord if the cord is not feeding any more.

Fig.38: (1) Up to 8m (2) 70 - 80 mm

TROUBLESHOOTING

Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs.

State of abnormality Probable cause	(malfunction) Remedy
Motor does not run. Battery cartridge is	not installed. Install the battery cartridge.
	Battery problem (under voltage) Recharge	the battery. If recharging is not effective, replace battery.
	The drive system does not work correctly.	Ask your local authorized service center for repair.
Motor stops running after a little use.	Battery's charge level is low.	Recharge the battery. If recharging is not effective, replace battery.
	Overheating. Stop using of tool to allow it	to cool down.
It does not reach maximum RPM. Battery	ery is installed improperly. Install the battery	cartridge as described in this manual.
	Battery power is dropping. Recharge the	battery. If recharging is not effective, replace battery.
	The drive system does not work correctly.	Ask your local authorized service center for repair.
Cutting tool does not rotate: → stop the machine immediately!	Foreign object such as a branch is jammed between the guard and the cutting tool.	Remove the foreign object.
	The drive system does not work correctly.	Ask your local authorized service center for repair.
Abnormal vibration: → stop the machine immediately!	One end of the nylon cord has been broken.	Tap the nylon cutting head against the ground while it is rotating to cause the cord to feed.
	The drive system does not work correctly.	Ask your local authorized service center for repair.
Cutting tool and motor cannot stop: → Remove the battery immediately!	Electric or electronic malfunction. Remove	the battery and ask your local authorized service center for repair.

OPTIONAL ACCESSORIES

CAUTION: These accessories or attachments are recommended for use with your Makita tool speci- 1ed in this manual. The use of any other accessories or attachments might present a risk of injury to persons.

Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Nylon cutting head
• Nylon cord (cutting line)
• Plastic blade head
• Plastic blade
• Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

SPECIFICATIONS

Norme applicable: EN50636

Norme applicable: EN50636

ACCESSIONS EN OPTION

VEILIGHEIDSWAARSCHUWINGEN

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

OPTIONELE ACCESSOIRES

For nylonskarehoved:

Monter tradskaermen pa hullerne pa forsiden af

skaermen. Nylontradmaerket på skaermen angiver det hul, der skal anvendes.

▶ Fig.17: 1. Hul

Fig.20: 1. Skrue 2. Skaerm

Móvo yia xwpe ts Eupwnns

Oi Anwoeic Sumuoppwocn Teipiaaavovtai oTo Iapaptnma A oTo npov EYxepidio odnyiwv.

IPOEIAOIOIHSEIEA∑ΦAΛEIA∑

ZHMANTIKEOADHIEAΦAΛEIA

A NPOEIOHOH: AiaBaoTe 6oEc TIG TPOEIOIOHOEIC YIA TNV aOaPAAEA KAI OAc TIG ONYIEC. H un npnon Tuv TPOeIOToiOeew KAI OByiw UTOpei va kataaNcE i e nKtpoTAnxi, TUPKayia n/ Kai oobapo Tpaumatio.

ΦuαεTe oλες TIG PPOEIOIOn-σεις kai TIG OBNYIECS YIA μΕλIoVTIKn TAPaTouπn.

1. Egoikeiwothe ie me ta xeiipotnpia kai tn owtn xpnoTou eonlaou.
2. Ta kontriKa oToIxEia ouvexizouv va

TEPIOTpeovtaI eTaNv aTVEpyooinon Tou oTep.

1. Mny apnve Tote naiia n atoua Tou dev ywwpiogouv tic onyiec va xpnoiotiouov tn mnxavn. Evexetai va utapxouv nepiopiooi TPOCS TIV NIAIKA TOXeipiOtn avaloya e touc totIKOUc KAVOVIOUc.
2. Σαμαποτεν αχροσιμοτοίειτο μηχανημα ὄταν ἀλλα ἀτομα, ἔδιαίτερα ταιδία ἡκατοικίδια, βρισκονται σε κοντινή απόσταση.
3. Na xpnoiopoioieTe To unxavma movo otav exia koua Ew n e kaTexvnto ATOPOUYETn xpOON Tou uXavmaos e axnues Kaipke ouvthenkcs, iDik oTav utap- XIKVuvoc Kepauuvw.
4. Pniv xpnoiopoioane To unxavna Kai meta aTIO KAe KPOUON,va EAYXETE YIA EVDEIEG φθopac n Znuiac KAI ETIOKEUAOTE OTWCS aTaiteiTal.
5. Pooexe va mnu Tpaumaiote aTn Tia-tayn iia n npuon Tou mKouc Tnc TEToviac. Apou ETEKivete tn vea ypaun KOTtn, va EITIATpe TE AAVTA to pnxavna OTV KavoVikn 0eon Aeioupyiac PPIV TO EVpyoTOINOE.
6. Mny TpoosapofoTe TOTe Eetaaikk Kottikka 0toixia.
7. H oukeun autn dev npoipietai yia xpno n aoTOIOBNTOTE aTOO (Tepiaauabavouevwv Tuv naoiw) me ueiweves oomegaatikcs, aiothntpiec n biavontikec ikavotntec, n ao aTOO TOU dev exeTIeipa kai yywoei, EKTOS vETItnpeitai n av tou exouv dothei obnyies yia tn xpno n tnc oukeun canto aTOO to otio eivai UTeuvo ia tvn aaapaleia tou. Ta naia tha pentei va eTTnpouvtai yia va eaoqaaioTei OTI dev naiouv me tn oukeun.
8. Na xpoiooioite To epyaieio u Tn uauuTepn Tpooxni.
9. Na xερiεσετο Εργαλείο μόνο αν βρισκεσε Εε καλή σωματική κατάσταση. Εκτελέσε Ελες τις εργασίες με ἡπεμία και προσχή. Xρησιμοτοίποτε Koivn λογική και να Θυμασε Οτι o xεριστής o xρησικε εῖαι Ανεύθυνος γία ατυχήματη κίνδύνους του φιστανται αλλα ατομα n έίδιοκτησία touς.
10. Mn xεi piεoTe to εpyaλeio oTav eioaote koupασévoi, appwtoI n UTO TIV Eπnpia aλkoən vapkwtikwovouiWv.
11. IpTeTl va aTVEpyoTIOINOETe aEoucTo Epyaλeio av npauoiacei Evdeieic aouvntnS λeitoupyiaC.
12. Ipooatépsi Ta daktuα oac ato tn okaivdaan diakottn otav dev xpoioiote to epyaiaio kai otav aaaazeTe eon epyaiaic.

Ppooipzoeyn xphon tou epyaaleiou

1. Na xpnoiopoioite To owoTo epyaIio.To 0opnto koupeutiko ykaov TpoopiZetai mOvo YIA TIV KOTn ypaosiou kai EAAphiiw Zicaviow. 4ev TpETeV XpnoiopoTointheta iia aALouc 6KOTIOUs OTWCS KOTn 4paktwv ETEIDN MTOpei VApOKaAeEIT PauuAtio.

PpOoTIKOc PPOoTATEUTKOc EoTIAIOc

Eik.1
Eik.2

1. Na vtuveote kataaanla. O pouxiooic Tou opate 0a npetie va eivai aeitoupyikoc kai kataaanlo, dnlaon va eivai eapuootoc aaaa va unv oac napeumrodi. Mny opate Koomuata n pouxa ta onoia mtopouv va x oYkaov evyalou uwous. Na opate ppoatauteuiko kaluuma aalwv Tou va kpataei azeeva ta akpiiaaia.
2. Otav xpoiooieTo epyaieio, naVtva φopate aveKtiKa TnoutiaeavTIOAoiTNI KIà.Autapooataeuov evavTI wv Tpaupatouw kai diaoqalizouv to kaIo TATnua.
3. Na φopáte πávτa προστateutiká yuaia yia va προστateuete Ta maia oac αnto tpaumatioó ortav xpnoiotoiéite nλektpiä epyaleia. Ta προστateutiká yuaia πpétiei va ouμopφwovtai μe to πpótuTO ANSI Z87.1 σιc HIA, to πpótuTO EN 166 Θny Eupwtnη to πpótuTO AS/NZS 1336 Θny Auotpalia/Nεa Znλavδia. Σny Auotpalia/Nεa Znλavδia, aattieitai atro to vómo va φopáte kai πpocwiδa yia tny πρoσtaia tou πpωwnou oac.

O epyoToNc exeTnV eUoyn v a EITIaALeI Tn xpnoKataaAaNau PPOoTaTeutIKou E0- TIAOou aQaaleiaC aTOu cXeipotcTou epyaieiou kai aTO aAAA aTOU pIOKovTAt OTNv aeON nepioxN epyaoiaC.
