USER MANUAL iQ300 SE43HS60CE SIEMENS

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021). They contain information how to exchange defined spare parts including warnings and risks. In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

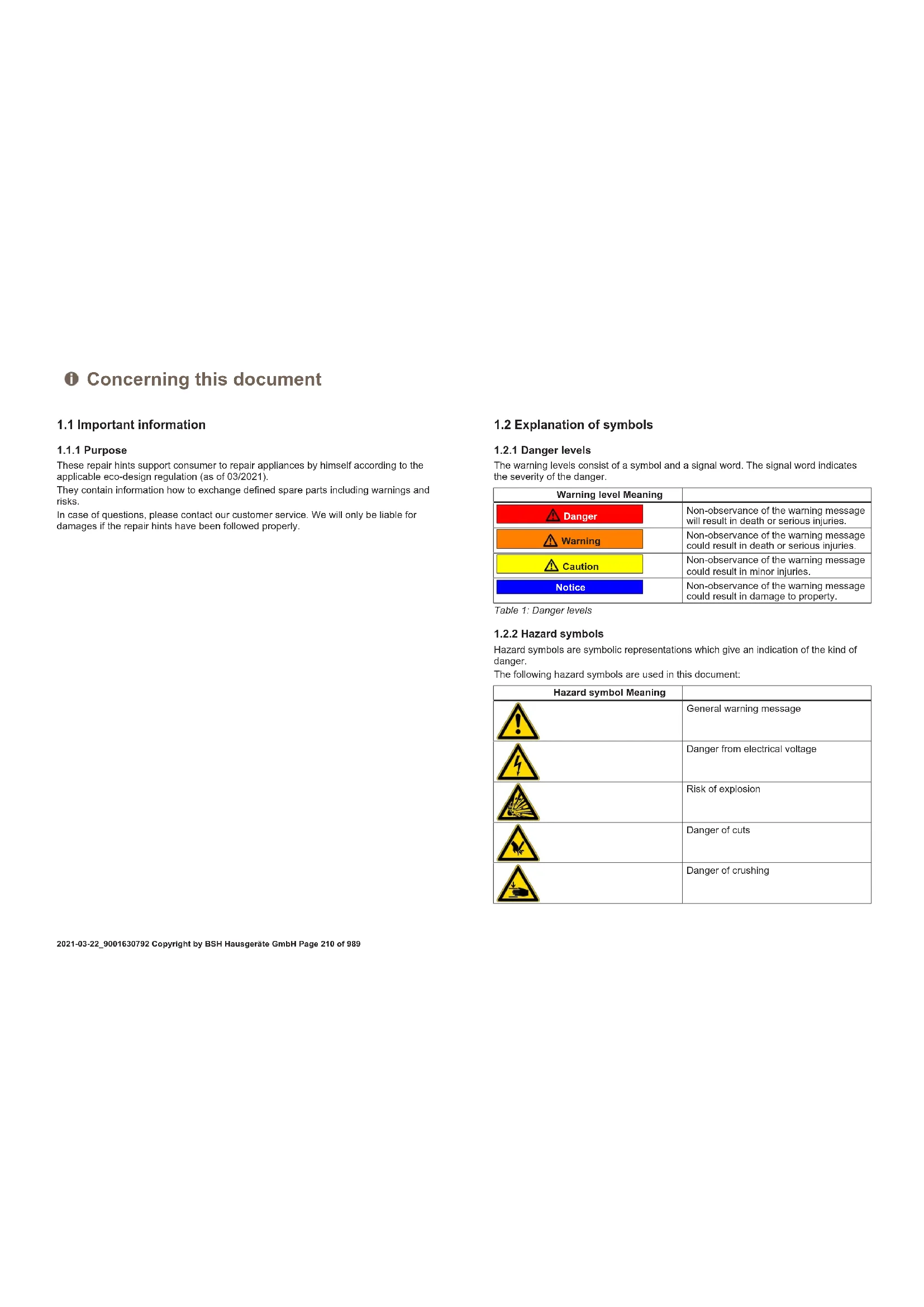

1.2 Explanation of symbols

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger. Warning level Meaning Danger Non-observance of the warning message will result in death or serious injuries. Warning Non-observance of the warning message could result in death or serious injuries. Caution Non-observance of the warning message could result in minor injuries. Notice Non-observance of the warning message could result in damage to property. Table1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger. The following hazard symbols are used in this document: Hazard symbol Meaning General warning message Danger from electrical voltage Risk of explosion Danger of cuts Danger of crushing Concerning this document 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page210of989Hazard symbol Meaning Danger from hot surfaces Danger from strong magnetic field Danger from non-ionizing radiation Table2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised struc- ture. Danger Type and source of danger! Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger. The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned. Danger Risk of electric shock due to live parts! Death by electrocution

Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document: Gen. symbol Meaning Identification of a special tip (text and/or graphic) Identification of a simple tip (only text) Identification of a link to a video tutorial Gen. symbol Meaning Identification of required tools Identification of required preconditions Identification of a condition (if ..., then ...) Identification of a result Start Identification of a key or button [00123456] Identification of a material number Status Identification of displayed text / window (in the appliance's display) Table3: General symbols Concerning this document 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page211of989Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts! ¡ Errors by repairs involving electrical components can lead to electrical shock! ¡ Disconnect the appliance from the mains for at least 60 seconds before starting work. ¡ After the repair have a safety test according VDE 0701 or country-specific regula- tions performed. Risk of injury from sharp edges! ¡ Wear protective gloves. Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components ¡ Wear protective shoes. ¡ Secure heavy components from falling down. ¡ Do not stick body parts into moving components. Risk to the appliance's safety / function! ¡ Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! ¡ Do not touch the modules, including connections and conductor paths. Safety 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page212of989Tools and aids Designation Details Images Screwdriver Torx T20 with bore hole [00340764] 100mm, for screws with safety pin Insulated Screw- driver Torx T15 with bore hole [15000626] Blade length 125mm, for screws with safety pin Slotted screwdriver Blade 10mm x 1.6mm x 200mm Needle nose pliers [00340871] Length: 200mm, straight Tools and aids 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page213of989Repair

4.1 Replacing worktop

Prerequisite: Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).

2. Press both catch levers under the worktop upwards (2).

3. Lift the worktop slightly at the front (3).

4. Push worktop away towards the rear (4).

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

2. Push worktop forwards (2).

3. Press the front of the worktop downwards until both catch levers click audibly into

4. Screw in the two screws again (4) (optional).

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page214of9894.2 Installing basket system Prerequisite: The relevant basket has been removed from the appliance.

1. Insert the tab slide diagonally at the front of the basket.

2. Centre and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools: Tabguide [00614935] Cup support clip [00618565] When washing cups, the cup support clip can be folded up. The addi- tional angle reduces the collection of water on the bottom of cups. In the case of tall glasses we recommended leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be re- moved.

1. Remove the plastic insert.

2. Click the cup support clip into place.

3. Fold up the clip.

1. Bend the handle flaps inwards.

2. Remove the handle upwards.

3. Press plastic side inserts outwards and press them upwards out of the frame.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page217of9894. Carefully bend the guide tabs outwards.

5. Pull the folding spines out of the tabs.

6. Press metal frame at the front out of the holders.

2. Pull down the lower spray arm to remove.

The spray arm clicks into position.

2. Insert the upper spray arm and screw it firmly in place.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page219of9894.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

2. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system.

Make sure that the locking catches on the coarse filter click into position.

2. Insert the filter system into the appliance and turn the coarse filter clockwise.

2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page221of9894.7 Replacing power cord Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliances is freely accessible.

Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice Overheating of main connection! Risk of fire

Firmly insert the power cord until it clicks.

Insert the plug of the power cord into the mains socket until the plug clicks audibly into place. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page222of9894.8 Replacing detergent cover A small screwdriver can be used as a levering tool. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Door has been opened. Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.

2. Lever the detergent cover on the lower side out of the guide rails and take the de-

tergent cover on the upper side out of the guide rails.

3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

2. Insert the short end of the spring into the mounting hole of the detergent cover (2).

3. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide

rails on one side. Applying gentle force, press the opposite side into the guide rails.

2. Check the function of the detergent cover.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page223of9894.9 Replacing wastewater pump cover Prerequisite: Basket has been removed. Filters has been removed.→Page 220

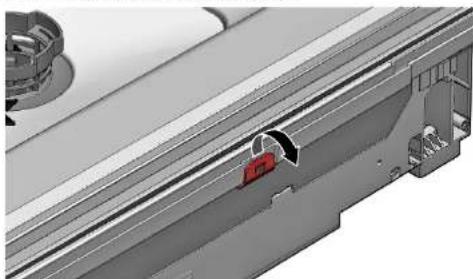

4.9.1 Removing wastewater pump cover

1. Scoop out any water.

Use a sponge if necessary.

2. Prise off the pump cover using a spoon and grip it by the crosspiece.

3. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page224of9894.10 Replacing side panel Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliances is freely accessible. Free-standing appliances: Worktop has been removed.→Page 214

4.10.1 Removing side panel

1. Remove screws from the side panel (1).

Fig.1: Fully integrated

2. Tilt the side panel slightly outwards at the top (2).

3. Lower the side panel and pull it out of the base trough (3).

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page225of9894.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig.2: Fully integrated

2. Press the side panel onto the appliance (2).

3. Secure the side panel with screws (3).

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page226of9894.11 Replacing outer door Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.11.1 Removing outer door

Just remove the screws which are described in the following steps.

2. Remove four screws.

Secure the door by holding it on one side. Remove two screws.

4.11.2 Installing outer door

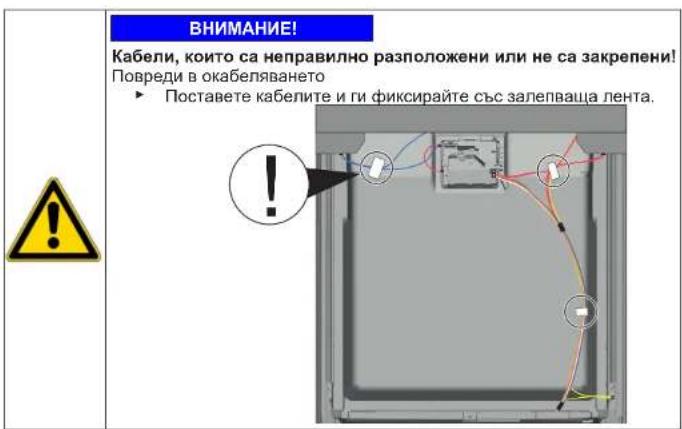

Notice Cables which are incorrectly positioned or not secured! Damage to cabling

Position the cables and secure in place with adhesive tape.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page227of989Prerequisite: Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.

2. Push the outer door upwards underneath the control panel (1).

3. Press the outer door against the inner door and hold (2).

Secure the door by holding it on one side. Open the door and secure it with two screws (4 x 11 mm metal screws).

5. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page228of9894.12 Replacing control panel If an operating module is defective, the entire control panel must be re- placed. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid

3. Open the appliance door.

4. Secure the control panel to prevent it from falling down (hold on to it).

5. Remove six screws.

6. Remove the control panel.

1. Remove cord guide cover out.

2. Move the groove to the back and release the door hinge (5).

3. Open the door (6).

4. Repeat the process again on other side of appliance.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page231of9894.14 Replacing toe panel The feet are identical and can be swapped over. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

Incorrect removal. If the toe panel is loosened at the side and removed, the two brack- ets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

2. Reach into the guides (1) with a screwdriver and release the catch by pushing

3. Lift the panel off.

4. Remove the feet forwards (1).

2. Attach the toe panel at the top (1) and press it down until it audibly clicks into

place (2). Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page232of9894.15 Replacing base socket plate The base socket plate is located in the lower area at the front. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel (optional) has been removed. Outer door has been removed. Outer door has been removed (fully integrated/integrated). Toe panel has been removed (optional).→Page 232

4.15.1 Removing base socket plate

1. Remove two screws (1).

2. Disengage catch elements (2).

3. Tilt the base socket plate carefully forwards (1).

Depending on the model series, the plug to the EmotionLight is still secured to the base. Unlock the plug on the catch tappet and pull to the rear (optional) (2).

Install the base socket plate in reverse order. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page233of9894.16 Replacing overflow conduit The overflow conduit is located in the front lower area of the appliance. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional).→Page 232 Base socket plate has been removed.→Page 233

4.16.1 Removing overflow channel

Residual water ¡ When the drainage hose is removed, residual water may run out. ¡ Catch water or remove from the base pan with suction syringe.

1. Lever out of the catch mechanism at the top (1, 2).

2. Release catch element at top.

3. 1. Insert screwdriver below metal brake (1).

2. Gently release metal clip (2).

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

4. Clip in metal clip on left and right side.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page236of9894.17 Replacing inner door Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply.

1. Flap door seal to front.

2. Move inner door behind door seal.

3. Close inner door.

4. Flap door seal upwards.

Sideparts show upwards.

5. Move door hinge upwards.

6. Secure door hinge with screws.

7. Place inner door on door hinge.

8. Secure inner door with screws.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page237of9894.18 Replacing door hinge Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliances is freely accessible. Side panel has been removed.→Page 225 Outer door has been removed. Inner door has been removed. Control panel has been removed.→Page 229 Door spings has been fixed.→Page 230 Toe panel has been removed.→Page 232 Base socket plate has been removed.→Page 233 Overflow channel has been removed.→Page 234

4.18.1 Removing door hinge

1. 1. Release catch hook with a screwdriver(1).

2. Pull door hinge forwards (2).

2. Release ground connection on door hinge.

4.18.2 Installing door hinge

Danger Risk of electric shock due to live parts! Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.

2. Move hinge downwards (2) till it is latched to the appliance.

A missing ground connection can lead to mains potential on door. Establish ground connection. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page239of9894.19 Replacing (lower) door seal Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed.→Page 233 Toe panel has been removed (optional).→Page 232 Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

2. Detach the overflow channel.

3. Lift the overflow gutter off.

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

2. Insert the door seal with the sealing flap in the inner door.

3. Secure the door seal with two retaining clips.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page241of9894.20 Replacing (upper) door seal Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.

2. Ensure correct installation position of sealing profile.

3. White dot must be on level with sealing bed strip.

Sealing must not be wavy or stretched at corners. Seal is cut off di- agonally at ends and tapers away into bottom of container at front. Position end of seal straight to front underneath inner door. Seal should lie against side of container as far as possible. Correctly installed door seal: Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page242of9894.21 Replacing EmotionLight The EmotionLight is situated in the upper front exterior area of the rinsing tank. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliances is freely accessible. Worktop has been removed (optional). The right-hand side panel has been removed (optional).→Page 225

3. Pull plug out of connector (bottom right at front of appliance).

4. Remove electrical connection from the power module.

5. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Notice Improper installation! Damage to the cable in the area of the door hinge.

Install the cable in the area of the door hinge (between the plate hinge and the rinsing tank) so that it cannot be damaged by moving parts. Install the cable on the right lower side. Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page244of989Fig.3: Flat cable

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page245of9894.22 Replacing TimeLight Replace the TimeLight only as a complete part. The TimeLight module is fixed to the rear of the base socket plate. Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Toe panel has been removed.→Page 232 Base socket plate has been removed and turned.→Page 233

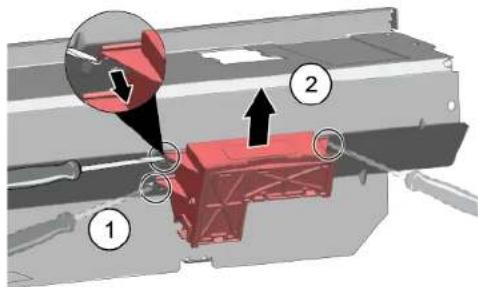

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Bend the catch elements (1) back again.

2. Push the TimeLight module into the guide (2).

3. Connect the electrical connection.

Repair 2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Page246of9894.23 Replacing Gap illumination Prerequisite: Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door is disassembled. Operation panel has been removed.

4.23.1 Removing Gap illumination

1. 1. Detach catch (1).

2. Remove electrical connection from the operation module (2).

2. Lift up PCB with holder and remove it from operation module frame (2).

2. Tighten it with a "click" sound.

3. Install light fibre and tighten it with a "click" sound.

4. Connect wire to operation module.

4.17.1 Remover a porta interior

4.17.2 Instalar a porta interior
