Technical specifications	Electric milk frother, 0.5 L capacity, 500 W power, 2 functions (hot and cold froth)
Usage	Ideal for preparing milk froth for cappuccinos, lattes, and other hot or cold drinks.
Maintenance and repair	Easy to clean thanks to its non-stick coating, removable parts dishwasher safe.
Safety	Automatic shut-off, overheating protection, non-slip base.
General information	Compact design, cord storage, 2-year warranty.

Frequently Asked Questions - SM 3585 SEVERIN

How do I clean the SEVERIN SM 3585 milk frother?

To clean the frother, unplug it and let it cool down. Use a soft, damp cloth to wipe the exterior. The container and whisk can be washed with warm soapy water or in the dishwasher.

Why won\u0027t the milk frother start?

Check if the device is properly plugged in and that the power button is in the \"ON\" position. Also make sure the container is correctly in place and that the milk level is sufficient.

Can the frother be used for drinks other than milk?

Yes, the SEVERIN SM 3585 milk frother can also be used to create froth with plant-based alternatives like almond or soy milk. Just make sure these alternatives are suitable for frothing.

What is the maximum capacity of the milk frother?

The maximum capacity of the SEVERIN SM 3585 frother is about 500 ml for froth and 250 ml for hot milk.

Does the frother make strange noises during use?

A slight noise is normal when using the frother. However, if you hear loud or unusual noises, this may indicate a problem. In that case, unplug the device and contact customer service.

How do I know if the milk is heated enough?

The SEVERIN SM 3585 milk frother has a thermostat that automatically stops heating when the temperature reaches about 65C, which is ideal for hot milk.

Can I make cold milk froth with this device?

Yes, the SEVERIN SM 3585 can prepare cold milk froth. Simply select the appropriate function to get cold froth.

Is there a warranty for the SEVERIN SM 3585 frother?

Yes, the SEVERIN SM 3585 milk frother generally comes with a 2-year warranty. Please check your user manual for more details.

USER MANUAL SM 3585 SEVERIN

Black SEVERIN water heater with blue control panel and power button (no visible text or symbols on device body)

ART.-NO. SM 3585

GB Instructions for use

FR Mode d'emploi

Induction-type milk frother 8

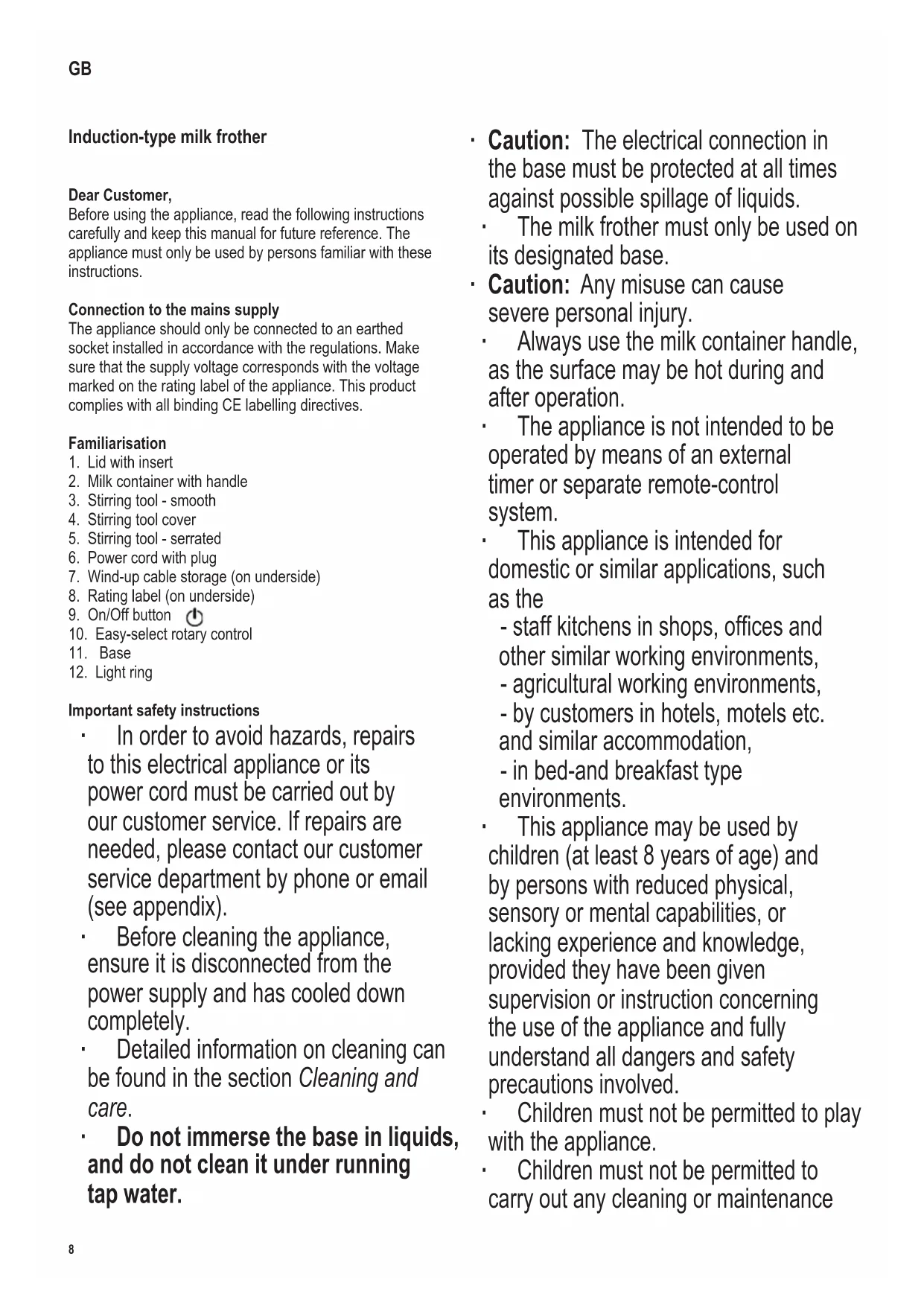

Induction-type milk frother

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Lid with insert
2. Milk container with handle
3. Stirring tool - smooth
4. Stirring tool cover
5. Stirring tool - serrated
6. Power cord with plug
7. Wind-up cable storage (on underside)
8. Rating label (on underside)
9. On/Off button
10. Easy-select rotary control
11. Base
12. Light ring

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix).
• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• Detailed information on cleaning can be found in the section Cleaning and care.

• Do not immerse the base in liquids, and do not clean it under running tap water.

• Caution: The electrical connection in the base must be protected at all times against possible spillage of liquids.

• The milk frother must only be used on its designated base.
• Caution: Any misuse can cause severe personal injury.
  • Always use the milk container handle, as the surface may be hot during and after operation.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended for domestic or similar applications, such as the

- staff kitchens in shops, offices and other similar working environments,

- agricultural working environments,

- by customers in hotels, motels etc. and similar accommodation,

- in bed-and breakfast type environments.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance

work on the appliance unless they are supervised and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

- Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- This appliance is solely designed for heating up and frothing milk, hot chocolate and cocoa. Do not put any other type of liquid or solid food in the container.

- Do not leave the milk frother unattended while in use.

- Always observe the min and max level marks inside the milk container for each application.

- The protrusion in the bottom of the container (min. level mark) must be covered by the milk. If there is not enough milk, the appliance may overheat.

• Overfilling the container may cause danger if frothing milk is forced out.

- Caution: The lid must always be fitted during operation.

- Do not cover the ventilation slots at the rear of the appliance.

- The appliance may only be used with the original accessory parts provided by the manufacturer.

- The appliance must always be set on a firm, level surface.

- Do not allow the appliance or its power cord to come into contact with open flames or any hot surfaces such as hot-plates.

- Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.

- Always remove the plug from the wall socket

- in case of any malfunction,

- after use,

- before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

- Remove any remaining packaging materials and promotional stickers, and check that all components are present.

- Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as described in the section Cleaning and care.

Wind-up power cord storage

- There is a power-cord storage compartment in the base.

- Unwind the cord to the required length before use.

- Wind up the power cord again after use.

Operation

Lid

• The lid must always be fitted during operation.
• To add ingredients during operation, turn and then take off the lid insert.
• For storage, the smooth stirring tool can be fitted to the lid insert.

Light ring

Red

A function with heating is selected.

Blue

A function without heating is selected.

Steady light

Preparation is in progress.

Flashing red or blue

The unit is waiting for an input, preparation is complete, or an error has occurred (see Trouble shooting at the end of the instructions).

Selecting the stirring tool

The following stirring tools are available:

→ smooth → serrated + → serrated with cover

Beverage Function Stirring tool
Milk froth Frothing
Hot milk Heating
Hot chocolate/cocoa	Heating

Fill amounts

- MIN minimum quantity 120 ml – the protrusion must be covered

- MAX Frothing maximum quantity of milk 260 ml (lower max mark)

- MAX ☐ Stirring and heating maximum quantity 500 ml (upper max mark)

Preparing the appliance

• Remove the lid from the milk container.
• Fit the selected stirring tool in the milk container and push it down: ensure it is seated on the lower part of the protrusion.
• Put the required amount of milk into the container.
• Place the lid on the container.
• Insert the plug into the wall socket.
• Place the milk container onto the base.

Preparation

- Turn the rotary control to turn the appliance on and select the required function:

→ cold frothing → warm frothing or heating milk

→ hot chocolate / cocoa - Press to start the preparation.

- Note: If the appliance is not in stand-by mode, the button must be pressed twice.

• The programme starts.
• To prepare cocoa and hot chocolate, fill in the desired amount of cocoa powder or chocolate (see Preparation instructions).
• Once processing is complete, the heating and stirring process stops automatically.
• You can now remove the milk container from the base.
• Pour out the prepared food, or use a suitable spoon to take off the milk froth. Do not leave any residual amounts in the container.
• Detach the power cord from the wall socket after use.
• Always allow the appliance to cool down first, and then clean it, before starting a new cycle.

Preparation instructions

Milk froth:

• We recommend using milk with a high protein content. For best results, the milk should be taken from the refrigerator immediately before frothing.
• To achieve a thicker froth, go through a cold-frothing cycle first, followed by a hot-frothing cycle.

Hot chocolate / cocoa:

• To prepare drinking chocolate from milk and chocolate or cocoa.
• Grate the chocolate finely before preparation.
• Alternatively, break down the chocolate to pieces of 5 x 4 cm minimum (but not any smaller). Caution: Do not fill in melted chocolate!
• Fill in the chocolate / cocoa only after the programme has started, when the milk is already being stirred. Otherwise, the stirring tool could jam.
• We recommend using the following amounts of chocolate:
  200 ml milk → approx. 15-20 g
  350 ml milk → approx. 30-35 g

Interrupting a cycle

- The heating or stirring process may be stopped by pressing ⏻ at any time.

Automatic switch-off

- The appliance switches off automatically two minutes after non-use.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the base or the power cord with water and do not immerse them.
• The base can be cleaned with a soft, damp cloth and some detergent.
• The milk container, stirring tools and lid should be cleaned after each cycle of use with hot water and a little detergent, or in the dishwasher. If necessary, the serrated stirring tool may be taken off and cleaned with a suitable brush.
• Wipe all parts thoroughly dry.
• Do not use abrasives or harsh cleaning solutions.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Trouble shooting

Problem Cause Remedy
Milk is not frothing / The light ring flashes red and blue	Missing stirring tool Fit stirring tool
	The motor jams	Detach the milk container, remove the blockage, re-start the appliance
Light ring is flashing	Milk container was removed during operation	Fit the milk container and re-start the appliance
Appliance doesn’t start	The unit was not in stand-by mode when ⏻was pressed	Press ⏻again

Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.
