USER MANUAL Illusion Joie

Line drawing of a baby crib with mesh backrest and matching seat (no text or symbols)

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

Set Up Travel Cot

1

2 CLICK 3 CLICK

Illustration showing two steps of a baby's bed: one with a person opening the blanket, and another with a person placing a box on a blanket.

Simple line drawing of a corner wall with a red ribbon detail (no text or symbols)

Illustration of a baby crib with two different compartments, one open and one closed, both showing internal mesh patterns (no text or symbols)

Set Up Bassinet

Illustration of a person placing a box into a net, with an upward arrow indicating motion (no text or symbols)

Illustration of a person placing a baby box into a baby crib, with a downward arrow indicating the process (no text or symbols)

Illustration of a baby crib with a highlighted section showing measurement points (no text or symbols)

Set Up Storage shelf and changer

Line drawing of a boat hull with two upward arrows indicating direction (no text or symbols)

12 click click

Line drawing of a baby car seat with decorative panel and seat cover (no text or symbols)

18 2

To Use Changer

13 1 2

14 1

19 1 2

20 CLICK

Line drawing of a rectangular container or tray with a circular badge labeled '15' in the top-left corner (no other text or symbols)

16

21 1 2

Illustration of a mechanical device with a lever and handle, no text or symbols present

Fold Travel Cot

23 1 2 2 1

24 ↑₂ ↑₂ 1

Illustration of a person placing an object into a baby crib (no text or symbols)

Illustration of a two-tiered storage unit with upward arrows indicating accumulation (no text or symbols)

Simple line drawing of a rectangular frame with connectors and a yellow arrow indicating direction (no text or symbols)

Illustration of a climbing frame with a close-up inset showing a hand holding a small object (no text or symbols)

Illustration of a person using a tool on a table, no text or symbols present

32 ↑1 2 3

27 1

Line drawing of a mechanical part with two arrows indicating features, no text or symbols present

Line drawing of a person in a chair with arrows indicating movement or posture (no text or symbols)

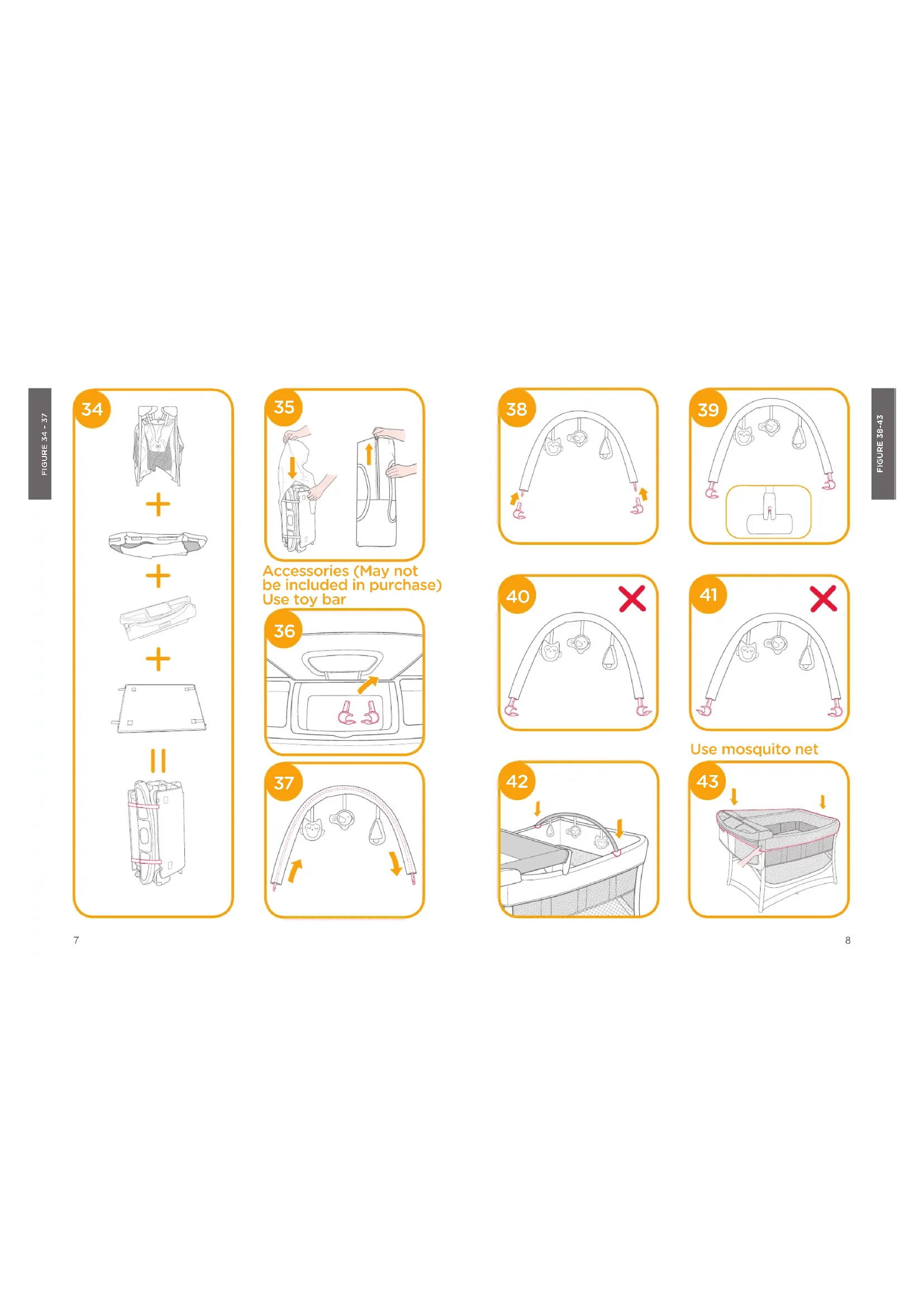

34 + + + + 11

35

Accessories (May not be included in purchase) Use toy bar

36

37

38

40 ×

42

39

41 X

Use mosquito net

Illustration of a baby crib with measurement arrows indicating depth (no text or symbols)

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using the Joie illusion ^10 , your baby is enjoying a high quality, fully certified travel cot, approved to European safety standards EN716-1/2:2017 and EN 12221-1:2008+A1:2013. This product is suitable for use with children weighing under 15kg (approximately 0-4 years). Please carefully read this manual and follow each step to ensure a comfortable sleeping and best protection for your child.

Please keep the Instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products.

For warranty information, please visit our website at joiebaby.com

! IMPORTANT RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features and accessories may vary depending on model.

Product Illusion Travel Cot

Suitable for Discontinue using travel cot when child reaches 15kg (approximately 0 - 48 months) or is able to climb out

Discontinue using changer when child reaches 11kg (approximately 0 - 12 months) or is able to climb out

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China

Brand Name Joie

Website www.jolebaby.com

Manufacturer Allison Baby UK Ltd

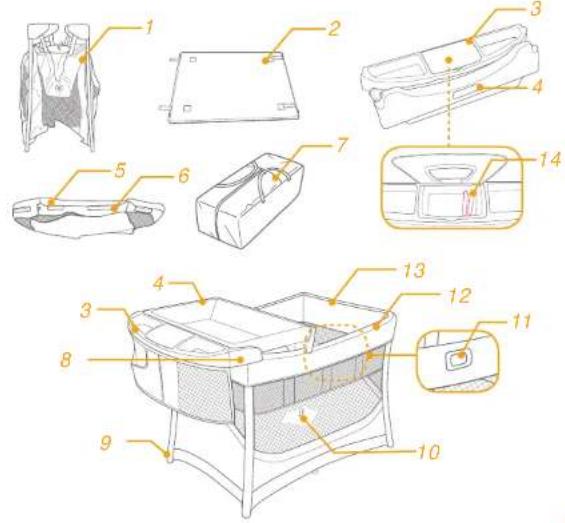

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Travel Cat

2 Mattress

3 Storage Shelf

4 Changer

5 Bassinet

6 Bassinet Clip

7 Carry Bag

8 Support Plastic

9 Foot

10 Folding Webbing

11 Safety Button

12 Long Rail

13 Short Rail

14 Connecting Tube

Parts List (Optional)

Make sure all parts are available before assembly. Accessories may be sold separately or may not be available depending on region. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Toy
2 Toy Bar
3 Mosquito Net

WARNINGS

! Adult assembly required.
! Please save instruction manual for future reference.
! Read all the instructions in this manual before using product.
! Discontinue using travel cot when child reaches 15kg (approximately 86 cm in height) or is able to climb out.
! Discontinue using changer when child reaches 11kg (approximately 0 - 12 months) or is able to climb out.
! Discontinue using bassinet when child can sit, kneel or roll over or pull itself up.
! The lowest position of the mattress is the safest and the base shall always be used in that position as soon as the baby is old enough to sit up.
! Failure to follow these warnings and instructions could result in danger.
! Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
Do not leave the child unattended. Always keep your child in view.
! Use the travel cot with only one child at a time.
! Do NOT use more than one mattress in the travel cot.
! Once the bassinet is installed, DO NOT place child under the bassinet.
! DO NOT leave anything in the travel cot or place the travel cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind curtain cords etc.
! Always use travel cot on a flat, level floor.
! Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.
! To avoid strangulation. DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
All assembly fittings should always be tightened properly and that fittings should checked regularly and re-tightened as necessary.
! Regularly inspect the product for damaged hardware, loose joints, missing parts or sharp edges.
! DO NOT move the travel cot with your child in it.
Make sure the product has been folded or unfolded completely before letting your child approach the travel cot.
You must attend to your child while it is in the bassinet. Do not place the bassinet in a dangerous place.
! Do not replace Joie mattress with other mattress or soft pad.
Should the padded rim be split or bitten through to expose the padding, do not use the travel cot.
A cot is ready for use, only when the locking mechanisms are engaged and to check carefully that they are fully engaged before using the folding cot.
! Always keep accessories out of child's reach. Remove the accessories when child is able to pull itself up in the travel cot.
! DO NOT use the bassinet as a napper before assembling with mattress.

! DO NOT store the bassinet in the travel cot while not in use.
! You must follow the instructions in this manual when using the travel cot and the bassinet.
To prevent possible injury by entanglement, remove this toy when the child starts trying to get up on its hands and knees in a crawling position.
To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
Do not install or hang the playard to fixed or unfixed frame.
1 Only use the mattress sold with this cot, do not add a second mattress on this one, suffocation hazards.

Please read all the instructions in this manual before setting up and using this product.

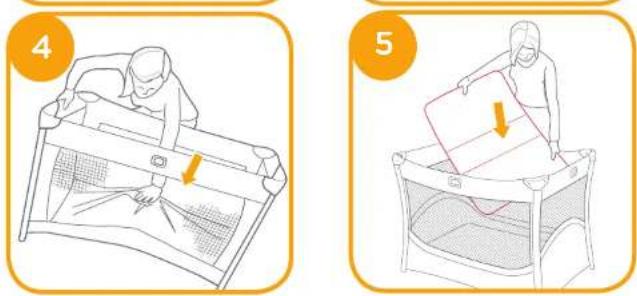

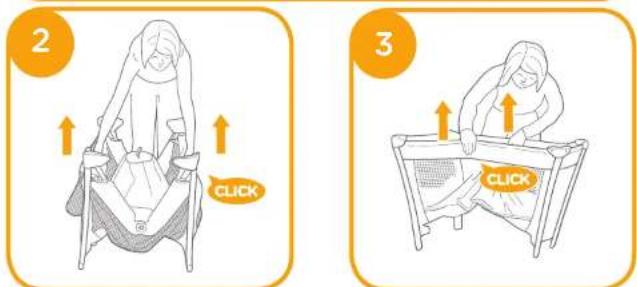

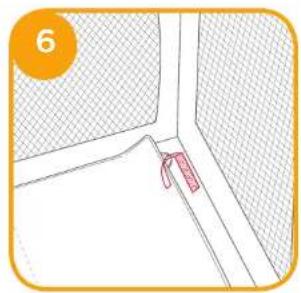

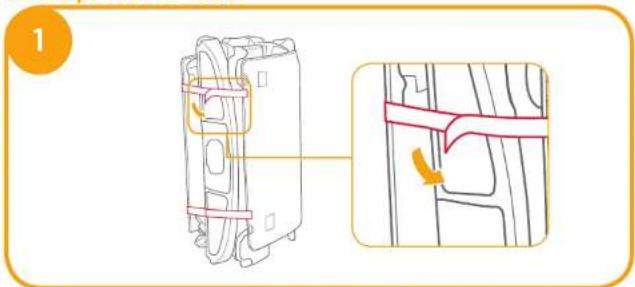

Set Up Travel Cot

see images ① - ⑥

Lock the rails

• Pull the short rails up until both become rigid. If not rigid, pull up again until they are rigid.
• Latch the long rails, 3
• Push the center of floor down.
  1 Be sure all rails have locked before lowering center.

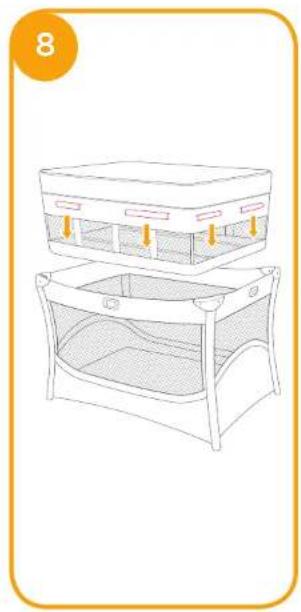

Set Up Bassinet

see images ⑦ - ⑩

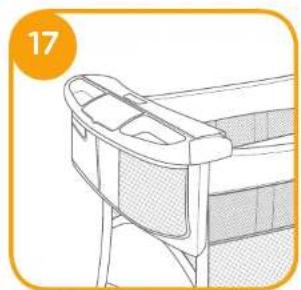

Set Up Storage shelf and changer

see images 1 - 18

• Unfold short Changer Rail to be level status.
- Rotate support plastic as 13 -1, and move it along short Changer Rail as 13 -2

Please clip the plastic to changer and rotate the plastic 🤔 if the plastic drop from the changer

To use changer

see images ① - ②

• Lift changer upwards and then put it down before using it. Please make sure the changer mount is completely locked onto the rail by hearing "Click" sound.

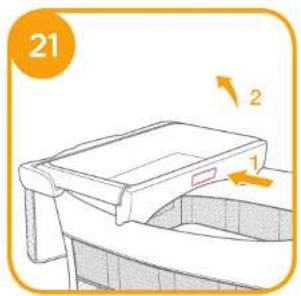

• Press the release button and lift changer upwards, then slide down to store.

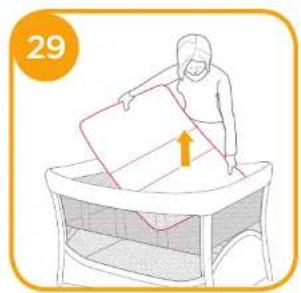

Fold travel cot

see images 2 - 5

• Press two release buttons on mount tubes at the same time to lift changer
• Press the tab of support plastic as 24-1, and then the storage shelf can pull apart from changer as 34-2
• Move support plastic along short changer rail as ⚙, and then rotate it as ⚠ - 1

• Fold short changer rails inwards as 27

• Pull the folding webbing.
  Do not unlock rails yet. Center of floor must be halfway up before unlocking the rails.

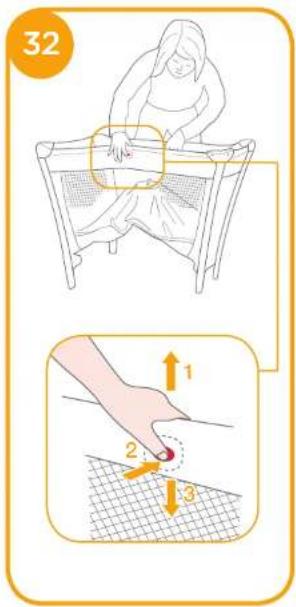

• Unlock all four rails by following these steps.
  1) Slightly lift the center of the rails.
  2) Push the button
  3) Push down the rails -3
  Do not force fold
  1 If unit will not fold, look for a partially latched rail. Squeeze the latch button to release the rail.

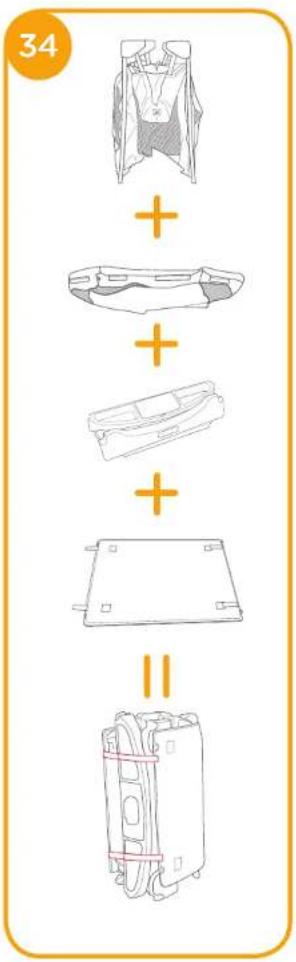

  • To pack and cover the travel cot

Accessories (May not be included in purchase)

Use toy bar

see images 🟢 - 🟢

Use mosquito net

see images

• Please cover the mosquito net on the rails as
  Using the mosquito net:
  1) please fold the changer
  2) please remove the toys and toy bar.

Care and Maintenance

1. The covering material is not removable.
2. Your travel cot can be spot cleaned with a sponge and soapy water.
3. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the travel cot. It may cause damage to the travel cot.
4. To wash carry bag, machine wash in lukewarm water and drip-dry. Do not use bleach.
5. At the beach or in the garden, clean sand and grit off your travel cot. Sand in the long rail locks may cause damage.
6. From time to time, check your travel cot for worn parts, torn material or stitching. Replace or repair the parts as needed.
7. If the travel cot is not in use for a long period of time, please put it in the shade where your child cannot access it.

Bem-vindo a Joie™

Site Wed www.joliebaby.com

Fabricante Allison Baby UK Ltd

- Trave as grades longas.

3) Empurre para balxo as grades 34 - 3

Fabricante Allison Baby UK Ltd

Lista de piezas

Technical diagram of a baby crib with numbered parts and an inset photo showing the interior space.

Web: Sygnish Urefici www.joliebaby.com Allison Baby UK Ltd

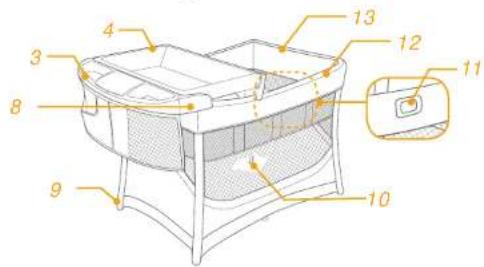

Parca listesi
