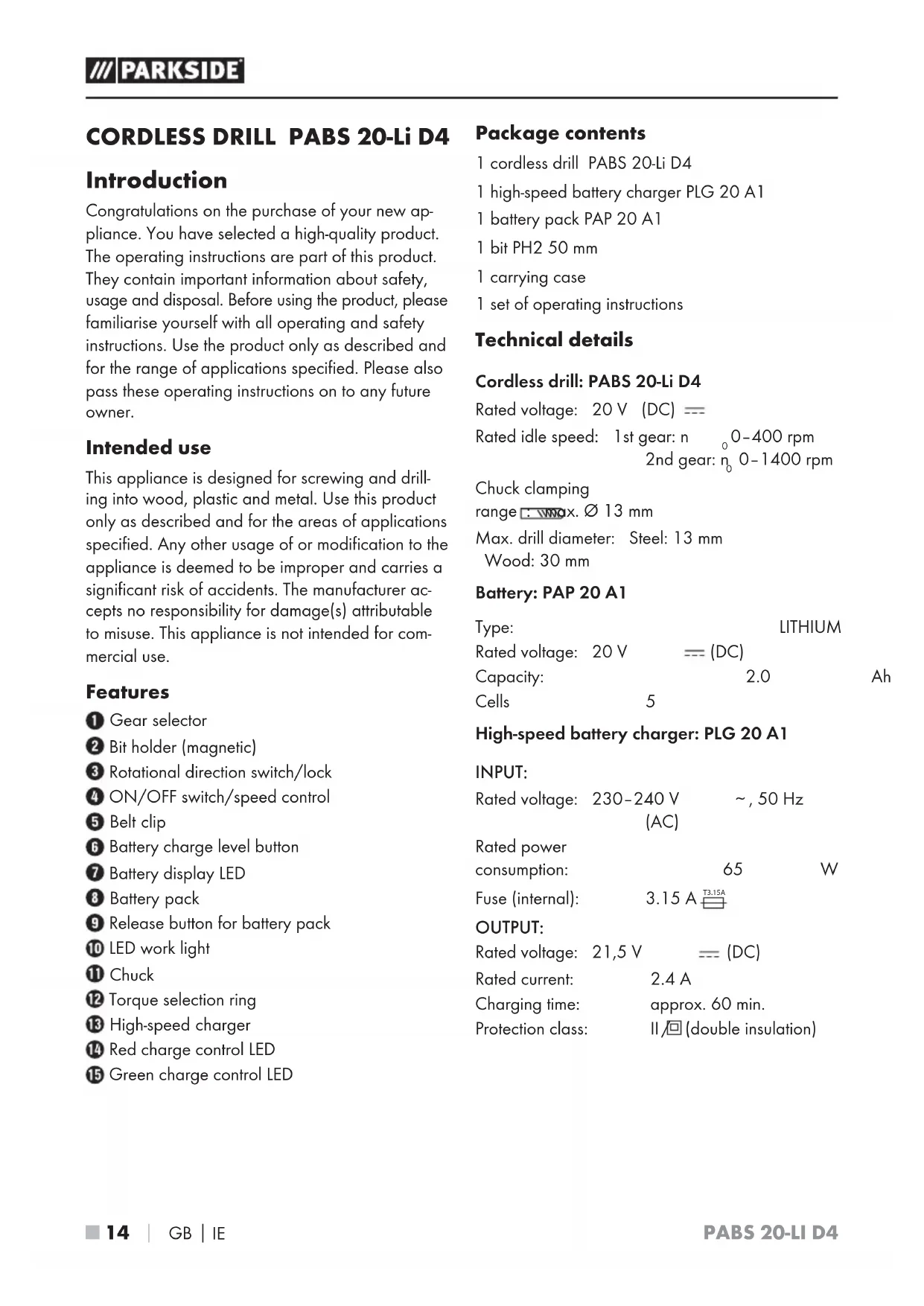

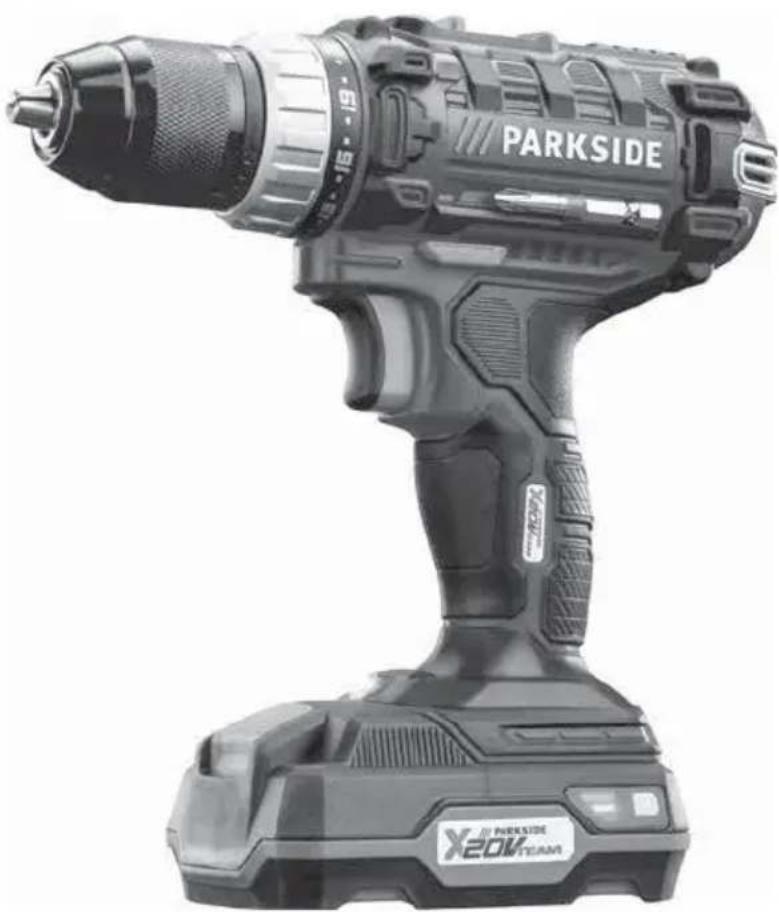

CORDLESS DRILL PABS 20-Li D4 Introduction Congratulations on the purchase of your new ap- pliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This appliance is designed for screwing and drill- ing into wood, plastic and metal. Use this product only as described and for the areas of applications specified. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer ac- cepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for com- mercial use. Features Gear selector Bit holder (magnetic) Rotational direction switch/lock ON/OFF switch/speed control Belt clip Battery charge level button Battery display LED Battery pack Release button for battery pack LED work light Chuck Torque selection ring High-speed charger Red charge control LED Green charge control LED Package contents 1 cordless drill PABS 20-Li D4 1 high-speed battery charger PLG 20 A1 1 battery pack PAP 20 A1 1 bit PH2 50 mm 1 carrying case 1 set of operating instructions Technical details Cordless drill: PABS 20-Li D4 Rated voltage: 20 V (DC) Rated idle speed: 1st gear: n

0–400 rpm 2nd gear: n

, 50 Hz (AC) Rated power consumption: 65 W Fuse (internal): 3.15 A T3.15A OUTPUT: Rated voltage: 21,5 V (DC) Rated current: 2.4 A Charging time: approx. 60min. Protection class: II / (double insulation)PABS 20-LI D4

 15 ■ Noise emission value: Noise measurement value determined in accord- ance with EN 60745. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

= 68.5 dB(A) Uncertainty K: K

= 3 dB Sound power level: L

= 3 dB Vibration emission value: Total vibration values (vector total of three directions) determined in accordance with EN 60745: Screwing: Vibration emission value

Drilling in metal: Vibration emission value

NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with the standardised measuring procedure speci- fied and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.Damaged or entangled cords increase the risk of electric shock.PABS 20-LI D4 ■ 16 

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.Use of an RCD re- duces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing ac- cessories or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many ac- cidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.PABS 20-LI D4

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery unit using only the charger recommended by the manufactur- er. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety guidelines for cordless screw drivers WARNING! ■ Hold the power tool by the insulated gripping surfaces when performing an operation where the screw or attached tool could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock. Safety guidelines for battery chargers ■ This appliance may be used by chil- dren aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Children must not play with the appliance. Clean- ing and user maintenance tasks may not be carried out by children unless they are supervised. The charger is suitable for in- door use only. WARNING! ■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer’s customer service depart- ment or a similarly qualified person.PABS 20-LI D4 ■ 18 

Before use Charging the battery pack (see fig. A) CAUTION! ► Always pull out the plug before you remove the battery pack from or connect the battery pack to the charger. ■ Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. ♦ Connect the battery pack to the rapid bat- tery charger (see Fig. A). ♦ Insert the power plug into the socket. The con- trol LED lights up red to indicate that the appliance is charging. ♦ The green control LED indicates that the charging process is complete and the battery pack is ready. ♦ Insert the battery pack back into the appli- ance (see Fig. B). Attaching/disconnecting the battery pack to/from the appliance Inserting the battery pack: ♦ Push the rotation direction switch into the middle position (lock) (see Fig. C). Allow the bat- tery pack to click into the handle (see Fig. B). Removing the battery pack: ♦ Press the release button and remove the bat- tery pack (see Fig. D). Checking the battery charge level ♦ Press the battery charge level button to check the charge level of the battery (see Fig. E). The status/remaining charge will be shown on the battery display LED as follows: ♦ GREEN/RED/ORANGE = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge – charge the battery Changing tools Your cordless drill has a fully automatic spindle lock

When the motor is stopped, the power train locks so that the chuck can be opened by turning

. After you have attached the desired tool and tightened it by turning the chuck , you can continue working (see Fig. F). The spindle lock is automatically released when the motor starts (ON/ OFF switch pressed). Torque selection ring/drill setting You can set the torque using the torque selection ring (see Fig. G). ♦ Select a low level for small screws or soft materials. ♦ Select a high level for large screws, hard materi- als or removing screws. ♦ Select the drill setting for drilling work by adjust- ing the torque selection ring to the position (see Fig. H). 2 speed gearbox CAUTION! ► Only operate the gear selection switch when the appliance is at a standstill. Other- wise the appliance can be damaged. In first gear (gear selector switch in posi- tion: 1) (see Fig. I) you can reach a speed of approx. 400 rpm and a high torque. This setting is suitable for all screwing jobs. In second gear (gear selector switch

position: 2) (see Fig. J) you can reach a speed of approx. 1400 rpm for carrying out drilling work.PABS 20-LI D4

 19 ■ Operation Switching on and off Switching on: ♦ To start the appliance, press the ON/OFF switch and keep it pressed in (see Fig. K). The LED work light lights up when the ON/ OFF switch is depressed lightly or fully. This allows for illumination of the work area in low lighting. Switching off: ♦ Release the appliance's ON/OFF switch

switch off the appliance. Adjusting the rotational speed The ON/OFF switch has a variable speed con- trol. Pressing the ON/OFF switch lightly yields a low speed. Increasing pressure increases the speed (see Fig. K). NOTE ► The integrated motor brake ensures rapid stoppage. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotational direction switch towards the left or right (see Fig. L). Tips and tricks Tip! This symbol indicates proper be- haviour! ♦ Before operation, check whether the screw or drill bit is correctly positioned, i.e. centred in the drill chuck. ♦ Screw bits are labelled according to their di- mensions and their shape. If you are uncertain, always check whether the bit fits tightly in the screw head without any free play. Torque: ♦ Smaller screws/bits can be damaged if you set the torque or rotational speed too high. Hard screw joints (in metal): ♦ Particularly high torques occur, for example, in metal screw joints made using drive sockets. Select a low rotational speed. Soft screw joints (e.g. in soft wood): ♦ Again, use a low rotational speed, to avoid e.g. damaging the surface of the wood upon contact with the screw head. Use a countersink. When drilling in wood, metal and other materials, observe the following: ♦ Use a high speed for drill bits with small diameter and a low speed for drill bits with large diameter. ♦ Select a low speed for hard materials and a high speed for soft materials. ♦ Secure or fasten the workpiece in a clamp or vice (if possible). ♦ Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting. ♦ Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.PABS 20-LI D4 ■ 20 

Drilling in metal: ♦ Use a metal drill (HSS). For optimum results, cool the drill bit with cutting oil. Metal drill bits can also be used to drill into plastics. Start with a 3 mm diameter drill bit and then increase the size until the desired hole diameter is achieved. Drilling in wood: ♦ Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood. Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The cordless drill is maintenance-free. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Never allow liquids to get into the appliance. ■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. NOTE ► Replacement parts not listed (such as batter- ies, switches) can be ordered via our service hotline. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is depend- ent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.PABS 20-LI D4

 21 ■ Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticu- lously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bot- tom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service WARNING! ► Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts.This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider.This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 306436 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Disposal The packaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Do not dispose of batteries in your normal domestic waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites Your local community or municipal authorities can provide information on how to dispose of the worn-out product.PABS 20-LI D4

 23 ■ Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following stand- ards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (2014/35/EU) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous sub- stances in electrical and electronic appliances. Applied harmonised standards: EN 60745-1:2009/A11:2010 EN 60745-2-1:2010 EN 60745-2-2:2010 EN 60335-1:2012/A11:2014 EN 60335-2-29:2004/A2:2010 EN 62233:2008 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type/appliance designation: Cordless drill PABS 20-Li D4 Year of manufacture: 03 - 2018 Serial number: IAN 306436 Bochum, 08/03/2018 Semi Uguzlu - Quality Manager - Subject to technical changes due to product development.PABS 20-LI D4 ■ 24 

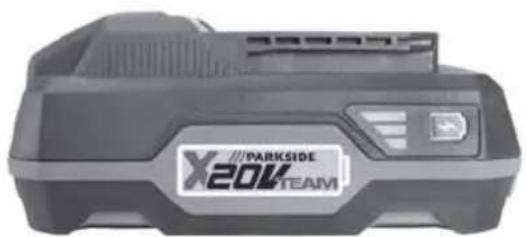

Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. The price of the replacement battery is €20, including VAT and shipping. Due to limited stocks, this item may sell out in a relatively short time. NOTE ► Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline. ■ The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions. Telephone ordering Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie To ensure a fast processing of your order, have the article number of you appliance to hand (e.g. IAN 306436) in case of questions. The article number can be found on the type plate or the title page of these instructions.PABS 20-Li D4
