USER MANUAL Micro Converter HDMI to SDI Blackmagic Design
Mini Converters
Languages
To go directly to your preferred language, simply click on the hyperlinks listed in the contents below.
English 3
日本語 120
Français 238
Deutsch 356
Español 474
中文 592
한국어 710
Русский 828
Italiano 946
Português 1064
Türkçe 1182
Thank you for purchasing Blackmagic Converters for your production needs.
Blackmagic Mini Converters and Micro Converters give you a solution for virtually any conversion you could need. Mini Converters convert analog to digital, digital to analog, SDI to audio, audio to SDI, up, down and cross conversion, SDI distribution, and can even provide a sync generator for locking all your video equipment to the same reference signal. Blackmagic Micro Converters are small and designed for popular conversions such as SDI to HDMI and HDMI to SDI so you can plug any HDMI output into SDI video recorders and switchers, or plug SDI video equipment into HDMI monitors.
This instruction manual contains all the information you need to start using your Blackmagic Converters.
Please check the support page on our web site at www.blackmagicdesign.com for the latest version of this manual and for updates if your Blackmagic Converter has internal software. Keeping your internal software up to date will always ensure you get all the latest features. When downloading software, please register with your information so we can keep you updated when new software is released. We are constantly working on new features and improvements, so we would love to hear from you!
Grant Petty
Grant Petty
CEO Blackmagic Design
Contents
Getting Started 5
Plugging in Power 5
Plugging in Video 5
Plugging in Audio 7
Installing Administration Software 8
Installing Blackmagic Converters Setup 8
Changing Settings 9
Changing Settings using Switches 9
Changing Settings using
Blackmagic Converters Setup 9
About Tab 10
Setup Tab 11
Blackmagic Converter Models 12
Teranex Mini Converters 12
Blackmagic Micro Converters 13
Micro Converter SDI to HDMI 13
Micro Converter SDI to HDMI 3G 15
Micro Converter SDI to HDMI 12G 18

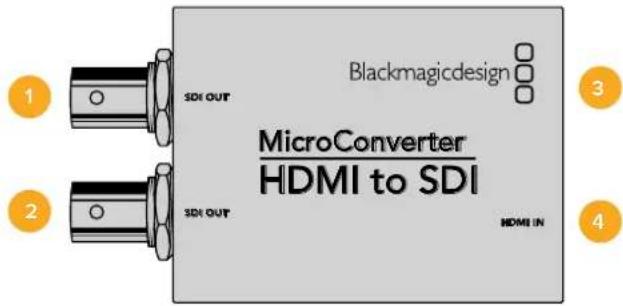

Micro Converter HDMI to SDI 21
Micro Converter HDMI to SDI 3G 23

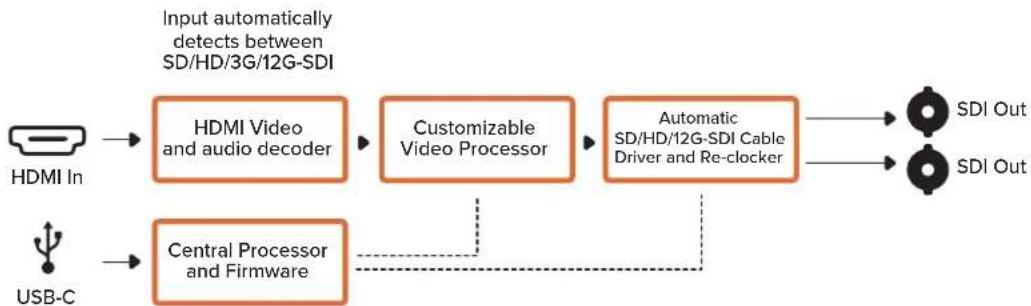

Micro Converter HDMI to SDI 12G 26

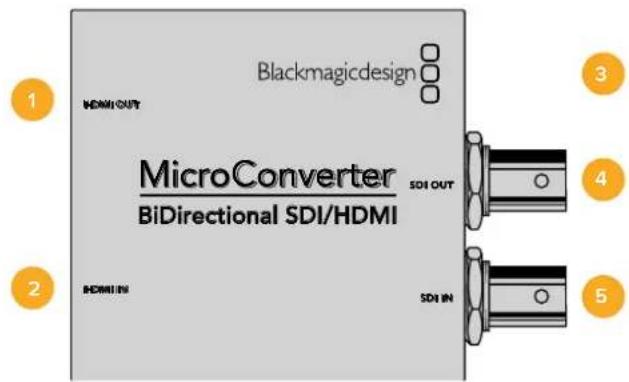

Micro Converter BiDirectional SDI/HDMI 29
Micro Converter BiDirectional SDI/HDMI 3G 31
Micro Converter BiDirectional SDI/HDMI 12G 35
Blackmagic Mini Converters 40
Mini Converter SDI to HDMI 40
Mini Converter SDI to HDMI 4K 44
Mini Converter SDI to HDMI 6G 48
Mini Converter HDMI to SDI 53

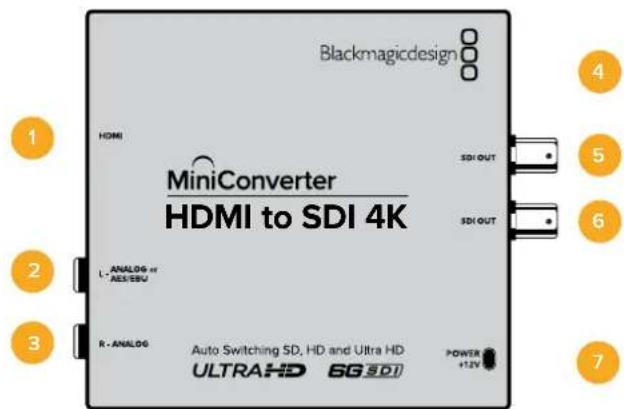

Mini Converter HDMI to SDI 4K 57
Mini Converter HDMI to SDI 6G 60
Mini Converter SDI to Analog 63
Mini Converter SDI to Analog 4K 68

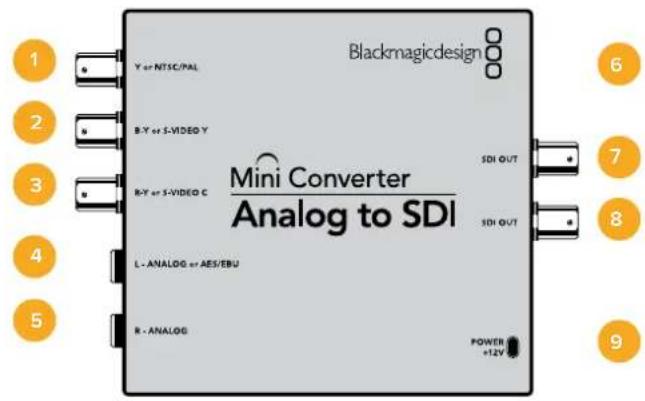

Mini Converter Analog to SDI 73

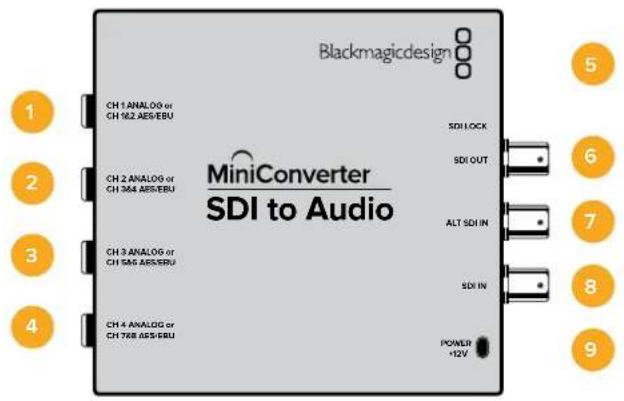

Mini Converter SDI to Audio 77

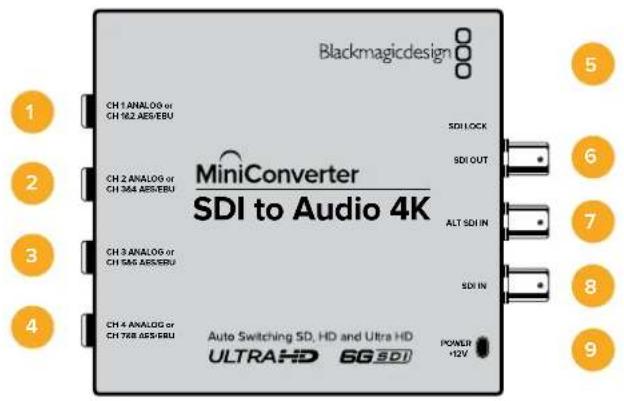

Mini Converter SDI to Audio 4K 80
Mini Converter Audio to SDI 83
Mini Converter Audio to SDI 4K 87

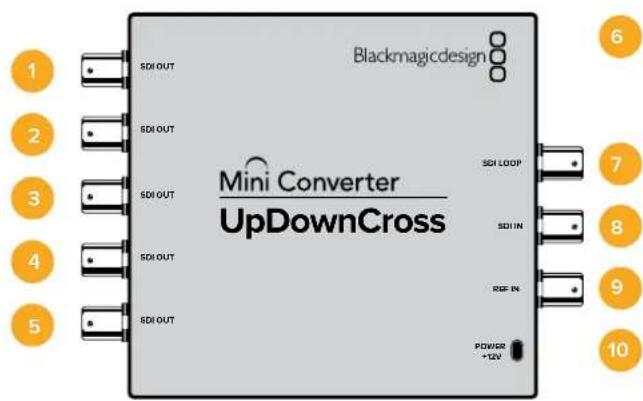

Mini ConverterUpDownCross 91
Mini ConverterUpDownCross HD 95

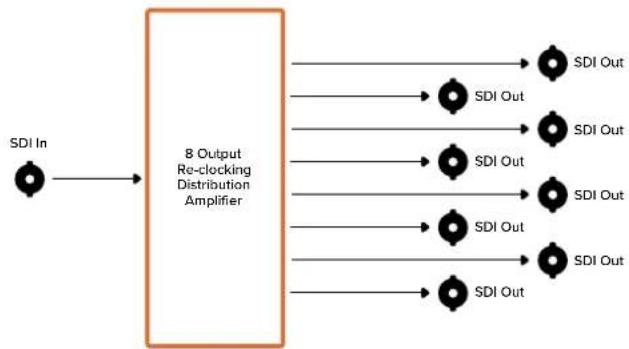

Mini Converter SDI Distribution 99
Mini Converter SDI Distribution 4K 100

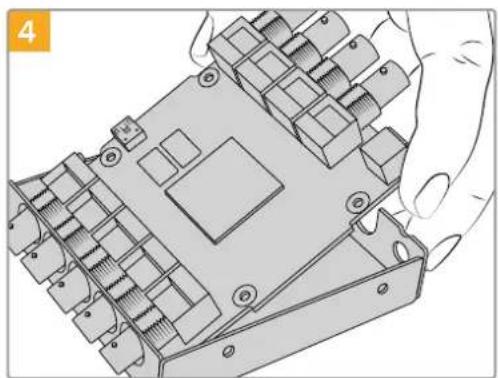

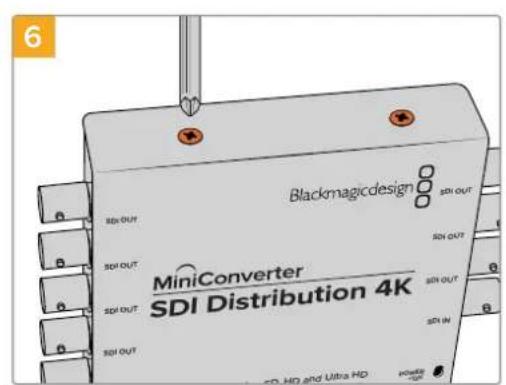

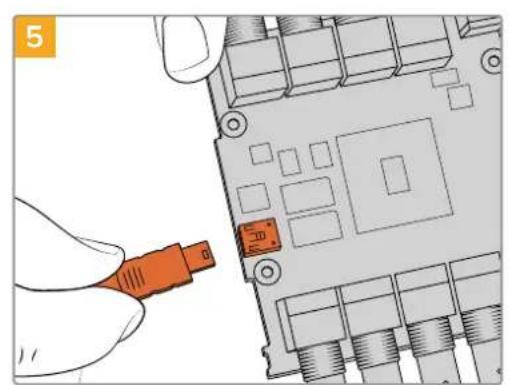

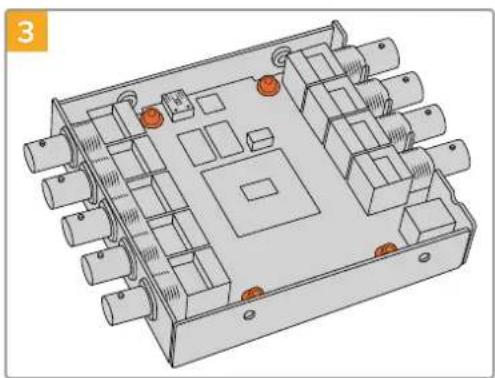

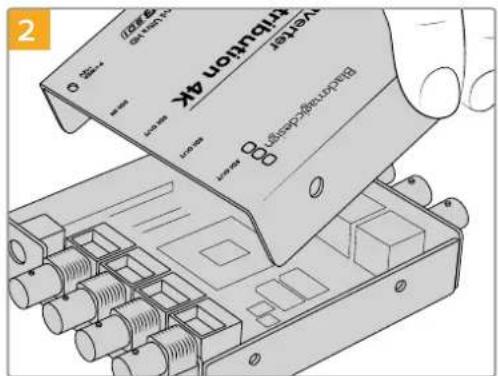

Updating Mini Converter SDI Distribution 4K 101
Mini Converter Sync Generator 103

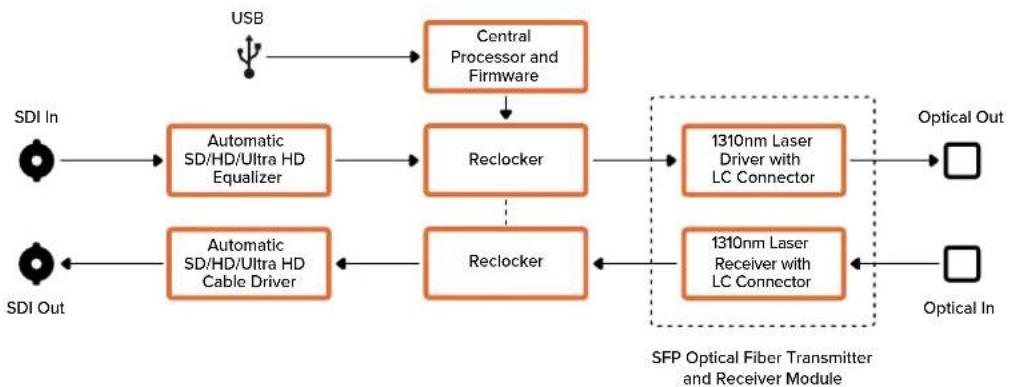

Mini Converter Optical Fiber 106
Mini Converter Optical Fiber 4K 107

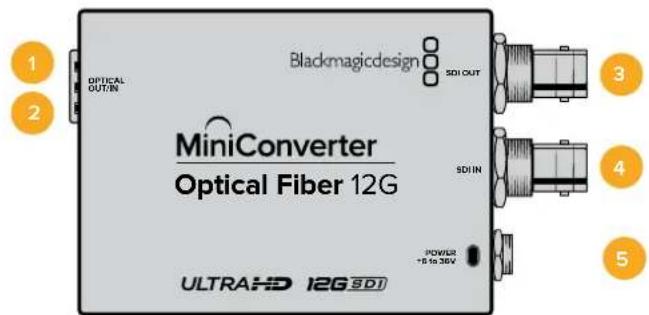

Mini Converter Optical Fiber 12G 108

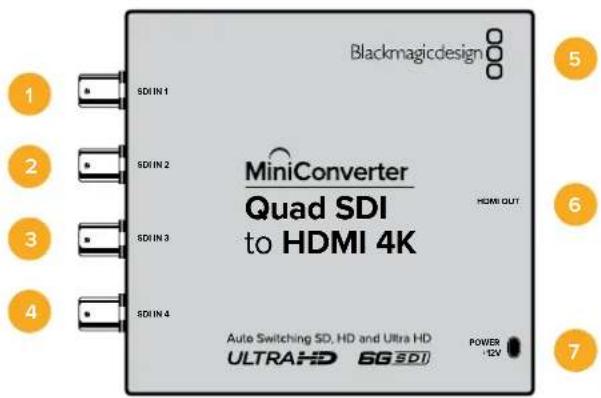

Mini Converter Quad SDI to HDMI 4K 109

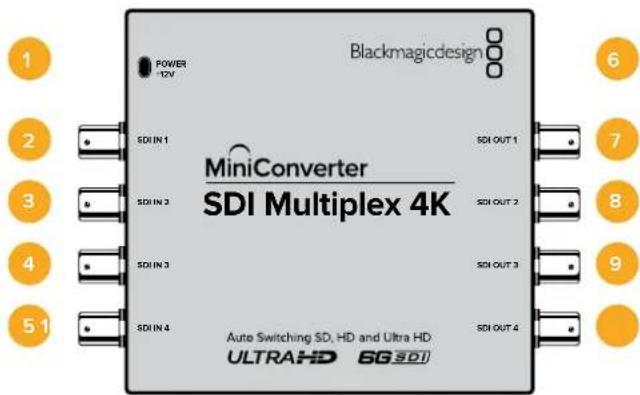

Mini Converter SDI Multiplex 4K 111

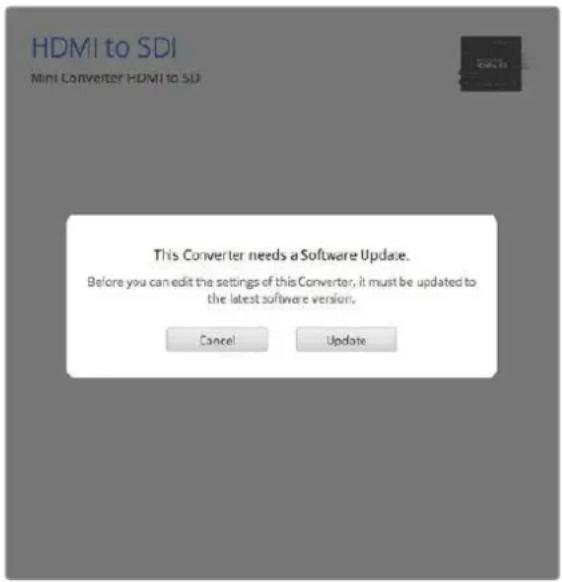

Updating the Internal Software 115
Help 116
Regulatory Notices 117
Safety Information 118
Warranty 119

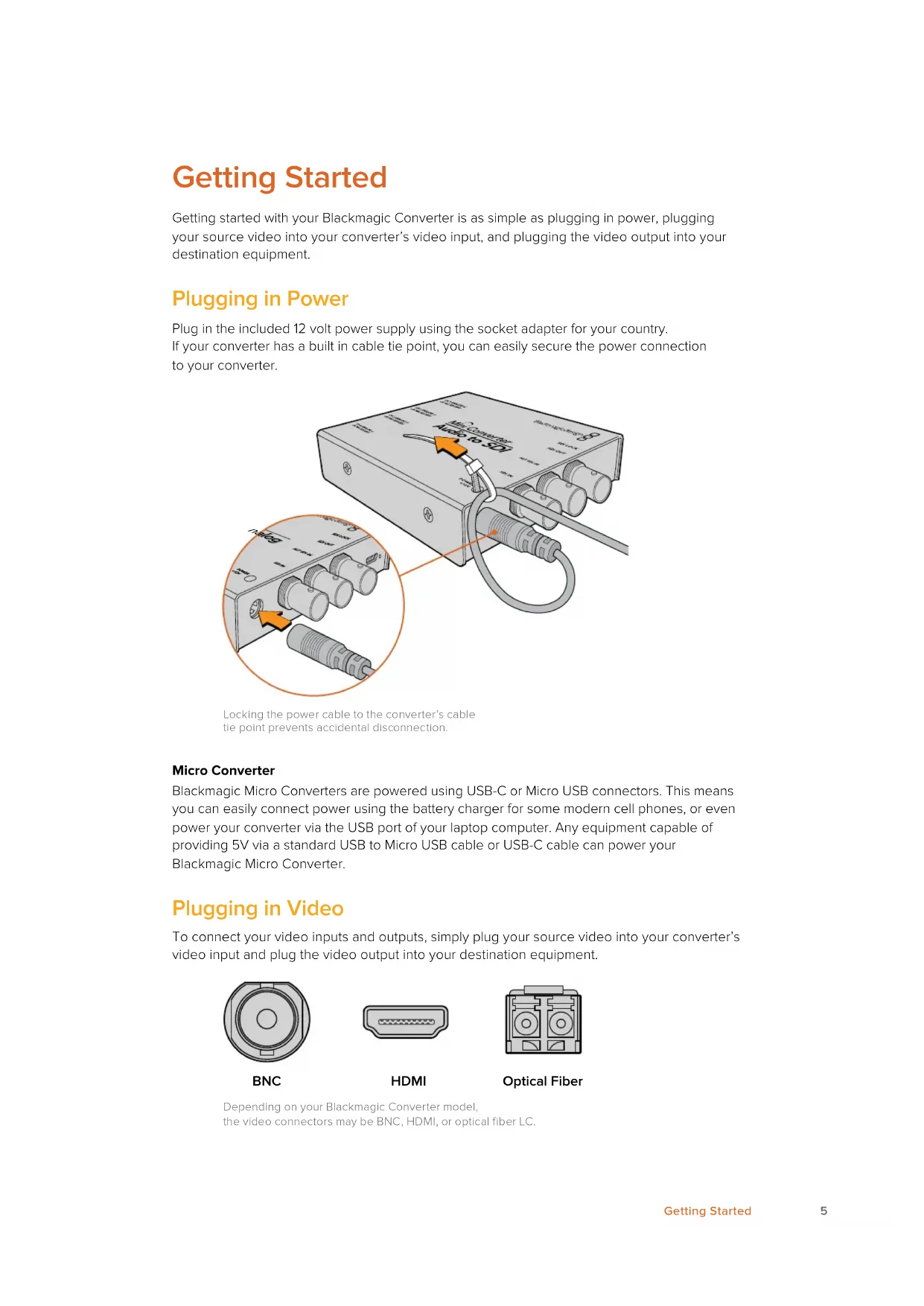

Getting Started
Getting started with your Blackmagic Converter is as simple as plugging in power, plugging your source video into your converter's video input, and plugging the video output into your destination equipment.

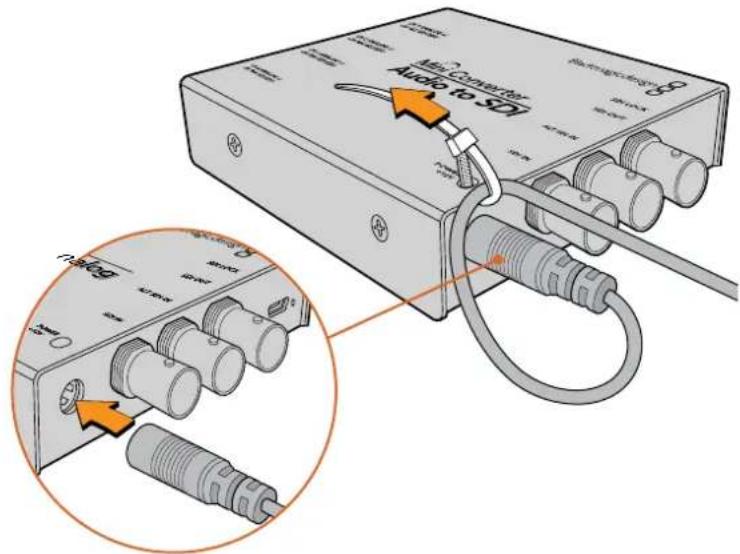

Plugging in Power
Plug in the included 12 volt power supply using the socket adapter for your country. If your converter has a built in cable tie point, you can easily secure the power connection to your converter.
Micro Converter
Blackmagic Micro Converters are powered using USB-C or Micro USB connectors. This means you can easily connect power using the battery charger for some modern cell phones, or even power your converter via the USB port of your laptop computer. Any equipment capable of providing 5V via a standard USB to Micro USB cable or USB-C cable can power your Blackmagic Micro Converter.
Plugging in Video
To connect your video inputs and outputs, simply plug your source video into your converter's video input and plug the video output into your destination equipment.
BNC
HDMI
Optical Fiber
Depending on your Blackmagic Converter model, the video connectors may be BNC, HDMI, or optical fiber LC.

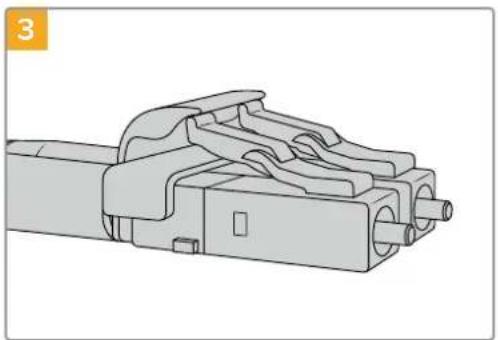

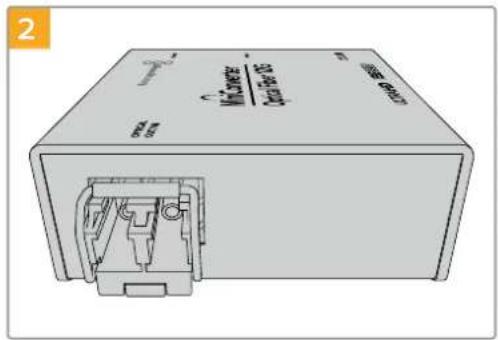

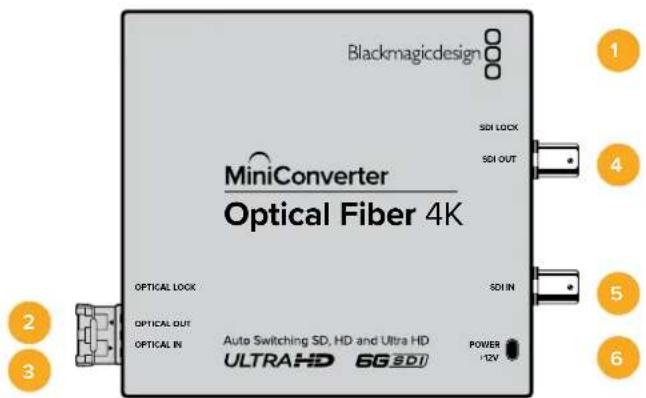

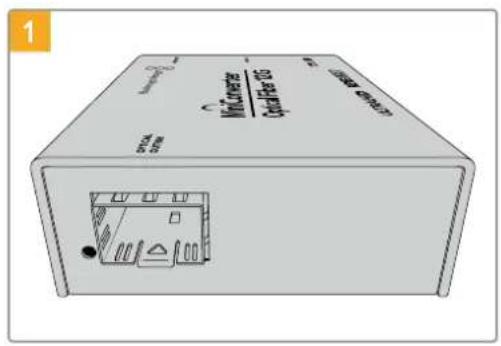

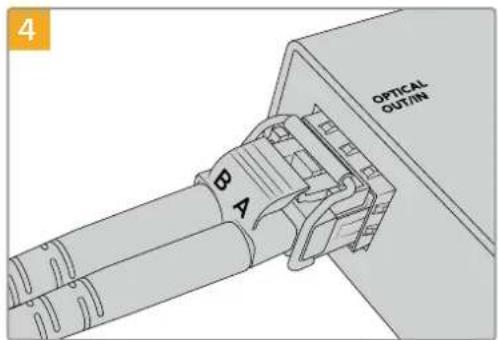

Optical Fiber Connectors
Some Blackmagic Converter models include an SFP socket to accept a compatible SFP optical fiber module that supports up to 3G, 6G or 12G-SDI video. The module is an optical transmitter and receiver with sockets for optical fiber cables.


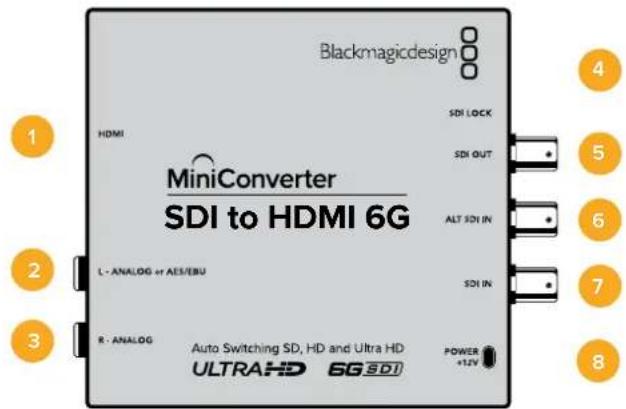

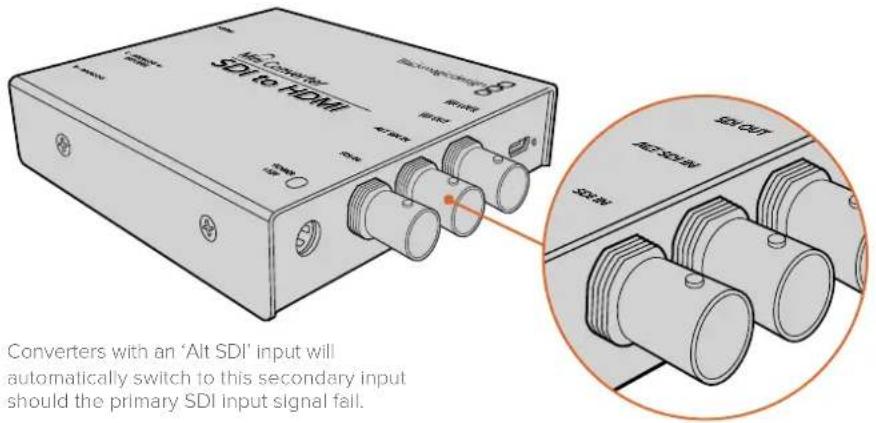

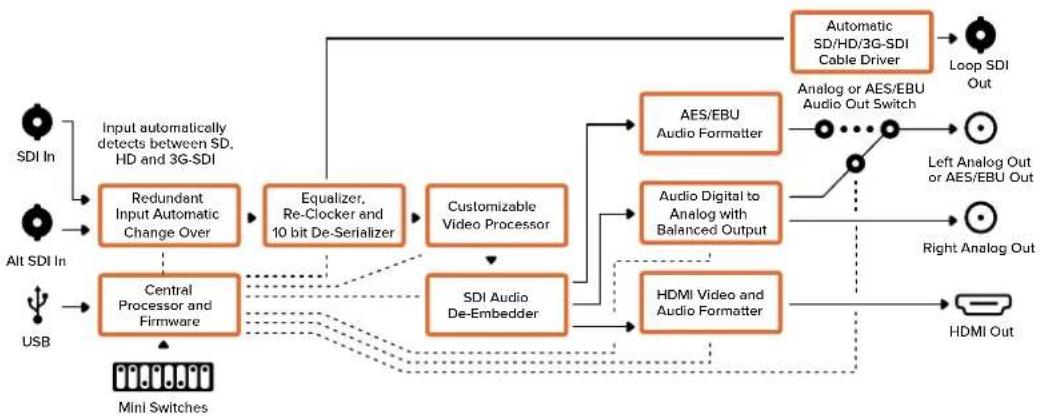

Fail Safe Alternate SDI inputs
Some Blackmagic Converter models include alternative SDI inputs for redundancy.
These inputs are labeled 'Alt SDI In' and will immediately take over should the primary SDI input signal fail. In this rare scenario, the SDI LOCK LED will flash, indicating that the converter has switched to the ALT SDI input.

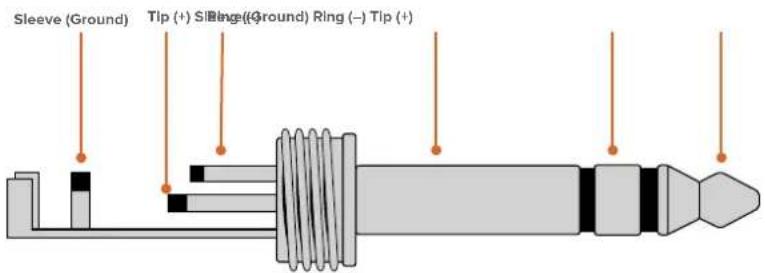

Jack Audio Connectors

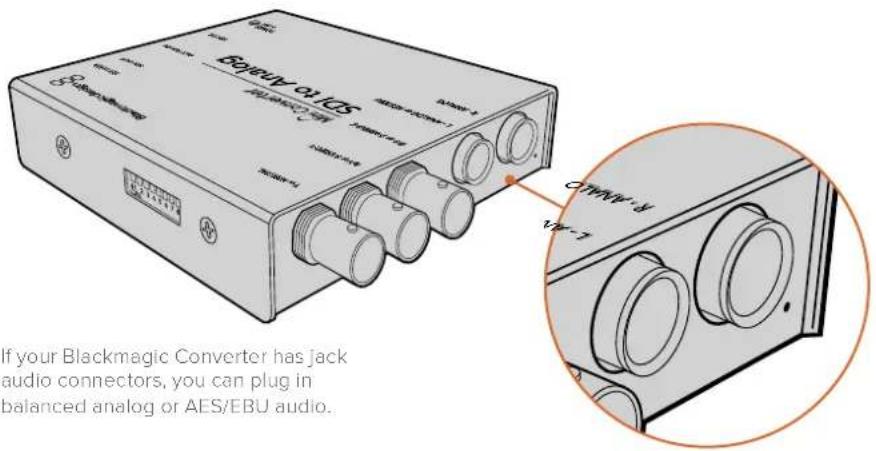

Some Blackmagic Converters have built in 1/4" jacks, so you can easily plug in balanced external analog or digital AES/EBU audio. The 1/4" jacks are balanced TRS connectors. TRS stands for Tip, Ring, Sleeve which refers to the three contacts of the jack connector.
NOTE If you are connecting stereo analog audio, it's worth mentioning that if you reverse the polarity for one channel jack connector, make sure you do the same for the second or your stereo analog audio will be out of phase.
Installing Administration Software
Installing Blackmagic Converters Setup

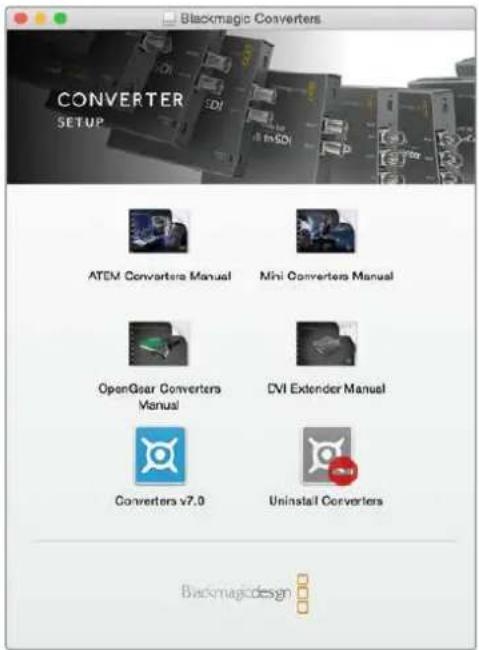

Blackmagic Converters Setup is used to change settings on your converter and to update your converter's internal software. The settings available will depend on the converter you are using. However, some Blackmagic Converters don't require any adjustable settings and don't have internal software, therefore these particular converters will not have a USB connector. If your converter is one of these, you can go straight to your converter model in this manual to learn more about it.
Installation on Mac
1 Download the Blackmagic Converters Setup software from www.blackmagicdesign.com
2 Unzip the downloaded file and open the resulting disk image to reveal its contents.
3 Double click the installer and follow the prompts to complete the installation.
4 When the installation has finished, click 'close'. Blackmagic Converters Setup is now installed.
Installation on Windows
1 Download Blackmagic Converters Setup from www.blackmagicdesign.com
2 Unzip the downloaded file. You should see a Blackmagic Converters Setup folder containing this PDF manual and the Blackmagic Converters Setup installer.
3 Double click the installer and follow the prompts to complete the installation.
4 Click 'finish' to complete the installation.
Blackmagic Converters Setup is now ready to use.
Changing Settings
If your Blackmagic Converter has adjustable settings, there are two ways you can change them. You can use the built in switches on the side of your converter, or you can change settings using the Blackmagic Converters Setup utility software. The utility is also used to change any settings that can't be set using the switches, for example analog video and audio levels.
Changing Settings using Switches

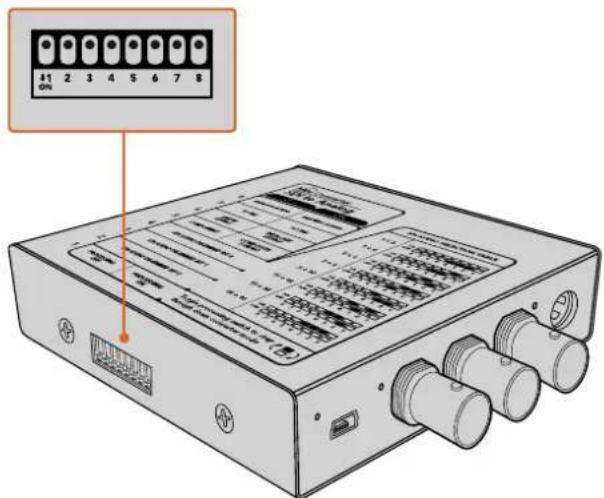

Many Blackmagic Converter models have built in switches.
To change a switch setting simply push the switch up or down using the tip of a pen. This turns the switches on or off. With 8 switches, this gives you many combinations so you can choose exactly the conversion settings you want.

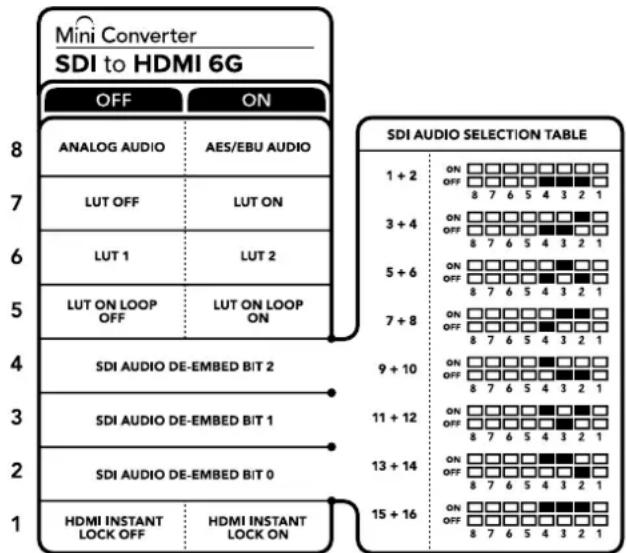

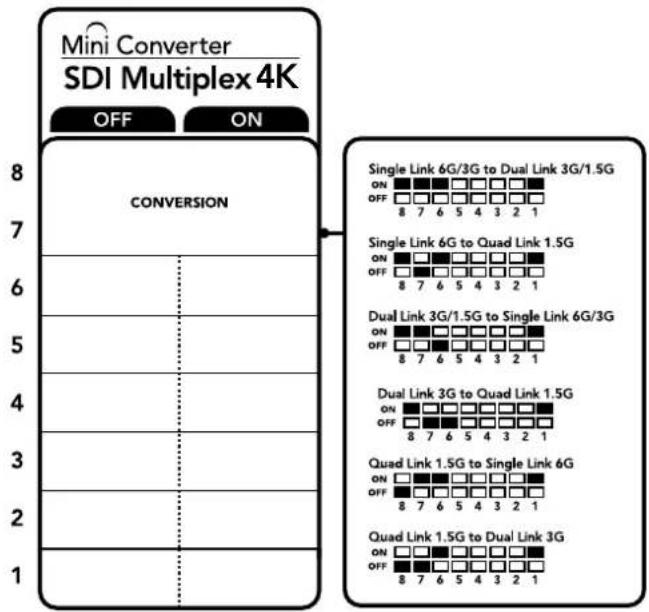

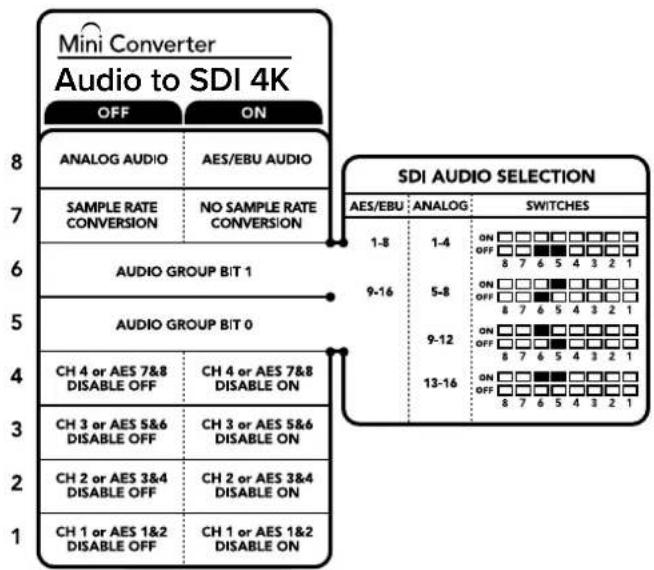

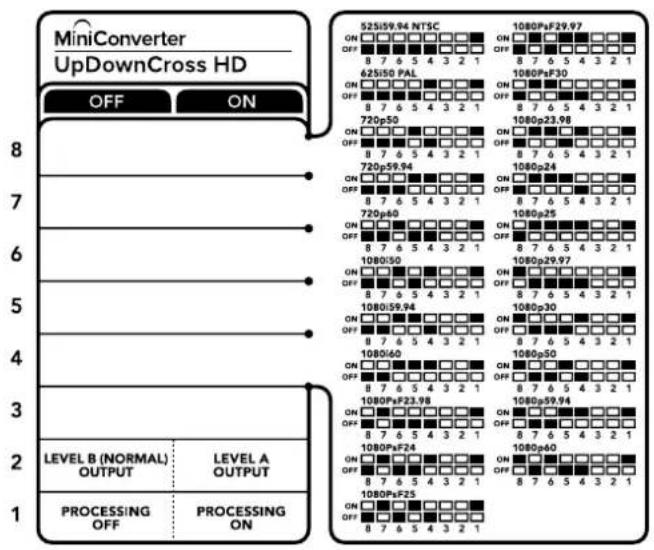

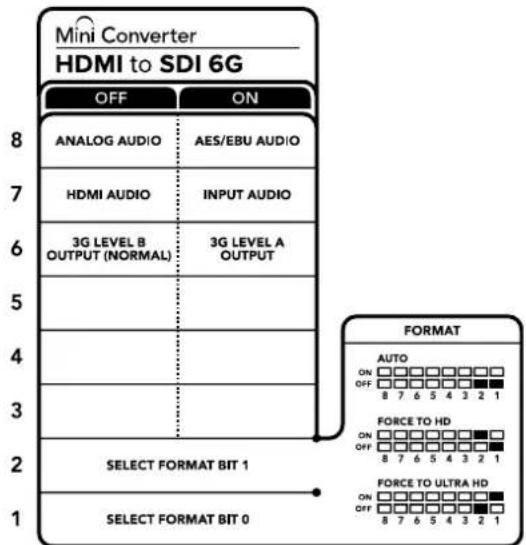

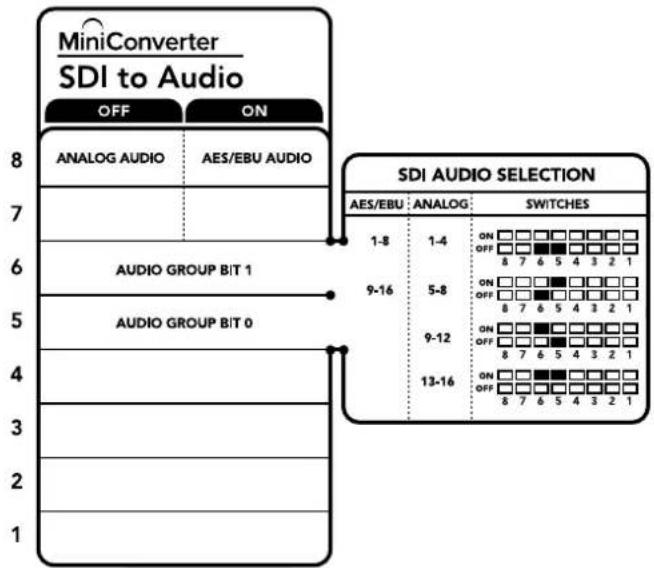

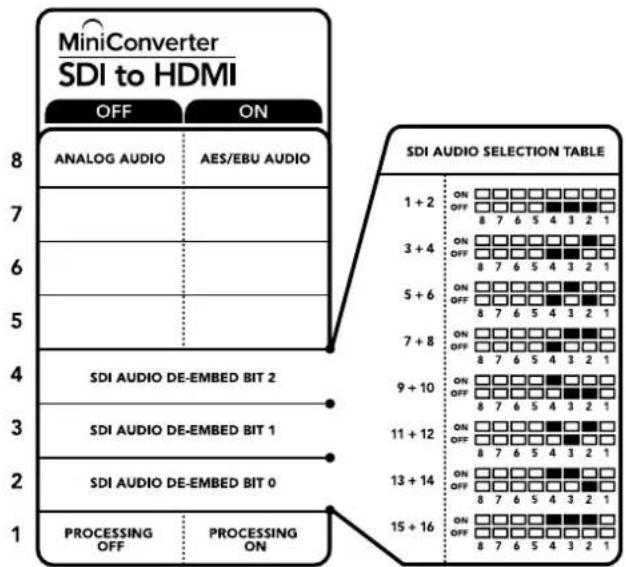

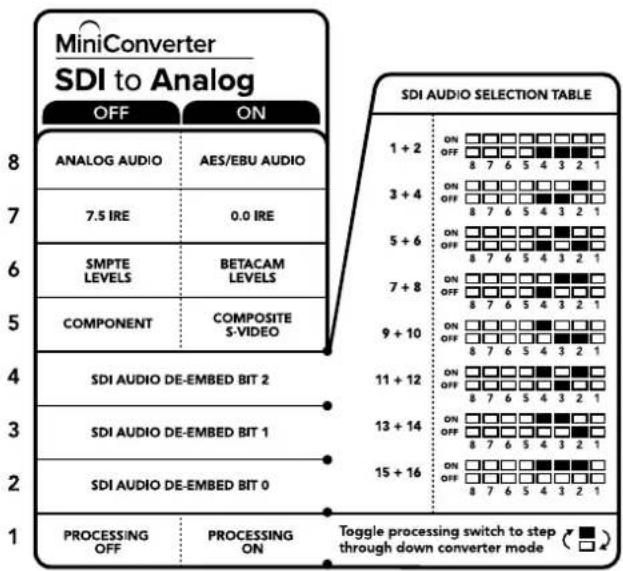

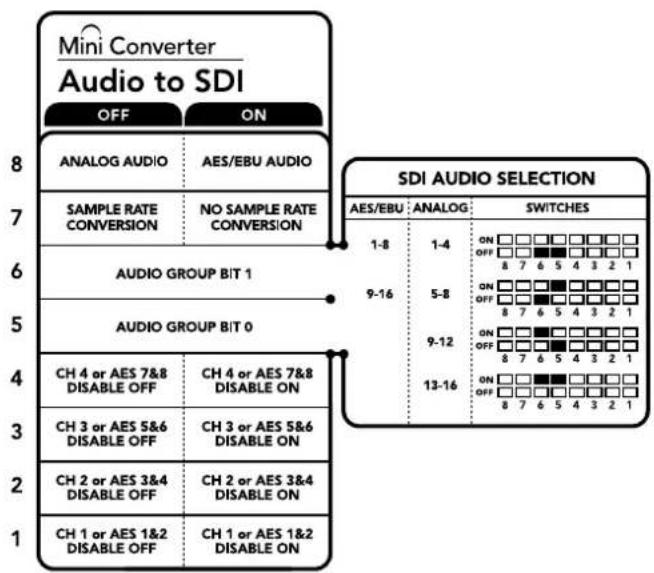

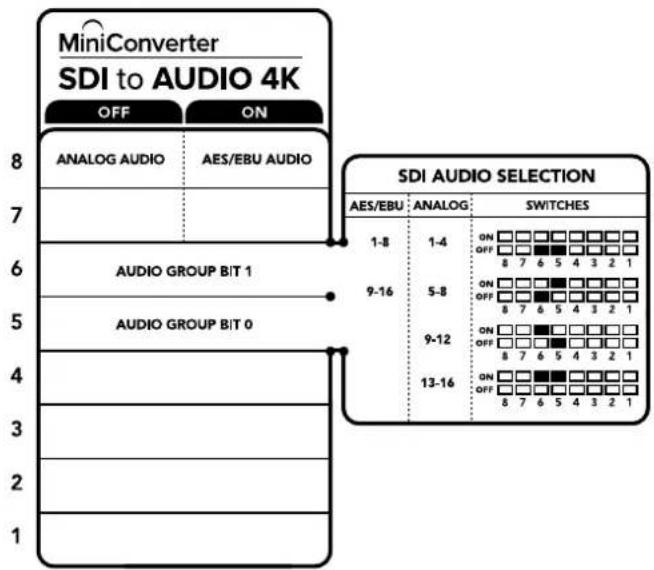

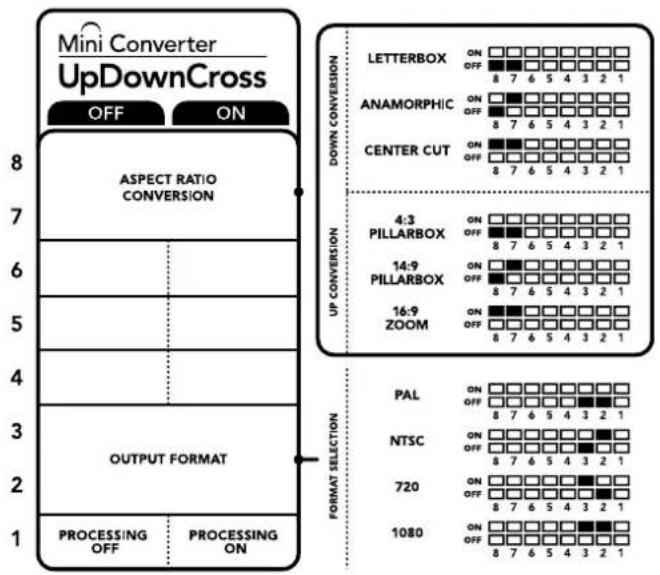

You'll find a switch settings diagram printed on the base of your converter. Ensure your switch settings correspond to the legend by observing the switch numbers from 1 to 8, left to right.
For a full description of the switches and their settings, refer to your converter model in this manual. Even though switch settings are printed on the base of your converter, new features in later updates can add new settings so it's worth checking the latest version of this manual for the most up to date information. You can download the latest version from the Blackmagic Design support center at www.blackmagicdesign.com/support.
Changing Settings using Blackmagic Converters Setup
Once Blackmagic Converters Setup is installed on your computer, connect the setup utility to your Blackmagic Converter via USB.

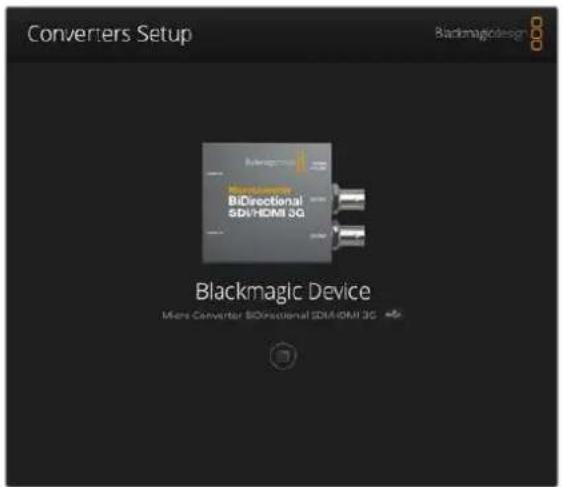

The first thing you'll see when launching the software is the 'home' page. If you have more than one converter connected to your computer, select your desired converter by clicking the arrows on the left and right side of the Blackmagic Converters Setup home page.
To change settings, click on the 'settings' icon below the image of your Blackmagic Converter. Adjustments will be immediately saved to your converter. This means if power is lost, your settings will be reestablished as soon as power is restored.
Even though most settings are configured using the built in switches, some settings can only be set using the setup software, for example adjusting analog video or audio levels.
TIP Teranex Mini Converters are 12G-SDI converters that support even more video formats including up to 4K DCI 60p. If you are looking for information on how to use a Teranex Mini Converter, including how to change settings using the Blackmagic Teranex Setup utility, refer to the Teranex Mini Converters manual. You can download the most up to date manual from the Blackmagic Design support center at www.blackmagicdesign.com/support

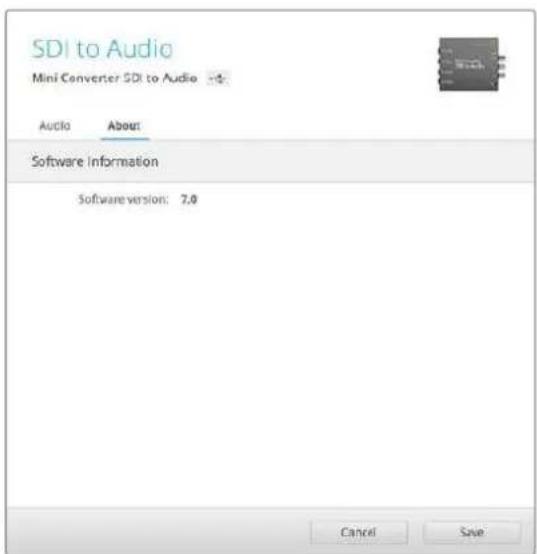

About Tab
The 'about' tab in Blackmagic Converters Setup is common across many converter models. You can use the settings in this tab to name your Blackmagic Converter. Simply click in the 'name' text box and type your desired converter name. Click 'save' to confirm the change.
The 'Software Information' menu in the 'about' tab identifies which software version your Blackmagic Converter is running. If your converter's internal software is older than the current version that comes with Blackmagic Converters Setup, an update button will be present here that allows you to bring your converter's software up to date.

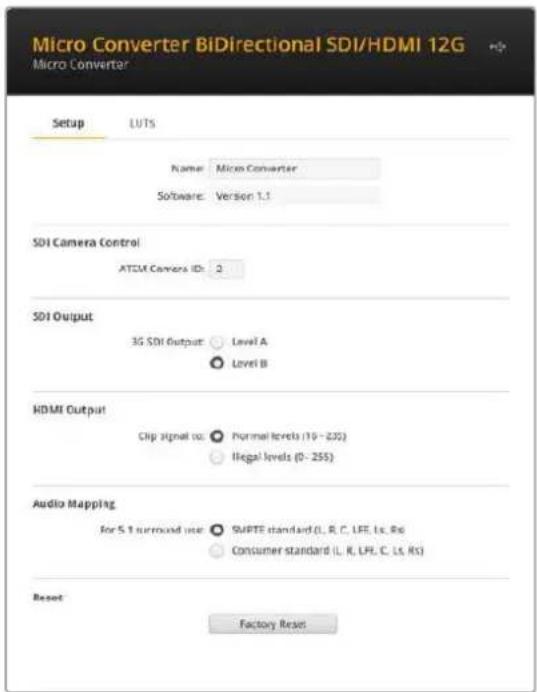

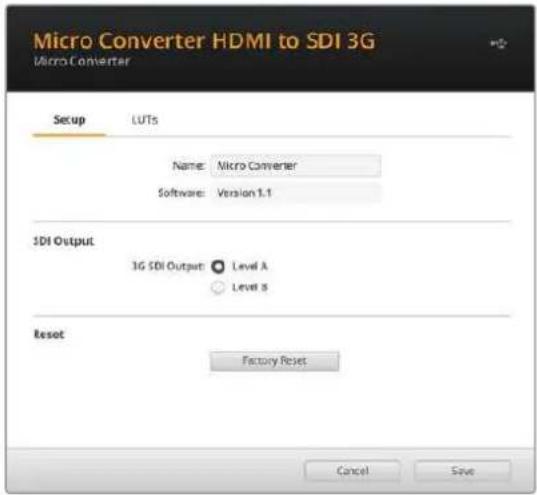

Setup Tab

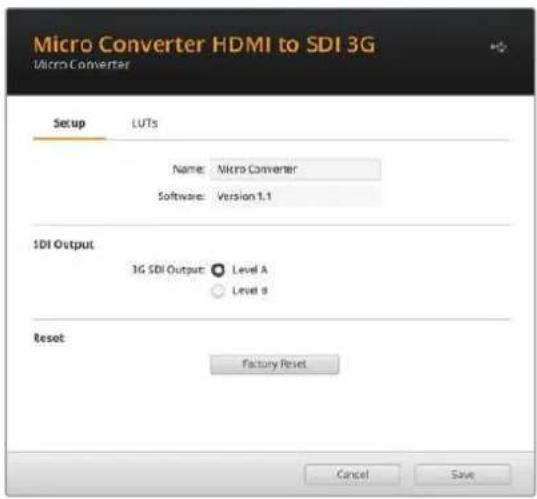

Some Blackmagic Converters use a 'setup' tab to name your converter and check software information. The setup tab will also contain other settings specific to your converter. For more information about the setup settings for your converter, refer to the unit's dedicated section in this manual.
Blackmagic Converters provide conversion solutions for all types of conditions. For example, Mini Converters are tough and lightweight so you can mount them on video equipment or video trays. Blackmagic Micro Converters are tiny SDI to HDMI and HDMI to SDI converters that can be powered via USB so are perfect for attaching to monitors and laptop computers.
The following pages contain information about your Blackmagic Converter, plus switch settings and setup software settings.
Teranex Mini Converters
Blackmagic Teranex Mini Converters are 12G-SDI converters that support video formats up to 4K DCI 60p. These converters can be controlled using an optional Teranex Mini Smart Panel with built in LCD, buttons and a rotary knob, and can be powered via Ethernet. If you are looking for information about these converters, including controlling them via the Blackmagic Teranex Setup utility, refer to the Teranex Mini Converters manual which you can download from the Blackmagic Design support center at www.blackmagicdesign.com/support
Blackmagic Micro Converters

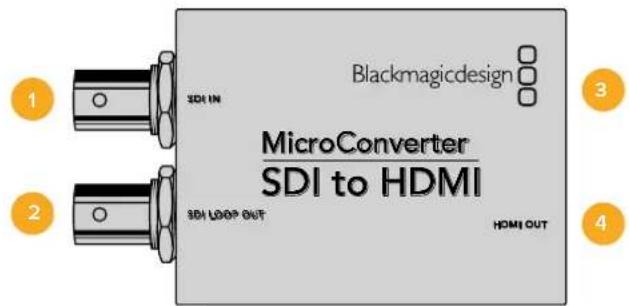

Micro Converter SDI to HDMI
With Micro Converter SDI to HDMI you can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Micro Converter SDI to HDMI automatically detects between SD/HD/3G-SDI and converts to HDMI with embedded audio. This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a common micro USB cable. Micro USB cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 SDI IN
Primary SDI input BNC connector.
2 SDI LOOP
Loop through output of your SDI input BNC connector.
3 Micro USB / POWER
Provides power from the included adapter or any equipment capable of providing 5V via a standard USB to Micro USB cable, such as a laptop or television. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer.
4 HDMI OUT
HDMI type A video output.

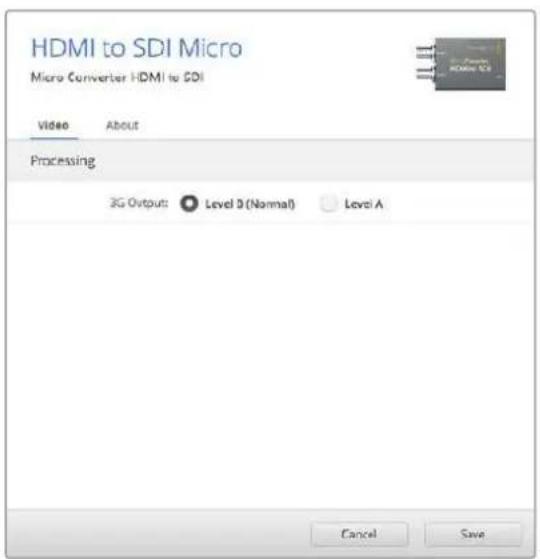

Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'video' and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.

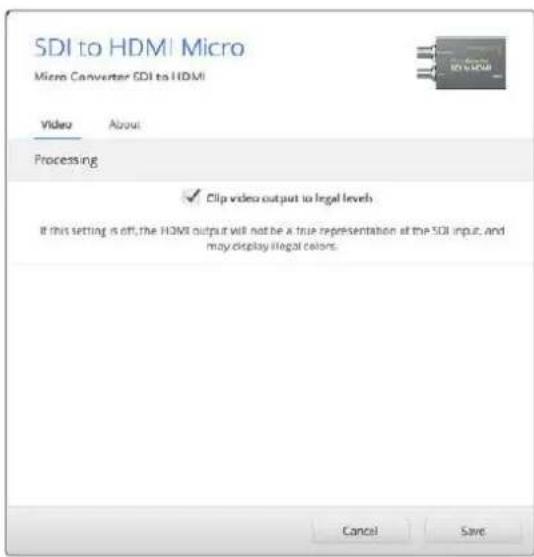

The 'video' tab for Micro Converter SDI to HDMI contains the following settings.


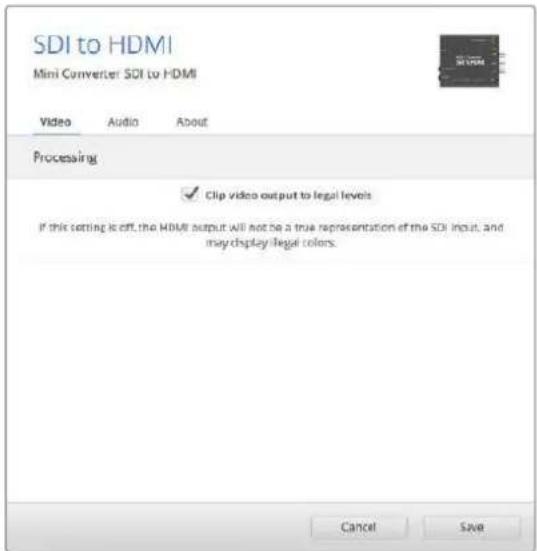

Processing menu
The ‘clip video output to legal levels’ checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.

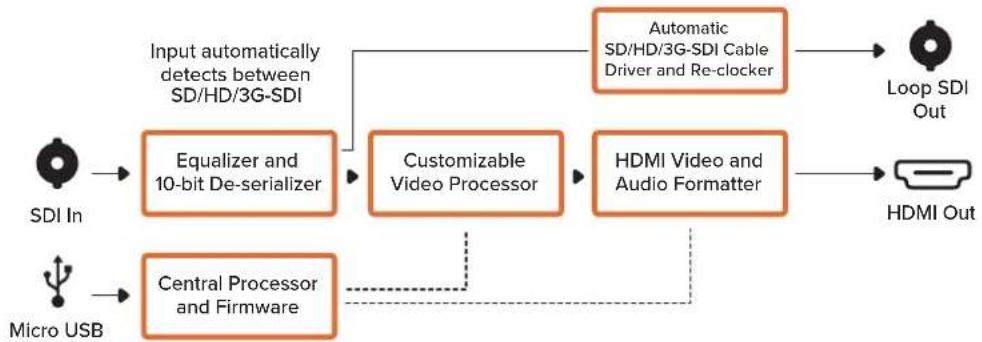

Micro Converter SDI to HDMI Block Diagram


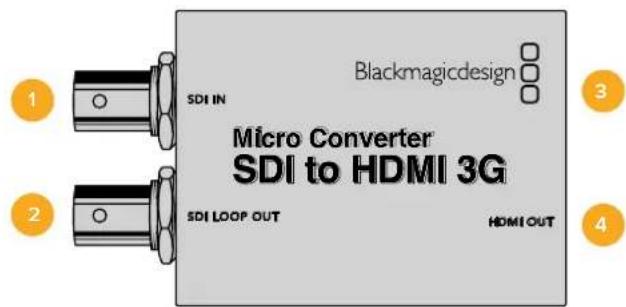

Micro Converter SDI to HDMI 3G
With Micro Converter SDI to HDMI 3G you can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Micro Converter SDI to HDMI 3G automatically detects between SD/HD/3G-SDI and converts to HDMI with embedded audio. This model can also display a 3D LUT on both the HDMI and SDI loop output.
This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB-C, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 SDI IN
Primary SDI input BNC connector. The small 'lock' LED next to the BNC connector will illuminate when an SDI input is detected and the HDMI output is connected. When flashing, the LED indicates an SDI input is present, but no HDMI output has been detected. If the LED lock light is off no SDI input or HDMI output is present.
2 SDI LOOP
Loop through output of your SDI input BNC connector.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will illuminate when connected to a power source.
4 HDMI OUT
HDMI type A video output.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'setup' and 'LUTs' tabs.

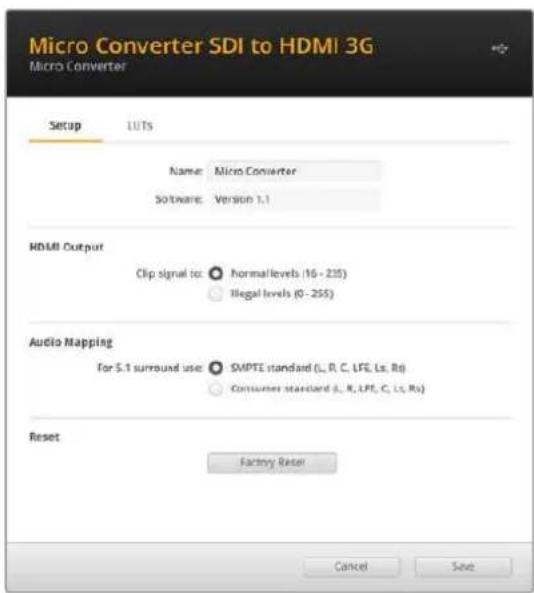

The ‘setup’ tab features the unit name and software version along with HDMI output levels and audio mapping options for 5.1 surround.
To stay within HDMI legal broadcast levels, select 'normal levels'. To allow video levels to conform to the SDI input, select 'illegal levels'. We recommend using normal levels.
Audio Mapping
For 5.1 surround, select your desired audio mapping from either SMPTE or consumer standard.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.

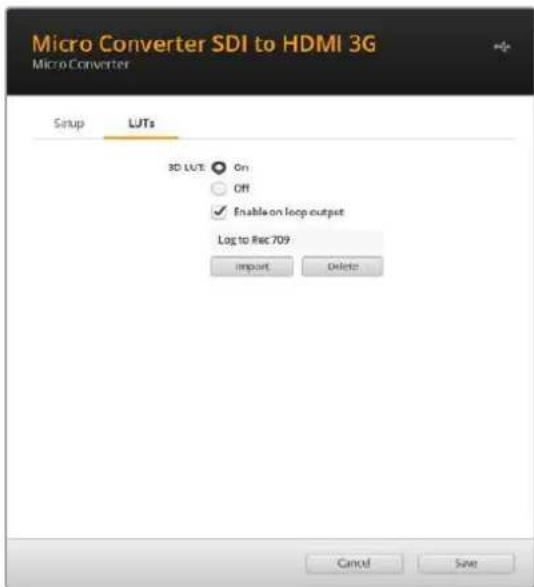

LUTs

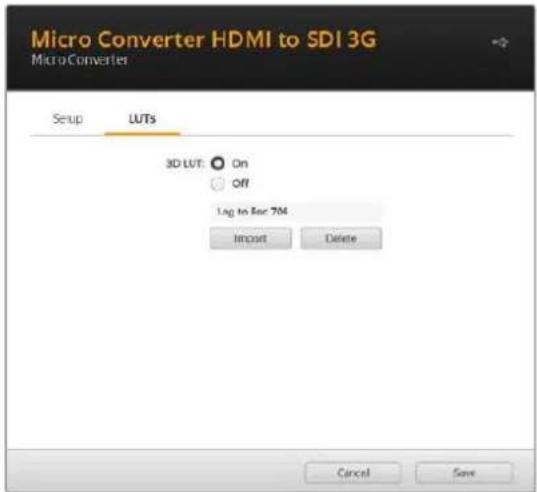

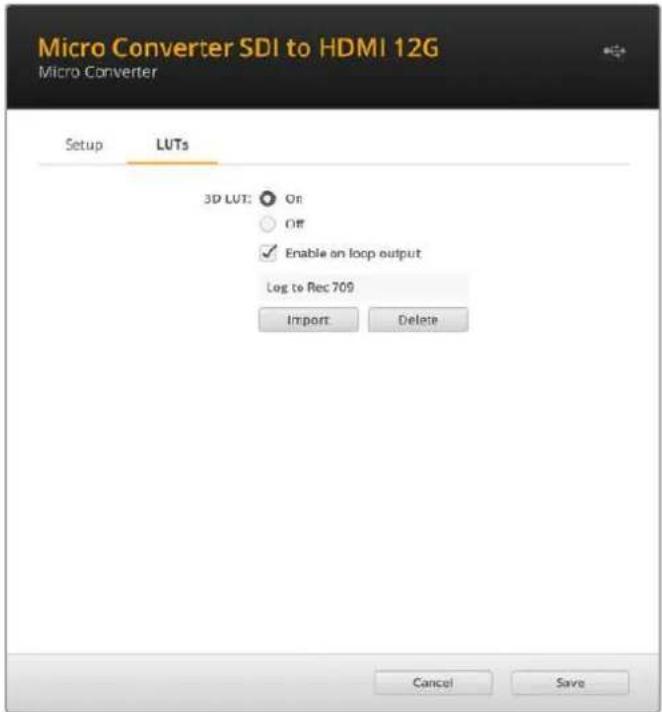

To add a 3D LUT on the HDMI output, select 'on' and click on the 'import' button. Now navigate to the location of the LUT you want to import and select it. Click 'save'.
To add the LUT on the SDI loop out, select the 'enable on loop output' checkbox. Disable the LUT by selecting the 'off' option. To remove the loaded LUT, simply click the 'delete' button.


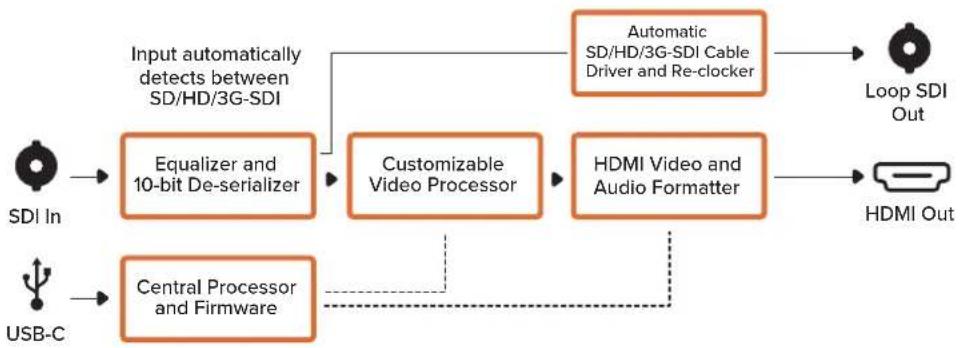

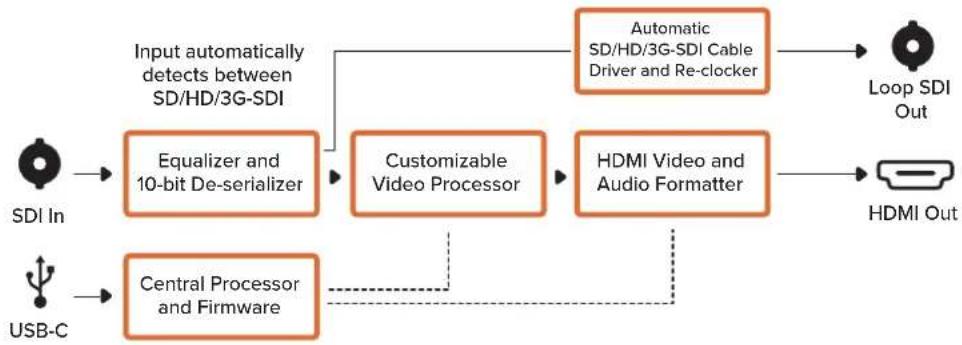

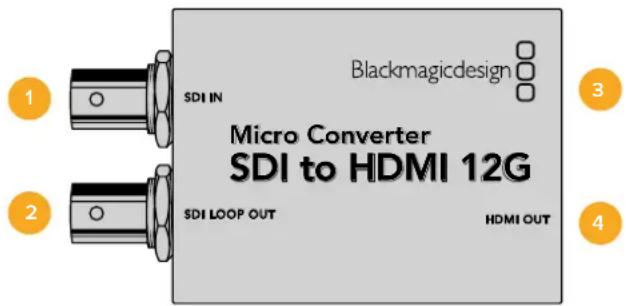

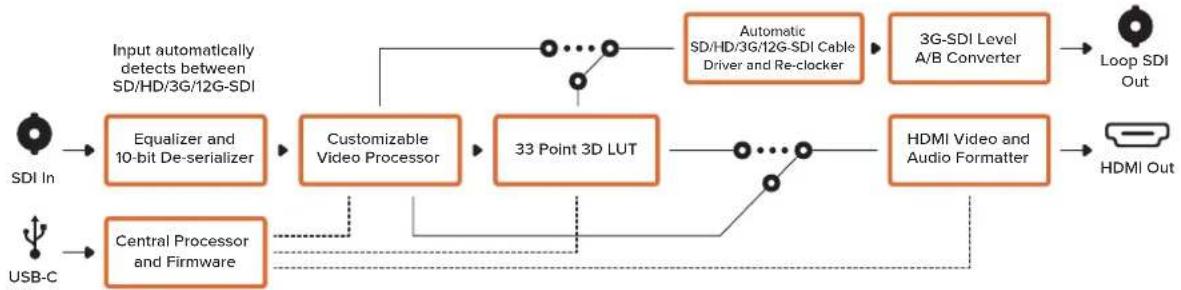

Micro Converter SDI to HDMI 12G
With Micro Converter SDI to HDMI 12G you can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Micro Converter SDI to HDMI 12G automatically detects between SD/HD/3G or 12G-SDI and converts to HDMI with embedded audio. This model can display a 3D LUT on both the HDMI and SDI loop output. The SDI loop output also allows you to convert between level A and level B 3G-SDI and maintain compatibility with equipment that can only receive level A or level B 3G-SDI video.
This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB-C, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 SDI IN
Primary SDI input BNC connector. The small 'lock' LED next to the BNC connector will illuminate when an SDI input is detected and the HDMI output is connected. When flashing, the LED indicates an SDI input is present, but no HDMI output has been detected. If the LED lock light is off no SDI input or HDMI output is present.
2 SDI LOOP
Loop through output of your SDI input BNC connector.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will illuminate when connected to a power source.
4 HDMI OUT
HDMI type A video output.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'setup' and 'LUTs' tabs.

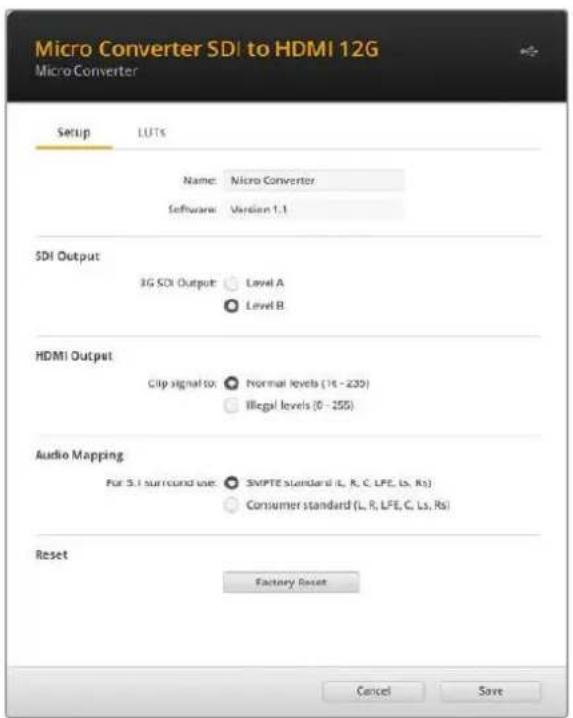

The ‘setup’ tab features the unit name and software version along with HDMI output levels and audio mapping options for 5.1 surround.
If you are using a 3G-SDI input you can set the SDI loop out to convert between level A and level B 3G-SDI. This lets you maintain compatibility with equipment that can only receive level A or level B 3G-SDI video.
HDMI Output
To stay within HDMI legal broadcast levels, select 'normal levels'. To allow video levels to conform to the SDI input, select 'illegal levels'. We recommend using normal levels.
Audio Mapping
For 5.1 surround, select your desired audio mapping from either SMPTE or consumer standard.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.
LUTs
To add a 3D LUT on the HDMI output, select 'on' and click on the 'import' button. Now navigate to the location of the LUT you want to import and select it. Click 'save'.
To add the LUT on the SDI loop out, select the 'enable 3D LUT on loop output' checkbox. Disable the LUT by selecting the 'off' option. To remove the loaded LUT, simply click the 'delete' button.


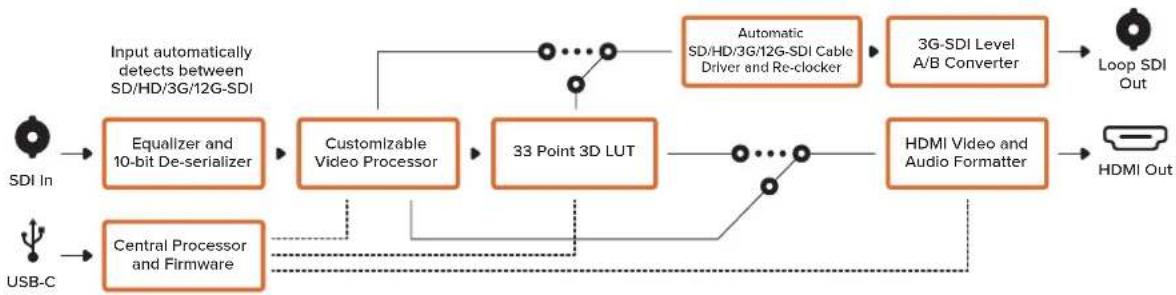

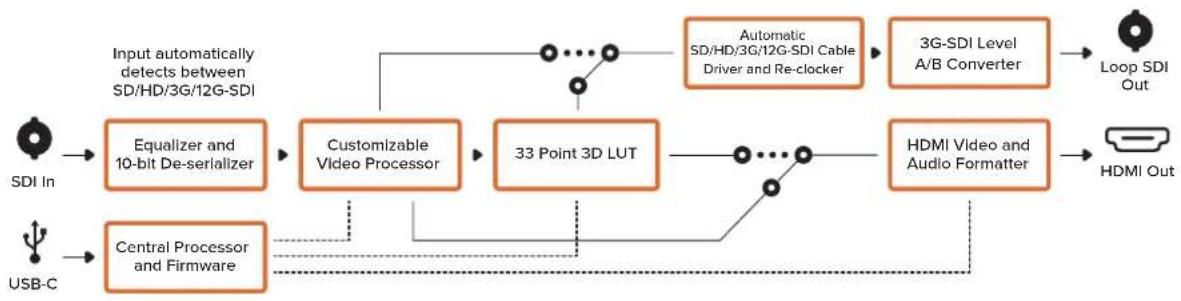

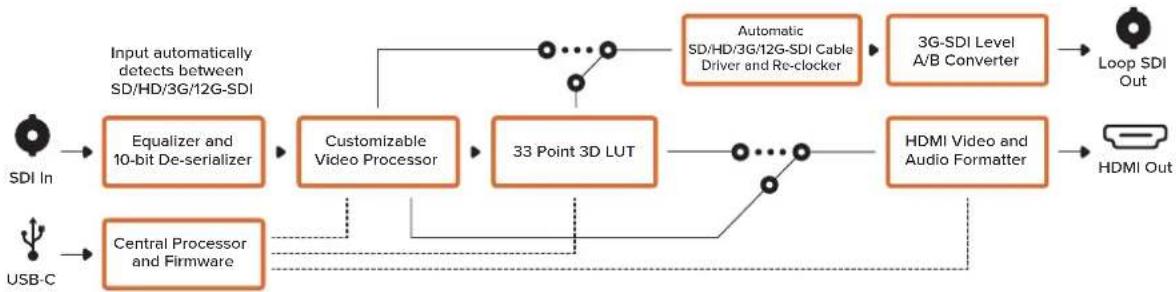

Micro Converter HDMI to SDI
You can use Micro Converter HDMI to SDI to convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility. This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a common micro USB cable. Micro USB cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 SDI OUT
SDI video output BNC connector.
2 SDI OUT
Second SDI output.
3 Micro USB / POWER
Provides power from the included adapter or any equipment capable of providing 5V via a standard USB to Micro USB cable, such as a laptop or television. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer to update the Micro Converter's internal software.
4 HDMI IN
HDMI type A video input.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'video', and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The 'video' tab for Micro Converter HDMI to SDI contains the following settings.
Processing menu
The '3G Output' menu lets you select between Level A or Level B 3G-SDI. This setting lets you change the 3G-SDI output standard to maintain compatibility with equipment that can only receive level A or level B 3G-SDI video. Level B is the default setting.

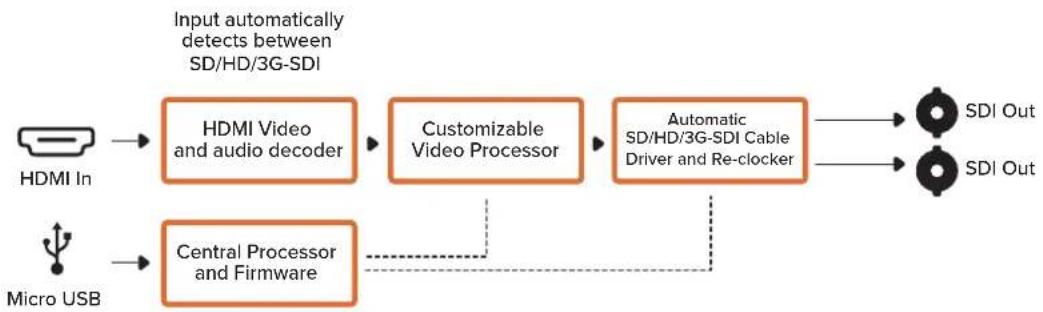

Micro Converter HDMI to SDI Block Diagram
Micro Converter HDMI to SDI 3G
You can use Micro Converter HDMI to SDI 3G to convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility.
This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB-C, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a common USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.


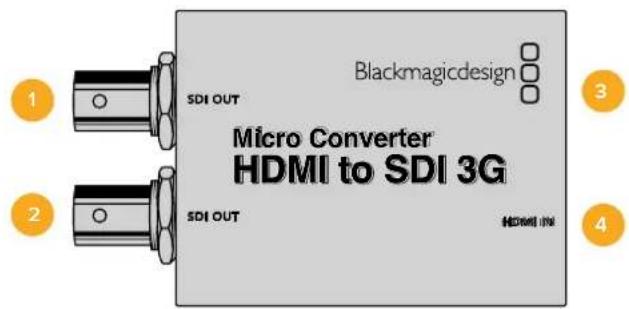

Blackmagicdesign 1 SDI OUT Micro Converter HDMI to SDI 3G 2 SDI OUT HDMI INS 3 4Connectors
1 SDI OUT
SDI video output BNC connector.
2 SDI OUT
Second SDI output.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will illuminate when connected to a power source.
4 HDMI IN
HDMI Type A video input. The small 'lock' LED next to the HDMI IN connector will illuminate when a valid HDMI input is detected.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'setup,' and 'LUTs' tabs.
The 'setup' tab contains the software information and name for your converter.
The 3G SDI Output lets you select between Level A or Level B 3G-SDI. This setting lets you change the 3G-SDI output standard to maintain compatibility with equipment that can only receive level A or level B 3G-SDI video. Level B is the default setting.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.
LUTs
To add a 3D LUT on the SDI output, select 'on' and click on the 'import' button. Now navigate to the location of the LUT you want to import and select it. Click 'save'.
To remove the loaded LUT, simply click the 'delete' button.


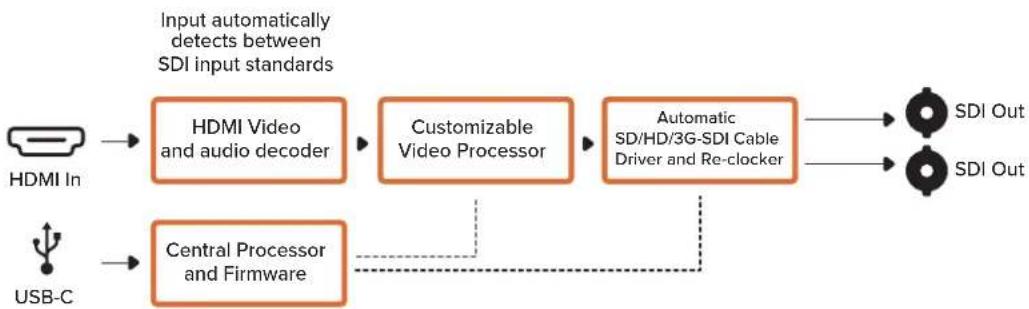

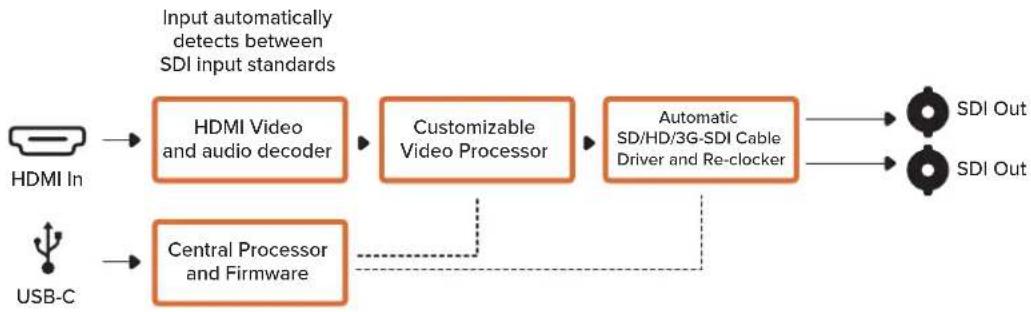

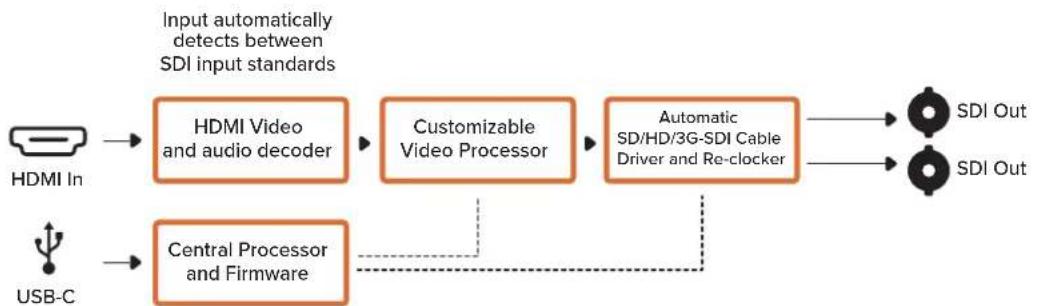

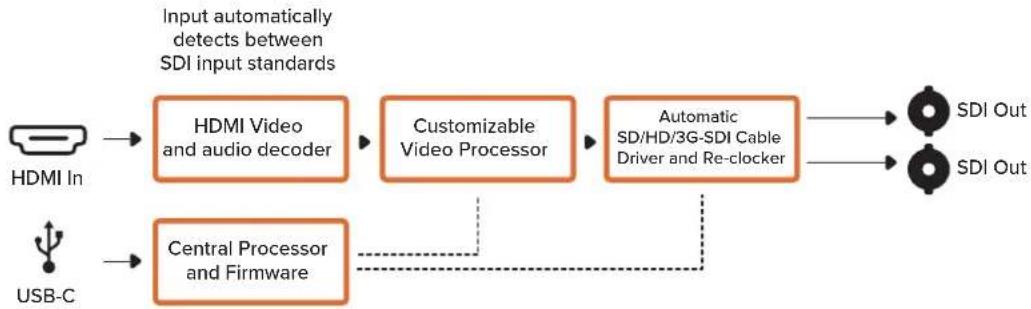

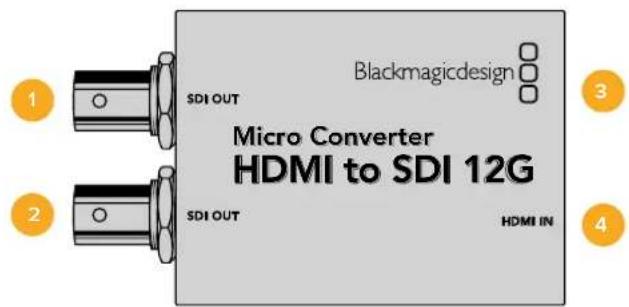

Micro Converter HDMI to SDI 12G
You can use Micro Converter HDMI to SDI 12G to convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility.
This tiny broadcast quality converter is protected by a strong aluminum chassis and powers over USB-C, meaning you can power your Blackmagic Micro Converter via your laptop or television's USB connector using a common USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 SDI OUT
SDI video output BNC connector.
2 SDI OUT
Second SDI output.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will illuminate when connected to a power source.
4 HDMI IN
HDMI Type A video input. The small 'lock' LED next to the HDMI IN connector will illuminate when a valid HDMI input is detected.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'setup,' and 'LUTs' tabs.

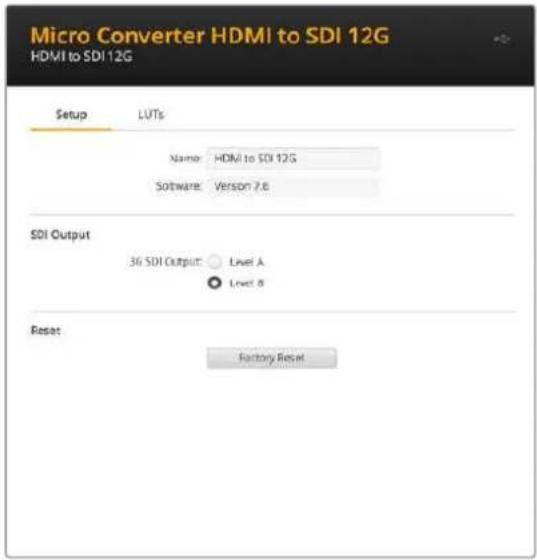

The 'setup' tab contains the software information and name for your converter.
The 3G SDI Output lets you select between Level A or Level B 3G-SDI. This setting lets you change the 3G-SDI output standard to maintain compatibility with equipment that can only receive level A or level B 3G-SDI video. Level B is the default setting.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.

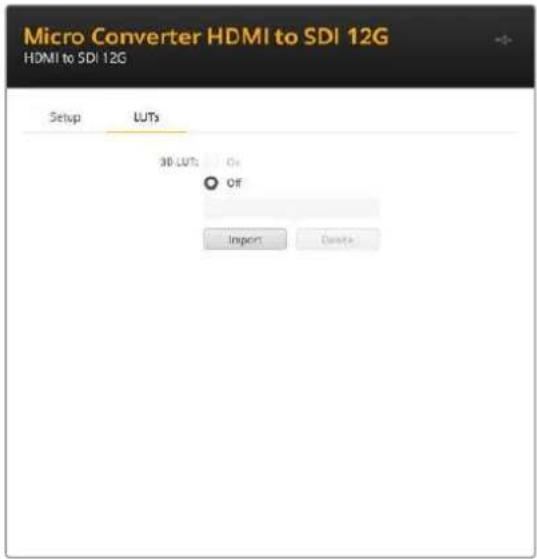

LUTs
To add a 3D LUT on the SDI output, select 'on' and click on the 'import' button. Now navigate to the location of the LUT you want to import and select it. Click 'save'.
To remove the loaded LUT, simply click the 'delete' button.


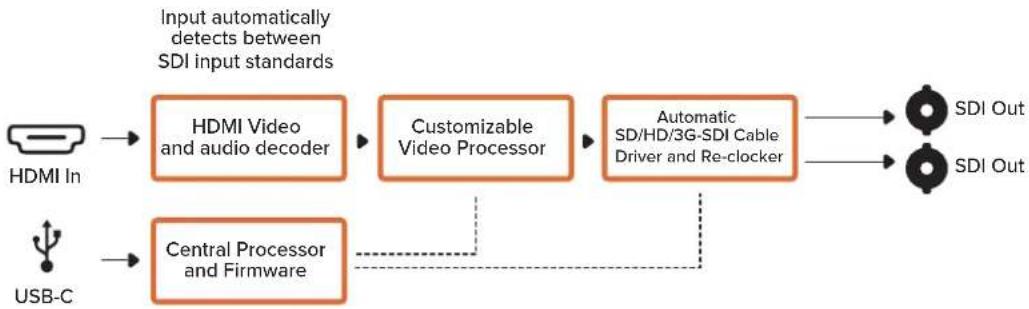

Micro Converter BiDirectional SDI/HDMI
Micro Converter BiDirectional SDI/HDMI converts SD and HD video from HDMI to SDI, and SDI to HDMI with embedded audio simultaneously. For example, you can convert the HDMI output from an HDV camera to SDI for longer cable lengths, while also converting an SDI return feed to HDMI so you can connect to an HDMI TV.
If you have only one input connected, the SDI and HDMI outputs both become loop outputs so you can feed the input signal to other HDMI and SDI equipment.
Your Micro Converter BiDirectional SDI/HDMI automatically detects SD/HD/3G-SDI input format and sets the output format to match.
This tiny broadcast quality converter is protected by a strong aluminum chassis. It is powered over USB, meaning you can power your Blackmagic Micro Converter BiDirectional SDI/HDMI from your laptop or television's USB connector using a common micro USB cable. Micro USB cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 HDMI OUT
HDMI type A video output.
2 HDMI IN
HDMI type A video input.
3 Micro USB / POWER
Provides 5V power from any equipment capable of providing 5V via a standard USB to Micro USB cable, such as a laptop or television. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer.
4 SDI OUT
SDI video output BNC connector.
5 SDI IN
SDI video input BNC connector.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software. You can access these settings by moving between the 'video', and 'about' tabs.
The 'About' tab is described in the 'Changing Settings' section in this manual.

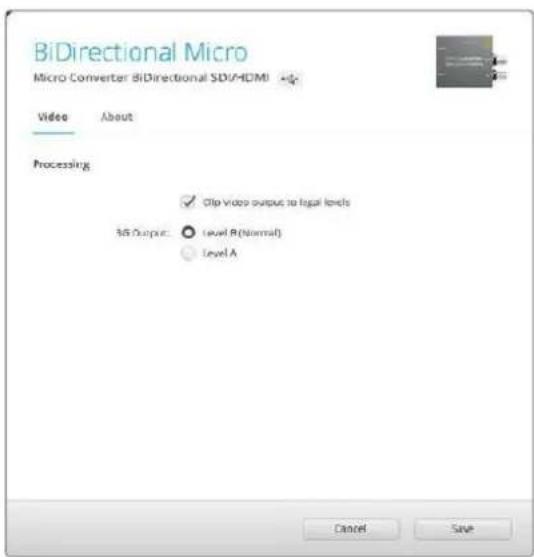

The 'Video' tab for Micro Converter BiDirectional SDI/HDMI contains the following settings.
Processing menu
The ‘Clip video output to legal levels’ checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.
The '3G Output' setting lets you select between Level A or Level B 3G-SDI. This changes the 3G-SDI output standard to maintain compatibility with equipment that can receive only level A or level B 3G-SDI video. The default setting is Level B.

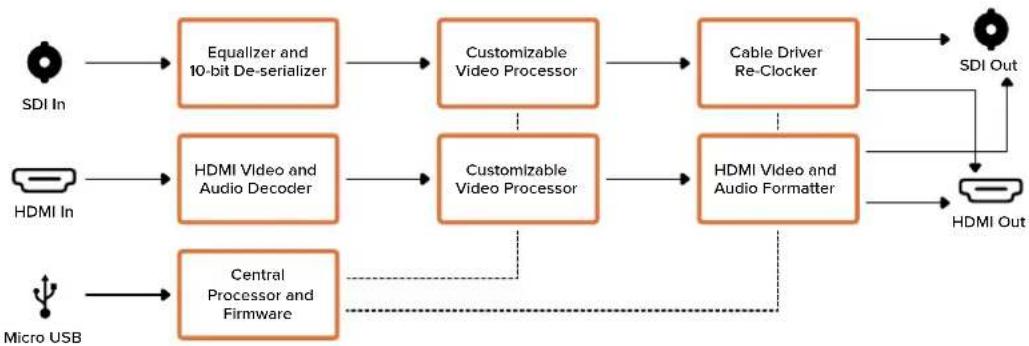

Micro Converter BiDirectional SDI/HDMI Block Diagram
Micro Converter BiDirectional SDI/HDMI 3G
Micro Converter BiDirectional SDI/HDMI 3G lets you convert HDMI to SDI and back again while maintaining tally and camera control in both signal formats. This means you can now connect a Blackmagic Pocket Cinema Camera 4K or 6K to any SDI ATEM switcher, or an URSA Broadcast camera to an ATEM Mini, all while maintaining camera control and tally.
If you have only one input connected, the SDI and HDMI outputs both become loop outputs so you can feed the input signal to other HDMI and SDI equipment, for example a SmartView monitor.
Your Micro Converter BiDirectional SDI/HDMI 3G automatically detects the SD/HD/3G-SDI input format and sets the output format to match.
This tiny broadcast quality converter is powered over USB, meaning you can power the unit from your laptop or television's USB connector using a common USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.

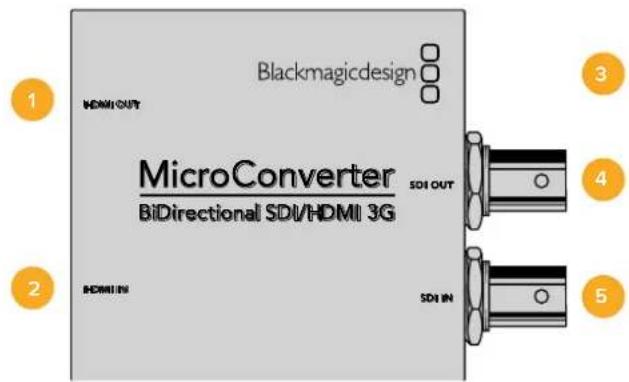

1 HDMI OUT
HDMI type A video output.
2 HDMI IN
HDMI Type A video input. The small 'lock' LED next to the HDMI IN connector will illuminate when a valid HDMI input is detected.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will light up when connected to a power source.
4 SDI OUT
SDI video output BNC connector.
5 SDI IN
SDI video input BNC connector. The small 'lock' LED next to the SDI IN will illuminate when a valid SDI input is detected.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software.

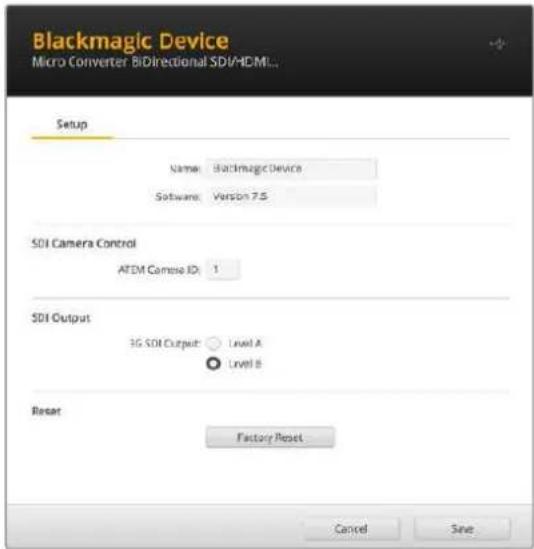

The 'setup' tab contains the unit name and software version along with SDI Camera Control and SDI Output options.
SDI Camera Control
To ensure CCU and tally data from the ATEM switcher is sent to the correct camera the 'ATEM Camera ID' number should be set to match the ATEM's input number.
SDI Output
The '3G Output' setting lets you select between Level A or Level B 3G-SDI. This changes the 3G-SDI output standard to maintain compatibility with equipment that can receive only level A or level B 3G-SDI video. The default setting is Level B.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.
Camera Control and Tally between SDI and HDMI
Micro Converter BiDirectional SDI/HDMI 3G supports tally and camera control data when connected to ATEM switchers and Blackmagic cameras. This section shows examples of the different types of workflows you can use.

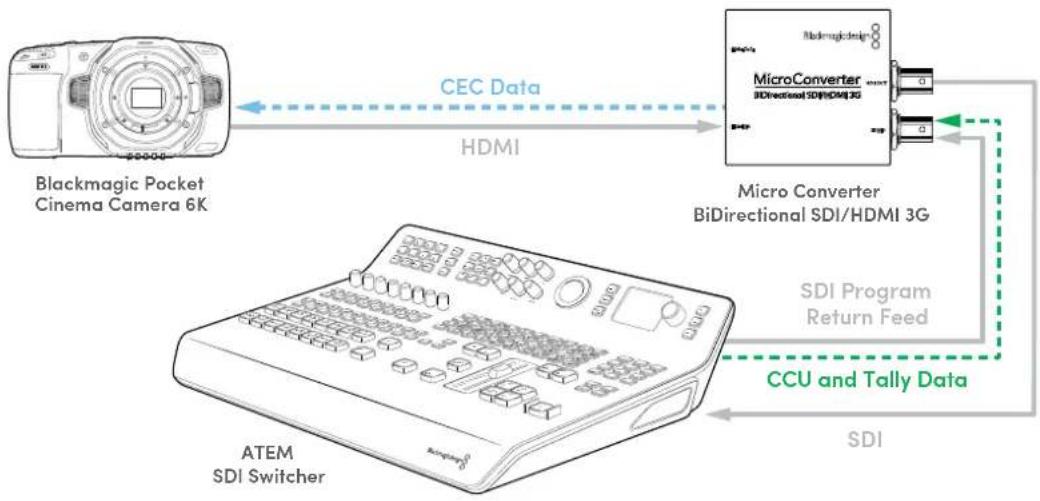

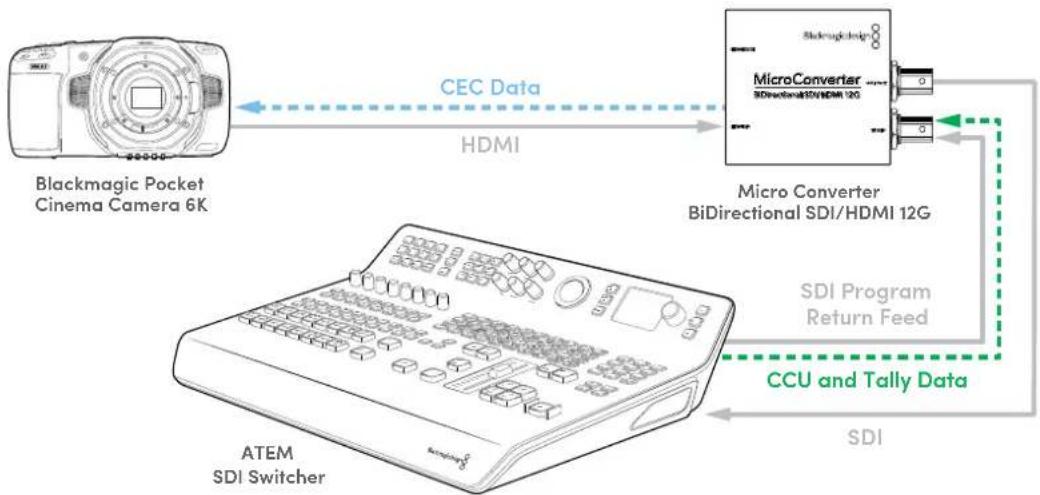

Example workflow 1
In this scenario, the micro converter is used to connect the camera's HDMI output to the ATEM's SDI input. The bidirectional converter allows the camera control and tally data to be fed back through the converter and into the camera via the Consumer Electronics Control CEC data in the HDMI signal.
The Micro Converter's HDMI output can be used for remote monitoring.


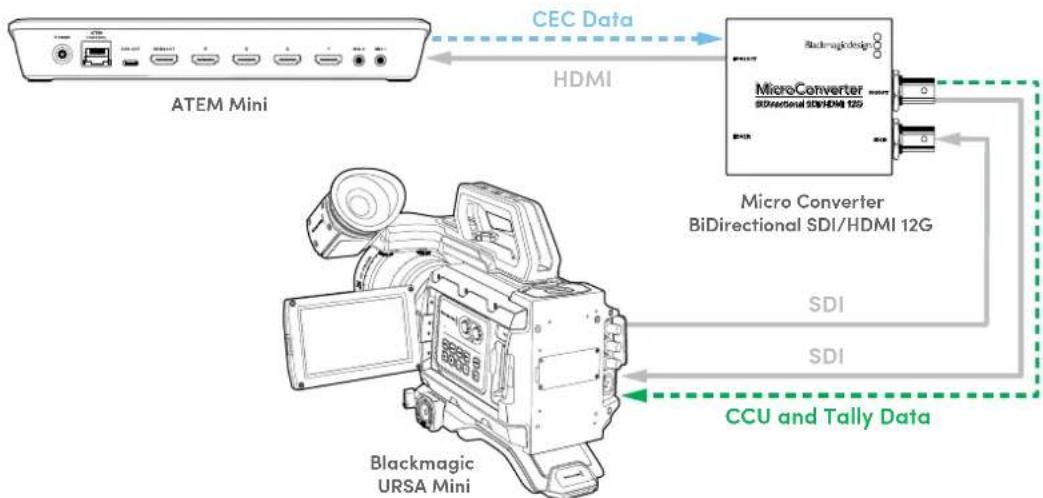

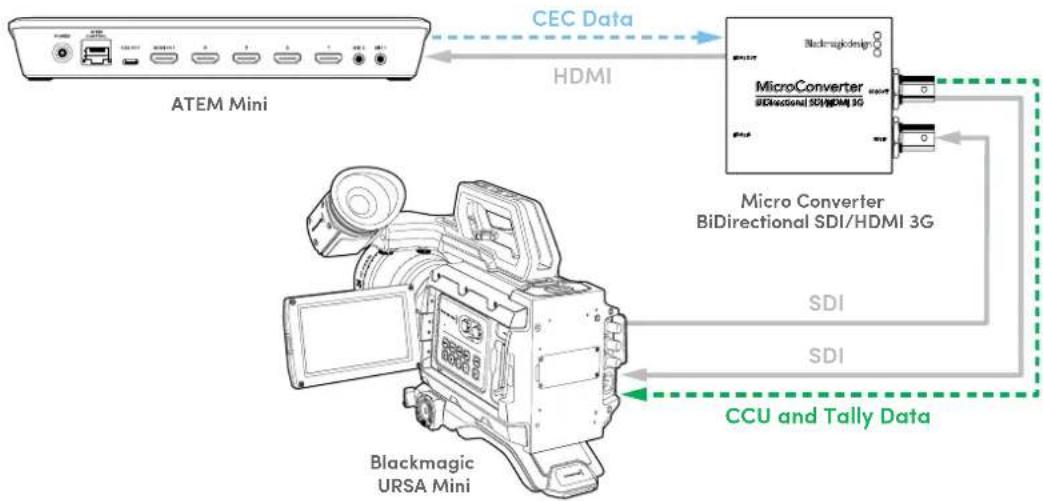

Example workflow 2
Here the converter is used to connect the camera's SDI output to an ATEM Mini's HDMI input. The SDI signal from the camera is converted to HDMI and sent to the ATEM Mini. CEC data is returned to the Micro Converter and converted to CCU and tally data, then sent back to the camera over SDI.
NOTE The micro converter's HDMI output will automatically detect if video is present on the SDI input. If no video is detected the HDMI output will become a loop out of the HDMI input and can be used for remote monitoring.
Additionally, any video and audio connected to the converter's HDMI input will be transmitted on the SDI output.

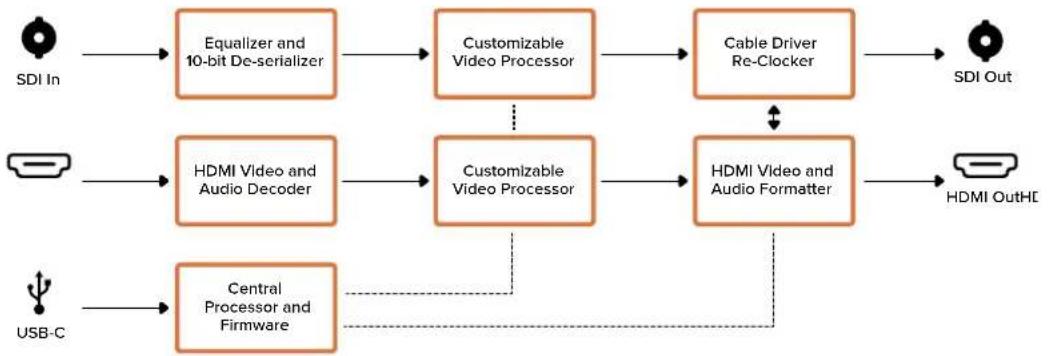

Micro Converter BiDirectional SDI/HDMI 3G Block Diagram
Micro Converter BiDirectional SDI/HDMI 12G
Micro Converter BiDirectional SDI/HDMI 12G lets you convert HDMI to SDI and back again while maintaining tally and camera control in both signal formats. This means you can now connect a Blackmagic Pocket Cinema Camera 4K or 6K to any SDI ATEM switcher, or an URSA Broadcast camera to an ATEM Mini, all while maintaining camera control and tally. This model can display a 3D LUT on both the HDMI and SDI outputs.
If you have only one input connected, the SDI and HDMI outputs both become loop outputs so you can feed the input signal to other HDMI and SDI equipment, for example a SmartView monitor.
Your Micro Converter BiDirectional SDI/HDMI 12G automatically detects the SD/HD/3G/12G-SDI input format and sets the output format to match.
This tiny broadcast quality converter is powered over USB, meaning you can power the unit from your laptop or television's USB connector using a common USB-C cable. USB-C cables are used to connect some cell phones to chargers and laptops, so if you have one of these, you can use the same cable. If the USB connector on your cable is a different type, the correct cable can be purchased from most electronic equipment stores.
1 HDMI OUT
HDMI type A video output.
2 HDMI IN
HDMI Type A video input. The small 'lock' LED next to the HDMI IN connector will illuminate when a valid HDMI input is detected.
3 USB-C / POWER
Connect 5V power using a standard USB to USB-C cable. Also connects to Blackmagic Converters Setup software via your Mac OS or Windows Computer. A small white LED light next to the USB-C port will light up when connected to a power source.
4 SDI OUT
SDI video output BNC connector.
5 SDI IN
SDI video input BNC connector. The small 'lock' LED next to the SDI IN will illuminate when a valid SDI input is detected.
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings and update your Micro Converter's software.
The 'setup' tab contains the unit name and software version along with SDI Camera Control and SDI Output options.
SDI Camera Control
To ensure CCU and tally data from the ATEM switcher is sent to the correct camera the 'ATEM Camera ID' number should be set to match the ATEM's input number.
SDI Output
The '3G output' setting lets you select between Level A or Level B 3G-SDI. This changes the 3G-SDI output standard to maintain compatibility with equipment that can receive only level A or level B 3G-SDI video. The default setting is Level B.
HDMI Output
To stay within HDMI legal broadcast levels, select 'normal levels'. To allow video levels to conform to the SDI input, select 'illegal levels'. We recommend using normal levels.
Audio Mapping
For 5.1 surround, select your desired audio mapping from either SMPTE or consumer standard.
Reset
You can also reset your converter to factory settings by clicking the 'factory reset' option.

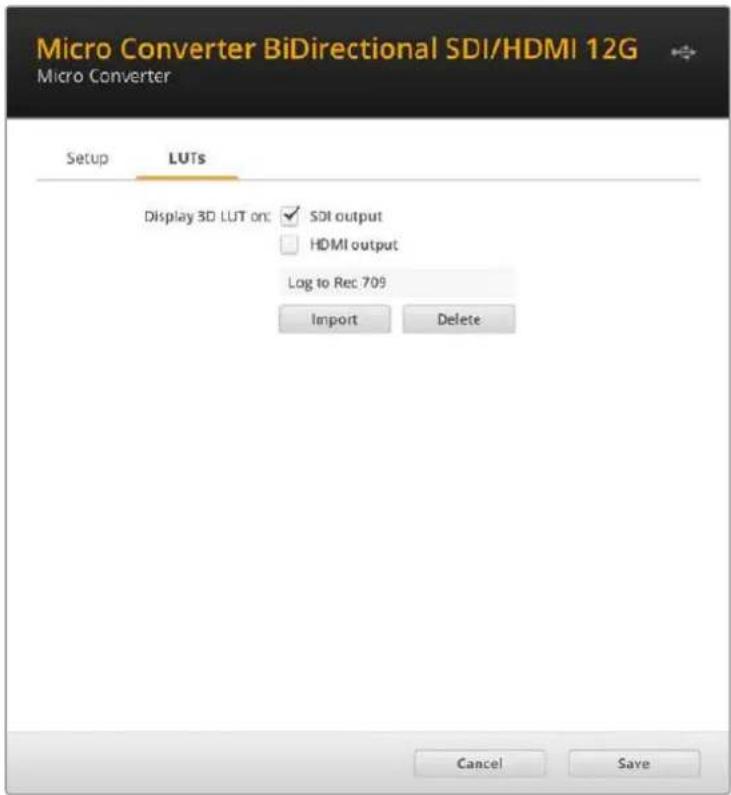

LUTs
To add a 3D LUT on the SDI or HDMI output, click on the 'import' button. Now navigate to the location of the LUT you want to import and select it. Click 'save'. Select the 'SDI output' or 'HDMI output' checkbox to enable the LUT. You can select both checkboxes to enable the LUT on both the SDI and HDMI outputs.
To remove the loaded LUT, simply click the 'delete' button.
Camera Control and Tally between SDI and HDMI
Micro Converter BiDirectional SDI/HDMI 12G supports tally and camera control data when connected to ATEM switchers and Blackmagic cameras. This section shows examples of the different types of workflows you can use.
Example workflow 1
In this scenario, the micro converter is used to connect the camera's HDMI output to the ATEM's SDI input. The bidirectional converter allows the camera control and tally data to be fed back through the converter and into the camera via the Consumer Electronics Control CEC data in the HDMI signal.
The Micro Converter's HDMI output can be used for remote monitoring.
Example workflow 2
Here the converter is used to connect the camera's SDI output to an ATEM Mini's HDMI input. The SDI signal from the camera is converted to HDMI and sent to the ATEM Mini. CEC data is returned to the Micro Converter and converted to CCU and tally data, then sent back to the camera over SDI.
NOTE The micro converter's HDMI output will automatically detect if video is present on the SDI input. If no video is detected the HDMI output will become a loop out of the HDMI input and can be used for remote monitoring.
Additionally, any video and audio connected to the converter's HDMI input will be transmitted on the SDI output.

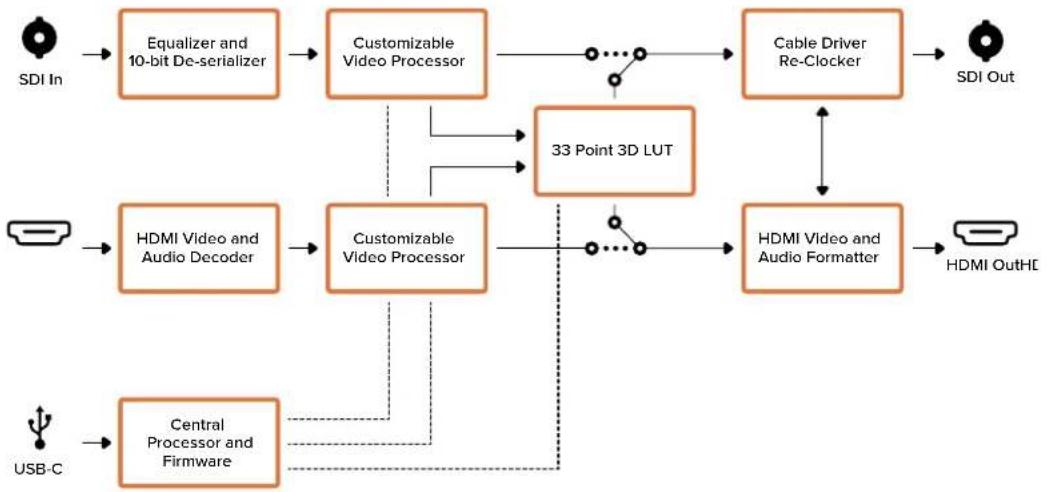

Micro Converter BiDirectional SDI/HDMI 12G Block Diagram
Blackmagic Mini Converters
Mini Converter SDI to HDMI

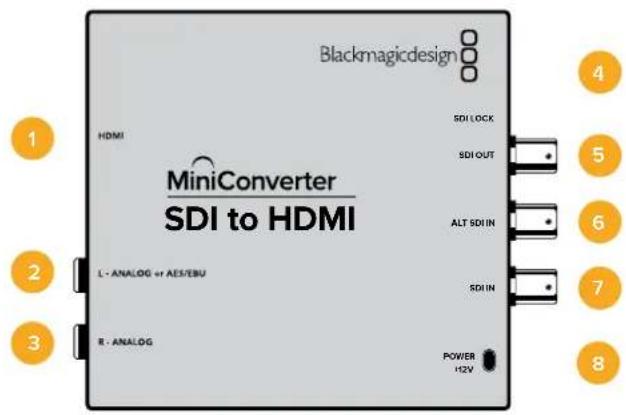

Mini Converter SDI to HDMI can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Mini Converter SDI to HDMI automatically detects between SD/HD/3G-SDI and converts to HDMI with embedded audio, plus balanced AES/EBU or analog audio out.
1 HDMI
HDMI type A video output.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output on a 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output on a BNC connector.
6 ALT SDI IN
Redundant SDI input is provided as an optional back up.
7 SDI IN
Primary SDI input.
8 POWER +12V
12 volt power supply input.
Switches
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 4 - SDI Audio De-Embed Bit 2
Switches 4, 3 and 2 are grouped together to provide 8 ON/OFF combinations. Having eight different combinations allows eight independent pairs of audio channels to be de-embedded from your SDI input and output to HDMI, analog or AES/EBU audio.
Switch 3 - SDI Audio De-Embed Bit 1
See switch 4 description.
Switch 2 - SDI Audio De-Embed Bit 0
See switch 4 description.
Switch 1 - Processing Off - Processing On
This switch is not used.
Mini Switch Settings Example
Experiment with the switches by setting your Blackmagic Mini Converter to de-embed SDI audio channels 1 and 2 and output to analog by setting switches 8, 4, 3 and 2 to the OFF position.
SDI Audio Selection Table
| Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram | |||
| 1 and 2 OFF OFF OFF |  | ||
| 3 and 4 OFF OFF ON |  | ||
| 5 and 6 OFF ON OFF |  | ||
| 7 and 8 OFF ON ON |  | ||
| 9 and 10 ON OFF OFF |  | ||
| 11 and 12 ON OFF ON |  | ||
| 13 and 14 ON ON OFF |  | ||
| 15 and 16 ON ON ON |  | ||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video', 'audio', and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The 'video' tab for Mini Converter SDI to HDMI contains the following settings.
Processing menu
The ‘clip video output to legal levels’ checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.
This ensures that your HDMI video output stays within legal levels.

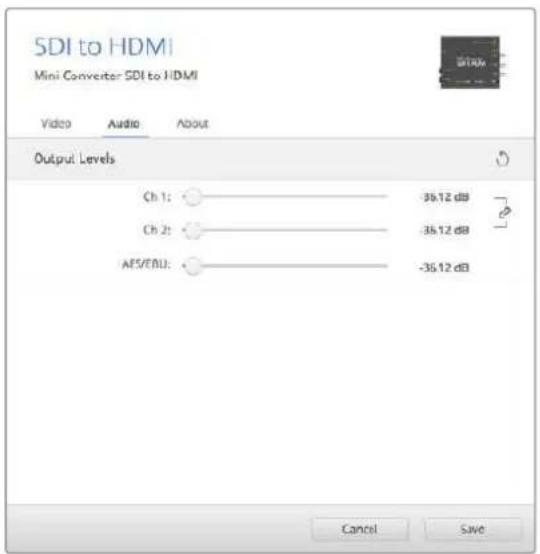

The 'audio' tab for Mini Converter SDI to HDMI contains the following settings.
Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.
Mini Converter SDI to HDMI Block Diagram
Mini Converter SDI to HDMI 4K
With Mini Converter SDI to HDMI 4K, you can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Mini Converter SDI to HDMI 4K automatically detects between SD/HD/3G/6G-SDI and converts to HDMI with embedded audio, plus balanced AES/EBU or analog audio out. The HDMI instant lock feature lets you lock the HDMI output so that changing sources using the same format is clean and glitch free. If your converter detects an HD monitor or TV connected to the HDMI output and has Ultra HD connected to the SDI input, the Ultra HD source will be automatically down converted so you can view the Ultra HD source on an HD monitor.
1 HDMI
HDMI type A video output.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector.
6 ALT SDI IN
Redundant SDI input is provided as an optional back up.
7 SDI IN
Primary SDI input.
8 POWER +12V
12 volt power supply input.
Switches
Mini Converter SDI to HDMI 4K's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 4 - SDI Audio De-Embed Bit 2
Switches 4, 3 and 2 are grouped together to provide 8 ON/OFF combinations. Having eight different combinations allows eight independent pairs of audio channels to be de-embedded from your SDI input and output to HDMI, analog or AES/EBU audio.
Switch 3 - SDI Audio De-Embed Bit 1
See switch 4 description.
Switch 2 - SDI Audio De-Embed Bit 0
See switch 4 description.
Switch 1 - Processing Off - Processing On
This switch is not used.
Mini Switch Settings Example
Experiment with the switches by setting your Blackmagic Mini Converter to de-embed SDI audio channels 1 and 2 and output to analog by setting switches 8, 4, 3 and 2 to the OFF position.
SDI Audio Selection Table
| Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram | |||
| 1 and 2 OFF OFF OFF |  | ||
| 3 and 4 OFF OFF ON |  | ||
| 5 and 6 OFF ON OFF |  | ||
| 7 and 8 OFF ON ON |  | ||
| 9 and 10 ON OFF OFF |  | ||
| 11 and 12 ON OFF ON |  | ||
| 13 and 14 ON ON OFF |  | ||
| 15 and 16 ON ON ON |  | ||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The 'video' tab for Mini Converter SDI to HDMI 4K contains the following settings.
This ensures that your HDMI video output stays within legal levels.
Processing menu
- HDMI Instant Lock
Select this checkbox to enable the HDMI instant lock feature. When HDMI instant lock is enabled, the HDMI output signal is kept active even when changing sources. This
means your converter does not have to wait for the HDMI television or monitor to lock before displaying the video output as the HDMI signal is already locked. It's important to note that this feature only works when changing sources using the same video standard.
The HDMI instant lock feature can introduce a small delay in video and audio, so if you need zero delay in your converted output you can bypass the HDMI instant lock feature by deselecting the checkbox.
- Clip Video Output to Legal Levels
This checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.
Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.
The 'audio' tab for Mini Converter SDI to HDMI 4K contains the following settings.


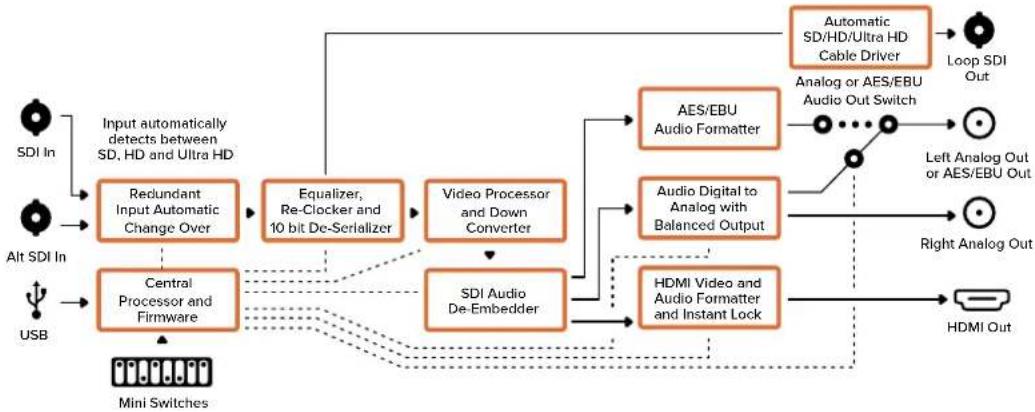

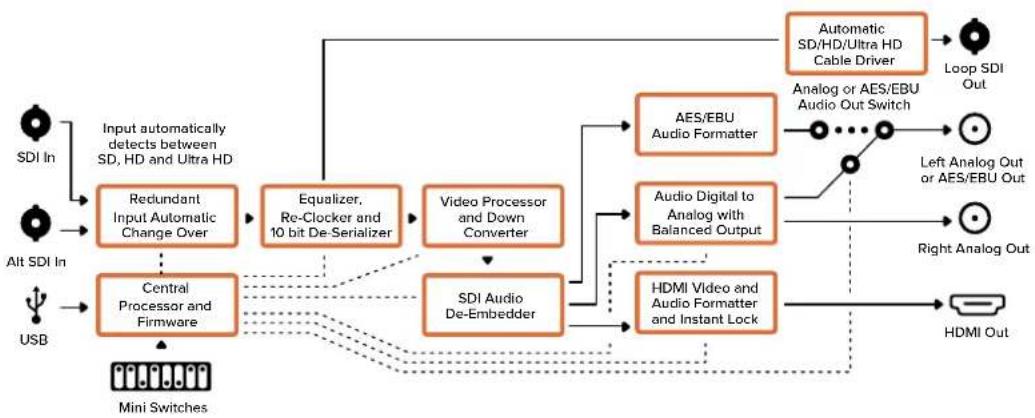

Mini Converter SDI to HDMI 4K Block Diagram
Mini Converter SDI to HDMI 6G
With Mini Converter SDI to HDMI 6G, you can connect a huge range of HDMI displays and video projectors to SDI based equipment. Your Mini Converter SDI to HDMI 6G automatically detects between SD SDI, HD-SDI, 3G-SDI and 6G-SDI input sources and converts to HDMI with embedded audio, plus balanced AES/EBU or analog audio out.
The HDMI instant lock feature lets you lock the HDMI output so that changing sources using the same format is clean and glitch free. If your converter detects an HD monitor or TV connected to the HDMI output and has Ultra HD connected to the SDI input, the Ultra HD source will be automatically down converted so you can view the Ultra HD source on an HD monitor.
You can also load 3D LUTs for adding looks, grades, and color profiles to your converted output. The 3D LUT is a full 33 point hardware lookup table for greater accuracy with color manipulation and can even be used to accurately color calibrate consumer televisions so they can be used for critical color correction work. The 3D LUT also allows color space conversions so different color spaces can be used with various displays. Your Mini Converter SDI to HDMI 6G comes with two default LUTs, including color to monochrome and Blackmagic camera default color space to REC 709.
1 HDMI
HDMI type A video output.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector
6 ALT SDI IN
Redundant SDI input is provided as an optional back up.
7 SDI IN
Primary SDI input.
8 POWER +12V
12 volt power supply input.
Switches
Mini Converter SDI to HDMI 6G's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 7 - LUT Off, LUT On
Set Switch 7 to OFF to disable the LUT, or to ON to enable the LUT.
Switch 6 - LUT 1, LUT2
Set Switch 6 to OFF to select LUT 1, or to ON to select LUT 2.
Switch 5 - LUT On Loop Off, LUT On Loop On
Set Switch 5 to OFF to select LUT On Loop Off, or to ON to select LUT On Loop On.
Switch 4 - SDI Audio De-Embed Bit 2
Switches 4, 3 and 2 are grouped together to provide 8 ON/OFF combinations. Having eight different combinations allows eight independent pairs of audio channels to be de-embedded from your SDI input and output to HDMI, analog or AES/EBU audio.
Switch 3 - SDI Audio De-Embed Bit 1
See switch 4 description.
Switch 2 - SDI Audio De-Embed Bit 0
See switch 4 description.
Switch 1 - HDMI Instant Lock Off, HDMI Instant Lock On
Set switch 1 to OFF to select HDMI Instant Lock Off, or to ON to select HDMI Instant Lock On.
When HDMI instant lock is enabled, the HDMI output signal is kept active even when changing sources. This means your converter does not have to wait for the HDMI television or monitor to lock before displaying the video output as the HDMI signal is already locked. It's important to note that this feature only works when changing sources using the same video standard.
The HDMI instant lock feature can introduce a small delay in video and audio, so if you need zero delay in your converted output you can bypass the HDMI instant lock feature by turning HDMI Instant Lock OFF.
Mini Switch Settings Example
Experiment with the switches by setting your Blackmagic Mini Converter to de-embed SDI audio channels 1 and 2 and output to analog by setting switches 8, 4, 3 and 2 to the OFF position.
SDI Audio Selection Table
| Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram | |||
| 1 and 2 OFF OFF OFF |  | ||
| 3 and 4 OFF OFF ON |  | ||
| 5 and 6 OFF ON OFF |  | ||
| 7 and 8 OFF ON ON |  | ||
| 9 and 10 ON OFF OFF |  | ||
| 11 and 12 ON OFF ON |  | ||
| 13 and 14 ON ON OFF |  | ||
| 15 and 16 ON ON ON |  | ||

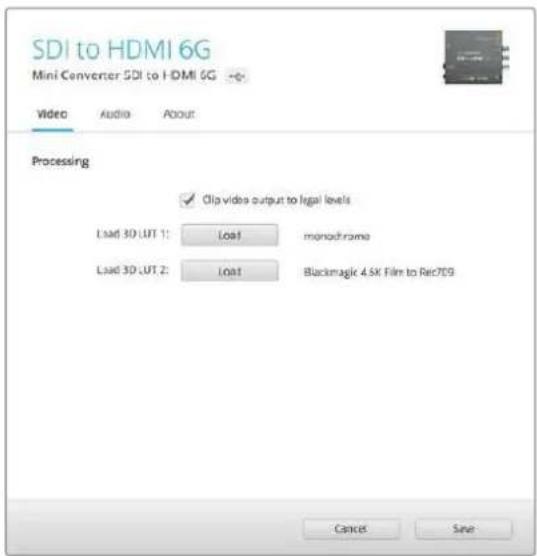

Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs. The 'about' tab is detailed in the 'changing settings' section in this manual.
The 'video' tab for Mini Converter SDI to HDMI 6G contains the following settings.
Processing menu
33 Point 3D LUT
Your Mini Converter SDI to HDMI 6G supports .cube LUT files that can be created using DaVinci Resolve software, or other color correction software that can export .cube files.
You can load 2 separate LUTs by clicking on the 'load' button for each LUT slot, selecting the desired .cube file from your computer, and clicking 'OK'. Click 'save' to confirm your settings. The LUT filename will appear next to each 'load' button so you know which LUT is being used for LUT 1 or LUT 2.
• What Is a 3D LUT?
A 3D LUT, or '3D Lookup Table', is a file containing table of values that are used to modify the video colorspace to a new set of color values in a 3D cube space.
The color cube contains all the variations between the mix of each primary color, defined within three x, y, z spatial dimensions. This means the RGB channels in the SDI input video can be remapped to any other RGB output color in the HDMI video output. This is very powerful as it means any color can be mapped to any other color so you can perform very precise color adjustments for calibrating displays, or loading log gamma curves for display when working with different types of raw camera files on set where you want to see linear gamma.
To show how powerful 3D LUTs can be, one of the default LUTs loaded can convert your input video to black and white. This shows that all the input RGB colors are remapped via the 3D LUT to black and white RGB output values via the HDMI output. You can create your own 3D LUTs and upload them via the admin software and DaVinci Resolve even allows you to convert a color grade setting to a 3D LUT that you can then upload to your Mini Converter SDI to HDMI 6G. You can output the 3D LUT on the SDI video loop output so you could even use your Mini Converter as a dedicated 3D LUT color processor even if you don't use the HDMI output!
For more information on how to create a 3D LUT .cube file, refer to the DaVinci Resolve manual which you can download from the Blackmagic Design website at www.blackmagicdesign.com/support.
- Clip Video Output to Legal Levels
This checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.

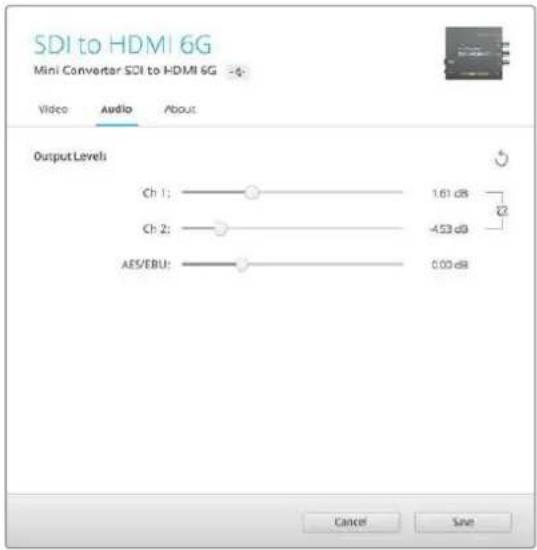

Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu. The 'audio' tab for Mini Converter SDI to HDMI 6G contains the following settings.
Mini Converter SDI to HDMI 6G Block Diagram


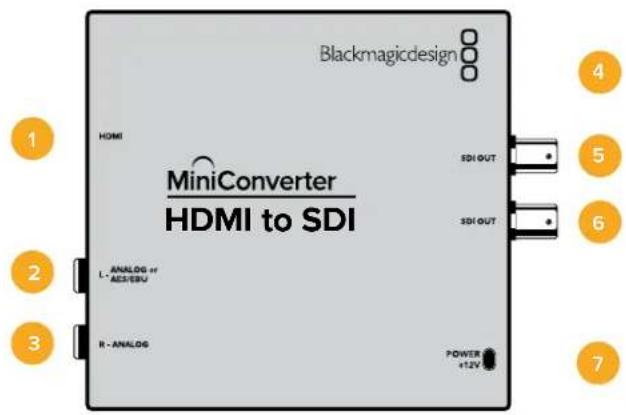

Mini Converter HDMI to SDI
Your Mini Converter HDMI to SDI can convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI with the choice to embed audio from HDMI, AES/EBU or balanced analog audio inputs. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility.
This converter also includes HD to SD down conversion.
1 HDMI
HDMI type A video input.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio or AES/EBU digital audio input on a 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio input 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output on a BNC connector.
6 SDI OUT
Second SDI output.
7 POWER +12V
12 volt power supply input.
Switches
Mini Converter HDMI to SDI's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input. To use these inputs Switch 7 must also be set to ON.
Switch 7 - HDMI Audio - Input Audio
Set switch 7 to OFF to select embedded HDMI audio, or to ON for analog or AES/EBU audio.
Switch 1 - Processing Off - Processing On
Down convert HD to SD with 3 types of aspect ratios by cycling through switch 1. For example, each time you cycle between OFF and On you apply anamorphic, center cut or letterbox aspect ratios. Leaving switch 1 set to OFF bypasses the down converter and outputs in HD.
When connected to the Blackmagic Converters Setup via USB, your down conversion settings are controlled by the software. If you want the converter to remember your software settings, disconnect from the computer, power cycle your converter and set your down conversion using mini switch 1.

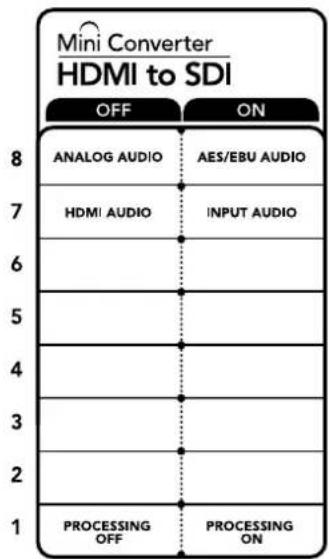

Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.
The 'video' tab for Mini Converter HDMI to SDI contains the following settings.
Processing menu

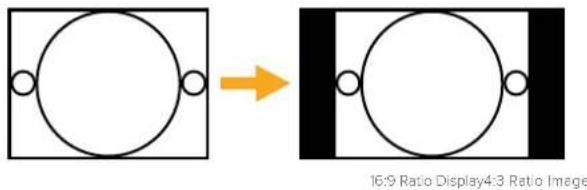

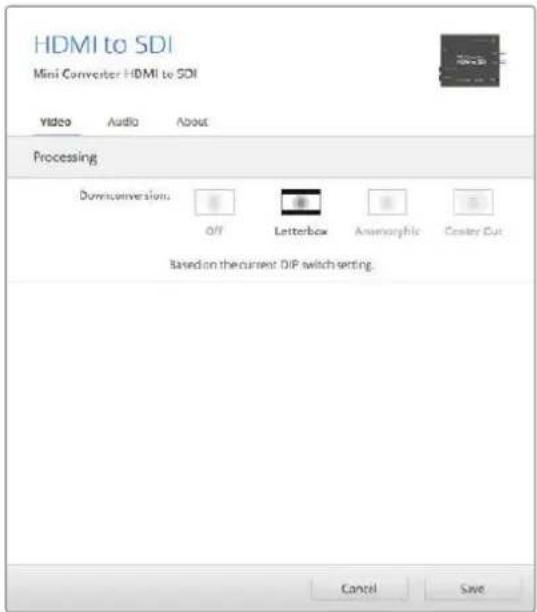

This menu lets you select the aspect ratio of content that is down converted from HD to SD. The options are 'letterbox,' 'anamorphic,' 'center cut', or 'off.'
The 'audio' tab for Mini Converter HDMI to SDI contains the following settings.
Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'input levels' menu.


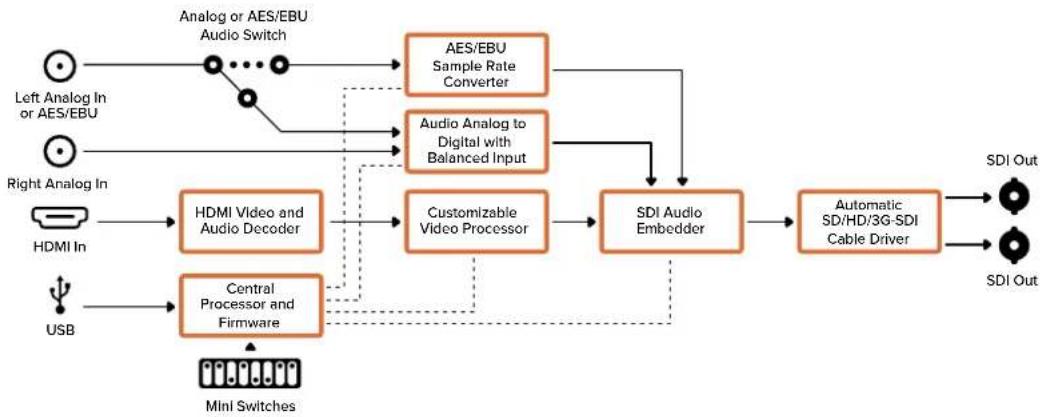

Mini Converter HDMI to SDI Block Diagram
Mini Converter HDMI to SDI 4K
Your Mini Converter HDMI to SDI 4K can convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI with the choice to embed audio from HDMI, AES/EBU or balanced analog audio inputs. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility.
1 HDMI
HDMI type A video input.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio or AES/EBU digital audio input 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio input 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector.
6 SDI OUT
Second SDI output.
7 POWER +12V
12 volt power supply input.

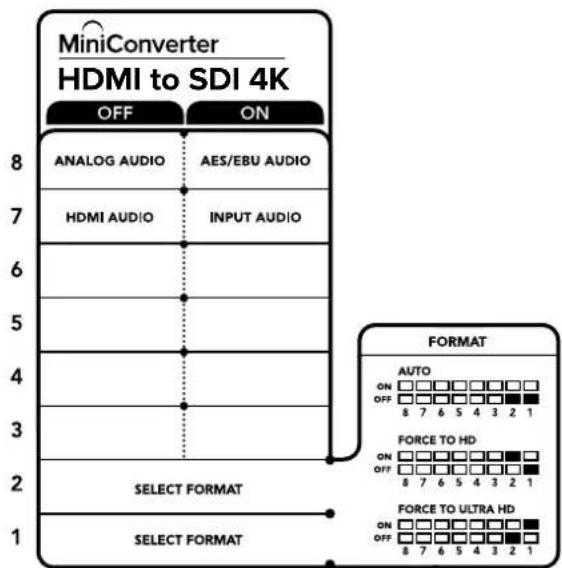

Switches
Mini Converter HDMI to SDI 4K's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input. To use these inputs Switch 7 must also be set to ON.
Switch 7 - HDMI Audio - Input Audio
Set switch 7 to OFF to select embedded HDMI audio, or to ON for analog or AES/EBU audio.
Switches 2, 1 - Select Format Bit 1,0
When connecting an HDMI source that can output Ultra HD and HD, you can set your converter to force the source output to one or the other. This can be helpful when you want to record or display your computer's desktop on SDI equipment in HD so it is larger and easy to view.
While it may appear like it's an up or down conversion setting, what your converter is actually doing is telling your source equipment to output Ultra HD or HD video so that your converter can then output the source video's native HD or Ultra HD resolution without up or down conversion.
To force your source video to HD, Ultra HD, or to let your converter automatically negotiate the optimum resolution with your source equipment, simply use combinations of switches 1 and 2.
The combination settings are shown below.
AUTO - switch 1 to OFF, switch 2 to OFF.
Your converter will negotiate an optimum HD or Ultra HD resolution with your source equipment based on its output capabilities.
FORCE TO HD - switch 1 to OFF, switch 2 to ON.
If your HDMI source equipment is capable of outputting HD and Ultra HD, your converter will instruct the source equipment to output HD video.
FORCE TO ULTRA HD - Switch 1 to ON, Switch 2 to OFF.
If your HDMI source equipment is capable of outputting HD and Ultra HD, your converter will instruct the source to output Ultra HD video.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.
The 'audio' tab for Mini Converter HDMI to SDI 4K contains the following settings.

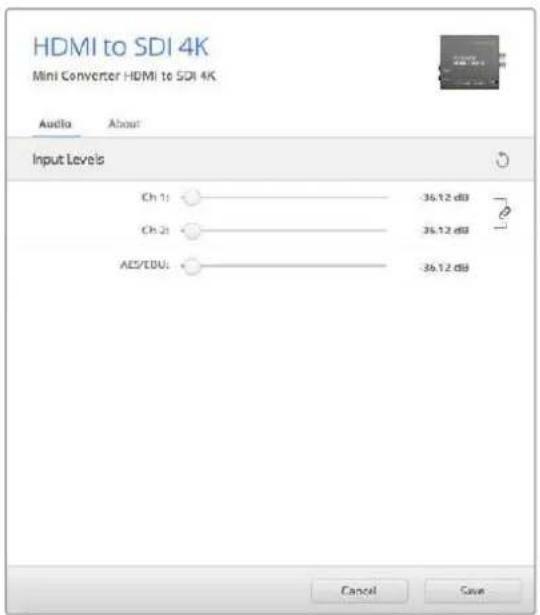

Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'input levels' menu.
Mini Converter HDMI to SDI 4K Block Diagram


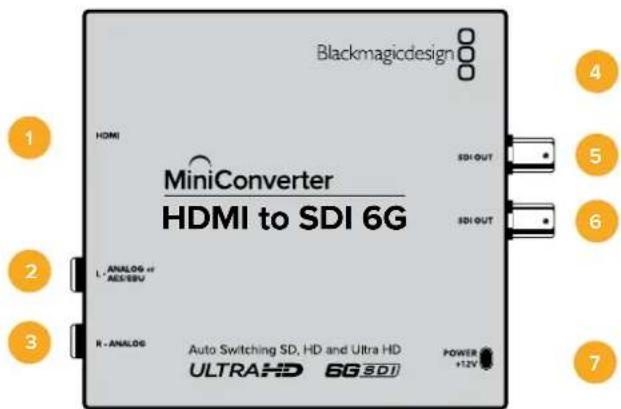

Mini Converter HDMI to SDI 6G
Your Mini Converter HDMI to SDI 6G can convert the HDMI output from video equipment such as HDV cameras and game consoles to SDI with the choice to embed audio from HDMI, AES/EBU or balanced analog audio inputs. This means you can send video signals from HDMI over SDI using the longest SDI cables. You can even add SDI outputs to computers with HDMI compatibility.
1 HDMI
HDMI type A video input.
2 L - ANALOG or AES/EBU
Balanced left channel analog audio or AES/EBU digital audio input 1/4" jack connector.
3 R - ANALOG
Balanced right channel analog audio input 1/4" jack connector.
4 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
5 SDI OUT
SDI video output BNC connector.
6 SDI OUT
Second SDI output.
7 POWER +12V
12 volt power supply input.
Switches
Mini Converter HDMI to SDI 6G's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input. To use these inputs Switch 7 must also be set to ON.
Switch 7 - HDMI Audio, Input Audio
Set switch 7 to OFF to select embedded HDMI audio, or to ON for analog or AES/EBU audio.
Switch 6 - 3G Level B Output (Normal), 3G Level A Output
Set switch 6 to OFF to select 3G Level B Output, or to ON to select 3G Level A Output
Switches 2, 1 - Select Format Bit 1,0
When connecting an HDMI source that can output Ultra HD and HD, you can set your converter to force the source output to one or the other. This can be helpful when you want to record or display your computer's desktop on SDI equipment in HD so it is larger and easy to view.
While it may appear like it's an up or down conversion setting, what your converter is actually doing is telling your source equipment to output Ultra HD or HD video so that your converter can then output the source video's native HD or Ultra HD resolution without up or down conversion.
To force your source video to HD, Ultra HD, or to let your converter automatically negotiate the optimum resolution with your source equipment, simply use combinations of switches 1 and 2.
The combination settings are shown below.
AUTO - switch 1 to OFF, switch 2 to OFF
Your converter will negotiate an optimum HD or Ultra HD resolution with your source equipment based on its output capabilities.
FORCE TO HD - switch 1 to OFF, switch 2 to ON
If your HDMI source equipment is capable of outputting HD and Ultra HD, your converter will instruct the source equipment to output HD video.
FORCE TO ULTRA HD - Switch 1 to ON, Switch 2 to OFF
If your HDMI source equipment is capable of outputting HD and Ultra HD, your converter will instruct the source to output Ultra HD video.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs. The 'about' tab is detailed in the 'changing settings' section in this manual. The 'audio' tab for Mini Converter HDMI to SDI 6G contains the following settings.
Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'input levels' menu.


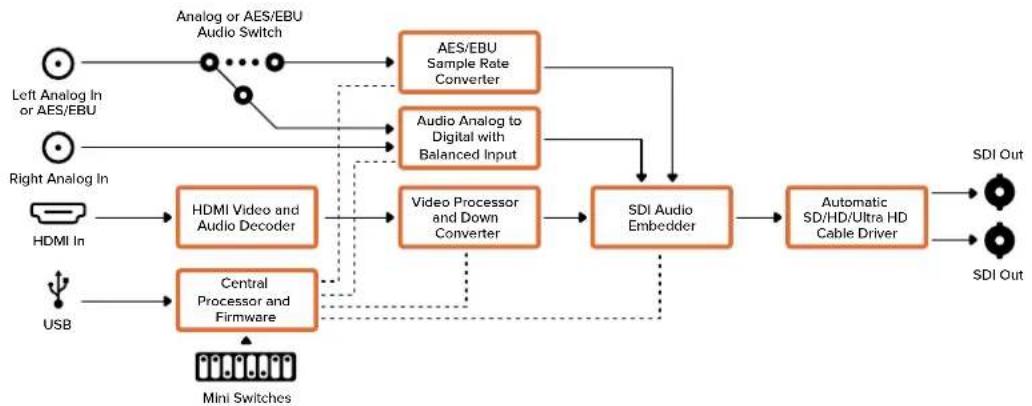

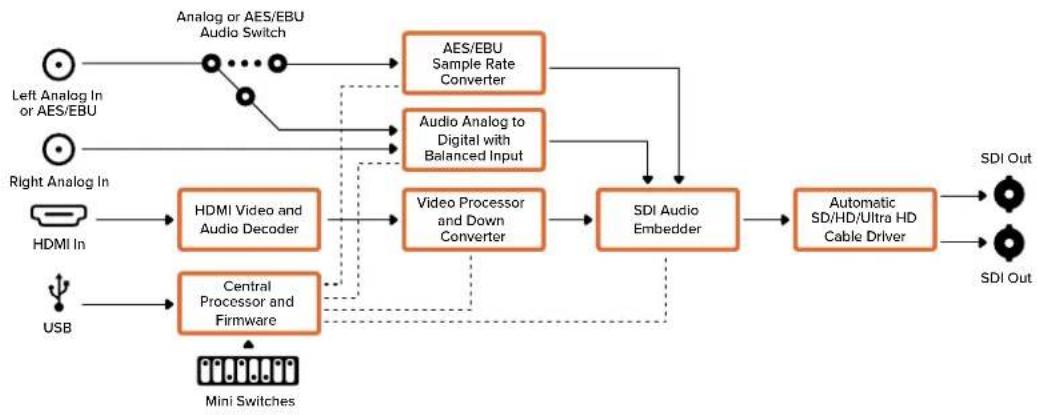

Mini Converter HDMI to SDI 6G Block Diagram

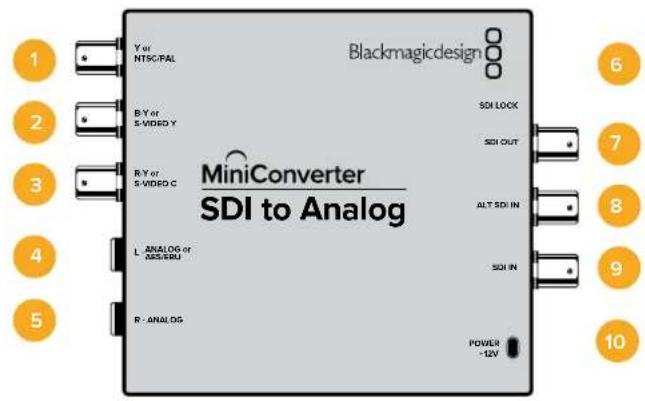

Mini Converter SDI to Analog
Your Blackmagic Mini Converter SDI to Analog converts from SD/HD-SDI to analog component, NTSC and PAL video out, plus balanced AES/EBU and analog audio out. Your converter easily connects to analog video monitors and decks such as Betacam SP and VHS. A hardware down converter lets you connect HD-SDI video to SD analog equipment. You can even output pairs of analog audio from 16 de-embedded SDI audio channels.
1 Y or NTSC/PAL
Analog component Y, or composite NTSC/PAL output on a BNC connector.
2 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
3 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
4 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output on a 1/4" jack connector.
5 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
6 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
7 SDI OUT
SDI video output on a BNC connector.
8 ALT SDI IN
Redundant SDI input is provided as an optional back up.
9 SDI IN
Primary SDI input.
10 POWER +12V
12 volt power supply input.
Switches
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 7 - 7.5 IRE - 0.0 IRE
The USA and countries using NTSC with 7.5 setup should set switch 7 to OFF. If you're working in countries not using 7.5 setup, set switch 7 to ON. This setting only affects composite or S-Video outputs.
Switch 6 - SMPTE Levels - Betacam Levels
Set switch 6 to OFF for SMPTE levels, or ON for Betacam levels. SMPTE levels are more common and even Betacam SP decks can use SMPTE levels, so only switch this to Betacam if you are sure that Betacam levels are being used.
Switch 5 - Component, Composite or S-Video
Set switch 5 to OFF to select analog component video output, or ON for composite and S-Video outputs.
To display the HD video input on the S-Video and composite outputs, down conversion must be set to ON. Component analog video supports both HD and SD video.
Switch 4 - SDI Audio De-Embed B it 2
Switches 4, 3 and 2 are grouped together to provide 8 ON/OFF combinations. Having eight different combinations allows eight independent pairs of audio channels to be de-embedded from your SDI input.
Switch 3 - SDI Audio De-Embed Bit 1
See switch 4 description.
Switch 2 - SDI Audio De-Embed Bit 0
See switch 4 description.
Switch 1 - Processing Off - Processing On
Down convert HD to SD with 3 types of aspect ratios by cycling through switch 1. For example, each time you cycle between Off and On you apply anamorphic, center cut or letterbox aspect ratios. Leaving switch 1 set to OFF bypasses the down converter and outputs in HD.
When connected to Blackmagic Converters Setup via USB, your down conversion settings are controlled by the software. If you want the converter to remember your software settings, disconnect from the computer, power cycle your converter and set your down conversion using switch 1.
The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Mini Switch Settings Example
Experiment with the switches by setting your Blackmagic Mini Converter to output high definition component video and analog audio channels 1 and 2 by setting switches 8, 5, 4, 3 and 2 to the OFF position.
SDI Audio Selection Table
| Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram | ||||
| 1 and 2 OFF OFF OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 3 and 4 OFF OFF ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 5 and 6 OFF ON OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 7 and 8 OFF ON ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 9 and 10 ON OFF OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 11 and 12 ON OFF ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 13 and 14 ON ON OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 15 and 16 ON ON ON | ONOFF8 7 6 5 4 3 2 1 | |||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.

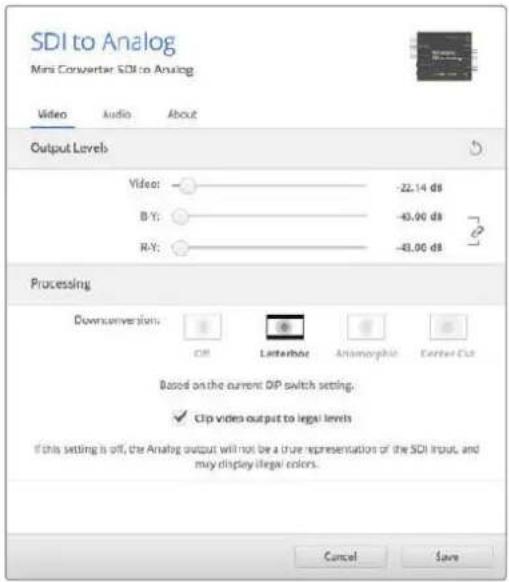

The 'video' tab for Mini Converter SDI to Analog contains the following settings.
Processing menu
This menu allows you to set the aspect ratio of down converted video. The options are letterbox, anamorphic, center cut or no processing.
The ‘clip video output to legal levels’ checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.
Output Levels menu
This lets you set the luminance and chroma levels, and the B-Y and R-Y component levels independently.

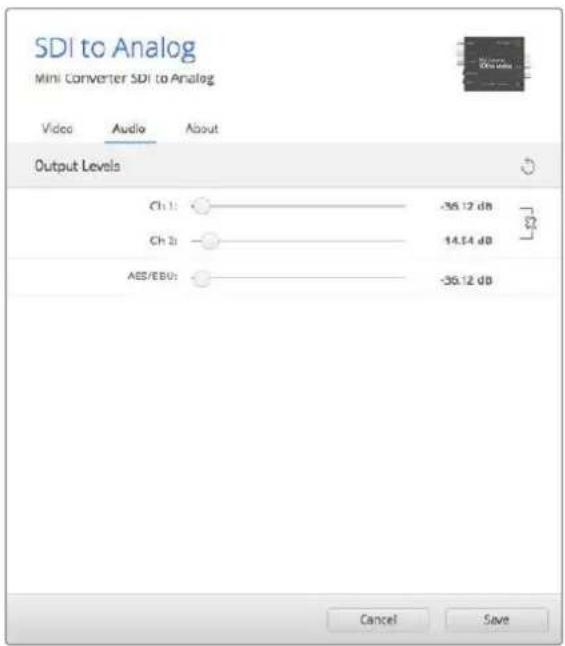

The 'audio' tab for Mini Converter SDI to Analog contains the following settings.
Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.

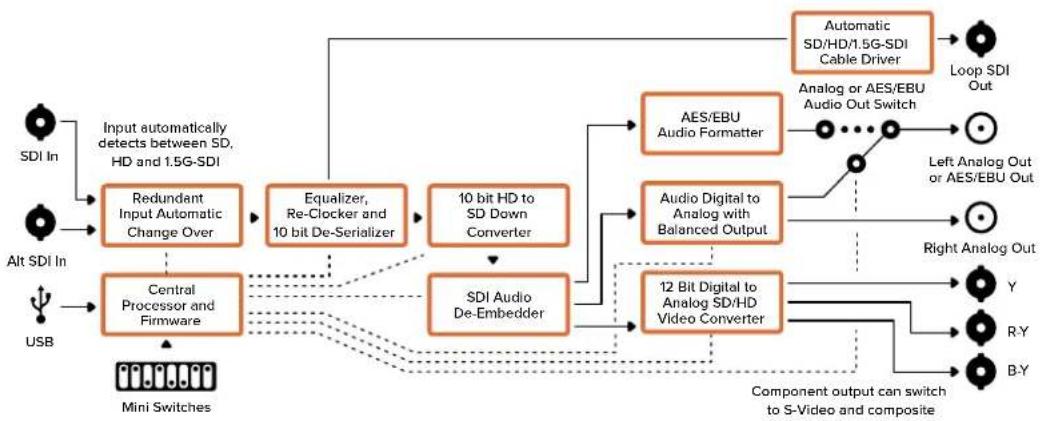

Mini Converter SDI to Analog Block Diagram

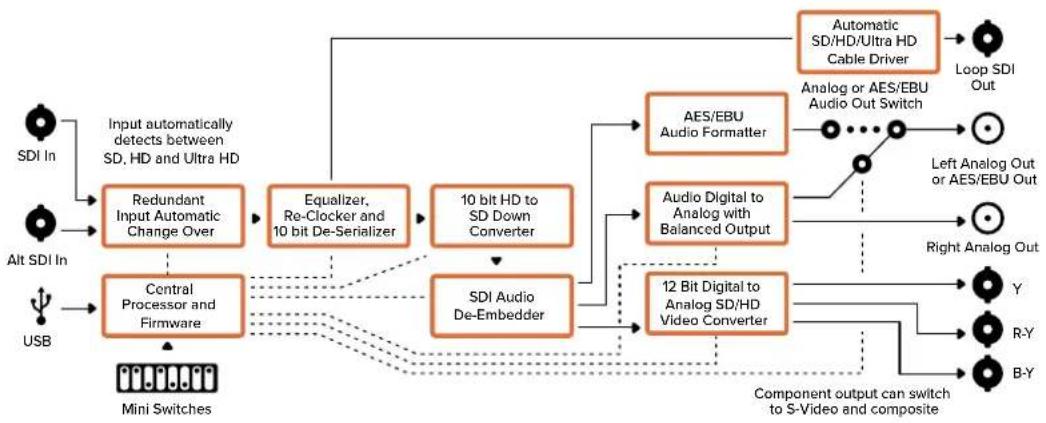

Mini Converter SDI to Analog 4K
Your Mini Converter SDI to Analog 4K can convert from SD/HD/3G/6G-SDI to analog component, NTSC and PAL video out, plus balanced AES/EBU and analog audio out. This down converter lets you connect up to 6G-SDI video to SD or HD analog equipment and easily connects to video monitors and decks such as Betacam SP and VHS. You can even output pairs of analog audio from 16 de-embedded SDI audio channels.
1 Y or NTSC/PAL
Analog component Y or composite NTSC/PAL output BNC connector.
2 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
3 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
4 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output 1/4" jack connector.
5 R - ANALOG
Balanced right channel analog audio output 1/4" jack connector.
6 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
7 SDI OUT
SDI video output BNC connector.
8 ALT SDI IN
Redundant SDI input is provided as an optional back up.
9 SDI IN
Primary SDI input.
10 POWER +12V
12 volt power supply input.

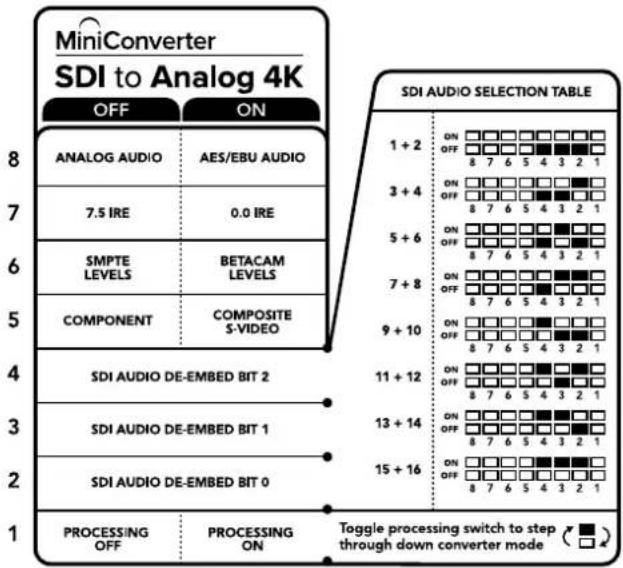

Switches
Mini Converter SDI to Analog 4K's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 7 - 7.5 IRE - 0.0 IRE
The USA and countries using NTSC with 7.5 setup should set switch 7 to OFF. If you're working in countries not using 7.5 setup, set switch 7 to ON. This setting only affects composite or S-Video outputs.
Switch 6 - SMPTE Levels - Betacam Levels
Set switch 6 to OFF for SMPTE levels, or ON for Betacam levels. SMPTE levels are more common and even Betacam SP decks can use SMPTE levels, so only switch this to Betacam if you are sure that Betacam levels are being used.
Switch 5 - Component, Composite or S-Video
Set switch 5 to OFF to select analog component video output, or ON for composite and S-Video outputs.
To display the HD video input as SD on the S-Video and composite outputs, down conversion must be set to ON. Component analog video supports both HD and SD video.
Switch 4, 3 and 2 - SDI Audio De-Embed
Switches 4, 3 and 2 are grouped together to provide 8 ON/OFF combinations. Having eight different combinations allows eight independent pairs of audio channels to be de-embedded from your SDI input.
Switch 1 - Processing Off - Processing On
Down conversion with 3 types of aspect ratios by cycling through switch 1. Each time you cycle between Off and On you apply anamorphic, center cut or letterbox aspect ratios.
For both HD and Ultra HD input, set switch to OFF to output HD analog via the component outputs.
Set switch to ON and Ultra HD input downconverts to either analog PAL/NTSC or HD component depending on the other switch settings. 4K DCI will be cropped on the component HD output.
An ON setting with HD input will be downconverted to analog PAL/NTSC or component depending on the other switch settings.
When connected to Blackmagic Converters Setup via USB, your down conversion settings are controlled by the software. If you want the converter to remember your software settings, disconnect from the computer, power cycle your converter and set your down conversion using switch 1.
other
MiniConverter SDI to Analog 4K | Category | Status | Value | |---|---|---| | ANALOG AUDIO | ON | | | 7.5 IRE | ON | | | 7.5 IRE | OFF | 8 7 6 5 4 3 2 1 | | 7.5 IRE | OFF | 8 7 6 5 4 3 2 1 | | SMPTE LEVELS | ON | | | 7.5 IRE | OFF | 8 7 6 5 4 3 2 1 | | SMPTE LEVELS | OFF | 8 7 6 5 4 3 2 1 | | BETACAM LEVELS | ON | | | 7.5 IRE | OFF | 8 7 6 5 4 3 2 1 | | BETACAM LEVELS | OFF | 8 7 6 5 4 3 2 1 | | COMPONENT | ON | | | COMPONENT | OFF | 8 7 6 5 4 3 2 1 | | COMPONENT | OFF | 8 7 6 5 4 3 2 1 | | COMPOSITE S-VIDEO | ON | | | COMPOSITE S-VIDEO | OFF | 8 7 6 5 4 3 2 1 | | COMPOSITE S-VIDEO | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 2 | ON | | | SDI AUDIO DE-EMBED BIT 2 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 2 | ON | | | SDI AUDIO DE-EMBED BIT 2 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 1 | ON | | | SDI AUDIO DE-EMBED BIT 1 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 1 | ON | | | SDI AUDIO DE-EMBED BIT 1 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 0 | ON | | | SDI AUDIO DE-EMBED BIT 0 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 0 | ON | | | SDI AUDIO DE-EMBED BIT 0 | OFF | 8 7 6 5 4 3 2 1 | | PROCESSING OFF | ON | | | PROCESSING OFF | OFF | (■) □ | | PROCESSING ON | ON | (□) □ | Taggle processing switch to step through down converter mode (□) □The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Mini Switch Settings Example:
Experiment with the switches by setting your Blackmagic Mini Converter to output high definition component video and analog audio channels 1 and 2 by setting switches 8, 5, 4, 3 and 2 to the OFF position.
Audio Selection Table
| Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram | ||||
| 1 and 2 OFF OFF OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 3 and 4 OFF OFF ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 5 and 6 OFF ON OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 7 and 8 OFF ON ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 9 and 10 ON OFF OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 11 and 12 ON OFF ON | ONOFF8 7 6 5 4 3 2 1 | |||
| 13 and 14 ON ON OFF | ONOFF8 7 6 5 4 3 2 1 | |||
| 15 and 16 ON ON ON | ONOFF8 7 6 5 4 3 2 1 | |||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.

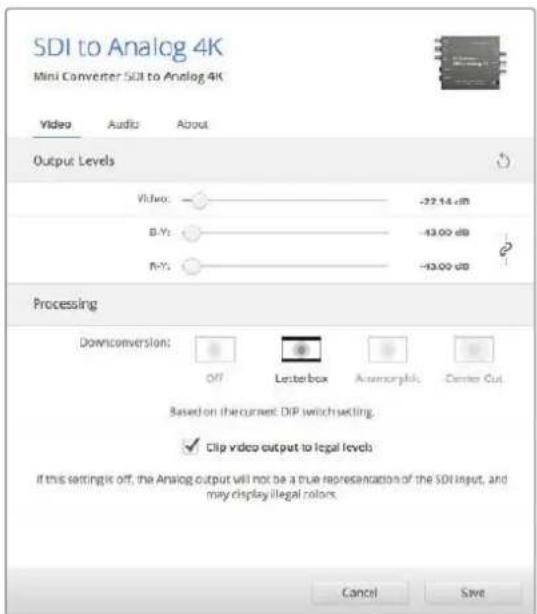

The 'video' tab for Mini Converter SDI to Analog 4K contains the following settings.
Output Levels menu
This lets you set the luminance and chroma levels, and the B-Y and R-Y component levels independently.
Processing menu
This menu allows you to set the aspect ratio of down converted video. The options are letterbox, anamorphic, center cut or no processing.
The ‘clip video output to legal levels’ checkbox controls clipping of your SDI input to ensure that it stays within HDMI legal levels and should be kept on by default.
The 'audio' tab for Mini Converter SDI to Analog 4K contains the following settings.
Output Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.
Mini Converter SDI to Analog 4K Block Diagram
Mini Converter Analog to SDI
With your Mini Converter Analog to SDI you can convert video and audio from analog equipment such as Betacam SP decks, HDV cameras and game consoles to SD/HD-SDI video. A choice of analog and digital formats is supported, including component SD/HD, S-Video, or composite NTSC and PAL. The converter's HD-SDI outputs include the option to embed digital AES/EBU or analog audio.
1 Y or NTSC/PAL
Analog component Y, or composite NTSC/PAL input BNC connector.
2 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y input BNC connector.
3 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C input BNC connector.
4 L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio input 1/4" jack connector.
5 R - ANALOG
Balanced right channel analog audio input 1/4" jack connector.
6 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
7 SDI OUT
SDI video output BNC connector.
8 SDI OUT
Second SDI output.
9 POWER +12V
12 volt power supply input.
Switches

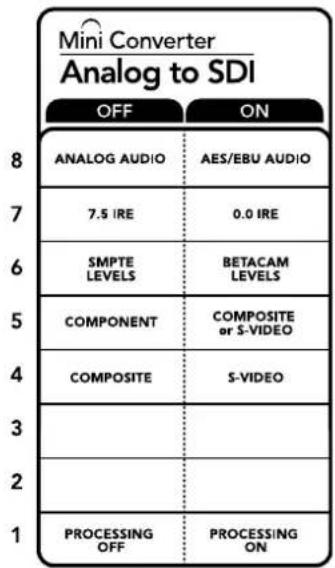

Mini Converter Analog to SDI's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input.
Switch 7 - 7.5 IRE - 0.0 IRE
The USA and countries using NTSC with 7.5 setup should set switch 7 to OFF. If you're working in countries not using 7.5 setup, for example Japan, set switch 7 to ON. This setting only affects composite or S-Video outputs.
Switch 6 - SMPTE Levels - Betacam Levels
This setting selects between SMPTE or Betacam video levels. Set switch 6 to OFF for SMPTE levels, or to ON for Betacam levels. SMPTE levels are more common and even Betacam SP decks can use SMPTE levels so only switch this to Betacam if you are sure that Betacam levels are being used.
Switch 5 - Component, Composite or S-Video
Set switch 5 to OFF to select analog component video input, or to ON for composite video and S-Video analog inputs.
Switch 4 - Composite - S-Video
Set switch 4 to OFF to select composite video input, or to ON for S-Video input.
Switch 1 - Processing Off - Processing On
This switch is not used.
Mini Switch Settings Example
Experiment with the switches by setting your Blackmagic Mini Converter to Component and Analog Audio input by setting switches 8 and 5 to the OFF position.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.
The 'video' tab for Mini Converter Analog to SDI contains the following settings.

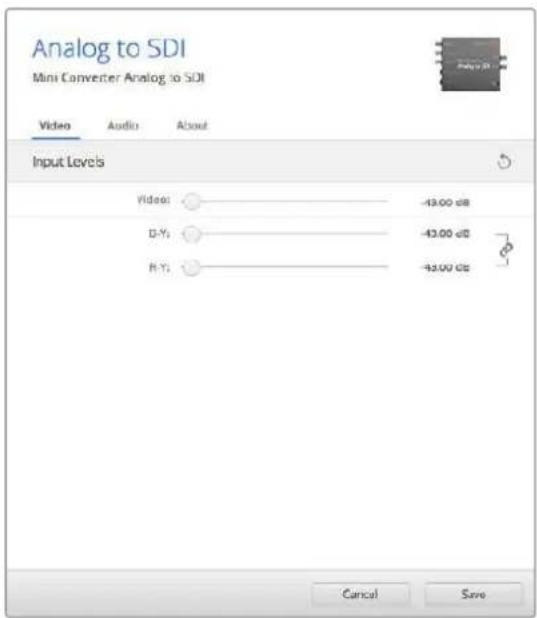

Input Levels menu
This lets you set the luminance and chroma levels, and the B-Y and R-Y component levels independently.
The 'audio' tab for Mini Converter Analog to SDI contains the following settings.
Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'input levels' menu.

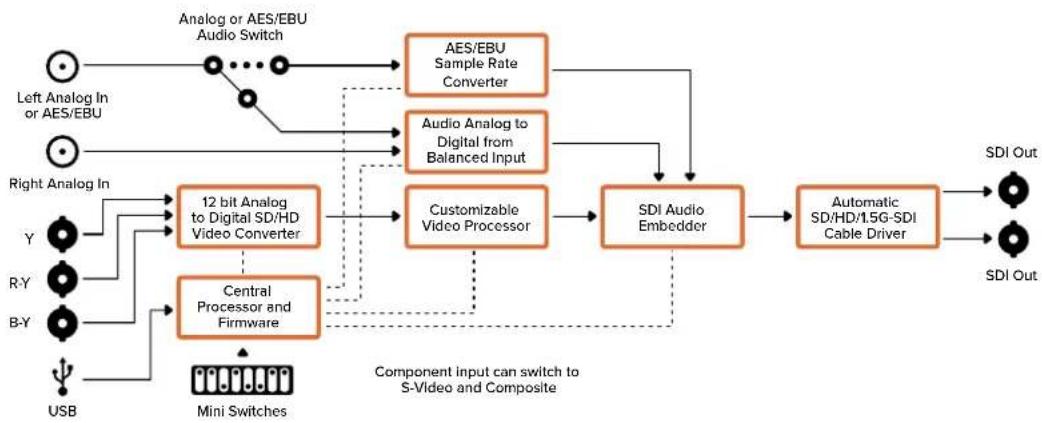

Mini Converter Analog to SDI Block Diagram
Mini Converter SDI to Audio
Your Mini Converter SDI to Audio can de-embed 4 channels of audio from any SDI video connection and output to 4 channels of analog audio or 8 channels of AES/EBU digital. Output to audio equipment such as audio mixers, analog decks and reference monitors. Additional SDI audio channels can be de-embedded by daisy chaining another Mini Converter SDI to Audio to your converter's SDI output.
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 output 1/4" jack connector.
2 CH 2 ANALOG or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 output 1/4" jack connector.
3 CH 3 ANALOG or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 output 1/4" jack connector.
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 output 1/4" jack connector.
5 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6 SDI OUT
Loop through SDI video output BNC connector.
7 ALT SDI IN
Redundant SDI input provided as an optional back up. When using both the SDI IN and ALT SDI IN, the ALT SDI IN will take over should the SDI IN signal fail. The SDI LOCK LED will flash indicating that the converter has switched to the ALT SDI IN.
8 SDI IN
Primary SDI input.
9 POWER +12V
12 volt power supply input.
Switches
Mini Converter SDI to Audio's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 6 - Audio Group Bit 1
Switches 6 and 5 are grouped together to provide four ON/OFF combinations. This allows up to 4 quadruplets of analog audio channels, or 2 sets of 8 AES/EBU audio channels, to be de-embedded from your SDI input.
Switch 5 - Audio Group Bit 0
See switch 6 description.
The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Mini Switch Settings Example
Try experimenting with the switches. Select analog audio channels 1 to 4 by setting switches 8, 6 and 5 to the OFF position.
Audio Selection Tables
| Analog Audio Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 4 OFF OFF |  | ||
| 5 to 8 OFF ON |  | ||
| 9 to 12 ON OFF |  | ||
| 13 to 16 ON ON |  | ||
| AES/EBU Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 8 OFF OFF |  | ||
| 9 to 16 OFF ON |  | ||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.

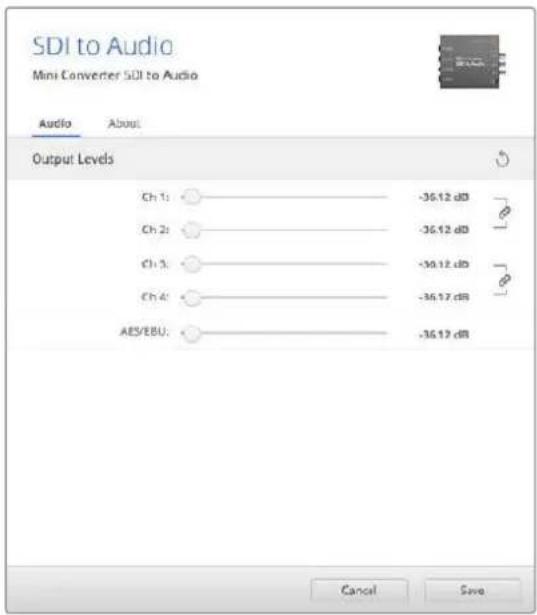

The 'audio' tab for Mini Converter SDI to Audio contains the following settings.
Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together as channel pairs by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.
Mini Converter SDI to Audio Block Diagram
Mini Converter SDI to Audio 4K
With Mini Converter SDI to Audio 4K you can de-embed 4 channels of audio from any SDI video connection and output to 4 channels of analog audio or 8 channels of AES/EBU digital. Output to audio equipment such as audio mixers, analog decks and reference monitors. Additional SDI audio channels can be de-embedded by daisy chaining another Mini Converter SDI to Audio 4K to your converter's SDI output.
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 output 1/4" jack connector.
2 CH 2 ANALOG or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 output 1/4" jack connector.
3 CH 3 ANALOG or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 output 1/4" jack connector.
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 output 1/4" jack connector.
5 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6 SDI OUT
Loop through SDI video output BNC connector.
7 ALT SDI IN
Redundant SDI input provided as an optional back up. When using both the SDI IN and ALT SDI IN, the ALT SDI IN will take over should the SDI IN signal fail. The SDI LOCK LED will flash indicating that the converter has switched to the ALT SDI IN.
8 SDI IN
Primary SDI input.
9 POWER +12V
12 volt power supply input.
Switches
Mini Converter SDI to Audio 4K switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio output.
Switch 6 - Audio Group Bit 1
Switches 6 and 5 are grouped together to provide four ON/OFF combinations. This allows up to 4 quadruplets of analog audio channels, or 2 sets of 8 AES/EBU audio channels, to be de-embedded from your SDI input.
Switch 5 - Audio Group Bit 0
See switch 6 description.
Mini Switch Settings Example
Try experimenting with the switches. Select analog audio channels 1 to 4 by setting switches 8, 6 and 5 to the OFF position.
The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Audio Selection Tables
| Analog Audio Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 4 OFF OFF |  | ||
| 5 to 8 OFF ON |  | ||
| 9 to 12 ON OFF |  | ||
| 13 to 16 ON ON |  | ||
| AES/EBU Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 8 OFF OFF |  | ||
| 9 to 16 OFF ON |  | ||
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.
The 'audio' tab for Mini Converter SDI to Audio 4K contains the following settings.

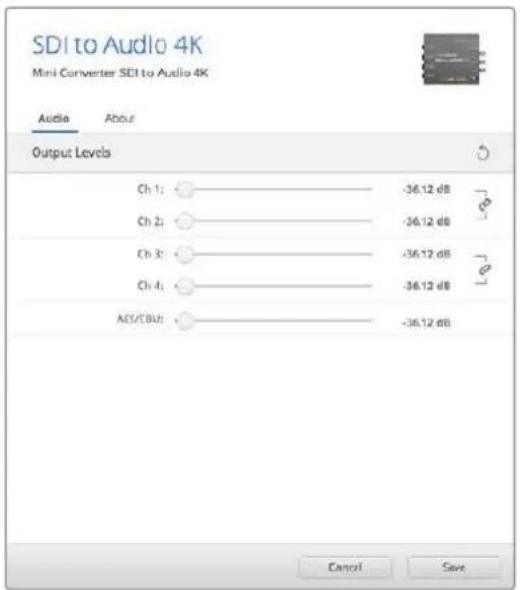

Output Levels menu
This menu allows you to adjust the gain on the audio output. You can adjust audio levels independently per channel, or together as channel pairs by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.

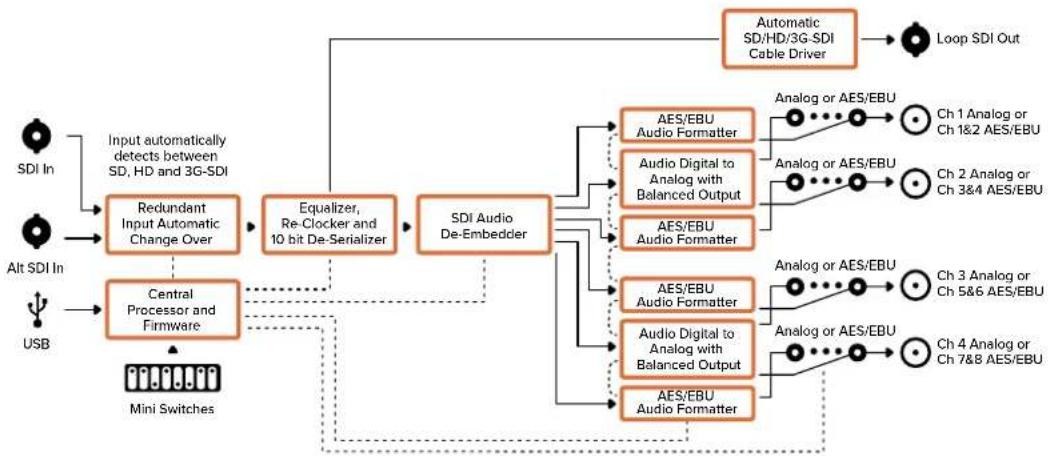

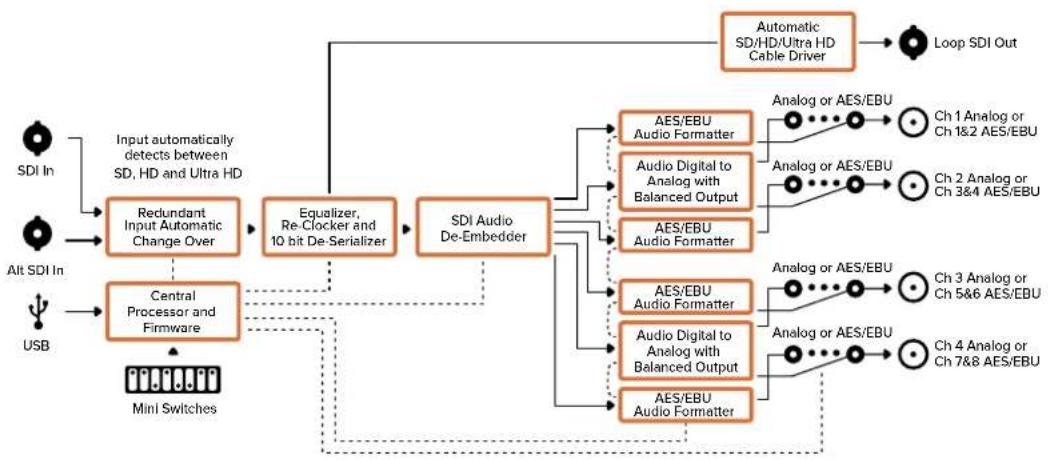

Mini Converter SDI to Audio 4K Block Diagram

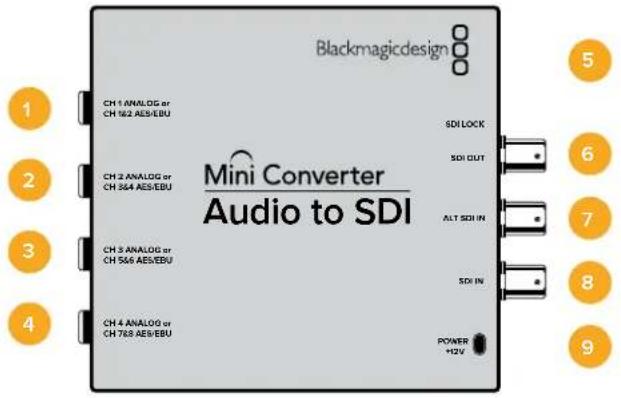

Mini Converter Audio to SDI
Your Mini Converter Audio to SDI can embed four channels of analog audio, or eight channels of AES/EBU digital audio into any SDI video connection. You can use this Mini Converter to embed audio from equipment, such as audio mixers and analog decks, into SDI video connections for use with SDI routers and decks. Additional SDI audio channels can be embedded by daisy chaining another Mini Converter Audio to SDI to your converter's SDI output.
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 input 1/4" jack connector.
2 CH 2 ANALOG or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 input 1/4" jack connector.
3 CH 3 ANALOG or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 input 1/4" jack connector.
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 input 1/4" jack connector.
5 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6 SDI OUT
Loop through SDI video output BNC connector.
7 ALT SDI IN
Redundant SDI input provided as an optional back up. When using both the SDI IN and ALT SDI IN, the ALT SDI IN will take over should the SDI IN signal fail. The SDI LOCK LED will flash indicating that the converter has switched to the ALT SDI IN.
8 SDI IN
Primary SDI input.
9 POWER +12V
12 volt power supply input.
Switches
Mini Converter Audio to SDI's switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input.
Switch 7 - Sample Rate Conversion, No Sample Rate Conversion
Set switch 7 to OFF to enable sample rate conversion, or ON to disable sample rate conversion. This switch should almost always be set to OFF to ensure audio is embedded at the correct sample rate for television.
When switch 7 is set to OFF this setting converts the sample rate of your analog or AES/EBU audio and embeds audio into the SDI output at a sample rate of 48 kHz. When switch 7 is set to ON, sample rate conversion is disabled and audio is output at the original sample rate of your input audio.
Switch 6 - Audio Group Bit 1
Switches 6 and 5 are grouped together to provide four ON/OFF combinations. Having four different combinations allows up to four analog audio channels, or eight AES/EBU audio channels to be embedded in your SDI output.
Switch 5 - Audio Group Bit 0
See switch 6 description.
Audio Selection Table
| Analog Audio Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 4 OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 5 to 8 OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||
| 9 to 12 ON OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 13 to 16 ON ON | ONOFF8 7 6 5 4 3 2 1 | ||
| AES/EBU Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 8 OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 9 to 16 OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||
Embedding or Disabling Channels
Once you have selected your audio channels, use switches 4, 3, 2 and 1 to select which channels to embed or disable. The disable setting lets you avoid overwriting audio channels you wish to keep in the SDI signal.
For example, you can disable analog audio channel 1 or AES/EBU channels 1 and 2 by setting switch 1 to the ON position. Alternatively, you can embed the audio channels by setting switch 1 to the OFF position.
Audio Channel De-Embed or Disable Settings
| Switch Setting Audio Channels | ||
| 4 | ON Disable | analog CH 4, AES/EBU CH 7 and 8 |
| OFF Embed | analog CH 4, AES/EBU CH 7 and 8 | |
| 3 | ON Disable | analog CH 3, AES/EBU CH 5 and 6 |
| OFF Embed | analog CH 3, AES/EBU CH 5 and 6 | |
| 2 | ON Disable | analog CH 2, AES/EBU CH 3 and 4 |
| OFF Embed | analog CH 2, AES/EBU CH 3 and 4 | |
| 1 | ON Disable | analog CH 1, AES/EBU CH 1 and 2 |
| OFF Embed | analog CH 1, AES/EBU CH 1 and 2 | |
Mini Switch Settings Example:
Try experimenting with the switches. Select analog audio channels 1 to 4 by setting switches 8, 6 and 5 to the OFF position.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.
The 'audio' tab for Mini Converter Audio to SDI contains the following settings.
Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together as channel pairs by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.

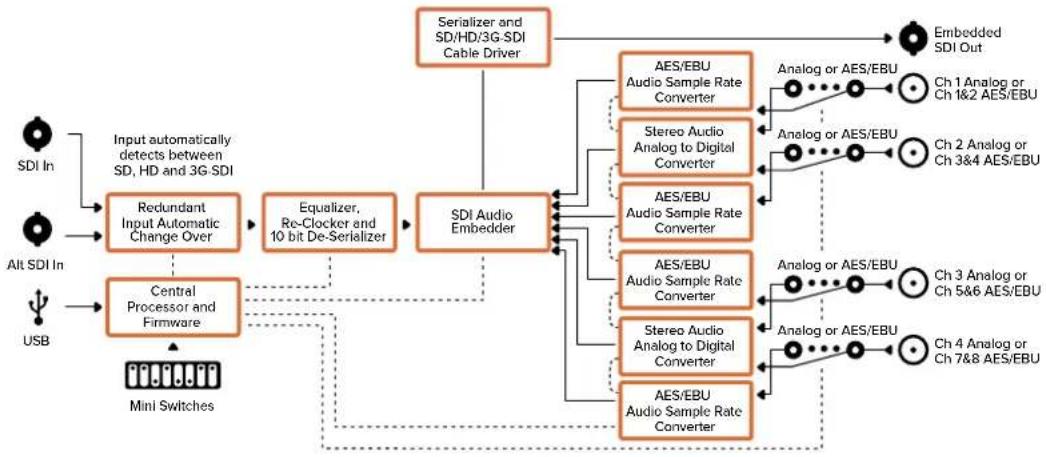

Mini Converter Audio to SDI Block Diagram
Mini Converter Audio to SDI 4K
Your Mini Converter Audio to SDI 4K can embed four channels of analog audio, or eight channels of AES/EBU digital audio into any SDI video connection. You can use this Mini Converter to embed audio from equipment, such as audio mixers and analog decks, into SDI video connections for use with SDI routers and decks. Additional SDI audio channels can be embedded by daisy chaining another Mini Converter Audio to SDI 4K to your converter's SDI output.

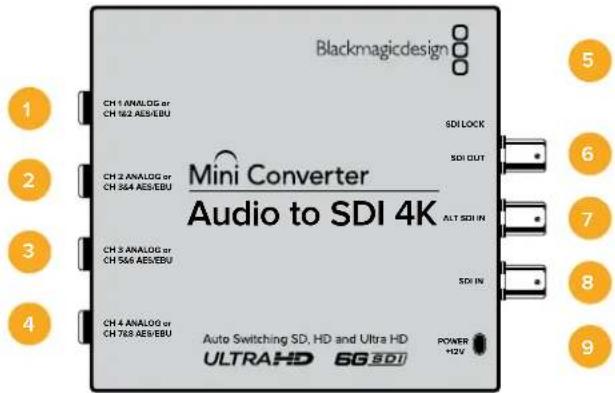

1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 input 1/4" jack connector.
2 CH 2 ANALOG or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 input 1/4" jack connector.
3 CH 3 ANALOG or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 input 1/4" jack connector.
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 input 1/4" jack connector.
5 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6 SDI OUT
Loop through SDI video output on a BNC connector.
7 ALT SDI IN
Redundant SDI input provided as an optional back up. When using both the SDI IN and ALT SDI IN, the ALT SDI IN will take over should the SDI IN signal fail. The SDI LOCK LED will flash indicating that the converter has switched to the ALT SDI IN.
8 SDI IN
Primary SDI input.
9 POWER +12V
12 volt power supply input.
Switches
Mini Converter Audio to SDI 4K switches provide the following settings:
Switch 8 - Analog Audio, AES/EBU Audio
Set switch 8 to OFF to select balanced analog audio, or to ON for digital AES/EBU audio input.
Switch 7 - Sample Rate Conversion, No Sample Rate Conversion
Set switch 7 to OFF to enable sample rate conversion, or ON to disable sample rate conversion. This switch should almost always be set to OFF to ensure audio is embedded at the correct sample rate for television.
When switch 7 is set to OFF this setting converts the sample rate of your analog or AES/EBU audio and embeds audio into the SDI output at a sample rate of 48 kHz. When switch 7 is set to ON, sample rate conversion is disabled and audio is output at the original sample rate of your input audio.
Switch 6 - Audio Group Bit 1
Switches 6 and 5 are grouped together to provide four ON/OFF combinations. Having four different combinations allows up to four analog audio channels, or eight AES/EBU audio channels to be embedded in your SDI output.
Switch 5 - Audio Group Bit 0
See switch 6 description.
Audio Selection Table
| Analog Audio Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 4 OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 5 to 8 OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||
| 9 to 12 ON OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 13 to 16 ON ON | ONOFF8 7 6 5 4 3 2 1 | ||
| AES/EBU Channels Switch 6 Switch 5 Switch Diagram | |||
| 1 to 8 OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 9 to 16 OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||
Embedding or Disabling Channels
Once you have selected your audio channels, use switches 4, 3, 2 and 1 to select which channels to embed or disable. The disable setting lets you avoid overwriting audio channels you wish to keep in the SDI signal.
For example, you can disable analog audio channel 1 or AES/EBU channels 1 and 2 by setting switch 1 to the ON position. Alternatively, you can embed the audio channels by setting switch 1 to the OFF position.
Audio Channel De-Embed or Disable Settings
| Switch Setting Audio Channels | ||
| 4 | ON Disable | analog CH 4, AES/EBU CH 7 and 8 |
| OFF Embed | analog CH 4, AES/EBU CH 7 and 8 | |
| 3 | ON Disable | analog CH 3, AES/EBU CH 5 and 6 |
| OFF Embed | analog CH 3, AES/EBU CH 5 and 6 | |
| 2 | ON Disable | analog CH 2, AES/EBU CH 3 and 4 |
| OFF Embed | analog CH 2, AES/EBU CH 3 and 4 | |
| 1 | ON Disable | analog CH 1, AES/EBU CH 1 and 2 |
| OFF Embed | analog CH 1, AES/EBU CH 1 and 2 | |
The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Mini Switch Settings Example
Try experimenting with the switches. Select analog audio channels 1 to 4 by setting switches 8, 6 and 5 to the OFF position.
Blackmagic Converters Setup Settings
The Converters Setup utility can be used to change settings and update your Mini Converter's software. You can access these settings by moving between the 'audio,' and 'about' tabs.
The 'about' tab is detailed in the 'changing settings' section in this manual.

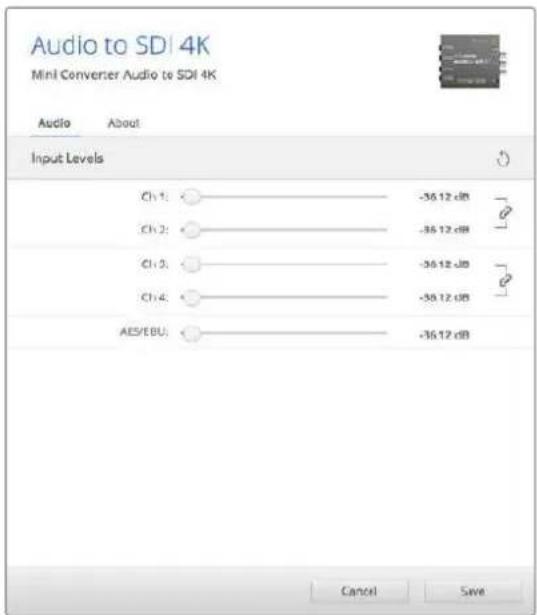

The 'audio' tab for Mini Converter Audio to SDI 4K contains the following settings.
Input Levels menu
This menu allows you to adjust the gain on the audio input. You can adjust audio levels independently per channel, or together as channel pairs by clicking the 'link' icon next to their sliders. To reset all audio levels back to 0 dB click the 'reset' button at the top of the 'output levels' menu.

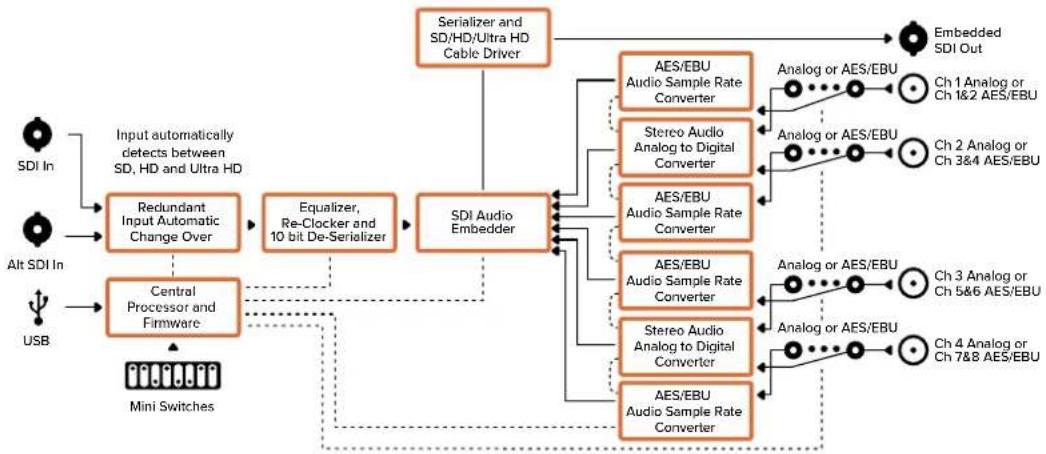

Mini Converter Audio to SDI 4K Block Diagram
Mini ConverterUpDownCross
Your Mini Converter UpDownCross performs up, down and cross conversions as well as NTSC/PAL standards conversion and format conversion. Mini Converter UpDownCross can convert between video formats such as 720p to 1080i and PAL and NTSC video standards. It also provides up conversions with aspect ratios such as 4:3 Pillarbox and 16:9 zoom, and down conversion options such as letterbox 4:3 and anamorphic 16:9.
When conversion processing is set to OFF, the Mini Converter acts as an SDI distribution amplifier.
1-5 SDI OUT
SDI video outputs BNC connectors.
6 Mini-B USB port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
7SDILOOP
Direct output of your input video.
8SDIIN
SDI Input.
9REFIN
Reference video input.
10 POWER+12V
12 volt power supply input.
Switches
Mini Converter UpDownCross' switches provide the following settings:
Switch 8 - Aspect Ratio Conversion
Combinations of switches 8 and 7 set the video aspect ratio when up or down converting. For example, when down converting, the letterbox aspect ratio is applied by setting switches 8 and 7 to the OFF position.
Aspect Ratio Conversion Table
| Down conversion Switch 8 Switch 7 Switch Diagram | ||||
| Letterbox |  16:9 Ratio Image 4:3 Ratio Display | OFF OFF |  | |
| Anamorphic |  16:9 Ratio Image 4:3 Ratio Display | OFF ON |  | |
| Center Cut |  16:9 Ratio Image 4:3 Ratio Display | ON ON |  | |
| Upconversion Switch 8 Switch 7 Switch Diagram | ||||
| 4:3Pillarbox |  16.9 Ratio Display4.3 Ratio Image | OFF OFF |  | |
| 14:9Pillarbox |  4:3 Ratio Image 16.9 Ratio Display | OFF ON |  | |
| 16:9De-Squeeze |  4:3 Ratio Display 16.9 Ratio Image | ON ON |  | |
You've probably noticed switches 8 and 7 share settings for up and down conversions. This is because aspect ratio settings are determined by the output settings. For example, if you have switches 3 and 2 set for 1080i50 HD output, and processing switch 1 set to ON, Mini Converter UpDownCross will automatically set switches 8 and 7 for down conversion.
Below is a description for each aspect ratio conversion:
Up conversion
- 4:3 Pillarbox: This setting displays 4:3 standard definition inside a high definition 16:9 frame. Black bars feature on the sides.
- 14:9 Pillarbox: This setting is a compromise between 4:3 pillarbox and 16:9 zoom. The standard definition 4:3 image is slightly zoomed into, allowing more image in the 16:9 frame and reducing the amount of black bars on the sides, but slightly losing the top and bottom.
- 16:9 De-Squeeze: This setting de-squeezes the standard definition 4:3 anamorphic image until it completely fills the 16:9 frame. None of the 4:3 image is lost.
Down conversion
- Letterbox: This setting scales the entire 16:9 HD image into a 4:3 SD frame without squeezing, leaving black bars on the top and bottom.
- Anamorphic: This setting horizontally squeezes the 16:9 HD image into a 4:3 SD frame.
- Center Cut: This setting cuts a 4:3 SD frame from the 16:9 HD image. This aspect ratio setting discards a portion from each side of the 16:9 image.
Switch 1 - Processing Off - Processing On
When switch 1 is set to OFF all conversions are bypassed and the Mini Converter can be used to distribute your video to six SDI destinations.
Mini Switch Settings Example:
Set the converter to up convert 4:3 625i50 video to 1080i50 with the 4:3 Pillarbox aspect ratio by setting switches 8 and 7 to the OFF position and switches 3, 2 and 1 to the ON position.
Mini ConverterUpDownCross Conversion Table
| Input Video | NTSC Switches 1 and 2 ON | PAL Switch 1 ON | 720p Switches 1 and 3 ON | 1080 Switches 1, 2 and 3 ON |
| 525i59.94 525i59.94 625i50 720p59.94 1080i59.94 | ||||
| 625i50 525i59.94 625i50 720p50 1080i50 | ||||
| 720p50 525i59.94 625i50 720p50 1080i50 | ||||
| 720p59.94 525i59.94 625i50 720p59.94 1080i59.94 | ||||
| 720p60 525i59.94 625i50 720p60 1080i60 | ||||
| 1080PsF23.98 525i59.94 625i50 720p59.94 1080PsF23.98 | ||||
| 1080p23.98 525i59.94 625i50 720p59.94 1080p23.98 | ||||
| 1080PsF24 525i59.94 625i50 720p50 1080PsF24 | ||||
| 1080p24 525i59.94 625i50 720p50 1080p24 | ||||
| 1080p25 | 525i59.94 625i50 720p50 1080p25 | |||
| 1080p29.97 | 525i59.94 | 625i50 | 720p59.94 | 1080p29.97 |
| 1080p30 | 525i59.94 | 625i50 | 720p60 | 1080p30 |
| 1080i50 | 525i59.94 | 625i50 | 720p50 | 1080i50 |
| 1080i59.94 525i59.94 625i50 720p59.94 1080i59.94 | ||||
| 1080i60 525i59.94 625i50 720p60 1080i60 | ||||
| 1080p50 | 525i59.94 | 625i50 | 720p50 | 1080p50 |
| 1080p59.94 525i59.94 625i50 720p59.94 1080p59.94 | ||||
| 1080p60 | 525i59.94 | 625i50 | 720p60 | 1080p60 |
| 2048x1556PsF23.98 | 525i59.94 | 625i50 | 2048x1556PsF23.98 | 2048x1556PsF23.98 |
| 2048x1556PsF24 | 525i59.94 | 625i50 | 2048x1556PsF24 | 2048x1556PsF24 |
| 2048x1556PsF25 | 525i59.94 | 625i50 | 2048x1556PsF25 | 2048x1556PsF25 |

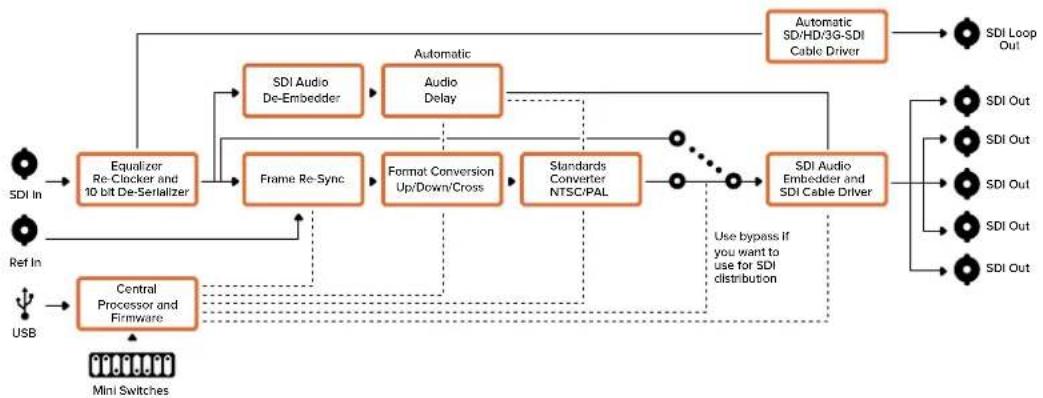

Mini ConverterUpDownCross Block Diagram

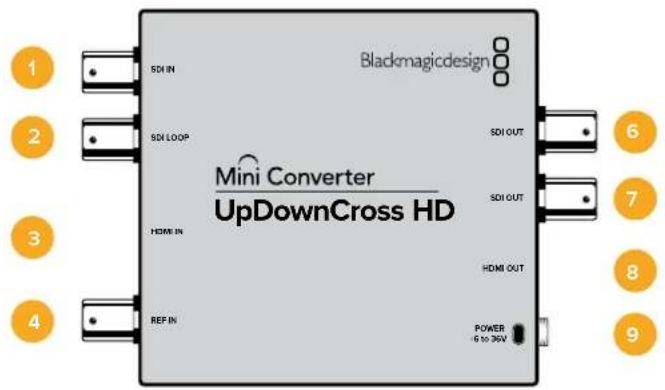

Mini ConverterUpDownCross HD
Mini Converter UpDownCross HD is a powerful standards converter that gives you the ability to convert any SD or HD video format with up, down, or cross conversion via SDI and HDMI. This converter supports all SD and HD formats up to 1080p60 plus NTSC and PAL with aspect ratio options for up and down conversions. The HDMI input also accepts 1024 x 768, 800 x 600, and 640 x 480 computer output resolutions.
When conversion processing is set to OFF the HDMI and SDI outputs become loop outputs so you can feed the input signal to other HDMI and SDI equipment.
1 SDI IN
SDI input. The small LED next to the BNC connector illuminates when a locked SDI signal is detected. When both SDI and HDMI inputs are connected, the SDI input takes priority.
2 SDI LOOP
Direct loop output of your SDI input video.
3 HDMI IN
HDMI type A video input. A small LED next to the HDMI IN connector illuminates to show when it detects a valid HDMI input.
4 REF IN
Reference video input. A small LED next to the REF IN connector indicates the reference lock status:
Constant white - the REF IN matches the format of the output video format set on the converter.
Flashing white - the REF IN is a valid video format but doesn't match the output video format set on the converter.
5 USB-C Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6-7 SDI OUT
SDI video output BNC connectors.
8 HDMIOUT
HDMI type A video output.
9 POWER +6 to 36V
6 to 36 volt power supply input. The support screw can be secured to the unit's power connector to prevent accidental disconnection. A small LED next to the DC input jack illuminates to show when power is connected.
Switches
Mini Converter UpDownCross HD's switches provide the following settings :
Switch 1 - Processing Off - Processing On
When switch 1 is set to OFF all conversions are bypassed and the converter can be used to distribute your video via both SDI and HDMI outputs.
With switch 1 set to OFF the SDI and HDMI outputs match their corresponding inputs.
When switch 1 is set to ON, processing is enabled and switches 4 to 8 configure the converter's output.
Switch 2 - Level A and Level B 3G-SDI
When switch 2 is set to OFF the converter outputs level B 3G-SDI. When set to ON the converter outputs level A 3G-SDI. This provides compatibility with other SDI equipment that uses level A or level B 3G-SDI.
TIP If you have connected a 3G-SDI signal to 3G-SDI equipment and the signal is not being detected, try changing the setting for switch 2 as the equipment you're connected to may be using an alternate SDI level.
Switches 4 - 8
Switches 4 to 8 determine the format and standard of the converter's output signal. The switch configuration for each format and standard is shown on the table on the base of the unit.
Mini Switch Settings Example:
Video Format Selection Table
| Video Format | Switch 8 | Switch 7 | Switch 6 | Switch 5 | Switch 4 | Switch Diagram |
| 525i59.94 NTSC OFF OFF OFF OFF OFF |  | |||||
| 625i50 PAL OFF OFF OFF ON |  | |||||
| 720p50 OFF OFF OFF ON OFF |  | |||||
| 720p59.94 OFF OFF OFF ON ON |  | |||||
| 720p60 OFF OFF ON OFF ON |  | |||||
| 1080i50 OFF OFF ON OFF ON |  | |||||
| 1080i59.94 | OFF OFF ON ON OFF |  | ||||
| 1080i60 | OFF OFF ON ON ON |  | ||||
| 1080PsF23.98 | OFF | ON | OFF | OFF | OFF |  |
| 1080PsF24 | OFF | ON | OFF | OFF | ON |  |
| 1080PsF25 | OFF | ON | OFF | ON | OFF |  |
| 1080PsF29.97 | OFF | ON | OFF | ON | ON |  |
| 1080PsF30 | OFF | ON | ON | OFF | OFF |  |
| 1080p23.98 | OFF | ON | ON | OFF | ON |  |
| 1080p24 | OFF | ON | ON | ON | OFF |  |
| 1080p25 | OFF ON | ON ON ON |  | |||
| 1080p29.97 | OFF | ON | ON | ON | OFF |  |
| 1080p30 | ON | OFF | OFF | OFF | ON |  |
| 1080p50 | ON | OFF | OFF | ON | OFF |  |
| 1080p59.94 | ON | OFF | OFF | ON | ON |  |
| 1080p60 | ON | OFF | ON | OFF | OFF |  |
Blackmagic Converters Setup Settings
The Blackmagic Converters Setup utility can be used to change settings such as aspect ratio, and update your Mini Converter's software. All utility settings are maintained, even when the Mini Converter is switched off. You can access these settings by moving between the 'video,' 'audio,' and 'about' tabs.
The ‘about’ tab is detailed in the ‘changing settings’ section in this manual.

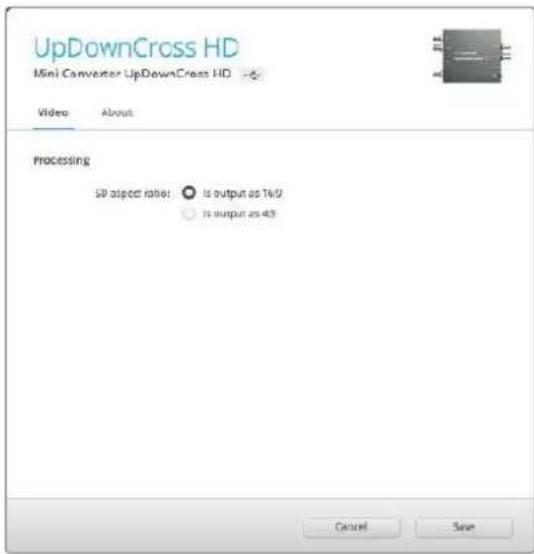

The 'video' tab for Mini ConverterUpDownCross HD contains the following settings:
Aspect Ratio for Standard Definition
Select an option for the aspect ratio of the SD output. You can choose 4:3 pillar boxed or 16:9. For example, if your input video is SD 4:3 then selecting 4:3 will output 4:3 pillar boxed to maintain the original 4:3 aspect ratio inside the 16:9 frame. However, if your input video is SD 16:9 select the 16:9 option to output a direct 16:9 conversion.

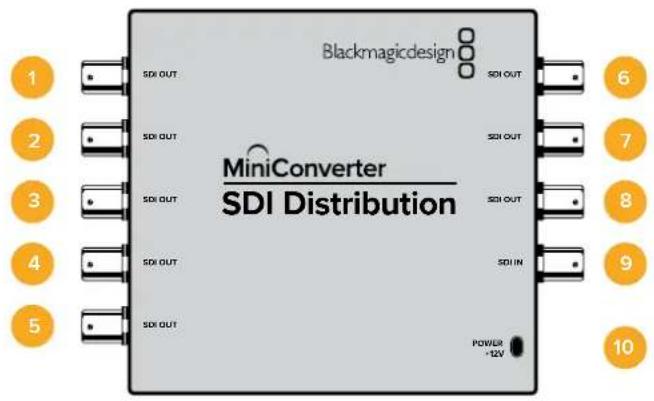

Mini Converter SDI Distribution
With Mini Converter SDI Distribution you can output your SDI signal to eight SDI destinations simultaneously, such as decks, monitor walls and switchers. Whenever the video input changes between SD-SDI, HD-SDI and 3G-SDI video formats, Mini Converter SDI Distribution automatically switches the 8 re-clocked outputs to match with support for ASI, ancillary data and embedded audio formats.
1-8 SDI OUT
SDI video outputs on BNC connectors.
9 SDI IN
SDI input.
10 POWER +12V
12 volt power supply input.

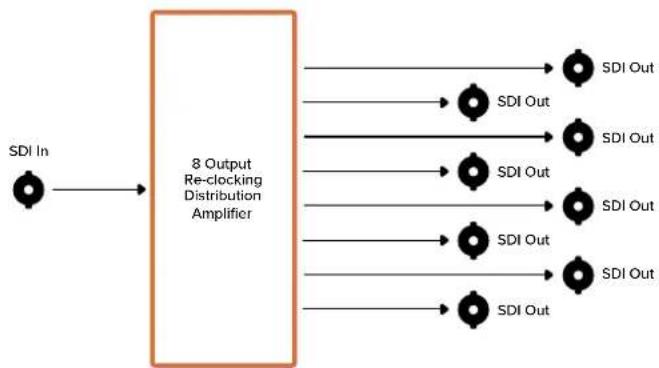

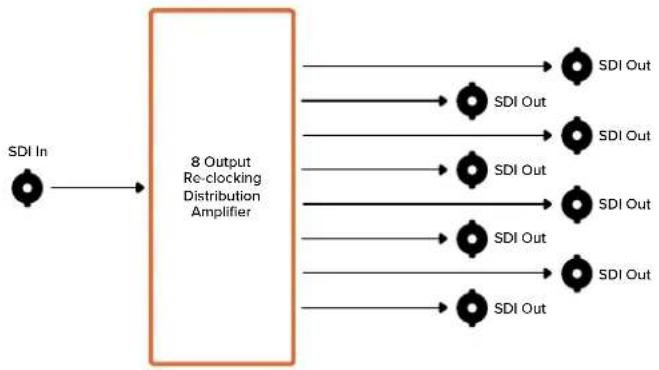

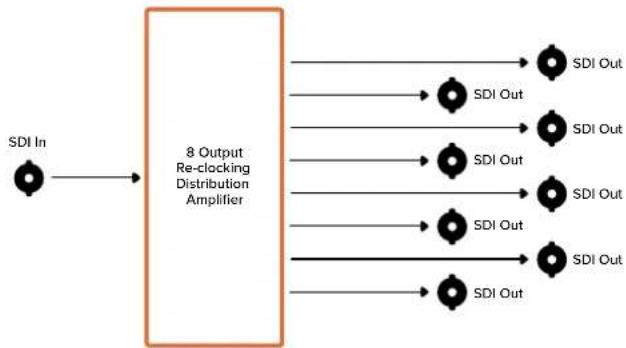

Mini Converter SDI Distribution Block Diagram
Mini Converter SDI Distribution 4K
Your Mini Converter SDI Distribution 4K outputs your SDI signal to eight SDI destinations simultaneously, such as decks, monitor walls and switchers. Whenever the video input changes between SD/HD/3G/6G-SDI video formats, Mini Converter SDI Distribution 4K automatically switches the 8 re-clocked outputs to match, with support for ASI, ancillary data and embedded audio formats.

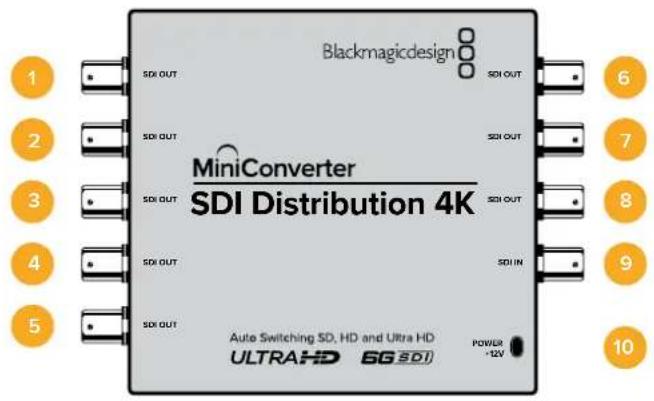

1-8 SDI OUT
SDI video outputs on BNC connectors.
9 SDI IN
SDI input.
10 POWER +12V
12 volt power supply input.
Mini Converter SDI Distribution 4K Block Diagram
Updating Mini Converter SDI Distribution 4K

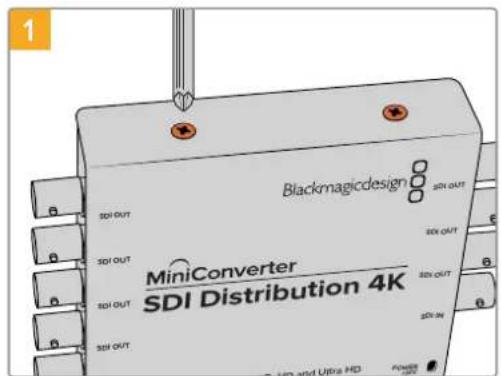

Blackmagic Mini Converter SDI Distribution 4K has an internal USB connector. This mini converter has no user adjustable settings, so you will never need to connect setup software. Very occasionally, though, internal software updates will be released to improve compatibility. For example, Blackmagic Converters Software version 7.0.9 improves this mini converter's compatibility with level A 3G SDI signals.
If a particular update applies to the equipment you are using with Mini Converter SDI Distribution 4K, follow these steps to access your mini converter's USB connector:
NOTE Make sure you disconnect power before accessing your Mini Converter SDI Distribution 4K. We recommend this job is undertaken by a qualified engineer using an anti static strap.
NOTE When handling your Mini Converter SDI Distribution 4K's circuit board, be careful to always hold it by the edges to prevent accidentally short circuiting internal components.
Mini Converter Sync Generator
Your Mini Converter Sync Generator includes 6 crystal stabilized video reference outputs for locking your video equipment to a common reference signal. Sync Generator produces high definition tri-sync or standard definition blackburst signals and is perfect for small studios and outside broadcasts.

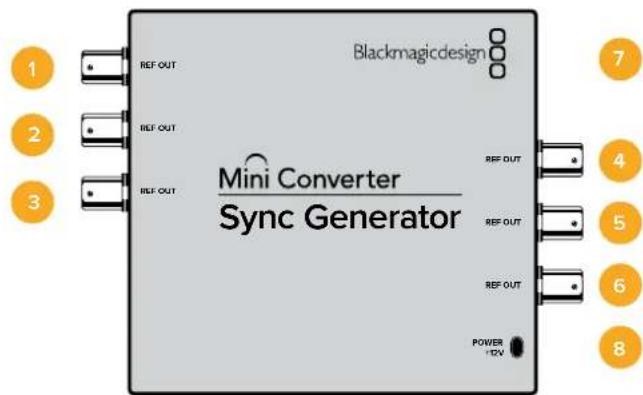

1-6 REF OUT
Reference video outputs BNC connectors.
7 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
8 POWER +12V
12 volt power supply input.
Switches
Mini Converter Sync Generator's switches provide the following settings:
Switch 4, 3, 2 and 1 - SYNC REF FORMAT BIT 3, 2, 1 and 0
Switches 4, 3, 2 and 1 are grouped together to select from many reference video formats, including:

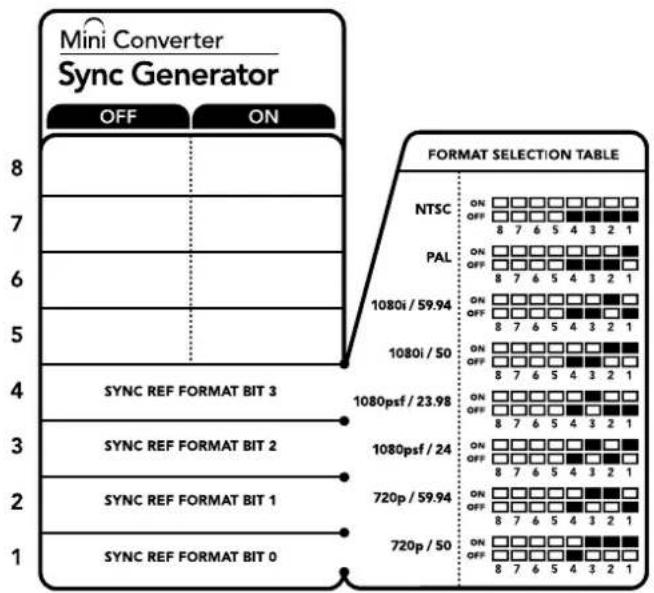

The switch legend on the base of your converter gives you all the information you need to change conversion settings.
Video Format Selection Table
| Video Format | Switch 4 | Switch 3 | Switch 2 | Switch 1 | Switch Diagram |
| NTSC OFF OFF OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||||
| PAL OFF OFF OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||||
| 720p50 OFF ON ON ON | ONOFF8 7 6 5 4 3 2 1 | ||||
| 720p59.94 OFF ON ON OFF | ONOFF8 7 6 5 4 3 2 1 | ||||
| 720p60 ON ON ON ON OFF | ONOFF8 7 6 5 4 3 2 1 | ||||
| 1080i50 OFF OFF ON ON | ONOFF8 7 6 5 4 3 2 1 | ||||
| 1080i59.94 | OFF OFF | ON OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 1080i60 | ON OFF | OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 1080PsF23.98 | OFF ON | OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||
| 1080PsF24 | OFF | ON | OFF | ON | ONOFF8 7 6 5 4 3 2 1 |
| 1080p23.98 | ON ON | OFF ON | ONOFF8 7 6 5 4 3 2 1 | ||
| 1080p24 ON ON OFF OFF | ONOFF8 7 6 5 4 3 2 1 | ||||
| 1080p25 | ON OFF | ON ON | ONOFF8 7 6 5 4 3 2 1 | ||
| 1080p29.97 | ON | OFF | ON | OFF | ONOFF8 7 6 5 4 3 2 1 |
| 1080p30 | ON | OFF | OFF | ON | ONOFF8 7 6 5 4 3 2 1 |

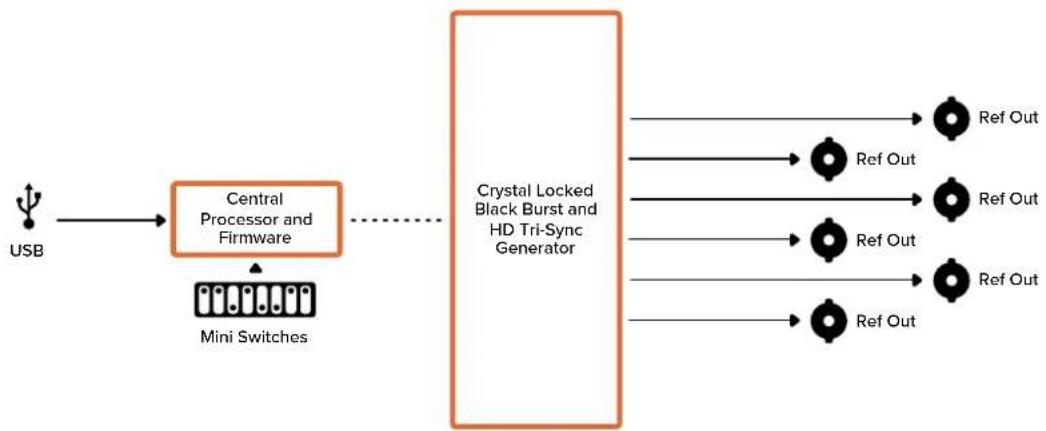

Mini Converter Sync Generator Block Diagram
Mini Converter Optical Fiber
With Mini Converter Optical Fiber you can convert SDI to Optical Fiber and Optical Fiber to SDI simultaneously. Mini Converter Optical Fiber automatically switches between SD/HD/3G-SDI video standards and both directions are completely independent. Use this converter if you need to send and receive SDI signals over longer distances than traditional SDI cables will support. SD video can be sent up to 45 km or 147000 feet using optical fiber, compared to just 300 feet with copper SDI cables. 3G-SDI can be sent up to 25 km away!

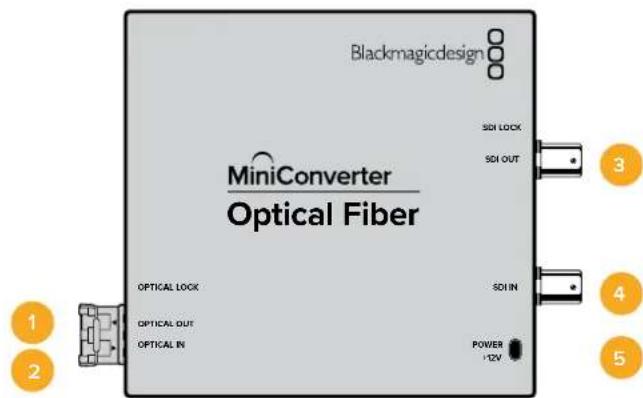

1 OPTICAL OUT
Optical fiber output supports a single mode optical fiber cable with LC connector.
2 OPTICAL IN
Optical fiber input supports a single mode optical fiber cable with LC connector.
3 3G-SDI OUT
SDI video output on a BNC connector for connection to traditional SDI equipment.
4 3G-SDI IN
SDI input on a BNC connector for connection to traditional SDI equipment.
5 POWER +12V
12 volt power supply input.

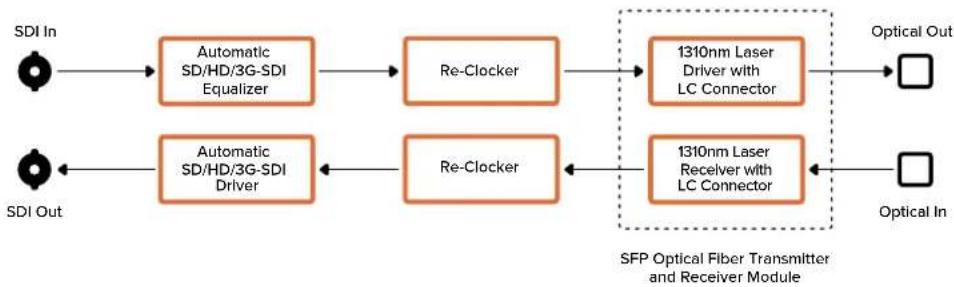

Mini Converter Optical Fiber Block Diagram
Mini Converter Optical Fiber 4K
Convert SD/HD and single link 6G-SDI to Optical Fiber and Optical Fiber to SD/HD and single link 6G-SDI simultaneously. Mini Converter Optical Fiber 4K automatically switches between SD/HD/3G/6G-SDI video standards and both directions are completely independent. Use this converter if you need to send and receive SDI signals over longer distances than traditional SDI cables will support. SD video can be sent up to 45 km or 147000 feet using optical fiber, compared to just 300 feet with copper SDI cables. 6G-SDI can be sent up to 12 km away!
1 Mini-B USB Port
The Mini Converter's internal software is updated using the USB port.
2 OPTICAL OUT
Optical fiber output supports a single mode optical fiber cable with LC connector.
3 OPTICAL IN
Optical fiber input supports a single mode optical fiber cable with LC connector.
4 SDI OUT
SDI video output on a BNC connector for connection to traditional SDI equipment.
5 SDI IN
SDI input on a BNC connector for connection to traditional SDI equipment.
6 POWER +12V
12 volt power supply input.
Mini Converter Optical Fiber 4K Block Diagram
Mini Converter Optical Fiber 12G
This converter converts SD and HD video up to 12G-SDI to optical fiber and the other way around simultaneously.
The socket for the SFP type optical fiber module can be fitted with a compatible SFP optical fiber module that supports up to 3G, 6G or 12G-SDI video.
Your converter automatically detects the video input format and sets the output format to match. Both directions are completely independent.
This converter is helpful if you need to send and receive SDI signals over longer distances than traditional SDI cables will support. For example, SD video can be sent up to 45 km or 147,000 feet using optical fiber, compared to just 300 feet with copper SDI cables. 12G-SDI can be sent up to 6 km away!
1 OPTICAL OUT
Optical fiber output supports a single mode optical fiber cable with LC connector.
2 OPTICAL IN
Optical fiber input supports a single mode optical fiber cable with LC connector.
3 SDI OUT
SDI video output on a BNC connector for connection to SDI equipment.
4 SDI IN
SDI input on a BNC connector for connection to SDI equipment.
5 POWER +6 to 36V
6-36 volt power supply input. The support screw can be secured to the unit's power connector to prevent accidental disconnection.

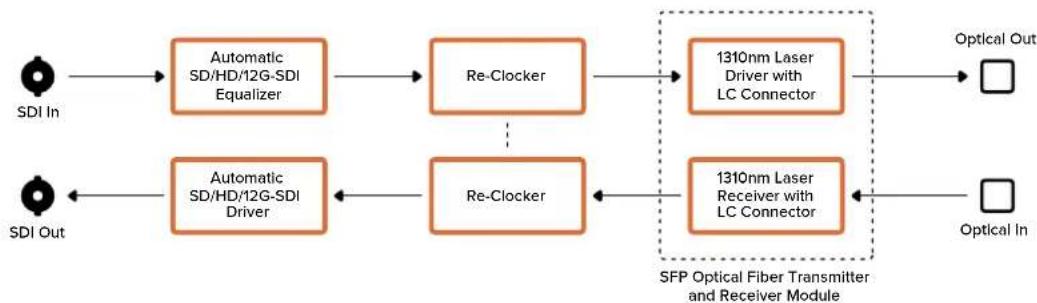

Mini Converter Optical Fiber 12G Block Diagram
Mini Converter Quad SDI to HDMI 4K
Your Mini Converter Quad SDI to HDMI 4K can connect single link, dual link and quad link SDI Ultra HD to the latest Ultra HD projectors and televisions that support Ultra HD over a single HDMI link. You can also convert any of the following inputs to HDMI:
- SD SDI
HD-SDI - Singlelink 3G-SDI
- Singlelink 6G-SDI
- Duallink HD-SDI
- Dual link 3G-SDI Ultra HD
- Quad link HD-SDI Ultra HD
If the HDMI output detects an HD monitor or HDTV, the output signal is automatically downconverted. Only use inputs 1 and 2 with a valid dual link signal.
Supported formats are listed under each SDI input:
1 SDI IN 1
- SD/HD-SDI
– Single link 3G-SDI
– Single link 6G-SDI
– Dual link HD-SDI channel A
– Dual link 3G-SDI Ultra HD channel A - Quad link HD-SDI Ultra HD channel A
2 SDI IN 2
– Dual link HD-SDI channel B
– Dual link 3G-SDI Ultra HD channel B
– Quad link HD-SDI Ultra HD channel B
3 SDI IN 3
– Quad link HD-SDI Ultra HD channel C
4 SDI IN 4
- Quad link HD-SDI Ultra HD channel D
5 Mini-B USB port
Connects to the Converters Setup software via your Mac OS or Windows computer. The Mini Converter's internal software is also updated using the USB port.
6 HDMI
HDMI type A video output.
7 POWER +12V
12 volt power supply input.

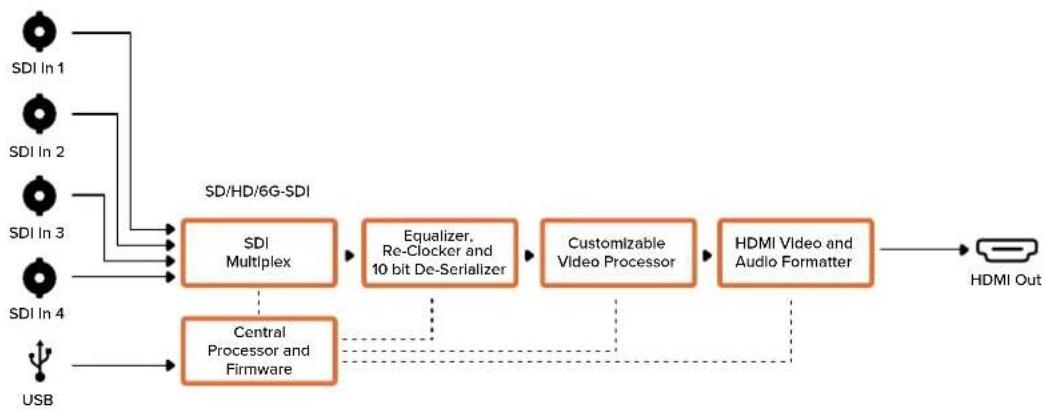

Mini Converter Quad SDI to HDMI 4K Block Diagram
Mini Converter SDI Multiplex 4K
Your Mini Converter SDI Multiplex 4K can perform the following conversions:
- Distribute an SD/HD and 6G-SDI signal to all four outputs.
- Distribute a dual link HD-SDI signal to all four 3G-SDI outputs.
– Single link 3G-SDI to dual link HD-SDI. The dual link output is distributed on both pairs of outputs.
- Single link 6G-SDI to dual link 3G-SDI or Quad link 1.5G-SDI.
- Quad link HD-SDI Ultra HD to single link 6G-SDI, or dual link 3G-SDI Ultra HD so you can connect existing Ultra HD sources to dual link Ultra HD displays. The dual link output is distributed on both pairs of outputs.
– Dual link 3G-SDI to single link 6G-SDI.
– Dual link 3G-SDI Ultra HD to quad link HD-SDI Ultra HD so you can connect the latest dual link Ultra HD sources to existing quad link Ultra HD displays.
1 POWER +12V
- 12 volt power supply input
– Supported formats for each SDI input
2 SDI IN 1
- SD/HD-SDI
– Single link 3G-SDI - Single link 6G-SDI
– Dual link HD-SDI channel A
– Dual link 3G-SDI Ultra HD channel A
– Quad link HD-SDI Ultra HD channel A
3 SDI IN 2
– Dual link HD-SDI channel B
– Dual link 3G-SDI Ultra HD channel B
– Quad link HD-SDI Ultra HD channel B
4 SDI IN 3
– Quad link HD-SDI Ultra HD channel C
5 SDI IN 4
– Quad link HD-SDI Ultra HD channel D
6 Mini-B USB Port
Connects to the Converters Setup software via your Mac OS or Windows computer.
The Mini Converter's internal software can also be updated using the USB port.
Supported formats are listed under each SDI output:
7 SDI OUT 1
- SD/HD-SDI
– Single link 3G-SDI
– Single link 6G-SDI
– Dual link HD-SDI channel A
– Dual link 3G-SDI Ultra HD channel A
– Quad link HD-SDI Ultra HD channel A
8 SDI OUT 2
- SD/HD-SDI
– Single link 3G-SDI
– Single link 6G-SDI
– Dual link HD-SDI channel B
– Dual link 3G-SDI Ultra HD channel B
– Quad link HD-SDI Ultra HD channel B
9 SDI OUT 3
- SD/HD-SDI
– Single link 3G-SDI
– Single link 6G-SDI
– Dual link HD-SDI channel A
– Dual link 3G-SDI Ultra HD channel A
– Quad link HD-SDI Ultra HD channel C
10 SDI OUT 4
- SD/HD-SDI
– Single link 3G-SDI
– Single link 6G-SDI
– Dual link HD-SDI channel B
– Dual link 3G-SDI Ultra HD channel B
– Quad link HD-SDI Ultra HD channel D
Switches
Mini Converter SDI Multiplex 4K's switches provide the following settings:
Switches 8, 7 and 6 - Format Conversion
Combinations of switches 8, 7 and 6 set conversions such as dual link HD-SDI to single link HD-SDI, or quad link Ultra HD to single link Ultra HD.
Switch 1 - Processing ON/OFF
When switch 1 is set to OFF, Mini Converter SDI Multiplex 4K acts as a 4 output SD/HD/6G-SDI distribution amplifier.
Mini Switch Settings Example
Convert quad link Ultra HD to dual link Ultra HD by setting switch 8 to ON, and switch 7 to OFF.
SDI Connection Table
| Conversion Switch 8 Switch 7 Switch 6 Switch 1 Switch Diagram | ||||
| Single Link 6G/3G-SDI to Dual Link 3G/1.5G-SDI | ON ON ON ON |  | ||
| Single Link 6G-SDI to Quad Link 1.5G-SDI | ON OFF ON ON |  | ||
| Dual Link 3G/1.5G-SDI to Single Link 6G/3G-SDI | ON ON OFF ON |  | ||
| Dual Link 3G-SDI to Quad Link 1.5G-SDI | ON OFF OFF ON |  | ||
| Quad Link 1.5G-SDI to Single Link 6G-SDI | OFF ON ON ON |  | ||
| Quad Link 1.5G-SDI to Dual Link 3G-SDI | OFF OFF ON ON |  | ||

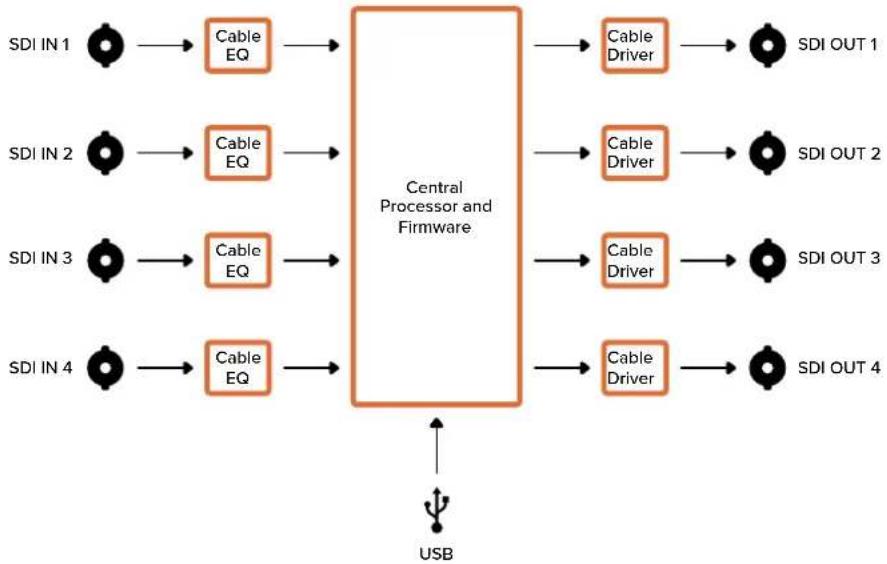

Mini Converter SDI Multiplex 4K Block Diagram
Updating the Internal Software
If your Blackmagic Converter has a USB connector, then you can update it with the latest internal software via the Blackmagic Converters Setup utility. The latest software can be downloaded from the Blackmagic Design support center at www.blackmagicdesign.com/support.
When updating Blackmagic Micro Converters, power is already supplied via the USB port, so you don't have to worry about connecting power.
On Blackmagic Mini Converters, you will need to ensure your converter is powered before connecting to your computer via USB.
1 Power your converter.
2 Attach a USB cable from the computer to the converter and launch the Blackmagic Converter Setup.
Your Blackmagic Converter will be displayed on the setup utility's home page. If you have more than one converter connected via USB, click on the arrow icons on the left or right side of the home page to select your desired converter.
If no converter is connected, the home page will display "no converters found". If you have a converter connected to your computer via USB, but you don't have power plugged in, the home page may display 'no power connected'. Simply plug power into your converter to access the settings.
If Blackmagic Converters Setup contains newer internal software than that currently installed in your Blackmagic Converter, it will prompt you to update. Simply follow the on screen instructions to complete the update.
Help
Getting Help
The fastest way to obtain help is to go to the Blackmagic Design online support pages and check the latest support material available for your Blackmagic Converter.
Blackmagic Design Online Support Pages
The latest manual, software and support notes can be found at the Blackmagic Design support center at www.blackmagicdesign.com/support.
Blackmagic Design Forum
The Blackmagic Design forum on our website is a helpful resource you can visit for more information and creative ideas. This can also be a faster way of getting help as there may already be answers you can find from other experienced users and Blackmagic Design staff which will keep you moving forward. You can visit the forum at https://forum.blackmagicdesign.com
Contacting Blackmagic Design Support
If you can't find the help you need in our support material, or on the forum, please click the "Send us an email" button on the support page to email a support request. Alternatively, click on the "Find your local support team" button and call your nearest Blackmagic Design support office.
Checking the Software Version Currently Installed
To check which version of Converter Setup software is installed on your computer, open the About Blackmagic Converter Setup window.
- On Mac OS, open Blackmagic Converter Setup from the Applications folder. Select About Blackmagic Converter Setup from the application menu to reveal the version number.
- On Windows, open Blackmagic Converter Setup from your Start menu. Click on the Help menu and select About Blackmagic Converter Setup to reveal the version number.
How to Get the Latest Software Updates
After checking the version of Blackmagic Converters Setup software installed on your computer, please visit the Blackmagic Design support center at www.blackmagicdesign.com/support to check for the latest updates. While it is usually a good idea to run the latest updates, it is wise to avoid updating any software if you are in the middle of an important project.
Regulatory Notices
Disposal of Waste of Electrical and Electronic Equipment Within the European Union.
The symbol on the product indicates that this equipment must not be disposed of with other waste materials. In order to dispose of your waste equipment, it must be handed over to a designated collection point for recycling. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city recycling office or the dealer from whom you purchased the product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this product in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.
| BMD-SDItoHDMI (A) | MSIP-REM-BMD-SDIDistribut |
| BMD-HDMItoSDI (B) | MSIP-REM-BMD-HDMItoSDI4K |
| BMD-SDItoAnalog (A) | MSIP-REM-BMD-SDItoHDMI4K |
| BMD-AnalogtoSDI (A) | MSIP-REM-BMD-SDItoAnalog4K |
| BMD-SDItoAudio (A) | MSIP-REM-BMD-OpticalFiber4K |
| KCC-REM-BMD-OpticalFiber | MSIP-REM-BMD-QSDItoHDMI4K |
| KCC-REM-BMD-SyncGenerator | MSIP-REM-BMD-SDIMultiplex4K |
| KCC-REM-BMD-UpDownCross | MSIP-REM-BMD-SDIDistribut4K |
MSIP-REM-BMD-201704001 R-REM-BMD-201804003
MSIP-REM-BMD-201711001 R-REM-BMD-201804004
MSIP-REM-BMD-201711002 R-REM-BMD-201804005
MSIP-REM-BMD-201607004 R-R-BMD-2020061501
MSIP-REM-BMD-201607003 R-R-BMD-2020061502
MSIP-REM-BMD-201410017 R-R-BMD-2020061503
MSIP-REM-BMD-201410018 R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
ISED Canada Statement
This device complies with Canadian standards for Class A digital apparatus.
Any modifications or use of this product outside its intended use could void compliance to these standards.
Connection to HDMI interfaces must be made with high quality shielded HDMI cables.
This equipment has been tested for compliance with the intended use in a commercial environment. If the equipment is used in a domestic environment, it may cause radio interference.
Safety Information
No operator serviceable parts inside product. Refer servicing to your local Blackmagic Design service center.
Some products have the facility to connect small form-factor transceiver (SFP) optical fiber modules. Only use Laser class 1 optical SFP modules.
Recommended Blackmagic Design SFP modules:
3G-SDI: PL-4F20-311C
- 6G-SDI: PL-8F10-311C
• 12G-SDI: PL-TG10-311C
State of California statement
This product can expose you to chemicals such as trace amounts of polybrominated biphenyls within plastic parts, which is known to the state of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Warranty
Limited Warranty
Blackmagic Design warrants that Blackmagic Converters will be free from defects in materials and workmanship for a period of 36 months from the date of purchase excluding connectors, cables, fiber optic modules and fuses which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. If a product proves to be defective during this warranty period, Blackmagic Design, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
In order to obtain service under this warranty, you the Customer, must notify Blackmagic Design of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by Blackmagic Design, with shipping charges pre paid. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to us for any reason.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Blackmagic Design shall not be obligated to furnish service under this warranty: a) to repair damage resulting from attempts by personnel other than Blackmagic Design representatives to install, repair or service the product, b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non Blackmagic Design parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. THIS WARRANTY IS GIVEN BY BLACKMAGIC DESIGN IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. BLACKMAGIC DESIGN AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BLACKMAGIC DESIGN'S RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER BLACKMAGIC DESIGN OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. BLACKMAGIC DESIGN IS NOT LIABLE FOR ANY ILLEGAL USE OF EQUIPMENT BY CUSTOMER. BLACKMAGIC IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM USE OF THIS PRODUCT. USER OPERATES THIS PRODUCT AT OWN RISK.
© Copyright 2021 Blackmagic Design. All rights reserved. 'Blackmagic Design', 'DeckLink', 'HDLink', 'Workgroup Videohub', 'Multibridge Pro', 'Multibridge Extreme', 'Intensity' and 'Leading the creative video revolution' are registered trademarks in the US and other countries. All other company and product names may be trade marks of their respective companies with which they are associated.
Blackmagic
コンバーター
Mini Converters
Blackmagic Design CEO
グラント・ペティ
目次
はじめに 123
電源の接続 123
ビデオの接続 123
オーディオの 接 続 125
Front view of a beige electronic device with ports and an internal connector (no visible text or symbols)natural_image
Illustration of a rectangular electronic device with internal components and labeled ports (no readable text or symbols beyond labels)natural_image
Technical line drawing of a mechanical connector or housing component (no text or symbols visible)text_image
SDI to Audio Mini Converter SDI to Audio Audio About Software Information Software version: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Saveflowchart
Micro Converter SDI to HDMI 3G
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs SD LUT: On Off Enable on loop output Log to Rec 709 Import Delete Cancel Savetext_image
Micro Converter SDI to HDMI 12G Micro Converter Setup LUTs 3D LUT: On Off Enable on loop output Log to Rec 709 Import Delete Cancel Savetext_image
Micro Converter HDMI to SDI 3G MicroConverter Setup LUTs SD LUT: On Off Log to Rec 704 Import Delete Cancel Savetext_image
BiDirectional Micro Micro Converter: BiDirectional S/D/4DMI Video About Processing ✓ Clip video output to legal levels 3D Output: Level B (Normal) Level A Cancel Savetext_image
SDI to HDMI Mini Converter: SDI to HDMI Video Audio About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display legal colors. Cancel Saveflowchart
Mini Converter SDI to HDMI 4K
Mini Converter SDI to HDMI 6G
Mini Converter HDMI to SDI
1 Y、NTSC/PAL (Y or NTSC/PAL)
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels Ch 1: -36.12 dB Ch 2: 14.54 dB AES/EBU: -39.12 dB Cancel Saveflowchart
Mini Converter SDI to Analog 4K
1 Y、NTSC/PAL (Y or NTSC/PAL)
1 Y、NTSC/PAL (Y or NTSC/PAL)
Mini Converter SDI to Audio
Mini Converter SDI to Audio 4K
Mini Converter Audio to SDI
Blackmagicdesign 1 2 3 4 5 SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER +3DV 6 7 8 9 10コネクター
1-8 SDI出力 (SDI OUT)
1-8 SDI出力 (SDI OUT)
3D technical diagram of an electronic device casing with multiple ports and orange components (no text or symbols)natural_image
Illustration of a hand holding a mechanical component with multiple slots and connectors (no text or symbols visible)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SCD HD and Ultra HDSFP Optical Fiber Transmitter and Receiver Module
Mini Converter Optical Fiber 4K
Mini Converter Optical Fiber 12G
note right of G
SFP Optical Fiber Transmitter and Receiver Module
end
Mini Converter Quad SDI to HDMI 4K
内部ソフトウェアのアップデート
Woman sitting on a red couch in a dimly lit theater with ornate ceiling and TV screens (no visible text or symbols)
Micro Converter BiDirectional Assistance 55
SDI/HDMI 12G 271 Avis règlementaires 353
1 Wi-Lower Opticsnatural_image
Illustration of a Wi-Fi consumer device with ports and internal components (no text or symbols visible)natural_image
Technical line drawing of a mechanical component with multiple ports and housing (no text or symbols)text_image
Converters Setup Blackmagic Device B-Directional SDV/HDMI 3G Blackmagic Device More Converter B-Directional SDV/HDMI 3Gtext_image
SDI to Audio Mini Converter SDI to Audio -1 Audio About: Software Information Softwareversion: 7.0 Cancel SaveSetup (onglet Réglages)
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs 3D LUTs On Off Enable on loop output Log to Rec 709 Import Direct Cancel Savetext_image
Micro Converter SDI to HDMI 12G Micro Converter Setup LUTS Name Micro Converter Software Version 1.1 SDI Output 3G SDI Output Level A Level B HDMI Output Clip signal to Normal levels (1€ - 230) Illegal levels (0 - 255) Audio Mapping For 3.1 surround use SWPTE standard (L, R, C, LPE, Rs, Rs) Cconsumer standard (L, R, LFE, C, Rs, Rs) Reset Factory Reset Cancel SaveSDI Output
Micro Converter HDMI to SDI 3G Micro Converter Setup LUTs 3D LUT: On Off Log to Rec 704 Import Delete Cancel Savetext_image
BiDirectional Micro Micro Converter: BiDirectional SDI/HDMI Video About Processing ✓ Olo video output to legal levels Mio Output: Level R(Normal) Level A Cancel Savetext_image
Micro Converter BiDirectional SDI/HDMI 12G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 SDI Camera Control ATEM Camera ID: 2 SDI Output 3G SDI Output: Level A Level B HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 265) Audio Mapping for 5.1 surround use: SWFTE standard (L, R, C, LPE, Ls, Rx) Consumer standard (L, R, LPE, C, Ls, Rx) Reset Factory ResetLes options de réglages du Micro Converter BiDirectional SDI/HDMI 12G.
SDI Camera Control
SDI to HDMI 4K Mini Converter SDI to HDMI 4K Video Audio About Processing ✓ HDMI Instant lock ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal codes. Cancel Saveflowchart
Mini Converter SDI to HDMI 6G
- Clip Video Output to Legal Levels
Mini Converter HDMI to SDI
Mini Converter HDMI to SDI 4K
Mini Converter SDI to Analog
Mini Converter SDI to Analog 4K
other
MiniConverter SDI to Analog 4K | Category | Status | Value | |---|---|---| | ANALOG AUDIO | OFF | 7.5 IRE | | AES/EBU AUDIO | ON | 0.0 IRE | | SMPTE LEVELS | OFF | 7.5 IRE | | BETACAM LEVELS | ON | 7.5 IRE | | COMPONENT | OFF | 7.5 IRE | | COMPOSITE S-VIDEO | ON | 7.5 IRE | | SDI AUDIO DE-EMBED BIT 2 | ON | 11 + 12 | | SDI AUDIO DE-EMBED BIT 1 | ON | 13 + 14 | | SDI AUDIO DE-EMBED BIT 0 | ON | 15 + 16 | | PROCESSING OFF | ON | 87654321 | | PROCESSING ON | ON | 87654321 | Taggle processing switch to step through down converter mode (■) □text_image
SDI to Analog 4K Mini Converter SDI to Analog 4K Video Audio About Output Levels Video -22.14 dB B Hz -43.00 dB R/2 -43.00 dB Processing Downconversion: OFF Letterbox Anamorphic Center Cut Based on the current DIP switch setting. ✓ Clip video output to legal levels If this setting is off, the Analog output will not be a true representation of the SDI input, and may display illegal colors. Cancel Saveflowchart
Mini Converter Analog to SDI
Mini Converter SDI to Audio
Mini Converter Audio to SDI
Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER +12V 1 2 3 4 5 6 7 8 9 10Connecteurs
1-8 Sorties SDI
1-8 Sorties SDI
Fridution AK Bally's type code: 8 600-500natural_image
3D technical illustration of a mechanical assembly with multiple ports and mounting holes (no text or symbols)natural_image
Technical illustration of a mechanical assembly with multiple slots and a central slot, being handled by fingers (no text or symbols present)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDIINother
Mini Converter Sync Generator | Bit | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |---|---|---|---|---|---|---|---|---| | OFF | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | ON | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | FORMAT SELECTION TABLE | BIT | 3 | 2 | 1 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | | INTSC ON OFF: □□□□□□□□□□ | □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○ | □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○ | □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ ○ PAL ON OFF: □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | 1080i / 59.94: □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ ○ | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | 1080i / 50: □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ ▢ | | | | | | | | | | | | | | | | | | | | | | | 1080psf / 23.98: ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ | | | 1080psf / 24: ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ | | | 1080sfs / 24: ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● C | | | 1080sfs / 24: ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● C | | | 1080sfs / 24: ● ● ● ● ● ● ● ● ● ● ● ● (720p / 59.94) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) (720p / 50) | | (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (8,7,6,5,4,3,2,1) (720p / 59.94: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 50: 720p / 5flowchart
note right of G
SFP Optical Fiber Transmitter and Receiver Module
end
Mini Converter Optical Fiber 4K
Mini Converter Optical Fiber 12G
Mini Converter Quad SDI to HDMI 4K
Mini Converter SDI Multiplex 4K
KCC-REM-BMD-UpDownCross
MSIP-REM-BMD-201704001
MSIP-REM-BMD-201711001
MSIP-REM-BMD-201711002
MSIP-REM-BMD-201607004
MSIP-REM-BMD-201607003
MSIP-REM-BMD-201410017
MSIP-REM-BMD-201410018
MSIP-REM-BMD-SDIDistribut
MSIP-REM-BMD-HDMItoSDI4K
MSIP-REM-BMD-SDItoHDMI4K
MSIP-REM-BMD-SDItoAnalog4K
MSIP-REM-BMD-OpticalFiber4K
MSIP-REM-BMD-QSDItoHDMI4K
MSIP-REM-BMD-SDIMultiplex4K
MSIP-REM-BMD-SDIDistribut4K
R-REM-BMD-201804003
R-REM-BMD-201804004
R-REM-BMD-201804005
R-R-BMD-2020061501
R-R-BMD-2020061502
R-R-BMD-2020061503
R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
Mini Converters
CEO, Blackmagic Design
Inhaltsverzeichnis
Erste Schritte 359
Illustration of a beige wireless device with ports and internal components (no visible text or symbols)natural_image
Technical line drawing of a mechanical connector or connector assembly (no text or symbols)text_image
SDI to Audio Mini Converter SDI to Audio -4 Audio About Software Information Software version: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (8 - 255) Audio Mapping for S.1 surround use: SMPTE standard (L R, C, LFE, Ls, Rs) Consumer standard (L R, LFE, C, Ls, Rs) Reset Factory Reset Cancel SareHDMI Output
Micro Converter SDI to HDMI 12G
Micro Converter HDMI to SDI 3G MicroConverter Setup LUTs 3D LUT: On Off Log to Rec 704 Import Delete Cancel SaveMicro Converter HDMI to SDI 3G Blockschaltbild
Micro Converter HDMI to SDI 12G
Micro Converter BiDirectional SDI/HDMI
Blackmagicdesign WDMIN OUT MicroConverter BiDirectional SDI/HDMI 12G SDI OUT WDMIN IN SDI IN 1 2 3 4 5Anschlüsse
1 HDMI OUT
Switch 8 – ANALOG AUDIO, AES/EBU AUDIO
Switch 1 – PROCESSING OFF, PROCESSING ON
SDI to HDMI Mini Converter SDI to HDMI Video Audio About Output Levels Ch 1: -35.12 dB Ch 2: -35.12 dB ABS/FBU: -35.12 dB Cancel Saveflowchart
Mini Converter SDI to HDMI 4K
2 L - ANALOG or AES/EBU
Switch 8 – ANALOG AUDIO, AES/EBU AUDIO
Switch 1 – PROCESSING OFF, PROCESSING ON
Mini Converter SDI to HDMI 6G
2 L - ANALOG or AES/EBU
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 7 – LUT OFF, LUT ON
Switch 6 – LUT 1, LUT 2
Switch 5 – LUT ON LOOP OFF, LUT ON LOOP ON
Mini Converter HDMI to SDI
2 L - ANALOG or AES/EBU
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 1 – PROCESSING OFF, PROCESSING ON
HDMI to SDI Mini Converter HDMI to SDI Video Audio About Input Levels Ch 1: -35.12 dB Ch 2: -35.12 dB AES/FTBL: -35.12 dB Cancel Saveflowchart
Mini Converter HDMI to SDI 4K
2 L - ANALOG or AES/EBU
Switch 8 – ANALOG AUDIO, AES/EBU AUDIO
Switches 2, 1 – SELECT FORMAT BIT 1,0
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switches 2, 1 – SELECT FORMAT BIT 1,0
Mini Converter SDI to Analog
4 L - ANALOG or AES/EBU
Switch 8 – ANALOG AUDIO, AES/EBU AUDIO
Switch 7 - 7.5 IRE, 0.0 IRE
Switch 1 – PROCESSING OFF, PROCESSING ON
other
MiniConverter SDI to Analog | Category | Status | Value | |---|---|---| | ANALOG AUDIO | OFF | 1 + 2 | | ANALOG AUDIO | ON | 8 7 6 5 4 3 2 1 | | AES/EBU AUDIO | ON | 3 + 4 | | 7.5 IRE | ON | 8 7 6 5 4 3 2 1 | | 7.5 IRE | OFF | 8 7 6 5 4 3 2 1 | | SMPTE LEVELS | ON | 5 + 6 | | SMPTE LEVELS | OFF | 8 7 6 5 4 3 2 1 | | BETACAM LEVELS | ON | 7 + 8 | | BETACAM LEVELS | OFF | 8 7 6 5 4 3 2 1 | | COMPONENT | ON | 9 + 10 | | COMPONENT | OFF | 8 7 6 5 4 3 2 1 | | COMPOSITE S-VIDEO | ON | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 2 | ON | 11 + 12 | | SDI AUDIO DE-EMBED BIT 2 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 1 | ON | 13 + 14 | | SDI AUDIO DE-EMBED BIT 1 | OFF | 8 7 6 5 4 3 2 1 | | SDI AUDIO DE-EMBED BIT 0 | ON | 15 + 16 | | SDI AUDIO DE-EMBED BIT 0 | OFF | 8 7 6 5 4 3 2 1 | | PROCESSING OFF | ON | Toggle processing switch to step through down converter mode (■) □ | Processing ON Toggle processing switch to step through down converter mode (□) □text_image
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels VDD: -22.11 dB R-V: -43.00 dB R-V: -43.00 dB Processing Downconversion: OFF Letterbox Anamorphic Center Cut Based on the current DIP switch setting. ✓ Clip video output to legal levels If this setting is off, the Analog output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels On 1: -35.12 dB On 2: -14.54 dB ABS/EBIT: -35.12 dB Cancel Saveflowchart
Mini Converter SDI to Analog 4K
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 7 - 7.5 IRE, 0.0 IRE
Switch 1 – PROCESSING OFF, PROCESSING ON
SDI to Analog 4K Mini Converter SDI to Analog 4K Video Audio About Output Levels Ch 1: -35.12 dB Ch 2: -35.12 dB AFS/EBL: -29.12 dB Cancel SaveMini Converter Analog to SDI
4 L - ANALOG or AES/EBU
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 7 - 7.5 IRE, 0.0 IRE
Switch 1 – PROCESSING OFF, PROCESSING ON
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 8 – ANALOG AUDIO, AES/EBU AUDIO
Mini Converter Audio to SDI
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Switch 1 – PROCESSING OFF, PROCESSING ON
Switch 1 – PROCESSING OFF, PROCESSING ON
Diagram showing a circle being converted into a square, with no text or symbols present.16:9 Ratio Display4.3 Ratio Image
1-8 SDI OUT
1-8 SDI OUT
3D technical diagram of a mechanical or electronic component with multiple ports and mounting holes (no text or symbols)natural_image
Technical illustration of a mechanical component with multiple slots and mounting holes, held by hands (no text or symbols)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDIINflowchart
note right of D SFP Optical Fiber Transmitter and Receiver Module
Mini Converter Optical Fiber 4K
Mini Converter Quad SDI to HDMI 4K
KCC-REM-BMD-UpDownCross
MSIP-REM-BMD-201704001
MSIP-REM-BMD-201711001
MSIP-REM-BMD-201711002
MSIP-REM-BMD-201607004
MSIP-REM-BMD-201607003
MSIP-REM-BMD-201410017
MSIP-REM-BMD-201410018
MSIP-REM-BMD-SDIDistribut
MSIP-REM-BMD-HDMItoSDI4K
MSIP-REM-BMD-SDItoHDMI4K
MSIP-REM-BMD-SDItoAnalog4K
MSIP-REM-BMD-OpticalFiber4K
MSIP-REM-BMD-QSDItoHDMI4K
MSIP-REM-BMD-SDIMultiplex4K
MSIP-REM-BMD-SDIDistribut4K
R-REM-BMD-201804003
R-REM-BMD-201804004
R-REM-BMD-201804005
R-R-BMD-2020061501
R-R-BMD-2020061502
R-R-BMD-2020061503
R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
California Proposition 65
Mini Converter
Micro Converter BiDirectional
SDI/HDMI 3G 503
Micro Converter BiDirectional
SDI/HDMI 12G 507
Modelos Mini Converter 512
Mini Converter SDI to HDMI 512
Mini Converter SDI to HDMI 4K 516
Mini Converter SDI to HDMI 6G 520
Mini Converter HDMI to SDI 525
Mini Converter HDMI to SDI 4K 529
Mini Converter HDMI to SDI 6G 532
Mini Converter SDI to Analog 535
Mini Converter SDI to Analog 4K 540
Mini Converter Analog to SDI 481 545
Mini Converter SDI to Audio 549
Mini Converter SDI to Audio 4K 552
Mini Converter Audio to SDI 555
Mini Converter Audio to SDI 4K 559
Mini Converter UpDownCross 483 563
Mini Converter UpDownCross HD 567
Mini Converter SDI Distribution 571
Mini Converter SDI Distribution 4K 572
Illustration of a rectangular electronic device with internal components and a labeled part (no readable text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolstext_image
SDI to Audio Mini Converter SDI to Audio -4: Audio About Software Information Software version: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels: If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup ULTEs Name: Micro Converter Software: Version 1.1 HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 255) Audio Mapping For S.1 surround use: SMPTE standard (L, R, C, LFE, Ls, Rt) Consumer standard (L, R, LFE, C, Ls, Rt) Reset Factory Reset Cancel SaveSalida HDMI
Micro Converter SDI to HDMI 12G
Micro Converter HDMI to SDI
Micro Converter HDMI to SDI 12G
Micro Converter BiDirectional SDI/HDMI
Interruptor 4 - Aislar audio SDI, bit 2
Interruptor 3 - Aislar audio SDI, bit 1
Interruptor 2 - Aislar audio SDI, bit 0
Interruptor 4 - Aislar audio SDI, bit 2
Interruptor 3 - Aislar audio SDI, bit 1
Interruptor 2 - Aislar audio SDI, bit 0
Mini Converter SDI to HDMI 6G
2 L-ANALOG or AES/EBU
Interruptor 8 – Audio analógico, AES/EBU
Interruptor 6 – LUT 1, LUT 2
Interruptor 4 – Aislar audio SDI, bit 2
Interruptor 3 – Aislar audio SDI, bit 1
Interruptor 2 – Aislar audio SDI, bit 0
| Canales de audio Interruptor 4 Interruptor 3 Interruptor 2 Diagrama | |||
| 1 and 2 OFF OFF OFF |  | ||
| 3 and 4 OFF OFF ON |  | ||
| 5 and 6 OFF ON OFF |  | ||
| 7 and 8 OFF ON ON |  | ||
| 9 and 10 ON OFF OFF |  | ||
| 11 and 12 ON OFF ON |  | ||
| 13 and 14 ON ON OFF |  | ||
| 15 and 16 ON ON ON |  | ||
Opciones del programa Blackmagic Converters Setup
Mini Converter HDMI to SDI
2 L - ANALOG or AES/EBU
Mini Converter HDMI to SDI 6G
1 HDMI
2 L - ANALOG or AES/EBU
Interruptor 8 – Audio analógico, AES/EBU
Mini Converter SDI to Analog
4 L - ANALOG or AES/EBU
Interruptor 4 - Aislar audio SDI, bit 2
Interruptor 3 - Aislar audio SDI, bit 1
Interruptor 2 - Aislar audio SDI, bit 0
other
MiniConverter SDI to Analog | Category | Count | | :--- | :--- | | ANALOG AUDIO | 7.5 IRE | | AES/EBU AUDIO | 0.0 IRE | | SMPTE LEVELS | 5 + 6 | | BETACAM LEVELS | 7 + 8 | | COMPONENT | 9 + 10 | | SDI AUDIO DE-EMBED BIT 2 | 11 + 12 | | SDI AUDIO DE-EMBED BIT 1 | 13 + 14 | | SDI AUDIO DE-EMBED BIT 0 | 15 + 16 | | Label | Count | | :--- | :--- | | :--- | :--- | | ON OFF | 8 7 6 5 4 3 2 1 | | ON OFF | 8 7 6 5 4 3 2 1 | | ON OFF | 8 7 6 5 4 3 2 1 | | ON OFF | 8 7 6 5 4 3 2 1 | | ON OFF | 8 7 6 5 4 3 2 1 | | ON OFF | 8 7 6 5 4,3,2,1 | | ON OFF | 8 7 6 5,4,3,2,1 | | ON OFF | 8 7 6,5,4,3,2,1 | | ON OFF | 8 7 6,5,4,3,2,1 | | ON OFF | 8 7 6,5,4,3,2,1 | | ON OFF | 8 7 6,5,4,3,2,1 | | ON OFF | 8 7 6,5,4,3,2,1 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFF | 15 + 16 | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT | | ON OFT | ON OFT |text_image
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels Video -22.14 dB B-V -43.60 dB R-V -43.00 dB Processing Downconversion Off Letterbox Anographic Center Cut Based on the current CIP switch setting. ✓ Clip video output to local levels If this setting is off, the Analog output will not be a true representation of the SOI input, and may display illegal colors. Cancel Save4 L - ANALOG or AES/EBU
Mini Converter Analog to SDI
4 L - ANALOG or AES/EBU
Mini Converter SDI to Audio
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Mini Converter Audio to SDI
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
1-5 SDI OUT
Salida SDI con conector BNC.
6 Puerto mini-USB tipo B
other
| Component | Count | | :--- | :--- | | LETTERBOX ON OFF | 8 | | ANAMORPHIC ON OFF | 8 | | CENTER CUT ON OFF | 8 | | 4:3 PILLARBOX ON OFF | 8 | | 14:9 PILLARBOX ON OFF | 8 | | 16:9 ZOOM ON OFF | 8 | | PAL ON OFF | 8 | | NTSC ON OFF | 8 | | 720 ON OFF | 8 | | 1080 ON OFF | 8 |text_image
UpDownCross HD Mini Converter UpDownCross HD Video About Processing UP aspect ratio: Is output as 16x2 Is output as <43 Cancel Savenatural_image
Diagram showing a circle being rotated from a square to a black rectangle, with no text or symbols present.text_image
Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER +12V 1 2 3 4 5 6 7 8 9 10Conexiones
1-8 SDI OUT
Salida SDI con conector BNC.
9SDIIN
Entrada SDI.
10 POWER +12V
1-8 SDI OUT
Salida SDI con conector BNC.
9SDIIN
Entrada SDI.
10 POWER +12V
Technical illustration of a mechanical assembly with multiple slots and mounting holes (no text or symbols)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SCD HD and Ultra HDSFP Optical Fiber Transmitter and Receiver Module
Mini Converter Optical Fiber 4K
Mini Converter Optical Fiber 12G
Mini Converter Quad SDI to HDMI 4K
Mini Converter SDI Multiplex 4K
Foro de Blackmagic Design
KCC-REM-BMD-OpticalFiber
KCC-REM-BMD-UpDownCross
MSIP-REM-BMD-201704001
MSIP-REM-BMD-201711001
MSIP-REM-BMD-201711002
MSIP-REM-BMD-201607004
MSIP-REM-BMD-201607003
MSIP-REM-BMD-201410017
MSIP-REM-BMD-201410018
MSIP-REM-BMD-SDIDistribut
MSIP-REM-BMD-HDMItoSDI4K
MSIP-REM-BMD-SDItoHDMI4K
MSIP-REM-BMD-SDItoAnalog4K
MSIP-REM-BMD-OpticalFiber4K
MSIP-REM-BMD-QSDItoHDMI4K
MSIP-REM-BMD-SDIMultiplex4K
MSIP-REM-BMD-SDIDistribut4K
R-REM-BMD-201804003
R-REM-BMD-201804004
R-REM-BMD-201804005
R-R-BMD-2020061501
R-R-BMD-2020061502
R-R-BMD-2020061503
R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
Mini Converter系列
Illustration of a beige electronic device with internal components and ports (no readable text or symbols)natural_image
Technical line drawing of a mechanical component with multiple ports and housing (no text or symbols)text_image
SDI to Audio Mini Converter SDI to Audio -12 Audio About Software Information Software version: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation at the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs 3D LUT: On Off Enable on loop output Log to Rec 709 Import Delete Cancel SaveMicro Converter SDI to HDMI 3G原理图
Micro Converter SDI to HDMI 12G
Micro Converter HDMI to SDI
Micro Converter HDMI to SDI 12G
Blackmagicdesign 1 WMHOUT MicroConverter BiDirectional SDI/HDMI 3G SDI OUT 2 WMHIN 3 4 5接口
1 HDMI输出
HDMI A类视频输出。
2 HDMI输入
2 L - ANALOG or AES/EBU
2 L - ANALOG or AES/EBU
Output Levels (输出电平) 菜单
Mini Converter SDI to HDMI 6G
2 L - ANALOG or AES/EBU
Clip Video Output to Legal Levels (HDMI限幅输出到合法电平)
Output Levels (输出电平) 菜单
Mini Converter HDMI to SDI
2 L - ANALOG or AES/EBU
Mini Converter HDMI to SDI 6G
2 L - ANALOG or AES/EBU
Mini Converter SDI to Analog
Output Levels (输出电平) 菜单
Mini Converter SDI to Analog 4K
other
MiniConverter SDI to Analog 4K | Category | State | State Description | | :--- | :--- | :--- | | ANALOG AUDIO | ON | AES/EBU AUDIO | | 7.5 IRE | ON | 0.0 IRE | | SMPTE LEVELS | ON | BETACAM LEVELS | | COMPONENT | ON | COMPOSITE S-VIDEO | | SDI AUDIO DE-EMBED BIT 2 | ON | 11 + 12 | | SDI AUDIO DE-EMBED BIT 1 | ON | 13 + 14 | | SDI AUDIO DE-EMBED BIT 0 | ON | 15 + 16 | | PROCESSING OFF | ON | Toggle processing switch to step through down converter mode (☐) |Output Levels (输出电平) 菜单
Mini Converter Analog to SDI
Mini Converter SDI to Audio
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Output Levels (输出电平) 菜单
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
Output Levels (输出电平) 菜单
Mini Converter Audio to SDI
- Center Cut (左右切边):
Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER -12V 1 2 3 4 5 6 7 8 9 10接口
1-8 SDI OUT
BNC接口，SDI视频输出。
9 SDI IN
SDI输入。
10 POWER +12V
12V电源输入。
Mini Converter SDI Distribution原理图
Mini Converter SDI Distribution 4K
1-8 SDI OUT
BNC接口，SDI视频输出。
9 SDI IN
SDI输入。
10 POWER +12V
12V电源输入。
Mini Converter SDI Distribution 4K原理图
更新Mini Converter SDI Distribution 4K
3D technical diagram of an electronic device casing with multiple ports and mounting holes (no text or symbols)natural_image
Illustration of a hand holding a mechanical component with multiple slots and mounting holes (no text or symbols visible)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN SDI HD and Ultra HDflowchart
Mini Converter Optical Fiber 12G
Mini Converter Quad SDI to HDMI 4K
Mini Converter SDI Multiplex 4K
Mini Converter SDI Multiplex 4K可进行以下转换:
更新内部软件
Woman sitting on a red couch in a dimly lit theater with ornate ceiling and TV screens (no visible text or symbols)Micro Converter
Mini Converter
Illustration of a MaxNet device with internal ports and a labeled port (no text or symbols on the device itself)natural_image
Technical line drawing of a mechanical component with no visible text or symbolstext_image
Diagram of an electronic device with labeled ports and a zoomed-in section showing numbered ports from 1 to 8.text_image
Converters Setup Blackmagic Device B-Directional SDV/HDMI 3G Blackmagic Device Multi Converter B-Directional SDV/HDMI 3G - m2text_image
SDI to Audio Mini Converter SDI to Audio Audio About Software Information Softwareversion: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs 3D LUT: On Off Enable on loop output Log to Rec 709 Import Delete Cancel Saletext_image
Micro Converter SDI to HDMI 12G Micro Converter Setup LUTS Name: Micro Converter Software: Version 1.1 SDI Output 3G SDI Output: Level A Level B HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 255) Audio Mapping For S.1 surround use: SMPTE standard (L, R, C, LFE, Ls, Rs) Consumer standard (L, R, LFE, C, Ls, Rs) Reset Factory Reset Cancel SaveSDI 출력(SDI Output)
HDMI to SDI Micro Micro Converter HDMI to SDI Video About Processing JG Output Level B (Normal) Level A Cancel Savetext_image
Micro Converter HDMI to SDI 3G Micro Converter Setup LUTs SD LUT: On Off Log to Rsc 709 Import Delete Cancel Savetext_image
Micro Converter HDMI to SDI 12G HDMI to SDI 12G Setup LUTs 30 LUT: Or ● Off Imports Deletetext_image
BiDirectional Micro Micro Converter BiDirectional SDI/HDMI Video About Processing ✓ Clip video output to legal levels 3G Outputs Level B (Normal) Level A Cancel Savetext_image
Micro Converter BIDirectional SDI/HDMI 12G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 SDI Camera Control ATRM Camera ID: 2 SDI Output 3G SDI Output Level A Level B HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 255) Audio Mapping for 5.1 surround use: SMPTE standard (L, R, C, LFE, LS, Rs) Consumer standard (L, R, LFE, C, Ls, Rs) Reset Factory Reset2 L - ANALOG or AES/EBU
Mini Converter SDI to HDMI 4K
2 L - ANALOG or AES/EBU
Mini Converter SDI to HDMI 6G
Q["Dotted lines indicate connections"]
Mini Converter HDMI to SDI
2 L - ANALOG or AES/EBU
Mini Converter HDMI to SDI 4K
2 L - ANALOG or AES/EBU
Mini Converter HDMI to SDI 6G
2 L - ANALOG or AES/EBU
Mini Converter SDI to Analog
Blackmagic Mini Converter SDI to Analog SD/HD-SDI NTSC/PAL
AES/EBU
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels Ch 1: -36.12 dB Ch 2: 14.54 dB AES/EBU: -30.12 dB Cancel Saveflowchart
Mini Converter SDI to Analog 4K
4 L - ANALOG or AES/EBU
other
MiniConverter SDI to Analog 4K | Position | Status | Value | | :--- | :--- | :--- | | 1 | ON | 8 7 6 5 4 3 2 1 | | 2 | ON | 8 7 6 5 4 3 2 1 | | 3 | ON | 8 7 6 5 4 3 2 1 | | 4 | ON | 8 7 6 5 4 3 2 1 | | 5 | ON | 8 7 6 5 4 3 2 1 | | 6 | ON | 8 7 6 5 4 3 2 1 | | 7 | ON | 8 7 6 5 4 3 2 1 | | 8 | ON | 8 7 6 5 4 3 2 1 | | 9 | ON | 8 7 6 5 4 3 2 1 | | 10 | ON | 8 7 6 5 4 3 2 1 | | 11 | ON | 8 7 6 5 4 3 2 1 | | 12 | ON | 8 7 6 5 4 3 2 1 | | 13 | ON | 8 7 6 5 4 3 2 1 | | 14 | ON | 8 7 6 5 4 3 2 1 | | 15 | ON | 8 7 6 5 4 3 2 1 | | 16 | ON | 8 7 6 5 4 3 2 1 | | Processing Off: | ON | - | | Processing ON: Toggle processing switch to step through down converter mode (■) | ON | - | The table shows the number of audio samples processed by Analog Audio and SMPTE levels, component, and SDI audio de-embed bits. The values are in absolute numbers. The table also includes a 'Selected Table' listing specific bit values (e.g., 'SDI AUDIO DE-EMBED BIT' at bit level '2') and an 'Selected Table' listing specific bit values (e.g., 'SDI AUDIO DE-EMBED BIT' at bit level '1').text_image
SDI to Analog 4K Mini Converter SDI to Analog 4K Video Audio About Output Levels Video: -22.14 dB B Y: -43.00 dB R Y: -43.00 dB Processing Downconversion: Off Letterbox Anamorphic Center Cat Based on the current DIP switch setting. ✓ Clip video output to legal levels If this setting is off, the Analog output will not be a true representation of the SDI input, and may display illegal colors. Cancel SaveMini Converter Analog to SDI
4 L - ANALOG or AES/EBU
Mini Converter SDI to Audio
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Mini Converter SDI to Audio 4K
1 CH 1 ANALOG or CH 1 & 2 AES/EBU
4 CH 4 ANALOG or CH 7 & 8 AES/EBU
Mini Converter Audio to SDI
Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER -12V 1 2 3 4 5 6 7 8 9 10커넥터
1-8 SDI OUT
3D technical diagram of an electronic device casing with multiple ports and orange connectors (no text or symbols)natural_image
Technical illustration of a computer motherboard with visible slots and connectors (no text or symbols)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN SDI HD and Ultra HDflowchart
note right of G
SFP Optical Fiber Transmitter and Receiver Module
end
Mini Converter Optical Fiber 4K
Mini Converter Optical Fiber 12G
note right of G
SFP Optical Fiber Transmitter and Receiver Module
end
Mini Converter Quad SDI to HDMI 4K
Mini Converter SDI Multiplex 4K
내부 소프트웨어 업데이트
KCC-REM-BMD-UpDownCross
MSIP-REM-BMD-201704001
MSIP-REM-BMD-201711001
MSIP-REM-BMD-201711002
MSIP-REM-BMD-201607004
MSIP-REM-BMD-201607003
MSIP-REM-BMD-201410017
MSIP-REM-BMD-201410018
MSIP-REM-BMD-SDIDistribut
MSIP-REM-BMD-HDMItoSDI4K
MSIP-REM-BMD-SDItoHDMI4K
MSIP-REM-BMD-SDItoAnalog4K
MSIP-REM-BMD-OpticalFiber4K
MSIP-REM-BMD-QSDItoHDMI4K
MSIP-REM-BMD-SDIMultiplex4K
MSIP-REM-BMD-SDIDistribut4K
R-REM-BMD-201804003
R-REM-BMD-201804004
R-REM-BMD-201804005
R-R-BMD-2020061501
R-R-BMD-2020061502
R-R-BMD-2020061503
R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
ISED 캐나다 성명
Mini Converter SDI to Analog 889
Mini Converter SDI to Analog 4K 894
Mini Converter Analog to SDI 899
Mini Converter SDI to Audio 903
Mini Converter SDI to Audio 4K 906
Mini Converter Audio to SDI 909
Mini Converter Audio to SDI 4K 913
Mini ConverterUpDownCross 917
Mini Converter UpDownCross HD 921
Mini Converter SDI Distribution 925
Mini Converter SDI Distribution 4K 926
Front view of a gray electronic device labeled 'Moultower / 32.5V/40V' with internal ports and indicator lights (no readable text beyond label)natural_image
Illustration of a rectangular electronic device with internal components and labeled ports (no readable text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolstext_image
Diagram of an electronic device with labeled ports and a zoomed-in section showing port 1 with pin 2, including Chinese text labels.text_image
SDI to Audio Mini Converter SDI to Audio Audio About Software Information Softwareversion: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 HDMI Output: Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 255) Audio Mapping for 5.1 surround use: SMPTE standard (L. R, C, LFE, Ls, Rs) Consumer standard (L. R, LFE, C, Ls, Rs) Reset Factory Reset Cancel SaveHDMI Output
Micro Converter SDI to HDMI 12G Micro Converter Setup LUTs 3D LUT: On Off Enable on loop output Log to Rec 709 Import Delete Cancel Savetext_image
Micro Converter HDMI to SDI 3G Micro Converter Setup LUTs SD LUT: On Off Log to Rec 70R Import Delete Cancel Savetext_image
Micro Converter HDMI to SDI 12G HDMI to SDI 12G Setup LUTs 30 LUTs: On ● Off Import Deletetext_image
Micro Converter BiDirectional SDI/HDMI 12G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 SDI Camera Control ATEM Camera ID: 2 SDI Output 3G SDI Output: Level A Level B HDMI Output Clip signal to: Normal levels (1G - 235) Illegal levels (0 - 255) Audio Mapping For 5.1 surround use: SWFTE standard (L, R, C, LFE, Ls, Rs) C��sumer standard (L, R, LTF, C, Ls, Rs) Reset Factory Resettext_image
SDI to HDMI Mini Converter SDI to HDMI Video Audio About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Saveflowchart
Q["Dotted lines indicate connections or data flows"]
Mini Converter SDI to HDMI 4K
Mini Converter SDI to HDMI 6G
- Clip video output to legal levels
| Automatic SD/HD/Ultra HD Cable Driver Analog or AES/EBU Audio Out Switch | Loop SDI Out | |||||
| SDI In | Input automatically detects between SD, HD and Ultra HD | AES/EBU Audio Formatter | Left Analog Out or AES/EBU Out | |||
| Redundant Input Automatic Change Over | Equalizer, Re-Clocker and 10 bit De-Serializer | Video Processor and Down Converter | Audio Digital to Analog with Balanced Output | Right Analog Out | ||
| Alt SDI In | Central Processor and Firmware | SDI Audio De-Embedder | HDMI Video and Audio Formatter and Instant Lock | HDMI Out | ||
| USB |
Mini Switches
Mini Converter HDMI to SDI
Mini Converter HDMI to SDI 4K
SDI to Analog Mini Converter SDI to Analog Video Audio About Output Levels On 1: -35.12 dB On 2: -14.54 dB AES/EBUS: 35.12 dB Cancel Savetext_image
SDI to Analog 4K Mini Converter SDI to Analog 4K Video Audio About Output Levels Vide: -22.14 dB B-Y: -43.00 dB R-Y: -43.00 dB Processing Downconversion: OR Letterbox Anomorphic Center Cut Based on the current DIP switch setting. ✓ Clip video output to legal levels If this setting is all, the Analog output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
SDI to Analog 4K Mini Converter SDI to Analog 4K Video Audio About Output Levels Ch 1: -35.12 dB Ch 2: -35.12 dB AET/FTL: -30.12 dB Cancel SaveMini Converter Analog to SDI
SDI to Audio 4K Mini Converter SDI to Audio 4K Audio About Output Levels Ch 1: -35.12 dB Ch 2: -35.12 dB Ch 3: -35.12 dB Ch 4: -35.12 dB ABS/EBU: -35.12 dB Cancel SaveMini Converter Audio to SDI
Audio to SDI 4K Mini Converter Audio to SDI 4K Audio About Input Levels Ch 1: -35.12 dB Ch 2: -35.12 dB Ch 3: -35.12 dB Ch 4: -35.12 dB AES/EDU: -35.12 dB Cancel Savetext_image
UpDownCross HD Mini Converter UpDownCross HD Video About Processing SD aspect ratio: Is output as 16:9 Is output as 4:3 Cancel Savetext_image
Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN POWER +3DV 1 2 3 4 5 6 7 8 9 10Разъемы
1-8 SDI OUT
1-8 SDI OUT
Technical line drawing of an electronic component housing with multiple slots and mounting holes (no text or symbols)natural_image
Illustration of a hand holding a computer processor with multiple slots and connectors (no text or symbols visible)natural_image
Illustration of a hand holding an orange USB connector next to a computer motherboard (no text or symbols visible)text_image
6 Blackmagicdesign SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI OUT SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDI IN SDIINflowchart
Mini Converter Optical Fiber 12G
Mini Converter Quad SDI to HDMI 4K
Mini Converter SDI Multiplex 4K
KCC-REM-BMD-UpDownCross
MSIP-REM-BMD-201704001
MSIP-REM-BMD-201711001
MSIP-REM-BMD-201711002
MSIP-REM-BMD-201607004
MSIP-REM-BMD-201607003
MSIP-REM-BMD-201410017
MSIP-REM-BMD-201410018
MSIP-REM-BMD-SDIDistribut
MSIP-REM-BMD-HDMItoSDI4K
MSIP-REM-BMD-SDItoHDMI4K
MSIP-REM-BMD-SDItoAnalog4K
MSIP-REM-BMD-OpticalFiber4K
MSIP-REM-BMD-QSDItoHDMI4K
MSIP-REM-BMD-SDIMultiplex4K
MSIP-REM-BMD-SDIDistribut4K
R-REM-BMD-201804003
R-REM-BMD-201804004
R-REM-BMD-201804005
R-R-BMD-2020061501
R-R-BMD-2020061502
R-R-BMD-2020061503
R-R-BMD-2020061504
R-R-BMD-2020061505
R-R-BMD-2020121401
ICES-3 (A) NMB-3 (A)
Front view of a beige electronic device labeled 'Multi-Cell Computer' with ports and an internal connector (no readable text beyond labels)natural_image
Illustration of a beige electronic device with internal components and ports, no visible text or symbolsnatural_image
Technical line drawing of a mechanical component with no visible text or symbolstext_image
Sleeve (Ground) Tip (+) Sling (Ground) Ring (−) Tip (+)text_image
SDI to Audio Mini Converter SDI to Audio Audio About Software Information Software version: 7.0 Cancel Savetext_image
SDI to HDMI Micro Micro Converter SDI to HDMI Video About Processing ✓ Clip video output to legal levels If this setting is off, the HDMI output will not be a true representation of the SDI input, and may display illegal colors. Cancel Savetext_image
Micro Converter SDI to HDMI 3G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 HDMI Output Clip signal to: Normal levels (16 - 235) Illegal levels (0 - 255) Audio Mapping For S.T surround use: SMPTE standard (L, P, C, LFE, Lt, Rs) Consumer standard (L, R, LFE, C, Lt, Rs) Reset Factory Reset Cancel SaveHDMI Output
Micro Converter SDI to HDMI 12G
Micro Converter HDMI to SDI
Micro Converter HDMI to SDI 12G
Micro Converter BiDirectional SDI/HDMI 12G Micro Converter Setup LUTs Name: Micro Converter Software: Version 1.1 SDI Camera Control ATEM Camera ID: 2 SDI Output Si SDI Output: Level A Level B HDMI Output Clip signal to: Normal levels (1s - 23s) Illegal levels (0 - 25s) Audio Mapping for 5.1 outward use: SMTP standard (L, R, C, LFE, Ls, Rs) Consumer standard (L, R, LFE, C, Ls, Rs) Resets Factory ResetLa tab "Setup" di Micro Converter BiDirectional SDI/HDMI 12G
SDI Camera Control
1 HDMI
2 L - ANALOG or AES/EBU
Mini Converter SDI to HDMI 6G
2 L - ANALOG or AES/EBU
Interruttore 5 - LUT On Loop Off, LUT On Loop On
