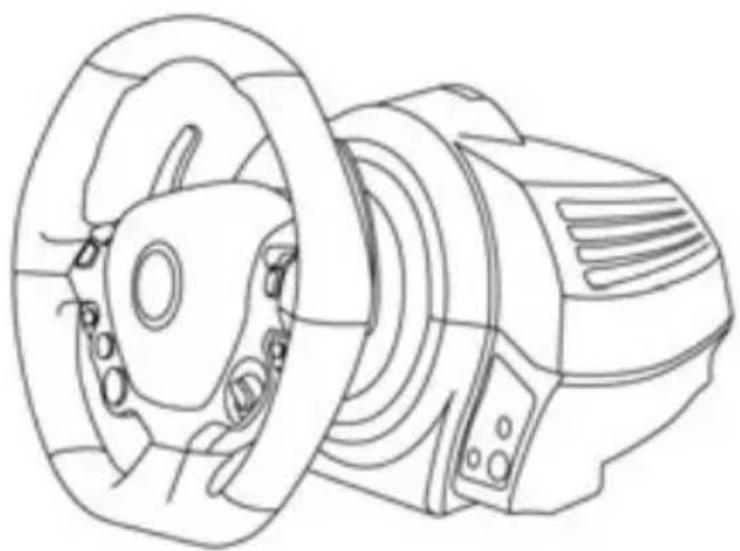

TX Ferrari 458 Italia Edition - Controller THRUSTMASTER - Free user manual and instructions

Product type	Racing wheel with force feedback
Brand	Thrustmaster
Model	TX Ferrari 458 Italia Edition
Compatibility	Xbox One, PC (firmware update required)
Force feedback	Built-in force feedback motor
Rotation angle	900 degrees (270° lock to lock)
Mounting system	Clamping screw for table/desk or M6 screws for cockpit
Pedal set	2 pedals (accelerator/brake), compatible with optional 3 pedals
Gear shifters	2 sequential paddles (up/down)
Quick Release	Thrustmaster Quick Release for quick wheel change
Weight	7 kg (complete product)
Power supply	Mains: 100-125 V or 220-240 V depending on version (see manual)
Connectivity	USB, pedal connector, gearbox connector (optional)
Calibration	Automatic at startup
Box contents	Base, Ferrari 458 Italia wheel, 2-pedal set, USB cable, power cable, mounting system
Maintenance	Clean with a dry cloth; do not block ventilation slots
Safety	Read warnings before use; do not use barefoot
Warranty	2 years (EU), 1 year (non-EU) depending on conditions
Repairability	Repair by technical support only; no spare parts provided
Manufacturing	Made in China

Frequently Asked Questions - TX Ferrari 458 Italia Edition THRUSTMASTER

How to install the Ferrari wheel on the wheel base?

Align the connector arrows upward, insert the wheel, then turn the Thrustmaster Quick Release ring counterclockwise while holding the wheel steady. Then tighten the ring by turning the wheel clockwise. Finally, screw the small locking screw into the ring using a crosshead screwdriver.

How to mount the wheel on a table?

Place the clamping screw into the mounting system, then screw the assembly into the large thread under the wheel counterclockwise until stable. Never screw the clamping screw alone without the mounting system.

How to automatically calibrate the wheel and pedals?

The wheel calibrates automatically when plugged into power and the console. Do not touch the wheel during this phase. The pedals calibrate automatically after a few presses once the game is launched. Do not press the pedals during calibration.

What to do if the wheel does not work properly?

Turn off the console, fully disconnect the wheel, reconnect all cables (power and pedal set), restart and launch the game. If the problem persists, a firmware update may be necessary via support.thrustmaster.com.

How to update the wheel firmware?

On PC, go to http://support.thrustmaster.com, click on Wheels / TX Racing Wheel then Firmware, follow the download and installation instructions. The included firmware adds improvements and fixes button duplicates.

How to reverse the accelerator and clutch pedals?

Press the MODE button (6) for 2 seconds. The LED changes from red (normal) to green (reversed). This reversal is saved in the wheel's internal memory.

What are the main safety warnings?

Never use the wheel barefoot or in socks. Do not place hands or fingers under the pedals. Do not touch the wheel during self-calibration. Avoid prolonged gaming periods. Read the manual carefully before use.

Is the TX Ferrari 458 Italia Edition wheel compatible with PC?

Yes, the wheel is compatible with PC. For optimal use, it may be necessary to update the firmware and install the drivers available on the Thrustmaster website.

How to clean and maintain the wheel?

Use a dry, soft cloth to clean the surfaces. Do not block the ventilation grilles of the base. Avoid moisture, dust, and direct sunlight.

What is the warranty coverage?

The warranty is 2 years in the European Union and 1 year in other countries (unless local legislation differs). It covers material and manufacturing defects. Not covered: normal wear, accidental damage, professional use, or unauthorized modifications.

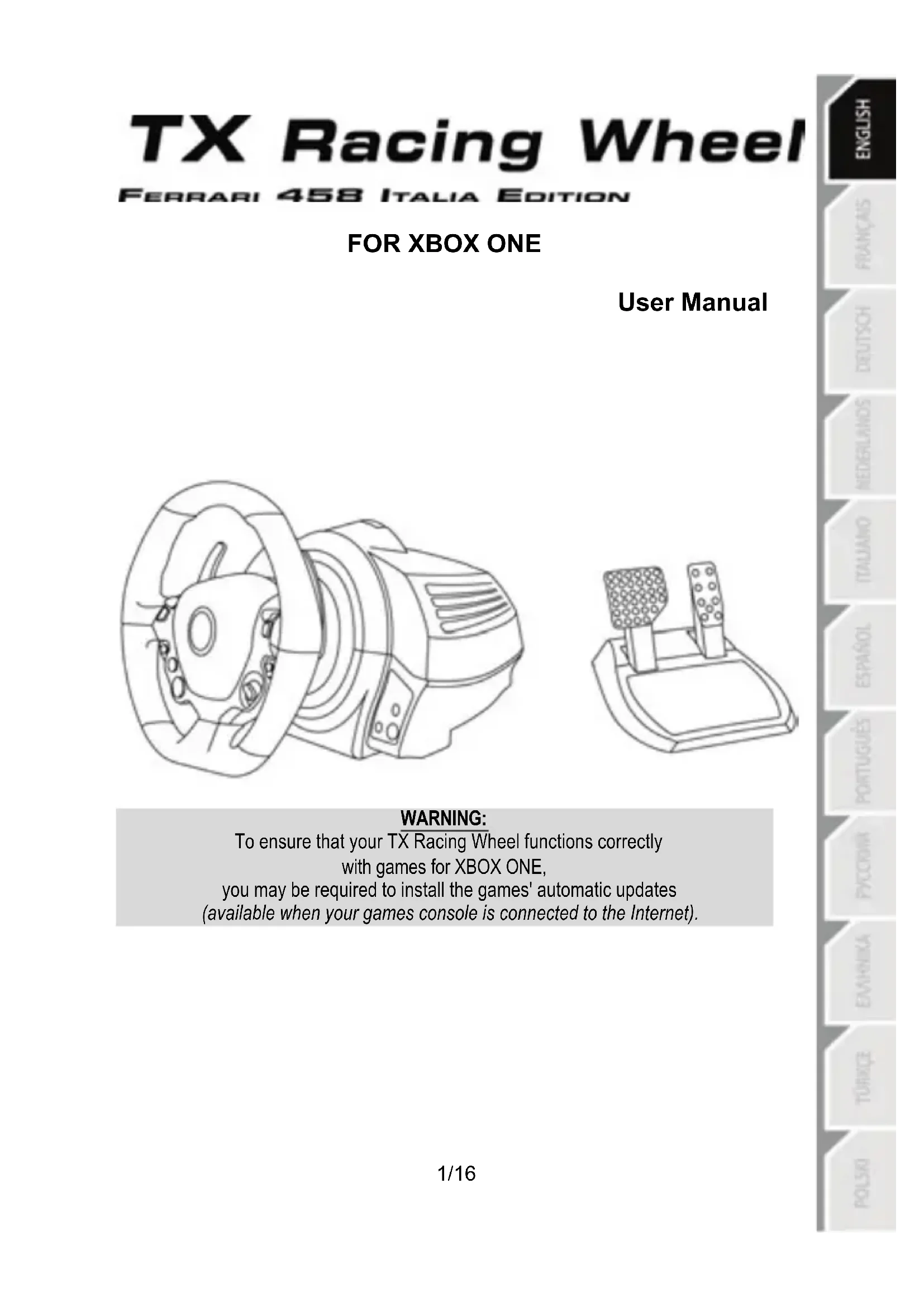

USER MANUAL TX Ferrari 458 Italia Edition THRUSTMASTER

To ensure that your TX Racing Wheel functions correctly with games for XBOX ONE,

you may be required to install the games' automatic updates (available when your games console is connected to the Internet).

TECHNICAL SPECIFICATIONS

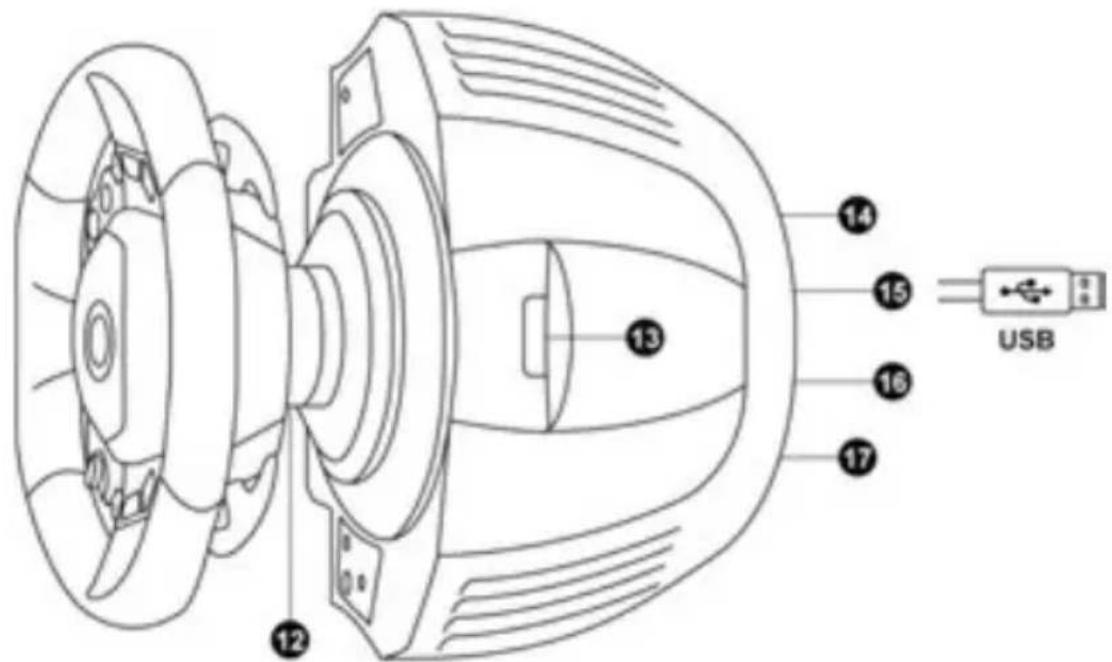

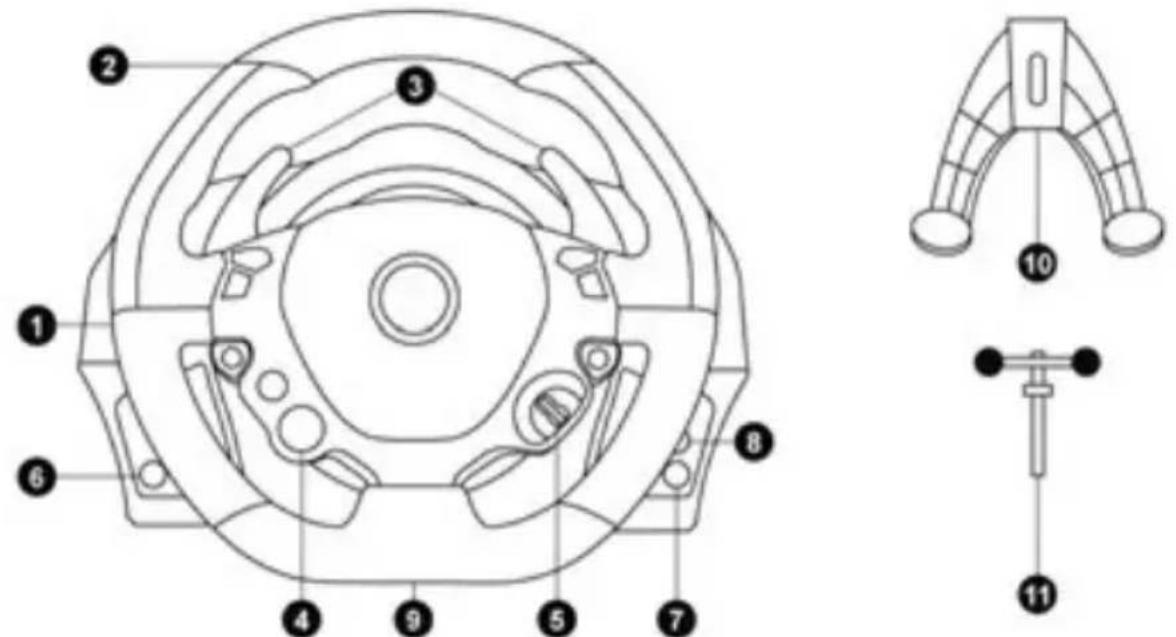

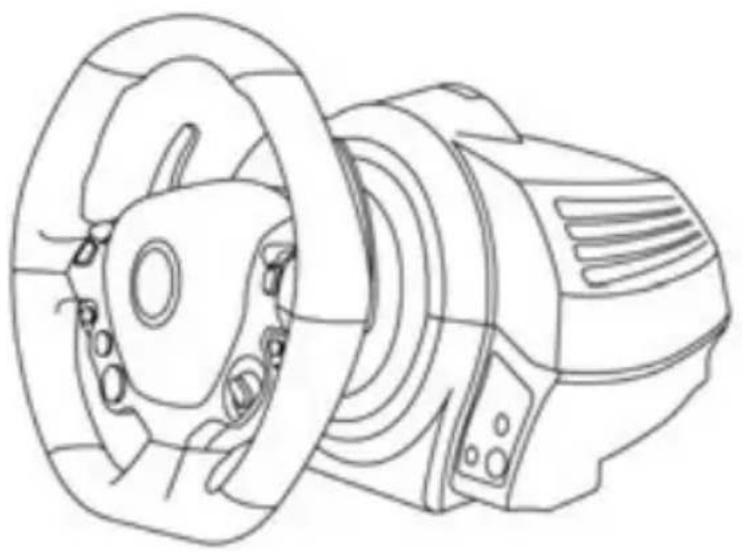

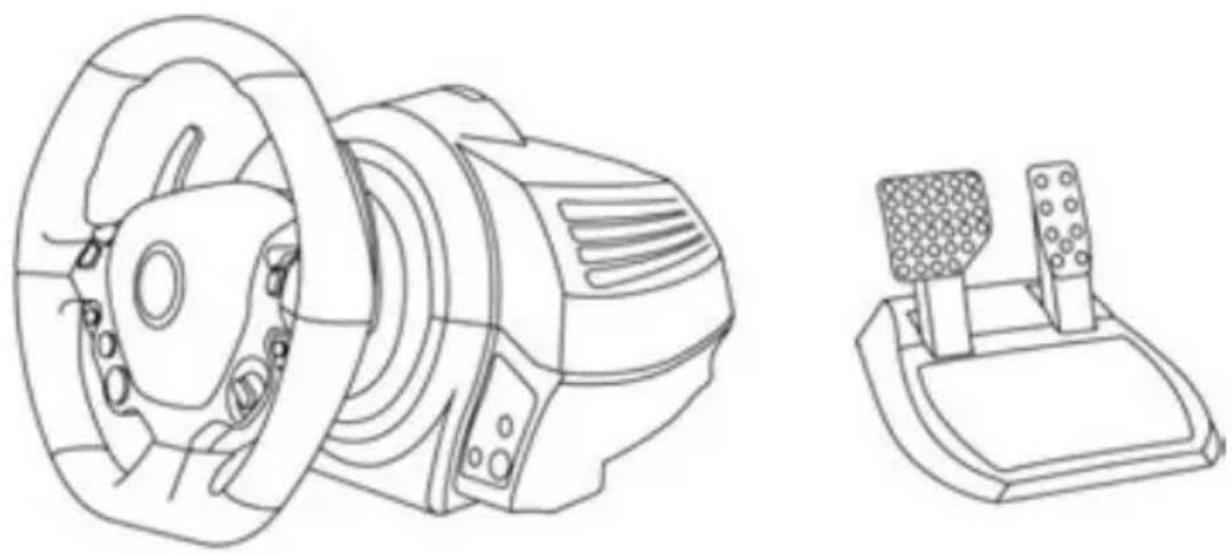

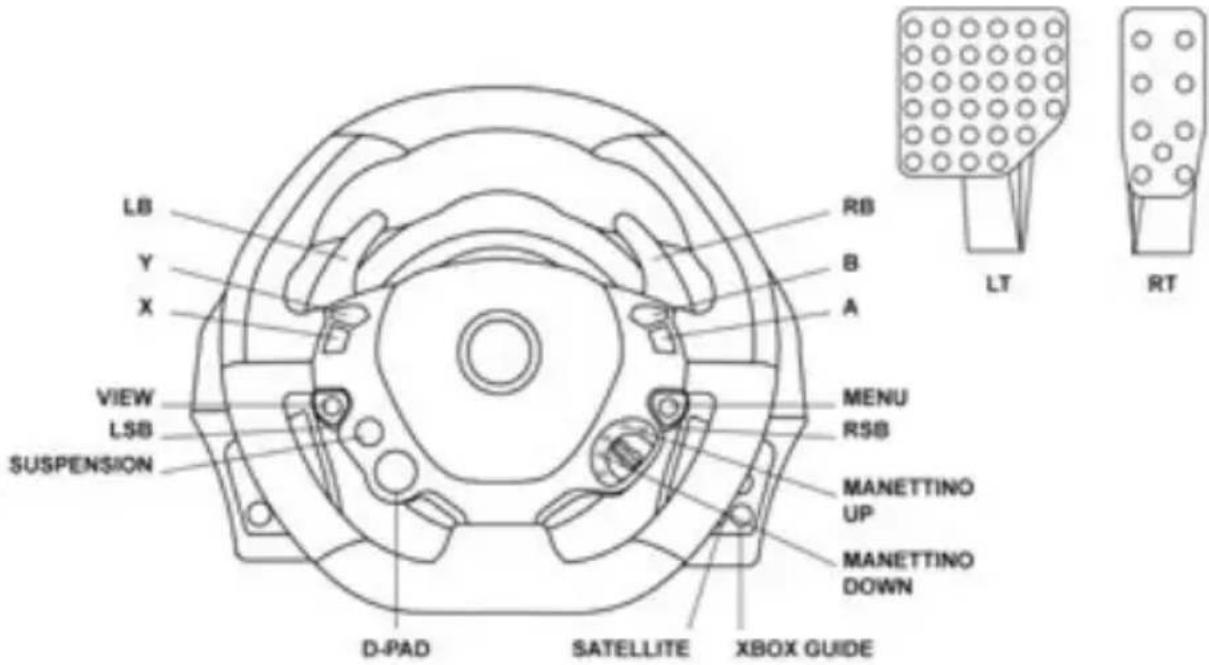

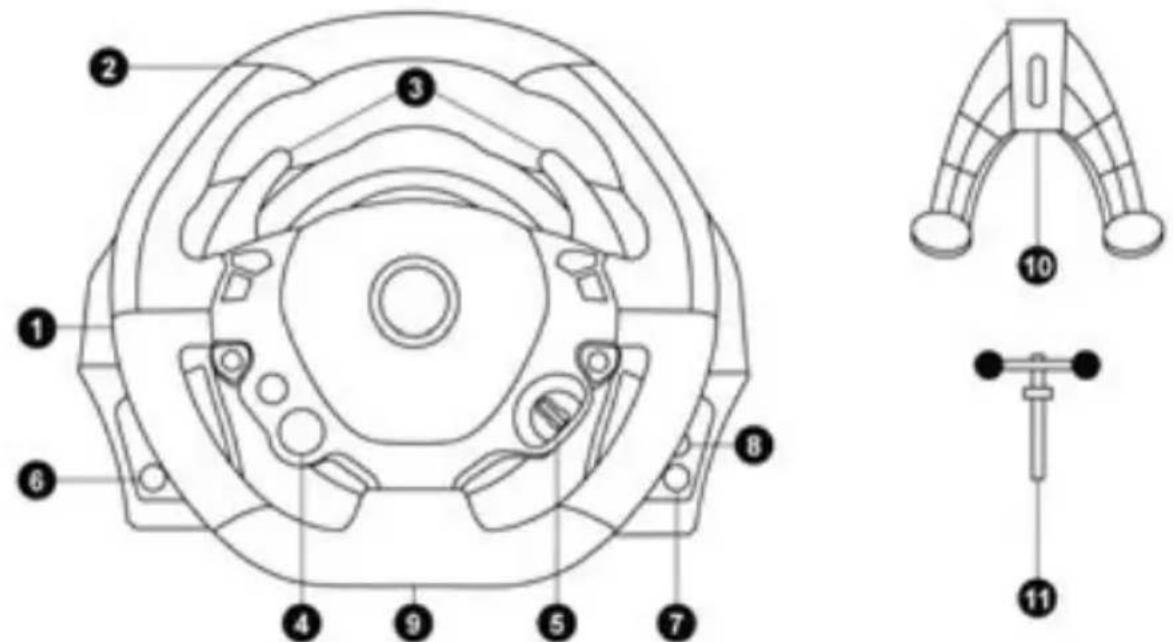

1 Racing wheel base

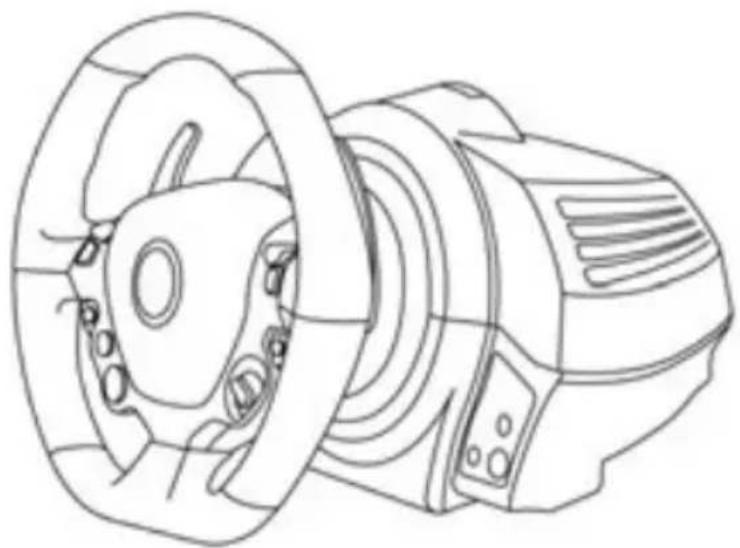

2 Racing wheel
3 2 sequential gear shift levers (Up & Down)
4 Multidirectional D-Pad (Engine Start)
5 Manettino (2 positions)
6 MODE button + Red/Green indicator light

7 Xbox Guide button
8 White indicator light
9 Large threaded hole (for attachment system and tightening screw)
10 Attachment system
11 Metal fastening screw

12 Thrustmaster Quick Release
13 Controller pairing (for Kinect™ detection)
14 Mains supply connector (type A or B) (Varies from one country to another)

15 Racing wheel USB cable and connector
16 Gearbox connector (sold separately, forthcoming release)
17 Pedal set connector

CONNECTING THE RACING WHEEL TO THE MAINS = PLEASE READ BEFORE PROCEEDING!

Your racing wheel's power supply varies according to the country where you purchased your device. The mains supply can be:

Internal, with:

* A power supply unit located directly inside the racing wheel's base, with a type A connector

*A 220-240V mains power supply cable

= compatible only with a 220-240V electrical supply.

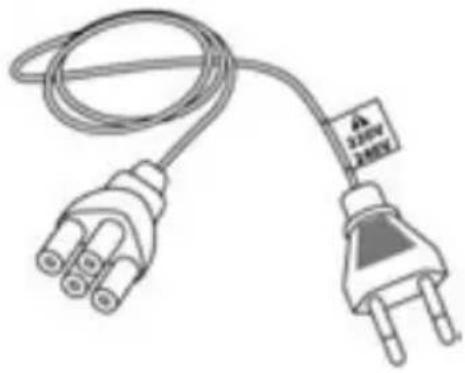

Line drawing of a three-pin electrical plug with a cable and terminal block (no text or symbols)

Never connect the 220-240V cable

to a 100-130V power outlet!

Never connect this cable to a mains power adapter!

Internal, with:

* A power supply unit located directly inside the racing wheel's base, with a type A connector

*A 100-125V power supply cable

= compatible only with a 100-125V electrical supply.

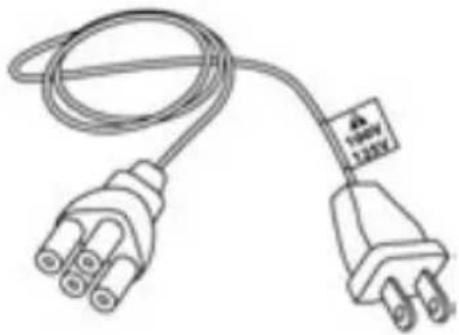

Line drawing of an electrical plug with three leads and a terminal label (no text or symbols on the plug itself)

Never connect the 100-125V cable

to a 220-240V power outlet!

Never connect this cable to a mains power adapter!

IMPORTANT: if you do not know which voltage is supplied in the area in which you are using your racing wheel, please refer to your local electricity supplier.

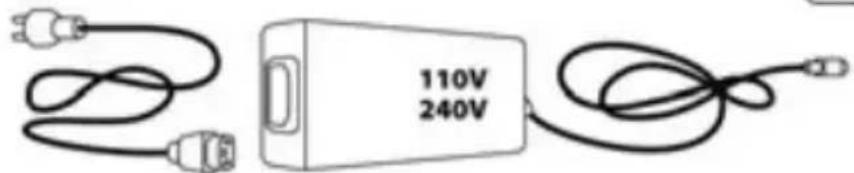

External, with:

* An external power supply unit located on the racing wheel's base, with a type B connector

* A mains power supply cable

= compatible with all supply voltages, 110-240V.

WARNINGS

Before you use this product, please read this documentation carefully and keep it safe should you need to consult it later.

Warning – Electric shock

* Store the product in a dry location and do not expose it to dust or sunlight.
* Respect the connection direction.
* Do not twist or pull the connectors and cables.
* Do not spill any liquid on the product or its connectors.
* Do not short-circuit the product.
* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
* Do not use a power supply cable other than the one provided with your racing wheel.
* Do not use the mains power supply cable if the cable or the connectors are damaged, split or broken.
* Make sure that the mains power cable is properly inserted into the power outlet and the connector located on the rear face of the racing wheel's base.
* Do not open. No user replaceable parts inside. Refer servicing to manufacturer, specified agency or qualified technician.
* Only use attachments/accessories specified by the manufacturer.
* If the steering wheel is operating unusually (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, disconnect the power cable from the socket and disconnect the other cables.
* If you are not going to be using the steering wheel for an extended period, disconnect the mains adaptor from the wall socket.
* The electrical outlet must be located near the equipment and must be easily accessible.

Air vents

Make sure that you do not block any of the air vents on the steering wheel base. For optimum ventilation, respect the points below:

* Position the base at least 10 cm away from any wall surfaces.
* Do not place the base in any tight spaces.
* Do not cover the base.
* Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements

Playing with a force-feedback steering wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.
* Take 10 to 15 minute breaks after each hour of play.
* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

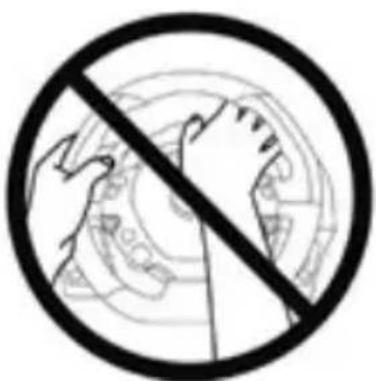

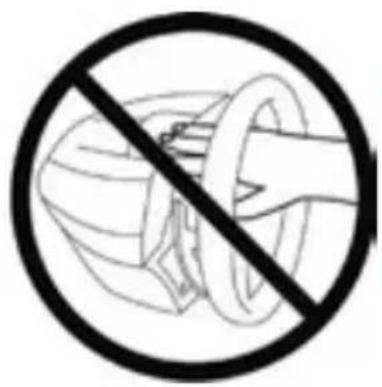

Warning – Injuries due to force feedback and repeated movements (suite)

* If the symptoms or pain indicated above persist when you start playing again, stop playing and consult your doctor.
* Keep out of children's reach.

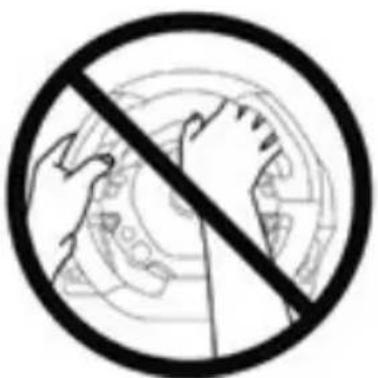

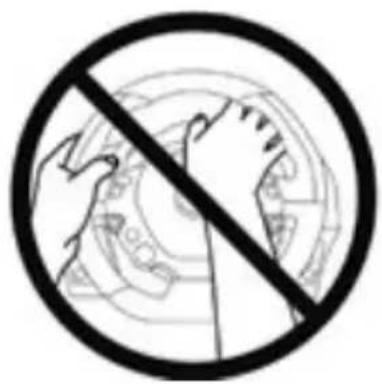

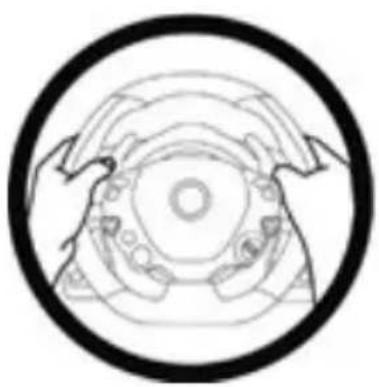

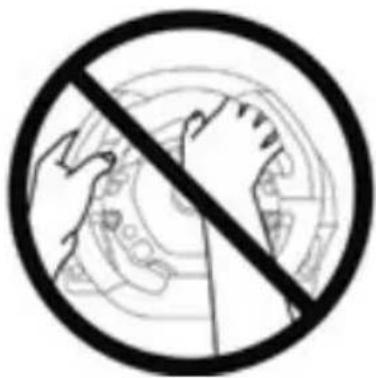

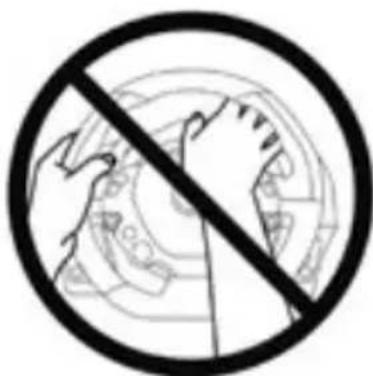

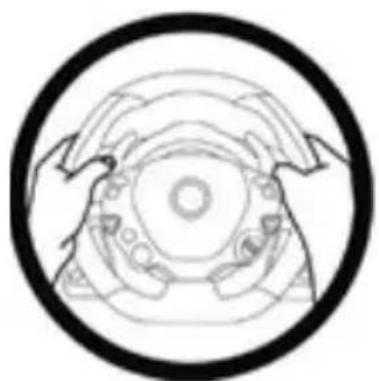

* During games, always leave both hands correctly positioned on the steering wheel without letting it go completely.

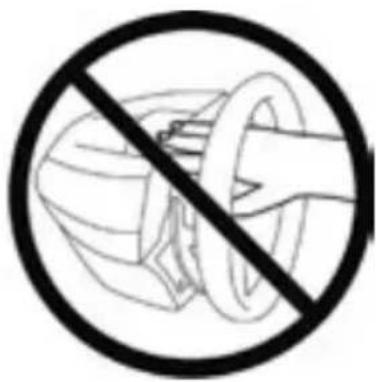

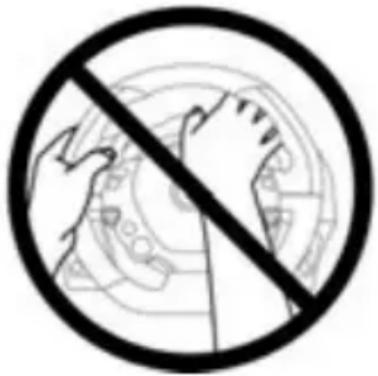

* During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.

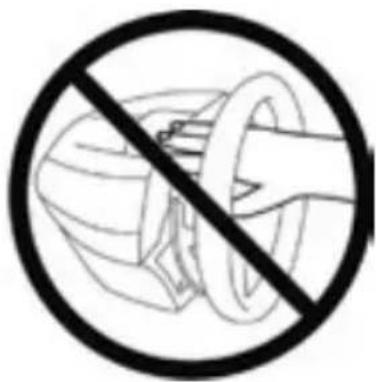

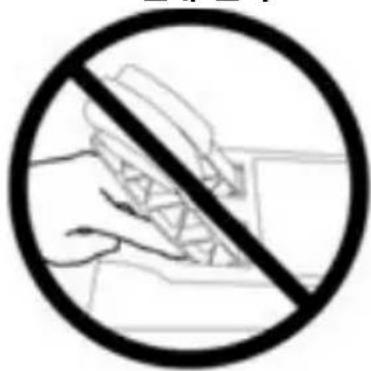

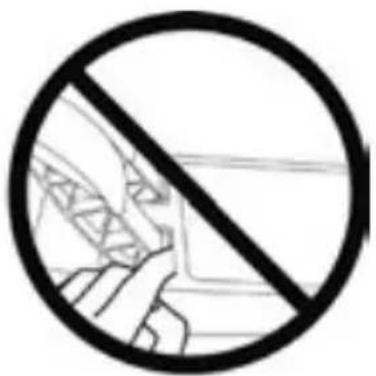

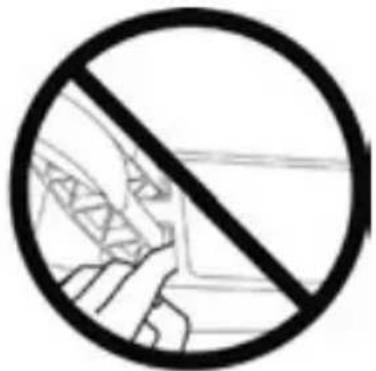

* During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
* Check the steering wheel base is carefully clamped as per manual's instructions.

HEAVY PRODUCT

To be handled only by users 16 years of age or older

Be careful not to drop the product on yourself or on anyone else!

ALWAYS NEVER NEVER

Diagram of a mechanical or electrical component with concentric circles and directional arrows, no text or symbols present.

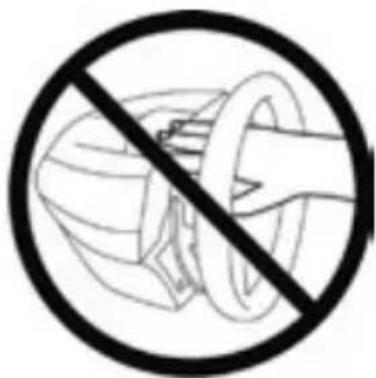

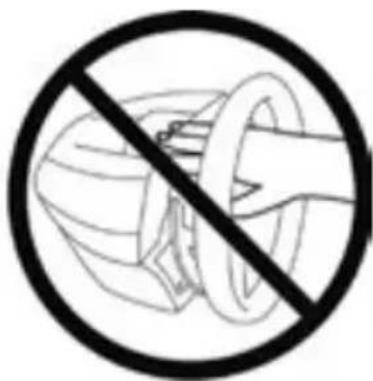

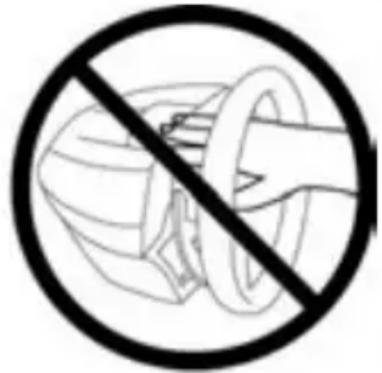

Prohibition sign showing a hand holding a ring above a device (no text or symbols)

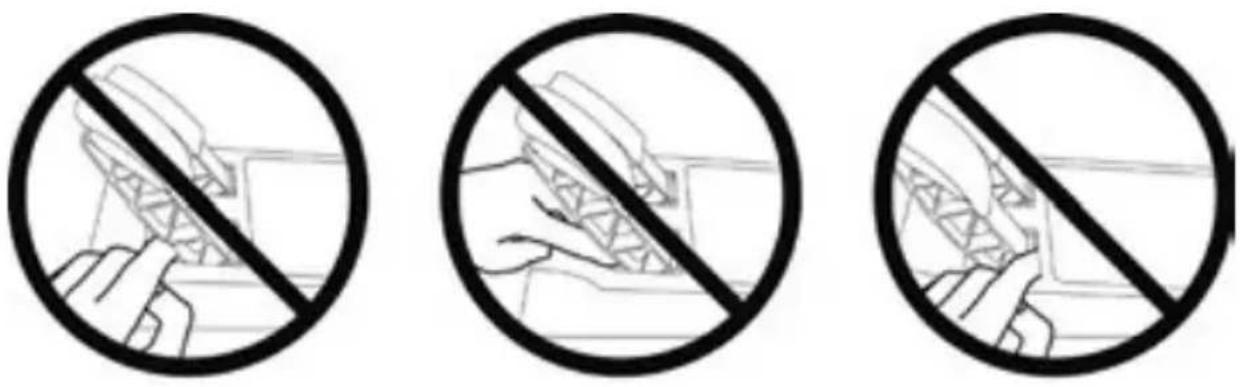

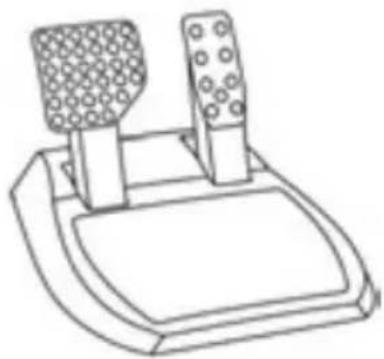

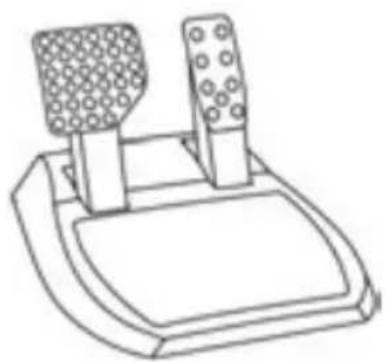

Warning – Pedal set pinch hazard when playing

* Keep the pedal set out of children's reach.

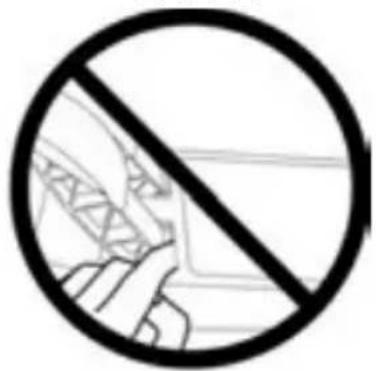

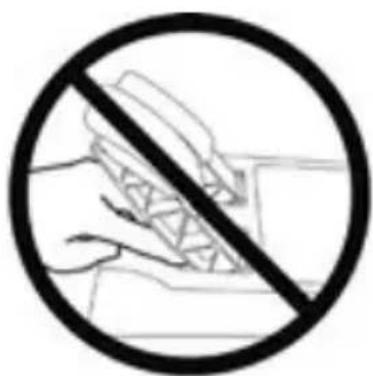

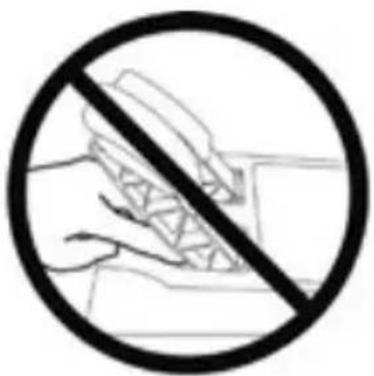

* When playing, never place your fingers on or anywhere near the sides of the pedals.

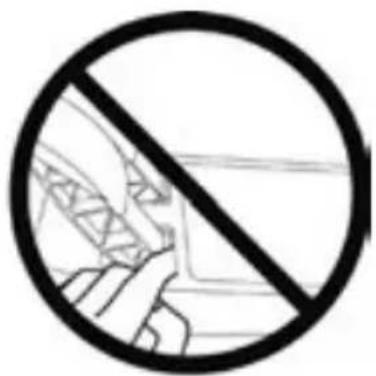

* When playing, never leave your fingers on or anywhere near the pedals' rear base.

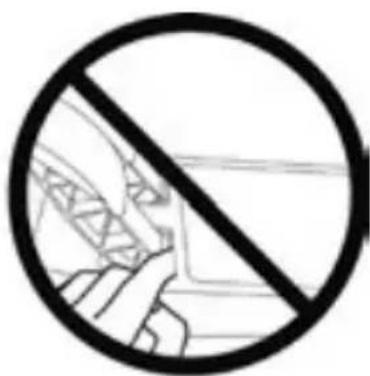

* When playing, never place your fingers on or anywhere near the pedals' front base.

NEVER NEVER NEVER

Warning – Pedal set pinch hazard when not playing

* Store the pedal set in a safe place, and keep it out of children's reach.

ATTACHING THE FERRARI 458 ITALIA RACING WHEEL TO ITS BASE

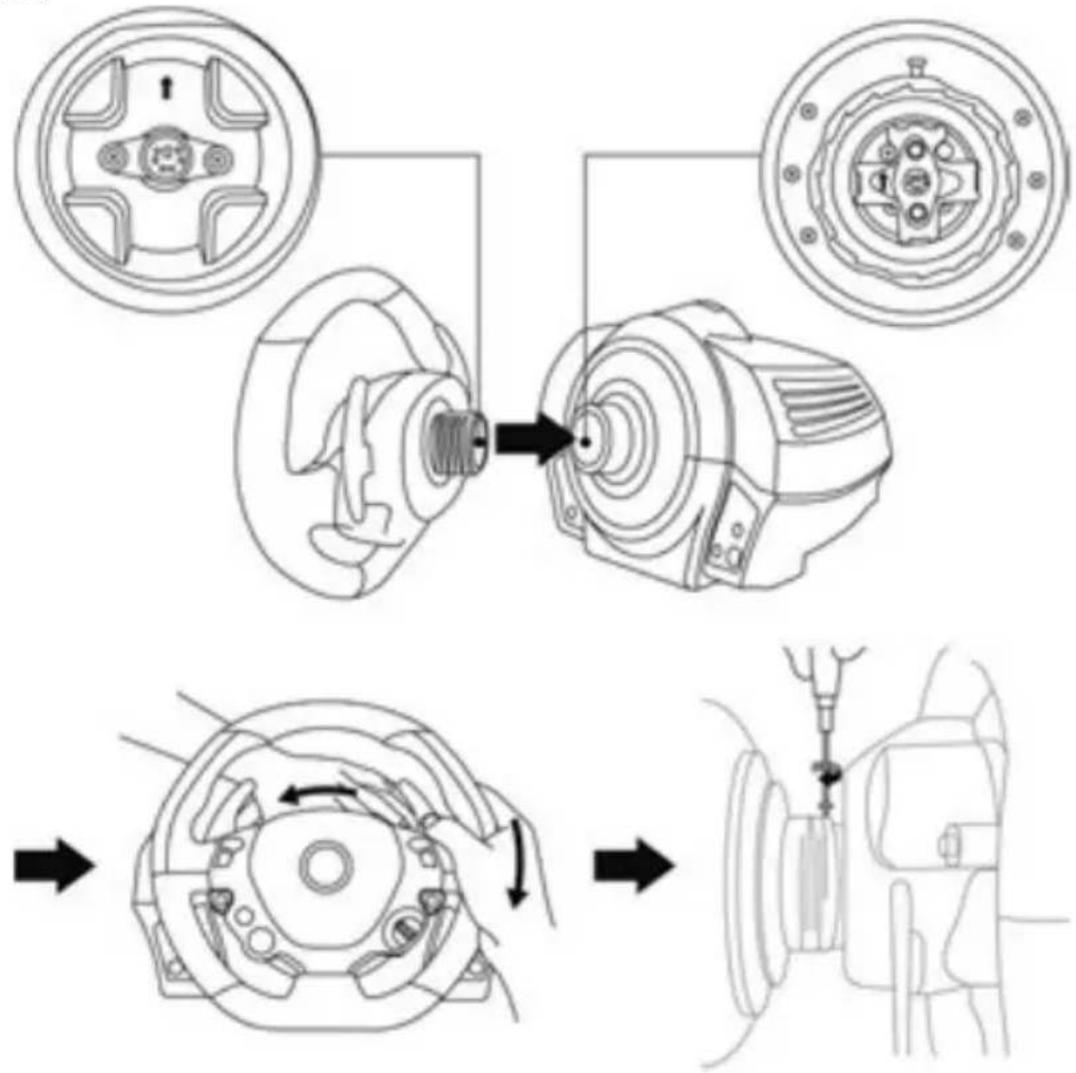

Align the connector locations using the arrows:

Base (1) connector: Arrow pointing upwards

Racing wheel (2) connector: Arrow pointing upwards

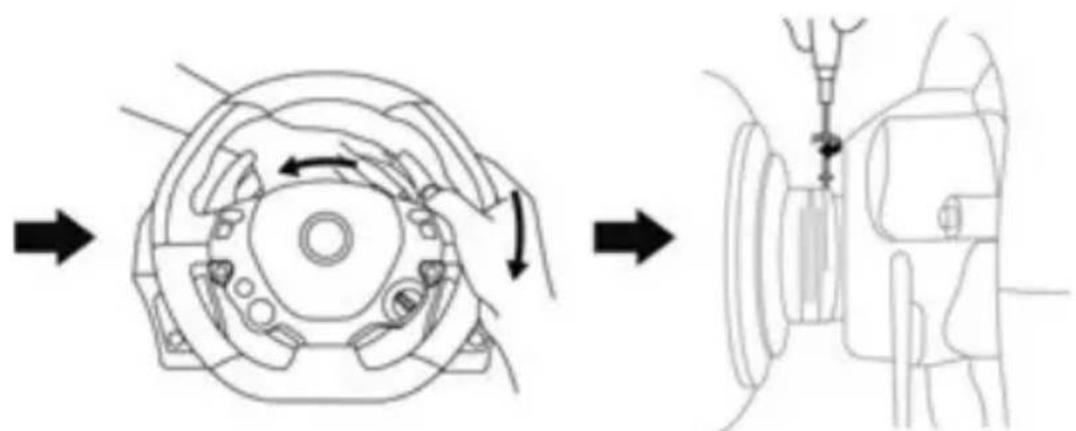

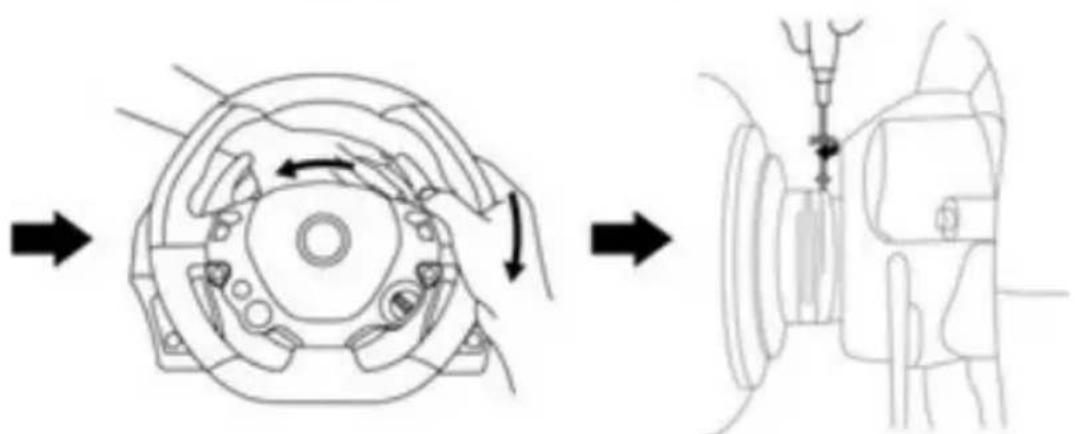

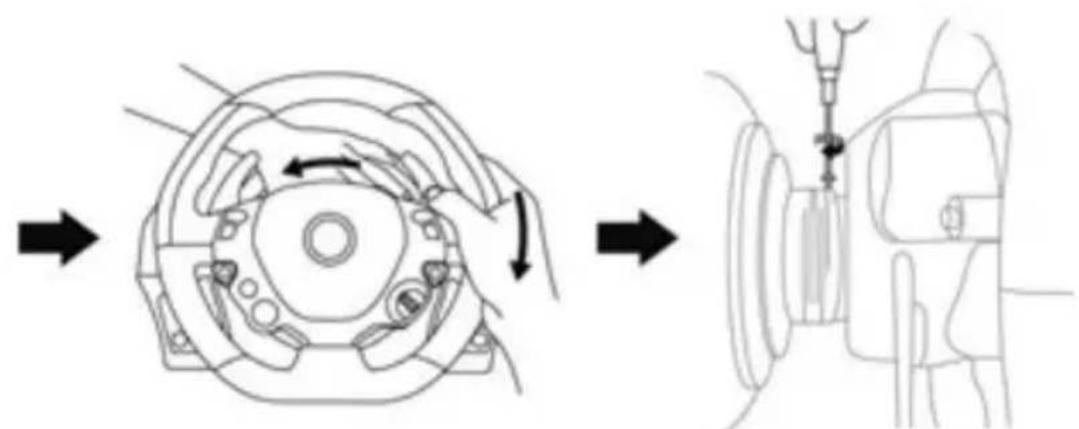

Once the connectors are correctly positioned, simply rotate the Thrustmaster Quick Release (12) device's ring counterclockwise, while holding the racing wheel (2) in position.

Then, tighten the ring as much as you can; to do so, hold the ring in position and rotate the racing wheel clockwise.

Once you have installed the FERRARI 458 ITALIA racing wheel, rotate it 180^ (when facing the wheel, the FERRARI logo should be upside down) to access the small attachment screw located on the Thrustmaster Quick Release (12) device. Use a large cross-slot screwdriver to tighten the small attachment screw (do not use excessive force), turning it clockwise.

Do not use excessive force when screwing the small attachment screw (using a cross-slot screwdriver)!

Stop turning the screw as soon as you feel some resistance.

ATTACHING THE RACING WHEEL

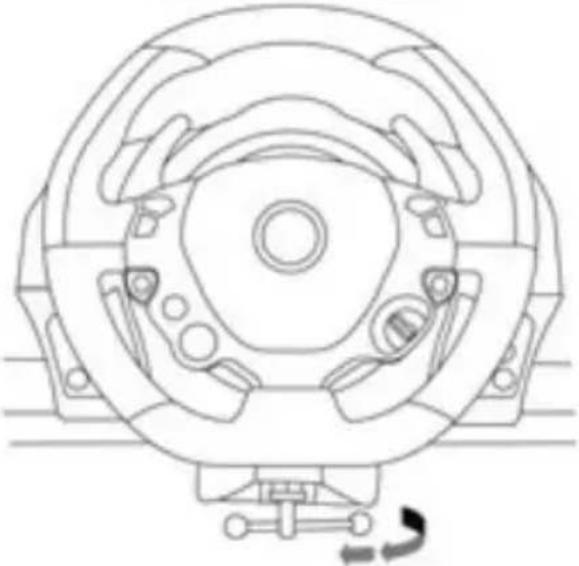

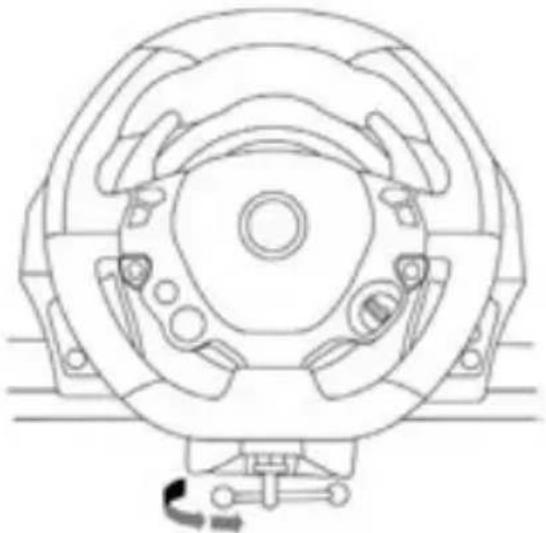

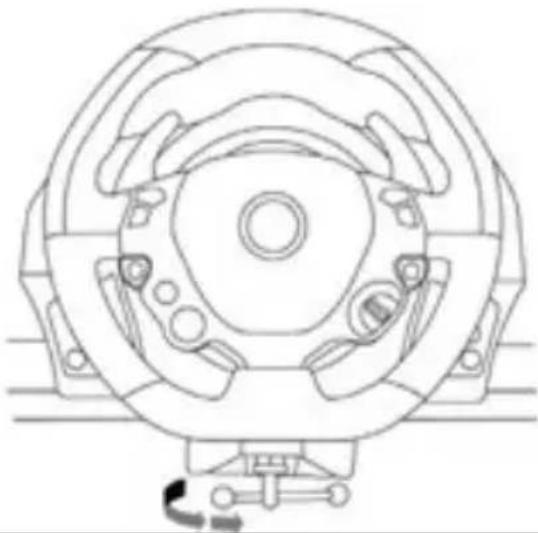

Attaching the racing wheel to a table or a desktop

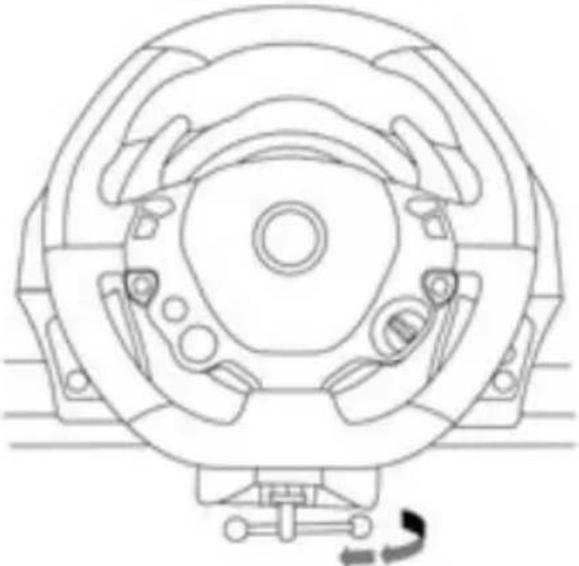

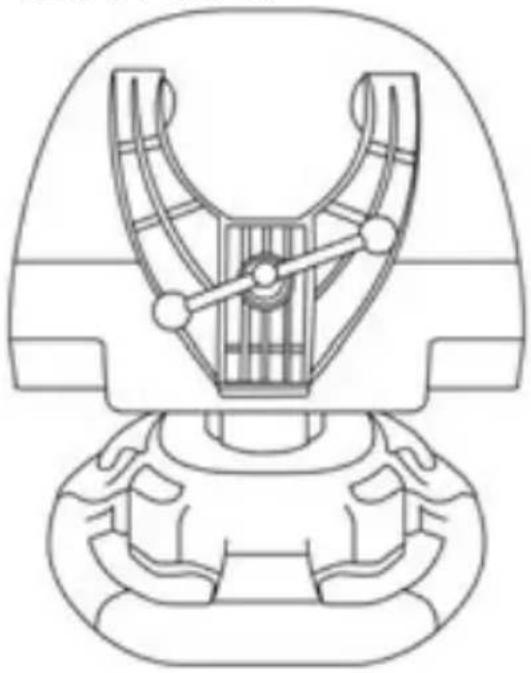

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.

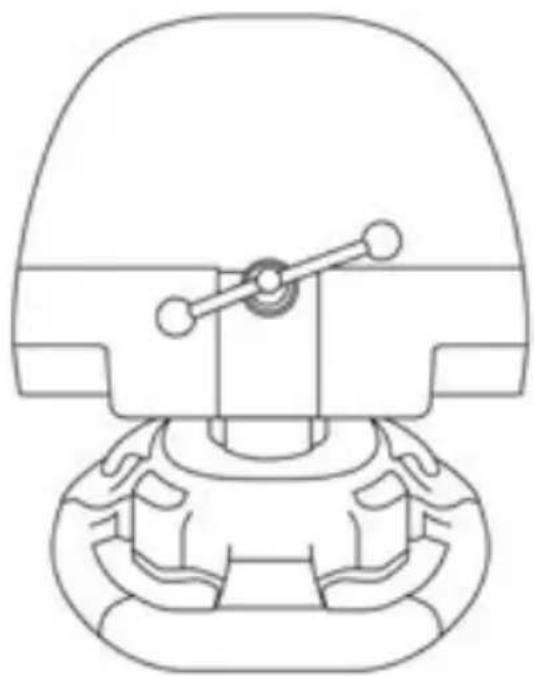

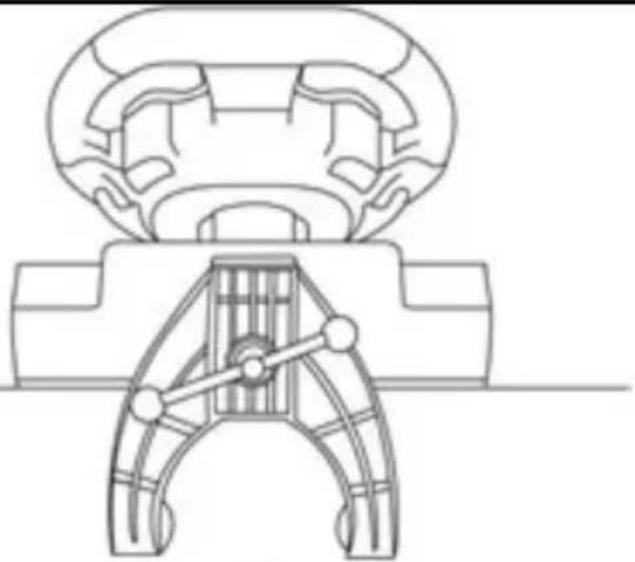

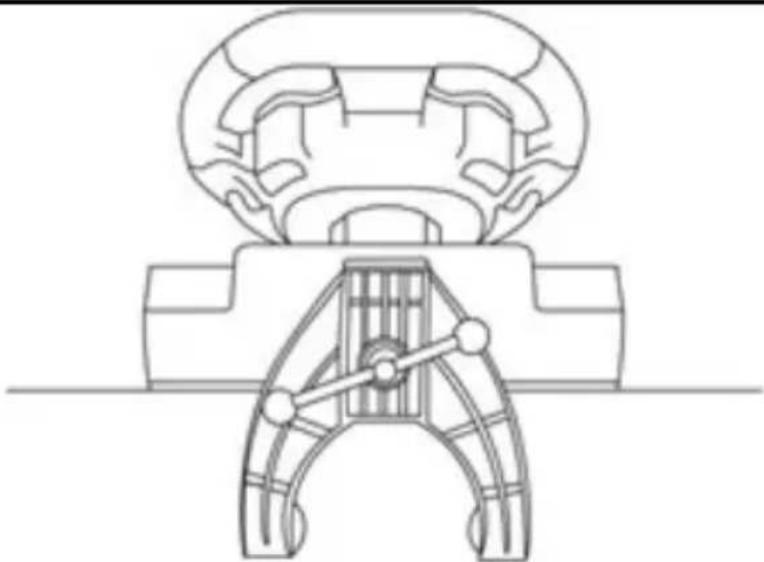

2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the device is perfectly stable.

ALWAYS NEVER

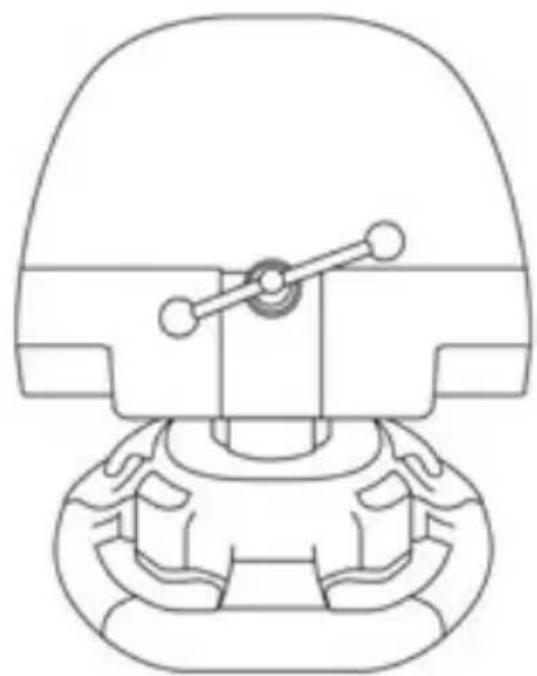

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

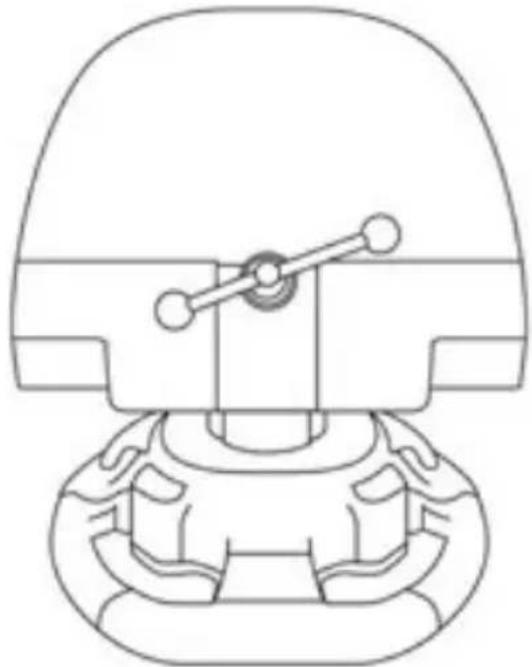

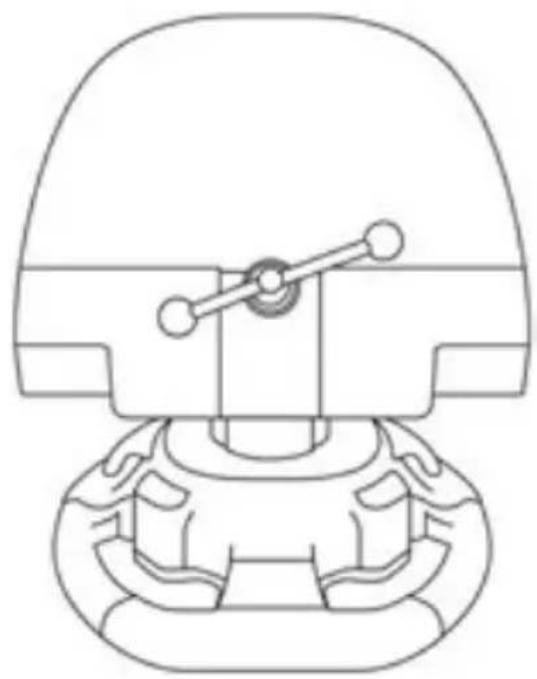

WARNING: Never tighten the screw alone, without the attachment system! (This could damage the racing wheel).

ATTACHMENT / REMOVAL	DIRECTION
To tighten:Turn the screw counterclockwise
To release:Turn the screw clockwise

Attaching the racing wheel's base to a cockpit

1. Place the racing wheel's base on the cockpit shelf.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small threaded holes located beneath the racing wheel.
   Important: The length of the M6 screws should not exceed the thickness of the shelf + 12 mm; longer screws could cause damage to internal components located in the racing wheel's base.
3. If required, tighten the standard attachment system by inserting the fastening screw in the large threaded hole.

Attaching the pedal set to a cockpit

1. Attach the pedal set using the small threaded holes located beneath it.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small threaded holes located beneath the pedal set.
   Important: The length of the M6 screws should not exceed the thickness of the shelf +10 mm; longer screws could cause damage to internal components located in the pedal set.

MAPPING

At product launch on Xbox One, different action buttons on the wheel will have identical features in the game.

In the near future, automatically updating your games (automatic updates will be available if your console is connected to the Internet) and updating your racing wheel's firmware will enable you to remove these duplicate features and increase the number of individual buttons.

UPGRADING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be upgraded to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit http://support.thrustmaster.com. Click Racing Wheels / TX Racing Wheel, then select Firmware and follow the instructions describing the download and installation procedure.

SETTING UP THE RACING WHEEL FOR THE XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Connect the power supply cable to a mains outlet with proper voltage specifications.

For more information about this, please refer to the CONNECTING THE RACING WHEEL TO THE MAINS section, on page 3 in this manual.

1. Connect the racing wheel's USB connector (15) to one of the console's USB ports.

You are now ready to race!

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The racing wheel automatically self-calibrates when you connect the racing wheel to the mains and the racing wheel's USB connector to the console.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase! (This could cause an incorrect calibration and/or personal injuries).

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could cause incorrect calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is done and the game has been launched, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading! (This could cause incorrect calibration)

If your racing wheel and pedal set do not operate correctly, or if calibration seems incorrect: Turn off your console, disconnect your racing wheel entirely, reconnect all cables (using the mains power supply cable and pedal set), then restart your console and your game.

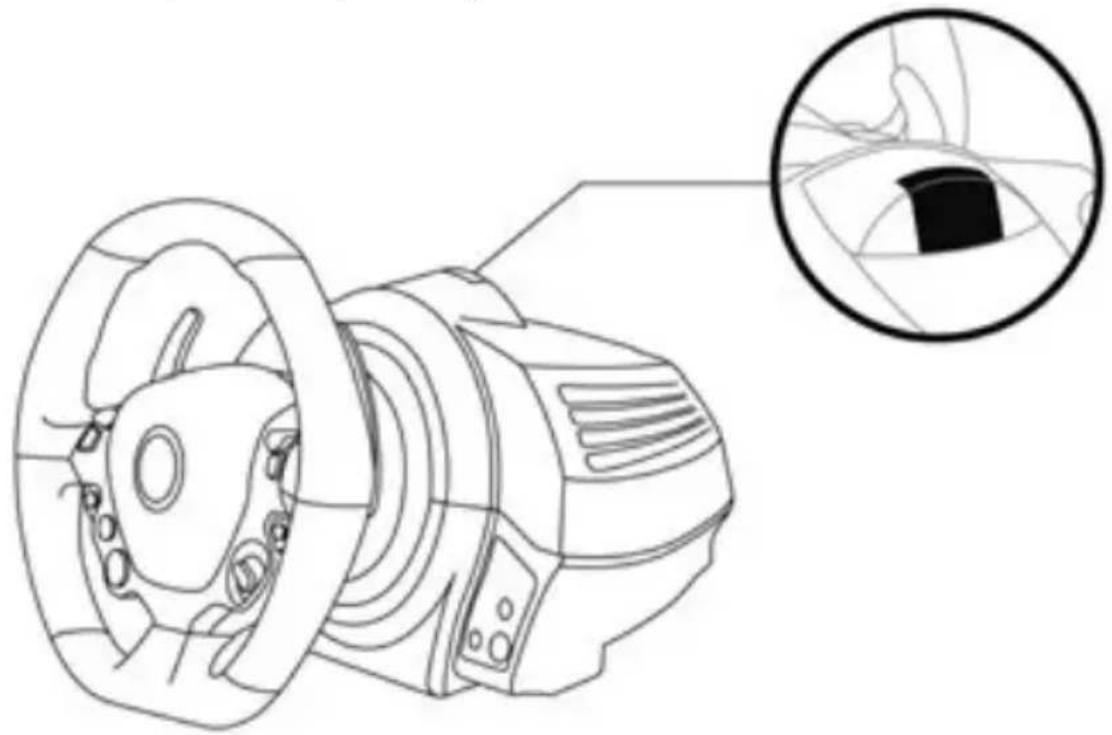

CONTROLLER PAIRING (13)

To ensure correct detection of your racing wheel, the device's controller pairing (located on the upper section of the racing wheel's base) must always remain in the KINECT™ camera's field of vision.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

INTERNAL TEMPERATURE SENSOR

For safety reasons, the racing wheel's base features a temperature sensor. If the device's temperature becomes too high, your racing wheel can shut down suddenly. In this event:

• Unplug the mains power supply cable and the device's USB connector.
• Wait for the racing wheel's base to cool down entirely.
• Then, reconnect the device.

MODE BUTTON AND INDICATOR LIGHT (6)

MODE button for the pedal set

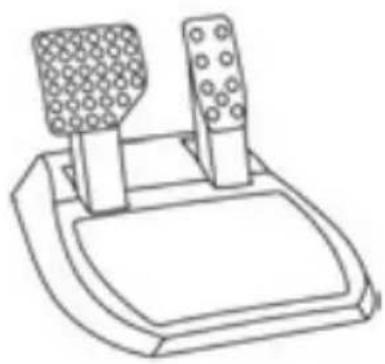

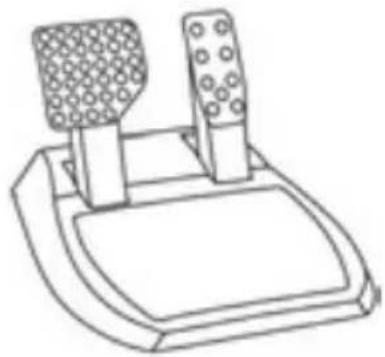

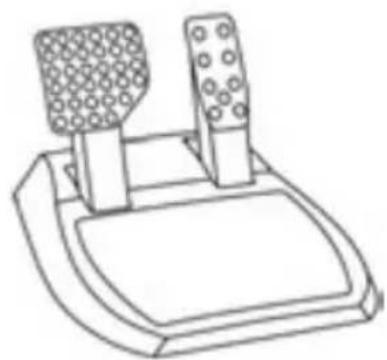

The pedal set included with the TX Racing Wheel features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or the accelerator pedal will not function correctly.

The TX Racing Wheel is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately; forthcoming release); these enable you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (6) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

ACCELERATOR AND CLUTCH PEDALS	Color of the MODE indicator light (6)
NORMAL	RED
SWAPPED AROUND	GREEN

Other hints for the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TX Racing Wheel, and then select Manual or FAQ.

HELP FILES AND FAQs (not stated in this manual)

Please visit http://support.thrustmaster.com. Click Racing Wheels / TX Racing Wheel, and then select Manual or FAQ.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

THRUSTMASTER®

TECHNICAL SUPPORT

http://support.thrustmaster.com

Three black icons: a lowercase 'i' in a circle, an envelope symbol, and a telephone handset (no text or labels)

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Ferrari® is a registered trademark of Ferrari Idea S.p.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment,

you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU and Turkey only

TX Racing Wheel

FERRARI 458 ITALIA EDITION

POUR XBOX ONE

Line drawing of an electrical plug with three leads and a terminal block (no text or symbols)

Line drawing of an electric power plug with three leads and a terminal block (no text or symbols)

Symmetrical mechanical component diagram with concentric rings and central hub (no text or symbols)

Prohibition sign with a hand holding a globe and a diagonal line crossing it, no text or symbols present.

Prohibition sign showing a hand holding a ring above a stylized object (no text or symbols)

Technical line drawing of a mechanical assembly showing three circular components connected to a central gear-like component with a black arrow indicating assembly direction (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

CAPTEUR DE TEMPERATURE INTERNE

INFORMATIONS RELATIVES A LA GARANTIE AUX CONSOMMATEURS

Symbol of a trash bin with crossed lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two plates (no text or symbols)

WARNUNG:

Line drawing of an electrical outlet with three leads and a terminal block (no text or symbols)

Line drawing of an electric power plug with three leads and a terminal label (no text or symbols on the plug itself)

Symmetrical mechanical or architectural diagram with concentric circles and radial lines, no visible text or symbols

NIE

Prohibition sign with hand crossed out of a circular background, no text or symbols present

NIE

Prohibition sign showing a hand holding a ring above a device (no text or symbols)

Technical line drawing of a mechanical assembly with three circular components and a central connector (no text or symbols)

Technical line drawing showing a mechanical assembly before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

INTERNER TEMPERATUR-MESSFÜHLER

COPYRIGHT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a manual push-button press with two buttons and a textured grip (no text or symbols)

WAARSCHUWING:

Line drawing of an electrical outlet with two plug connectors and a cable (no text or symbols)

Steek de 220-240 V kabel

Line drawing of an electric plug with three leads and a terminal label (no text or symbols on the plug itself)

Steek de 100-125 V kabel

Abstract circular diagram with concentric rings and symmetrical internal patterns, no text or symbols present.

Prohibition sign with a hand holding a ring and a circular border (no text or symbols)

Technical line drawing of a mechanical component with symmetrical internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

SENSOR VOOR INTERNE TEMPERATUUR

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a manual brake pushset with two circular buttons and a textured grip (no text or symbols)

ATTENZIONE:

Line drawing of an electrical plug with three leads and a terminal block, no text or symbols present

Line drawing of an electric plug with two terminal leads and a cable (no text or symbols)

Simple line drawing of two connected electrical plugs (no text or symbols)

ATTENZIONE

Cross-sectional diagram of a mechanical or electrical component with concentric rings and internal components (no text or symbols)

MAI

MAI

Technical line drawing of a mechanical component with symmetrical internal structure and base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

SENSORE TEMPERATURA INTERNA

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two foot holders and a central base (no text or symbols)

AVISO:

12 Thrustmaster Quick Release

Line drawing of an electrical outlet with three leads and a terminal block (no text or symbols)

Line drawing of an electric power plug with three leads and a cable (no text or symbols)

Abstract circular diagram with concentric rings and symmetrical patterns, no text or symbols present.

NUNCA

Prohibition sign with hand holding a circular diagram, no text or symbols present

NUNCA

Prohibition sign with a diagonal line crossing over a circular background, no text or symbols present.

Technical line drawing of a mechanical assembly with three circular components and a central connector (no text or symbols)

Technical line drawing showing a mechanical assembly before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical component with symmetrical internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

SENSOR DE TEMPERATURA INTERNO

Symbol of a trash bin with crosshair and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with two plates and a base plate (no text or symbols)

ATENÇÃO:

Line drawing of a three-pin electrical plug with a cable, no text or symbols present

Nunca ligue o cabo de 220-240 V

Line drawing of an electrical outlet with three leads and a terminal block (no text or symbols)

Abstract circular diagram with concentric rings and symmetrical internal patterns, no text or symbols present.

NUNCA

Prohibition sign with a hand holding a circular object, no text or symbols present

NUNCA

Prohibition sign showing a hand holding a car wheel, no text or symbols present

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

SENSOR DE TEMPERATURA INTERNA

Simple line drawing of a trash bin with cross lines and a black rectangle below (no text or symbols)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a manual brake press with two levers (no text or symbols)

ВНИМАНИЕ!

Line drawing of an electrical plug with three leads and a terminal block (no text or symbols)

Line drawing of an electrical outlet with two terminal plugs and a coiled cable (no text or symbols)

Simple line drawing of two connected electrical plugs (no text or symbols)

ВНИМАНИЕ!

Cross-sectional diagram of a mechanical component with concentric circles and internal components (no text or labels)

НЕЛЬЗЯ

Prohibition sign with hand holding a circular diagram, no text or symbols present

НЕЛЬЗЯ

Prohibition sign with hand holding a pen, crossed out by a diagonal line (no text or symbols)

НЕЛЬЗЯ

Prohibition sign with diagonal line crossing over hands holding a pen (no text or symbols)

НЕЛЬЗЯ

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

www.thrustmaster.com

TX Racing Wheel

FERRARI 458 ITALIA EDITION

ΓΙΑ ΧΒΟΧ ΟΝΕ

Εγχειρίδιο χρήσης

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two foot holders and a central base (no text or symbols)

ΠΡΟΕΙΔΟΠΟΙΗΣΗ:

Line drawing of a three-pin electrical plug with a cable, no text or symbols present

Line drawing of an electric power plug with three leads and a terminal label (no text or symbols on the plug itself)

Technical line drawing of a mechanical component with concentric circles and internal features (no text or symbols)

ПОТЕ

Prohibition sign with crossed hands and circular background (no text or symbols)

ПОТЕ

Technical line drawing of a mechanical component with symmetrical supports and central slots (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset showing a close-up of the eye (no text or symbols present)

Symbol of a trash bin crossed with diagonal lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two footpins and a central base (no text or symbols)

UYARI:

Line drawing of an electrical plug with three leads and a terminal block (no text or symbols)

Line drawing of an electric power plug with three leads and a terminal label (no text or symbols on the plug itself)

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

ASLA

Prohibition sign with hand holding a circular diagram, no text or symbols present

ASLA

Prohibition sign showing a hand holding a circular object with a ring, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical component with symmetrical supports and central slots (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

DAHİLİ SICAKLIK SENSÖRÜ

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a manual push-button press with two buttons and a textured grip (no text or symbols)

OSTRZEŻENIE:

Line drawing of a three-pin electrical plug with a cable, no text or symbols present

Line drawing of an electric plug with three leads and a terminal label (no text or symbols on the plug itself)

Cross-sectional diagram of a mechanical component with concentric circles and internal components (no text or labels)

NIGDY

Prohibition sign with crossed-out hand and circular background (no text or symbols)

NIGDY

Technical line drawing of a mechanical component with symmetrical internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

www.thrustmaster.com

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two footpins and a base plate (no text or symbols)

Xbox Guide 7

8 مصباح مؤشر أبيض

Thrustmaster Quick Release 12

Diagram of a mechanical or electrical component with concentric circular layers and directional arrows (no text or symbols)

مطلقا

مطلف

Prohibition sign showing a hand holding a car wheel, no text or symbols present

Prohibition sign with diagonal line crossing over a hand holding a pen (no text or symbols)

مطلقا

Prohibition sign with hand holding a pen, crossed out by a diagonal line (no text or symbols)

مُطْلَقًا

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three black icons: a lowercase 'i' in a circle, an envelope, and a telephone handset (no text or symbols)

حقوق النشر

*

www.thrustmaster.com

Technical line drawing of a motor and steering wheel assembly (no text or symbols)

警告：

Line drawing of an electric plug with three leads and a terminal block, no text or symbols present

Line drawing of a three-pin electrical plug with a cable and terminal connector (no text or symbols)

Symmetrical mechanical or electrical component diagram with concentric rings and central hub (no text or symbols)

危険

Prohibition sign with a hand holding a globe, no text or symbols present

危険

Prohibition sign showing a hand holding a circular object with a diagonal line, no text or symbols present.

Prohibition sign with hand holding a pen, crossed out by a diagonal line (no text or symbols)

Prohibition sign showing hands holding a pen, crossed out by a diagonal line (no text or symbols)

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

内部温度センサー

www.thrustmaster.com

紙: 外箱

TX Racing Wheel

FERRARI 458 ITALIA EDITION

适用于 XBOX ONE®

用户手册

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a manual push-button press with two buttons and a textured grip (no text or symbols)

警告：

为确保 TX 方向盘能够正常操控

XBOX ONE 游戏机的游戏，

您可能需要安装游戏的自动更新

(当您的游戏主机连接到互联网时可用)。

技术规格

Line drawing of an electric plug with two terminal leads (no text or symbols)

Line drawing of an electric power plug with three leads and a terminal connector (no text or symbols)

Line drawing of an electric plug with two leads, no text or symbols present

Cross-sectional diagram of a mechanical or electrical component with concentric rings and internal components (no text or symbols)

切勿

切勿

Prohibition sign showing a hand holding a circular object with a ring, no text or symbols present.

警告—玩游戏时存在的踏板组夹伤危险

Prohibition sign with hand holding a pen, crossed out by a diagonal line (no text or symbols)

切勿

Prohibition sign showing hands holding a pencil over a document, enclosed in a circle (no text or symbols)

切勿

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

内部温度传感器

www.thrustmaster.com

CE

TX Racing Wheel

FERRARI 458 ITALIA EDITION

XBOX ONE®

사용설명서

경고:

Pure electrical connector diagram without any text or symbols

Line drawing of a three-pin electrical plug with a cable, no text or symbols present

Cross-sectional diagram of a mechanical or biological structure with concentric circles and internal components (no text or labels)

절대 금지

Prohibition sign with a hand holding a circular diagram, no text or symbols present

절대 금지

Prohibition sign showing a hand holding a ring above a device (no text or symbols)

Prohibition sign with hand holding a pen, no text or symbols present

절대 금지

Prohibition symbol showing hands holding a pen, crossed out by a diagonal line (no text or symbols)

절대 금지

Technical line drawing of a mechanical assembly showing three components connected to a central component (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

절대 금지

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

내부 온도 센서

www.thrustmaster.com

TX Racing Wheel

FERRARI 458 ITALIA EDITION

FOR XBOX ONE®

User Manual

Line drawing of a mechanical device with a circular head and central hub (no text or symbols)

Line drawing of a mechanical device with two pushpins and a base plate (no text or symbols)

WARNING:

To ensure that your TX Racing Wheel functions correctly with games for XBOX ONE,

you may be required to install the games' automatic updates (available when your games console is connected to the Internet).

TECHNICAL SPECIFICATIONS

1 Racing wheel base
2 Racing wheel
3 2 sequential gear shift levers (Up & Down)
4 Multidirectional D-Pad (Engine Start)
5 Manettino (2 positions)
6 MODE button + Red/Green indicator light

7 Xbox Guide button
8 White indicator light
9 Large threaded hole (for attachment system and tightening screw)
10 Attachment system
11 Metal fastening screw

12 Thrustmaster Quick Release
13 Controller pairing (for Kinect™ detection)
14 Mains supply connector (type A or B) (Varies from one country to another)

15 Racing wheel USB cable and connector
16 Gearbox connector (sold separately, forthcoming release)
17 Pedal set connector

CONNECTING THE RACING WHEEL TO THE MAINS = PLEASE READ BEFORE PROCEEDING!

Your racing wheel's power supply varies according to the country where you purchased your device. In Korea, the power supply is:

Internal, with:

* a power supply unit located directly inside the racing wheel's base, with a type C connector.
* a 220-240 V power supply cable.
= compatible only with 220-240 V electrical power.

Line drawing of a three-pin electrical plug with a cable, no text or symbols present

Never connect the 220-240 V cable to a 100-130 V electrical outlet!!! Never connect this cable to a power adapter!!!

WARNINGS

Before you use this product, please read this documentation carefully and keep it safe should you need to consult it later.

Warning – Electric shock

* Store the product in a dry location and do not expose it to dust or sunlight.
* Respect the connection direction.
* Do not twist or pull the connectors and cables.
* Do not spill any liquid on the product or its connectors.
* Do not short-circuit the product.
* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
* Do not use a power supply cable other than the one provided with your racing wheel.
* Do not use the mains power supply cable if the cable or the connectors are damaged, split or broken.
* Make sure that the mains power cable is properly inserted into the power outlet and the connector located on the rear face of the racing wheel's base.
* Do not open. No user replaceable parts inside. Refer servicing to manufacturer, specified agency or qualified technician.
* Only use attachments/accessories specified by the manufacturer.
* If the steering wheel is operating unusually (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, disconnect the power cable from the socket and disconnect the other cables.
* If you are not going to be using the steering wheel for an extended period, disconnect the mains adaptor from the wall socket.

Air vents

Make sure that you do not block any of the air vents on the steering wheel base. For optimum ventilation, respect the points below:

* Position the base at least 10 cm away from any wall surfaces.
* Do not place the base in any tight spaces.
* Do not cover the base.
* Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements

Playing with a force-feedback steering wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.
* Take 10 to 15 minute breaks after each hour of play.
* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning – Injuries due to force feedback and repeated movements (continued)

* If the symptoms or pain indicated above persist when you start playing again, stop playing and consult your doctor.
* Keep out of children's reach.
* During games, always leave both hands correctly positioned on the steering wheel without letting it go completely.
* During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
* During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
* Check the steering wheel base is carefully clamped as per manual's instructions.

HEAVY PRODUCT

To be handled only by users 16 years of age or older

Be careful not to drop the product on yourself or on anyone else!

ALWAYS NEVER NEVER

Diagram of a mechanical or electrical component with concentric circular layers and internal components (no text or symbols)

Prohibition sign with crossed hands and circular diagram, no text or symbols present

Warning – Pedal set pinch hazard when playing

* Keep the pedal set out of children's reach.
* When playing, never place your fingers on or anywhere near the sides of the pedals.
* When playing, never leave your fingers on or anywhere near the pedals' rear base.
* When playing, never place your fingers on or anywhere near the pedals' front base.

NEVER NEVER NEVER

Warning – Pedal set pinch hazard when not playing

* Store the pedal set in a safe place, and keep it out of children's reach.

ATTACHING THE FERRARI 458 ITALIA RACING WHEEL TO ITS BASE

Align the connector locations using the arrows:

Base (1) connector: Arrow pointing upwards

Racing wheel (2) connector: Arrow pointing upwards

Once the connectors are correctly positioned, simply rotate the Thrustmaster Quick Release (12) device's ring counterclockwise, while holding the racing wheel (2) in position.

Then, tighten the ring as much as you can; to do so, hold the ring in position and rotate the racing wheel clockwise.

Once you have installed the FERRARI 458 ITALIA racing wheel, rotate it 180^ (when facing the wheel, the FERRARI logo should be upside down) to access the small attachment screw located on the Thrustmaster Quick Release (12) device. Use a large cross-slot screwdriver to tighten the small attachment screw (do not use excessive force), turning it clockwise.

Do not use excessive force when screwing the small attachment screw (using a cross-slot screwdriver)!

Stop turning the screw as soon as you feel some resistance.

ATTACHING THE RACING WHEEL

Attaching the racing wheel to a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the device is perfectly stable.

ALWAYS NEVER

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

WARNING: Never tighten the screw alone, without the attachment system! (This could damage the racing wheel).

ATTACHMENT / REMOVAL	DIRECTION
To tighten:Turn the screw counterclockwise
To release:Turn the screw clockwise

Attaching the racing wheel's base to a cockpit

1. Place the racing wheel's base on the cockpit shelf.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small threaded holes located beneath the racing wheel.
   Important: The length of the M6 screws should not exceed the thickness of the shelf + 12 mm; longer screws could cause damage to internal components located in the racing wheel's base.
3. If required, tighten the standard attachment system by inserting the fastening screw in the large threaded hole.

Attaching the pedal set to a cockpit

1. Attach the pedal set using the small threaded holes located beneath it.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small threaded holes located beneath the pedal set.
   Important: The length of the M6 screws should not exceed the thickness of the shelf +10 mm, longer screws could cause damage to internal components located in the pedal set.

MAPPING

At product launch on Xbox One, different action buttons on the wheel will have identical features in the game.

In the near future, automatically updating your games (automatic updates will be available if your console is connected to the Internet) and updating your racing wheel's firmware will enable you to remove these duplicate features and increase the number of individual buttons.

UPGRADING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be upgraded to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently running and upgrade it if required: on PC, connect to http://support.thrustmaster.com. Click Racing Wheels / TX Racing Wheel, then select Firmware and follow the instructions describing the download and setup procedure.

SETTING UP THE RACING WHEEL FOR THE XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Connect the power supply cable to a mains outlet with proper voltage specifications.

For more information about this, please refer to the CONNECTING THE RACING WHEEL TO THE MAINS section, on page 3 in this manual.

1. Connect the racing wheel's USB connector (15) to one of the console's USB ports.

You are now ready to race!

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The racing wheel automatically self-calibrates when you connect the racing wheel to the mains and the racing wheel's USB connector to the console.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase! (This could cause an incorrect calibration and/or personal injuries).

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could cause incorrect calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is done and the game has been launched, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals

during the racing wheel's self-calibration phase or while a game is loading!

(This could cause incorrect calibration)

If your racing wheel and pedal set do not operate correctly, or if calibration seems incorrect: Turn off your console, disconnect your racing wheel entirely, reconnect all cables (using the mains power supply cable and pedal set), then restart your console and your game.

CONTROLLER PAIRING (13)

To ensure correct detection of your racing wheel, the device's controller pairing (located on the upper section of the racing wheel's base) must always remain in the KINECT™ camera's field of vision.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

INTERNAL TEMPERATURE SENSOR

For safety reasons, the racing wheel's base features a temperature sensor. If the device's temperature becomes too high, your racing wheel can shut down suddenly. In this event:

• Unplug the mains power supply cable and the device's USB connector.
• Wait for the racing wheel's base to cool down entirely.
• Then, reconnect the device.

MODE BUTTON AND INDICATOR LIGHT (6)

MODE button for the pedal set

The pedal set included with the TX Racing Wheel features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or the accelerator pedal will not function correctly.

The TX Racing Wheel is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately; forthcoming release); these enable you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (6) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

ACCELERATOR AND CLUTCH PEDALS	Color of the MODE indicator light (6)
NORMAL	RED
SWAPPED AROUND	GREEN

Other hints for the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

HELP FILES AND FAQs (not stated in this manual)

Please visit http://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Ferrari® is a registered trademark of Ferrari Idea S.p.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

This product conforms to all standards regarding children 16 years of age and older. This product is not suitable for use by children less than 16 years of age.

www.thrustmaster.com

CE FC
