Series 9 9260S - Razor BRAUN - Free user manual and instructions

Product type	Electric shaver
Brand	Braun
Model	Series 9 9260S
Approximate dimensions	65 x 45 x 180 mm
Approximate weight	200 g
Power supply	Rechargeable battery, low-voltage adapter integrated into cable
Battery life	Up to 50 minutes of cordless shaving
Charging time	1 hour for a full charge
Display	LED screen: charge status, low charge, travel lock
Main functions	Dry or wet shaving, pivot head lockable in 5 positions, long hair trimmer, travel lock
Cordless use	Yes, mandatory for safety reasons
Maintenance and cleaning	Rinse under running water, brush, occasional lubrication with a drop of light oil
Safety	Travel lock, use possible by children aged 8 and up under supervision
Spare parts	Foil and cutter block 92S/92B, CCR cleaning liquid cartridge
Included accessories	Charging base (9a), travel case, power cable
Warranty	2 years, possible extension in some countries

Frequently Asked Questions - Series 9 9260S BRAUN

How to lock or unlock the shaver for travel?

Press the on/off switch for 3 seconds. A beep confirms the lock/unlock and the padlock symbol appears on the screen.

How to clean the Braun Series 9 shaver?

You can clean it under running water: turn on the cordless shaver, rinse the head under warm water, possibly with non-abrasive liquid soap. Remove the foil and cutter block to let them dry. Also use the included brush for the inside of the pivot head.

Can the shaver be used in the shower?

Yes, the device is waterproof and can be used in the shower or bath, but only cordless (do not plug into mains).

What is the battery life?

A full charge provides up to 50 minutes of cordless shaving, depending on beard length and ambient temperature.

When should the foil and cutter block be replaced?

Braun recommends replacing them every 18 months to maintain optimal performance. Use part number 92S/92B.

What to do if the shaver does not start?

Check if the travel lock is activated (press the switch for 3 seconds). Make sure the shaver is unplugged as it only works cordless.

Why does the screen flash during charging?

The battery segments flash during charging. If the flashing persists after a long time, check that the ambient temperature is between 5°C and 35°C.

How to use the long hair trimmer?

Press the trimmer release button (7) and slide the trimmer (6) upwards. It is used to trim sideburns, mustache, or beard.

How to lock the pivot head?

Slide the MultiHeadLock button (3) downwards to lock the head in five different positions. Turn the head with thumb and forefinger to change position.

Where to find spare parts or an authorized service center?

Visit www.service.braun.com or call 0 800 944 802 (free consumer service in France) to find the nearest authorized center.

USER MANUAL Series 9 9260S BRAUN

(Sharecall charged at local rates)

www.service.braun.com

Deutsch

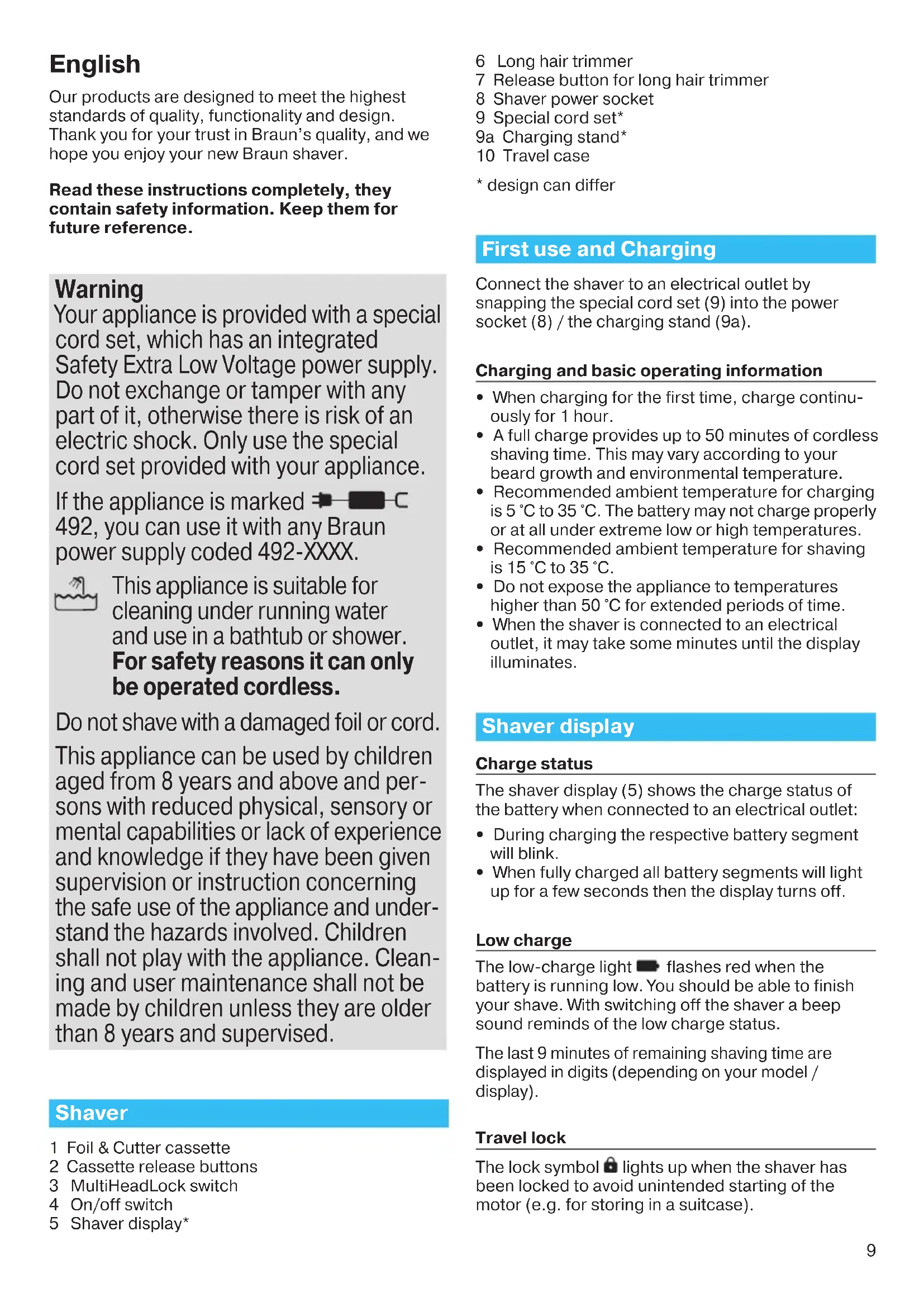

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality, and we hope you enjoy your new Braun shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

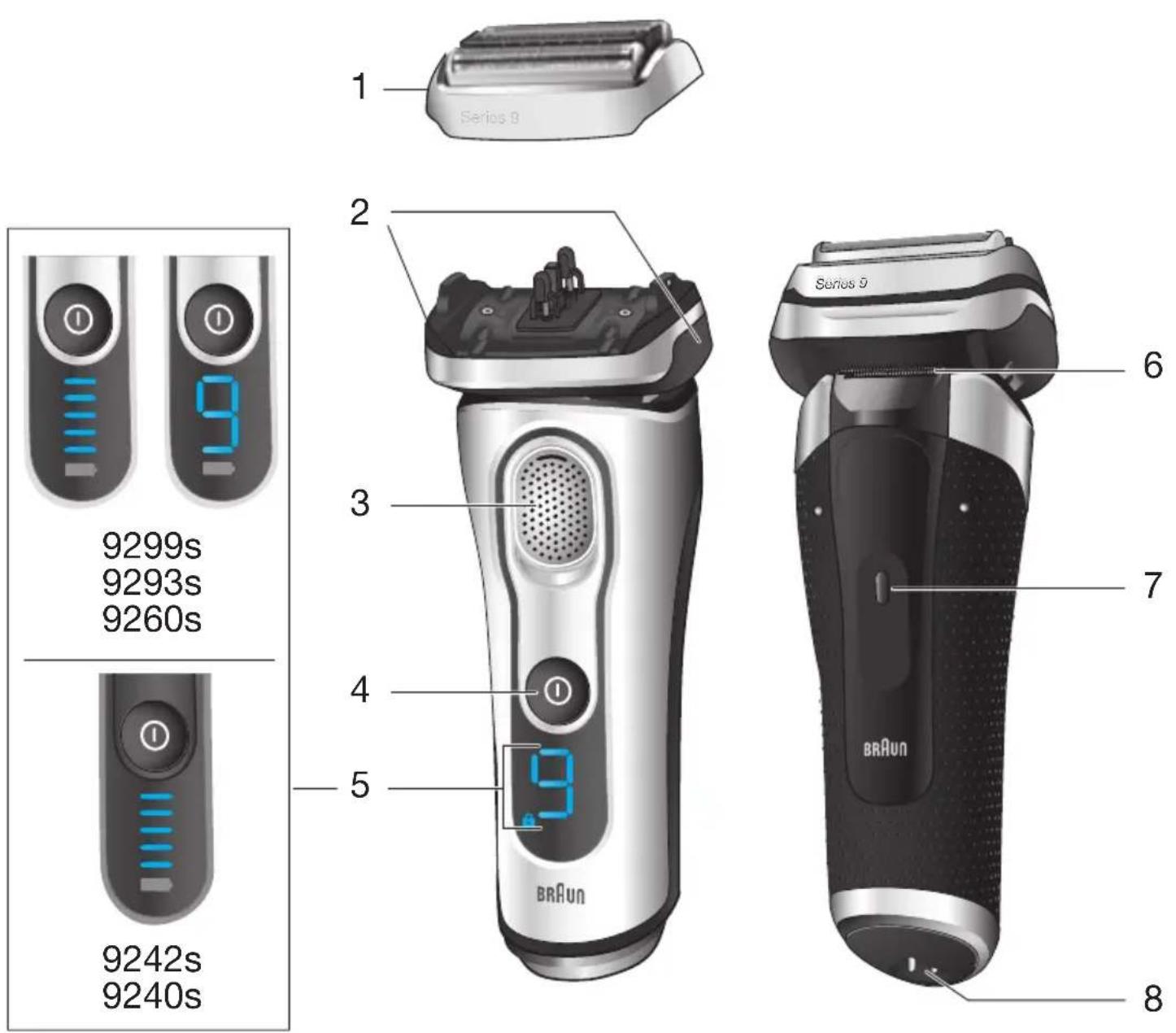

Shaver

1 Foil & Cutter cassette 2 Cassette release buttons 3 MultiHeadLock switch 4 On/off switch 5 Shaver display*

6 Long hair trimmer 7 Release button for long hair trimmer 8 Shaver power socket 9 Special cord set 9a Charging stand 10 Travel case

• design can differ

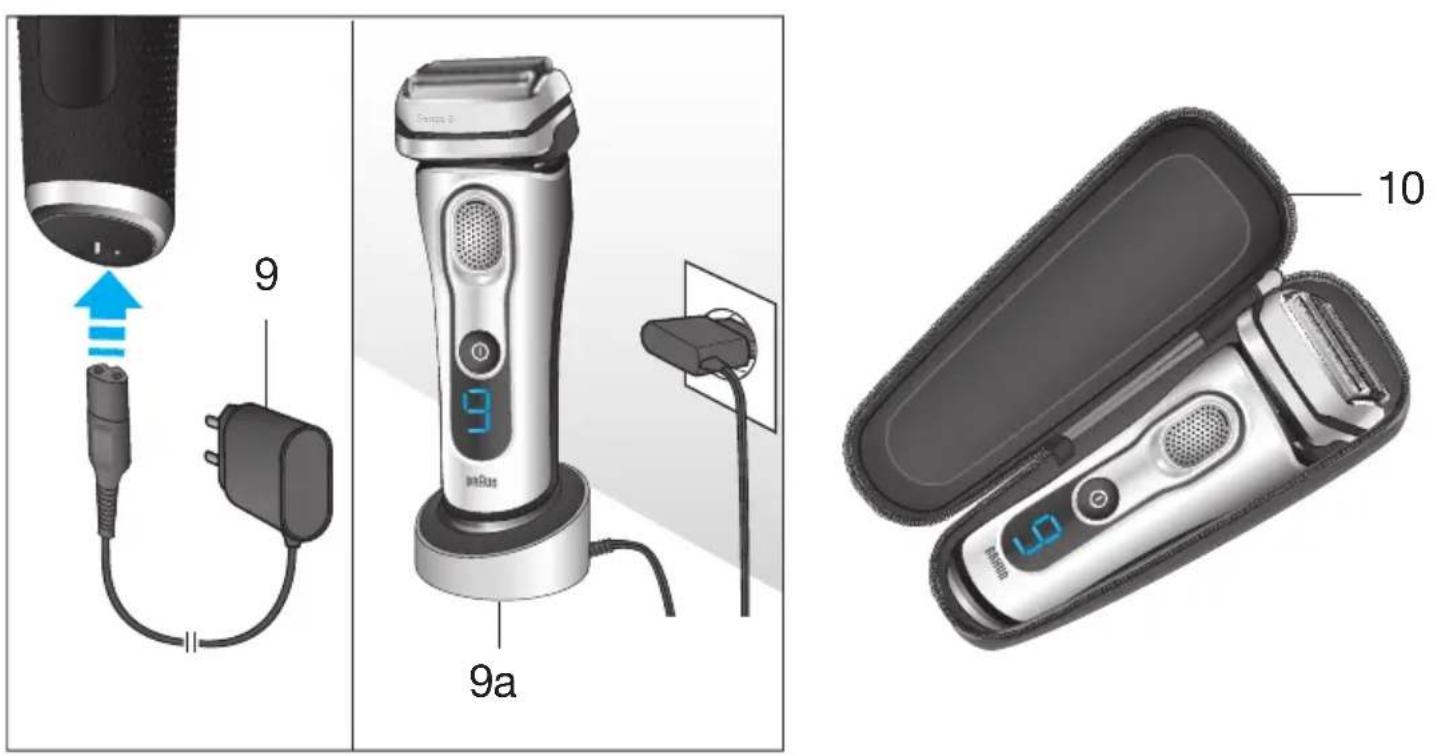

First use and Charging

Connect the shaver to an electrical outlet by snapping the special cord set (9) into the power socket (8) / the charging stand (9a).

Charging and basic operating information

• When charging for the first time, charge continuously for 1 hour.
• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5°C to 35°C. The battery may not charge properly or at all under extreme low or high temperatures.
• Recommended ambient temperature for shaving is 15°C to 35°C.
• Do not expose the appliance to temperatures higher than 50°C for extended periods of time.
• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates.

Shaver display

Charge status

The shaver display (5) shows the charge status of the battery when connected to an electrical outlet:

• During charging the respective battery segment will blink.
• When fully charged all battery segments will light up for a few seconds then the display turns off.

Low charge

The low-charge light flashes red when the battery is running low. You should be able to finish your shave. When switching off the shaver, a beep sound reminds you of the low charge status.

The last 9 minutes of remaining shaving time are displayed in digits (depending on your model / display).

Travel lock

The lock symbol lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing in a suitcase).

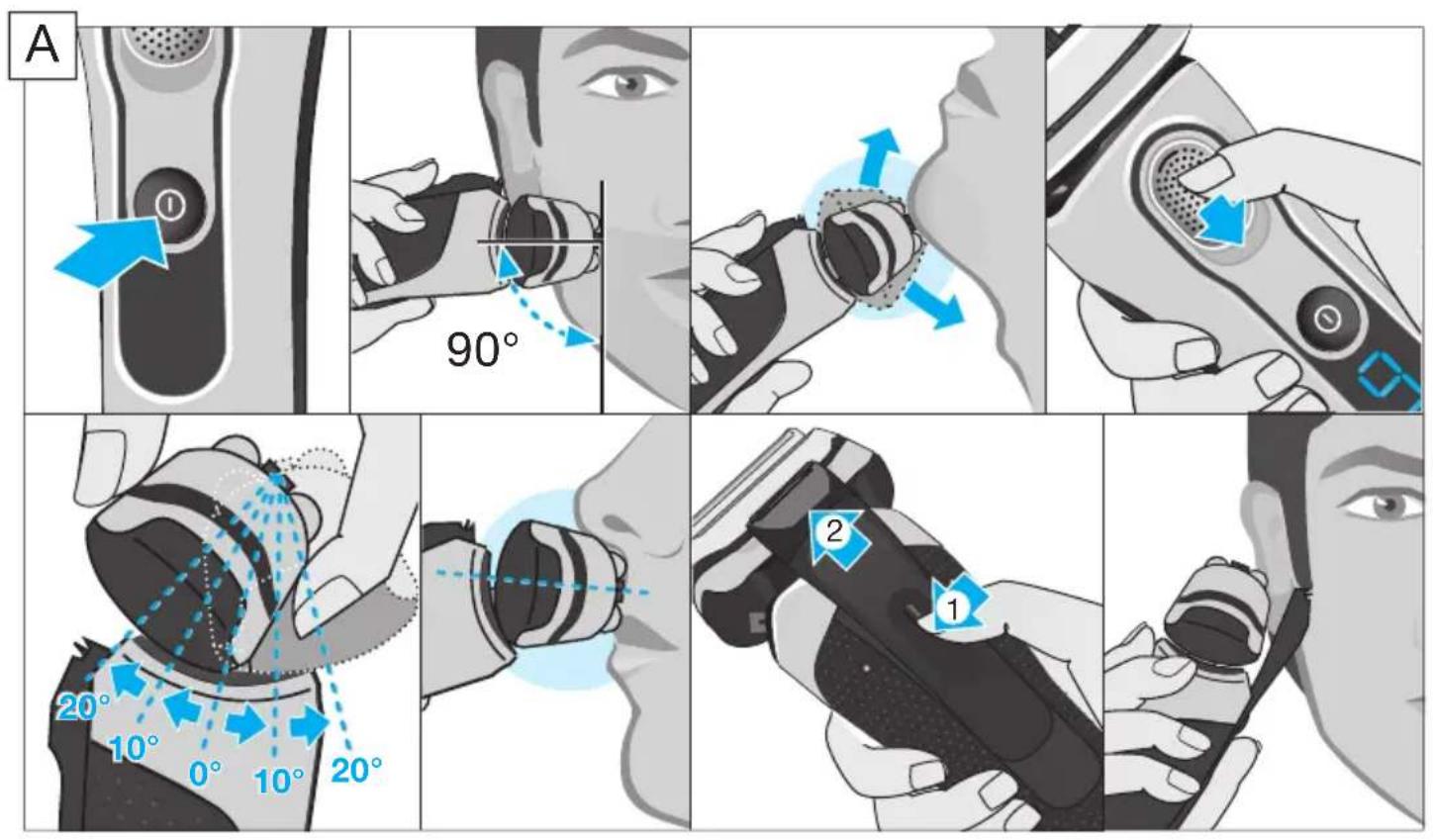

Using the shaver (see fig. A)

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (7) and slide the long hair trimmer (6) upwards.

Travel lock

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again.

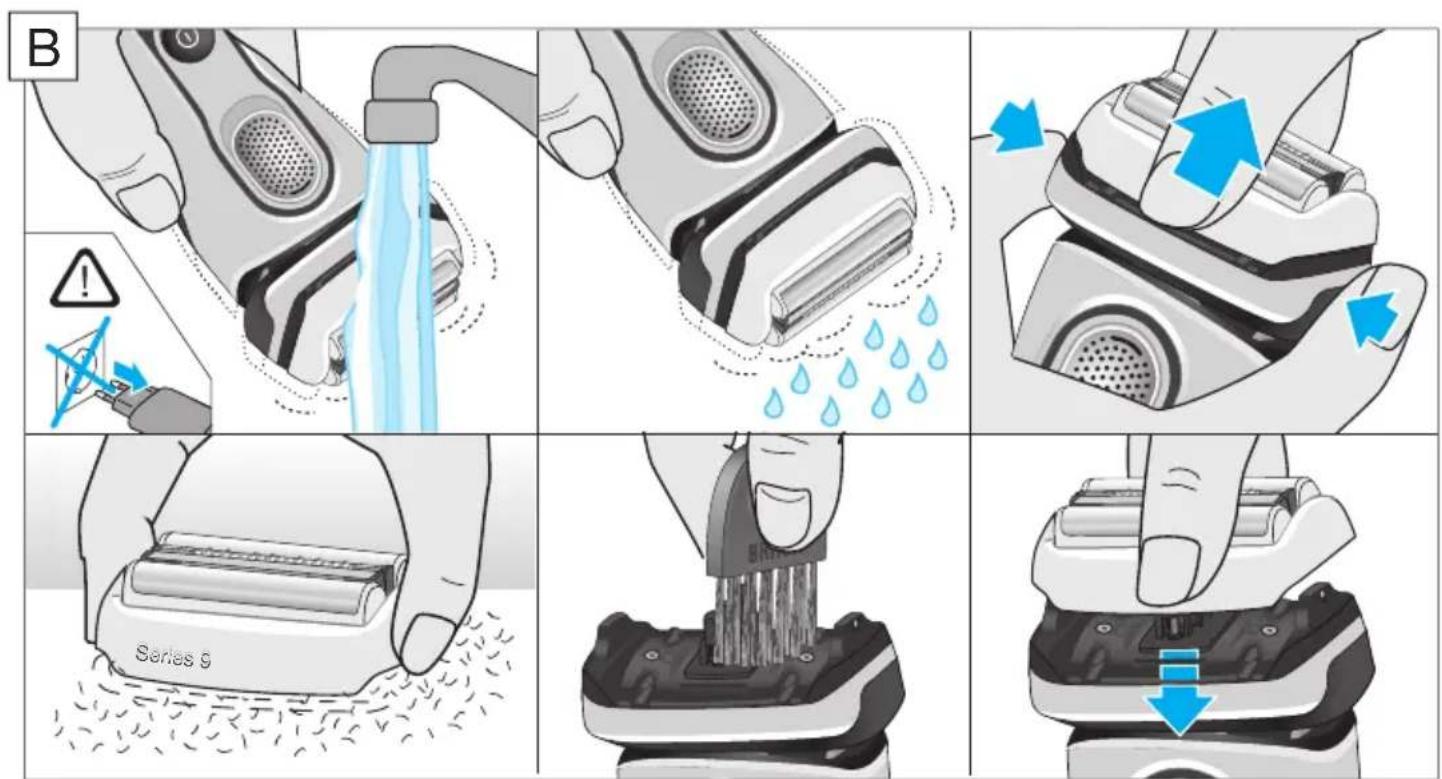

Manual cleaning of the shaver

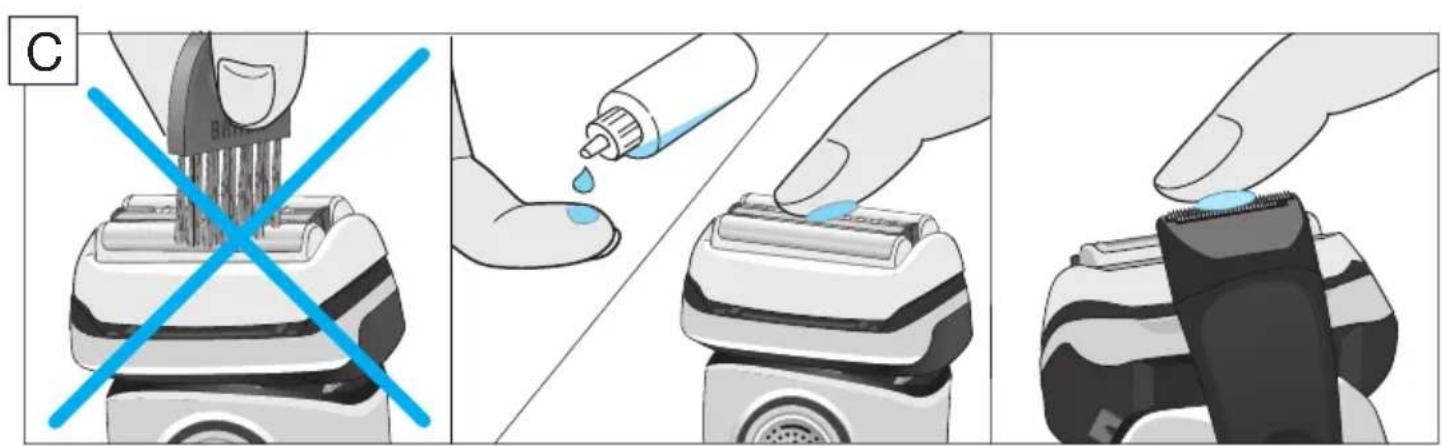

(see fig. B/C)

Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the release buttons (2) to remove the Foil & Cutter cassette (1) and let it dry completely.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer and Foil & Cutter cassette.

The shaver should be cleaned after each foam usage.

Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

The Foil & Cutter cassette can be attached either way. There is no impact on the shaving performance.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 92S/92B
• Cleaning cartridge Clean&Charge Station: CCR
• Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under the statutory law.

Trouble-Shooting

Problem: Possible reason:
Shaver does not start when pressing the start button.	1. Travel lock is activated. 2. This appliance can only be operated cordless.	1. Press the on/off switch for 3 seconds to unlock the shaver. 2. Unplug the shaver.
Shaver does not charge completely and keeps blinking.	Ambient temperature is out of valid range.	Recommended ambient temperature for charging is 5 °C to 35 °C.
Charging does not start when connected to power socket.	1. Sometimes charging could start delayed (e.g. after long storage). 2. Ambient temperature is out of valid range. 3. Special cord set is not plugged in properly.	1. Wait a few minutes, if charging will start automatically. 2. Recommended ambient temperature for charging is 5 °C to 35 °C. 3. Special cord set needs to snap into place.
Unpleasant smell from the shaver head.	Shaver head is cleaned with water.	When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.
Battery performance dropped significantly.	1. Shaver head is regularly cleaned with water but not lubricated. 2. Foil and cutter are worn which requires more power for each shave.	1. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication. 2. Replace Foil & Cutter cassette.
Shaving performance dropped significantly.	1. Shaving system is clogged. 2. Foil and cutter are worn.	1. Soak the Foil & Cutter cassette in hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil. 2. Replace Foil & Cutter cassette.
Shaver turns off with fully charged battery.	Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off.	Replace Foil & Cutter cassette. Regularly oil the shaving system, especially when cleaning with water only.

François

MultiHeadLock switch

ELMIN, 48350, Durdevac, R. Boskoviča 20,

048813365

MAGRELvl.Grković Marko, 51211, Rijeka/Matulji

Frana Supila 11, ① 095 911 0009

RTV SERVIS KALAICA, 34310, Pleternica,

A.M.Relkovića 6, 034 252 000

SORIC ELEKTRONIKA, 44000, Sisak,

A.Starcevica 35, ① 044549117

MERC&DUJMOVIĆ, 21000, Split,

Alojzija Stepinca 6, 021 537 780

ELEKTRO OBRT MARKOVIC, 42000,

Varazdin, K.Filica 9, 042 210 588

ALTA, 23000, Zadar, Vukovarska 3c,

023327666

TROUBLESHOOTING

Switching on/off

The symbol for switching on the light, when the appliance has been switched on, to avoid unintentional starting of the motor (e.g. for storage in a cupboard).

Use of the appliance

(Fig. A)

Press the on/off button (4) to switch on the appliance.

Tips for perfect drying

1. Dry the dishes before using them.
2. The appliance should be placed on a flat surface (90°) relative to the wall.
3. Wipe the skin and dry in the direction opposite to the direction of hair growth.

MultiHeadLock attachment

(for locking the head)

For drying hard-to-reach areas (e.g. under the nose), press the MultiHeadLock attachment (3) down to lock the head of the appliance. The head of the appliance can be locked in several positions. To change the position, move the head of the appliance back or forward with your finger and release it. It will automatically lock in the next position.

To remove the battery, press the release button (7) and use the trimmer (6) upward.

Switching on and off

• ACTIVATION: The shaver switches on by holding the on/off button (4) for one second. This is confirmed by an audible signal and a switch-on symbol on the display. The display then switches off.
• DEACTIVATION: The shaver switches off by holding the on/off button again for one second.

Charging the shaver (see fig. B/C)

User manual

Our products meet the highest quality, functionality, and design standards. Thank you for trusting the quality of our products. We hope you enjoy using our new device.

Please read this user manual carefully and completely before use, and keep the information it contains about safe use of the device. Keep the manual for future reference.

Safety instructions

The shaver is supplied with a low-voltage plug-in power supply. Do not attempt to replace any parts of this device, otherwise you risk electric shock. Use only the low-voltage power supply provided with the device.

If the device has a type plate 492, it can be used with any power supply unit marked 492-XXX.

The shaver can be cleaned under running water and used in the shower. For safety reasons, the device may only be used in these cases if it is disconnected from the power supply.

Do not use the device if the shaving foil or the power supply cable is damaged.

This device may be used by children aged 8 and above and by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, if they are supervised or have been instructed on the safe use of the device and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance must not be performed by children unless they are older than 8 and supervised.

Package contents

1 Shaver head cassette easily removable with the Foil & Cutter block

2 Cassette release button 3 Shaving head release button 4 On/off button 5 Display* 6 Trimmer for long hairs 7 Trimmer release button for long hairs 8 Charging socket 9 Charger with cord* 9a Charging stand* 10 Storage pouch

• May differ in appearance from the illustrations

First use and charging

Connect the shaver to the mains, using the special cord (9) with the plug adapter to the shaver socket (8) or the charging stand (9a).

Information on charging and basic operation

- For the first charge, leave the device plugged into the mains for 1 hour. - A full charge of the battery provides 50 minutes of shaving in cordless mode. The cordless operating time may vary depending on the type of beard and the ambient temperature. - The optimal ambient temperature range for charging the shaver is from 5°C to 35°C. Under conditions of extremely low or high temperatures, the battery may not charge at all, or may not charge fully. - It is recommended to use the shaver at an ambient temperature in the range of 15°C to 35°C. Do not expose the shaver to temperatures above 50°C for extended periods. - If the device is connected to the mains, it may take a few minutes for the display to turn on.

Shaver display

Battery charge level

When the device is connected to the mains, the display (5) shows the battery charge level indicator:

The segments corresponding to the battery charge level indicate the charge level during charging. - When the battery is fully charged, all segments of the charge scale will light up for a few seconds, and then the display will turn off.

After that, the display will turn off.

Low battery level

At a low charge level, the corresponding indicator lights up red. When the appliance is switched off, a low charge level is indicated by an audible signal.

After approx. 9 min., the remaining operating time of the battery will be displayed on the display of the appliance in the form of a bar.

Locking

The lock symbol lights up when the appliance is locked to prevent accidental switching on (e.g. during transport).

Using the appliance (see figure A)

To switch the appliance on/off, set the switch (4) to the corresponding position.

Recommendations for dry shaving

1. Always shave before washing your face.
2. Always hold the shaver at a right angle (90°) to the skin.
3. Stretch the skin and move the shaver against the direction of hair growth.

Floating shaver head lock

For hard-to-reach areas (e.g. under the nose), press the lock button (3) down to lock the floating shaver head. The shaver head can be fixed in one of several positions. To change the position of the shaver head, hold it with both hands and tilt it in the desired direction. When moving to the next position, a characteristic click is heard.

Trimmer for long hair

The cassette can be installed on either side. This does not affect the shaving quality.

Accessories

Braun recommends replacing the Foil & Cutter cassette in your shaver every 18 months to maintain maximum shaving performance.

The following accessories are available from authorized Braun dealers or Braun Service Centers:

• Foil & Cutter cassette (shaving foil and cutter block): 92S/92B
• Clean&Charge cleaning cartridge: CCR
• Braun replacement parts

Environmental notice

This product contains rechargeable batteries and/or recyclable electrical waste. To protect the environment, do not dispose of it with household waste. Take it to a collection point for electrical waste in your country.

Used cleaning cartridges can be disposed of with normal household waste.

Contents may change without prior notice.

Electrical specifications are printed on the special label.

EAC

Braun electric shaver Tn5791 with power supply Tn492-XXXX.

The power supply 492-XXXX means that you can only use a Braun power supply marked 492-XXXX.

If the product (on the housing) is marked 492, you can only use it with a power supply marked 492-XXXX. The power supply type 492-XXXX is a representative of the power supply family with identical technical characteristics.

The symbol "X" in the code replaces a digit and indicates different power supply versions that differ only in color or shape.

100-240 V, 50-60 Hz, 7 W

Protection class against electric shock: II

Made in Germany: Braun GmbH, Frankfurter Strasse 145, 61476 Kronberg, Germany

RU: Importer/Customer service: OOO «Procter & Gamble Distribution Company», Russia, 125171, Moscow, Leningradskoye Shosse, 16A, bldg. 2. Tel. [phone].

BY: Supplier in the Republic of Belarus: OOO «Electroservice i Ko», Belarus, 220012, Minsk, st. Chernyakhovskogo, 10A, office 412A3. Service center: OOO «KatrinsK», Belarus, 220012, Minsk, st. Chernyakhovskogo, 10A, office 1155.

To determine the year of manufacture, use the three-digit code on the product housing along with the technical type of the product: the first digit = the last digit of the year, the following two digits = the sequential week number of the production year. For example, the code «345» means that the product was manufactured in the 45th week of 2013.

Warranty period/Service life: 2 years.

Braun warranty obligations.

This product is covered by a warranty for 2 years from the date of purchase. During the warranty period, we will eliminate any manufacturing defects caused by poor material or workmanship by repairing, replacing parts, or replacing the entire product.

If repair is not possible during the warranty period, the product may be replaced with a new one or an equivalent in accordance with the law «On Protection of Consumer Rights».

The warranty is valid only if the purchase date is confirmed by a receipt and the seller's (store's) stamp on the last page of the original Braun instruction manual, which serves as the warranty certificate.

These warranty obligations apply in all countries where this product is distributed by Braun or its designated distributor, and where no import restrictions or other legal provisions prevent the provision of warranty service. The warranty does not cover damage caused by improper use (see also the list below) and normal wear of shaver foils and blades, defects that have a negligible effect on the operation of the device.

This warranty becomes void if repairs are carried out by unauthorized persons and if non-original Braun parts are used. In the event of a claim under this warranty, return the product complete with the warranty certificate to any Braun service center.

All other claims, including claims for damages, are excluded unless liability is established by law.

Claims related to commercial contracts with the seller are not covered by this warranty.

Conditions under which the warranty does not apply:

• Defects caused by force majeure circumstances;
• Use for professional purposes; violation of the requirements of the instructions and operating rules;
• Incorrect installation of the mains voltage (if required); - introduction of technical changes; - mechanical damage;
• Damage caused by animals, rodents, and insects (including cases of rodents and insects inside the devices); - for devices operating from batteries - operation with unsuitable or exhausted batteries, as well as damage caused by exhausted or leaking batteries (we recommend using only batteries protected against leakage);

Manufactured by Procter & Gamble Manufacturing GmbH in Germany: Procter & Gamble Manufacturing GmbH, Waldstrasse 9, D-74731 Walldurn, Germany.

Address in Ukraine: Procter & Gamble Ukraine LLC, Ukraine, 04070, Kyiv, Naberezhno-Khreshchatyk Street, 5/13, Building A. Tel. [phone]. www.pg.com.ua

Date of manufacture is indicated on the housing in the form of a 3-digit code, under the technical type of the product: the first digit = the last digit of the year, the next 2 digits = the serial number of the week of the year of manufacture. For example, code "345" means that the product was manufactured in the 45th week of 2013.

Warranty period / service life - 2 years.

Additional information about Braun service centers in Ukraine can be obtained by calling the hotline, as well as on the service portal of the manufacturer on the Internet - www.service.braun.com

Compliance with the requirements of the technical regulation on restriction of the use of certain hazardous substances in electrical and electronic equipment.

001

Manufacturer's warranty obligations

For all products we provide a warranty for two years, starting from the moment of purchase of the product or from the date of its manufacture, in case of absence or improper execution of the warranty card for the product.

During the warranty period, we will free of charge eliminate defects, replace parts or replace the entire product caused by insufficient quality of materials or components.

During the warranty period, the product may be replaced with a new one or an analogous one in accordance with the Law of Ukraine "On Protection of Consumer Rights".

The warranty is valid only if the date of purchase is confirmed by the seal and signature of the seller (store) on the warranty card or on the last page of the original operating instructions, which can also serve as a warranty card. The warranty is valid in any country where this product is supplied by the manufacturer's representative or authorized distributor, and does not restrict any other rights or legal provisions that do not preclude the provision of warranty service.

The warranty for replaced parts expires at the moment the warranty for the product expires. The warranty does not cover the following cases: damage caused by improper use, normal wear of parts (e.g., battery or motor brushes), defects that have no significant impact on the quality of operation of the device. The warranty is void if repairs are carried out by unauthorized personnel and if non-original spare parts of the manufacturer are used.

The service life of the product is equal to the warranty period of two years from the date of purchase, or from the date of manufacture if the date of sale cannot be determined.

In case of warranty claims under the terms of this warranty, please return the product in full compliance with the original operating instructions along with the warranty card to the service center authorized by the manufacturer's representative. All other claims, along with claims for compensation for losses, do not apply if liability is not established by law.

The warranty does not cover: - defects caused by force majeure circumstances; - use for professional purposes or for profit; - violation of operating instructions; - incorrect installation or connection (if required); - making technical modifications; - mechanical damage; - products operating on batteries - operation with inappropriate or defective batteries, any damage caused by defective or leaking batteries; - damage caused by animals, rodents, and insects (including cases of finding rodents and insects inside the devices); - damage or contamination of the network filter.

Attention! The warranty card is considered void in case of contacting the service center with a request for warranty repair. After the repair, the warranty card will be considered filled in with the original repair list with the stamp of the service center and the consumer's signature on receipt of the product from repair. The warranty period is extended for the time the product is in the service center for repair.

In case of questions regarding warranty and post-warranty service, please contact the information service of the manufacturer's representative in Ukraine.

Warranty phone: [phone]. Calls from landline phones within Ukraine are free of charge. Calls from mobile phones are charged according to the tariffs of the respective operator.

You can obtain detailed information on the manufacturer's service portal on the Internet at www.service.braun.com

Installation of malfunctions

Поблема: Можлива等相关ities:
Бритва не вида- сбся по наим - kanни на коньу Вимканн.	1.Увимкике等相关ities: 1.Натious行为引起情感变化。2.Данный等相关ities: 1.Натious行为引起情感变化。3.Секундддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳. 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.Вidкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкючы相关ities: 2.ВIDкюч�相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities: 2.ВIDкюч化相关ities:
Бритва не зара- ета等相关ities: 2.Дддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд iIndikatop等相关ities: 2.Ддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд побroidжев等相关ities:	1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Темпатура等相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关ities: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemosочь相关规定: 1.Тemos OMX相关ities: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.Тemos OMX相关规定: 1.TSФгоггггггггггg相关ities: 1.TSФгоггггg相关ities: 1.TSФгоггg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгоггg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФгогg相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФг�相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФго相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгу相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгGO相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФгgo相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг Go相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг FO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг PO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг LO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг MO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг IO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг NO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GO相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关ities: 1.TSФг GOS相关规定：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities: 1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：1.TSФг GO相关ities：

:الإستعمال	:الإستعمال	:الإستعمال
عَد أَبْلُ/عَدِهُّلْفَسَنَةِّلِيَّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهِّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهّْلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهَّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِهُّلِ. . 5 نَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَнَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَنَمَnَمَnَمَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَmَnَ. . 5 نمَنَمَنَمَنَمَنَمَنَمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَنَ�َمَnَ�َn·. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . . 2 . 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "201" - The product was manufactured in week 01 of 2012.

Mountain

e

1

e 1

eall ple pia jai Jie 111100

ple 1000000000000000000000000000000000000000000000000000000

1201"J.

.2012 018

1. 1

1gai j 8y 8y b

s

.

1

J 18 aill bgy g aaiy jy

18

92S/92B:

CCR:

e 10 11 12

(7)

(6) JyI 1

J 1

1/1

34

J 1

aLilibii

Jie 1

3 3

∴ S = 1/2AS₁ = 1/2 × 1 × 1 = 1

(B/C

J 1

Jg) aai

L 1

J 1

.

J 1

Therefore S = 1/2

jz jie bia g aal 1i Jg,

(1) (2)

.1oLai

1 1

)

aaii iiaai 1s jgall jll

gblal gla Jl 1

4 1

.

bgyylylll yjy.

p#i! g##o cbsw sle 1g (1)

1

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

92S/92B

Please note down the suggested replacement date (in 18 months from now) below the replacement part reference number. DE Bitte notieren Sie das Austauschdatum (heute in 18 Monaten) unterhalb der Ersatzteilnummer. FR Merci de noter la date de remplacement suggérée (dans les 18 mois à partir de maintenant) sous la référence de la cassette de rasage. ES Por favor, apunte la fecha recomendada de sustitución (18 meses a partir de hoy) bajo los números de serie de las piezas de recambio. PT Tome nota da data sugerida para a substituição (dentro de 18 meses) por baixo do número das peças. IT Prendere nota della data di sostituzione (18 mesi a partire da oggi) sotto i dati delle parti di ricambio. NL Noteer de geadviseerde vervangdatum (binnen 18 maanden vanaf nu) onder het nummer van de onderdelen. DK Noter den foreslåede udskiftningsdato (om 18 måneder fra i dag) under reservedelsnummeret. NO Noter gjerne anbefalt byttedato (18 måneder fra nå) under delenumrene. SE Om du skriver upp det föreslagna utbytesdatumet (18 månader från nu) nedanför huvuddelarnas nummer, så glömmer du det inte. FI Merkitse suositeltu vaihtopäivämäärä muistiin (18 kuukauden kuluttua nykyhetkestä) osanumeron alle. PL Warto zapisać datę sugerowanej wymiany (za 18 miesięcy od chwili obecnej) pod numerami głównych części. CZ Poznamenejte si navrhované datum výměny (odteď za 18 měsíců) pod čísla hlavních součástí. SK Poznamenajte si navrhovaný dátum výmeny (za 18 mesiacov odteraz) pod čísla hlavných súčastí. HU A fő alkatrészek cikkszáma alá jegyezze fel a csere javasolt dátumát (mostantól számítva 18 hónap). HR Molimo vas zabilježite preporučeni datum zamjene (18 mjeseci nakon današnjeg dana) ispod brojeva modela zamjenskih dijelova. SL Priporočen datum zamenjave (čez 18 mesecev) si zapišite pod številko glavnih delov. TR Lütfen önerilen değiştirme tarihini parça numaralarının altına not edin (bugünden itibaren 18 ay). RO Vă rugăm să notați data de înlocuire sugerată (peste 18 luni începând de astăzi) sub numărul de identificare al pieselor. GR Παρακαλούμε σημειώστε την προτεινόμενη ημερομηνία αντικατάστασης (σε 18 μήνες από τώρα) κάτω από τον αριθμό των ανταλλακτικών. BG Моля, отбележете препоръчителната дата за подмяна (18 месеца от сега) под номера на ключовите части. RU Пожалуйста, отметьте рекомендуемую плановую дату замены (через 18 месяцев с момента начала использования) рядом с номером соответствующих ключевых компонентов на схеме. UA Просто записати рекомендовану дату заміни (через 18 місяців від сьогодні) під номером основних частин.
