USER MANUAL GeForce GTX 1080 Ti FTW3 Gaming EVGA

Authorized Solution Provider that builds high performance 3D cards. Our graphics cards are fully compatible with the latest 2D and 3D graphical requirements. Before installing your EVGA graphics card, it is highly recommended to first register the product to receive the full support and warranty. You can register your card online at www.evga.com/register. EVGA also strives to provide a full range of programs and services to enhance the customer experience including but not limited to: EVGA Advanced RMA (EAR) Program: The EVGA Advanced RMA (EAR) Program is a program to protect yourself and your product in the case of product failure. For more information please visit www.evga.com/support/ear. EVGA Step-Up

Program: In order to give our customers the greatest amount of flexibility when purchasing EVGA graphics cards, we have instituted the EVGA Step-Up

Program. For more information please visit www.evga.com/stepup. EVGA Online Community: To visit the EVGA community forums, please visit www.evga.com/forums for more information. EVGA Precision XOC

Designed from the ground up to support new GPU technology, EVGA Precision XOC

redefines what overclocking software should be. For more information please visit www.evga.com/precisionxoc. EVGA FAQ: To search our knowledge base and product FAQ, please visit www.evga.com/faq for more information. EVGA Gaming

If you live to game, this is the place for you! We have the best tournaments, prizes and game servers. For more information please visit www.evgagaming.com. Folding@EVGA: Distributed computing for the greater good. Did you know that you can turn your graphics card into a shared supercomputer? For more information please visit www.evga.com/folding. English English3 4 Hardware Installation the installation procedure, consult a qualified computer technician. Damage to the system components, the graphics card, and injury to yourself may result if power is applied during installation. Now that you have prepared your computer, you are ready to install your graphics card. Quick Start

1. Before starting installation, it is recommended to completely remove all drivers for your existing graphics card

2. Power off the computer and all attached devices (keyboard, mouse, etc.).

3. Disconnect the display cable from your current display adapter on the back of the computer.

4. Remove your existing graphics card (if you have one) from your computer. You will do this by removing the

retaining screw and pulling the card out in a straight up fashion. Please note that your motherboard may have a PCI Express (PCI-E) latch on the slot that needs to be pressed in first. (NOTE: If your motherboard has integrated or onboard video, you may need to disable it first, please contact your system or motherboard manufacturer for additional information.) Preparing Your Computer

WARNING: Turn off the power to your system and discharge your body’s static

electric charge by touching a grounded surface – for example, the metal surface of the power supply or chassis – before performing any hardware procedure. EVGA assumes no liability for any damage, caused directly or indirectly, by improper installation of any components. If you do not feel comfortable with performing Hardware Installation Details Graphics Cards Requiring Additional Power PCI Express (PCI-E) and PCI slots are different, so prior to installation; please verify that the graphics card bus type and available slot are the same. If your graphics card is equipped with a supplemental power adapter, it is required that it be connected at the time of installation. This supplemental power adapter ensures that your graphics card receives the necessary power that will allow it to function at optimal performance levels. Your card may require one or more 6 or 8-pin PCI Express (PCI-E) supplemental power connectors. Please note that the 8-pin PCI-E power connector is not the same as the 8-pin CPU power connector. Please see the below illustration. Always use the PCIE power cables from your Power Supply first, only use included adapters when your Power Supply does NOT have the appropriate connectors.

5. Align your new card with the appropriate slot, (see illustration below) and press it in firmly until the card is fully

seated. Make sure that the metal contacts of the card are completely pushed into the expansion slot.

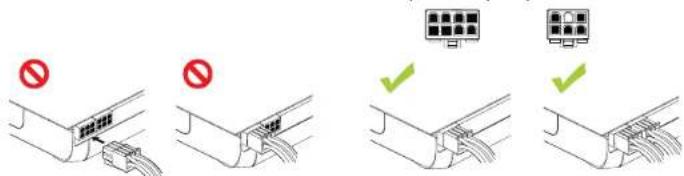

6. Connect the supplemental PCI Express (PCI-E) power adapter(s) to the card if applicable. (See illustration

7. Replace the retaining screw to fasten the card into place, and then replace the computer cover.

8. Reconnect any devices that you detached during installation, and then connect the monitor’s video cable to

your new graphics card.

9. Apply power to your system, boot to the operating system and install the proper drivers.

Stay up to date on contests, promotions, tech tips, new products, driver releases and more by following EVGA on your favorite social network! For more information please visit www.evga.com/sonet. MODS RIGS

$1K Sponsorships for every 200 posts. Come show off your rig and join in on one of the biggest things happening at EVGA. For more information please visit www.modsrigs.com. 8 pin or 6+2 pin 6 pin English English5 6 SLI Installation (optional) On some EVGA graphics cards, it is possible to link multiple graphics cards together for improved performance, this is called SLI. To install multiple cards in SLI, follow the below instructions, please note that in SLI setups both cards must be the same model. For a video overview of setting up SLI, please visit www.evga.com/slivideo. Also, you can view FAQ about SLI at http://www.evga.com/support/faq/?f=58605. Software Installation When you boot up your computer for the first time after installing your new graphics card, Windows may detect a new display device and attempt to install the drivers. If it gives you the option to cancel, please do so, otherwise wait for Windows to complete the installation (a reboot may be necessary). After this process has been completed, it is necessary to install the recommended drivers for your graphics card. To begin, it is recommended to download the latest drivers from www.evga.com/support, alternatively, you can install the drivers off the EVGA Installation DVD. Install your first GeForce graphics card into the Primary PCI Express x16 slot. For ALL SLI configurations, please consult your motherboards user manual for proper placement of cards in the given PCI Express slots. Always install the cards in 8x or 16x slots, as SLI will not function in 4x, the specific slot information should be available in the motherboards users manual. The above SLI bridges are included with your SLI ready motherboard depending on the configurations it supports. In order for your SLI setup to work properly, you will need to use the appropriate bridge based on the number of cards you are connecting. 2-way SLI: Install your second GeForce graphics card in to the secondary PCI Express x16 slot. Connect the two cards together using the 2-way/new 2-way SLI bridge connector that came with your SLI- ready motherboard. 3-way SLI: Install the third GeForce card into the tertiary PCI Express slot on the motherboard. Connect the GeForce cards together using the 3-way SLI bridge connector that came with your SLI-ready motherboard. Setting up Multiple Displays The NVIDIA

Control Panel allows you to configure a multi-display environment, whether it is through multiple computer monitors or by using a monitor in conjunction with an HDTV. The ability to use multiple displays within Windows can simplify many everyday tasks by spreading out the Windows Desktop area, or make working with an HDTV even easier by allowing you to watch a movie on one of the displays, while performing other tasks on the other display. Multiple display configurations can be made in the “Set up Multiple Displays” subsection located in the NVIDIA

control panel, simply right click on the desktop, and select “NVIDIA

Control Panel”. Single Mode Select just one checkbox for the monitor you wish to use as your single display. This will disable the secondary output and is the default setting if you only have one monitor connected to the graphics card. Extended Mode Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the section below to set the desired mode. Extended desktop mode can independently control resolution and refresh rate settings for each display. Duplicate Displays Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the section below to set them to duplicate display mode, and select the primary monitor. Duplicate displays require identical resolutions between both displays. Enabling SLI (optional) If you installed multiple cards in SLI mode, you will need to enable SLI to get the maximum performance from your system. To enable SLI, visit the NVIDIA

control panel by right clicking on the desktop, and select “NVIDIA

Control Panel.” Next, select “Set SLI and PhysX configuration.” Finally, select “Maximize 3D Performance” and select apply. To see a video overview of the SLI installation procedure, please visit www.evga.com/slivideo. NOTE: If adding a secondary card to an existing PC, you may be required to REINSTALL the driver again. Note: If the autorun driver installation menu does not appear, it can be launched manually by clicking on the “Computer” or “My Computer” icon, and double clicking the icon for your DVD/CD drive. After that double click on the “autorun.exe” file. Once the autorun installation menu appears, select the “Install Video Drivers” button. This will start the driver installation process. Note: During installation, you may be prompted by the Microsoft WHQL (Windows Hardware Quality Labs) warning, please select the “Continue” or “Install this driver software anyway” option, as it is safe to do so. New-2-way SLI* 2-way SLI 3-way SLI 4-way SLI *New-2-way SLI bridge for GTX 10 series. SLI technology is not supported by GTX 1060 / 1050Ti / 1050 English English7 8 Problem: The integrated video adapter has not been disabled prior to installing the new graphics card, and/or the previous adapter’s drivers have not been properly uninstalled. Cause: The integrated video adapter has not been disabled prior to installing the new graphics card and/or not having uninstalled the display drivers from your previous display adapter. Solution: Ensure the integrated video adapter has been disabled through your motherboard’s BIOS or the Windows Device Manager prior to installing the new graphics card, and that you have uninstalled the drivers through the Windows Control Panel. After the new card has been installed, connect the monitor cable and if required, any supplemental power adapters to the new card before booting up the system. Problem: Games lockup or crash to the desktop. Solution: Verify that all the necessary hardware drivers are installed and up to date, including the chipset, video and sound card drivers. Reinstall the latest version of DirectX (located on EVGA installation disc) or the game itself. Also, verify the game has all the necessary patches installed that are available from the developer. Problem: Where can I find the latest drivers for my graphics card? Solution: The latest drivers can be found at www.evga.com/support/drivers. Additional Support Solution: Remove the card from the computer and reinsert it, making sure that the card is seated properly in the slot, and then try to boot the computer again. If this does not work then the problem is either with the motherboard or the graphics card and you should contact your hardware manufacturer for further assistance. Problem: When viewing my PC on an HDTV, the entire desktop is not visible, and certain areas; such as the Windows taskbar, reside offscreen. Solution: Firstly, ensure that you are running at the correct resolution for your display. If it is, try adjusting the “Resize Desktop” feature. This lets you compensate for HDTV overscan so that the entire desktop is visible. In this case, to view display elements that appear offscreen, NVIDIA

recommends using the Overscan Shift feature to pan the desktop. You can access the Overscan Shift controls from the TV Settings page of the NVIDIA

panel. Note: For problems not listed in this document, please visit the EVGA Knowledge Base at www.evga.com/faq. Quick Fixes Problem: At boot-up, all you hear is a series of beeps from the computer, but see no image on the screen. Cause: The beep sounds are a warning sound from the motherboard BIOS that says it cannot initialize the graphics card, this can mean one of four things:

1) The card is not seated properly.

2) There is a problem with the motherboard’s graphics card slot.

3) Supplemental PCI-E power is not connected to the graphics card.

4) There is a problem with the graphics card.

Should you require any assistance with the installation or troubleshooting of your EVGA graphics card, please visit the support section of our website at www.evga.com/support. There you will be able to download drivers, check out our extensive Knowledge Base, and submit technical and customer support inquiries. Be sure to also visit the EVGA forums at www.evga.com/forums. Alternatively, we can be reached by phone. Before contacting Customer Service, please review this manual. If you need to contact Customer Service, please have your system configuration as well as your card’s model number and serial number ready. You will need to register your product before a support technician can assist you. You may register your card online at www.evga.com/register.

• Hours of Operation: 24/7 Technical Phone Support

• Phone Support: (888) 880-EVGA (3842)

• Tech Support Web Site: www.evga.com/support Warranty Program to Fit your Needs Most EVGA products are covered under a 3 Year Warranty. For more information please visit www.evga.com/support/warranty. English English9 10 Inhaltsverzeichnis Übersicht ................................................................................................ 11 Hardwareinstallation .............................................................................. 12 Schnellstart ............................................................................................. 12 Hardwareinstallationsdetails .................................................................. 13 Grafikplatinen, die zusätzliche Stromversorgung benötigen ............... 13 SLI-Installation ....................................................................................... 14 Softwareinstallation ............................................................................... 15 Einrichten mehrerer Anzeigen ............................................................... 15 Problemlösungen ................................................................................... 16 Zusätzliche Unterstützung ..................................................................... 17 Konformitätserklärung ........................................................................... 18 Macrovision Product Notice Trademark Information CE Compliance Information EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential, Commercial and Light Industrial Products (EN 55022/CISPR 22, Limits and Methods of Measurement of Radio). (EN 55022/CISPR 22, Limits and Method of Measurement of Radio Interference Characteristics Information Technology Equipment) Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC 801-4) This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ©2001-2017 All rights reserved. The manual is the property of EVGA corp. and is protected by copyright, trademark and other intellectual property laws, and no part may be reproduced, transmitted, stored or translated into any other computer or foreign language without the express prior written permission of EVGA corp. EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are trademarks of registered Trademarks of their respective companies and may not be used without permission. All other trademarks are the property of their respective owners. The information contained in this manual may be subject to change without notice. EVGA reserves the right to terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default. The information contained herein is subject to change without notice and is provided “AS IS” without warranty of any kind (express or implied). Users are advised to obtain the latest version of relevant information to verify that information being relied on is current and complete. Compliance Information FCC Compliance Information This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. English Deutsch11 12 Übersicht Vielen Dank, dass Sie eine EVGA-Grafikplatine erworben haben. EVGA stellt hochwertige Grafikkarten her und ist ein autorisierter NVIDIA

This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ©2001-2017 All rights reserved. The manual is the property of EVGA corp. and is protected by copyright, trademark and other intellectual property laws, and no part may be reproduced, transmitted, stored or translated into any other computer or foreign language without the express prior written permission of EVGA corp. EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are trademarks of registered Trademarks of their respective companies and may not be used without permission. All other trademarks are the property of their respective owners. The information contained in this manual may be subject to change without notice. EVGA reserves the right to terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default. The information contained herein is subject to change without notice and is provided “AS IS” without warranty of any kind (express or implied). Users are advised to obtain the latest version of relevant information to verify that information being relied on is current and complete. CE互換性について EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential, Commercial and Light Industrial Products (EN 55022/CISPR 22, Limits and Methods of Measurement of Radio). (EN 55022/CISPR 22, Limits and Method of Measurement of Radio Interference Characteristics Information Technology Equipment) Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC 801-4)

FCC互換性について This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. メモ: ここに記載されていないトラブルについては、EVGA ナレッジベースをご覧ください: www.evga.com/faq トラブ ル : HDTVで映像を出力する際、デスクトップ画面やWindowsのタスクバーやオフスクリーン等一部の領域が表示

FCC Compliance Information This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE Compliance Information EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential, Commercial and Light Industrial Products (EN 55022/CISPR 22, Limits and Methods of Measurement of Radio). (EN 55022/CISPR 22, Limits and Method of Measurement of Radio Interference Characteristics Information Technology Equipment) Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC 801-4) This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ©2001-2017 All rights reserved. The manual is the property of EVGA corp. and is protected by copyright, trademark and other intellectual property laws, and no part may be reproduced, transmitted, stored or translated into any other computer or foreign language without the express prior written permission of EVGA corp. EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are trademarks of registered Trademarks of their respective companies and may not be used without permission. All other trademarks are the property of their respective owners. The information contained in this manual may be subject to change without notice. EVGA reserves the right to terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default. The information contained herein is subject to change without notice and is provided “AS IS” without warranty of any kind (express or implied). Users are advised to obtain the latest version of relevant information to verify that information being relied on is current and complete. 問題: 遊戲當機或是遊戲錯誤跳回桌面。 解決方案: 確認已安裝所有需要的硬體驅動程式，包含晶片驅動程式、音效卡及顯示卡驅動程式，並且都為最新版 本。重新安裝最新版本的DirectX(於EVGA安裝光碟中)或試著重新安裝該遊戲。 另外確認已安裝所有由軟體開發商/ 製造商所提供的遊戲更新檔。 問題: 我可以在哪裡下載顯示卡的最新驅動程式？ 解決方案: 您可在 tw.evga.com/support/drivers找到最新驅動程式。 注意: 請至EVGA知識庫 www.evga.com/faq查詢未列出的問題 。 問題: 當我在電腦觀看高畫質電視，部分或全部桌面會不見，例如Windows工具列不見、或超出螢幕範圍。 解決方案: 首先，先確認您選擇正確的顯示解析度。如果您選擇正確的解析度，嘗試去調整” Resize Desktop” 功能。這可輔助高畫質電視 Overscan即能看見整個桌面。若要觀看超出螢幕範圍的畫面，NVIDIA

• FCC Compliance Information This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE Compliance Information EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential, Commercial and Light Industrial Products (EN 55022/CISPR 22, Limits and Methods of Measurement of Radio). (EN 55022/CISPR 22, Limits and Method of Measurement of Radio Interference Characteristics Information Technology Equipment) Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC 801-4) This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ©2001-2017 All rights reserved. The manual is the property of EVGA corp. and is protected by copyright, trademark and other intellectual property laws, and no part may be reproduced, transmitted, stored or translated into any other computer or foreign language without the express prior written permission of EVGA corp. EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are trademarks of registered Trademarks of their respective companies and may not be used without permission. All other trademarks are the property of their respective owners. The information contained in this manual may be subject to change without notice. EVGA reserves the right to terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default. The information contained herein is subject to change without notice and is provided “AS IS” without warranty of any kind (express or implied). Users are advised to obtain the latest version of relevant information to verify that information being relied on is current and complete. 为您量身设计的保修方案 EVGA 产品享有3年保固。更多的保固讯息请至: cn.evga.com/support/warranty。 问题: 内建图型显示器功能未在安装新显示适配器前关闭，或者先前安装的驱动程序未正确移除。 原因: 您在安装PCI显卡前没有先停用内建自带显卡，或是尚未将您先前使用的显卡驱动程序卸载。 解决方案: 在安装新显卡前请务必至主板BIOS设置或是Windows设备管理器下停用内建显卡，并至Windows控制台 将原先使用的驱动程序卸载。安装完新显卡后，接上您的屏幕，如有需要，在开机前将显卡接上补充电源。 简体中文 简体中文71 72 Daftar isi Garis Besar p. 72
• Instalasi Perangkat Keras p. 73
• Panduan Singkat p. 73
• Detail Instalasi Perangkat Keras p. 74
• Kartu Grafis Membutuhkan Tenaga Tambahan p. 74
• Instalasi SLI p. 75
• Instalasi Perangkat Lunak p. 75
• Menginstal Beberapa Display p. 76
• Perbaikin Cepat p. 77
• Dukungan Tambahan p. 78
• Informasi Kepatuhan Garis Besar Terima kasih telah membeli kartu grafis EVGA asli. EVGA diberikan autoritas oleh NVDIA® untuk membuat kartu 3D dengan kualitas tinggi. Kartu Grafis kami sepenuhnya kompatibel dengan persyaratan grafis 2D terbaru dan grafis 3D. Sebelum anda menginstal kartu grafis EVGA, sangat disarankan untuk melakukan registrasi produk terlebih dahulu untuk mendapatkan dukungan dan garansi penuh. Anda dapat meregister kartu grafis di www.evga.com/register. EVGA juga berusaha untuk menyediakan berbagai program dan layanan untuk meningkatkan pelayanan pelanggan yang mencakupi : EVGA Online Community: Untuk forum online community EVGA, silakan kunjungi www.evga.com/forums untuk informasi lebih lanjut. EVGA Precision XOC p. 79
