GeForce GTX 1060 - Graphic card EVGA - Free user manual and instructions

Technical Specifications	GPU NVIDIA GeForce GTX 1060
Video Memory	6 GB GDDR5
Clock Frequency	Base: 1506 MHz, Boost: 1708 MHz
Memory Interface	192 bits
Display Connectors	1 x HDMI, 3 x DisplayPort, 1 x DVI-D
Recommended Usage	1080p video games, graphic applications
Power Consumption	120 W
Required Power Supply	Minimum 400 W
Dimensions	229 x 112 x 38 mm
Weight	1.2 kg
Maintenance	Regular cleaning of fans and heat sinks
Safety	Avoid exposure to moisture and extreme temperatures
General Information	Compatible with DirectX 12 and VR

Frequently Asked Questions - GeForce GTX 1060 EVGA

How do I install the EVGA GeForce GTX 1060 graphics card?

To install the graphics card, turn off your computer and unplug it. Open the case, locate the PCIe x16 slot, insert the graphics card until it is firmly seated. Then connect the necessary power cables, close the case, and restart your computer.

What drivers are needed for the GTX 1060?

You can download the latest drivers for the GTX 1060 from the official NVIDIA website. Make sure to select the correct model and your operating system to download the right driver.

What should I do if the graphics card is not recognized by Windows?

Check that the card is properly installed in the PCIe slot and that all power cables are connected. You can also try reinstalling the graphics drivers or testing the card on another computer.

How do I check the temperature of my GTX 1060?

You can use software like MSI Afterburner or EVGA Precision X1 to monitor your graphics card's temperature. It is recommended to keep the temperature below 80°C during intensive use.

Why is my graphics card overheating?

Overheating can be caused by lack of ventilation, dust buildup, or high performance. Make sure your case is well ventilated, clean the fans regularly, and check that the drivers are up to date.

How do I overclock my EVGA GeForce GTX 1060?

Use software like MSI Afterburner to adjust the GPU and memory frequencies. Increase the values gradually while monitoring temperature and system stability. Don\'t forget to test each change with benchmarks.

What should I do if I encounter graphical artifacts?

Graphical artifacts can be caused by unstable overclocking, corrupted drivers, or hardware issues. Try reverting to default settings, update the drivers, or perform a stress test to check the card\'s integrity.

What is the power consumption of the GTX 1060?

The GTX 1060 has a power consumption of about 120 watts. Make sure your power supply can handle this load, considering the other components in your system.

Is the GTX 1060 compatible with my system?

Check that your motherboard has a PCIe x16 slot and that your power supply has enough power and the necessary connectors. Also ensure your case has enough space to accommodate the card.

How do I clean my graphics card?

Turn off the computer and remove the card. Use compressed air spray to remove dust from fans and heat sinks. Avoid touching electronic components with your hands.

USER MANUAL GeForce GTX 1060 EVGA

Intelligent Innovation

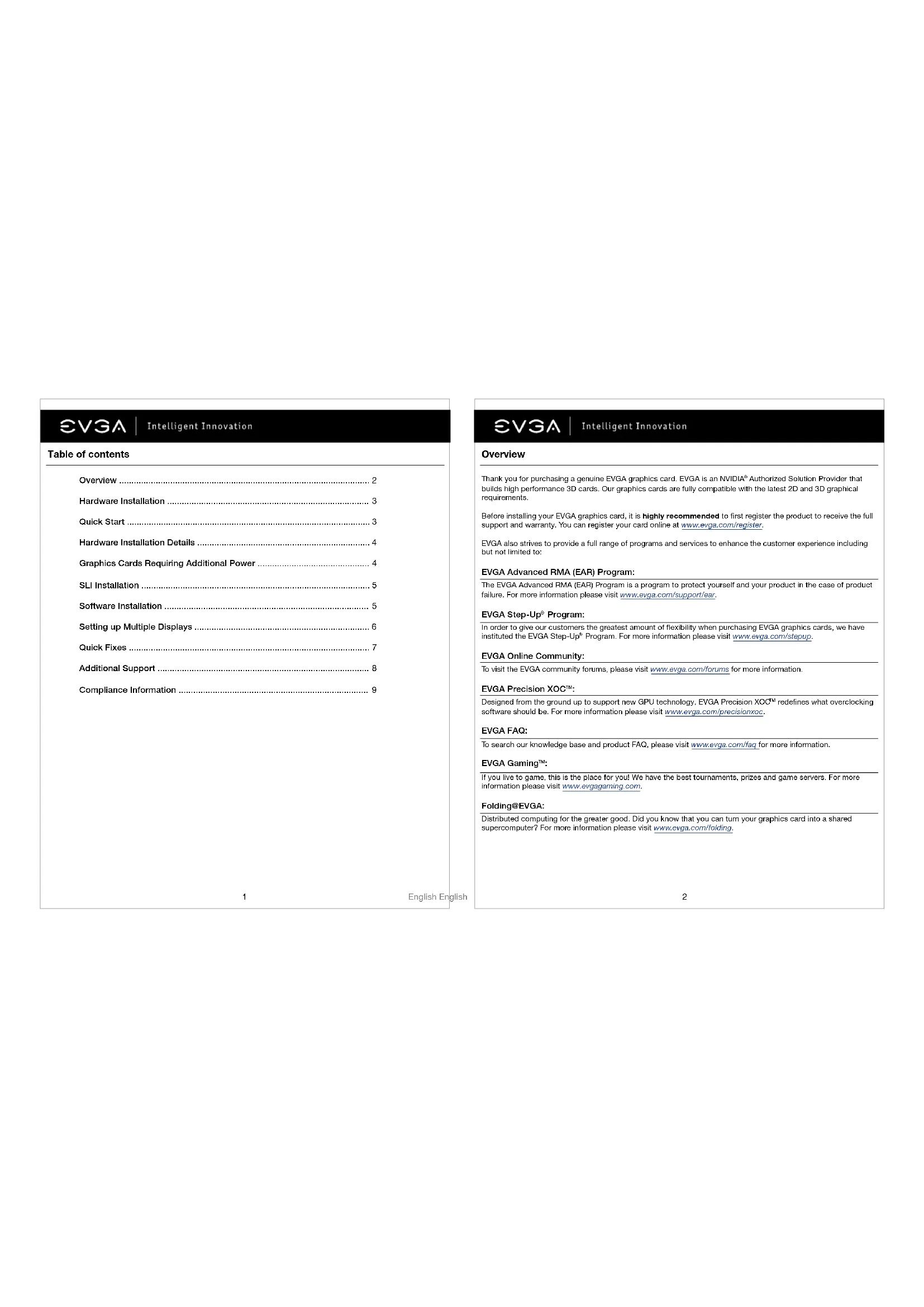

Table of contents

Overview 2

Hardware Installation 3

Quick Start 3

Hardware Installation Details 4

Graphics Cards Requiring Additional Power 4

SLI Installation 5

Software Installation 5

Setting up Multiple Displays 6

Quick Fixes 7

Additional Support 8

Compliance Information 9

EVGA

Intelligent Innovation

Overview

Thank you for purchasing a genuine EVGA graphics card. EVGA is an NVIDIA® Authorized Solution Provider that builds high performance 3D cards. Our graphics cards are fully compatible with the latest 2D and 3D graphical requirements.

Before installing your EVGA graphics card, it is highly recommended to first register the product to receive the full support and warranty. You can register your card online at www.evga.com/register.

EVGA also strives to provide a full range of programs and services to enhance the customer experience including but not limited to:

EVGA Advanced RMA (EAR) Program:

The EVGA Advanced RMA (EAR) Program is a program to protect yourself and your product in the case of product failure. For more information please visit www.evga.com/support/ear.

EVGA Step-Up ^® Program:

In order to give our customers the greatest amount of flexibility when purchasing EVGA graphics cards, we have instituted the EVGA Step-Up® Program. For more information please visit www.evga.com/stepup.

EVGA Online Community:

To visit the EVGA community forums, please visit www.evga.com/forums for more information.

EVGA Precision XOC™:

Designed from the ground up to support new GPU technology, EVGA Precision XOC™ redefines what overclocking software should be. For more information please visit www.evga.com/precisionxoc.

EVGA FAQ:

To search our knowledge base and product FAQ, please visit www.evga.com/faq for more information.

EVGA Gaming™:

If you live to game, this is the place for you! We have the best tournaments, prizes and game servers. For more information please visit www.vvgagaming.com.

Folding@EVGA:

Distributed computing for the greater good. Did you know that you can turn your graphics card into a shared supercomputer? For more information please visit www.evga.com/folding.

EVGA

Intelligent Innovation

EVGA Social Networks™:

Stay up to date on contests, promotions, tech tips, new products, driver releases and more by following EVGA on your favorite social network! For more information please visit www.evga.com/sonet.

MODS RIGS™:

\$1K Sponsorships for every 200 posts. Come show off your rig and join in on one of the biggest things happening at EVGA. For more information please visit www.modsrigs.com.

Hardware Installation

Preparing Your Computer

WARNING: Turn off the power to your system and discharge your body's static electric charge by touching a grounded surface – for example, the metal surface of the power supply or chassis – before performing any hardware procedure. EVGA assumes no liability for any damage, caused directly or Indirectly, by Improper installation of any components. If you do not feel comfortable with performing

the installation procedure, consult a qualified computer technician. Damage to the system components, the graphics card, and injury to yourself may result if power is applied during installation. Now that you have prepared your computer, you are ready to install your graphics card.

Quick Start

1. Before starting installation, it is recommended to completely remove all drivers for your existing graphics card (If you have one).
2. Power off the computer and all attached devices (keyboard, mouse, etc.).
3. Disconnect the display cable from your current display adapter on the back of the computer.
4. Remove your existing graphics card (if you have one) from your computer. You will do this by removing the retaining screw and pulling the card out in a straight up fashion. Please note that your motherboard may have a PCI Express (PCI-E) latch on the slot that needs to be pressed in first.
   (NOTE: If your motherboard has integrated or onboard video, you may need to disable it first, please contact your system or motherboard manufacturer for additional information.)

EVGA

Intelligent Innovation

1. Align your new card with the appropriate slot, (see illustration below) and press it in firmly until the card is fully seated. Make sure that the metal contacts of the card are completely pushed into the expansion slot.
2. Connect the supplemental PCI Express (PCI-E) power adapter(s) to the card if applicable. (See illustration below.)
3. Replace the retaining screw to fasten the card into place, and then replace the computer cover.
4. Reconnect any devices that you detached during installation, and then connect the monitor's video cable to your new graphics card.
5. Apply power to your system, boot to the operating system and install the proper drivers.

Hardware Installation Details

PCI Express (PCI-E) and PCI slots are different, so prior to installation; please verify that the graphics card bus type and available slot are the same.

PCI Graphics Cards PCI Express (PCI-E) Graphics Cards

Graphics Cards Requiring Additional Power

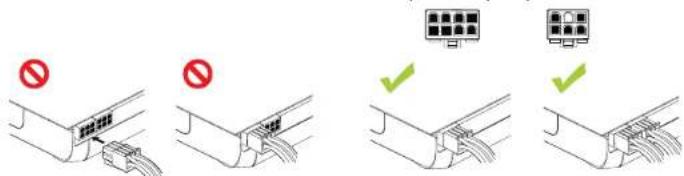

If your graphics card is equipped with a supplemental power adapter, it is required that it be connected at the time of installation. This supplemental power adapter ensures that your graphics card receives the necessary power that will allow it to function at optimal performance levels. Your card may require one or more 6 or 8-pin PCI Express (PCI-E) supplemental power connectors. Please note that the 8-pin PCI-E power connector is not the same as the 8-pin CPU power connector. Please see the below illustration.

Always use the PCIE power cables from your Power Supply first, only use included adapters when your Power Supply does NOT have the appropriate connectors. 8 pin or 6+2 pin 6 pin

8 pin or 6+2 pin 6 pin

Diagram illustrating four steps of installing or adjusting a component, marked with red prohibition signs and green checkmarks.

EVGA

Intelligent Innovation

SLI Installation (optional)

On some EVGA graphics cards, it is possible to link multiple graphics cards together for improved performance, this is called SLI. To install multiple cards in SLI, follow the below instructions, please note that in SLI setups both cards must be the same model. For a video overview of setting up SLI, please visit www.evga.com/slivideo. Also, you can view FAQ about SLI at http://www.evga.com/support/faq/?1=58605.

Install your first Gel orce graphics card into the Primary PCI Express x16 alot.

2-way SL: install your second Get once graphics card in to the secondary PCI Express x16 slot. Connect the two cards together using the 2-way/new 2-way SL bridge connector that came with your SL-ready motherboard.

3-way SLI: install the third GeForce card into the tertiary PCI Express slot on the motherboard. Connect the GeForce cards together using the 3-way SLI bridge connector that came with your SLI-ready motherboard.

New-2-way SLI* 2-way SLI 3-way SLI 4-way SLI

For ALL SLI configurations, please consult your motherboards user manual for proper placement of cards in the given PCI Express slots. Always install the cards in 8x or 10x slots, as SLI will not function in 4x, the specific set information should be available in the motherboards users manual.

The above SLI bridges are included with your SLI ready motherboard depending on the configurations it supports. In order for your SLI setup to work properly, you will need to use the appropriate bridge based on the number of cards you are connecting. *Now 2 way SLI bridge for GTX 10 series. SLI technology is not supported by GTX 1060 / 1050T / 1050

Software Installation

When you boot up your computer for the first time after installing your new graphics card, Windows may detect a new display device and attempt to install the drivers. If it gives you the option to cancel, please do so, otherwise wait for Windows to complete the installation (a reboot may be necessary).

After this process has been completed, it is necessary to install the recommended drivers for your graphics card. To begin, it is recommended to download the latest drivers from www.evga.com/support. alternatively, you can install the drivers off the EVGA Installation DVD.

EVGA

Intelligent Innovation

NOTE: If adding a secondary card to an existing PC, you may be required to REINSTALL the driver again.

Note: If the autorun driver installation menu does not appear, it can be launched manually by clicking on the "Computer" or "My Computer" icon, and double clicking the icon for your DVD/CD drive. After that double click on the "autorun.exe" file.

Once the autorun installation menu appears, select the "Install Video Drivers" button. This will start the driver installation process.

Note: During installation, you may be prompted by the Microsoft WHQL (Windows Hardware Quality Labs) warning, please select the "Continue" or "Install this driver software anyway" option, as it is safe to do so.

Setting up Multiple Displays

The NVIDIA® Control Panel allows you to configure a multi-display environment, whether it is through multiple computer monitors or by using a monitor in conjunction with an HDTV. The ability to use multiple displays within Windows can simplify many everyday tasks by spreading out the Windows Desktop area, or make working with an HDTV even easier by allowing you to watch a movie on one of the displays, while performing other tasks on the other display. Multiple display configurations can be made in the "Set up Multiple Displays" subsection located in the NVIDIA® Control Panel. To access the NVIDIA® control panel, simply right click on the desktop, and select "NVIDIA® Control Panel".

Single Mode

Select just one checkbox for the monitor you wish to use as your single display. This will disable the secondary output and is the default setting if you only have one monitor connected to the graphics card.

Extended Mode

Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the section below to set the desired mode. Extended desktop mode can independently control resolution and refresh rate settings for each display.

Duplicate Displays

Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the section below to set them to duplicate display mode, and select the primary monitor. Duplicate displays require identical resolutions between both displays.

Enabling SLI (optional)

If you installed multiple cards in SLI mode, you will need to enable SLI to get the maximum performance from your system. To enable SLI, visit the NVIDIA ^® control panel by right clicking on the desktop, and select "NVIDIA ^® Control Panel." Next, select "Set SLI and PhysX configuration." Finally, select "Maximize 3D Performance" and select apply. To see a video overview of the SLI installation procedure, please visit www.evga.com/slifvideo.

EVGA

Intelligent Innovation

Quick Fixes

Problem: At boot-up, all you hear is a series of beeps from the computer, but see no image on the screen.

Cause: The beep sounds are a warning sound from the motherboard BIOS that says it cannot initialize the graphics card, this can mean one of four things:

1) The card is not seated properly.
2) There is a problem with the motherboard's graphics card slot.
3) Supplemental PCI-E power is not connected to the graphics card.
4) There is a problem with the graphics card.

Solution: Remove the card from the computer and reinsert it, making sure that the card is seated properly in the slot, and then try to boot the computer again. If this does not work then the problem is either with the motherboard or the graphics card and you should contact your hardware manufacturer for further assistance.

Problem: The integrated video adapter has not been disabled prior to installing the new graphics card, and/or the previous adapter's drivers have not been properly uninstalled.

Cause: The integrated video adapter has not been disabled prior to installing the new graphics card and/or not having uninstalled the display drivers from your previous display adapter.

Solution: Ensure the integrated video adapter has been disabled through your motherboard's BIOS or the Windows Device Manager prior to installing the new graphics card, and that you have uninstalled the drivers through the Windows Control Panel. After the new card has been installed, connect the monitor cable and if required, any supplemental power adapters to the new card before booting up the system.

Problem: Games lockup or crash to the desktop.

Solution: Verify that all the necessary hardware drivers are installed and up to date, including the chipset, video and sound card drivers. Reinstall the latest version of DirectX (located on EVGA installation disc) or the game itself. Also, verify the game has all the necessary patches installed that are available from the developer.

Problem: Where can I find the latest drivers for my graphics card?

Solution: The latest drivers can be found at www.evga.com/support/drivers.

7

English English

EVGA

Intelligent Innovation

Problem: When viewing my PC on an HDTV, the entire desktop is not visible, and certain areas: such as the Windows taskbar, reside offscreen.

Solution: Firstly, ensure that you are running at the correct resolution for your display. If it is, try adjusting the "Resize Desktop" feature. This lets you compensate for HIDTV overscan so that the entire desktop is visible. In this case, to view display elements that appear offscreen, NVIDIA ^2 recommends using the Overscan Shift feature to pan the desktop. You can access the Overscan Shift controls from the TV Settings page of the NVIDIA ^® panel.

Note: For problems not listed in this document, please visit the EVGA Knowledge Base at www.evga.com/faq.

Additional Support

Should you require any assistance with the installation or troubleshooting of your EVGA graphics card. please visit the support section of our website at www.evga.com/support. There you will be able to download drivers, check out our extensive Knowledge Base, and submit technical and customer support inquiries. Be sure to also visit the EVGA forums at www.evga.com/forums.

Alternatively, we can be reached by phone. Before contacting Customer Service, please review this manual. If you need to contact Customer Service, please have your system configuration as well as your card's model number and serial number ready. You will need to register your product before a support technician can assist you. You may register your card online at www.evgs.com/register.

• Hours of Operation: 24/7 Technical Phone Support
• Phone Support: (888) 880-EVGA (3842)
• Tech Support Web Site: www.evga.com/support

Warranty Program to Fit your Needs

Most EVGA products are covered under a 3 Year Warranty. For more information please visit www.evga.com/support/warranty.

8

EVGA

Intelligent Innovation

Compliance Information

FCC Compliance Information

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause underserved operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 16 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. In this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FOC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CE Compliance Information

EMC Directive 80/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential, Commercial and Light Industrial Products (EN 55022/QISPR 22, Limits and Methods of Measurement of Radio, (EN 55022/QISPR 22, Limits and Methods of Measurement of Radio interference Characteristics Information Technology Equipment Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC 801-4)

Macrovision Product Notice

This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Trademark Information

©2001-2017 All rights reserved. The manual is the property of EVGA Corp. and is protected by copyright, trademark and other intellectual property laws, and no part may be reproduced, transmitted, stored or translated into any other computer or foreign language without the express prior written permission of EVGA Corp. EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are trademarks of registered Trademarks of their respective companies and may not be used without permission. All other trademarks are the property of their respective owners. The information contained in this manual may be subject to change without notice. EVGA reserves the right to terminate this license in there is a violation of its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default. The information contained herein is subject to change without notice and is provided "AS IS" without warranty of any kind (express or implied). Users are advised to obtain the latest version of relevant information to verify this information being relied on is current and complete.

9
