Feature	Details
Lens type	Standard zoom
Focal length range	50-140 mm
Maximum aperture	f/2.8
Optical construction	23 elements in 16 groups
Minimum focusing distance	1.0 m
Filter diameter	72 mm
Image stabilization	Yes, optical stabilization
Dimensions	83 x 175 mm
Weight	995 g
Recommended use	Portrait, landscape, and event photography
Maintenance	Regular cleaning of optics, storage in a dry place
Safety	Avoid shocks, do not expose to excessive moisture
Compatibility	FUJIFILM X-mount cameras

Frequently Asked Questions - XF 50140mm FUJIFILM

What are the main features of the FUJIFILM XF 50-140mm lens?

The FUJIFILM XF 50-140mm lens is a telephoto zoom with a maximum aperture of f/2.8 across the entire zoom range, OIS image stabilization, and a weather-resistant construction.

Why is the image blurry when I take photos with this lens?

A blurry image can be caused by several factors, including motion blur, incorrect focus, or low light conditions. Make sure your subject is properly focused and use a tripod if necessary.

How do I activate image stabilization on the FUJIFILM XF 50-140mm lens?

Image stabilization is generally activated automatically when using the lens. If you experience issues, check your camera settings to ensure stabilization is enabled.

Is this lens compatible with my FUJIFILM camera?

The FUJIFILM XF 50-140mm lens is compatible with all cameras in the FUJIFILM X series. Verify that your camera is part of this series to ensure compatibility.

How do I clean the FUJIFILM XF 50-140mm lens?

Use a blower to remove dust, then wipe the surface with a microfiber cloth lightly moistened with lens cleaning solution. Avoid using abrasive chemicals.

Is the FUJIFILM XF 50-140mm lens weather-resistant?

Yes, the FUJIFILM XF 50-140mm lens is designed with a weather-resistant construction, making it suitable for use in harsh weather conditions.

What is the weight of the FUJIFILM XF 50-140mm lens?

The FUJIFILM XF 50-140mm lens weighs approximately 995 grams.

Can I use a filter on this lens?

Yes, the FUJIFILM XF 50-140mm lens accepts filters with a diameter of 72 mm.

How do I update the firmware of the FUJIFILM XF 50-140mm lens?

Firmware updates for the lens are generally performed via the camera. Please consult your camera\'s manual for specific instructions on firmware updates.

USER MANUAL XF 50140mm FUJIFILM

XF50-140mmF2.8 R LM OIS WR

OWNER'S MANUAL

日本語

ENGLISH

FRANÇAIS

DEUTSCH

ESPANOL

NEDERLANDS

SVENSKA

NORSK

SUOMI

PYCCKH

ITALIANO

DANSK

POLSKI

中文简

中文繁體

中国

你取得极好的注意<了>

此使用前必必书请未

安全上ご注意

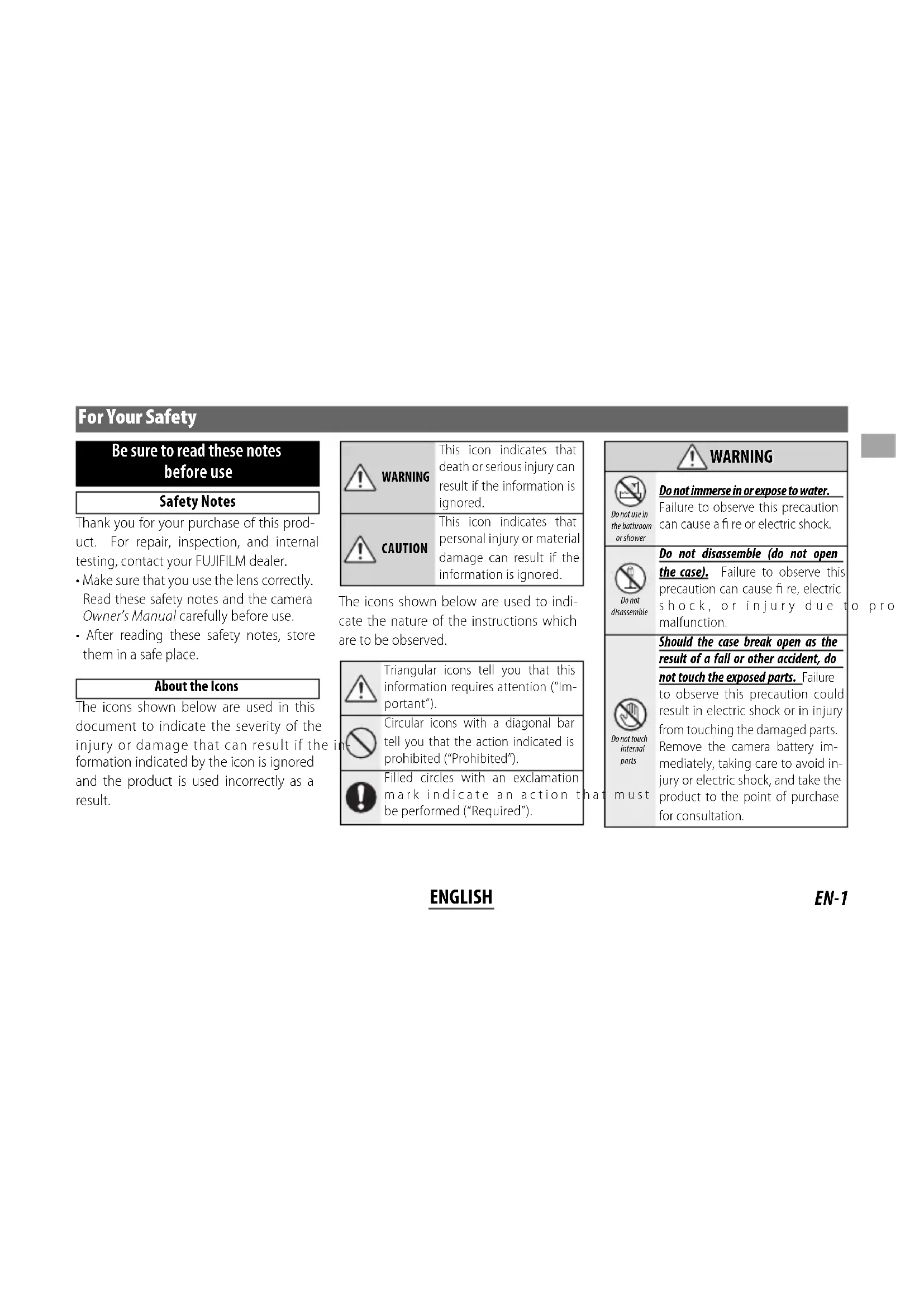

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.
Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
After reading these safety notes, store them in a safe place.

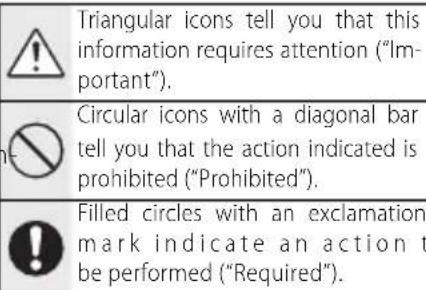

About the icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

WARNING

Do not place on unstable surfaces. The product may fall, causing injury.

Do not view the sun through the lens or camera viewfnders. Failure observe this precaution can cause permanent visual impairment.

CAUTION

Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fire or electric shock.

Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day. Failure to observe this precaution can cause fire.

Keep out of the reach of small children. This product could cause injury in the hands of a child.

Do not handle with wet hands. Failure to observe this precaution can cause electric shock.

CAUTION

Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.

When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.

Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

Do not rapidly rotate the camera while holding the grip. Your hand could strike the tripod or tripod collar foot, causing injury.

Before handling the camera, fully tighten or loosen the tripod collar lock screw according to whether the camera will be used in a fixed orientation or rotated. If the screw is only partially tightened, the camera may move unexpectedly, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

EN-2

ENGLISH

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujii Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CANICES-3(B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
  Heed all warnings.
  Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
  Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

Some lens features are not available with older versions of the camera firmware. Be sure to update the camera firmware to the latest version. Instructions on viewing the camera firmware version and updating camera firmware are available from the following website:

http://www.fujifilm.com/support/digital Cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.
• Keep the lens signal contacts clean.
• Use a blower to remove dust and lint from the glass surfaces of the lens or fi Iter. To remove

smudges and fingernprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and fi Iter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or cam moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
• Leaving the lens in extremely hot locations could cause damage or warping.
• Note that depending on the positions of the camera and tripod, the hand holding the camera grip may contact the tripod or tripod collar foot when the camera is rotated.

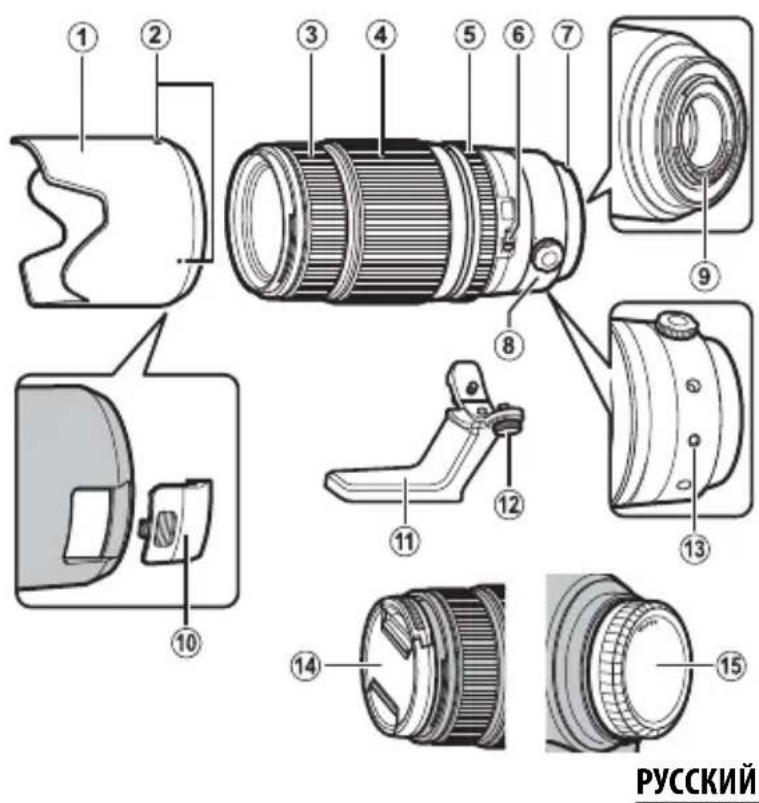

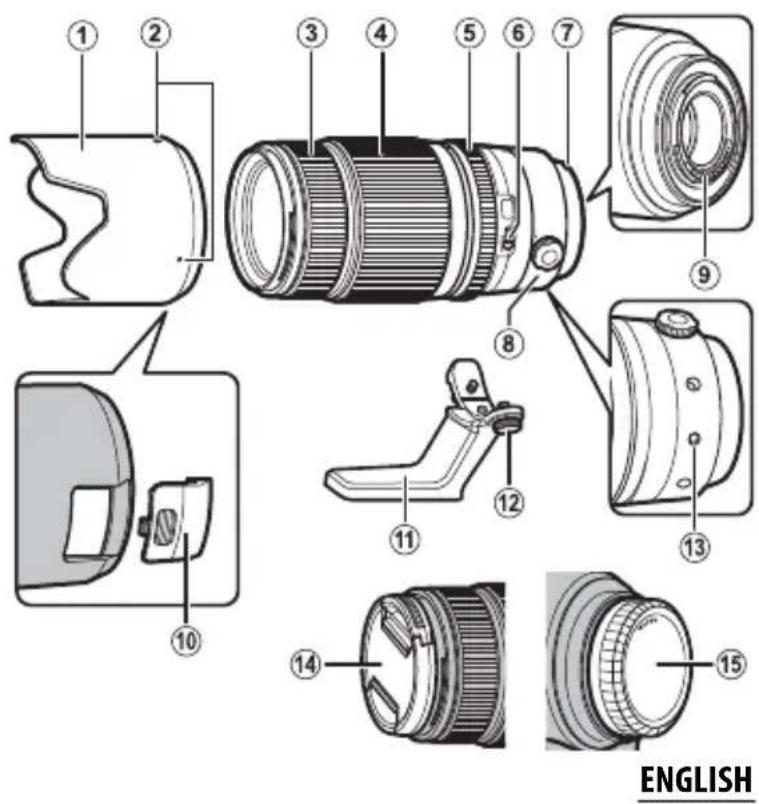

Parts of the Lens

XF50-140 mm F2.8 R LM OIS WR

① Lens hood
② Mounting marks
③ Focus ring
④ Zoom ring
⑤ Aperture ring
⑥ O.I.S. switch
⑦ Mounting marks (focal length)
⑧ Tripod collar lock screw
Lens signal contacts
Removable cover for access to polarizing filter
⑪ Tripod collar foot
⑫ Tripod foot mounting screw
Lens rotating position index
14 Front lens cap
15 Rear lens cap

The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any FUJIFILM service center.

EN-5

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount film cameras.

Removing the Caps

Remove the caps as shown.

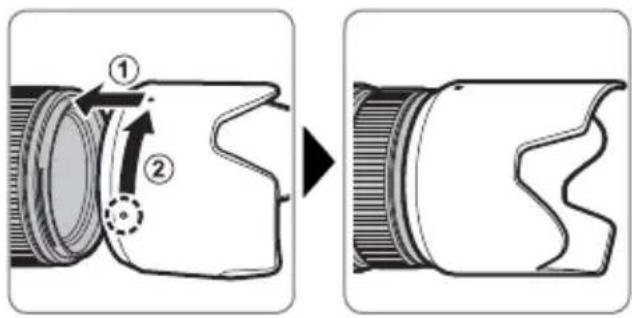

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Supplied Accessories

• Front lens cap
  Rear lens cap
• Lens hood
• Cloth wrapping
• Tripod collar foot

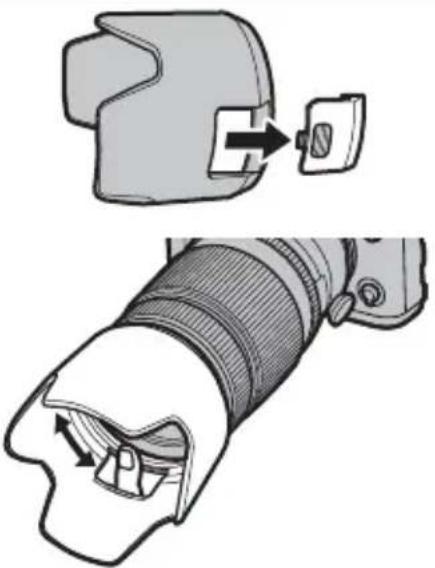

The Polarizing Filter

To access the polarizing filter, detach the removable cover before attaching the lens hood.

The fi ler can be rotated by inserting a finger through the hole.

EN-7ENGLI

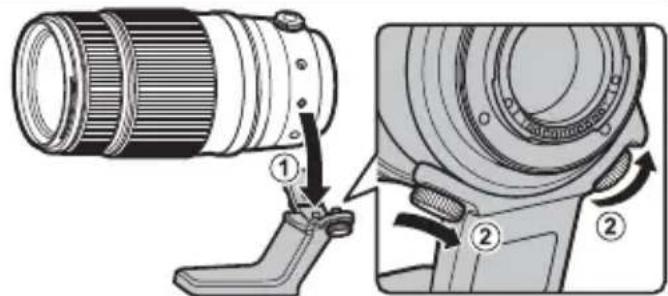

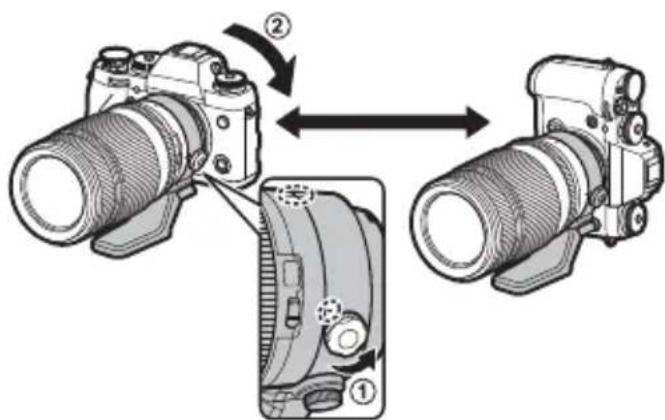

The Tripod Collar Foot

To attach the tripod collar foot, align the mounting mark on the foot with the lens rotating position index and tighten the tripod foot mounting screw.

To rotate the camera from landscape to portrait orientation or back again without taking it off the tripod, loosen the tripod collar lock screw.

① Tighten the screw securely to prevent the camera rotating unexpectedly.

EN-8 ENGLISH

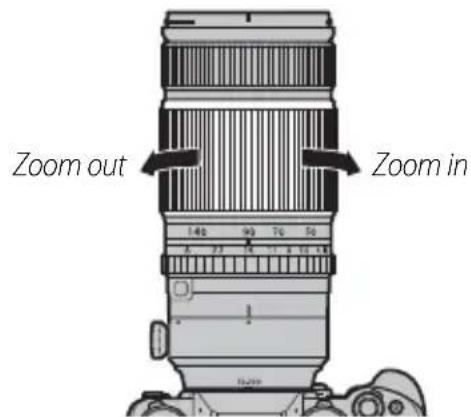

Zoom

Rotate the zoom ring left to zoom o ducing magnifi cation and increasing the area visible in the frame. Rotate the ring right to zoom in, increasing magnifi cation so that the subject occupies more of the frame.

Using the zoom ring while the lens is wet makes it easier for water to find its way inside the lens. Wipe any water from the lens before using the zoom ring.

Optical Image Stabilization (OIS)

to use optical image stabilization, slide the O.I.S. switch to ON.

The Aperture Ring

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

Aperture ring

Specifications

Type XF50-140 mm F2.8 R LM OIS WR
Lens construction	23 elements in 16 groups (includes 5 extra-low dispersion elements and 1 super extra-low dispersion element)
Focal length (35 mm format equivalent)	f=50-140mm (76-213 mm)
Angle of view 31.7°-11.6°
Max. aperture f/2.8
Min. aperture f/22
Aperture control
Number of blades	7 (rounded diaphragm opening)
Stop size	1/3EV (19 stops)
Focus range Normal: 1 m-infi nity	Macro: 1 m-3 m
Max. magnification T:0.12×
External dimensions: Diameter × Length *(approx.)	ø82.9×175.9 mm
* Distance from camera lens mount fl ange
Weight * (approx.)	995 g
* Excluding caps, hoods, and tripod collar feet
Filter size	ø72 mm

① Improvements may result in unannounced changes to specifications and appearance.
Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

Pour vous sécurité

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

Optical Image Stabilization (OIS)

http://www.fujifilm.com/support/digital Cameras/software/#firmware

Om du inte har tillgang till en dator, kan du fahos den lokala aterforsljare som listedi FUJIFILM Worldwide Network-materialialet, vilket medfoljer kameran.

Produktvard

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

He octomethyl 8
ammonium nitrate 47

He nozpykaum 6 body u He nodepzauim 6o3deumuO 60dbI. HebblnoJIHHeJaHHoro Tpe6oBaHmro MoXeT npBecTN K Bo3ropaHIO NIN NopaxeHIO 3JeKtpn-ueCKIM TOKOM.

ПРЕДУПЕЖDEHWE
He pa36upaiae	He pa36upaiae (he omкьбаиме корпс). Hecobлюд- нe He STOМеры пгедосторожно мочь.Tрпвe- СТИ K BOЗТогаиЮ, погжени YЗКТрческIM TO- КOM ИЛВ ВОЗнКов�иЮ ТравM I3-3a HeпразиьНо pa60Ты I3deЛиЯ.
He ap02aizme byu- mpenue demani	Eclu koprnyc pa36bunc6 pe3yblmame nadehen unу dpy- ZOZOЧрзычайzo npoucwoemь. He mpo2aizme om- Крьmbie demani. Hecobлюденme 3TOI Меры пгед- STOPOKHOCTM мочь пгевети K погжени YЗК- ТрческIM TOKOM ИЛВ ВОЗнКов�иЮ ТравM, ecnI Вы dotронетсь до повржденьх DeTaneя. He- MeДLEHNO BByHbTe SaTapeIO FOtOKaМеры, co6blioDA OCTOKOHOCb, YTOБу I36ExaTb ПOLуЧЕНЯ TравM ИЛN Погжени YЗКТрческIM TOKOM, И OTHecNTe I3dENe B MecToПрибpeTehry ДЯ КОсHytsaUN.
	He knadume Na HeycmoiUe bie noBepxHocMu. I3dENe MожETупаСТь, Bbl3BaВ TpAByM.
	Hecmompeme Na coJHnce uepe3 obekm# ckamenu φomokampeby. Hecobлюденme данно меры прEDOTOPOKHOCr MOKeT pRvEbtN K HeobpaTUMO- My hapyuHNo 3peHry.

ПЕДОCTEPEXEHNE
	He усаньуке u He xpaHume 8 Mecmax, noDBePExHHbIX 603deUcMbUo napa unu dbima, a makKe 8 Mecmax, zde npucymcByem nobbluennHra bIaxHoCmB unu boIbluoe KOLUcEmBO nbLIu. He bIbIOnHeHne daHnOrO Tpe6Oba- HnA MoKet PnIBeCTN K BO3rOpAHnIO nIIu NopaxHeHIO эЛeKTPnueckM TOKOM.
	He ocmaaJIaHme Na npRIMOM coNHeHOM caemy uU B Me- cMax, noDBePexHHbIX 603deUcMbUo bIcOKux Memnepa- myp, maKux kAK 3aKpbIbM u ABmOboUNB b COJIHeHb# dENb. HecobJIoJeHne 3Tnx MEP PnPdoCTOPoxHOCTN MOxET PnIBeCTN K BO3rOpAHnIO.
	XpaHume 8 Mecmax, He docmynbIX dRy MaIeHbKx de- mei. B pykax pe6eHka DaHnOE u3dJeNME MOxET cTaB prunHoi TeneChbIX NOBpeJcHnI.
	He dompaZuaBaImeCb MOKpbIMu pyKamU. He bIbIOnHeHne daHnHO Tpe6OBaHnIA MOxET PnIBeCTN K nopaxHeHIO эЛeKTPnueckM TOKOM.
u bu do u-	Bo spema cBeMKU obSeKMOB, oCeUeHHbIX c3adU, He do- nyckaIe nonaDauHua coNHa 8 KaAp. CoJIeHbY cbET, cФokycuropBaHnBu B φOTOKaMepy, kOrDa coNHe Ha- XODITCR B KaIpe IIN PRaDM C HIM, MOxET Bb3BaTb BO3rOpAHne IIN OXOrn.

IPEDOCTEPEXEHNE

Ko2da u3denue He Ucnonb3yemcr, 3akpoume Kpbuiku
Ob6ekmua, u xpaHume u3denue mam, 2de Ha Hezo He na- daem npmaou connehyb ciem. ConHehB CBET, c00
KycnPOBaHHb O6bektNBOM, MoKeT Bbl3BaTb BO3ropaHne nn OXkOrn.

He nepenocme fomokamepy unu obekmue, kozda onu ymanobnehbl Ha umamuse. Mdene MeKet ynaCTb nIy dapntbCn O pyrHne IpeDMeTb, BblBab TpaBMy.

He epauaume b6bcmpo fomokamepy, yedeKueaee 3a pykoarnky. Bawa pyka moKeT yapntb tATNB nIi IaNkY KOJIbUa cTaTb nPnHHO TpABMbI.

Ipepepaobomocfomokamepo,nonhcmbzamnHume UUOCaabme fukcypouu BuHm konbua umamueBa 6 coombemcmuu c mem,bydem nu fomokamepuucnoB30ambcB fukcupoahho opuenmaauu unu nobopa- yubambc. EcnBn BHT TOnbKO aCTNuHO 3aKpyeH, oTOkamepa MoKeT HeOxNdaHHO npeMeCTNTbcra, YTO CTAHET npuHNO TpaBMbl.

Ymuaa 3nekmpueeckozo u 3nekmpoHzo oobopyoabaunB doMaunux ycnobux

B CtpaHax EbponeKoro co03a, HopberHm, NcnaHm n InxTeHwTeHne: DnHHb CMBOH HaN3dEHN, B pyKOBOCTBE, H rapaHTHOM TaIHOe N/INn HA yNAKOBKe YKa3bMaET Ha TO, 4TO DAHHoe N3dEne HHeB3r yTNINOPoBaT B MECTe C 6bTOBIM OTXdAMn. BMCTe OToFO eTO HyxHO OTHECn B pInemHb IyHK TIO cOpy, nepepaBoKe I BIopuHOMY NcIOJIbSObAHNO AIEKPTpueeCKOrn OAnEeKpOnHO tOOpOyDobSHHa.

PraabnBnHnTnnnnaaonnoomKETnpoTeBpaTnB. noteHNMaHbIhe HerattnBHe NoocnCTBnA IAnOkpyaOne CpeBnI 3DopOBBaJeNoBeKa, KOtOpbe MOryt BOHNIHTyB Pe3yntale HecooTBeTcByUoeY TynNbaUN daHoro H3dEnI.

NoTbOPHOE NcNtB3OBAHKe MaTePnAIOB NmOeKet CoXPaHtB npnpoAHepepcpcb.
Dnno nOnyehnDonOnnHteBhoHn HOpMaun 6ytJnnauAn daHHOrn 3dennr
ObaPaaTaeB C MeCTb OePraHb BnActn, B cnkyo No cOby, nepepaotke I
BTOPNHOYMnONb3OBAHNO OTXONOB INM MArasH, RcB bY pnpoBepn m3dEnnc.

BCTPAA3a Pnpenenm EponeKko coo3a, Hopernm, NcAHHm nIaxTeHueHa: ECnn HCO6XOIMy yTNIIMnPOsTa Tb daHOC nDcnc, BKNIOHA aTaPENNN kKMyJATOpbl CBKIAIECb C MECTHMn BIACTMA yIOTOHNE IpABINY bIyAALJIMn

Ipeepnolb30BaHHem DaHHoro n3dennr

HeKoTOpbIe FyHKcunn O6BeKTHBa HeDoCTynHbI c 60Jee paHNmBepCnM npOuINBKn FOToKaMepB. O6aTeMbHO 6OBHTe npOuINBky FOToKaMepB Do nocJeHneBepCnn. NcTpyKcunn No npOCMOtpy BepCnn npOuINBKn FOToKaMepBn 6OBJIeHnIO npOuINBKn FOToKaMepB IOCTynHbHa CNeDyUoSeM Be6-caNte:

http://www.fujifilm.com/support/digital Cameras/software/#firmware

B cnyuae, ecn y Bac HeT doctyna K KOMnbIoTepy, o6paTntecb 3a noDpeKkoN K MeCTHOMy IInCTpN6bIoTpO npCnCKA «FUJIFILM Worldwide Network», nocTabJeHHoro c Bauei foToKaMepoi.

yXoJ3a n3dennem

• Pn nCnoJb3ObaHn 6JeHbI o6BeKtNbA He 6epntecb 3a foTOKaMepu Hne DePKeHTe ee ToIbKO 3a 6NeHdy.
  He onyckaTe 3arpa3HeHnCnHaNbHbIX KOHTaKTOB o6bekTnBa.
  -Пиьзутесь рушей дя удаленя nbiin n nyxa co cTeклЯньхпobерхнocтей объektиBa nIn φиньтpa. Дя удаленя пяtenи OTneчakOB пальсев hahecute He60nbwoe konuyectBO xNdkOCTn Дя чсTKОObseKtNBOB Ha mRkyU,ЧNTyU XlonuaTo6bMyaxkHyIO TkaHb

HnCaΦeTKyIaYnCTKNoBIO npOTpnte ObeKTIB OT cHTpa K KpaM KpyTOBbIMN DnBXKeHNr M,Co6JIoJaOCTOpOXHOCTb,He OCTaJIa pa3BOIOB N He KaCaeCb CTeKla NaIbCuAM.

HnKOrda He nCnoJb3yIe dJa YnCTKn O6BeKTnBa oPraHnueckne pactBOpuTeN, TaKne KaK pa36aBnteJb dJa Kpackn nn 6eH3nH.
3aKpOte KpbIky O6beKTHBa n KpbIky 6aNoHeta o6bekTNa, KOrda o6beKTHB He NcNoJIb3yeTcra.
XpaHnTe o6bekTnB nHbTp B npoxlaHbIX, cyxnx Me-ctax, yTo6bl npeoTbpaTb 6pa3OBaHne nIeceHN Koppo3nn. He xpaHnTe B MeCTax, rDe Ha Hero nonaAet npraMoJ coJIHeHbI CBET, IIN pRdOM cHaΦTaIIHO-BbIMN IIN KaMΦOpHbIM N apuKamN OT MOIN.
- Bepernte obkeTb OT Bnarn. Koppo3na MoXeT haHeCTn HEnonpaBmbl yUep6. Pn nonaHnn DoJxDeBbIX KaneIb nn 6pb13r BoDbl nx CneJeYET BItepTeB.
- Ecnn OBeKtNB OCTaBnTb B MecTx, NOBepraIOxNcB03JeICTBnIO BbICOKnx TemnepaTyP, TO 3TO MOKeT NOBpeiNb IIN DeoOpMnpObaTb erO.
- ImeIte B BVny, yTO B 3aBcIMOCTN OT NOJIOKeHNI FOtOKaMEpbI N WtATnBa, pyKa, yIepKNaBauOuaR pyKoRTKy FOtOKaMEpbI, MOKeT COpNKaCaTbCra CO WtATnBOM INI NaKoN KOJIbUa WtATnBa npN IOBOPTe FOtOKaMEpbI.

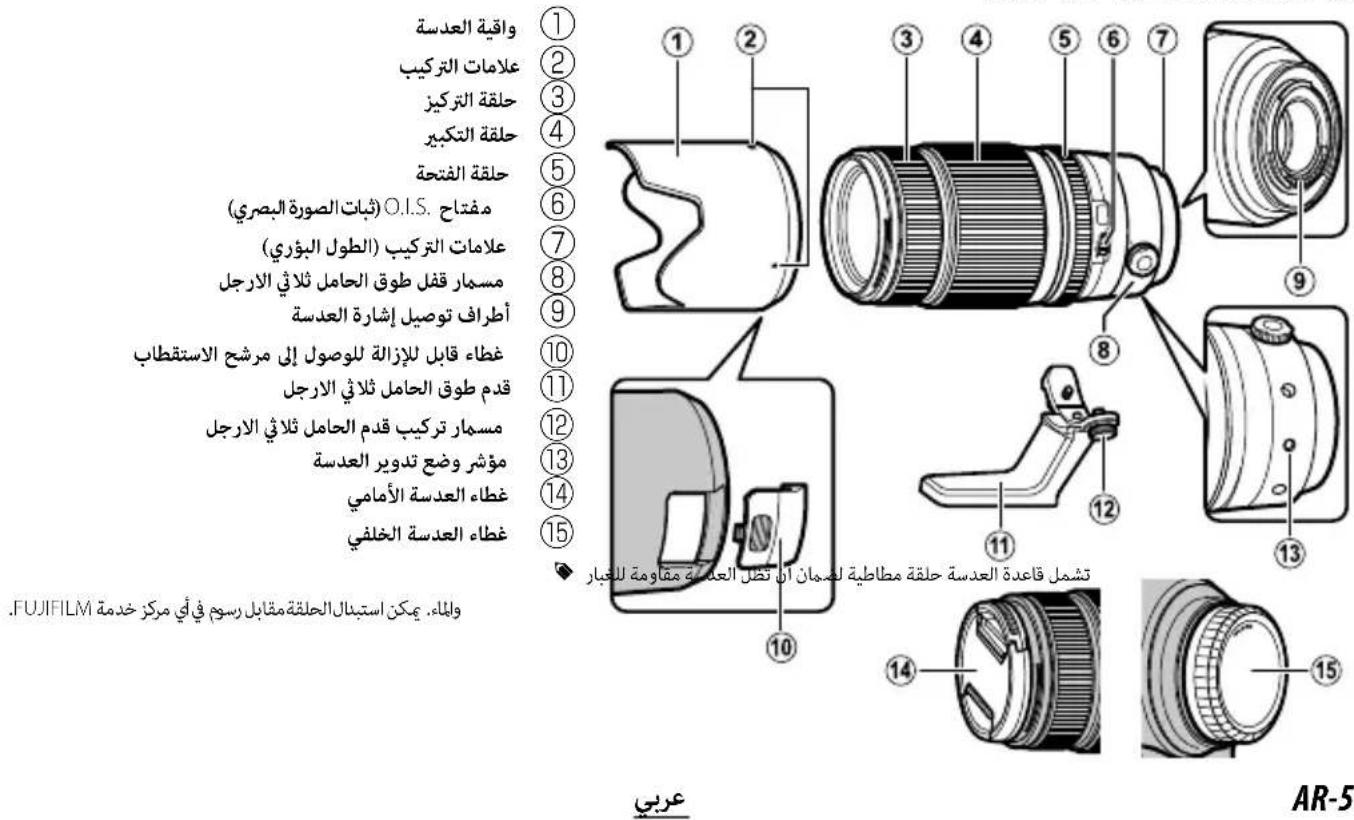

Yactn o6bekTnBa

XF50-140 mm F2.8 RLM OIS WR

① bneHda oBekmuBa
② Memku dnycmaHOeKu
③ DokycupoobouHoe KOJIbUO
(4) Kōnbuo Macuuma6upo8aHua
⑤ KoIbua duoaepa2mbl
(6) Npeeknoyamenb O.l.S.
⑦ Memku ∫n ycmahooKu (fokychoe paccmohue)
⑧ Dukcypouu uBuHn Ianku konbua wamumea
(9) CuzhanbHble KOHMakmbi obBekmuBa
CbeMHa KpbuKa dna docmya KnonpaUauOHOMy
(1) Kanka konbua wamubu
12 Kpenexhbu buhm lanku konbua wamumba
13 VndeknnoJoxenueBpaueHueoBbekmu8a
(4) Kpbiuoka obekmuBa
15 KpbuKa 6aohema o6bekmuBa

KpenneHne 06bekTnBa nmeet pe3HHOBoe KObIcO, KOTopoe oBecneuBaet 3aunTy 06bekTnBa OT bInN 6pb3r. KoIbIO MoXHO 3aMeHHTB IIO6OM cepBnCHOM UENTpe FUJIFLM 3a otJeNbHy nlaty.

RU-5

yctahOBka 06beKTHBa

Cm.pykoBODCTBO NOIb3OBaTeJIa FOToKa-MepoIN DnI NOnyuEHHNOpMauIN O6yCTaHOBKe IN ChrTIN ObBeKTHBa. ImeTe B BVdy, YTO DaHHoe N3dEJIne HecOBMeCTHMO C FOToKAMepaMn C 6aNoHETOM X.

Chartne Kpbliwek

Chnmte KpbIuK, KaK NOKa3aHo Ha pu-cyHke.

yTaHOBka 6IeHbI

Pn noDcoeHHeHn 6JeHdbI oBbeKTHBa yMeHbShaOT 6nKn n 3aunuAOT nepeHIO JINH3y.

PpunaeraemblepnHaadnexKnoctn

Kpbiuka oBbeKTnBa
KpbIiKa 6aHHeTa o6BeKTnBa
-Бленьда объektива
TkaHeBa ynaKOBka
Jaika KOJIbua WITaTnBa

PonpaunHbIy

ДяdoctунаКполяриЗацноHOMуФильтуч ChIMnTe cbeMHyIO KpbIshky NepeД yCTaHOВКоJ 6JIeHDbI OБьeKТИBa.

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/software/#firmware

http://www.fujifilm.com/support/digital Cameras/ software/#firmware

http://www.fujifilm.com/support/digital Cameras/ software/#firmware

An instant chagoharh

http://www.fujifilm.com/support/digital Cameras/software/#firmware

Coupter等人用数，KAPLALI.

译音

• RENs Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua HeTa Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Ta Hua He Tae
  ·廷兹神社の試証を発状の状態に限む状態に。
  ·落羅號者，次用者，列之在日的，用之。

鸯。如：尔默到南之，欢之以。

艷藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

aaiii aii j

20 25

= ( x1,y1) , = ( x2,y2)
· = 0
J 1

XF50-140 mm F2.8 R LM OIS WR

afoi glo 11 aai yg axll jalldl g ausell
aolni aiae aiae aie eae aeel aiao n o la 1 1
jkrbln aawdell aabig aae cagttj lduaag
sabgl tclab 0j pao o aayrddy d kgs jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg j

15 g lali 20 g jai 1uall eg o 3 lajfo y.lalgl .

a16b1g b2b1 c1b3 c00d. do xdo!

.

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

cuii1iie puiuuiui

pIaJn aIe dll lIuOyI 3o yoo oA uoe IJoo Jyolal Iuotll pIaJn 1uOo n no uSIt.1uokUy oai Iuotll pIaJn oJoo Uo oauo oJoo Joo

Jolul Jlalll jusuill pbi yjolUy oJusuill Ug jlaull cdo uo goc uo 11111111

http://www.fujifilm.com/support/digital Cameras/
sowfware/#firmware
Jgaoall dse 10000000000000000000000000000000000000000000000000000000000000000000000000
S. y (diIg) Fgl IELM . . . "EuaHbN NauWviblal Network" 1. oJg zo aas
la 3 a110 15 b10 3 a100 1 s

C

1. solSOL

Laaol

.
cb = 1
