Fujinon GF50mmF3.5 R LM WR - Lens FUJIFILM - Free user manual and instructions
Find the device manual for free Fujinon GF50mmF3.5 R LM WR FUJIFILM in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Interchangeable lens |
| Brand | Fujifilm |
| Model | Fujinon GF50mmF3.5 R LM WR |
| Mount | FUJIFILM G (compatible with GFX cameras) |
| Focal length | 50 mm (40 mm equivalent in 35mm format) |
| Maximum aperture | f/3.5 |
| Minimum aperture | f/32 |
| Optical construction | 9 lenses in 6 groups (including 1 aspherical lens) |
| Angle of view | 57.4° |
| Focusing range | 0.55 m to ∞ |
| Maximum magnification | 0.1× |
| Filter diameter | 62 mm |
| Dimensions (diameter × length) | ∅84 × 48 mm |
| Weight (without caps and hood) | 335 g |
| Supplied accessories | Front cap, rear cap, lens hood, hood cap, protective cloth |
| Autofocus motor | Linear motor for fast and accurate focusing |
| Weather sealing | Rubber ring on mount providing dust and splash resistance |
| Aperture ring | With positions A (automatic), C (command dial control) and manual values (1/3 stops) |

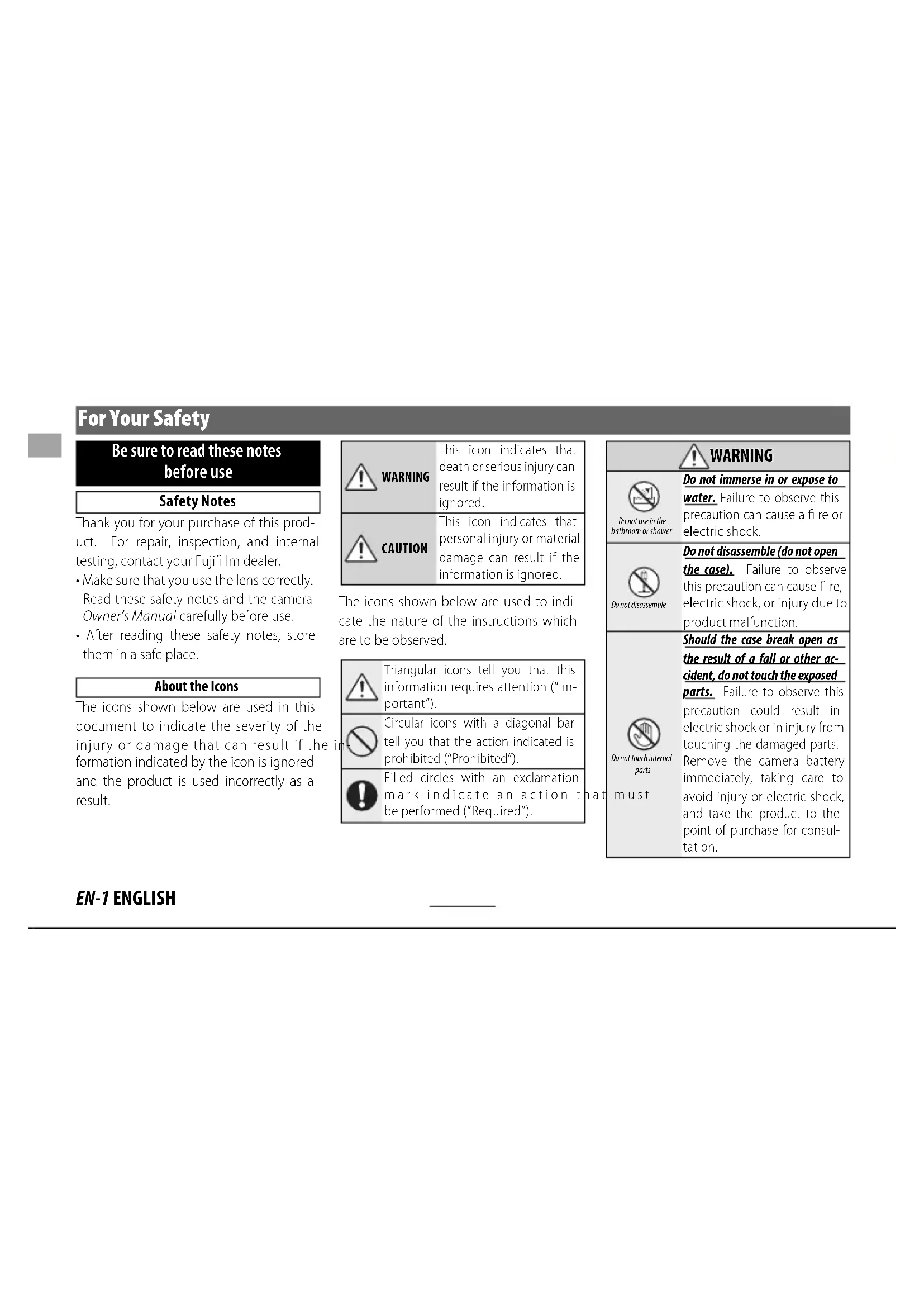

| Safety instructions | Do not look at the sun through the lens; do not use in a bathroom or in the rain; do not disassemble |
| Care and cleaning | Use a blower for dust, a soft cloth with optical cleaner for smudges; do not use organic solvents |
| Repairability | Entrust any repair to an authorized Fujifilm service center; the sealing ring can be replaced |
Frequently Asked Questions - Fujinon GF50mmF3.5 R LM WR FUJIFILM
How do I install the lens on the camera?
Align the lens mount index (usually a red dot) with the corresponding index on the camera, then turn the lens clockwise until it clicks. Consult the camera manual for details.
How do I set the aperture on this lens?
Turn the aperture ring to select the desired value. The C (Command) and A (Automatic) positions are accessible by pressing the unlock button while turning the ring.
What do the C and A positions on the aperture ring mean?
The A position lets the camera choose the aperture automatically. The C position lets you set the aperture via the camera's command dial. To exit these positions, press the unlock button.
How do I clean the lens safely?
Use a blower to remove dust and lint from glass surfaces. For stains and fingerprints, apply a little optical cleaner to a soft cotton cloth and clean in a circular motion from the center outward. Never use organic solvents.
Is the lens weather-sealed?
Yes, it is dust and splash resistant thanks to a rubber ring on the mount. However, do not immerse it or expose it to extreme conditions.
Can I use filters with this lens?
Yes, the filter diameter is 62 mm. You can screw on any compatible filter. Caution: if you attach the lens hood after installing a filter, it may be difficult to separate them. Use a silicone jar opener if necessary.
How do I attach the lens hood?
Screw the lens hood onto the front thread of the lens. To cap the lens when the hood is in place, use the included hood cap instead of the standard front cap.
What if the lens hood gets stuck with a filter?
Do not force it, as you may injure yourself. Cover the hood and filter with a silicone jar opener or similar, then unscrew them with the palm of your hand. If that doesn't work, contact a professional.
What accessories are supplied with the lens?
The lens comes with: a front lens cap, a rear lens cap, a lens hood, a hood cap, and a protective cloth.
How should I store the lens to avoid mold?
Replace the front and rear caps. Store the lens in a cool, dry place away from direct sunlight, naphthalene, or moth repellent. Avoid extremely hot places.
