Product Type Macro prime lens for Fujifilm X mount
Brand Fujifilm
Model XF 30mm f/2.8 R LM WR Macro
Focal Length (Actual) 30 mm
Equivalent Focal Length (35mm format) 46 mm
Maximum Aperture f/2.8
Minimum Aperture f/22
Optical Construction 11 elements in 9 groups (3 aspherical, 2 ED)
Angle of View 50.7°
Minimum Focusing Distance 0.1 m (from focal plane)
Maximum Magnification 1× (life-size)
Filter Diameter 43 mm
Dimensions (diameter × length) ∅60 × 69.5 mm
Weight (without caps and hood) 195 g
Mount Fujifilm X (incompatible with G mount or film X mount)
Aperture Control Aperture ring with 1/3 EV steps (19 stops), 9 blades (circular diaphragm)
Focusing Autofocus using linear motors (LM)
Weather Sealing Splash resistance (rubber ring on the mount)
Supplied Accessories Front cap, rear cap, hood, protective cloth
Maintenance Clean with blower and soft cloth; do not use organic solvents
Storage Cool, dry place out of direct sunlight and away from naphthalene

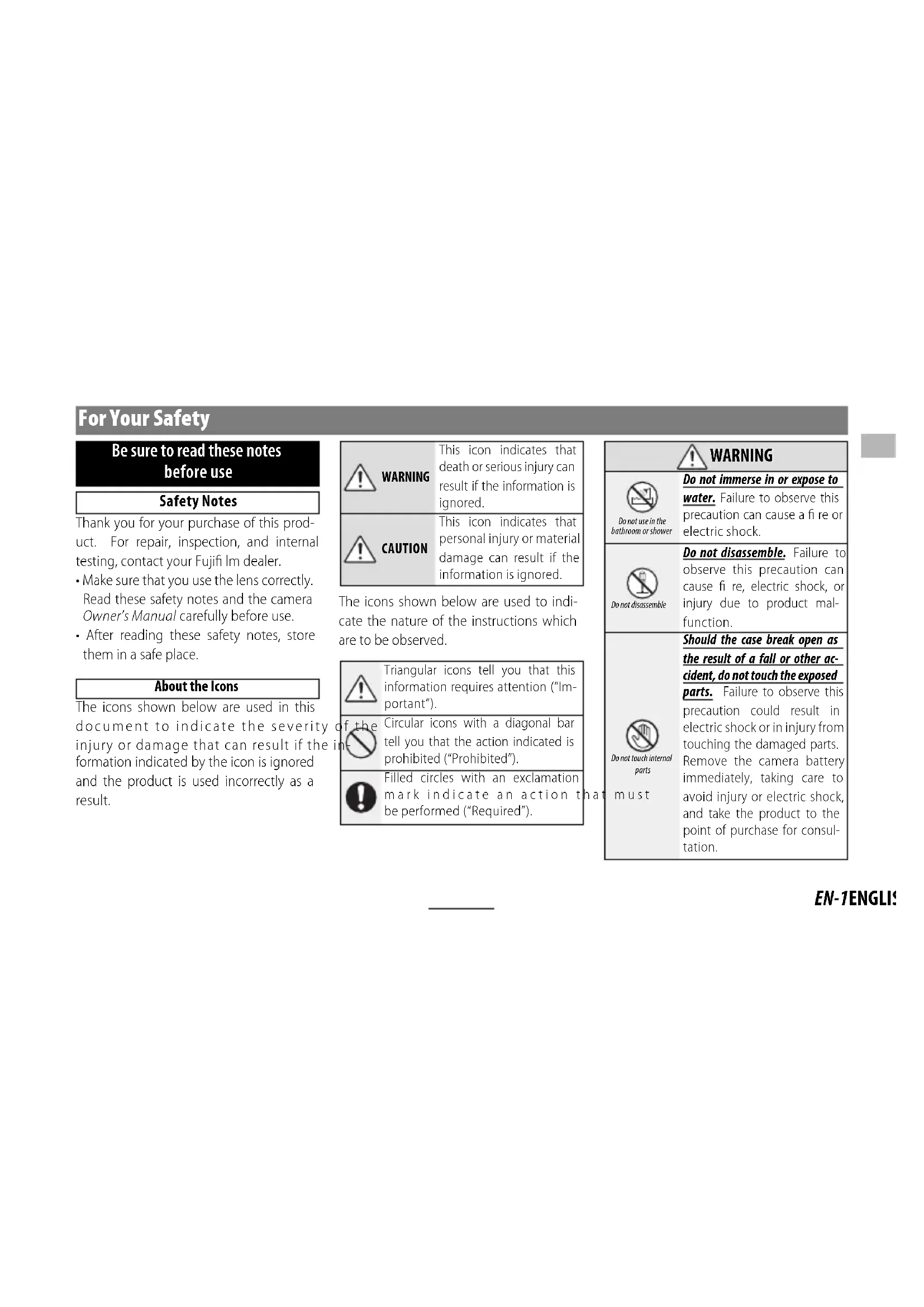

Safety Do not look at the sun through the lens; do not immerse; do not disassemble
Repairability Contact Fujifilm representative for repair; replacement of sealing ring possible at authorized center
General Information Firmware update required for optimal compatibility

Frequently Asked Questions - XF 30mm f2.8 R LM WR Macro FUJIFILM

What is the minimum focusing distance of this lens?
The minimum focusing distance is 0.1 m (10 cm) measured from the focal plane, allowing a magnification ratio of 1:1 (life-size).
Is this lens compatible with Fujifilm X-mount cameras?
Yes, it is designed exclusively for the Fujifilm X mount. It is not compatible with the G mount or film X-mount cameras.
How to safely clean the lens?
Use a blower to remove dust, then a soft cotton cloth slightly dampened with optical cleaner. Wipe from the center outward in a circular motion. Never use solvents like benzene or paint thinner.
What is the minimum and maximum aperture?
The maximum aperture is f/2.8 and the minimum aperture is f/22. The aperture ring allows control in 1/3 EV steps with 19 stops.
How to install the lens hood?
Align the hood attachment mark with that of the lens, then turn it until it clicks. The hood reduces flare and protects the front lens element.
Is this lens weather-resistant?
Yes, it is resistant to splashes thanks to a rubber ring on the mount. However, it is not designed for total immersion.
What should I do if I hear a noise or vibration when turning off the camera?
This is normal: it comes from the separation of the magnets in the linear motors. It does not affect image quality or performance.
What is the filter diameter?
The filter diameter is 43 mm.
How to set the aperture to 'A' (automatic)?
Press the release button of the aperture ring while turning the ring to the 'A' position. This allows the camera to automatically select the aperture.
Can I use this lens for macro photography?
Absolutely, it offers a maximum magnification of 1× (life-size) and a minimum focusing distance of 0.1 m, ideal for macro photography.
