USER MANUAL Big Easy CHAR BROIL

Smoker, Roaster & Grill

MODEL NUMBER

16102040

16102041

16102041-CH

IE GB Operating Instructions, 2-5

Technical line drawing of a portable industrial machine with control panel and side-mounted unit (no text or symbols)

CE

0845-15

0845 CQ 0031

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

Questions:

If you have questions during assembly or use of this appliance contact your local dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.
2. A gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION

• Read and follow all safety statements, assembly instructions and use and care directions before attempting to assemble and cook.
• Some parts may contain sharp edges. Wearing protective gloves is recommended.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turn knobs and gas cylinder off.
• If appliance has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop. Follow instructions on General Appliance Cleaning and Cleaning The Burner Assembly to prevent grease fires.
• The best way to prevent grease fires is regular cleaning of the appliance.

WARNING

For Safe Use of Your Appliance and to Avoid Serious Injury:

• USE OUTDOORS ONLY. NEVER USE INDOORS.
- Read the instructions before using the appliance. Always follow these instructions.
- Do not move the appliance during use.

- Accessible parts may be very hot. Keep young children away. Do not let children operate or play near appliance.

- Turn off the gas supply at the cylinder after use.

- This appliance must be kept away from flammable materials during use.

- Do not block holes in sides or back of appliance.

• Check burner flames regularly.

- Do not block venturi openings on burner.

- Use appliance only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.

- Do not use charcoal or ceramic briquets in a gas appliance.

- DO NOT cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

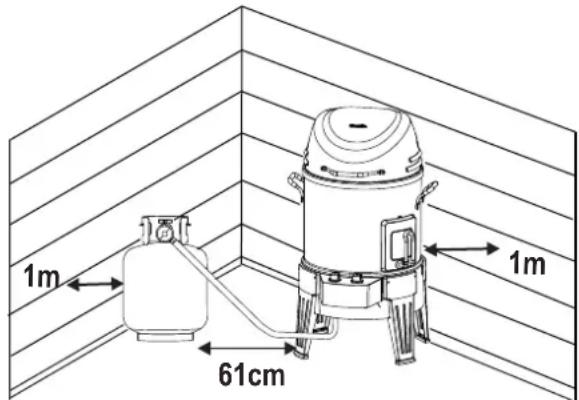

- Use appliance at least 1 m from any wall or surface. Maintain 3 m clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

1m 61cm 1m

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed appliance is hazardous.
• Always turn off gas at cylinder and disconnect regulator before moving gas cylinder from specified operating position.
• Never operate appliance with gas cylinder out of correct position specified.
• Do not modify the appliance. Any modifications is strictly prohibited. Sealed parts are not to be manipulated by the user. Do not disassemble injectors.

Safety Tips

• Before opening gas cylinder valve, check the regulator for tightness.
• When appliance is not in use, turn off all control knobs and gas.
• Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components.
• The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled.
• Be very careful when you open the lid, since hot steam may escape.
• Be very careful when children, the elderly, or pets are nearby.
• If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test.
• Keep ventilation openings in cylinder enclosure (appliance cart) free and free of debris.
• Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• DO NOT disconnect or change gas container within 3m of an open flame or other ignition source.

Cylinder Placement

All cylinder are to be placed on the ground beside the appliance. Maximum cylinder diameter 320 mm and height 600 mm.

Regulator Requirements

A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN12864 or EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

Hose Requirements

Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m.

Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Make sure that when connected hose does not touch any warm surfaces. Replace damaged hoses before using appliance. Replace hose as required by national requirements.

Ignitor Lighting

READ INSTRUCTIONS BEFORE LIGHTING.

Do NOT lean over appliance while lighting.

1. Turn gas burner control valve to ○ .
2. Turn ON gas cylinder.
3. Open the appliance lid.
4. Press and turn the control knob to the Ignition 🔊 position.
5. Turn ROTARY IGNITION knob rapidly.
6. If ignition does not occur in 5 seconds, turn the burner control knob ○, wait 5 minutes, and repeat lighting procedure.

If ignition still does not occur, follow match-lighting instructions.

WARNING

Turn control knob and gas cylinder OFF when not in use.

Match-Lighting

• Do not lean over appliance while lighting.
• Turn ON LP cylinder.
• Open lid during lighting.
• Swing match hole plate to expose match lighting hole. Place lit match into match lighting hole of appliance as pictured below. Make sure lit match is placed inside hole and near burner.
• Push in and turn control knob to 🤒 Be sure burner lights and stays lit.
• Once lit, swing match hole plate back to cover up match lighting hole. Caution: Plate maybe hot.

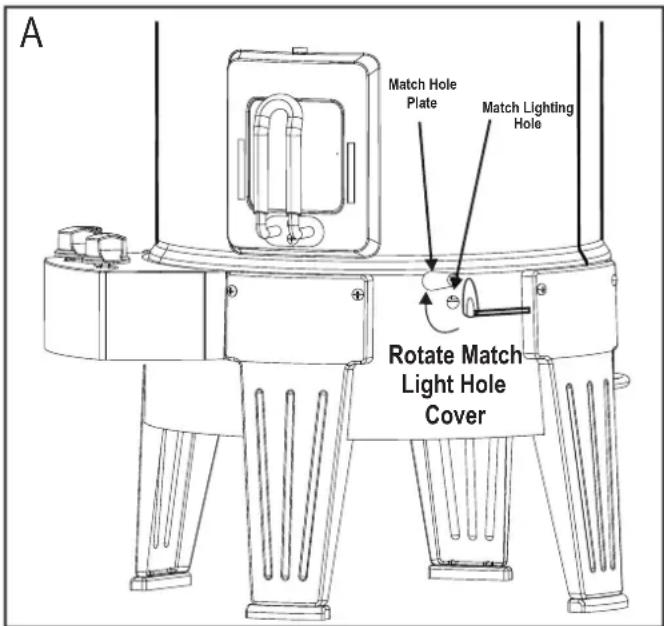

A Match Hole Plate Match Lighting Hole Rotate Match Light Hole Cover

Leak Testing Valves, Hose and Regulator

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

1. Turn all appliance control knobs to ○
2. Be sure regulator is tightly connected to gas cylinder.
3. Turn on Gas. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.
4. Brush soapy solution (mixture of half soap and half water) onto hose connections.
5. If growing bubbles appear, there is a leak. Turn off gas at cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.
6. Always turn off gas at cylinder after performing leak test.

Diagram of a device with cable and connector, showing internal components (no text or symbols)

Diagram of a cable or wire connector with wires and particles inside a circular boundary (no text or symbols)

Diagram of a mechanical device with a magnified circular view showing internal components (no text or symbols)

CAUTION

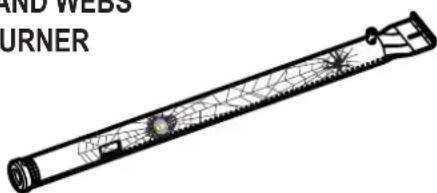

SPIDER ALERT!

SPIDER AND WEBS INSIDE BURNER

AND WEBS TURNER

If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create “flashback” problems by building nests and laying eggs in the barbeque’s venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

IF APPLIANCE FAILS TO LIGHT

Make sure gas is turned on at cylinder.

Make sure there is gas in the cylinder.

Does the ignitor make a sparking noise?

If yes check for spark at burner.

If no spark check for damaged or loose wires.

If wires are OK check for cracked or broken electrode, replace if needed.

If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed.

If needed replace wires.

If no sound check battery.

Make sure battery is installed correctly.

Check for loose wire connection at module and switch.

If ignitor continues to not work then use match.

TECHNICAL DATA

CHAR-BROIL, LLC.
Appliance Name	Smoker, Roaster and Grill
Nominal Heat Input	5,3 kW (386 g/h)
Gas Category	I3+(28-30/37)		I3B/P(30)	I3B/P(50)
Model No.	16102040			16102041, -CH
Gas Type	Butane	Propane	Butane, Propane or their mixtures	Butane, Propane or their mixtures.
Gas Pressure	28-30 mbar	37 mbar	28-30 mbar	50 mbar
Injector Size	Main Burner: 1,10mm		Main Burner: 1,10mm	Main Burner: 0,99mm
	Hotplate: N/A		Hotplate: N/A	Hotplate: N/A
Destination Countries	BE, CZ, FR, GB, IT, SK		CZ, DK, FI, IS, IT, NO, NL, SE, SK	AT, CH, DE, LU, SK

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting appliance.

1. Turn gas OFF at control knob and LP cylinder and disengage regulator from cylinder.
2. Open top cover, remove cooking basket and cooking Chamber, shown A. This will expose the burner from inside, shown B.
3. Wire brush entire outer surface of burner to remove food residue and dirt.
4. Clean any blocked ports with a stiff wire such as an open paper clip.
5. Carefully lay the appliance on its back, with control panel facing up shown C.
6. Disconnect electrode wire underneath appliance, shown C.
7. Remove screws and disengage front legs from appliance.
8. Remove screws and disengage control panel assembly and heat shield from unit, shown D.
9. Clean inner burner as recommended below, shown E. We suggest three ways to clean the burner tube. Use the one easiest for you.
   (A) Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run hook through burner tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not use a brass wire brush), run the brush through burner tube several times.
(C) Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.
10. Check burner for damage, due to normal wear and corrosion some holes may become enlarged. If any large cracks or holes are found replace burner.
11. Carefully replace heat shield and control panel assembly .
12. Reattach electrode wire to ignitor.

VERY IMPORTANT: Burner tube must re-engage over valve opening. See illustration, shown F.

1. Reattach front legs. Carefully stand the unit upright.
2. Reposition inner liner, cooking basket.

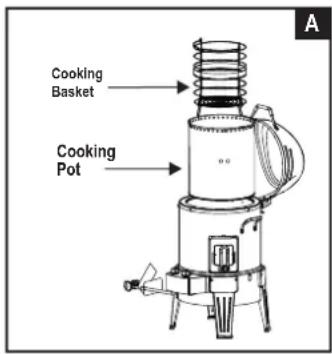

Cooking Basket Cooking Pot

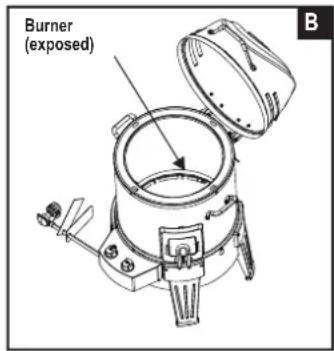

Burner (exposed) B

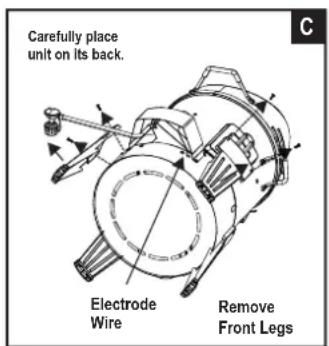

Carefully place unit on its back. Electrode Wire Remove Front Legs C

Control Panel Assembly Burner Tube Heat Shield Remove Screws

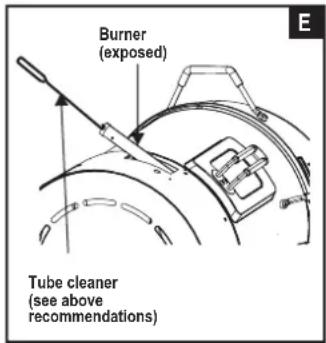

Burner (exposed) Tube cleaner (see above recommendations)

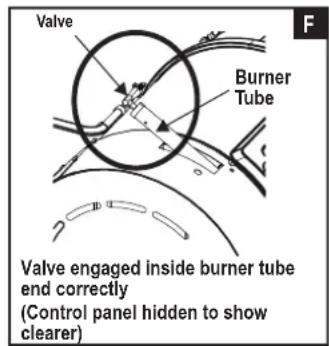

Valve Burner Tube Valve engaged inside burner tube end correctly (Control panel hidden to show clearer)

General Appliance Cleaning

• Clean appliance often, preferably after each cookout. If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surface while appliance is hot. Appliance should be cleaned at least once a year.
• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry. Do not use citrisol, abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while appliance is hot.

INSTALLER/ASSEMBLER :

1m 61cm 1m

LISEZ LES INSTRUCTIONS AVANT D'ALLUMER.

Diagram of a mechanical device with internal components and wiring (no text or symbols)

Simple line drawing of a cable or connector with wires and particles inside, enclosed in a circle (no text or symbols)

Simple line drawing of a container with a lid and a cluster of berries, enclosed in a circle (no text or symbols)

PRÉCAUTION

ALERTE AUX ARAIGNÉES !

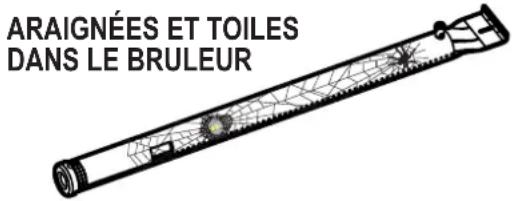

ARAIGNÉES ET TOILES DANS LE BRULEUR

1m 61cm 1m

Technical line drawing of a cylindrical mechanical component with internal structural details (no text or symbols)

1m 61cm 1m

Diagram showing four steps of a robotic arm tool: adding a component, interacting with a device, adding particles, and adding wires (no text or symbols present)

AVVERTENZA

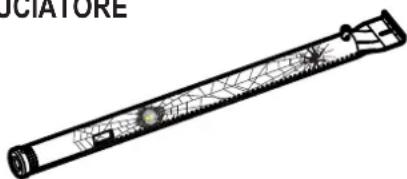

ALLARME RAGNI!

RAGNI E RAGNATELE ALL'INTERNO DEL BRUCIATORE

Technical line drawing of a cylindrical mechanical component with internal components (no text or symbols)

1m 61cm 1m

Diagram of a mechanical device with two circular components connected by wires (no text or symbols)

Simple line drawing of a plug inserted into a circular socket (no text or symbols)

Diagram of a mechanical device with a magnified circular view showing internal components (no text or symbols)

WAARSCHUWING

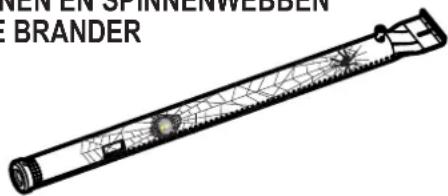

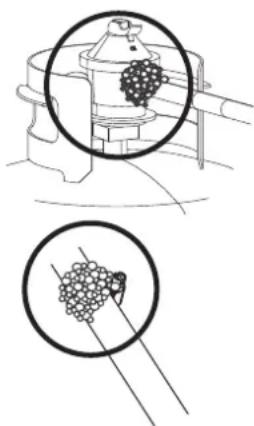

SPIN ALARM!

SPINNEN EN SPINNENWEBBEN IN DE BRANDER

NEN EN SPINENWEBBEN BRANDER

1m 61cm 1m

Diagram showing a device with internal components and a close-up of its cable (no text or symbols present)

Illustration of grape clusters inside a wine cellar with magnified insets showing the structure (no text or symbols)

OBS!

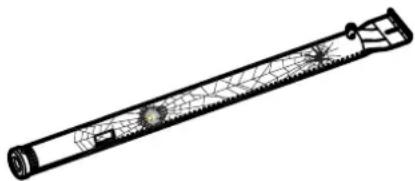

SE UPP FÖR SPINDLAR!

SPINDLAR OCH SPINDELNÄT INNE I BRÄNNAREN

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

1m 61cm 1m

Illustration of four different stages of a food processing or cooking process, showing steps from raw material to final product (no text or symbols present)

HUOMAUTUS

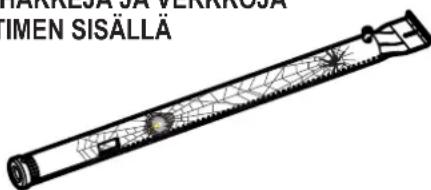

HÄMÄHÄKKIVAROITUS!

HÄMÄHÄKKEJÄ JA VERKKOJA POLTTIMEN SISÄLLÄ

HARKESÄNA VERRAGA TIMEN SISÄLLÄ

1m 61cm 1m

1m 61cm 1m

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

1m 61cm 1m

1m 61cm 1m

Diagram of a device with two circular insets highlighting internal components (no text or symbols)

Diagram of a cable or connector with wires and particles inside, enclosed in a circle (no text or symbols)

Diagram of a mechanical device with a magnified circular view showing internal components (no text or symbols)

VARÚD

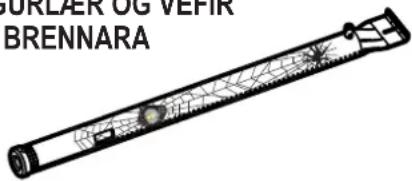

KÖNGULÓAR-VIĐVÖRUN!

KÖNGURLÆR OG VEFIR INNI Í BRENNARA

BURLÆR OG VEFIR BRENNARA

1m 61cm 1m

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

NOTE: This information is a guide only. Items included in your BBQ specification may differ depending on region or specific dealer specification.

All specifications are subject to change without notice.
