UB 64 - Heated blanket BEURER - Free user manual and instructions

Product type	Heating blanket/cushion
Dimensions	180 x 130 cm
Power	100 Watts
Adjustable temperatures	3 heat levels
Material	Soft and pleasant-to-touch polyester
Automatic shut-off function	Yes, after 90 minutes
Machine washable	Yes, at 30°C
Usage	Ideal for warming up, relieving muscle pain, and improving comfort
Maintenance	Unplug before washing, do not use fabric softener
Safety	Certified compliant with safety standards, overheating protection
Additional information	3-year warranty

Frequently Asked Questions - UB 64 BEURER

How do I turn on the BEURER UB 64 heating blanket?

To turn on the blanket, plug it into an electrical outlet and press the power button located on the controller.

How do I adjust the temperature of the blanket?

Use the controller to select the desired temperature from the available options.

Is the BEURER UB 64 blanket washable?

Yes, the blanket is machine washable. Please remove the controller before washing and follow the washing instructions on the label.

How long does it take for the blanket to heat up?

The blanket reaches its maximum temperature in about 10 to 15 minutes, depending on the chosen temperature setting.

Can the blanket be used overnight?

Yes, the blanket is equipped with an automatic shut-off function that activates after 180 minutes for added safety.

What should I do if the blanket does not heat up?

Check that the blanket is properly plugged in and that the controller is turned on. If the problem persists, contact customer service.

Are there any precautions to take when using the blanket?

Avoid using the blanket if it is damaged. Do not use it with medical devices without prior medical advice.

How should I store the blanket when not in use?

Fold the blanket carefully and store it in a dry place, avoiding excessive bending of the cable.

USER MANUAL UB 64 BEURER

1. Items included in the package 10
   1.1 Description 10
2. Important instructions
   Retain for future use 10
3. Proper Use..
4. Operation 12
   4.1 Safety 12
   4.2 Putting into operation 12
   4.3 Switching on 12

4.4 Setting the temperature.. 12
4.5 Automatic switch-off 13
4.6 Switching off 13
5. Cleaning and care 13
6.Storage 14
7. Disposal 14
8. In the event of problems 14
9. Technical data 14
10.Warranty/service. 14

Explanation of symbols

	Read the instructions	30°C extra gentle washing program
			Do not bleach
	Do not insert pins Do not tumble dry
				Do not iron
	Do not use folded or rucked		Do not dry-clean
0-3	Not to be used by very young children (0 - 3 years).	OEKO-TEX® CONFIDENCE IN TEXTILES STANDARD 100 06.043510 Hohenstein HTI Test for bacteria/antibiotics. www.hohenstein.com	The textiles used for this device meet the stringent human ecological requirements of Oeko-Tex Standard 100, as verified by Hohenstein Research Institute.
20 PAP	Dispose of packaging in an environmentally friendly manner
	WARNING: Warning of risks of injury or health hazards

CAUTION: Safety information about possible damage to appliance/accessories.

NOTE: Important information.

1. Items included in the package

1 Heated underblanket
1 Controller
1 Operating instructions

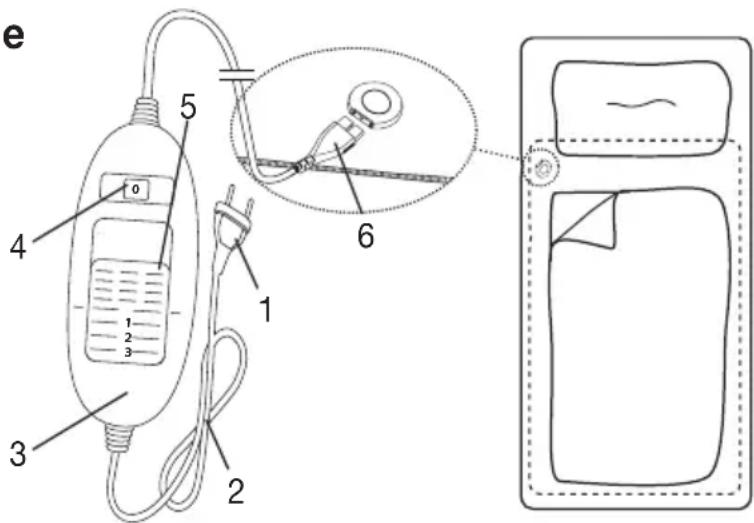

1.1 Description

1. Supply plug
2. Supply cord
3. Controller
4. Illuminated temperature settings
5. Slider for ON/OFF and temperature settings
6. Plug-in coupling

2. Important instructions Retain for future use

WARNING

• Failure to observe the information provided below can lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information not only serves to protect your health and the health of others, it also protects the product from damage. Therefore, observe this safety information and pass on these instructions together with the product.
• This heated underblanket must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heated underblanket may not be used for very young children under the age of three (0-3) due to their inability to react to overheating.
• This heated underblanket may not be used for young children over the age of three (3-8) unless the control has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heated underblanket safely.
• This heated underblanket can be used by older children aged from 8 years and above and persons with reduced physical, sensory or men

tal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the heated underblanket.
- Cleaning and user maintenance shall not be made by children without supervision.
- This heated underblanket is not intended for use in hospitals.
- Do not insert pins.
- Do not use folded or rucked.
- Do not use if wet.
- If the heated underblanket is used on an adjustable bed, check that the heated underblanket and cord do not become trapped or rucked, for example in hinges.
- This heated underblanket must be used with the type of switch that is marked on the rating label of the heated underblanket, only.
- The electric and magnetic fields emitted by this electrical heated underblanket may possibly interfere with the operation of pacemakers. However, they are well below the permissible limits: electric field strength: maximum of 5,000V / m , magnetic field strength: maximum of 80A / m , magnetic flux density: maximum of 0.1 millitesla. Please therefore ask your doctor and the manufacturer of your pacemaker before using this product.
- Do not pull, twist or make any sharp kinks in the cords.
- This heated underblanket must be examined frequently for signs of wear or damage.

If there are such signs, if the heated underblanket has been misused or does not work, return it to the supplier before switching it on again.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

• While this heated underblanket is switched on

• never place any objects on it (e.g. suitcases or laundry basket),

• never place any heat source on it, such as a hot water bottle, heating pad etc.

• When in use, the electronic components in the controller of the heated underblanket make the controller slightly warm. The controller should therefore never be covered or placed on the heated underblanket when it is in operation.

• Should you still have questions on using our appliances, please contact our customer service.
• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

3. Proper Use

CAUTION

This heated underblanket is designed for warming beds, only.

4. Operation

4.1 Safety

CAUTION

This heated underblanket is equipped with a SAFETY SYSTEM. This sensor technology prevents the entire surface of the heated underblanket from overheating by automatically switching off the heated underblanket in the event of a fault.

If the safety system has switched off the heated underblanket, the temperature setting is not illuminated any more even when the heated underblanket is switched on.

Please note that the heated underblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.

Do not connect the defective heated underblanket with another controller of the same type. This would trigger a permanent switch-off via the controller safety system.

4.2 Putting into operation

Spread out the heated underblanket flat on your mattress so that the cable entry is located at approximately shoulder height (see illustration). The head section is not heated.

Then pull the side section over the sides of your mattress like a fitted sheet. The heated underblanket is designed to fit mattresses in sizes 35x80 in (90x200 cm) and 38x80 in (100x200 cm).

Then secure your fitted sheet as usual so that the heated underblanket is between your mattress and the fitted sheet.

CAUTION

Make sure that the heated underblanket is spread out entirely flat and that it will not rumple up or crease when in use.

• To operate the heated underblanket connect the controller to the heated underblanket by plugging in the connector.
• Then plug in the supply plug into the mains outlet.

4.3 Switching on

To switch on the heated underblanket, set the slider for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature settings are illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting 1: minimum heat

Setting 2: medium heat

Setting 3: maximum heat

WARNING

If the heated underblanket is used continuously (for several hours) it is recommended to use the lowest setting of the control to avoid overheating of the user.

1 NOTE:

• The quickest way to heat up the heated underblanket is to select the highest temperature setting of the controller, first.
• We strongly recommend switching on the heated underblanket approx. 30 minutes before going to bed and covering it with the quilt to prevent the warmth from escaping.

4.5 Automatic switch-off

This heated underblanket switches off automatically after approximately 3 hours. The red indicator light on the switch is illuminated while the heated underblanket is being heated. After the switch-off time expires, the heated underblanket is no longer heated and the red indicator light starts flashing. To heat the heated underblanket again, first set the controller to zero '0' (OFF) for approx. 5 seconds and then select the required temperature. If the heated underblanket is no longer used after timeout, it should be switched off (setting '0') or else disconnected from the mains.

4.6 Switching off

To switch off the electric underblanket, set the slider for ON/OFF and temperature settings to the OFF (0) position.

1 NOTE:

If the heated underblanket is not used for several days, set the slider for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket.

5. Cleaning and care

#

WARNING

Always remove the supply plug from the mains outlet and remove the controller from the heated underblanket by disconnecting it at the connector (see illustration).

#

CAUTION

• The controller must never come into contact with water or other liquids, as this may cause damage.

To clean the controller, use a dry, lint-free cloth. Do not use cleaning agents containing solvent or scouring agents. To remove stains from the heated underblanket use a damp cloth and, if necessary, a mild cleaning agent.

#

CAUTION

Note that the heated underblanket must not be dry-cleaned, wrung out, machine dried or ironed.

The heated underblanket is machine washable.

Set the washing machine to a particularly gentle, 30^ cycle (woolens programme). Use a mild detergent with dosage according to the manufacturer's instructions.

#

CAUTION

Note that the heated underblanket will suffer from too frequent washing.

For its entire life, therefore, the heated underblanket should be washed not more than 5 times in a washing machine.

While the heated underblanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

CAUTION

• Do not attach the heated underblanket to washing lines with washing pegs or the like. Otherwise the heated underblanket may be damaged.
• Only reconnect the controller to the heated underblanket after the connector and the heated underblanket are completely dry. Otherwise the heated underblanket may be damaged.

WARNING

Under no circumstances switch on the heated underblanket to dry it. Otherwise there is a risk of an electric shock.

6. Storage

When not in use we recommend to store the heated underblanket in its original packaging. For this purpose, disconnect the controller from the heated underblanket by unplugging the plug-in coupling.

CAUTION

Allow the heated underblanket to cool down before folding.

Otherwise the heated underblanket may be damaged.

Do not crease the heated underblanket by placing items on top of it during storage.

7. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. In the event of problems

Problem Cause Remedy
The temperature settings are not illuminated, while - the controller is fully connected to the heated under- blanket - the supply plug is connected to the mains outlet with correct function - the setting is 1, 2 or 3	The Safety System switched off the heated underblanket irreversible	Send the heated un- derblanket together with the controller to the service.

9. Technical data

For technical data, see the rating label on the heated underblanket.

10. Warranty/service

In case of a claim under the warranty please contact your local dealer or the local representation which is mentioned in the list "service international".

In case of returning the unit please add a copy of your receipt and a short report of the defect.

The following warranty terms shall apply:

1. The warranty period for BEURER products is either 5 years or- if longer- the country specific warranty period from date of Purchase.

In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

1. Repairs (complete unit or parts of the unit) do not extend the warranty period.
2. The warranty shall not be valid for damages because of

a. improper treatment, e.g. nonobservance of the user instructions.
b. repairs or tampering by the customer or unauthorised third parties.
c. transport from the manufacturer to the consumer or during transport to the service centre.
d. The warranty shall not be valid for accessories which are subject to normal wear and tear (cuff, batteries etc.).

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.
