USER MANUAL CC 50 Cosy BEURER

logical requirements of Oeko-Tex Standard 100, as verified by Hohenstein Research Institute.

PAP Dispose of packag- ing in an environmen- tally friendly manner.

WARNING: Warning of risks of injury or health hazards

CAUTION: Safety information about possible damage to appliance/accessories.

1. Items included in the package ......................... 11

8. What if there are problems? ........................... 15

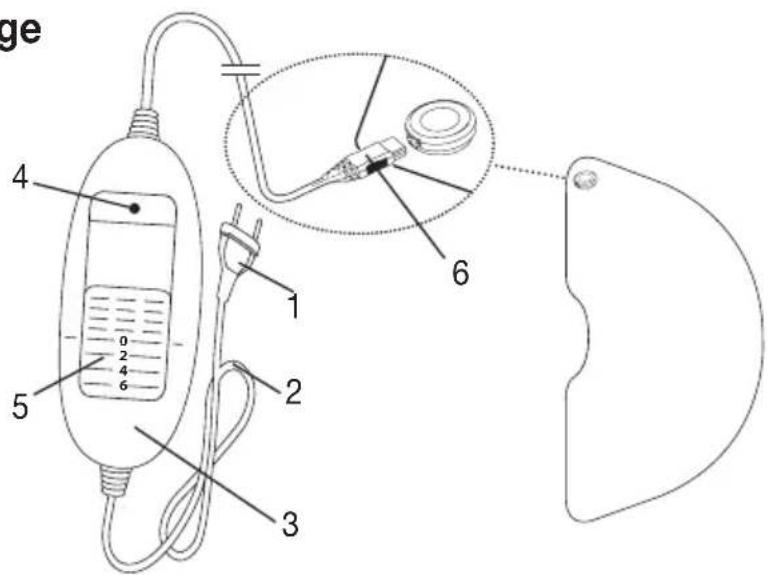

1. Items included in the package

5. Sliding switch for ON/OFF and

temperature settings

Please note: The CC50 can be used as either an electric overblanket or an electric cape. The term “electric overblanket” is used in the following instructions for use to refer to both uses. The instruc

tions apply equally to the use as an electric cape.

2. Important instructions

Retain for future use WARNING

• Non-observance of the following instructions may result in personal injury or material damage (electric shock, skin burns, fire). The follow- ing safety and hazard information is not only intended to protect your health and the health of others, it should also protect the prod

uct. For this reason, pay attention to these safety notes and include these instructions for use when handing over the product to others.

• This electric overblanket may not be used by people with reduced sensitivity to heat or by other very vulnerable people as they are unable to respond to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medi

• This electric overblanket may not be used by very young children (0-3 years old) as they are unable to respond to overheating.

This electric overblanket may not be used by young children (3-8years old) unless the controller has been set by a parent or re- sponsible adult and the child has been given adequate instructions on how to use the electric overblanket safely.

• This electric overblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are super

vised or have been instructed on how to use the electric overblanket safely, and are fully aware of the consequent risks of use.

• Children must not play with the electric overblanket.

• Cleaning and user maintenance must not be performed by children unless supervised.

• This electric overblanket is not designed for use in hospitals.

• Do not insert needles.

• Do not use when folded or bunched up.

• This electric overblanket may only be used in conjunction with the controller specified on the label.

The electrical and magnetic fields emitted by this electric overblanket may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max.

0.1 millitesla. Please consult your doctor and the manufacturer of

your pacemaker before using this electric overblanket.

• When this electric overblanket is switched on – do not place any objects on it (e.g. suitcase or washing basket) – Heat sources, such as hot water bottles, heating pads or similar, must not be placed on the pad.

• The electronic components in the controller warm up when the electric overblanket is in use. For this reason, the controller must never be covered or placed on the electric overblanket when it is in use.

• Do not pull, twist or make sharp bends in the cables.

• Please check this electric overblanket frequently for signs of wear and tear or damage. If any such signs are evident, if the electric overblanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.

If the mains cable of the electric overbl anket is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person to avoid any risk.

• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

• If you should have any questions about using our devices, please contact Customer Services.13

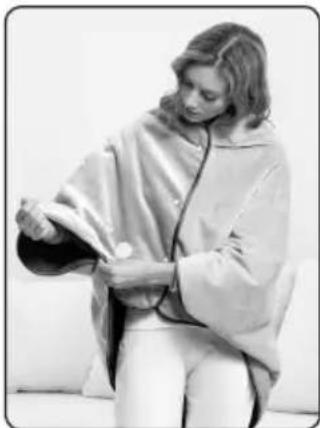

CAUTION This electric overblanket is only designed to warm up the human body. The electric overblanket is shaped so that it can be worn as a cape. The dark surface of the overblanket/cape must face towards the body. The electric cape can be closed using poppers at the front. There are also further poppers in the area of each arm to ensure a better fit to the body (see image).

he electric overblanket is fitted with the SAFETY SYSTEM. This electronic sensor technology provides protection against overheating across the entire surface of the electric overblanket with an automatic switch-off if there is a fault.

lease note that, for safety reasons, the electric overblanket can no longer be operated after a fault has occurred and must be sent to the specified service address. Do not connect the defective heated overblanket with another controller of the same type. This would trigger a permanent switch-off via the controller safety system.

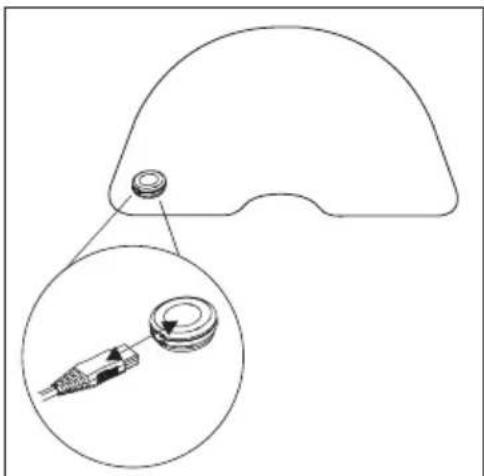

First, connect the controller to the electric overblanket by inserting the plug-in coupling.

Then plug the mains plug into the socket.

To switch the electric overblanket on, set the sliding switch for ON/OFF and temperature settings to setting 1, 2, 3, 4, 5 or 6. When it is switched on, the indicator lamp (4) lights up.

4.4 Setting the temperature

Level 0: OFF Level 1: minimum heat Setting 2 - 5: individual heat setting Level 6: maximum heat WARNING If the electric overblanket is being used over several hours, we recom

mend that you set the lowest temperature setting on the controller to avoid overheating the person using the blanket.14 NOTE The fastest way to warm up the electric overblanket is to initially set the highest temperature setting.

To switch off the electric overblanket, slide the sliding switch for ON/OFF and temperature settings to the OFF ( 0 ) position. NOTE If the electric overblanket is not being used for several days, slide the sliding switch for ON/OFF and temperature settings to the OFF ( 0 ) position and remove the mains plug from the socket. Then disconnect the controller from the electric overblanket by unplugging the plug-in coupling.

4.6 Automatic switch-off

This electric overblanket switches off automatically after 3 hours. Once the electric overblanket has switched off, it is no longer heated and the indicator lamp flashes. To switch on the electric overblanket again, first set the sliding switch for ON/OFF and temperature settings to the OFF ( 0 ) position for 5 seconds. After about 5 seconds it is possible to switch it on again.

5. Cleaning and maintenance

WARNING Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the electric overblanket by unplugging the plug-in coupling. Otherwise there is a risk of electric shock. CAUTION

• The controller must never come into contact with water or other liquids, as this may cause damage. To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents. Small marks on the electric overblanket can be removed with a damp cloth or sponge and, if necessary, with a little liquid detergent for delicate laundry. CAUTION

• Please note that the electric overblanket may not be chemically cleaned, wrung out, tumble dried, put through a mangle or ironed. Set the washing machine to a particularly gentle wash cycle at 30°C (wool cycle). Use a delicate laundry detergent and measure it out according to the manufacturer’s instructions. CAUTION

Please note that frequent washing of the electric overblanket has a negative effect on the product. The electric overblanket should therefore be washed in a washing machine a maximum of 5 times during its life. Immediately after washing, reshape the electric overblanket to its original dimensions while it is still wet and spread it out flat over a clothes horse to dry. CAUTION

• Do not use pegs or similar items to attach the electric overblanket to the clothes horse. Failure to do so may damage the electric overblanket.

• Do not reconnect the controller to the electric overblanket until the plug-in connector and electric overblanket are completely dry. Failure to do so may damage the electric overblanket.15 WARNING

• Never switch the electric overblanket on to dry it! Otherwise there is a risk of electric shock.

If you do not plan to use the electric overblanket for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the electric overblanket by unplug

ging the plug-in coupling. CAUTION Allow the electric overblanket to cool down before folding. Otherwise the electric overblanket may be damaged. Do not crease the electric overblanket by placing items on top of it during storage.

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. What if there are problems?

Problem Cause Solution The indicator lamp is not illuminated while - the controller is properly connected to the electric overblanket – the mains plug is connected to a working socket - the sliding switch for ON/OFF and temperature settings is set to 1, 2, 3, 4, 5 or 6 The safety system has switched the electric overblanket off perma

nently. Send the electric overblanket and the controller for servicing.

See the type plate label on the electric overblanket.

10. Warranty conditions

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows. The warranty conditions below shall not affect the seller’s statutory warranty obligations which ensue from the sales agreement with the buyer. The warranty shall apply without prejudice to any mandatory statutory provisions on liability. Beurer guarantees the perfect functionality and completeness of this product. The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller. The warranty only applies to products purchased by the buyer as a consumer and used exclusively for per

sonal purposes in the context of domestic use. German law shall apply.16 During the warranty period, should this product prove to be incomplete or defective in functionality in accord- ance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions. If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses. The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required. A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with - a copy of the invoice/purchase receipt, and - the original product. The following are explicitly excluded from this warranty: - deterioration due to normal use or consumption of the product; - accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories); - products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer; - damage that arises during transport between manufacturer and customer, or between service centre and customer; - products purchased as seconds or as used goods; - consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions). Repairs or an exchange in full do not extend the warranty period under any circumstances. Subject to errors and changes17 Sommaire Explication des symboles Lire les consignes ! Lavable en machine en cycle extra-délicat 30
