Technical Features	BEURER HT 60 curling iron with fast heating technology, ceramic coating for even heat distribution.
Barrel Diameter	25 mm
Adjustable Temperature	From 120°C to 200°C
Heating Time	Approximately 30 seconds
Usage	Ideal for creating curls and waves on all hair types.
Maintenance	Clean the coating with a soft cloth, do not immerse in water.
Safety	Automatic shut-off after 60 minutes of inactivity, swivel cord to prevent tangling.
General Information	Lightweight, ergonomic design, ideal for home and professional use.

Frequently Asked Questions - HT 60 BEURER

How do I use the BEURER HT 60 curling iron?

To use the BEURER HT 60 curling iron, plug in the device, set the desired temperature, wait for the iron to heat up, then wrap a strand of hair around the barrel and hold for a few seconds before releasing.

What is the maximum temperature of the curling iron?

The BEURER HT 60 curling iron can reach a maximum temperature of 200°C.

How do I clean the curling iron after use?

To clean the curling iron, unplug the device and let it cool down. Use a slightly damp soft cloth to wipe the barrel. Do not immerse the device in water.

Why don\'t my curls hold?

If your curls don\'t hold, check the iron\'s temperature, make sure your hair is dry and clean, and try using a styling product to help maintain the shape.

Is the curling iron suitable for all hair types?

The BEURER HT 60 curling iron is suitable for most hair types, but it is recommended to choose a lower temperature for fine hair and a higher temperature for thick hair.

What should I do if the curling iron doesn\'t heat up?

If the curling iron doesn\'t heat up, check that it is properly plugged in and that the outlet is working. If the problem persists, contact customer service.

Does the BEURER HT 60 curling iron have an automatic shut-off feature?

Yes, the BEURER HT 60 curling iron is equipped with an automatic shut-off feature for safety reasons.

Can I use the curling iron on wet hair?

It is recommended to use the curling iron on completely dry hair to avoid damaging the hair and to achieve better results.

How do I adjust the temperature of the curling iron?

To adjust the temperature, use the control button located on the body of the device to select the desired temperature.

Is there a warranty for the BEURER HT 60 curling iron?

Yes, the BEURER HT 60 curling iron usually comes with a limited warranty. Please refer to the user manual for more details.

USER MANUAL HT 60 BEURER

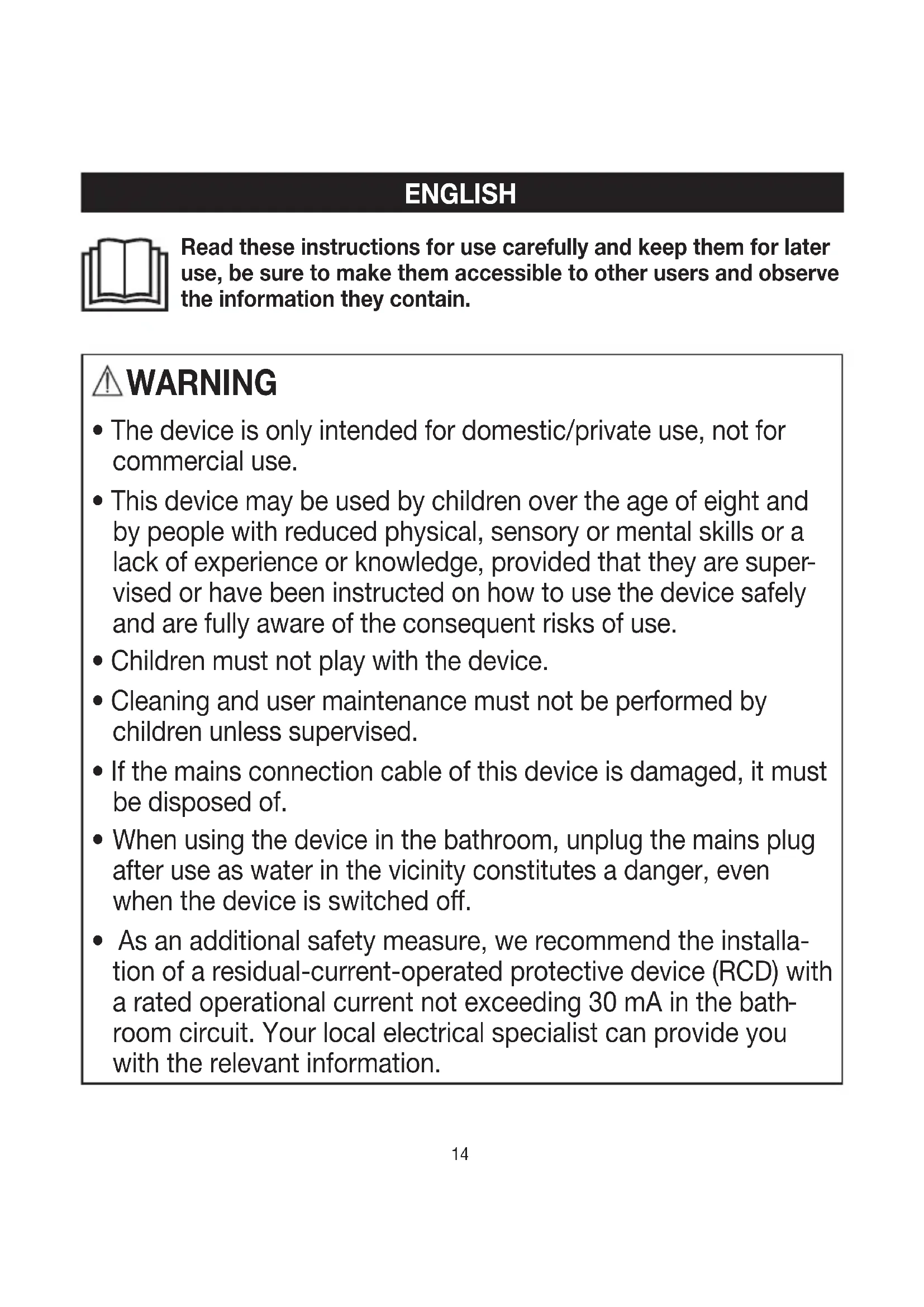

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• The device is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely and are fully aware of the consequent risks of use.
  Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• If the mains connection cable of this device is damaged, it must be disposed of.
• When using the device in the bathroom, unplug the mains plug after use as water in the vicinity constitutes a danger, even when the device is switched off.

• As an additional safety measure, we recommend the installation of a residual-current-operated protective device (RCD) with a rated operational current not exceeding 30mA in the bathroom circuit. Your local electrical specialist can provide you with the relevant information.

• Never use the device near baths, wash basins, showers or other objects containing water or other liquids – risk of electric shock!

• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply will invalidate the warranty.

Dear customer,

Thank you for choosing a product from our range. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, air and baby.

With kind regards

Your Beurer team

Intended purpose

With the multi-function styler, you can shape your hair in a wide variety of styles and create your individual look for every occasion.

The 360^ rotatable joint on the mains cable makes for flexible use of the multi-function styler.

The easy lock system makes it possible to switch the attachments quickly.

The ceramic coating of the crimping and straightening iron provides for an even heat distribution and a smooth surface texture. This provides for gentle styling of your hair.

The unit is intended only for the purposes described in this instruction manual.

The manufacturer cannot be held liable for any damages that are caused through improper or careless use.

Contents

1. Included in delivery.. 16
2. Signs and symbols 16
3. Intended use 17
   4.Warnings and safety notes.. 17
4. Device description 18

5. Initial use 19

6. Usage 20

7. Cleaning and maintenance 23
8. Disposal 23
9. Technical specifications 23
10. Warranty / Service 24

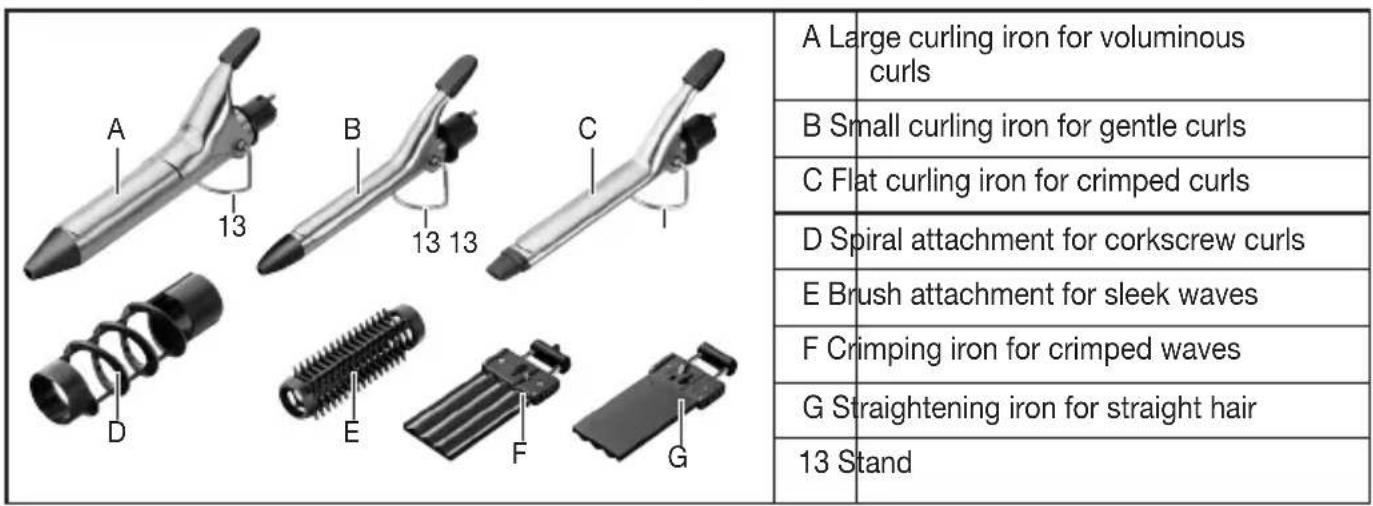

1. Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

1 x Multi-function styler
1 x Straightening iron
1 x Crimping iron
1 x Large curling iron
1 x Small curling iron
1 x Flat curling iron
1 x Spiral attachment
1 x Brush attachment
1 x This instruction manual

2. Signs and symbols

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

	Warning Warning instruction indicating a risk of injury or damage to health		Manufacturer
	Important Safety note indicating possible damage to the device/accessory	i	Product information Note on important information
	Danger The device must not be used near to water or in water (e.g. in a wash basin, or in the shower or bath) – risk of electric shock!	EAC	Certification symbol for products that are exported to the Russian Federation and members of the CIS
	Read the instructions	21 PAP	Dispose of packaging in an environmentally friendly manner
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE	CE	CE labelling This product satisfies the requirements of the applicable European and national directives.
	Protection class II device The device is double-protected and thus corresponds to protection class 2

3. Intended use

The multi-function styler must be used only for individual, private shaping and styling of your hair!

Warning

Use the unit only:

• For external use
• For the purpose for which it was developed and in the manner specified in these instructions for use.

Any improper use can be dangerous!

4.Warnings and safety notes

Danger

To avoid damage to health, we strongly advise against using the device in the following situations:

• Never submerge the device in water or other liquids! Risk of electric shock!
• If the device should fall into water despite following all safety precautions, immediately pull the mains plug from the socket! Do not reach into the water! Risk of electric shock!
• Have the device checked by an authorised specialist workshop before using it again! Danger to life due to electric shock!
• If the device has been dropped or has suffered any other damage, it must no longer be used. Risk of electric shock and injury!
• If there is visible damage to the device, mains cable/plug or accessory. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address. Risk of electric shock!
• Keep packaging material away from children - risk of suffocation!
• Do not use extension cables in the bathroom to ensure the mains plug can be accessed quickly in an emergency.

Warning

To avoid damage to health, please note the following:

• Ensure that no highly flammable liquids are located near the device. Risk of fire!
• Place the device on non-flammable surfaces only. Risk of fire!
  The device must not be covered - risk of fire!
• Do not use the device on synthetic hair - risk of fire!

Notes

• Remove all packaging material before using the device.
• Connect the device only to a socket featuring the voltage stated on the type plate.
• Only pull the mains cable from the socket by the mains plug.
  Do not use any additional parts that are not recommended by the manufacturer or offered as accessories.

• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply will result in voiding of the warranty.

• In the event of a fault or damage, have the device repaired by a certified specialist workshop.

• Never leave the device unattended during use.
• Do not use the device outside.
• If you pass on the device to someone else, make sure to also pass on these instructions for use.

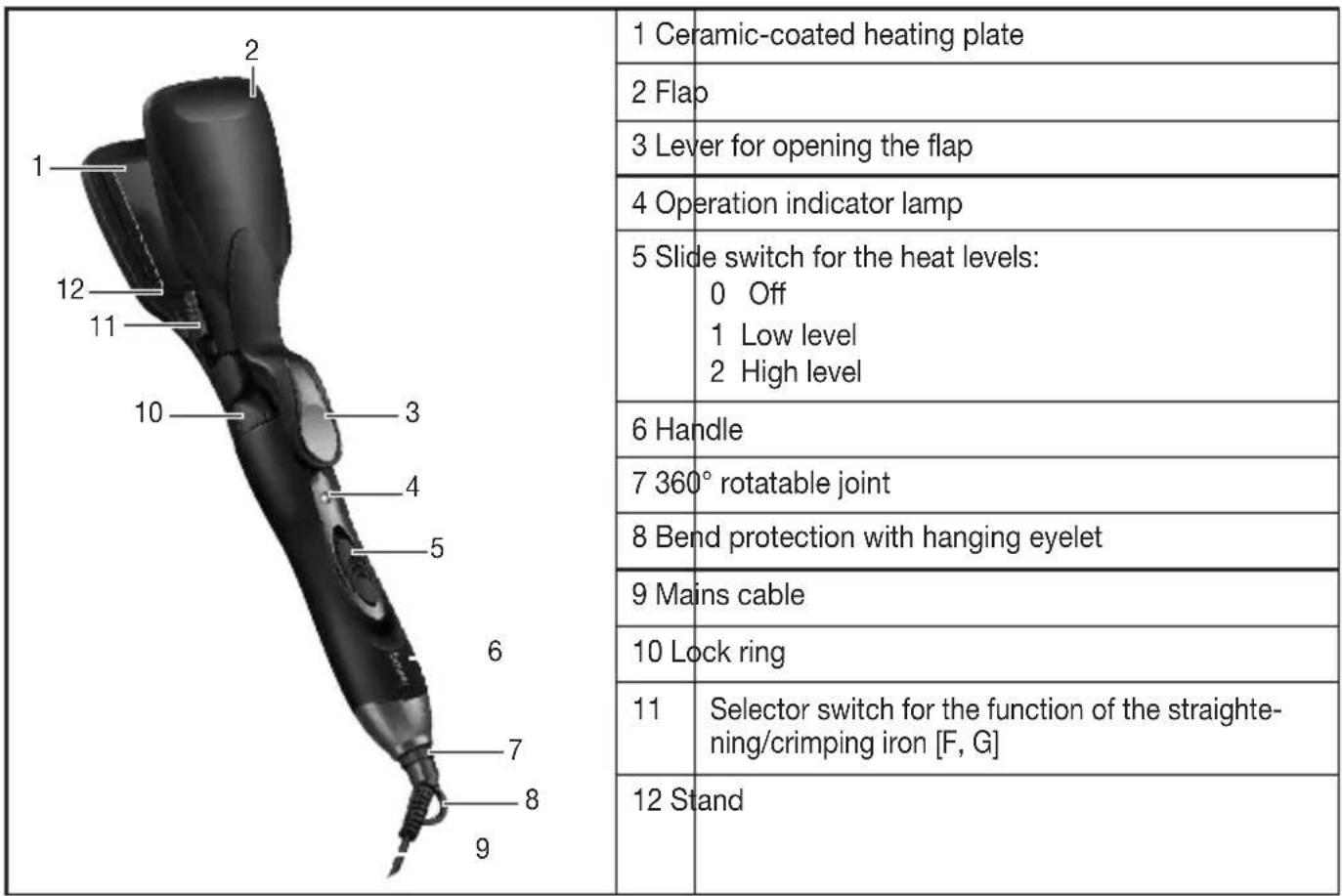

5. Device description

6. Initial use

Warning

• Position yourself on a dry, non-conductive surface. Risk of electric shock!
• Make sure that your hands are dry! Risk of electric shock!
• Your hair must be dry! Risk of electric shock!
• The device can become very hot. When the device is hot, it must only be held using the handle [6] - risk of burns and fire!
• Do not touch the hot plates [1]. Risk of burns!
• Do not wedge any objects between the hot plates [1] and the heating tube and the clip piece.
• Switch the device off immediately if it is faulty or not working properly.
• Place the multi-functional styler with the support stand [13] folded out on a stable, horizontal and non-flammable surface, or hold the multi-functional styler in your hand. Risk of fire!
• Always allow the connected attachment to cool before removal - risk of burns!

Important

• Untangle the mains cable [9] if it is twisted.
• Do not pull, twist or bend the mains cable [9] and do not pull or route it over/on sharp, pointed objects or hot surfaces.
• Do not trap the mains cable [9] in drawers, doors, between the hot plates [1], etc. Damaged or tangled mains cables increase the risk of electric shock!

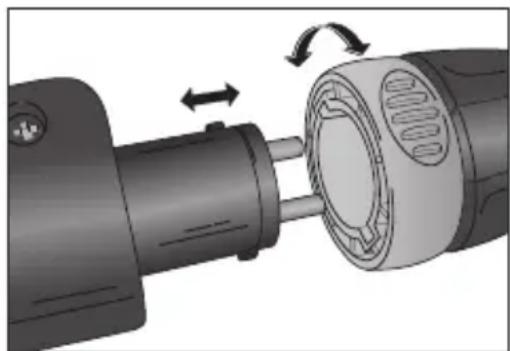

Changing attachments

Select the appropriate attachment for the desired hairstyle [12, A, B, C].
Turn the locking ring [10] fully clockwise. The connected attachment is released.
Take the attachment off the handle [6].
Align the selected attachment as shown in the image.
Without tilting the two metal pins, carefully slide the selected attachment into the handle [6].
Turn the locking ring [10] fully anti-clockwise. The attachment is locked in place.
Check that the attachment is firmly secured to the handle [6].

Setting the temperature

The sliding switch [5] allows you to choose between two temperature settings. We recommend the following temperature setting depending on your hair type:

Setting Hair	type
1: Low Fine, brittle, coloured or bleached hair
2: High Normal	and strong hair

Note

• The higher the temperature selected, the faster you will achieve the desired result.
• Use the sliding switch [5] to select the required temperature setting.
• The multi-functional styler is ready to use in a few minutes.

7. Usage

Preparing your hair

Dry your hair fully before using the multi-functional styler.
Your hair should be clean and free of any styling products.
Untangle your hair by combing it with a rough-toothed comb.

Forming curls/waves

You can shape your hair with the curling tongs [A, B, C]:

Divide your hair into individual sections approximately 2 centimetres wide. Hold the section taut.
Press on the curling tongs lever to open the clip piece.
Place the hair section with the tips between the heating tube and the clip piece of the curling tongs.
Close the clip piece to secure the hair.
Wind the hair around the curling tongs towards your head.
Leave the curling tongs in the hair for approximately 8 to 10 seconds. This will achieve the best results without subjecting your hair to excess stress or damage.
Open the clip piece and carefully pull the heating tube away from the curl.

Shaping ends

Place the hair section with the tips between the heating tube and the clip piece of the curling tongs.
Close the clip piece to secure the hair.
To shape the ends, turn the curling tongs inwards or outwards before pulling the ends outwards.

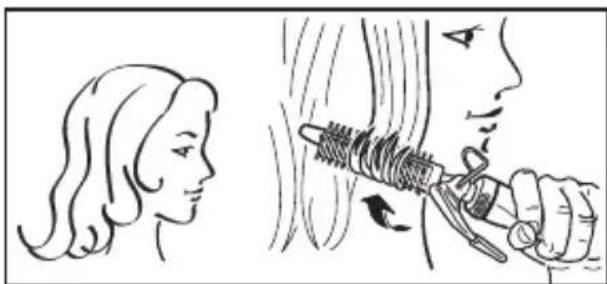

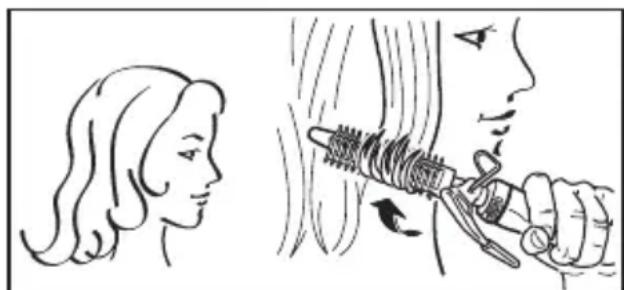

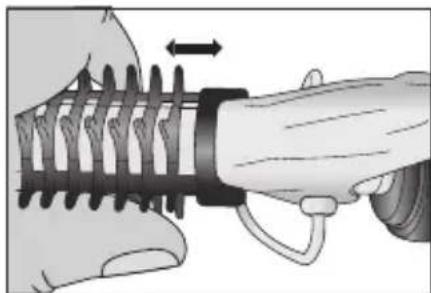

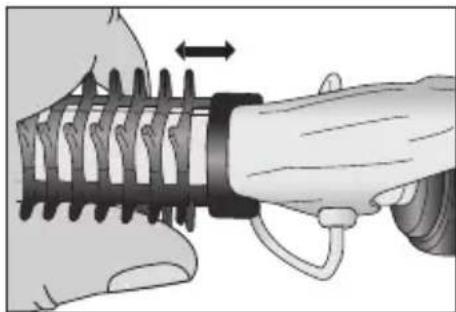

Using the brush attachment

You can use the brush attachment [E] with the curling tongs [B]:

Make sure that the curling tongs [B] are cool.

With the notch facing upwards, carefully slide the brush attachment [E] fully onto the cold curling tongs [B].
The clip piece must be closed in order to do this.
Divide the hair into individual sections. Hold the section taut.
Wind the section of hair around the brush.
Wait approximately 10 seconds before unwinding the hair.

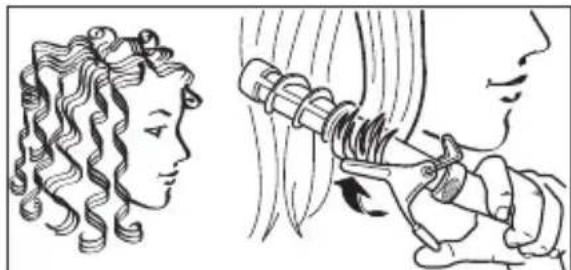

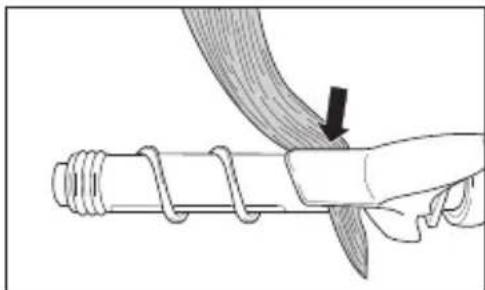

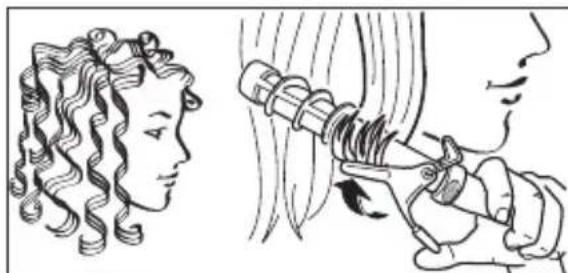

Using the spiral attachment

You can use the spiral attachment [D] with the curling tongs [A]:

Ensure that the curling tongs [A] are cool.

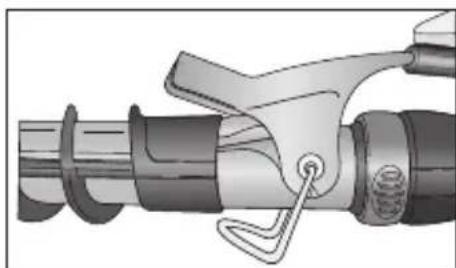

Slide the spiral attachment [D] down to the middle of the closed, cold curling tongs [A].
Press on the curling tongs lever to open the clip piece.
Carefully slide the spiral attachment [D] fully onto the cold curling tongs [A].
Close the clip piece.
Divide the hair into individual sections. Hold the section taut.

Press on the lever of the curling tongs [A] to open the clip piece.

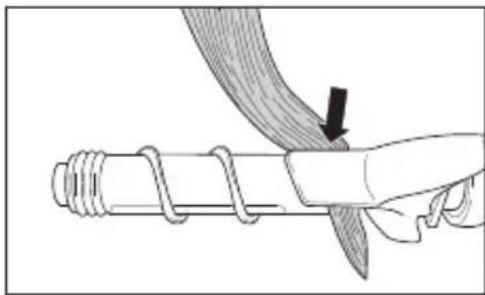

Place the hair section with the tips between the heating tube and the clip piece of the curling tongs [A].
Close the clip piece to secure the hair.

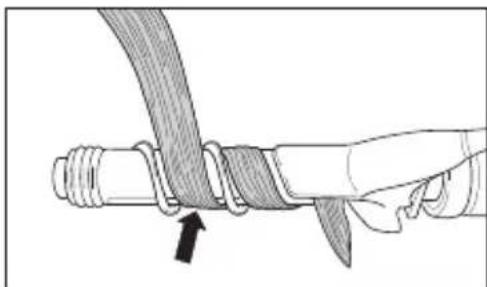

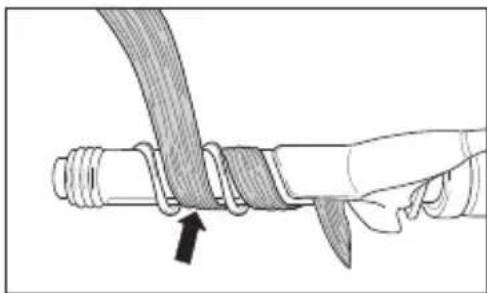

Wind the hair around the spiral attachment [D] towards your head. Ensure that the hair is wound as shown in the image.
Wait approximately 10 seconds before unwinding the hair.
Open the clip piece and pull the hair away from the clip piece.

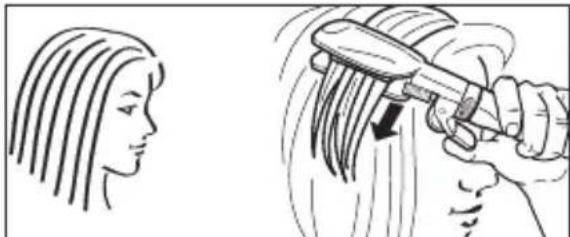

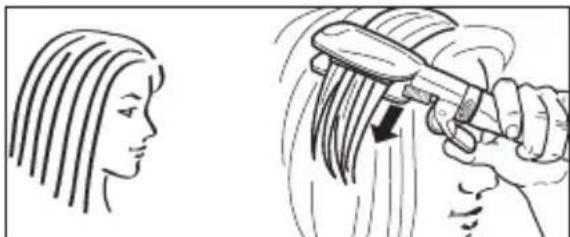

Using the straighteners

Connect the straighteners/crimping attachment [12] to the multi-functional styler.

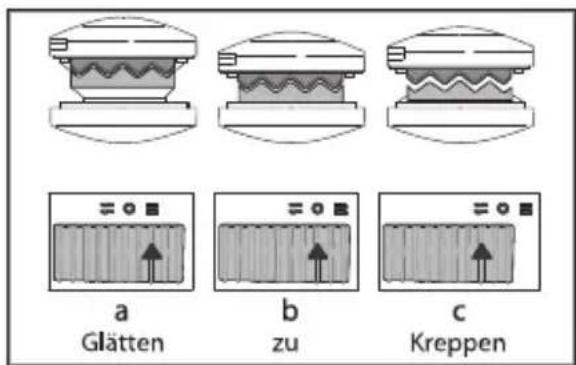

Slide the selection switch [11] to the "straighten" position [a]. The straighteners [G] can now be used.
Divide your hair into individual sections approximately 3 centimetres wide. Hold the hair section taut and place between the straighteners [G] at the root.

Slowly and evenly move the hair straighteners from root to tip. Do not hold the hair straighteners in the same place for more than 8 to 10 seconds. This will achieve the best results without subjecting your hair to excess stress or damage.
To shape the ends, turn the hair straighteners inwards or outwards before pulling the ends outwards.

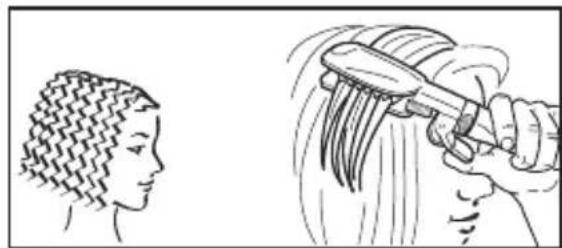

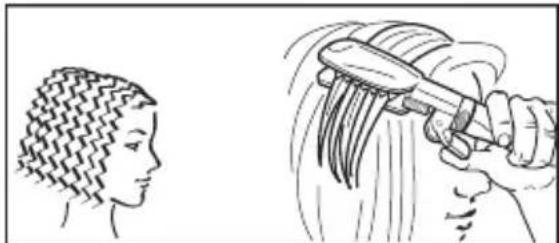

Using the crimpers

Connect the straighteners/crimping attachment [12] to the multi-functional styler.

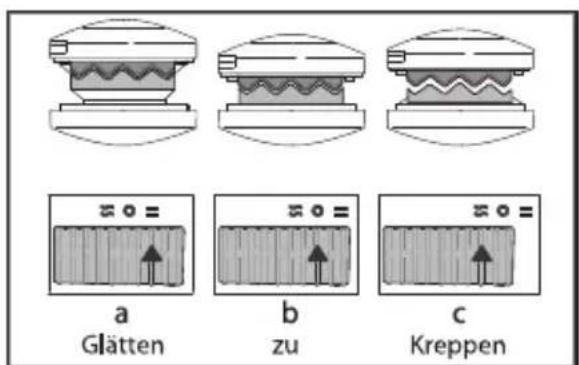

Slide the selection switch [11] to the "crimp" position [c]. The crimpers [F] can now be used.
Divide the hair into individual sections. Hold the hair section taut and place between the crimpers [F] at the root.
Close the crimpers [F] for approximately 10 seconds. This will achieve the best results without subjecting your hair to excess stress or damage.
Open the crimpers [F] and take out the hair.
Repeat the process until you reach the tip.

After use

Place the sliding switch [5] on the device in position 0.
Place the multi-functional styler with the support stand [13] on a stable, horizontal and non-flammable surface to cool down, or hold the multi-functional styler in your hand.
After each use, pull the mains plug out of the socket.
Do not wind the mains cable [9] around the device!
Store the device in a dry place out of the reach of children.
The device can be hung on a hook using the hanging eyelet [8].

8. Cleaning and maintenance

Cleaning

Warning

• Always pull the mains plug out of the socket before cleaning the device. Risk of electric shock!
• Ensure that no water gets inside the device! Risk of electric shock!
• Do not clean the device with highly flammable liquids! Risk of fire!

Notes

• Your device is maintenance-free.
• Protect the device from dust, dirt and humidity.
• Do not clean the device in the dishwasher.
• Do not use any aggressive, caustic, abrasive, or corrosive cleaning products or hard brushes.
• The device may be cleaned with a soft cloth dampened with warm water.
• Dry the device and attachments with care after cleaning!

9. Disposal

In the interest of protecting the environment, the unit must not be thrown out with the household waste at the end of its service life.

Dispose of the unit at a suitable local collection or recycling point.

Observe the local regulations for material disposal.

Please dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any queries, please contact the appropriate local authorities.

10. Technical specifications

Weight Approx. 420 g
Power supply 220-240 V~, 50-60 Hz
Power consumption 25 W
Temperature range 125 to 160 °C
Safety class II
Ambient conditions Only approved	for indoor use
Allowable temperature range -10 to +40 °C

Subject to technical modifications.

11. Warranty / Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as "Beurer") provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is xx years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.

German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached "International Service" list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

• a copy of the invoice/purchase receipt, and
• the original product.

The following are explicitly excluded from this warranty:

• deterioration due to normal use or consumption of the product;
• accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);
• products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;
• damage that arises during transport between manufacturer and customer, or between service centre and customer;
• products purchased as seconds or as used goods;
• consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.

FRANÇAIS

Chere cliente, cher client,

LLeTky [E] MoXHo IcNoIb3OBaTb c UInIaMn [B]:

Y6eNTecb,HTO uINuB [B]ocTBnN.

OctopoxHO hacaunTe ueKy [E] yIy6JIeHnEM BBepx Ha xOJIoHNbIe ⅢnIuB [B] do ynpa.
UINPbI pN 3TOM DOJXHbI 6bITb 3aKpbITbl
Pa3dJIte BOJOCbI Ha OTdJIbHbIe npaI. DepeKHTe npaIb HATaHyToI.
HaKpyTnte npaB ha ueTKy.
ПодoxДиTe npimepHNo 10 cekyHД,ЗaTeM packpyTte npAdb.

IcnoJb3OBAHne cnpaJbHOHaCAdKn

CnnpaJIbHyIO HacaIky [D] MoXHO NcIPOJb3OBAtB C IuIpIamn [A]:

Y6eNTecb,yTO uHnUby [A]octbJIn.
YcTaHOBnTe CnnpaIbHyIO HacaIKy [D] Do cepeHbI Na3akpyToOxJaXeHHoN NIOKoA [A].
HaKMnTe Ha pbIyar NIOJKN, YTO6bl OTKpbITb ⅢNIIuB1.
Octopoxno nepemecntte cnnpaIbHyIO hacaKy [D] Do ynpa Ha xoIoNDHyIO pIoKy [A].
3aKpOInTe ⅢnIuIbI.
Pa3dene BoIocbHa OTdeIbHbIe npaI. IepKnte npraDb HATyToI.

HaXMMTe Ha pbIar nIOJKN [A], yTO6bl OTKpbITb nnIuIbI.
YIoxKe KOHeu pRyMmEJy HaPeBaTeJIbHOITpy6KoN uIINaMn IIOJKn [A].
3aKpoITe ⅢnIbI, YTO6bI 3aФИКСИРОВaTb npAIOBBOJOC

HaKpyTne npaHb Ha cnpaBHyu HacaKy [D] no HanpaBHeHIO K rOIOBE. CneIte 3a TeM, YTO6bl npAIB BOLOC 3aKpyHbAlacb B COOTBeTCTBUN C uNIOCTpAunei.
ПодoxДиTe npIMeHNo 10 cekyHД,ЗaTeM packpyTte npAdb.
OTKPOIe uINuBn H3BJIeKUTe npraDb n3 uINuOb.

IcnoB3OBAHne BbIPpMJIIOUeN IlaCTINbI

YcTaHOBnTE BbIPrMJIIOUyO/ROΦpnpIyUOuHacaKv [12]HaMVNbTnCTaJIeP DnRA BOJoc.
Переметитenepeknioateleb[11]Вплохенe «Бырмпь» [a].TepepbMOxHoИспОьзOBaТБ BырмЯюуIOпlaCTHy[G].
Pa3deneBOLOCbHaOTdEhBHe npaHnHOp npimepHo 3 caHTmEtpa.HaTaNHe npaDb n yloXnTe ee y KopHeB BOLOc MeJy BblpA MIOUIMN pIacTHAmn [G].

MeJHeH No paBHomepHo nepeBnraTe BbInpMaTteN bOLOC OT KOpHei K KOHcAm BOLOc. He OCTaBnIe BbInpMaTte N dN BOLOC Ha ODHOM MeCTe 60nee 8-10 cekHy. TaK Bbl nolnyuTe hauNyUne pe3yIbTaTbI, He CImlKOM CInbHO NOBpeXdA BOLOcbI.

Bbl moxkeTe npuadTb fOpmy KOHcAm BOLOC, NOBopauNBA BblprrMntelIb InRA BOLOC COOTBeTCTBEHNO HApXyIIN BOHyTpB, a 3aTeM nPoTARIBa erO HApXy Do KOHcOB BOJOC.

IcnoIb3OBaHne roΦpnpuOeI pIaCTnHbI

YcTaHOBnTE BbIPrMJIIOUyIO/roOpPnPOBaHHyIO HacaIky [12]Ha MyJbTnCTaIneP dIra BOIoc.
ПеремecтITE nepeknioateIb [11]В noLoXeHne «FopnpoBaTb»[c].Tepeb MoKHO nCNoJb3OBaTb roPpnpUOuYIOJIaCTnHy[F].
Pa3dJIInTe BOJOCbHa OTdJIbHbIe npraI. DePKeNTe npaIb HATaHyToI yIOnKInTe ee y KOpHei BOJOC MeXdy roDpnpUOuMn pIaCTnHamn [F].
ComKnTe roΦpnpyUOuIe nlaCTnHb[F] npImepHo Ha 10 ckyHd. TaK Bbl nonyuHTe HauNyUuIe pe3yNbTaTb, He CJIiHKOM CNJbHO NOBpeXdA BOIOcbl.
CHOBAOTKpoTe rooepnpuyuoyu nlaCTnHy [F] n BbITaHNTe pRdBoJOC.
ПОВТОРИЕnpoцeдур,пoka He DoiIeTe Do KOpHeN BOJOC.

После пименья.

BkIIOUHTe np6Op, nepemecTnB nepeKIOUOaTeJIb [5] B noJIOKeHne 0.
Дя oxлajckdeHn yctahOBITE MyIbIcTaJIneP IЯ BONOC OTKNHYToN NOCTaBkoI [13] Ha yctOuHyBO TROP3OHTaJIbHyIO ORHeCToNkyIO ONOpY uIN yDePxNBaIte erO B pyKe.
Послкakdo npimehennИЗВлкайтсeTeBOIшТКЕрИЗСТN.
He HamaTbBaIte ceTeBOJ Ka6eB [9] Ha npu6op!
XpaHnTe npu6Op B cyxom MeCTe, HeoCTvHOM dJa deTei.
Пибор может 6ытп поьшен 3а поушну [8] Ha кючok.

8.Очирkaи ухов

Ounstka

PpeodoctepexeHne

• Ipeed npoBeHem OuchKn Bcerda n3BneKaIe CeTeBOI sTeKeP n3 cTeH. OnaChocb npaXeHn 3JIeKTOnueckm TOKOM!
  CneiTe 3a TeM, TTo6bI BHyTpB npu6opa He nonana Boda! OnachocTb nopaxeHn EJekTpueCKm TOKOM!
  He nCIOB3yIe Tn ONUCTKn BOCIIaMeHReMbIe XuNKOCTn! OnaCHOCTb Ioxkapa!

Yka3aHn

Baw npibop He Tpe6yeT TexHnueckoro 06CnyXnBaHna.
- 3aunuainepn6op ot nbinn, rpa3n n Bna.
He MoTe Pn6Op B NocydomoeyHou MaunHe!
He nCnoB3yIe ocTpbIX, 3aocTppeHHbIX, a6pa3nBbIX n pa3beiaUx uCTraux cpeCTB nn JKeCTKnx IeTOK!
- Pn60p MoXHO OYHCTb C NOMOuB MOrKo TKaHN, CMOeHHo B TeTIOJ BOJe.
TtuaTeIbHO BbICVUnTE Prn6Op N HacaIKN PocJe OChCTK!

9.Утплзацья

B INTEpecax 3aunTbI OKpykaIOUe Cpebl NO OKOHuaHn Cpoka cnyk6bl CJeDyET yTNJIN3npoBaTb np6op OTdJIbHO OT 6bITOBORO Mycopa.

Ytunl3aJn DOnjHa npOn3BODnTbC qpe3 COOTBeTCTByOuIe NyHkTbI c6opa B Baen CTpaHe.

Co6JIIOaIte MeCTHbIe 3aKOHODaTeJbHbIe HOpMbI NO yTNIIm3aUIN OTXoIDOB.
