Technical specifications	METABO SSW 144 LT cordless screwdriver, maximum torque of 180 Nm, no-load speed of 0-2400 rpm, weight of 1.5 kg.
Battery type	14.4 V Li-ion battery, 2.0 Ah capacity.
Usage	Ideal for screwing and unscrewing in wood, metal, and composite materials.
Included accessories	Charger, carrying case, automatic chuck.
Maintenance and repair	Regularly check the condition of the battery and chuck, clean air filters if applicable.
Safety	Use protective glasses, do not use in damp environments, follow the safety instructions in the manual.
General information	3-year warranty on the tool, after-sales service available, spare parts accessible.

Frequently Asked Questions - SSW 144 LT METABO

How can I change the speed of the METABO SSW 144 LT?

To change the speed of the METABO SSW 144 LT, use the speed selector located on the top of the tool. Turn the selector to choose the desired speed.

The screwdriver does not work, what should I do?

Check that the battery is properly charged and inserted. Also make sure the safety lock is not engaged.

How can I tell if my battery is charged?

The METABO SSW 144 LT is equipped with a battery charge indicator. Check the LED display to verify the charge level.

What types of screws can I use with the METABO SSW 144 LT?

The screwdriver is compatible with screws up to 14 mm in diameter. Make sure to use screws suitable for the materials you are working with.

How do I clean my METABO SSW 144 LT screwdriver?

To clean your screwdriver, use a soft, dry cloth. Do not use harsh chemicals or water.

The screwdriver makes a strange noise, what should I do?

If the screwdriver makes a strange noise, stop using it immediately and check if debris is blocking the mechanism. If the problem persists, contact after-sales service.

What is the warranty for the METABO SSW 144 LT?

The METABO SSW 144 LT generally comes with a 2-year warranty. Check the specific terms in the user manual.

How can I store my screwdriver properly?

Store the screwdriver in a dry, cool place, away from moisture. Use the provided storage case to protect the tool.

Can I use accessories from other brands with the METABO SSW 144 LT?

It is recommended to use METABO accessories to ensure compatibility and safety. Accessories from other brands may not be suitable.

USER MANUAL SSW 144 LT METABO

Two melabo power drillers with black bases and metallic fittings, no visible text or symbols on the devices themselves.

Icon of a person reading a book inside a circle (no text or symbols)

(D) Originalbetriebsanleitung...... 5
ENG Original instructions.... 9
(F) Notice originale.... 13
NL Oorspronkelijke gebruiksaanwijzing... 18
IT Istruzioni originali.... 22
ES Manual original 27
PT Manual original 31
SV Bruksanvisning i original.... 35
FIN Alkuperäiset ohjeet.... 39
NO Original bruksanvisning 43
① Original brugsanvisning...... 47
POL Instrukcja oryginalna 51
EL Πρωτότυπο οδηγιών χρήσης .....56
HU Eredeti használati utasítás...... 61
RU Оригинальное руководство по эксплуатации. 65

		SSD 14.4 LT SSD 18 LT SSW 14.4 LT SSW 18 LT
U	V	14.4 18	14.4 18
n_0	/min, rpm	0-2600 0-26	50 0-2600 0-2650
S	/ m	i	n ,	b	p m
H	-	1/4" (6,35 mm) 1/2" (12,7 mm)
m kg (lbs)	1,7 (3.7) 1,8 (4.0)	1,7 (3.7) 1,8 (4.0)
M_max.,I	Nm (in-lbs)	75 (664) 80 (708)	90 (797)	105 (929)
M_max.,II	Nm (in-lbs)	115 (1018)	125 (1106)	130 (1151)	145 (1283)
M_max.,III	Nm (in-lbs)	140 (1239)	160 (1416)	200 (1770)	220 (1947)
a_h/K_h	m/s^2	6,5 / 2,2	7,7 / 1,8	6,5 / 2,2	7,7 / 1,8
L_pA/K_pA	dB(A)	95 / 3	96 / 3	95 / 3	96 / 3
L_WA/K_WA	dB(A)	106 / 3	107 / 3	106 / 3	107 / 3

EN 60745

2006/42/EG, 2004/108/EG

Volker Siegle

Director Innovation, Research and Development

Responsible Person for Documentation

© 2011 Metabowerke GmbH, 72622 Nürtingen, Germany

SSW...
1

Close-up of a metalworking tool with 'metabo' branding, no visible text or symbols on the device itself.

SSD...
2
3
4
5
6
7
8

metabo® 14.4 V Li-Power Plus metabo® AIR COOLED

metabo® AIR-COUDADO 14.4 V Li-Power Plus

9

Close-up of a mechanical component with a circular outline and internal structure (no visible text or symbols)

10
11

A

Two grayscale images of electronic devices labeled ASC 15 and ASC 30, showing front and side views (no additional text or symbols visible)

B

18 V 2,2 Ah 6.25469 Li-Power Plus 18 V 2,6 Ah 6.25457 Li-Power Plus 14,4 V 2,6 Ah 6.25456 Li-Power Plus 18 V 2,6 Ah 6.25459 Li-Power Extreme 14,4 V 2,6 Ah 6.25458 Li-Power Extreme

©
SSD...:

D
SSW...:

3D rendering of a rectangular mechanical component with multiple cylindrical holes, labeled 0901010021 (no other text or symbols)

9,5 mm (3/8")

$$ n _ {0} \quad = $$

Leerlaufdrehzahl

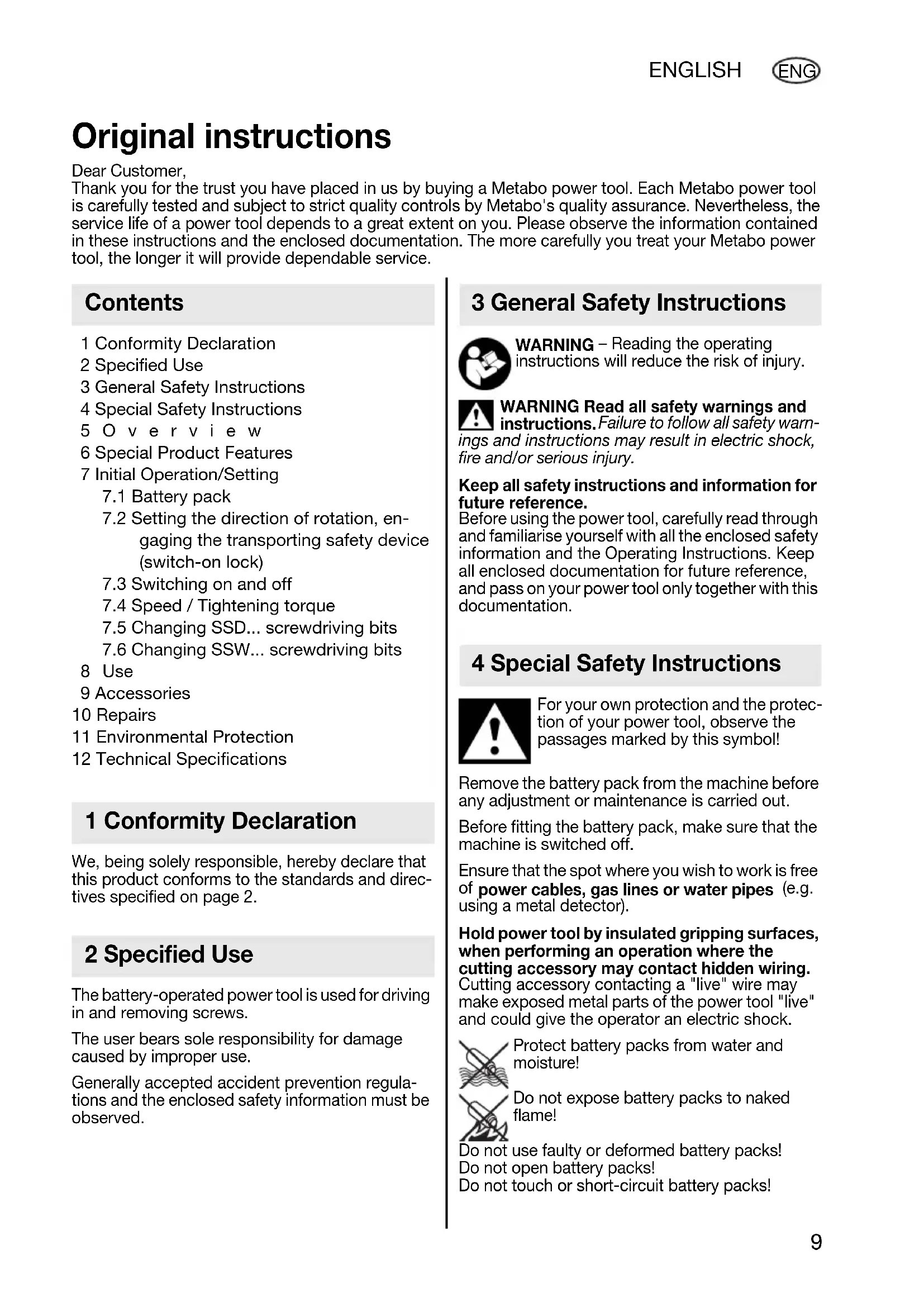

Original instructions

Dear Customer,

Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service.

Contents

1 Conformity Declaration
2 Specified Use
3 General Safety Instructions
4 Special Safety Instructions
5 Overview
6 Special Product Features
7 Initial Operation/Setting

7.1 Battery pack
7.2 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)
7.3 Switching on and off
7.4 Speed / Tightening torque
7.5 Changing SSD... screwdriving bits
7.6 Changing SSW... screwdriving bits

8 Use
9 Accessories
10 Repairs
11 Environmental Protection
12 Technical Specifications

1 Conformity Declaration

We, being solely responsible, hereby declare that this product conforms to the standards and directives specified on page 2.

2 Specified Use

The battery-operated power tool is used for driving in and removing screws.

The user bears sole responsibility for damage caused by improper use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3 General Safety Instructions

WARNING – Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety warn-

ings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the power tool, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation.

4 Special Safety Instructions

For your own protection and the protection of your power tool, observe the passages marked by this symbol!

Remove the battery pack from the machine before any adjustment or maintenance is carried out.

Before fitting the battery pack, make sure that the machine is switched off.

Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Protect battery packs from water and moisture!

Do not expose battery packs to naked flame!

Do not use faulty or deformed battery packs! Do not open battery packs! Do not touch or short-circuit battery packs!

Slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical treatment immediately.

Only screwdriving bits suitable for the impact screwdriver must be used.

Take care when driving in long screws - risk of slipping.

Mount the machine on the screw only when it is switched off.

Wear ear protectors when working for long periods of time. High noise levels over a prolonged period of time may affect your hearing.

Materials that generate dusts or vapours that may be harmful to health (e.g. asbestos) must not be processed.

LED (6): Do not view LEDs directly through optical instruments, LED class 1M, classified as per DIN EN 60825-1: 2003, wavelength: 400-700 nm; 300 μs.

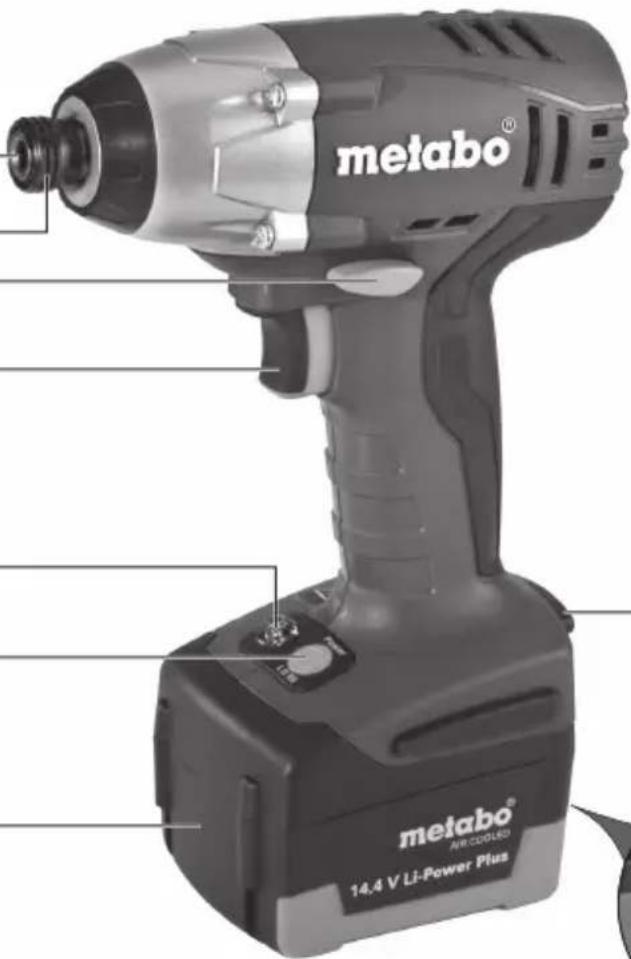

5 Overview

See page 3 (please unfold).

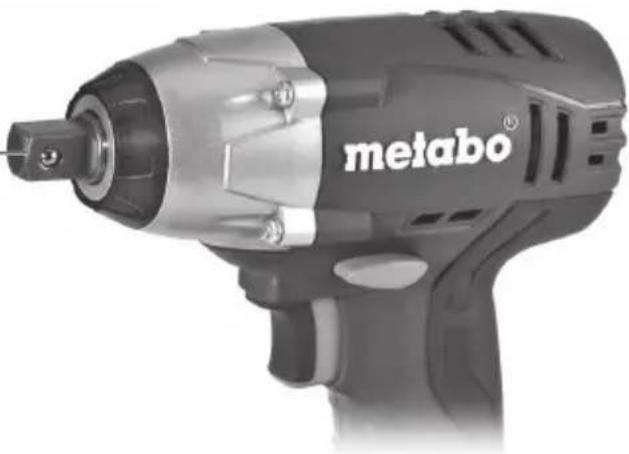

1 Square attachment for sockets*
2 Hexagon socket attachment for hexagon screwdriving bits*
3 Locking sleeve*
4 Rotational direction switch / Transporting safety device
5 Trigger
6 LED light For working on dimly lit areas. The LED lights light up when the machine is switched on.
7 Button for speed/tightening torque preselection
8 Battery pack
9 Button for battery pack release
10 Capacity indicator button
11 Capacity and signal indicator * depending on the features / model

6 Special Product Features

The battery-powered impact screwdriver is characterised above all by low-recoil work at high torques. This hardly perceptible reaction force is achieved by means of a rotary percussion mechanism designed for left and right rotation.

7 Initial Operation/Setting

Remove the battery pack from the machine before any adjustment or maintenance is

carried out. Before fitting the battery pack, make sure that the machine is switched off.

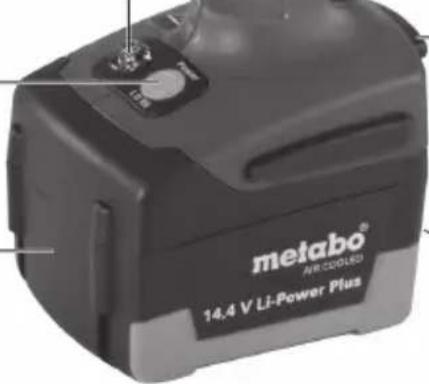

7.1 Battery pack

Charge the battery pack before use (8).

If performance diminishes, recharge the battery pack.

The ideal storage temperature is between 10^ C and 40^ C.

"Li-Power" li-ion battery packs have a capacity and signal indicator: (11)

• Press the (10) button, the LEDs indicate the charge level.
• If one LED is flashing, the battery pack is almost flat and must be recharged.

Removal:

Press the battery pack release (9) button and pull the battery pack (8) forwards.

Inserting:

Slide in the battery pack (8) until it engages.

7.2 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)

Do not actuate the rotation selector switch or engage the transportation lock (4) unless the motor has stopped completely!

Actuate the rotational direction switch / Engage the transportation lock (4)

R = Right rotation set (insert screws)

L = Left rotation set (remove screws)

0 = Central position: transportation lock setting (switch-on lock)

7.3 Switching on and off

To switch on: press the trigger switch (5).

Switching off: Release the trigger (5).

7.4 Speed / Tightening torque

The speed and tightening torque are connected directly. The lower the speed, the lower the tightening torque.

The tightening torque is influenced in two ways:

1) Preselect maximum tightening torque.

You can select one of three tightening torque settings by pressing the button (7). The maximum tightening torques are listed in the table on page 2 ( M_max.,I , M_max.,II , M_max.,III ).

Button (7) lights up briefly to indicate which setting is selected. For example: if the button lights up twice, this means that setting II is selected.

2) Stepless adjustment of the tightening torque:

The speed and tightening torque can be adjusted steplessly by pressing the trigger (5) firmly or lightly, thus adapting to working conditions.

Recommendation: determine the correct setting by carrying out trial screwdriving.

7.5 Changing SSD... screwdriving bits

Inserting screwdriving bit: Slide locking sleeve (3) forward and insert screwdriving bit as far as the stop. Release locking sleeve (3).

Pull on the screwdriver bit to check that it is correctly seated.

Removing screwdriving bit: Slide locking sleeve (3) forward and remove screwdriving bit.

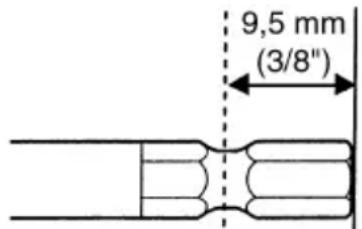

Only use screwdriving bits with such plug-in ends:

9,5 mm (3/8")

The screwdriving bit used must match the screw.

Damaged screwdriving bits must not be used.

7.6 Changing SSW... screwdriving bits

Inserting screwdriving bit: Insert the socket all the way into the square attachment (1).

Removing screwdriving bit: Pull the socket out of the square attachment (1).

The screwdriving bit used must match the screw.

Damaged screwdriving bits must not be used.

8 Use

Mount the machine on the screw, ensuring it is aligned straight.

The screwdriving process has two elements: inserting the screw and tightening the screw with the percussion mechanism.

The tightening torque depends on the impact duration.

With an impact duration of approx. 5 seconds, the maximum tightening torque has been reached.

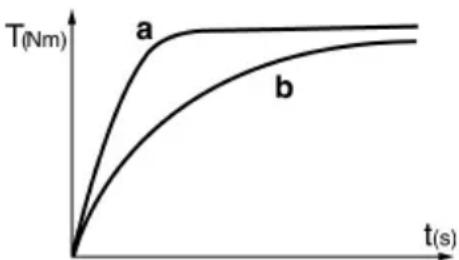

The torque curve depends on the type of application:

With a hard screwdriving application (screw-couplings in hard material such as metal), maximum tightening torque is already reached after a short impact duration (a).

With a soft screwdriving application (screw-couplings in soft material such as wood), a longer impact duration (b) is required.

Recommendation: determine the correct impact duration by carrying out trial screwdriving.

Caution! With small screws, maximum torque can be reached even below an impact duration of 0.5 seconds.

• This is why the duration of the screwdriving process must be monitored exactly.
• Select a suitable maximum tightening torque on button (7) (see chapter 7.4).
• Adjust the tightening torque by pressing firmly or lightly on the trigger (5), ensuring that the screw is not damaged or that the screw head does not tear off.

9 Accessories

Use only genuine Metabo accessories.

For dealers to select the correct accessory, they need to know the exact model designation of your tool.

See page 4.

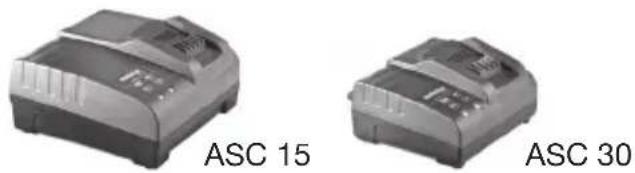

A Chargers

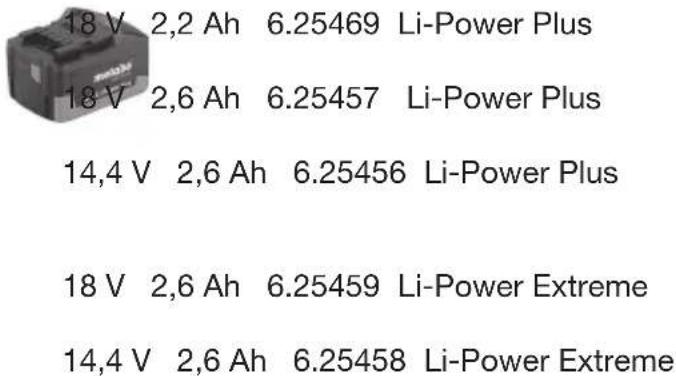

B Battery packs with different capacities: Use battery packs only with voltage suitable for your power tool.

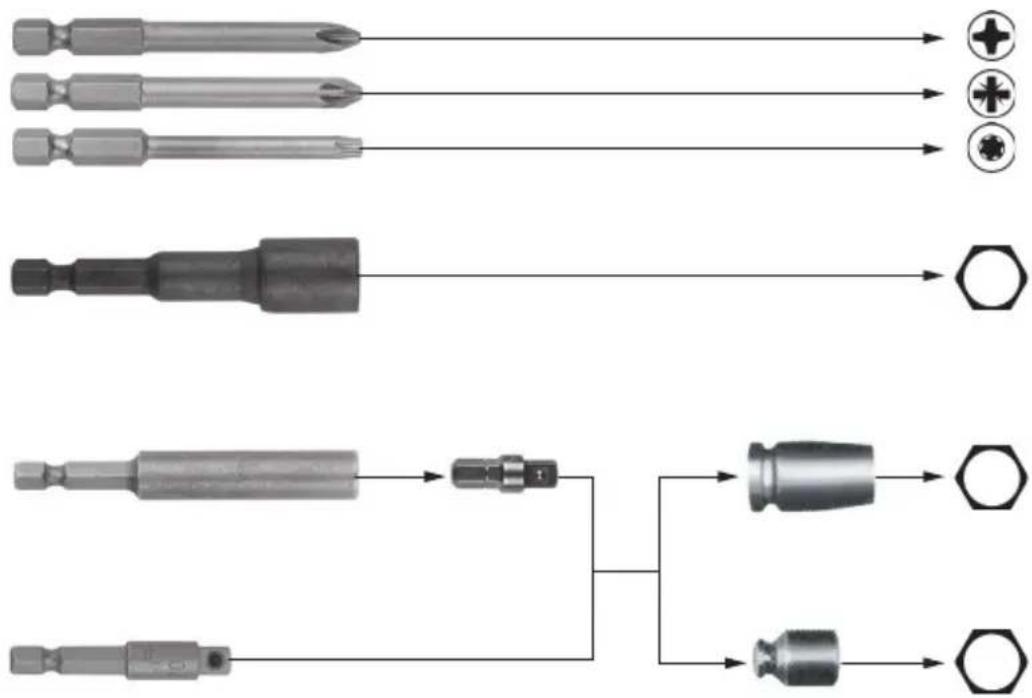

C Screwdriving bits
D Socket set 1/2"

10 Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.

You can download spare parts lists from www.metabo.com.

11 Environmental Protection

Metabo's packaging can be 100% recycled.

Scrap power tools and accessories contain large amounts of valuable resources and plastics that can be recycled.

These instructions are printed on chlorine-free bleached paper.

Battery packs must not be disposed of with regular waste.

Please return faulty or used battery packs to your Metabo dealer.

Do not allow battery packs to come into contact with water!

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline

2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

Before disposal, discharge the battery pack in the power tool. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).

12 Technical Specifications

Explanatory notes on the specifications on page 2.

Changes due to technological progress reserved.

U = Voltage of battery pack

n_0 = No-load speed

s = Impact frequency

H = Machine tool attachment

m = weight (with smallest battery pack)

M_max_1 = Max. tightening torque (setting I)

M_max..II = Max. tightening torque (setting II)

M_max., III = Max. tightening torque (setting III)

Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

a_h = Vibration emission value (screwdriving with impact)

K_n = Uncertainty (vibration)

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It is also suitable for a provisional estimate of the vibratory load.

The specified vibration level applies to the main applications of the power tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This can considerably increase the vibratory load over the entire working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Typical A-effective perceived sound levels:

L_pA = Sound pressure level

L_WA = Acoustic power level

K_pA, K_WA = Uncertainty (noise level)

Wear ear protectors!

Measured values determined in conformity with EN 60745.

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

Notice originale

Cher client,

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

Skruvbitsen ska passa skruven.

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

$$ K _ {n} = \text { Usikkerhed (vibration) } $$

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")

9,5 mm (3/8")
