USER MANUAL Therme Trumatic
Operating instructions
Filling the Therme with water 9
Electrical operation 9
Using the water 9
Draining the Therme 9
Maintenance 9
Trouble-shooting list 10
Technical data 10
Manufacturer's terms of warranty 11
Symbols used
Symbol indicates a possible hazard.
Comment including information and tips
Intended use

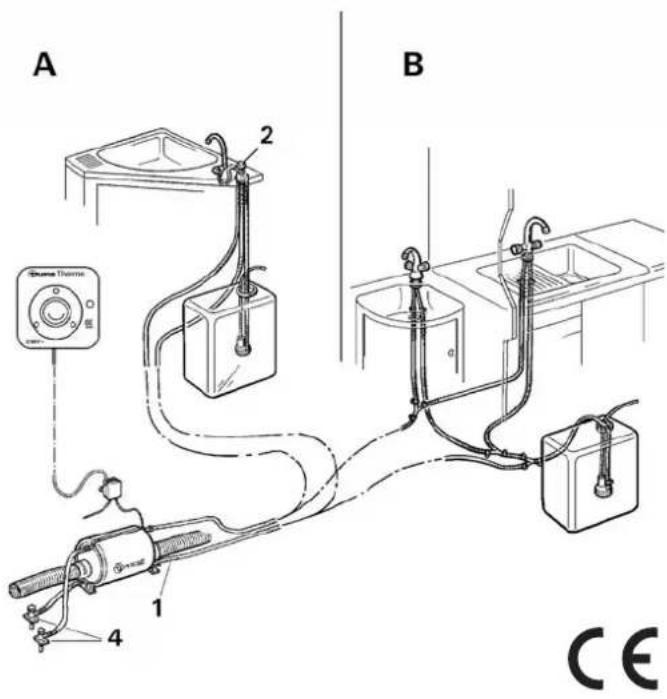

The water in the Therme is heated by the hot air of the heating system or by a 230 Volt electric heater element.
Operating instructions
Always observe operating instructions prior to starting! The vehicle owner is responsible for the correct operation of the appliance.
Never operate the Therme electrically without water contents! Don't forget to turn the appliance off when the caravan is not being used! Drain in event of frost! There shall be no guarantee claims for damage caused by frost!
The installer or vehicle owner must affix the yellow sticker with the warning information, which is enclosed with the appliance, to a place in the vehicle where it is clearly visible to all users (e.g. on the wardrobe door)! Ask Truma to send you a sticker, if necessary.
Repair work is only to be carried out by an expert!
The Therme is designed for pressure-free operation. In order to enable the pressure, which builds up during the heating up procedure, to escape, there is to be no non-return valve installed in the cold water supply (1) between Therme and submergible pump.
When connecting to a central water supply (city mains) or when using stronger pumps, a pressure reduction valve must always be installed to prevent that pressures above 1.2 bar develop in the Therme. In addition, a safety/drain valve (accessory, part no. 70141-10) must be installed into the cold water supply line (1).
Materials in the device which come into contact with water are suitable for use with drinking water (see manufacturer declaration: www.truma.com - Manufacturer Declaration).
Filling the Thermo with water
Turn draining and ventilating valves (4) to full extent to close.
With pre-mixing valve
Turn control knob (2) of pre-mixing valve to stop on red symbol (hot).
With pre-selecting mixing tap(s)
Open hot water tap with pre-selecting mixing taps or set single lever mixer to "hot".
Leave the tap(s) open to let air escape and let the Therme fill up with water until water flows out of the tap.
Electrical operation
Switch the switch (3) on the control panel to "on". The indicator lamp indicates that the appliance is switched on. The water temperature is regulated at 65^ by the thermostat.
When using the vehicle switches: refer to operating instructions of the vehicle manufacturer.
The electrical heating rod is fitted with an excess temperature cut-out. In the event of a fault, switch off at the rol panel, wait 5 minutes, then switch on again.
Using the water
The water temperature is mixed according to the position of the pre-selecting mixing tap(s) or premixing valve. Make sure that the water pump is switched off when you have finished using the water.
Draining the Therme
If the mobile home is not used during periods of frost, it is essential that the Therme be emptied!
- Interrupt current for water pump (main switch or trans former).
- Drain water from tank (or remove water pump from tank).
- Open taps in kitchen and (or) bathroom and set pre-mixing valve(s) - if available - to hot.
- Turn draining and ventilating valves (4) to full extent to open.
- Check whether all the water content (5 litres) has completely run out.
There shall be no guarantee claims for damage caused by frost!
Maintenance
We recommend the Truma system care set for cleaning, disinfecting and looking after the boiler. Other products - in particular products containing chlorine - are unsuitable.
Trouble-shooting list
Fault Cause Rectification
| Not heating up. No operation power - | |
| voltage. supply. | |
| Taking an ex- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | tremely long time furred. system (see maintenance). |
| 230 V operation | |
If these measures do not remove the failure, please contact the Truma Service Centre.
Technical data
determined in accordance with Truma test conditions
Water content
5 litres
Operating pressure
max. 1.2 bar (only use pump without non-return valve)
Power supply
230V ,50Hz
Power consumption
1.3 A (300 W)
Thermal cut-out
65^
Over-temperature protection
85℃
Heating time from approx. 15^ to approx. 60^
approx. 50 minutes
Weight (without contents)
2 kg complete with drain and venting valves
Dimensions
length 37 cm, height 23 cm, width 22 cm
Conformity Declaration
The Therme complies with the requirements of EN 60335, EMC directive 89/336/EEC, low voltage directive 73/23/EEC and the associated standards and technical specifications, and is therefore entitled to bear the CE symbol.
The right to effect technical modifications is reserved!
Manufacturer's terms of warranty
1. Case of warranty
The manufacturer grants a warranty for malfunctions in the appliance which are based on material or production faults. In addition to this, the statutory warranty claims against the seller remain valid.
A claim under warranty shall not pertain:
- for parts subject to wear and in cases of natural wear and tear,
- as a result of using parts that are not original Truma parts in the units,
- as a consequence of failure to respect Truma instructions for installation and use,
- as a consequence of improper handling,
- as a consequence of improper transport packing, not arranged by Truma.
2. Scope of warranty
The warranty is valid for malfunctions as stated under item 1, which occur within 24 months after conclusion of the purchase agreement between the seller and the final consumer. The manufacturers will make good such defects by subsequent fulfilment, i.e. at their discretion either by repair or replacement. In the event of manufacturers providing service under warranty, the term of the warranty shall not re commence anew with regard to the repaired or replaced parts; rather, the old warranty period shall continue to run. More extensive claims, in particular claims for compensatory damages by purchasers or third parties, shall be excluded. This does not affect the rules of the product liability law.
The manufacturer shall bear the cost of employing the Truma customer service for the removal of a malfunction under warranty - in particular transportation costs, travelling expenses, job and material costs, as long as the service is carried out in Germany. The warranty does not cover customer service work in other countries.
Additional costs based on complicated removal and installation conditions of the appliance (e.g. removal of furniture or parts of the vehicle body) do not come under warranty.
3. Raising the case of warranty
The manufacturer's address is:
Truma Geratetechnik GmbH & Co. KG,
Wernher-von-Braun Strasse 12,
85640 Putzbrunn.
In Germany, always notify the Truma Service Centre if problems are encountered; in other countries the relevant service partners should be contacted (see Truma Service Booklet or www.truma.com). Any complaints are to be described in detail. Please also specify the device serial number and date of purchase.
In order for the manufacturers to be able to determine whether an incident subject to guarantee has occurred, the end user must, at his own risk, bring the device to the manufacturers or send it to them.
In instances of the device being sent to the works, dispatch is to be effected by freight transport. In cases under guarantee, the works shall bear the transport costs or the costs of delivery and return. If the damage is deemed not to be a warranty case, the manufacturer shall notify the customer and shall specify repair costs which shall not be borne by the manufacturer; in this case, the customer shall also bear the shipping costs.
