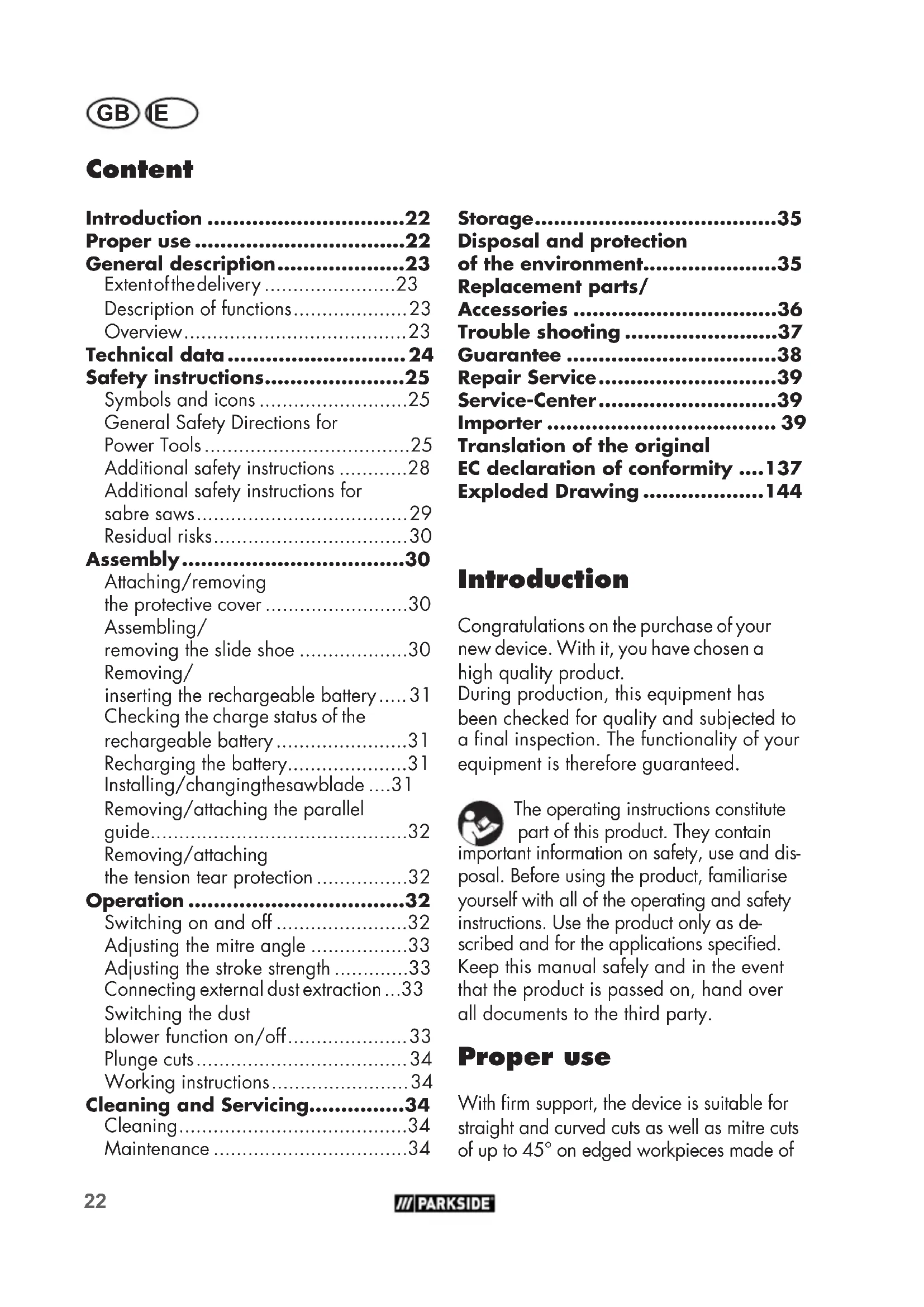

• Proper use p. 22
• General description p. 23
• Extent of the deliver y p. 23
• Description of functions p. 23
• Overview p. 23
• Technical data p. 24
• Safety instructions p. 25
• Symbols and icons p. 25
• General Safety Directions for Power Tools p. 25
• Additional safety instructions p. 28
• Additional safety instructions for sabre saws p. 29
• Residual risks p. 30
• Assembly p. 30
• Attaching/removing the protective cover p. 30
• Assembling/ removing the slide shoe p. 30
• Removing/ inserting the rechargeable battery p. 31
• Checking the charge status of the rechargeable battery p. 31
• Recharging the battery p. 31
• Installing/changing the saw blade p. 31
• Removing/attaching the parallel guide p. 32
• Removing/attaching the tension tear protection p. 32
• Operation p. 32
• Switching on and off p. 32
• Adjusting the mitre angle p. 33
• Adjusting the stroke strength p. 33
• Connecting external dust extraction p. 33
• Switching the dust blower function on/off p. 33
• Plunge cuts p. 34
• Working instructions p. 34
• Cleaning and Servicing p. 34
• Cleaning p. 34
• Maintenance p. 34
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and dis- posal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Proper use With rm support, the device is suitable for straight and curved cuts as well as mitre cuts of up to 45° on edged workpieces made of Translation of the original EC declaration of conformity p. 137
• Exploded Drawing p. 144
• Storage p. 35
• Disposal and protection of the environment p. 35
• Replacement parts/ Accessories p. 36
• Trouble shooting p. 37
• Guarantee p. 38
• Repair Service p. 39
• Service-Center p. 39
• Importer GB IE plastic, wood and light metal. The device is only approved for private use in dry spaces. Please note the information on saw blade types. Any other use that is not explicitly ap- proved in these instructions may result in damage to the equipment and represent a serious danger to the user. The user or operator is responsible for ac- cidents causing injury to other people or damage to property. This equipment is not suitable for commer- cial use. Commercial use will invalidate the guarantee. The device is part of the Parkside X20VTEAM series and can be oper- ated using Parkside X20VTEAM series batteries. The batteries may only be charged using chargers from the Parkside X20VTEAM series. General description The illustration of the most im- portant functional components can be found on the front and the back fold-out pages. Extent of the delivery Carefully unpack the trimmer and check that it is complete: p. 3923

• Accessories: - 2 saw blades for wood (HCS) – “Swiss Made” - 1 saw blade for metal (HSS) – “Swiss Made” - 1 Allen key (on the integrated Allen key holder) - Tension tear protection (already tted) - Slide shoe (already tted) - Protective cover (already tted) - Adapter for external dust extraction (already tted) - Parallel guide

• Instruction manual Battery and charger are not included. Dispose of the packaging material correctly. Description of functions The cordless sabre saw has a pendulum stroke device, a work light and a parallel guide. The notches for mitre angles allow you to work precisely. Please refer to the descriptions below for information on how the operating elements work. Overview 1 Safety switch 2 On/Off switch 3 Handle 4 Connection for dust extraction 5 Baseplate 6 Switch for dust blower function 7 Hexagon socket screws (not vis- ible) 8 Pendulum stroke switch 9 Guide roller 10 Chuck 11 Slide-in openings 12 Retaining screws 13 Guard 14 LED work light (not visible) 15 Protective cover 16 Saw blade for metal 17 Saw blade for wood 18 Allen key 19 Parallel guide 20 Slide shoe24 GB IE 21 Tension tear protection 22 Rechargeable battery 23 Release button for rechargeable battery 24 Charger 25 Storage case 26 Adapter for external dust extrac- tion 27 Clamping lever Technical data Cordless pendulum sabre saw ............... PSTDA 20-Li B3 Nominal input voltage ................. 20 V Idle speed n

= 5dB Sound power level

Attention! An up-to-date list of battery compatibility can be found at: www.lidl.de/akku This device can only be operated with the following rechargeable batteries: PAP 20 A1, PAP 20 A2, PAP 20 A3. This type of battery may be charged with the following chargers: PLG20A1, PLG20A3, PDSLG20A1. Charging time (min.)

PAP20A2 75 30 PAP20A3 90 60 Temperature.......................... max. 50°C Charging process ...................4 - 40°C Operation ..........................-20 - 50°C Storage ................................0 - 45°C. Levels of noise and vibration were deter- mined according to the standards and reg- ulations in the declaration of conformity. The vibration emission value has been measured according to a standardised test- ing method and may be used for compari- son with another power tool. The indicated vibration emission value may also be used for an introductory assess- ment of the exposure.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).25 GB IE General Safety Directions for Power Tools WARNING! Read all safety notices, instruc- tions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and instructions for future use. The term „power tool“ in the warn- ings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool).

a) Keep work area clean and well lit. Cluttered or dark ar- eas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and by- standers away while op- erating a power tool. Dis- tractions can cause you to lose control. Safety instructions Ensure that the safety instructions are observed when operating the trimmer. Symbols and icons Symbols on the trimmer: This device is part of the Parkside X20VTEAM series Carefully read these operat- ing instructions. Electrical appliances must not be disposed of with the domestic waste. Symbols in the manual: Warning symbols with information on damage and injury prevention. Hazard symbol with information on the pre- vention of personal in- jury caused by electric shock. Instruction symbols with infor- mation on preventing dam- age. Wear cut-resistant gloves Help symbols with informa- tion on improving tool han- dling.26 GB IE

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded sur- faces, such as pipes, ra- diators, ranges and refrig- erators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of elec- tric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or un- plugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an ex- tension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operation of the power tool in a damp environ- ment is unavoidable, please use a residual cur- rent circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or un- der the inuence of drugs, alcohol or medication. A moment of inattention white op- erating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will re- duce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position be- fore connecting to power source and/or battery pack, picking up or carry- ing the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turn- ing the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and bal- ance at all times. This ena-27 GB IE bles better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and col- lection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-relat- ed hazards. h) Do not allow yourself to be lulled into a false sense of security and do not dis- regard the safety rules for power tools, even if you are familiar with the pow- er tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND

CARE a) Do not force the power tool. Use the correct pow- er tool for your applica- tion. The correct power tool will do the job better and safer at the rate for which it was de- signed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool care- fully. Check for misalign- ment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, ac- cessories and tool bits etc. in accordance with these instructions, taking into account the working con- ditions and the work to be performed. Use of the power28 GB IE tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip sur- faces do not permit safe opera- tion and control over the power tool in unexpected situations.

a) Charge the batteries only in chargers that are rec- ommended by the manu- facturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries. b) In the power tools, use only the batteries de- signed for the purpose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal ob- jects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re. d) If used incorrectly, liquid may leak from the bat- tery. Avoid contact with this. In the event of ac- cidental contact, rinse off with water. If the liquid gets into eyes, seek medical assis- tance. Leaking battery uid may cause skin irritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batteries can be un- predictable and lead to re, explosion or risk of injury. f) Do not expose batteries to re or elevated tempera- tures. Fire or temperatures over 130°C can cause an explosion. g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the oper- ating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re.

a) Have your power tool ser- viced by a qualied repair person using only identi- cal replacement parts. This will ensure that the safety of the power tool is maintained. b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised cus- tomer service centres only. Additional safety instructions

• Hold the electric tool by the insulated gripping sur- faces when performing work in which the cutting tool may come into con- tact with hidden wiring.29 GB IE Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

• Fasten and secure the workpiece by means of clamps or with another method on a stable under- ground. If you hold the work- piece only with your hand or against your own body, it will stay instable and this can lead to a loss of control.

• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or re. Observe the safety in- formation and notes on charging and proper use as shown in the instruction manual for your battery and charg- er from the Parkside X20VTeam series. A detailed description of the charging process and further information can be found in the sep- arate operating instruc- tions. Additional safety instructions for sabre saws

• Keep hands away from the sawing area. Do not reach un- derneath the workpiece. Upon contact with the blade there is a risk of injury.

• Move the power tool against the workpiece only when it is turned on. Otherwise, there is a risk of kickback if the attachment tools jam in the workpiece.

• Make sure that the footplate is secure during sawing. A tilted saw blade may break or cause a kickback.

• After you have nished work, turn the power tool off and do not pull the saw blade out of the cut until it has come to a stand- still. In this way you will avoid any kickback and can safely put down the power tool.

• Use only undamaged saw blades in perfect condition. Bent or blunt blades can break, adversely affect the cut or cause kickback.

• Do not brake the saw blade after switching the device off by applying side pressure. The saw blade may be damaged, break or cause a kickback.

• Use suitable detectors in order to nd hidden supply lines or consult the local utility company. Contact with electric cables can lead to re and electric shock. Damage to a gas pipe can cause an explosion. Penetration into a water line causes prop- erty damage.

• Secure the workpiece. A work- piece that is retained with clamping appliances or a vice is held more securely than with your hand.

• Wait until the power tool has stopped before placing it down. The attachment tools can jam and lead to a loss of control over the power tool.30 GB IE Residual risks Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following haz- ards: a) Cuts b) Ear damage if working without ear protection. c) Damage to your health caused by swinging your hands and arms when operating the appli- ance for longer periods of time or if the unit is not held or main- tained properly. Warning! During operation, this electric tool generates an electromagnetic eld which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that per- sons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine. Assembly Only insert the battery once the battery-operated tool is fully ready for use. Attaching/removing the protective cover Attaching the protective cover

1. Press the two holders on the protective

cover (15) into the recesses on the ap- pliance housing. The protective cover (15) locks into place. You can fold the tted protective cover (15) up by 90°. Removing the protective cover

2. Carefully press the two holders on the

protective cover (15) apart.

3. Pull the protective cover (15) to the

front. Assembling/removing the slide shoe When working on scratch-sensitive work- pieces, working with the slide shoe (20) is recommended. Attaching the slide shoe

1. Place the shoe (20) on the front of the

back of the slide shoe over the base- plate (5). Removing the slide shoe

1. Press the slide shoe (20) on the notches

(20a) from the baseplate (5).

2. Pull the slide shoe (20) forward, away

from the baseplate (5).31 GB IE Removing/inserting the rechargeable battery

1. To remove the battery (22) from the

device, press the release button (23) on the battery and pull the battery (22) out.

2. To insert the battery (22), push the bat-

tery (22) along the guide rail into the device. You will hear it click into place. Only insert the battery once the battery-operated tool is fully ready for use. Checking the charge status of the rechargeable battery The battery charge status indicator (22a) signalises the state of charge of the battery (22). Press the button (22a) on the battery. The state of charge of the battery is displayed by illuminating the 3-colour LED lights of the state of charge display. 3 LEDs light up (red, orange and green): Battery is fully charged. 2 LEDs light up (red and orange): Battery has a residual charge. 1 LED lights up (red): Battery has to be charged Only charge the battery (22) when the red LED on the charge status indicator (22a) is on. Recharging the battery Allow a hot battery to cool before charging. Only charge the battery (22) when the red LED on the charge status indicator is on. Charging time (min.)

1. Remove the battery (22) from the ap-

pliance, as necessary (see „Removing/ inserting the battery“).

2. Insert the battery (22) in the charging

compartment of the battery charger (24).

3. Plug the battery charger (24) into a

4. When the battery is fully recharged un-

plug the battery charger (24) from the mains.

5. Remove the battery (22) from the

charger (24). Installing/changing the saw blade Wear protective gloves when attaching the saw blade. Risk of injury when touching the saw blade. Only saw blades with a T-shank mount (single lug shank) such as the supplied saw blades (16/17) can be used.32 GB IE Installing the saw blade Make sure that the saw blade holder is free of splinters or other material residue.

1. Turn the clamping lever (27) as far to

the left as possible and hold it rmly in this position.

2. Insert the saw blade (16/17) into the

chuck (10). When inserting the saw blade (16/17), make sure that the back of the saw blade is in the notch of the guide roller (9). Make sure that the saw blade (16/17) is attached cor- rectly and the teeth are pointing in the cutting direction.

3. Release the clamping lever (27).

Be sure to always use the correct saw blade for the material. Removing the saw blade

1. Turn the clamping lever (27) as far to

the left as possible and hold it rmly in this position.

2. Remove the saw blade (16/17) from

Removing/attaching the parallel guide The parallel guide can be tted on both sides of the device. Attaching the parallel guide

2. Slide the parallel guide (19) through

the slide-in openings (11).

3. Retighten the retaining screws (12).

Removing the parallel guide

1. Loosen the retaining screws (12).

2. Pull the parallel guide (19) out of the

away from the recess (

shoe (20). Operation Switch off the device and re- move the battery before car- rying out any maintenance work. Ensure that the ambient tem- perature does not exceed 50°C or fall below 20°C during work. Switching on and off The speed can be smoothly adjusted with the on/off switch (2). The more you press the on/off switch (2), the higher the speed.

2. To stop the device, release the on/off

with the Allen key (18).

2. Set the bottom plate (5) to the desired

position (-45° - 45°). A total of 6 levels can be set (-45°, -22.5°, 0°, 15°, 30° and 45°).

3. Tighten the hexagon socket screws (7)

with the Allen key (18). The maximum mitre angle can only be set on both sides if the protective cover (15) is folded up or disassem- bled (see “Attaching/removing the protective cover”). Adjusting the stroke strength The pendulum movement of the saw blade can be adjusted with the pendulum stroke switch (8). There are 4 positions for the pendulum stroke switch (8):

The optimal stroke strength can be estab- lished through practice; the following set- tings are recommended:

• Fine and clean cutting edges can be achieved with little or no pendulum mo- tion (level 1 or 0).

• For thin material, hard material (e.g. steel) and for cutting curves, use level 0 also.

• Soft material (wood, plastic, etc.): Set the pendulum to level II or III. With the pendulum stroke activated you can work much faster. Connecting external dust extraction Dust extraction starts automatically when switching on the device if the switch for the dust blower function (6) is set to position “0”. Connecting external dust extraction:

1. Slide the adapter for the external dust

extraction (26) into the connection for the dust extraction (4) as far as it will go.

2. Connect the suction tube of a vacuum

cleaner (not included) to the adapter for external dust extraction (26). Removing the external dust extraction:

1. Disconnect the suction tube from the

adapter for external dust extraction (26).

2. Disconnect the adapter for external

dust extraction (26). If necessary, you can connect the suction tube of a vacuum cleaner directly to the device without an adapter. Switching the dust blower function on/off

2. To switch it off, move the switch for the

dust blower function (6) to position “0”.34 GB IE Plunge cuts Plunge cuts may only be made in soft ma- terials such as wood, aerated concrete, plasterboard, etc. However, this requires a certain amount of practice and is possible only with short saw blades. Plunge cuts are only allowed if the mitre angle is 0°.

1. Place the saw on the workpiece and

2. Make sure that the front edge of the

bottom plate rests on the surface of the workpiece.

3. Slowly saw at an angle into the work-

piece, then bring the saw into a verti- cal position.

4. Continue sawing along the cutting line.

5. Turn off the saw and lift it off the work-

piece after nishing work. Working instructions

• Clamp the workpiece. Use a clamping device for small workpieces.

• Draw a line to specify the direction in which the saw blade is guided.

• Hold the device securely by the handle.

• Set the sawing speed.

• Wait until the device has reached full speed.

• Place the bottom plate (5) on the work- piece.

• Slowly move the device along the marked line, pressing the bottom plate rmly against the workpiece.

• Do not apply too much pressure to the device. Let the device do the work.

• Before shutting down the device, switch it off and wait for it to come to a com- plete standstill. Cleaning and Servicing Switch off the device and re- move the battery before car- rying out any maintenance work. You should have any repair and maintenance work that is not de- scribed in these instructions carried out by our Service Centre. Only use original parts. Cleaning The device must not be sprayed with water or placed in water. Otherwise there is a risk of electric shock. Do not use any cleaning agents or solvents. This could damage the device irreparably. Chemical sub- stances may attack the plastic parts of the device.

• Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this. Maintenance The device is maintenance free.35 GB IE Storage

• Always store the devices and accesso- ries: - dry. - clean. - protected against dust. - out of the reach of children.

• Remove the rechargeable battery from the device before storing the device (see the separate operating instructions for the battery and charger).

• The storage temperature for the re- chargeable battery and the device is between 0°C and 45°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely af- fected. Disposal and protection of the environment Remove the rechargeable battery before disposing of the device. The device, accessories and packaging should be properly recycled. Instruction on how to dispose of the re- chargeable battery can be found in the separate instruction manual for your bat- tery and charger Machines do not belong with do- mestic waste.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

• Defective units returned to us will be disposed of for free.36 GB IE Replacement parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 39). Position Description Order no. 17 Wood saw blade 13800406 16 Metal saw blade 13800403 21 Tension tear protection 91105573 15 Protective cover 91105572 22 Rechargeable battery (2 Ah)* 80001172 24 Charger 80001337 *The rechargeable battery is available to order at a promotion price. There is only a limited stock of this item and it may sell out quickly. The promotion is restricted to one battery per customer/device and only runs for two months from the start of the promotion. After this period, replacement batteries can still be ordered as spares un- der different terms and conditions.37 GB IE Trouble shooting In the event of an accident or malfunction, remove the battery from the device im- mediately! Failure to comply may result in injuries from cuts. Problem Possible cause Corrective action Appliance won‘t start Battery (

Insert battery ( 22) (Observe the separate operating instruc- tions for the rechargeable batte- ry and charger) Battery ( 22) discharged Recharge battery ( 22) (Ob- serve the separate operating instructions for the rechargeable battery and charger) On/Off switch (

Send in to Service Centre for repair Motor defective Intermittent operation Internal loose contact Send in to Service Centre for repair On/Off switch (

Poor sawing perfor- mance Saw blade ( 16/17) unsuit- able for the workpiece to be processed Insert a suitable saw blade

16/17) Saw blade ( 16/17) is blunt Insert a new saw blade ( 16/17) Incorrect sawing speed Adjust sawing speed Low battery power Charge the battery ( 22) (observe the separate operating instructions for the battery and charger) Saw blade quickly becomes blunt Saw blade ( 16/17) unsuit- able for the workpiece to be processed Insert a suitable saw blade

16/17) Too much pressure applied Reduce the pressure Sawing speed too high Reduce the sawing speed38 GB IE Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. saw blades) or to cover damage to breakable parts (e.g. switches, tension tear protection, slide shoe). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item num- ber (IAN356353_2004) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.39 GB IE

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Cordless Jigsaw PSTDA 20-Li B3 series Serial number 000001 - 120000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 62841-1:2015 • EN 62841-2-11:2016 • EN 62471:2008 EN 55014-1: 2017 • EN 55014-2: 2015 • EN 62321-2:2014 This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany

• TheobjectofthedeclarationdescribedabovesatisestheprovisionsofDirective2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harm- ful substances in electrical and electronic appliances. Christian Frank Documentation Representative138
