USER MANUAL PSTD 800 B2 PARKSIDE

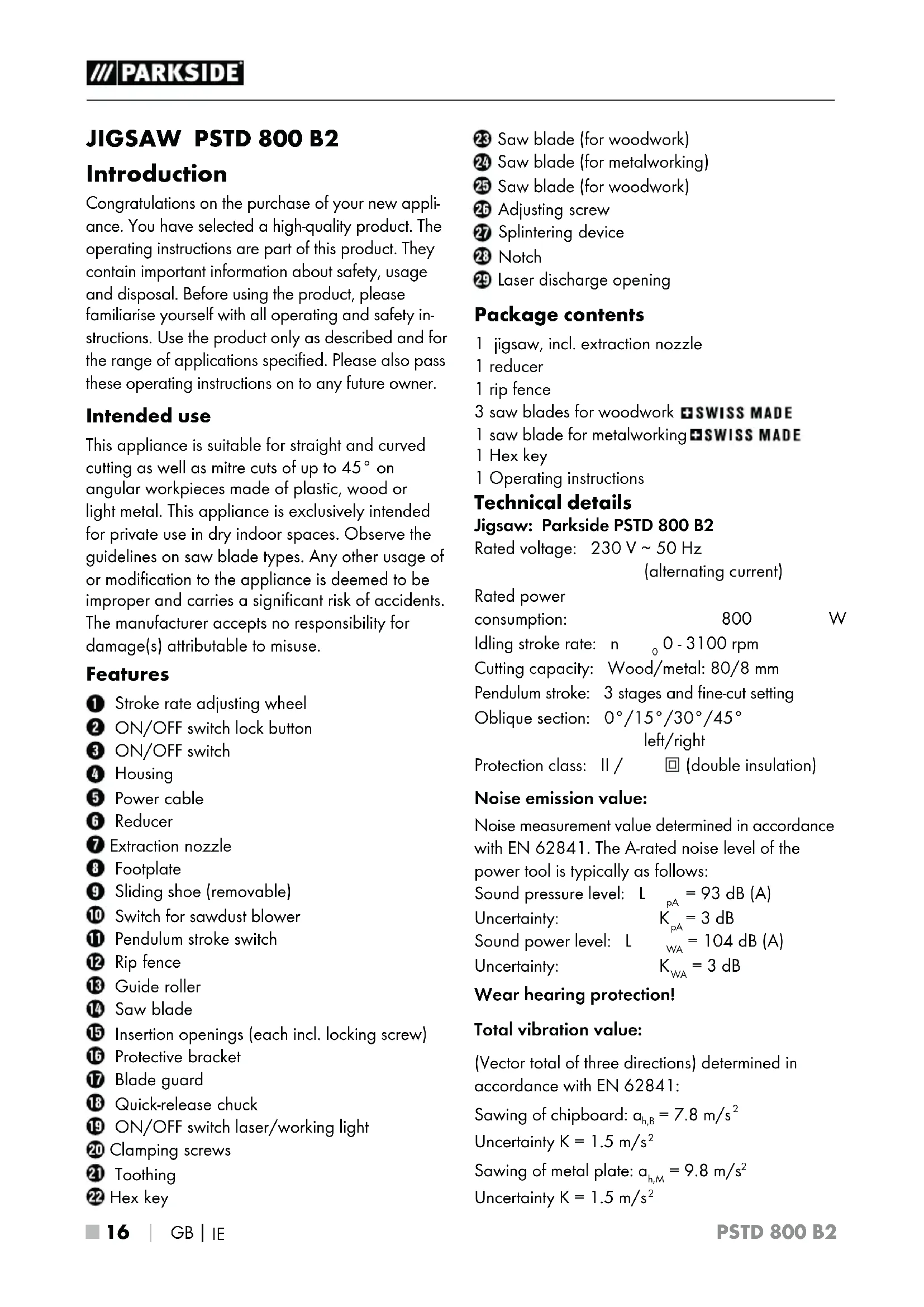

Introduction Congratulations on the purchase of your new appli- ance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety in- structions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This appliance is suitable for straight and curved cutting as well as mitre cuts of up to 45° on angular workpieces made of plastic, wood or light metal. This appliance is exclusively intended for private use in dry indoor spaces. Observe the guidelines on saw blade types. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. Features Stroke rate adjusting wheel ON/OFF switch lock button ON/OFF switch Housing Power cable Reducer Extraction nozzle Footplate Sliding shoe (removable) Switch for sawdust blower Pendulum stroke switch Rip fence Guide roller Saw blade Insertion openings (each incl. locking screw) Protective bracket Blade guard Quick-release chuck ON/OFF switch laser/working light Clamping screws Toothing Hex key Saw blade (for woodwork) Saw blade (for metalworking) Saw blade (for woodwork) Adjusting screw Splintering device Notch Laser discharge opening Package contents 1 jigsaw, incl. extraction nozzle 1 reducer 1 rip fence 3 saw blades for woodwork 1 saw blade for metalworking 1 Hex key 1 Operating instructions Technical details Jigsaw: Parkside PSTD 800 B2 Rated voltage: 230 V ∼ 50 Hz (alternating current) Rated power consumption: 800 W Idling stroke rate: n

Cutting capacity: Wood/metal: 80/8 mm Pendulum stroke: 3 stages and fine-cut setting Oblique section: 0°/15°/30°/45° left/right Protection class: II / (double insulation) Noise emission value: Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

= 93 dB (A) Uncertainty: K

= 3 dB Sound power level: L

= 104 dB (A) Uncertainty: K

= 3 dB Wear hearing protection! Total vibration value: (Vector total of three directions) determined in accordance with EN 62841: Sawing of chipboard: a h,B = 7.8 m/s

Sawing of metal plate: a h,M = 9.8 m/s

 17 ■ NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. ► Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, il- lustrations and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools cre- ate sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.PSTD 800 B2 ■ 18 

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites ac- cidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool ac- cidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired be- fore use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained.PSTD 800 B2

 19 ■ Appliance-specific safety instructions for jigsaws ■ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock. ■ Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it un- stable and may lead to loss of control. ■ Keep your hands away from the sawing area. Do not reach underneath the workpiece. Con- tact with the saw blade may result in injury. ■ Keep your hands away from the stroke rod and the quick-release chuck. There is a risk of crushing if contact is made with these components. ■ Always switch on the power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback. ■ When sawing, ensure that the footplate

placed against the workpiece. ■ After completing your work, switch the power tool off and do not pull the saw blade out of the cut until it has come to a complete standstill. This prevents kickbacks, and allows you to put the tool down safely. ■ Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or may cause a kickback. ■ Do not try and slow the saw blade down after switching off by applying lateral pressure. The saw blade might be damaged, break or cause a kickback. ■ Secure the workpiece. Use clamps/a vice to hold the workpiece firmly. This is safer than simply holding it in your hand. ■ Always route the power cable towards the rear, away from the appliance. ■ Never work on moistened materials or damp surfaces. ■ Risks from dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction device. ■ Wear a dust mask! ■ Ensure there is sufficient ventilation. WARNING! Protect yourself from laser radiation! LASER

• EN 60825-1:2014 Never look directly into the laser beam or into the laser discharge opening from which it emerges. WARNING! ► Looking at a laser beam through optical instruments (e.g. magnifying glasses etc.) can cause eye injuries. ► Caution! If operating and adjustment equip- ment or procedures other than those specified here are used, this may result in hazardous radiation exposure. ■ Never aim the laser beam at reflective surfaces, people or animals. Even brief visual contact with a laser beam can result in eye injuries. Original accessories/auxiliary equipment ■ Only use the accessories and additional equipment that are specified in the operat- ing instructions and compatible with the appliance.PSTD 800 B2 ■ 20 

Information on saw blades Parkside basic equipment includes saw blades principally for use with wood and metal. ▯ 3 saw blades for general wood cuts ▯ 1 saw blade for light metals up to 3 mm NOTE ► You can use any saw blade, provided it is fitted with a suitable mounting (single-lug shank). ► To make long, straight cuts, use a suitable saw blade (e.g. the Parkside Speed Wood saw blade). Saw blade type suitable unsuitablePSTD 800 B2

Please use original Parkside Jigsaw Blades Sets for optimized cuts.Our saw blade : SPEED WOOD Universal suitable - supports straight cutting.For best results, you must SAW SLOWLY and with LOW FEED.

“Metal” set for stainless steel,aluminium, etc. “Universal” set forwood, plasticand metal. “Wood and Plastic” set for wood, plastic and board.Straight, fine Straight, roughCurveExactly angleREVERSECLEAN CUT

Initial operation Fitting/changing the saw blade Always remove the plug from the power socket before working on the appliance. ♦ Remove the pivoting blade guard

♦ Turn the quick-release chuck and hold it in this position. ♦ Push the required saw blade into the quick- release chuck as far as the limit stop. ♦ Release the quick-release chuck so that it returns to its initial position. The saw blade is now locked. ■ WARNING! The saw blade teeth must point forwards at this point (see foldout page)! ♦ Replace the pivoting guard back onto the appliance. Fitting the rip fence The rip fence can be fitted on the left or right of the appliance. ♦ Undo both the clamping screws on the insertion openings

♦ Push the rip fence into the insertion openings . ♦ Retighten the two locking screws. Connecting the sawdust extraction device ♦ Push the reducer into the extraction nozzle until it is secured. ♦ Attach an approved dust and sawdust extrac- tor to the reducer or extraction nozzle directly. Fitting the sliding shoe When working on sensitive surfaces, you can fit the sliding shoe on the footplate to prevent scratching the surface. ♦ Mount the sliding shoe onto the footplate and press it up at the back until it clicks into place on the footplate . ♦ To remove the sliding shoe , unfasten it at the rear of the footplate and slide it off the front. Fitting the splinter guard The splinter guard can prevent fraying of the sur- face while sawing wood . The splinter guard can only be used for certain saw blade types, with the sliding shoe and only for cutting angles of 0°. ♦ Press the splinter guard from below into the sliding shoe (arrow facing upwards). Adjusting the laser ♦ If the laser line is not vertical in the notch , you can adjust it by adjusting the position of screw

Operation Setting the cutting angle ♦ Undo the clamping screws with the hex key and pull the footplate to the rear. ♦ Adjust the cutting angle to 0°/15°/30°/45° with the aid of the markings on the footplate

Push the footplate to the front so that the locking pin engages in the toothing . ♦ Retighten the clamping screws with the Hex key . NOTE ► When using a cutting angle of 15°/30°/45°, the pivoting blade guard and splinter guard must be detached beforehand! Setting the stroke rate ♦ Use the stroke rate adjusting wheel to set the required stroke rate. Adjusting the pendulum stroke ♦ You can use the pendulum stroke switch to adjust the pendular movement of the saw blade . You can achieve fine, clean-cut edges with- out pendular movement (setting "0"). Deactivate pendular movement when working on thin workpieces. You can achieve an increasingly fast work rate if the pendulum stroke is activated (settings 1–3).PSTD 800 B2

Switching the appliance off: Release the ON/OFF switch

Switching to continuous operation: Press the ON/OFF switch and lock it in this position with the ON/OFF switch lock button . Switching off continuous operation: Press the ON/OFF switch and release it again. Switching the laser/working light ON/OFF ON/OFF switch: Press the ON/OFF switch for the until the required function is active. LASER and WORKING LIGHT → WORKING

the position “0”. Maintenance and cleaning WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Use a soft, dry cloth to clean the housing. WARNING! ■ If the supply cord of this power tool is dam- aged, it must be replaced by a specially prepared cord available through the service organization. ■ Replace the saw blade as soon as its teeth are too blunt for adequate sawing. ■ Clean the appliance after completing your sawing work. ■ Remove any dirt (e.g. sawdust). If necessary, clean the saw blade holder and the chip ejec- tion opening with a brush or by blowing out with compressed air.PSTD 800 B2 ■ 24 

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (re- ceipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improp- erly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bot- tom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by enter- ing the item number (IAN) 123456.PSTD 800 B2

 25 ■ Service WARNING! ■ Have the power tool repaired by the Ser- vice centre or a qualified electrician and only using genuine replacement parts.This will ensure that the safety of the appliance is maintained. ■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider.This will ensure that the safety of the appliance is maintained. NOTE ► Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline. Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 321225_1901 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn- out appliance. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites Your local community or municipal authorities can provide information on how to dispose of the worn-out product.PSTD 800 B2 ■ 26 

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 62841-1:2015 EN 62841-2-11: 2016 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50581:2012 Type designation of machine: Jigsaw PSTD 800 B2 Year of manufacture: 04 - 2019 Serial number: IAN 321225_1901 Bochum, 02/04/2019 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.PSTD 800 B2
