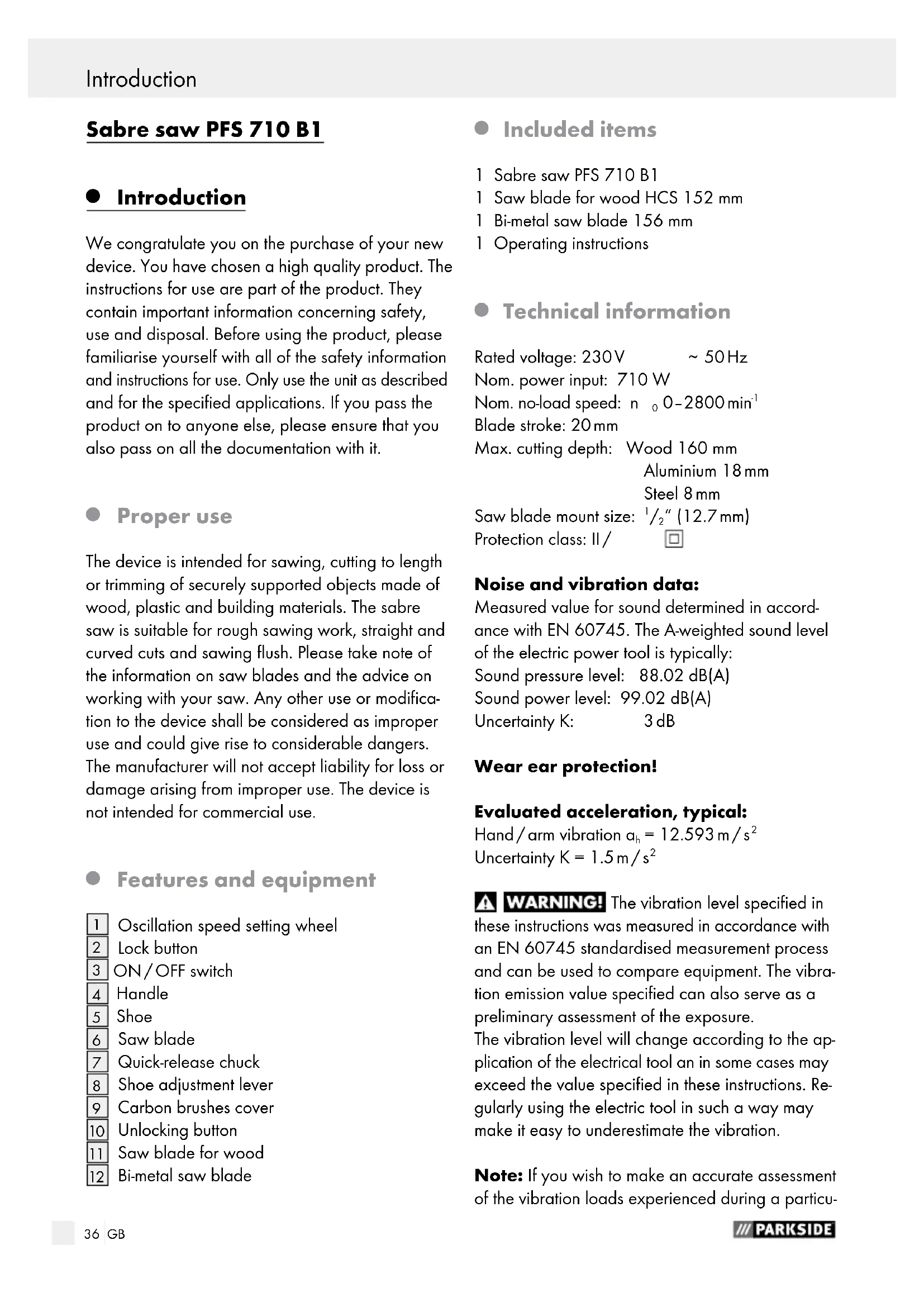

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The device is intended for sawing, cutting to length or trimming of securely supported objects made of wood, plastic and building materials. The sabre saw is suitable for rough sawing work, straight and curved cuts and sawing flush. Please take note of the information on saw blades and the advice on working with your saw. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use. The device is not intended for commercial use.

- Features and equipment

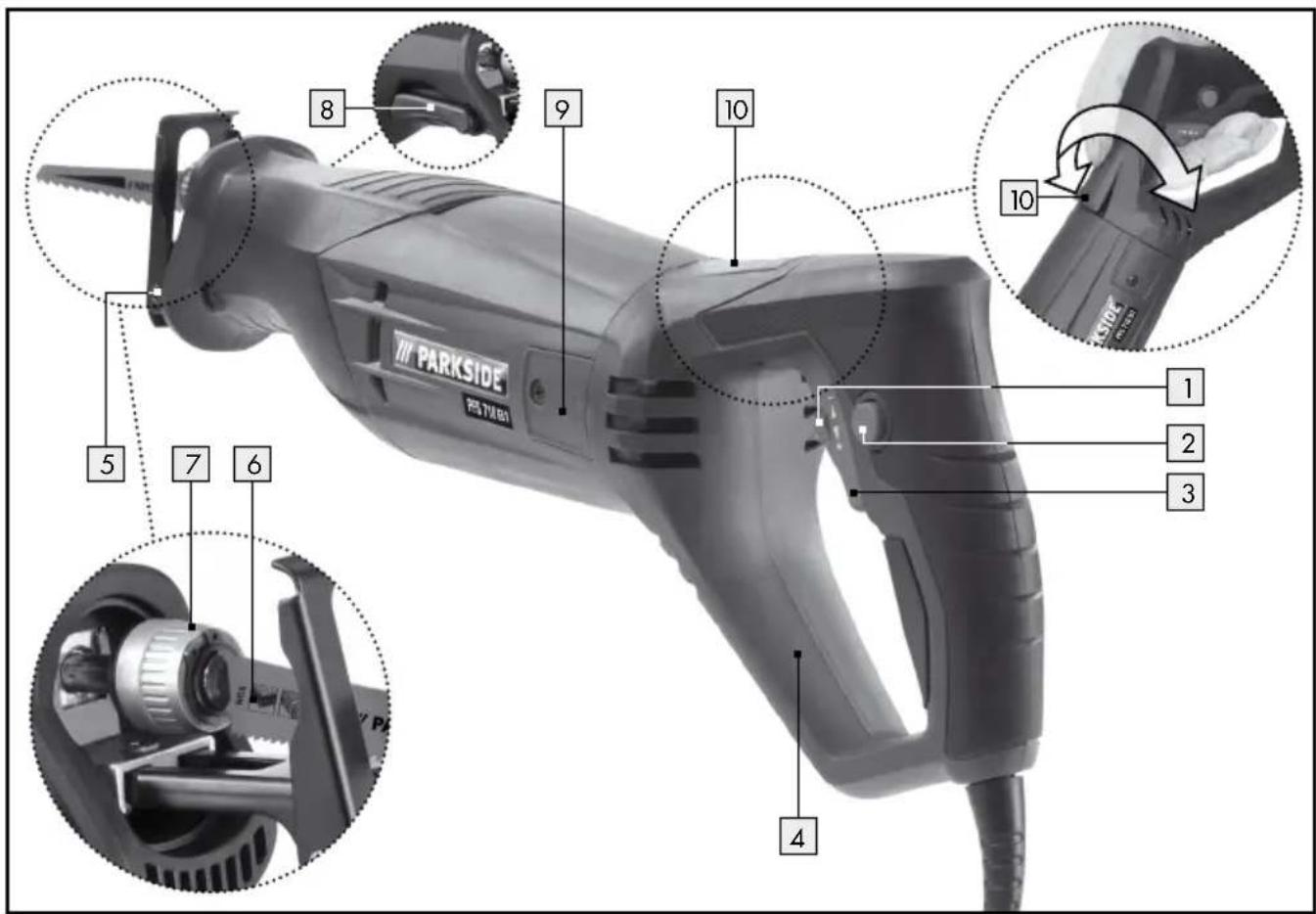

1 Oscillation speed setting wheel
2 Lock button
3 ON/OFF switch
4 Handle
5 Shoe
6 Sawblade
Quick-release chuck
8 Shoe adjustment lever
9 | Carbon brushes cover
10 Unlocking button
11 Saw blade for wood
12 Bi-metal saw blade

- Included items

1 Sabre saw PFS 710 B1
1 Saw blade for wood HCS 152 mm
1 Bi-metal saw blade 156 mm
1 Operating instructions

Technical information

Rated voltage: 230V 50Hz

Nom. power input: 710 W

Nom. no-load speed: n 0-2800 min

Blade stroke: 20mm

Max. cutting depth: Wood 160 mm

Aluminium 18 mm

Steel 8mm

Saw blade mount size: 12'' (12.7 mm)

Protection class: II/

Noise and vibration data:

Measured value for sound determined in accordance with EN 60745. The A-weighted sound level of the electric power tool is typically:

Sound pressure level: 88.02 dB(A)

Sound power level: 99.02 dB(A)

Uncertainty K: 3 dB

Wear ear protection!

Evaluated acceleration, typical:

Hand/arm vibration a_h = 12.593m / s^2

Uncertainty K = 1.5m / s^2

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particu

lar period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

- General power tool safety warnings

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and in

structions may result in electric shock, fire and / or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) D not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

General power tool safety warnings

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
- Safety advice relating specifically to sabre saws

To avoid the danger of injury, fire and damage to your health:

Hold the device by the insulated handle surfaces when performing work where there is danger of the tool used striking hidden electrical lines or its own power cable. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.
If you use the device outdoors, always connect it through a residual current device (RCD) with a maximum trip current of 30mA .
- Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
- Never support yourself by placing your hands near or in front of the device or the workpiece surface. A slip can result in injury.
If a dangerous situation arises, pull the mains plug immediately out of the mains socket.
Always work with the mains lead leading away from the rear of the device.
DANGER OF FIRE FROM FLYING SPARKS! Sawing metal creates flying sparks.

For this reason, always make sure that nobody is placed in any danger and that there are no inflammable materials near the working area.

WARNING! NOXIOUS FUMES! Working with harmful / noxious dusts represents a risk to the health of the person operating the device and to anyone near the work area. Wear protective glasses and a dust mask!

Do not saw materials containing asbestos. Asbestos is a known carcinogen.
When sawing building materials, observe the statutory requirements and the manufacturer's recommendations.
Do not work on moist materials or damp surfaces.
- Switch the device on before you bring it into contact with the workpiece.

CAUTION! Do not allow the blade to come into contact with a solid object or the floor when the device is operating - danger of kickback!

The shoe 5 must always lie against the workpiece when the device is sawing.
Do not put the device down before it has been switched off and has reached a standstill.
Use only sharp, defect-free blades. Replace cracked, bent or blunt saw blades immediately.
Always keep the device clean, dry and free of oil or grease.

- Original accessories/ attachments

Use only the accessories detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

Information about saw blades

You can use any saw blade as long as it has the correct shank fitting -12 (12.7 mm) universal shaft. There are different saw blades available in various lengths designed to ensure optimum performance of every sawing task with your sabre saw.

Note: TPI = teeth per inch / (i.e. per 2.54 cm)

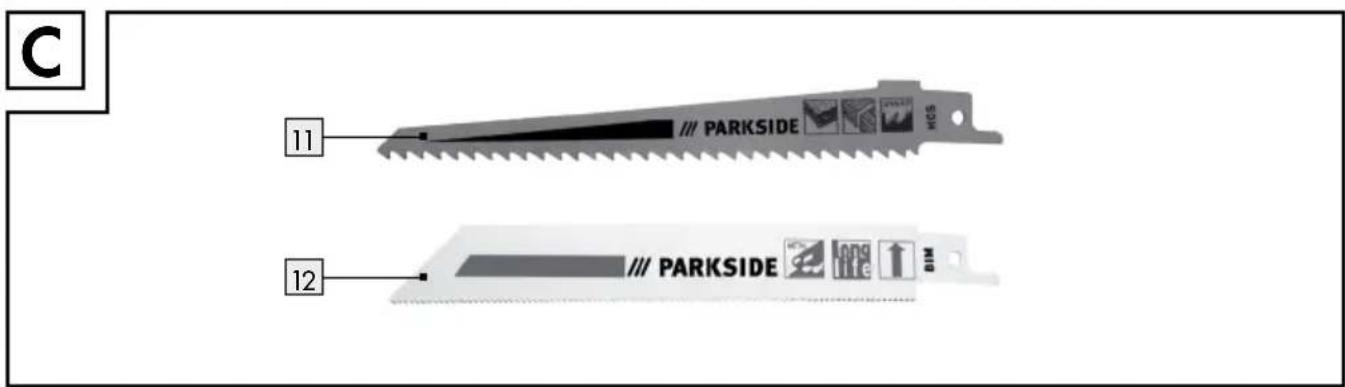

Blade (wood) [11]:

Dimensions: 152 × 1.25 ~mm, 6 TPI

Most suitable for: Sawing construction timber, chipboard, processed wood boards, plywood.

Also suitable for plunge cuts.

Bi-metal saw blade 12

Dimensions: 156 mm, 18 TPI

Most suitable for: Sawing sheets, profiles and tubes - flexible and fracture resistant.

Before use

- Mounting/replacing saw blades

WARNING! Pull the mains plug out of the mains socket before you carry out any task on the device. Failure to observe this advice may lead to injury.

Turn the quick-release chuck 7 and hold it in the turned position.
Press the selected saw blade up to the stop into the quick-release chuck. The saw blade should engage.
- Release the quick-release chuck 7. The chuck must then return to its original position. The saw blade is now locked in place.

- Rotating the hand grip

WARNING! DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device. The hand grip 4 can be rotated by 90^ to the right or left. This allows the ON/OFF switch 3 to be brought into the most comfortable position for any working conditions.

Press the unlocking button 10 and rotate the hand grip 4 to the right or left.
Make sure the hand grip 4 engages.

Adjusting the shoe

WARNING! DANGER OF INJURY! Pull

the mains plug out of the socket before you carry out any task on the device.

Adjust the shoe 5 to suit the cutting depth.
To do this release the shoe adjustment lever 8 and place the shoe 5 in appropriate position.
Lock the shoe in this position by pulling the shoe adjustment lever 8 tight.

- Setting the blade speed

With the oscillation speed setting wheel 1 you can choose the desired stroke rate (- = lower stroke rate, + = higher stroke rate).

The stroke setting can also be changed during operation.

Preparing for use

- Switching on and off

When operating the device you can select between intermittent or continuous operation mode.

To switch on intermittent operation mode:

Press the ON/OFF switch 3.

To switch off intermittent operation mode:

Release the ON/OFF switch 3.

To switch on continuous operation mode:

Press the ON/OFF switch 3 and fix it in the pressed position with the lock button 2.

To switch off continuous operation mode:

Press the ON/OFF switch 3 and release it again.

Guiding the sabre saw safely and accurately

The shoe 5 pivots to adjust to the workpiece and provides safe support to the device. It must always lie against the workpiece when the device is in use.

- Advice about ways of working when sawing

Before sawing, check the workpiece for foreign bodies such as nails, screws etc. and remove them.
Do not allow the ventilation slots to become covered.
- Switch the device on first and only then bring it into contact with the workpiece.
If the saw blade jams, switch off the device immediately.

Open the sawn gap in the workpiece slightly using a suitable tool and extract the saw blade.

Always make sure the saw blade type and the blade oscillation speed are suitable for the workpiece material.
There are different saw blades available in various lengths designed to ensure optimum performance of every sawing task with your sabre saw.
Saw the material using a steady forward rate of progress.

Flush sawing:

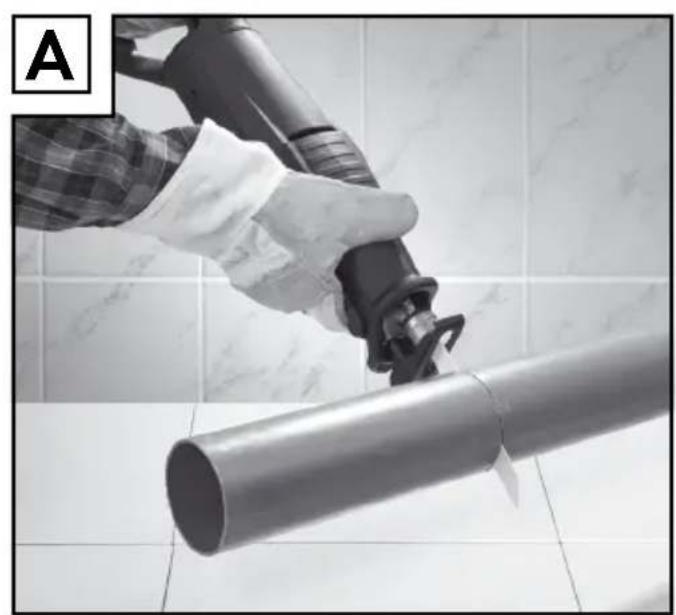

Using flexible saw blades of adequate length you can trim off projecting workpieces, such as pipes, directly at the face of a wall.

Follow these steps:

1. Place the saw blade directly on the wall surface.
2. Bend the blade by applying sideways pressure so that the shoe 5 comes up against the wall.
3. Switch on the device as described above and trim the workpiece using constant pressure.

Plunge sawing:

CAUTION! DANGER OF KICKBACK!

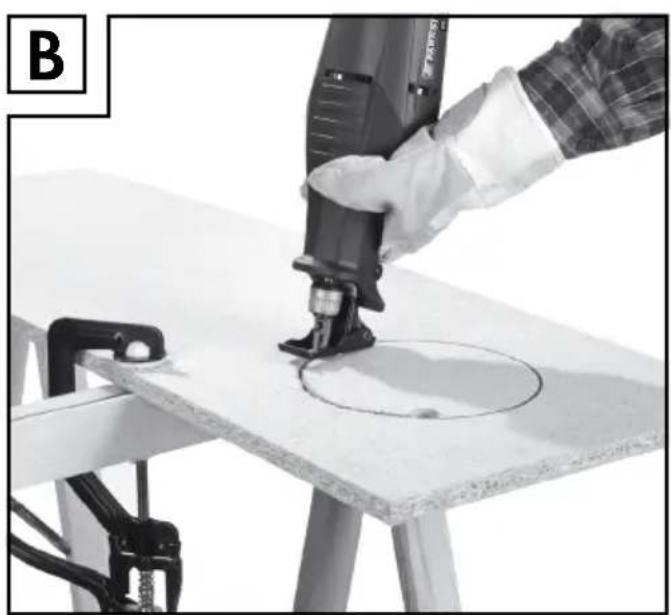

Plunge sawing can be used only in soft materials (such as wood etc.).

Follow these steps:

1. Place the sabre saw with the underside of the shoe against the workpiece.

Switch on the device.

1. Tilt the sabre saw forward and plunge the saw blade into the workpiece.

2. Bring the sabre saw vertical and continue sawing along the cutting line.

Note: The saw blade used for this should not be longer than 152mm

- Maintenance and cleaning

Pull the mains lead out of the mains socket before you clean the device.
Replace the saw blade as soon as its teeth become blunt and it starts to produce defective saw cuts.
Always keep the device and the ventilation slots clean.
Clean the device after you have finished using it.
Do not allow any liquids to enter the device. Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.
If necessary, clean out the saw blade mounting recess

with a thin paintbrush or compressed air.

Service centre

AWARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The ap

pliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

Tel.: [phone]

(0.10 GBP/Min.)

e-mail: [e-mail]

IAN 106629

Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive

2012 / 19 / EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Translation of the original declaration of conformity / Manufacturer (C)

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive

(2006/42/EC)

EU Low Voltage Directive

(2006/95/EC)

Electromagnetic Compatibility

(2004/108/EC)

RoHS Directive

(2011/65/EU)

Applicable harmonized standards

EN 60745-1:2009+A11

EN 60745-2-11:2010

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2

EN 61000-3-3:2008

Type/Device description:

Sabre saw PFS 710 B1

Date of manufacture (DOM): 10-2014

Serial number: IAN 106629

Bochum, 31.10.2014

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical modifica

tions in the course of further development.

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

DEUTSCHLAND
