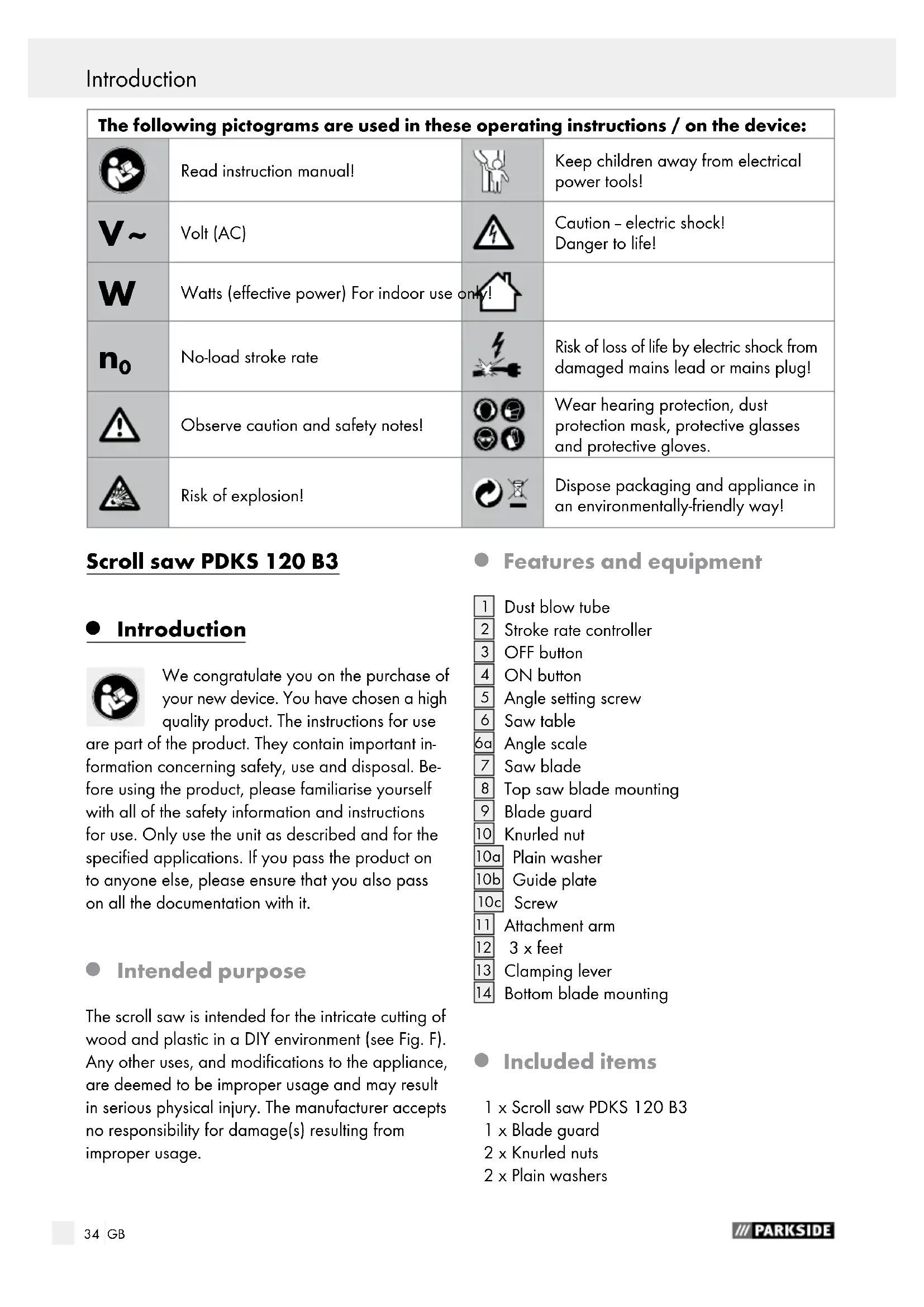

Features and equipment

Dust blow tube Stroke rate controller OFF button ON button Angle setting screw Saw table 6 a Angle scale Saw blade Top saw blade mounting Blade guard Knurled nut 10 a Plain washer 10 b Guide plate 10 c Screw Attachment arm 3 x feet Clamping lever Bottom blade mounting

Included items 1 x Scroll saw PDKS 120 B3 1 x Blade guard 2 x Knurled nuts 2 x Plain washersThe following pictograms are used in these operating instructions / on the device:Read instruction manual! Keep children away from electrical power tools!

Volt (AC)Caution – electric shock!Danger to life! Watts (effective power) For indoor use only!

No-load stroke rate Risk of loss of life by electric shock from damaged mains lead or mains plug!Observe caution and safety notes!Wear hearing protection, dustprotection mask, protective glassesand protective gloves.Risk of explosion!Dispose packaging and appliance in an environmentally-friendly way! Introduction / General safety advice35 GB Introduction Introduction / General safety advice 2 x Guide plates 2 x Screws 10 x Saw blades 1 x Dust blow tube 3 x Fee

50 Hz Rated power: 120 W Short-term operation time: 20 min (S2) Stroke rate (no load): n

Max. cut depth 90°: 50 mm Max. cut depth 45°: 22 mm Dimensions: 30 x 60,4 x 29,8 cm (H x L x W) Weight: 11,25 kg Noise data: A-weighted sound levels. Sound pressure level: 67.2 dB (A) Sound level: 80.2 dB (A) Uncertainty K: 3 dB Values determined in accordance with EN 61029. General safety advice CAUTION! In order to protect yourself from the danger of electric shock, injury or fire when using electrical power tools, please observe the following basic safety precautions. Read all these requirements before you use the electrical power tool, and keep the safety advice in a safe place.

eep your working area clean and tid

A disorderly working area can lead to accidents.

2. Be aware of the effects of the environ-

ment. Do not leave electrical power tools out in the rain. Do not use electrical power tools in moist or wet surroundings. Ensure that your working area is well lit. Do not use electrical power tools in areas where there is risk of fire or explosion.

Protect yourself from electric shock. Avoid touching earthed objects such as pipes, heating radiators, ovens or refrigerators with parts of your body.

4. Keep other people at a safe distance.

Do not allow other people, in partic- ular children, to touch the electrical power tool or the mains lead. Keep them away from your working area.

5. Store currently unused electrical

power tools in a safe place. When not being used electrical power tools should be stored in dry conditions in a high or enclosed place, out of reach of children.

6. Do not overload your electrical power

tool. By keeping within the specified working range of the tool you will work more safely and achieve a better result.

7. Use the right electrical power tool for

the task. Do not use low-output devices for heavy tasks. Do not use an electrical power tool for purposes for which it was not intended. For example, do not use a hand operated circular saw for trim- ming tree branches or cutting logs.

8. Wear suitable clothing.

Do not wear loose-fitting clothing or jewellery. They could become caught on moving parts. We recommend that you wear anti-slip footwear when working outdoors. If you have long hair, wear a hair net.

10. Attaching the vacuum dust extraction

device.36 GB General safety advice Where there are connection points provided for vacuum dust extraction please ensure that the connections are made and used properly.

Do not use the mains lead for purposes for which it was not intended. Do not use the mains lead to pull the plug out of the mains socket. Protect the mains lead from heat, oil and sharp edges.

12. Securely support the workpiece.

Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it with your hand.

13. Avoid placing your body in an

unnatural position. Keep proper footing and balance at all times.

14. Look after your tools carefully.

Keep cutting tools sharp and clean. This way you will work more safely and achieve better results. Follow the advice on tool lubrication and con- sumables replacement. Check the condition of the mains lead on your electrical power tool regularly and have any damage repaired by a competent specialist. Check the condition of extension leads regu- larly and replace them if they are damaged. Keep handles and hand grips clean, dry and free of oil and grease.

15. Pull the mains plug out of the mains

socket. Do this if the electrical power tool is not being used, before carrying out maintenance tasks on the electrical power tool and whenever you are changing inserted tools, e.g. saw blades, drills or router bits.

16. Make sure that no spanners, keys etc.

are left attached. Check before switching on that all spanners, keys and setting tools have been removed.

17. Avoid unintentionally starting up the

device. Check that the switch is set to OFF on the de- vice when the mains plug is inserted into the mains socket.

18. Using an extension lead for working

outdoors. When working outside, always use an approved and appropriately labelled extension lead.

atch what you are doing. Proceed with cautio

Do not use electrical power tools if you cannot concentrate.

20. Check the electrical power tool for

damage. Before the electrical power tool is used, carefully check the safety equipment and any slightly damaged parts to see that they are still work- ing properly. Check that all moving parts on the tool are working properly, can move freely and are not damaged. All parts must be correctly attached and fulfil all the requirements necessary to allow the electrical power tool to operate properly. Damaged safety equipment and components must be properly repaired or replaced at a competent electrical equipment repair centre unless otherwise indicated in the operating in- structions. Damaged switches must be replaced at a Customer Service Centre. Never use an electrical power tool that cannot be switched on and off properly.

The use of inserted tools and accessories other than those recommended by the manufacturer could lead to you being injured.

22. Have your electrical power tool

repaired at an electrical equipment repair specialist. This electrical power tool complies with the relevant safety regulations. Repairs may only be carried out by a specialist electrical repair centre using original spare parts, otherwise injury could occur to the user. Safety advice relating specifically to scroll saws Ensure that the scroll saw stands on a level, horizontal surface. Do not touch the mains lead if it becomes dam- aged or cut through while you are using the General safety advice / Assembly37 GB General safety advice General safety advice / Assembly device. Pull the plug out of the mains socket im- mediately and have the device repaired by a suitably qualified person or at the Customer Service Centre. Always work with the mains lead leading away from the rear of the device. If a dangerous situation arises, pull the mains plug immediately out of the mains socket. Always switch on the electrical power tool before moving the workpiece against it. Otherwise there is the risk of kickback. Do not cut moist materials or damp surfaces, Use only undamaged, defect-free saw blades

Distorted or blunt saw blades

can break or cause a kickback. Ensure that the teeth on the saw blade

point downwards before you mount it in the device. DANGER OF INJURY! Keep your hands away from the area of the saw blade. Before sawing, check the workpiece for foreign bodies such as nails etc. and remove them. In- jury and / or damage to property may result from the saw blade striking nails etc. embedded in the workpiece. Always keep the device clean, dry and free from oil or grease. Switch off the device before you remove any wood residue from around the saw blade. Otherwise you could become injured. HAZARDOUS DUSTS / VAPOURS! Any noxious dusts or vapours generated from sawing represent a risk to the health of the person operating the device and to anyone near the work area. Do not saw materials containing substances harmful to health. Do not use the tool on materials containing asbestos. Asbestos is a known carcinogen. Make sure you have adequate ventilation. Wear protective glasses, hearing protection, dust protection masks and protective gloves.

Advice on use Push the workpiece slowly and with minimum pressure on to the saw blade. Reduce the rate of advance when you are cutting thicker material. Hold the workpiece firmly on the table with both hands and push it slowly towards the saw blade. Otherwise the saw blade may twist or break. Avoid making any sharp changes in direction during sawing to prevent the saw blade from twisting or tearing. Before starting the saw cut, drill a hole at a corner or internal cut-out in the workpiece and start sawing from the hole. Use the correct saw blade. The choice of saw blade depends on the thickness and type of material and the intended cut. Select a saw blade with fine teeth to saw thin, hard materials. Use a narrow saw blade to saw small radius c uts.

Assembly DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device,

Attaching the blade guard

(see Fig. A) Push the screw 10 c from the inside through the slot in the blade guard

From the outside of the blade guard

, place the guide plate 10 b on to the screw 10 c

The longer of the angled sides of the guide plate 10 b reaches around the cover

between the two at- tachment arms

and insert the two screws 10 c through the openings provided for them in the attachment arms

Ensure that the upwardly curved end of the blade guard

is at the top. Put the plain washers 10 a on from the outside of the attachment arms

on to the two screw ends 10 c .38 GB Assembly / Bringing into use Slide the blade guard

into the desired posi- tion and fix it in that position by tightening the knurled nuts

from below through the mounting holes in the device‘s base plate.

Attaching the dust blow tube

clockwise and hand tight into the designated opening.

Bringing into use CAUTION! Make sure that the device is switched off before you connect it to the mains supply. Always switch on the electrical power tool before moving the workpiece against it. Otherwise there is the risk of kickback. Setting up the device: Grab the device at the position labelled “Please lift here” to position the device. Switching on the device: Press the green ON button

Switching off the device: Press the red OFF button

Setting the stroke rate Turn the stroke rate controller

clockwise to increase the stroke rate. Turn the stroke rate controller

anticlockwise to decrease the stroke rate. NOTE: Be aware that too high a stroke rate leads to the saw blade heating up, an increase in wear of the saw blade and burn marks on the material. Select a saw speed suitable for the material being sawn. Maximum speed Medium speed Minimum speed Thick woo- den board Straight cut Normal fretsaw work

Thin woo- den or plastic board Straight and curved cuts Normal and intri- cate fretsaw work Intricate fretsaw work

Tilting the saw table

(see Figs. D, E) Unscrew the angle setting screw

until the desired is reached. NOTE: The angle can be read off the angle scale 6 a

Retighten the angle setting screw

Inserting / removing the saw blade

DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device, Inserting the saw blade

Insert the saw blade

through the opening in the saw table

Ensure that the teeth of the saw blade

point forwards and downwards. Suspend the saw blade

in the bottom blade mount

Then hook the top pin of the saw blade

the recess provided for this purpose in the top saw blade mount

Lower the clamping lever

to tension the saw blade

horizontally clock- wise to increase the tension. Bringing into use / Maintenance and cleaning / Service / Warranty / Disposal39 GB Assembly / Bringing into use Bringing into use / Maintenance and cleaning / Service / Warranty / Disposal Turn the clamping lever

horizontally anti- clockwise to reduce the tension. NOTE: Sawing with too little tension in the saw blade

can lead to inaccurate results. Removing the saw blade

Press the top saw blade mount

downward. Lift the saw blade

slightly. Unhook the saw blade out of the bottom saw blade mount

by moving it forward.

Maintenance and cleaning

Maintenance DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device, The device requires almost no maintenance.

Cleaning Clean the device frequently; for best results, do this immediately after you have finished using it. Do not allow any liquids to enter the device. Use a dry cloth to clean the device. Keep the ventilation slots free of dust and dirt. Do not under any circumstances use petrol or strong solvents. Store the device in a dry room. Service Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use. If the plug or lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use. Warranty The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a

ost-free despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for pri- vate use only and is not intended for commercial use. The warranty is void in the case of abusive and im- proper handling, use of force and internal tamper- ing not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

Service Great Britain Tel.: 0871 5000 720 (0,10 GBP/Min.) e-mail: kompernass@lidl.co.uk IAN 75703 Disposal The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.40 GB Disposal / Declaration of Conformity / Manufacturer Do not dispose of electrical power tools with the household rubbish! In accordance with European Directive 2002 / 96 / EC (covering waste electrical and elec- tronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling. Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices. Declaration of Conformity / Manufacturer We, Kompernaß GmbH, the person responsible for documents: Mr Semi Uguzlu, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives: Machinery Directive (2006 / 42 / EC) EU Low Voltage Directive (2006 / 95 / EC) Electromagnetic Compatibility (2004 / 108 / EC) Applicable harmonized standards EN 61029-1/A11:2010 EN ISO 12100:2010 EN 55014-1/A2:2011 EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-3:2008 Type / Device description: Scroll saw PDKS 120 B3 Date of manufacture (DOM): 07–2012 Serial number: IAN 75703 Bochum, 31.07.2012 Semi Uguzlu - Quality Manager - We reserve the right to make technical modifica- tions in the course of further development.IAN 75703 KOMPERNASS GMBH Burgstraße 21 D-44867 Bochum © by ORFGEN Marketing Version des informations · Stand van de informatie Stand der Informationen · Last Information Update: 07 / 2012 · Ident.-No.: PDKS120072012-2
