USER MANUAL PKZ 180 A1 PARKSIDE

Operation and Safety Notes Translation of original operation manual

DK

KOMPRESSOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

SE

GB/IEOperation and Safety NotesPage 5

Intended use
Improper use 6
Features . Page 7
Technical Data . 7

General safety instructions for air tools..

General safety information for electrical devices

Product-specific safety instructions.. 9

Before use.

Start-up

Switching the compress on/off. Page 10
Establishing connections.. Page 10
Using the tyre filling device.. Page 10
Using the blow-out gun.. Page 10
Using the adapter set. Page 11

Cleaning/Care

Spare parts

Maintenance and Service

Information about warranty and service processing..

Warranty terms.. Page 12
Scope of warranty . Page 12
Processing of warranty claims.. Page 12

Environmental instructions and disposal information

EC Declaration of Conformity

PARKSIDE

5GB/IE

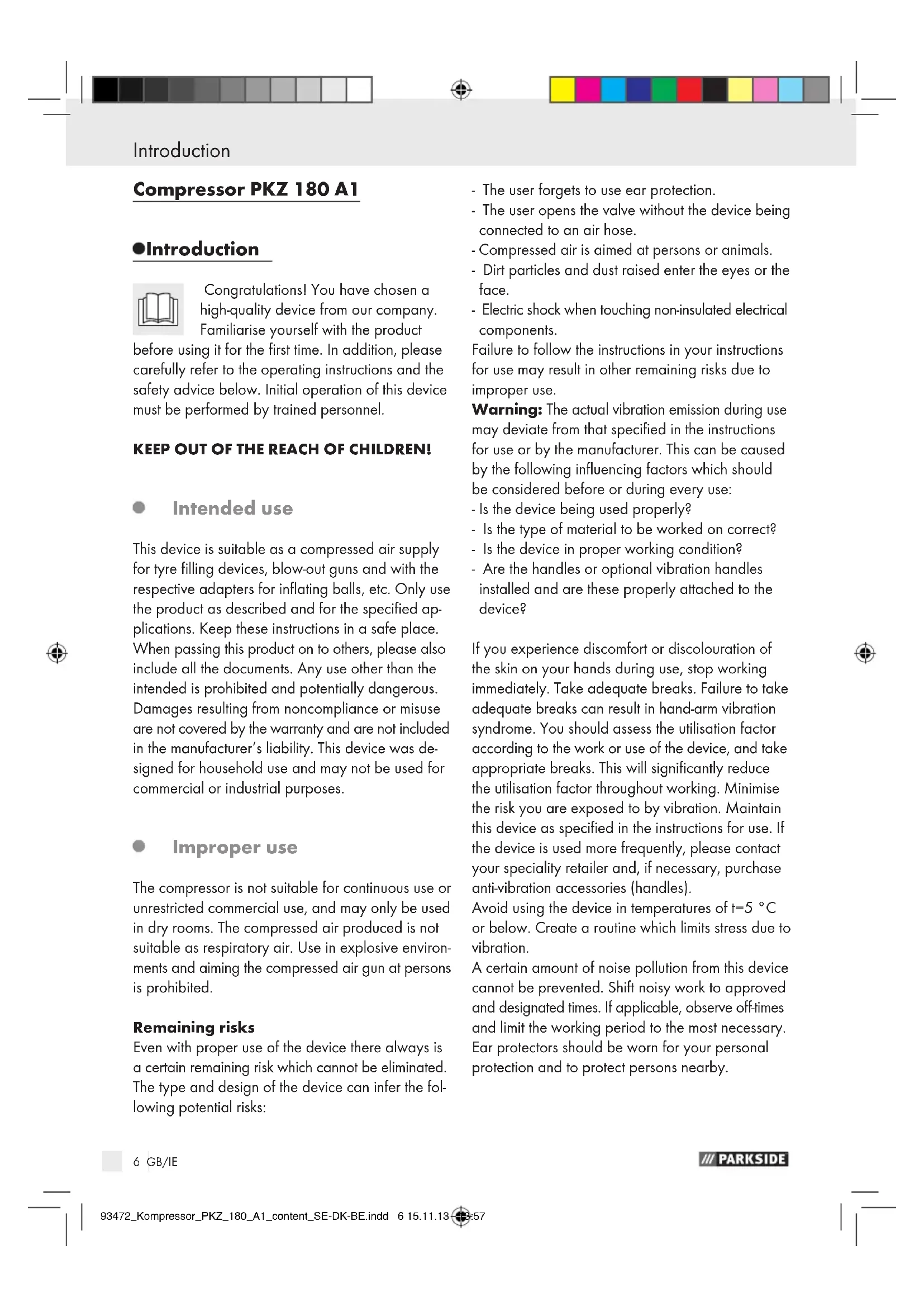

Introduction

Compressor PKZ 180 A1

Introduction

Congratulations! You have chosen a high-quality device from our company. Familiarise yourself with the product

before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Initial operation of this device must be performed by trained personnel.

KEEP OUT OF THE REACH OF CHILDREN!

Intended use

This device is suitable as a compressed air supply for tyre filling devices, blow-out guns and with the respective adapters for inflating balls, etc. Only use the product as described and for the specified applications. Keep these instructions in a safe place. When passing this product on to others, please also include all the documents. Any use other than the intended is prohibited and potentially dangerous. Damages resulting from noncompliance or misuse are not covered by the warranty and are not included in the manufacturer's liability. This device was designed for household use and may not be used for commercial or industrial purposes.

- Improper use

The compressor is not suitable for continuous use or unrestricted commercial use, and may only be used in dry rooms. The compressed air produced is not suitable as respiratory air. Use in explosive environments and aiming the compressed air gun at persons is prohibited.

Remaining risks

Even with proper use of the device there always is a certain remaining risk which cannot be eliminated. The type and design of the device can infer the following potential risks:

• The user forgets to use ear protection.
• The user opens the valve without the device being connected to an air hose.
• Compressed air is aimed at persons or animals.
• Dirt particles and dust raised enter the eyes or the face.
• Electric shock when touching non-insulated electrical components.

Failure to follow the instructions in your instructions for use may result in other remaining risks due to improper use.

Warning: The actual vibration emission during use may deviate from that specified in the instructions for use or by the manufacturer. This can be caused by the following influencing factors which should be considered before or during every use:

• Is the device being used properly?
• Is the type of material to be worked on correct?
• Is the device in proper working condition?
• Are the handles or optional vibration handles installed and are these properly attached to the device?

If you experience discomfort or discolouration of the skin on your hands during use, stop working immediately. Take adequate breaks. Failure to take adequate breaks can result in hand-arm vibration syndrome. You should assess the utilisation factor according to the work or use of the device, and take appropriate breaks. This will significantly reduce the utilisation factor throughout working. Minimise the risk you are exposed to by vibration. Maintain this device as specified in the instructions for use. If the device is used more frequently, please contact your speciality retailer and, if necessary, purchase anti-vibration accessories (handles).

Avoid using the device in temperatures of t = 5^ or below. Create a routine which limits stress due to vibration.

A certain amount of noise pollution from this device cannot be prevented. Shift noisy work to approved and designated times. If applicable, observe off-times and limit the working period to the most necessary. Ear protectors should be worn for your personal protection and to protect persons nearby.

Introduction / General safety instructions for air tools

- Features

Check that all the items are present and that the product is in perfect condition immediately after unpacking. Never use the product if it is defective.

Housing
Transport handle
3 Air hose with quick-disconnect coupler
4 On/Off Switch
5 Hose with valve adapter
Pressure gauge
7 Blow-out adapter
8 Tapered universal adapter A
Tyre filling device
10 Ball needle
11 Valve adapter
12 Deflating valve adapter
13 Screw-on valve adapter
14 Deflating adapter
[15] Additional adapter
16 Tapered universal adapter B

Technical Data

Rated voltage: 220-240V \~50Hz

Power rating: 1.1 kW

Duty type: S3 15% 10 min

Compressor speed: 3550 rpm

Operating pressure: max. 8 bar

Theo. Suction capacity: 180 l/min

Noise level L_m : 74.9 dB (A)

Uncertainty _pg 1.93 dB (A)

Sound power level L_wa : 94.9 dB (A)

Uncertainty Kwa: 1.93 dB (A)

Guaranteed

Sound power level: 97 dB (A)

Protection type: IP20

Device weight: approx. 6.0 kg

Measured value

corresponds to: ISO 2151

Noise emission measured according to ISO 2151

Duty type S3-15%-10 min: S3 = Intermittent duty without the effect of starting. During a 10 min period the max. operating time is 15% (1.5 min).

- Generalsafety instructions for air tools

Note: When used in the following text, the terms "compressed air unit" or device refer to the compressed air unit specified in these instructions for use. Basic safety measures must be followed when using compressed air units to eliminate the risk of fire, electric shock and personal injury. Be sure to read and follow the notices within these operating instructions prior to using the device and store them in a safe location. The manufacturer assumes no liability for damages or personal injury resulting from failure to follow these operating instructions.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

RISK OF INJURY!

During maintenance, switch off the compressed air supply.
Only use the device in areas of application for which it was designed!
- Do not overburden the device. Never use hydrogen, oxygen, carbon dioxide or other bottled gasses to power this tool as doing so may result in an explosion and thus may cause severe injuries.
Maintain and clean the device regularly as instructed (see Chapter „Cleaning / care").

EXPLOSION HAZARD!

• Never use petrol or other flammable liquids to clean the air tool! Sparks could ignite residual vapours inside the compressed air unit resulting in the compressed air unit exploding.

PARKSIDE

7GB/IE

General safety instructions for air tools

Do not use the device in explosive environments with flammable liquids, gasses or dust.
Never work on materials which are or could potentially be highly flammable or explosive.
Check the device for damage before startup.
Always make sure that the device is in perfect condition each time before use.
Always be attentive when working! Unexpected movement of the device may cause hazards.
Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the compressed air unit in unforeseen circumstances.
Do not use any device if its switch is defective. A device that can no longer be switched on and off is dangerous and must be repaired.
Store the device out of the reach of children when it is not in use.
Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Compressed air units are dangerous when they are used by inexperienced people.
Maintain the device carefully. Check that moving device parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before using the device. Many accidents have their origins in poorly maintained devices.
Switch the device off if you do not use it anymore.
Always wear personal protective equipment and safety glasses. Wearing personal protective equipment

such as dust mask, non-slip safety shoes, safety helmet or ear protectors, depending on the type of air tool and its application, reduces the risk of injuries.

Check the connections and supply lines. All maintenance devices, couplings and hoses must be equipped to meet the pressure and air amounts specified in the device specific values. Pressure that is too low influences the functioning of the device; pressure that is too high can cause damage to property and personal injury.

Protect hoses from kinks, constrictions, solvents and sharp edges.
Keep hoses away from heat, oil and rotating parts.
Make sure that the hose clamps are always tightly fastened. If the hose clamps are not tightly fastened or are damaged, the air could escape uncontrollably.
Replace damaged hoses immediately. A damaged supply line may result in the air hose whipping about and may result in injuries.
If the power cable of the appliance is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.
Do not use the device when tired or under the influence of drugs, alcohol or medications. One moment of carelessness when using the device may result in serious injuries.

Do not directly inhale the exhaust air.

Keep exhaust air away from the eyes. Exhaust air from the air tool may contain water, oil, metal particles or contaminants from inside the compressor. This may damage your health.

WARNING! BE CAREFUL WHEN SETTING DOWN THE device! Always put down

the device so it does not come into contact with the trigger. This could potentially result in accidental activation of the device, which again could result in hazards.

Only use suitable accessories. These may be purchased from the manufacturer. Using non-OEM accessories may result in hazards.
Only use filtered and regulated compressed air. Dust, caustic vapours and / or moisture may damage the motor of the compressed air tool.
The hose must be designed for at least 150% of the maximum pressure generated by the system.
The tool and supply line must be equipped with a hose coupling to completely release pressure when disconnecting the coupling hose.
Do not modify this device in any way without the manufacturer's approval.
Only use the device with the specified pressure (approx. 8 bar max.).

General safety instructions ... / General safety information for electrical devices

• Disconnect the compressed air unit from the air supply after each use and when not in use. Do not use the compressed air unit if it leaks or is in need of repair.
• Keep your working area clean and well lit. Untidy or poorly lit working areas can result in accidents. Doing so will allow you better control of the device, particularly under unforeseen circumstances.
  Only have the device repaired by qualified specialist personnel using OEM spare parts. This will maintain the safety of the device.
• Keep children and other persons away from the device during use. Distractions can cause you to lose control of the device.
  Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
  Put down trigger and device in the event of unexpected compressor failure.
  If possible, use a condensate trap or drain the hoses and pipes of condensate (water) regularly before and during the use compressed air units.
  ■ ATTENTION! An undersized compressed air system may minimise the efficiency of your device.
  Never point the compressed air unit at yourself, other persons or animals. Otherwise there is a risk of injury.
  Always observe all the safety notices attached to the compressor.
  Make sure that the compressor intake opening is never blocked and the airflow is never hindered.
  Switch off the device and pull the plug from the socket to prevent it from being accidentally switched on.
  Do not allow yourself to become distracted while working with the device.
  Never operate the compressor in temperatures below 5 degrees.
  The outlet must always be within reach.

ATTENTION! The pressure gauge is not calibrated! Please check the air pressure with a calibrated device after filling.

- General safety information for electrical devices

Always connect the device to a residual current (FI) protective switch.
Protect yourself against electric shock. As you are working, avoid touching grounded parts (e.g. refrigerator, water supply pipes etc.).

DANGER OF ELECTRIC SHOCK! Avoid contact with live lines. This device is not insulated against electric shock.

Regularly check extensions and power supply cables. Replace any faulty cables with new ones immediately. If the supply cable of this device is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person in order to avoid hazards.
Store the device in a dry environment when it is not being used over a longer period.
Make sure that the connection cable does not hang over a corner or be stretched; otherwise there is a risk of injury.
Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the product, to hang it up or to pull the mains plug out of the mains socket.
Never use power tools in damp or wet environments, and never expose it to rain or high humidity.
Never switch on the device in the vicinity of inflammable liquids or gases. If the device is used outdoors, only use extension cables that are expressly designed for outdoor use.

Product-specific safety instructions

CAUTION! HOT SURFACE! The compressor heats up after extended operation. Therefore

PARKSIDE

9GB/IE

General safety information for electrical devices / Before use / Start-up

always use the handle on the device to move it. Never touch the device itself!

ATTENTION! The compressor housing may become hot during use. Do not touch hot surfaces in order to prevent burns.

Never leave the device in operation unattended. Built-up heat generated by the device can be a source of danger. This compressor is equipped with overheat protection. Of the motor reaches a temperature of 130^ , the overheat protection will automatically shut it off. This allows the motor to cool off, thus preventing damage. Once the motor has cooled down, it will automatically restart. This pause is normal and is intended to protect the motor. This process will repeat if the motor again reaches a temperature of 130^ .
Only use indoors.

WARNING!The compressor can start up without warning!

Start-up

• Switching the compression on / off (cf. Fig. A)

Please set the on/off switch to position I to switch on.
Please set the on/off switch to position 0 to switch on.
Establishing connections (cf. Fig. B)

ATTENTION! Switch off the device for this purpose. Please hold on to the coupling to prevent injuries due to the hose rebounding.

Connect the nipple of your air tool to the compressor's air hose 3.
To disconnect this connection, pull back on the quick-disconnect coupling of the air hose 3.

- Beforeuse

Only use the compressor in dry, well ventilated rooms. The room must be free from dust, acids, fumes, explosive or flammable gasses.
Check that all of the device's parts are in perfect condition.
Make sure that the available mains voltage is compatible with the voltage intended for operating the compressor.
Avoid long supply lines.
Place the compressor on its rubber feet before use.

Note: The switch light indicates the mains connection and does not indicate pump operation.

Using the tyre filling device (cf. Fig. C)

The compressed air tyre filling device 9 is used to inflate car tyres and, used with the appropriate accessories, also to inflate and control bicycle tyres, rubber dinghies, air mattresses, balls, etc.

ATTENTION! The pressure gauge 6 is not calibrated! Please check the air pressure with a calibrated device after filling.

Using the blow-out gun (cf. Fig. D)

The tyre filling device can also be used to clean hollow spaces and dirty surfaces and tools when used as a blow-out gun.

To do so, please first remove the hose with valve adapter 5.
Now attach the blow-out adapt with the tyre filling device.

.../Cleaning/Care/Spare.../Maintenance and.../Information about ...

Using the adapter set

The adapter set allows the tyre filling device to be used for the following additional applications:

a) Inflating balls using the ball needle10.
b) The valve adapter[11] allows bicycle tyres to be inflated.
c) Inflating pools, air mattresses or dinghies using the additional adapter [15].
d) inflating items with screw valves (e.g. dinghies) using the screw-on valve adapter 13.
e) Deflating large-volume items. Use the deflating valve adapter 12 for this purpose.
f) The two tapered universal adapters [8] [16] can also be used to inflate air mattresses.

- Cleaning/Care

Note: We recommend cleaning the device immediately after every use. Please first unplug from the mains before cleaning.

• Be sure the device is completely cooled off to prevent burns.
  Do not use cleaning agents or solvents for cleaning.
  Be sure water does not enter the device.
  Depressurise the device before cleaning. To do so, use the tyre filling device as a blow-out gun and activate the trigger until no air escapes anymore.

Note:Store the compressor in a dry and safe environment. Bleed the device and any connected air tools before storing.

- Maintenance and Service

This device requires no maintenance.

Note: Never open the device. Any repairs must be performed by our authorised service branch or Customer Service.

Please note the following, if one of the errors below occurs:

Disconnect the device from any power supply.
- Allow the device to cool down and wait a short period to neutralise residual energy.
Always verify the device is in safe working condition.

Fault analysis
Fault Solution
1. Compressor doesn't start	1. Check the mains supply. Check all cables, the fuse and outlet are working. 2. Do not use extension cables which are too long. 3. Do not use the device in ambient temperatures below + 5 °C. 4. Avoid the motor overheating. Allow the motor to cool down.
2. Insufficient working pressure	Check seals and the check valve and have replaced, if necessary
3. Tools aren't working	Check hoses, quick-disconnect coupling and tools, and have replaced if necessary

- Spareparts

Please contact our Service Department directly if you are in need of spare parts.

www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Information about warranty and service processing

Creative Marketing Consulting GmbH warranty

Dear customer, the warranty for this device is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not limited in any way by our warranty detailed below.

PARKSIDE

11GB/IE

Information about warranty … / Environmental instructions and disposal information

Warranty terms

The warranty period begins on the date of purchase. Please retain the original receipt safely. This document is required as your proof of purchase. Should this device show any fault in materials or manufacture within three years from date of purchase, it will be repaired or replaced - at our choice - by us free of charge. This warranty is conditional on the defective device and the receipt of purchase (store receipt) being presented within the three year warranty period, and that there is a brief written description of the nature of the defect and of the date it arose. If the defect is covered by our warranty, we will return the repaired device or replacement thereof. A repair or exchange of the device does not extend a new warranty period.

- Scope of warranty

The appliance has been manufactured to strict quality guidelines and meticulously examined before delivery. The warranty applies to faults in material or manufacture. This warranty does not apply to product parts subject to normal wear and tear and which can therefore be considered as wear items, or to damage to fragile parts, e.g. switches, storage batteries or glass parts. This warranty becomes void if the device has been damaged or improperly used or maintained. All instructions provided in the operating instructions must be followed strictly to constitute proper use of the product. Purposes and practices which the operating instructions warn of or advise against must be avoided without fail. This product is intended for private, non-commercial use only. Any incorrect or improper use of the device, use of force and changes not performed by our authorized service branch will void the warranty.

- Processing of warranty claims

Please remember the following to ensure your matter is processed quickly: Please keep your sales receipt and the item number (e.g. IAN) ready as your

proof of purchase when making enquiries. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left) or the decal at the back or bottom. In the event of malfunctions or other defects please first contact the service department below by phone or e-mail. A product recorded as defective, along with the proof of purchase (sales receipt) and a description of the defect and when it occurred, can then be returned free of charge to you to the service address provided.

Environmentalinstructions and disposal information

Correct disposal of this product Within the EU this symbol indicates this product mustn't be disposed of with regular

household waste. Used equipment contains previous recyclable materials which should be recycled to prevent endangering the environment or the health of humans through unregulated waste management. Therefore please always dispose of used equipment through suitable collection systems or send the device to the place of purchase for disposal. It will then send the device for material recycling.

Don't waste, recycle!

Device, accessories and packaging should be recycled in an environmentally friendly manner. Do not dispose of the air tool with your household waste, or throw into fire or water. If possible, non-operational equipment should be recycled. Contact your local retailer for information.

Notice:

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Environmental instructions and disposal information / EC Declaration of Conformity

How to contact us:

Name: C. M. C. GmbH

Internet address: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

(standard rates for German landlines)

Registered office: Germany

IAN 93472

Please note that the following address is not a service address. Please initially contact the named Service Centres.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

EC Electromagnetic Compatibility Directive

2004/108/EC

RoHS Directive

2011/65/EC

Pressure Equipment Directive

97/23/EC

Outdoor Directive

2000/14/EC_2005/88/EC

and its amendments. The conformity assessment is based on the following harmonised standards:

EN 1012-1

EN 60204-1

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

EC Declaration of Conformity (C)

We,

C. M. C. GmbH

Responsible for documentation: Markus Zimmer Katharina-Loth-Str. 15

66386 St. Ingbert

St. Ingbert, 30. November 2013

declare in our sole responsibility that the product

Compressor

Serial number: 1672

Year of manufacture: 2014/13

IAN:93472

Model: PKZ 180 A1

meets the basic safety requirements of European Directives

EC Machinery Directive

2006/42/EC

PARKSIDE

Karl Peter Uhle

• Managing Director -

Inledning

E-post: [e-mail]

Telefon: [phone]

Internetaddress: www.cmc-creative.de

E-post: [e-mail]

Telefon: [phone]

(Standardtaxa tyska Telefonnet)

Sate: Tyskland

IAN 93472

Beakta att foljande adress inte ar nagon serviceadress. Kontakta i forsta hand ovanstaende servicestalle.

Adress:

C. M. C. GmbH

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

Tyskland

St. Ingbert, 30 November 2013

Karl Peter Uhle

• Verkstallande direkt -

Indledning

Formalsbestemnt anvendelse .Side 26
Ikke bestemmelsesmaessig anvendelse. Side 26
Udstyr. Side 27
Tekniske data. Side 27

St. Ingbert, 30. November 2013

Karl Peter Uhle

• Direktor -

Kompressor

Serienummer: 1672

Felicitations! You've opted for a piece of grandiose quality proposed by our favouriteentrepreneur. Avant la première mise

RISQUES D'EXPLOSION!

Directive Machines CE

2006/42/CE

St. Ingbert, 30. November 2013

C.M.C.GmbH

Katharina-Loth-Str. 15

668651, Ingbert

Telefoll 496894 9989720

Tel:[phone] 9989729

Karl Peter Uhle

• Directeur -

44 FR/BE

PARKSIDE

Inleiding

St. Ingbert, 30. November 2013

Karl Peter Uhle

Bedrijsleider

St. Ingbert, 30. November 2013

Karl Peter Uhle

• Geschäftsführer
