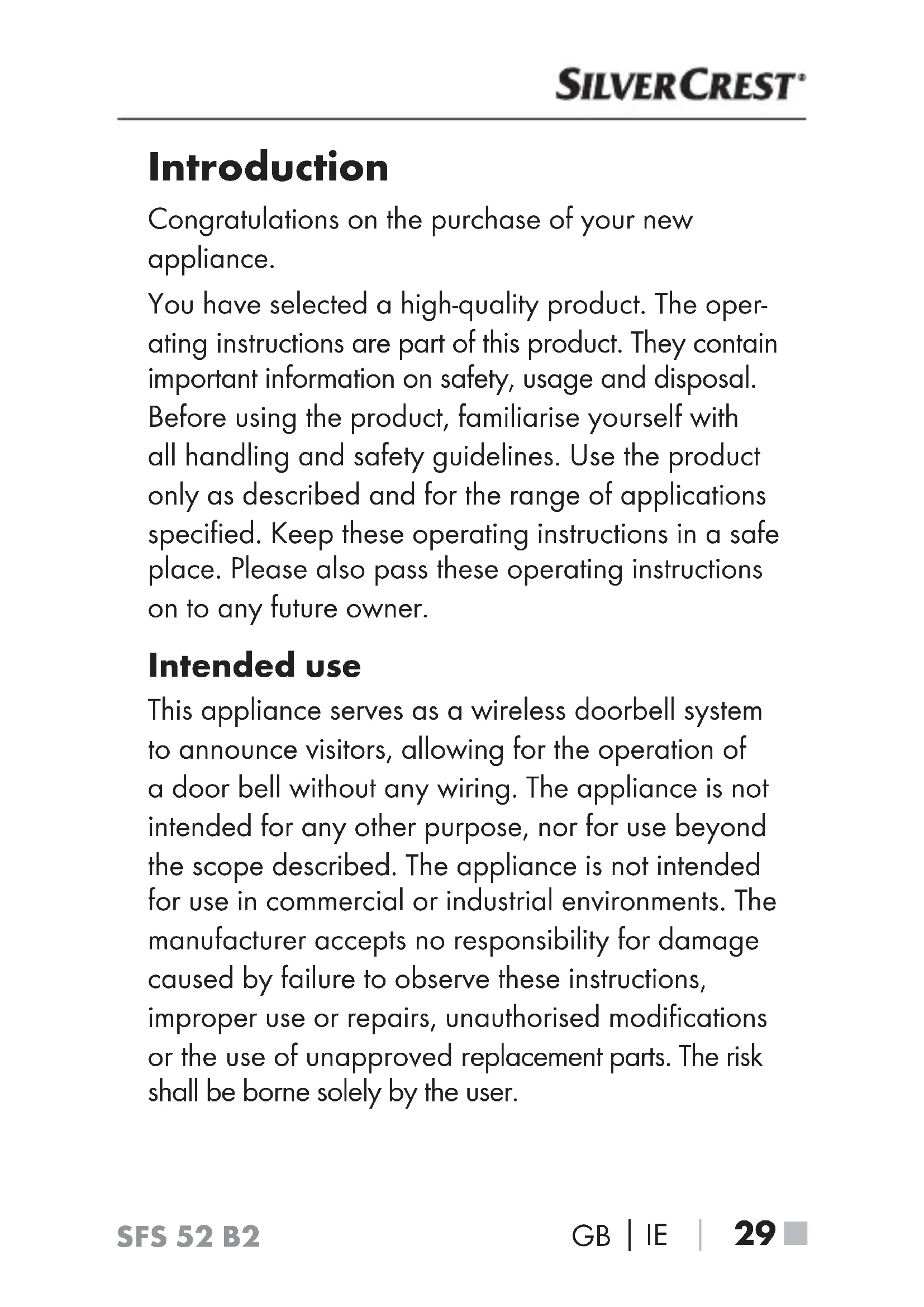

 29 ■ Introduction Congratulations on the purchase of your new appliance. You have selected a high-quality product. The oper- ating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please also pass these operating instructions on to any future owner. Intended use This appliance serves as a wireless doorbell system to announce visitors, allowing for the operation of a door bell without any wiring. The appliance is not intended for any other purpose, nor for use beyond the scope described. The appliance is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.SFS 52 B2 ■ 30 

Warnings used The following warning notice types are used in these operating instructions: DANGER A warning notice at this hazard level indicates an imminently hazardous situation. If the hazardous situation is not avoided, it could result in death or serious physical injury. ► Follow the instructions in this warning notice to avoid the risk of death or serious injury. CAUTION! A warning notice at this hazard level in- dicates a potential for property damage. Failure to avoid this situation could result in prop- erty damage. ► Follow the instructions in this warning notice to prevent property damage. NOTE ► A note provides additional information that will assist you in using the appliance.SFS 52 B2

 31 ■ Safety This section contains important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage. Basic safety guidelines ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appli- ance as a plaything. Cleaning and user mainte- nance tasks may not be carried out by children unless they are supervised. ■ The mains plug is used as a separator from the electricity grid and must always be readily ac- cessible. ■ Risk of explosion if the battery is replaced incor- rectly. Replace only with the same or equivalent type. ■ Do not place any sources of naked flames, such as lighted candles, on the appliance.SFS 52 B2 ■ 32 

■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped. ■ Do not expose the appliance to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged. ■ Do not expose the receiver to water spray or drips, and do not place liquid-filled objects such as vases or open drink containers on or near the receiver. ■ Warning: electrical voltage! Never open the housing of the receiver. There are no user-serviceable or replaceable compo- nents inside the appliance. ■ Do not make any unauthorised modifications or alterations to the appliance. ■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims. ■ Unplug the appliance immediately if you smell burning or notice smoke. Have the appliance checked by a qualified specialist before using it again.SFS 52 B2

 33 ■ DANGER Mishandling the batteries can cause fires, explosions, leakages or other hazards! In order to handle batteries safely, please observe the following safety instructions: ► Do not throw the batteries into a fire and do not subject them to high temperatures. ► Do not open, deform or short-circuit batteries, since this can lead to chemical leakage. ► Do not attempt to recharge the batteries. ► Check the condition of the batteries at regular intervals. Leaking chemicals can cause permanent damage to the appliance. Take particular care when handling damaged or leaking batteries. Risk of acid burns! Wear protective gloves. ► Chemicals that leak from a battery can cause skin irritation. In the event of contact with the skin, rinse with plenty of water. If the chemicals come into contact with your eyes, rinse thorough- ly with water, do not rub and consult a doctor immediately. ► Keep batteries out of the reach of children. Children might put batteries into their mouth and swallow them. If a battery has been swallowed, seek medical assistance IMMEDIATELY.SFS 52 B2 ■ 34 

DANGER ► Always insert the batteries the right way round (observe correct polarity) otherwise there is a danger that they could explode. ► If you do not intend to use the appliance for a long time, remove the batteries. ► Do not ingest the battery – there is a risk of chemical burns! ► This product contains a button cell battery. Swallowing the button cell battery can cause severe internal burns in just 2 hours and can lead to death. ► Keep new and old batteries away from children. ► If the battery compartment does not close securely, stop using the product and keep it away from children. DANGER Do not allow children to play with the packaging material! Keep all packaging materials out of the reach of children. Risk of suffocation!SFS 52 B2

 35 ■ Descriptions of components (See fold-out page for illustrations) Receiver (Fig. A) Speaker Signal display Signal type switch (optical/acoustic) Volume button (VOL) Melody selection button Synchronisation button Sender (Fig. B) Nameplate cover Ringer button Battery compartment Battery compartment cover -Mounting plate Accessories (Fig. C) 3 Double-sided adhesive tape ! Name plate .Wall plug 0Screw 63V battery, type CR2032SFS 52 B2 ■ 36 

Operation Check the package contents (See fold-out page for illustrations) The scope of delivery includes the following compo- nents: ● 1 x receiver ● 1 x sender ● 1 x 3V battery, type CR2032 ● 5 x name plates ● 2 x wall plugs with screws for sender assembly ● 1 x double-sided adhesive tape ● These operating instructions ♦ Remove all parts of the appliance from the pack- aging and remove all packaging materials. ♦ Check the package for completeness and for signs of visible damage. ♦ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see chapter entitled Service).SFS 52 B2

 37 ■ Disposal of packaging materials The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable. Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regu- lations. Power supply: receiver The receiver is plugged into a properly installed mains power outlet and does not require batteries. Inserting/replacing the batteries ♦ Open the battery compartment

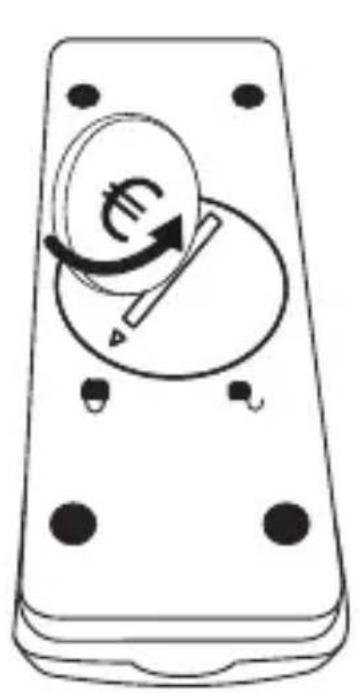

by inserting a coin into the slot and turning the battery com- partment cover

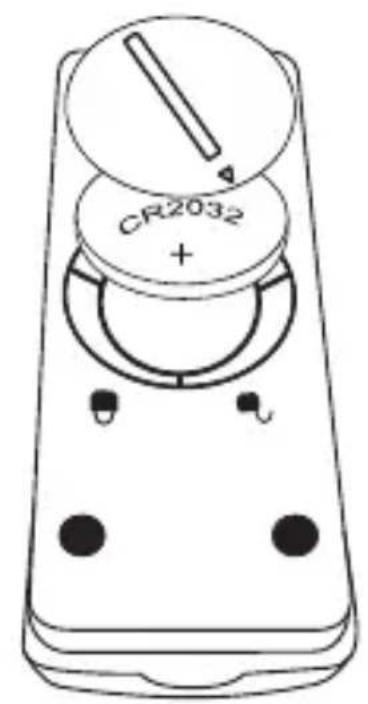

anticlockwise. The arrow on the cover must point to the open lock symbol (see fig. 1). ♦ Insert a CR2032 battery into the battery com

♦ Place the battery compartment cover

back onto the battery compartment

and lock it by turning the battery compartment cover

clockwise. The arrow on the cover must point to the closed lock symbol . Otherwise, ingress protection is not provided. Fig. 1 Fig. 2 NOTE ► If the performance of appliance reduces or com- pletely stops, it means the battery is exhausted. Replace the used battery with a new one of the same type.SFS 52 B2

 39 ■ Handling and operation Selecting the signal type The receiver can indicate the reception of a door- ring signal either optically, acoustically, or optically and acoustically. ♦ To select, move the signal type switch to the desired position: — acoustic ringer signal only, the selected melody will be played — optical ringer signal only, the signal display flashes — optical and acoustic ringer signal Adjusting the signal sound volume Press the VOL button

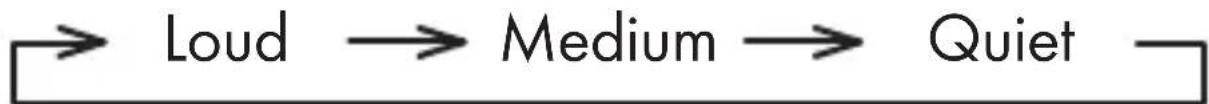

repeatedly until the desired volume is set. Loud Medium QuietSFS 52 B2 ■ 40 

Selecting the ringer melody There are 52 different ringer melodies stored in the appliance. ♦ Press the melody select button

♦ Stop the selection when you hear the desired melody. The appliance will use the last-played melody. NOTE ► If you remove the receiver from the mains socket, the set melody remains saved for approximately 40 seconds. After this time, you need to set your desired melody anew. Synchronising the sender and receiver The transmitter and receiver of this wireless doorbell system can communicate with each other via a num- ber of different codings. This means that you can operate up to 5 transmitters with one receiver. In ad- dition, you can extend the wireless doorbell system with any number of receivers. This is only possible if the sender and receiver within a system are working on the same frequency, however. For this, you must synchronise the appliances as follows: ♦ Press the synchronisation button on the receiver. ♦ Now press the ringer button on the transmitter.SFS 52 B2

 41 ■ If the synchronisation has been a success, the receiver notifies you of the programmed call signal. Should the receiver not react as described, repeat the synchronisation. NOTE ► To cancel synchronisation between the transmit- ter and the receiver, you need to press and hold the synchronisation button for about 5 seconds. ► Pull the receiver out of the mains socket and wait about 10 seconds so that all connections bet- ween the transmitter and receiver are terminated. Mounting the transmitter ♦ Select a suitable positioning for the sender, close to your outer door. ♦ Mark the positions for the required drill holes with the help of the mounting plate - and drill the holes for the supplied wall plugs . (5mm drill). ♦ Push the wall plugs into the drill holes and screw the mounting plate -onto the wall using the screws 0. ♦ Push the transmitter onto the mounting plate - until it clicks audibly into place.SFS 52 B2 ■ 42 

NOTE ► Alternatively, you can mount the transmitter onto a suitable surface using the double-sided adhesive tape 3. ♦ Label one of the supplied name plates !. If you label the name plate by hand, make sure you use a waterproof pen. ♦ Remove the name plate cover from the trans- mitter and insert your name plate into the recess on the transmitter. ♦ Replace the name plate cover on the trans- mitter. Maintenance The appliance is maintenance-free. No form of maintenance, either on or in the appliance, is intended for execution by the user. In the event of malfunction or apparent damage, contact Customer Services. If the appliance is not going to be used for an extended period, remove the batteries.SFS 52 B2

 43 ■ Troubleshooting There is no ring when pressing the ringer button ♦ Check whether there is a battery (type CR2032) in the transmitter. ♦ Check whether the power outlet being used for the receiver is working properly. ♦ It is possible that the transmitter is not synchro- nised with the receiver. Repeat the synchronisa- tion. ♦ Ensure that the signal type switch is set to the position or . The range is reduced ♦ A weak battery will reduce the range. Change the battery every 12–18 months. ♦ Metal constructions, walls, ceilings or other ap- pliances that use the same frequency can affect the range. Try to avoid mounting the transmitter in the immediate vicinity of any metal parts. NOTE ► If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see chapter entitled Service).SFS 52 B2 ■ 44 

Cleaning CAUTION! ► There are no serviceable parts or parts requiring cleaning inside the appliance. Moisture can cause damage to the appliance. ► Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfac- es of the appliance. ♦ Clean the housing of the appliance with a lightly moistened cloth and a mild detergent only. Storage when not in use ♦ Store the appliance in a location which is clean, dry, dust-free and not in direct sunlight.SFS 52 B2

 45 ■ Disposal Disposal of the appliance The adjacent symbol of a crossed-out wheelie bin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be dis- posed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or dis- posal companies. This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. You can obtain further information from your local disposal company or the city or local authority. Disposal of batteries Used batteries may not be disposed of in domestic waste. Batteries can contain poisons which are damaging to the environment. Therefore, dispose of the batteries/ rechargeable batteries in accordance with statutory regulations. All consumers are statutorily obliged to dispose of batteries at a collection site in their commu- nity/city district or with a collection company. The purpose of this requirement is to ensure that batteries are disposed of in an environmentally friendly manner.SFS 52 B2 ■ 46 

Appendix Technical data Power supply: receiver 110–240 V ∼ (alternating current), 50/60 Hz Power consumption of the receiver Operation: 0.03 A Standby: 1.3 mA Protection class of the receiver II / Power supply: transmitter 1 x 3V battery, type CR2032, direct current Transmitting frequency 433 MHz Transmission output max .−18 dBm Range 100 m (free field) Number of ringer tones 52 Protection class: transmitter IPX4 Notes on the Declaration of Conformity This appliance complies with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU and the RoHS Directive 2011/65/EU. You can download the complete EU conformity declaration from: www.kompernass.com/support/ 284203_DOC.pdf.SFS 52 B2

 47 ■ Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statuto- ry rights are not restricted in any way by the warran- ty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our dis- cretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.SFS 52 B2 ■ 48 

Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.SFS 52 B2

 49 ■ This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper han- dling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. ■ If functional or other defects occur, please con- tact the service department listed either by tele- phone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.SFS 52 B2 ■ 50
