USER MANUAL Wireless Doorbell SILVERCREST
Operation and Safety Notes
SE
RADIOSTYRD DORRKLOCKA
GB/IEOperation and Safety NotesPage 7
Intended use Page 8
Technical data.. 8
Included items.. 9
Parts and features.. 9
Safety
General safety information.. 11
Safety instructions for batteries.. 12
Assembly 13
Preparing for use
Inserting/replacing the batteries.. 13
Operation
Synchronising transmitter/receiver 15
Setting the signal type.. 15
Setting the volume.. 16
Selecting the chime.. 16
Troubleshooting.. 16
Cleaning and maintenance.. 17
Disposal
Declaration of conformity.. 18
Warranty
GB/IE7

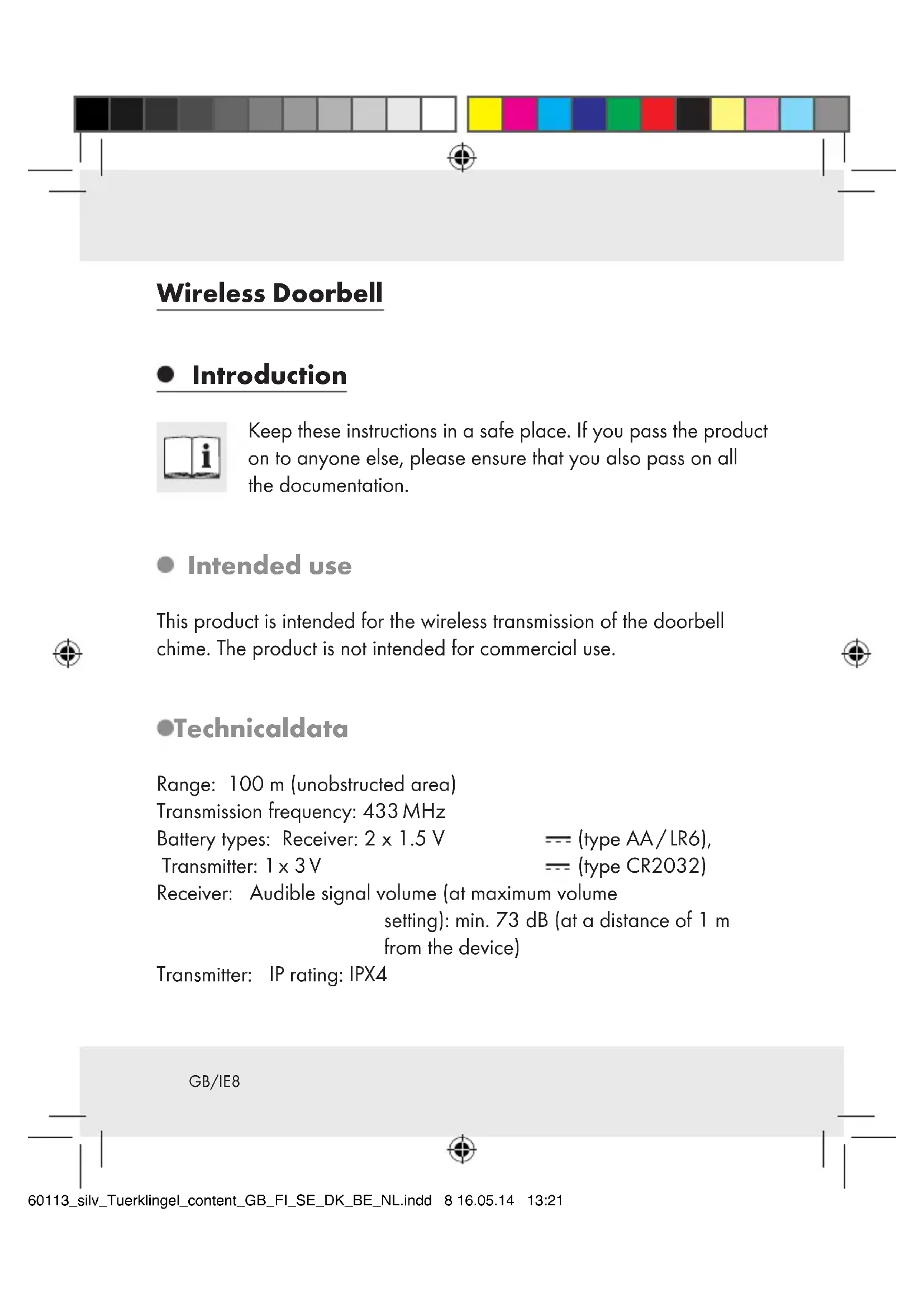

Wireless Doorbell
Introduction
Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.
- Intended use
This product is intended for the wireless transmission of the doorbell chime. The product is not intended for commercial use.
-Technicaldata
Range: 100m (unobstructed area)
Transmission frequency: 433 MHz
Battery types: Receiver: 2 × 1.5V
$$
= (t y p e A A / L R 6),
$$
Transmitter: 1 × 3V
$$
= - (t y p e C R 2 0 3 2)
$$
Receiver: Audible signal volume (at maximum volume
setting): min. 73 dB (at a distance of 1 m
from the device)
Transmitter: IP rating: IPX4
GB/IE8
IncludedItems
1 Transmitter
1 Receiver
1 Stand (for the receiver)
2 Batteries 1.5V = - , type AA (receiver)
1 Batteries 3V = - , type CR2032 (transmitter)
3 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
5 Exchangeable name plates (for the doorbell)
1 Doorbell cover
1 Operating instructions
- Parts and features
Receiver (Figs. A/B):
1 Signal indicator
2 Synchronisation button
3 Volume button
4 Melody selection button
5 Signal type selector button (optical, acoustic, optical and acoustic signal)
6 Speaker
7 Stand
8 Hanger
9 Battery compartment cover
10 Battery compartment
Transmitter (Figs. C/D):
11 Signal indicator
12 Name plate
13 Chime button
14 Battery compartment
15 Holder (for wall mounting)
Mounting (Figs. E/F):
16 Screw
17Dowel
18 Screw (for transmitter)
Safety
WARNING! Read all safety information and instructions. Failure to comply with the safety information and instructions may cause fire and/or serious injury.
YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!
GB/IE10
WARNING! DANGEROUS TO LIFE AND RISK OF ACCIDENTS FOR TODDLERS AND CHILDREN!
Never leave children alone and unsupervised with the packaging material. There is a risk of suffocation from the packaging material. Children often underestimate risks. Always keep children away from the product. This is not a toy.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Check that all parts are in sound condition. If you use damaged parts when assembling the device, you risk injury.
Check that all parts have been assembled correctly. There is a risk of injury if the device is not properly assembled.
- Keep the device away from open flames or sources of heat (e.g. burning candles).
GB/IE 11
Safety instructions for batteries
A WARNING! DANGER TO LIFE! Batteries can be swallowed, which can prove fatal. Consult a doctor immediately if anyone swallows a battery.
EXPLOSION HAZARD! Never recharge nonrechargeable batteries, short-circuit and / or open batteries. This can cause them to overheat, burn or burst.
Never throw batteries into fire or water. The batteries may explode.
- Immediately remove depleted batteries from the device; otherwise there will be an increased risk of leakage!
Always replace all the batteries at the same time and insert batteries of the same type.
- Do not use different types of batteries or mix used and new batteries together.
Batteries do not belong in household refuse. Dispose of used batteries in an environmentally friendly manner.
Consumers are under a legal obligation to dispose of batteries in the proper way.
- Keep the battery out of the reach of children, do not dispose of the battery in fire, do not short-circuit it, and do not take it apart.
Failure to observe these instructions may result in the battery discharging beyond its end voltage, which poses a risk of leakage. If the battery in your instrument has leaked, have it removed immediately to prevent damage to the instrument.
GB/IE12
- Avoid contact with skin, eyes and mucous membrane. In the event of contact with battery acid, rinse the affected area with plenty of water and / or consult a doctor.
Never use rechargeable batteries.
The supply terminals are not to be short-circuited.
Do not mix old batteries with new ones.
Remove the batteries from the device if they have not been used for a long period.
Make sure you insert the batteries the right way round (polarity).
Assembly
Note: You will need a screwdriver and a drill to assemble the doorbell. Note: Only use the screws and dowels supplied for the assembly of the device.
Mount the receiver (see Fig. E) Mount the transmitter (see Fig.F
Preparing for use
- Inserting/replacing the batteries
Insert the batteries to provide power to the device before preparing it for use.
GB/IE 13
CAUTION! Use the above-indicated battery types only. Failure to observe this advice may result in damage to the product.
Receiver:
Remove the battery compartment cover from the back of the device.
Remove the used batteries, if present.
Insert 2 batteries (1.5 V, type AA).
Note: Ensure correct polarity. This is indicated in the battery compartment 10.
Close the battery compartment 10.
Transmitter:
Remove the holder 15 from the back of the transmitter.
- Open the battery compartment 14 by turning the battery compartment cover anticlockwise.
Insert a battery (3 V type CR 2032). The side marked "+" must face upwards.
Place the battery compartment cover on the battery compartment and tighten it by turning it clockwise.
Fasten the holder 15 of the receiver back on to the back of the device.
GB/IE14
Operation
Synchronising transmitter / receiver
Synchronise the transmitter and receiver as follows:
Press the synchronisation button 2.
Press the chime button 13; the signal indicator 1 flashes red. The programmed audible signal sounds and the signal indicator 1 ceases to illuminate.
If the receiver does not react as described, press the synchronisation button 2 again to switch off the synchronisation function and repeat the synchronisation process.
The transmitter indicates the transmission of the signal to the receiver by the signal indicator [1] flashing briefly.
- Setting the signal type
The receiver can indicate the reception of a door signal either optically or acoustically or both optically and acoustically.
Using the signal type selector button 5, select whether the signal is to be indicated optically or acoustically or both optically and acoustically.
GB/IE 15
- Setting the volume
Press the volume button 3 until the desired volume is reached. There are a total of 5 possible volume settings: very loud, loud, medium, soft, very soft.
- Selecting the chime
Note: The doorbell has 36 different chimes.
Press the melody selection button 4. The first audible signal sounds.
Press the melody selection button 4 again to move on to the next audible signal.
Repeat this process until you have selected your desired audible signal. The last-selected audible signal is automatically stored.
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a strong electromagnetical field) the function of the item may be affected. In this case, please take off the batteries of both appliances for approximately 2 minutes. Then proceed again as described in the section "Synchronising the transmitter / receiver".
Electrostatic discharges may lead to malfunctions. If such malfunctions do occur, remove the battery for a short time and then replace it again.
GB/IE16
Then proceed again as described in the section "Synchronising the transmitter / receiver".
- Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as these will damage the device.
The device should only be cleaned on the outside with a soft dry cloth.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.
GB/IE 17
Environmental damage through incorrect disposal of the batteries!
Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.
We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckarsulm, hereby declare under our sole responsibility that the product: Wireless Doorbell, Model No.: Z32155, Version: 06 / 2014, to which this declaration refers, complies with the standards / normative documents of 1999/5/EC.
The complete declaration of conformity can be viewed at: www.owim.com.
GB/IE18
Warranty
The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.
The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
C
GB/IE 19
