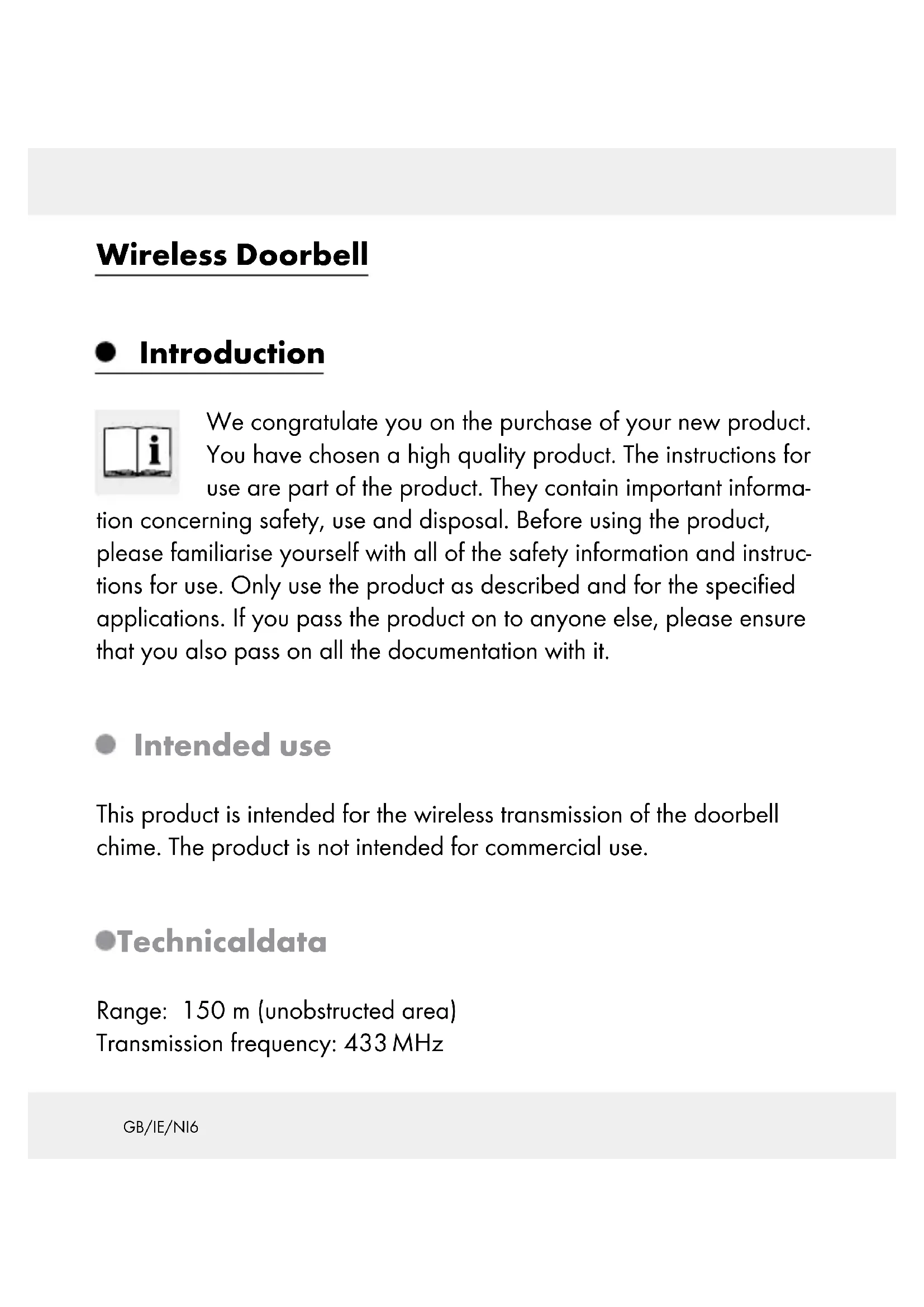

Wireless Doorbell

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is intended for the wireless transmission of the doorbell chime. The product is not intended for commercial use.

- Technicaldata

Range: 150 m (unobstructed area)

Transmission frequency: 433 MHz

Transmitting power: <10dBm

Battery types: Receiver: 2 x 1.5 V === (direct current)

(type AA/LR6),

Transmitter: 1 x 3 V === (direct current)

(type CR2032)

Receiver: Audible signal volume (at maximum volume

setting): min. 73 dB (at a distance of 1 m from the device)

Transmitter: IP rating: IP44

Includeditems

1 Transmitter
1 Receiver
2 Batteries 1.5 V= (direct current), type AA (receiver)
1 Batteries 3 V===(direct current), type CR2032 (transmitter)
4 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
5 Exchangeable name plates (for the doorbell)
1 Doorbell cover
1 Operating instructions

Parts and features

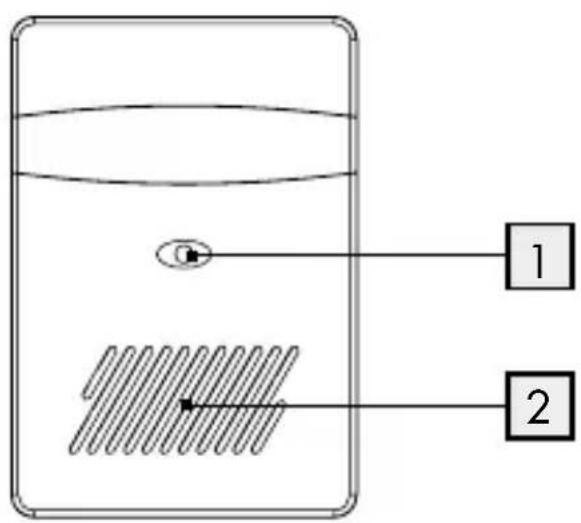

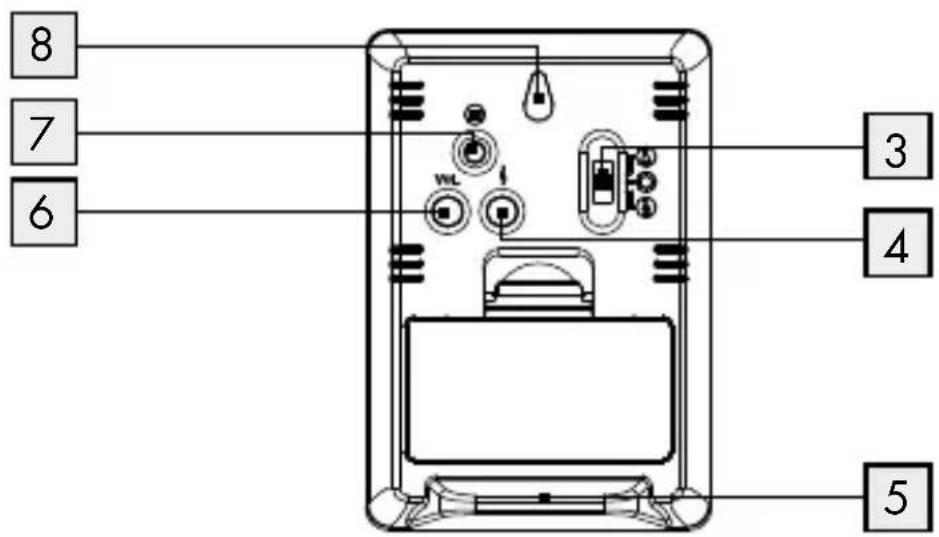

Receiver (Figs. A/B):

1 Signal indicator
2 Speaker
3 Signal type selector button (optical, acoustic, optical and acoustic signal)
4 Melody selection button
5 Stand
6 Volume button
7 Synchronisation button
8 Hanger
9 Battery compartment
10 Battery compartment cover

Transmitter (Figs. C/D):

11 Chime button
12 Signal indicator
13 Name plate
14 Battery compartment
15 Holder (for wall mounting)

Mounting (Figs. E/F):

16 Screw
17 Dowel

18 Screw (for transmitter)
19 Protective foil

Safety

WARNING! Read all safety information and instructions. Failure to comply with the safety information and instructions may cause fire and/or serious injury.

YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!

General safety information

WARNING! Children often underestimate risks.

Always keep children away from the product. This is not a toy.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the

product. Cleaning and user maintenance shall not be made by children without supervision.

• Check that all parts are in sound condition. If you use damaged parts when assembling the product, you risk injury.
• Check that all parts have been assembled correctly. There is a risk of injury if the product is not properly assembled.
• Keep the product away from open flames or sources of heat (e.g. burning candles).

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
- Never throw batteries / rechargeable batteries into fire or water. - Do not exert mechanical loads to batteries / rechargeable batteries.
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating,
fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged

batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a battery leak, immediately remove it from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
When inserting ensure the correct polarity! This is shown inside the battery compartment!
- Clean the contacts on the battery and in the battery compartment before inserting!

■ Remove exhausted batteries / rechargeable batteries from the product immediately.

WARNING! Do not ingest the battery, chemical burn hazard.

The product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Assembly

Note: You will need a screwdriver and a drill to assemble the doorbell.

Note: Only use the screws and dowels supplied for the assembly of the product.

Mount the receiver (see Fig. E)

Mount the transmitter (see Fig. F)

● Preparing for use

☐ For first time use, please remove the protective foil 19 from the name plate 13 of the transmitter and insert your name plate 13 into the recess on the transmitter.
☐ Replace the protective foil 19 on the transmitter.

- Inserting / replacing the batteries

☐ Insert the batteries to provide power to the product before preparing it for use.

CAUTION! Use the above-indicated battery types only. Failure to observe this advice may result in damage to the product.

Receiver:

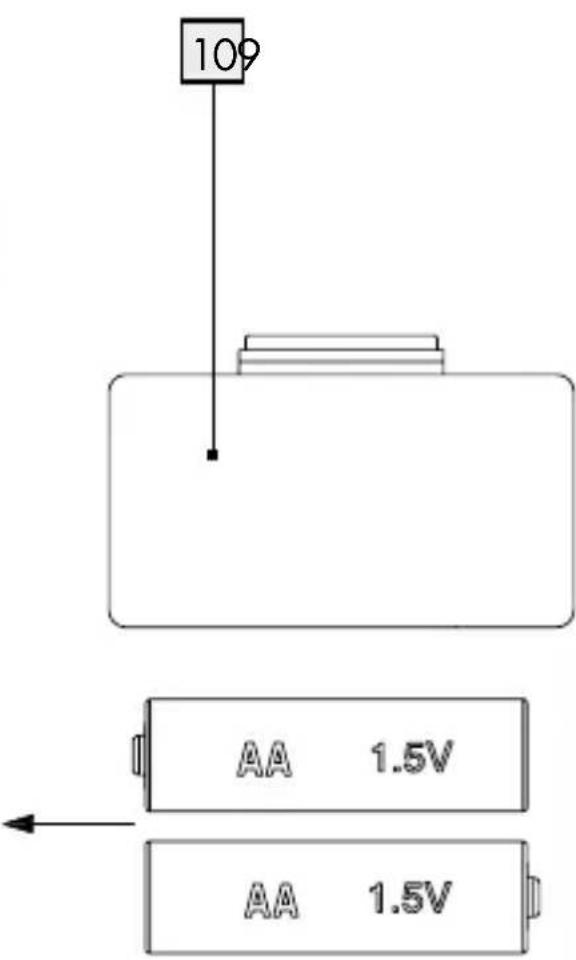

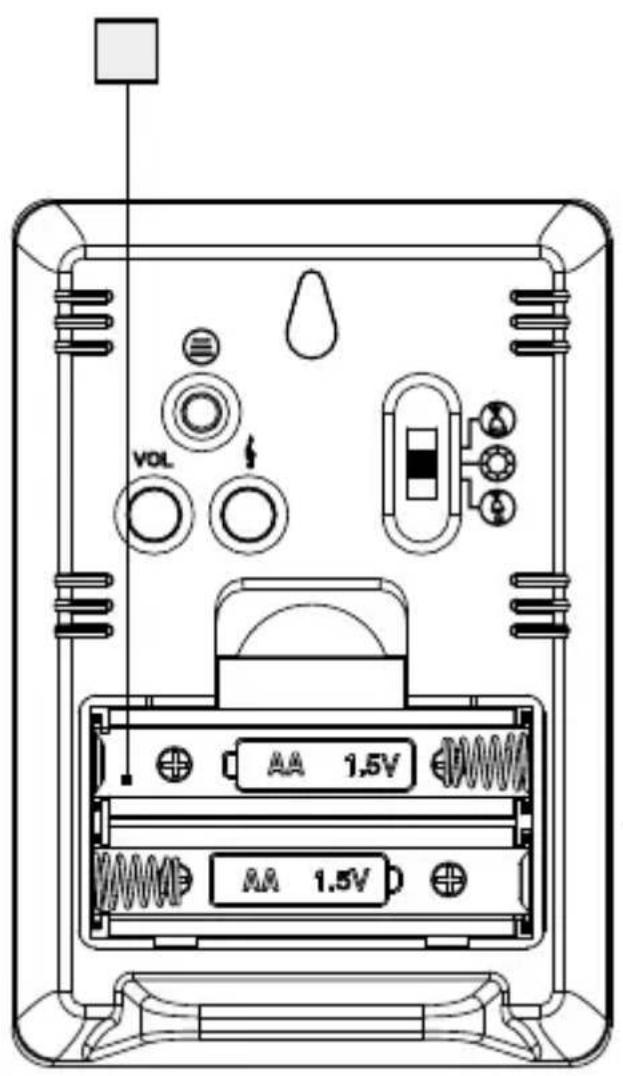

☐ Remove the battery compartment cover 10 from the back of the product.
☐ Remove the used batteries, if present.
☐ Insert 2 batteries (1.5 V = direct current), type AA).
Note: Ensure correct polarity. This is indicated in the battery compartment 9.
☐ Close the battery compartment 9.

Transmitter:

☐ Remove the holder 15 and screw 18 from the back of the transmitter.

☐ Remove the used batteries, if present.
☐ Insert a battery (3 V (direct current), type CR 2032).
The side marked "+" must face upwards.
☐ Fasten the holder 15 and screw 18 of the transmitter back on to the back of the product.
The transmitter battery compartment with the holder 15 must be installed by the screw 18 while in use. If the holder 15 is damaged, stop using the product.

Operation

- Synchronising transmitter / receiver

Synchronise the transmitter and receiver as follows:

☐ As soon as the batteries are installed, the receiver enters synchronising mode.
☐ You can also manually enter synchronising mode by holding the synchronising button 7 for approx. 3 seconds.
☐ The signal indicator 1 on the receiver will light on.
☐ Press the chime button 11, the signal indicator 12 on the transmitter will illuminate once.
☐ The signal indicator 1 on the receiver will then blink. This is to indicate the synchronisation is successful.

Note: The synchronisation mode can only last for approx. 2 minutes. If you cannot synchronise your transmitter and receiver, please enter synchronising mode again.

Note: Wait for approx. 2 minutes after the transmitter and receiver have been successfully synchronized until the signal indicator 1 on the receiver goes out.

Note: If the synchronization between transmitter and receiver is cancelled, you can remove the battery in the receiver.

- Setting the signal type

The receiver can indicate the reception of a door signal either optically or acoustically or both optically and acoustically.

☐ Using the signal type selector button 3, select whether the signal is to be indicated optically or acoustically or both optically and acoustically.

Note: When the battery of receiver is drained, signal indicator will flash. You can replace the used battery with a new one of the same type.

- Setting the volume

☐ Press the volume button 6 until the desired volume is reached. There are a total of 4 possible volume settings: very loud, loud, medium, soft.

- Selecting the chime

Note: The doorbell has 36 different chimes.

- Press the melody selection button 4. The first audible signal sounds. - Press the melody selection button 4 again to move on to the next audible signal.

☐ Repeat this process until you have selected your desired audible signal. The last-selected audible signal is automatically stored.

Troubleshooting

After the influence of extraordinary environmental conditions (e.g. a strong electromagnetical field) the function of the item may be affected. In this case, please take off the batteries of both appliances for approximately 2 minutes. Then proceed again as described in the section "Synchronising transmitter/receiver".

Electrostatic discharges may lead to malfunctions. If such malfunctions do occur, remove the battery for a short time and then replace it again.

Then proceed again as described in the section "Synchronising transmitter / receiver".

- Cleaning and maintenance

■ Under no circumstances should you use liquids or detergents, as these will damage the product.
☐ The product should only be cleaned on the outside with a soft dry cloth.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Information

- Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product [Wireless Doorbell HG03569], is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as

your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
