STK 17 A1 - Doorbells SILVERCREST - Free user manual and instructions

Product type	Wireless doorbell
Brand	SilverCrest
Model	STK 17 A1
Receiver power supply	2 AA batteries (1.5 V) (not included)
Transmitter power supply	1 12 V battery type A23 (not included)
Outdoor range	Up to 100 m in open field
Number of melodies	8 adjustable ringtones
Sound volume	Adjustable levels (silent, medium, loud)
Pairing	Via pairing button on transmitter
Receiver dimensions	Approx. 85 x 75 x 35 mm
Transmitter dimensions	Approx. 45 x 80 x 20 mm
Receiver weight (without batteries)	Approx. 120 g
Transmitter weight (without battery)	Approx. 40 g
Protection rating (transmitter)	IP44 (weather resistant)
Warranty	3 years (in accordance with legislation)
Maintenance and cleaning	Clean with a dry cloth; do not submerge
Safety	Use only recommended batteries; observe polarity

Frequently Asked Questions - STK 17 A1 SILVERCREST

How to pair the transmitter and receiver?

Insert batteries into both devices. Press the pairing button on the transmitter. The receiver will emit a sound signal to confirm the connection.

How to change the ringtone melody?

On the receiver, press the Melody button to cycle through the 8 available ringtones. The selected melody will play automatically.

How to adjust the volume?

Press the Volume button on the receiver to toggle between silent, medium, and loud levels.

Which battery to use for the transmitter?

The transmitter uses a 12 V alkaline battery type A23. Insert it observing the indicated polarity.

What is the maximum range?

The range can reach 100 meters in open field. Obstacles (walls, doors) may reduce the range.

Is the transmitter water resistant?

Yes, the transmitter is rated IP44, which protects against water splashes. It can be installed outdoors, but avoid direct exposure to rain.

What to do if the chime does not work?

First check the batteries in the receiver and transmitter. Make sure both devices are paired (see question 1). If the problem persists, reset the pairing by removing the batteries and then reinserting them.

Can a second transmitter be added?

Yes, the receiver can store up to 4 transmitters. Follow the same pairing procedure for each new transmitter.

How to clean the doorbell?

Use a dry, soft cloth. Do not use harsh cleaning products and never submerge the devices in water.

Where to find replacement batteries?

Batteries are commercially available. For the receiver: 2 AA (LR6) batteries. For the transmitter: 1 A23 12V battery.

USER MANUAL STK 17 A1 SILVERCREST

This quick start guide is a fixed part of the operating instructions.

Keep both this and the operating instructions in a safe place. When passing this product on to third parties, please be sure to include all documentation. Read the operating instructions before use, and pay particular attention to the safety instructions included in the operating instructions.

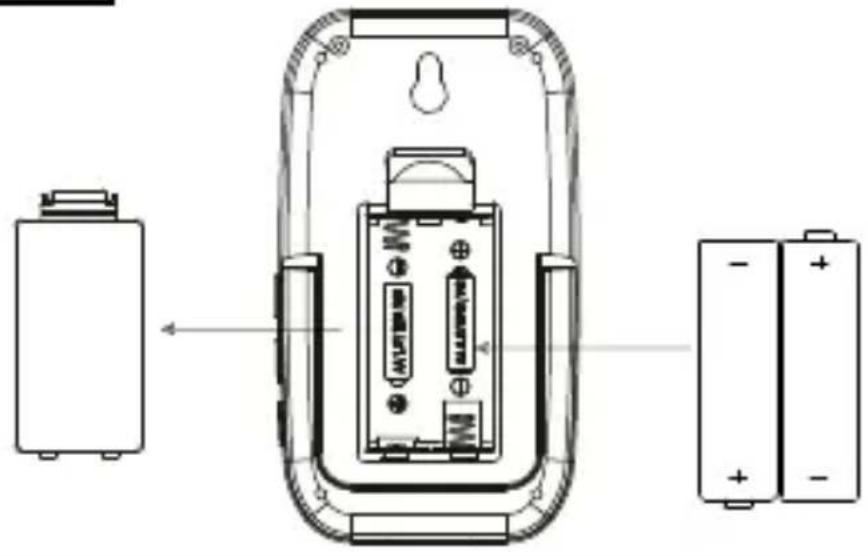

Insert the batteries to receiver.

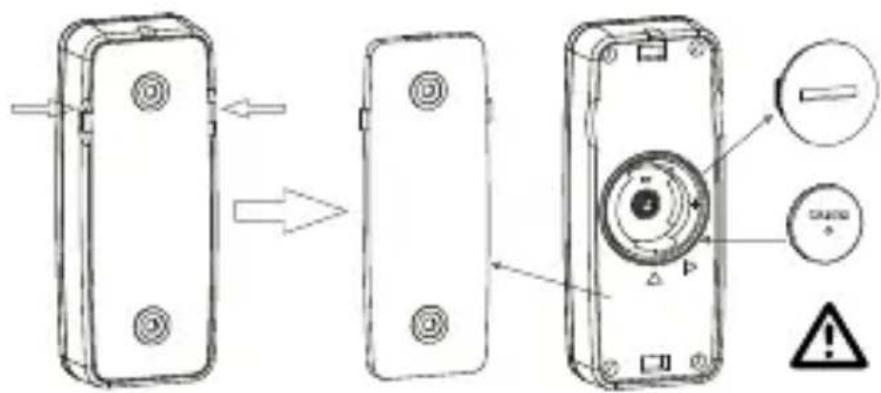

2 Insert the batteries to transmitter.

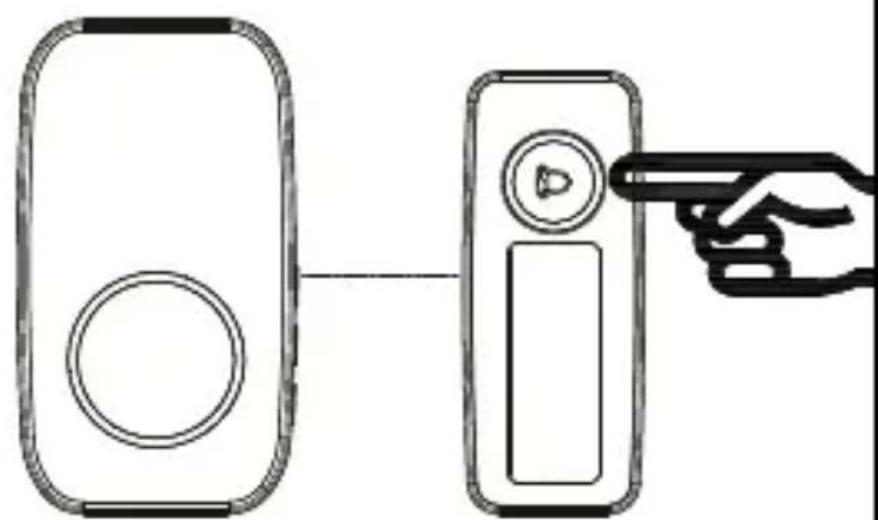

3 Press the button of the transmitter for synchronising.

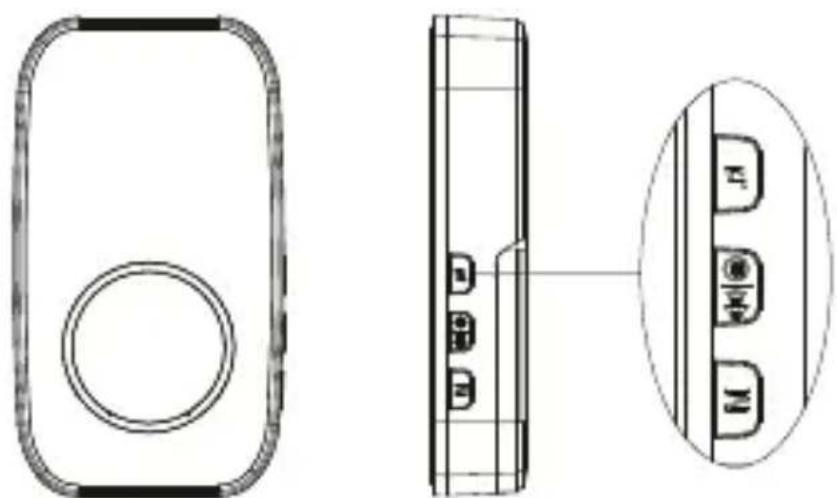

4 Setting the Signal type / Volume/Melody.
