USER MANUAL 22642 ROLLEI

Download and install the Rollei App called “Rollei Smart Gimbal” onto your smartphone. The App supports iOS 8.0 and Android 4.4 or above.

2. Battery Installation

The battery needs to be fully charged before the device is used for the first time. The charging time is about 2.5 hours when it is directly charged by a power outlet (therefore an adapter is needed which is not part of the delivery). The battery needs to be inserted into the handle of the gimbal. There- fore, please unscrew the lowest part of the handle. Then insert the battery into the handle (the minus polarity shows in the direction of the small part of the handle). Afterwards the small part can be screwed onto the handle again.

3. Mount the Smartphone

Please make sure that the gimbal is turned off. Insert the smartphone. Therefore put it with one side into the smartphone holder, push the upper part from the holder to enlarge the holder and press the smartphone inside. Make sure that the smartphone is well inserted and that it cannot fall out. NOTE: The home button of the smartphone should be at the side near to the pitch motor. Please ensure that the smartphone is fixed tightly in order to avoid shaking of the gimbal.

4. Balancing the Smartphone

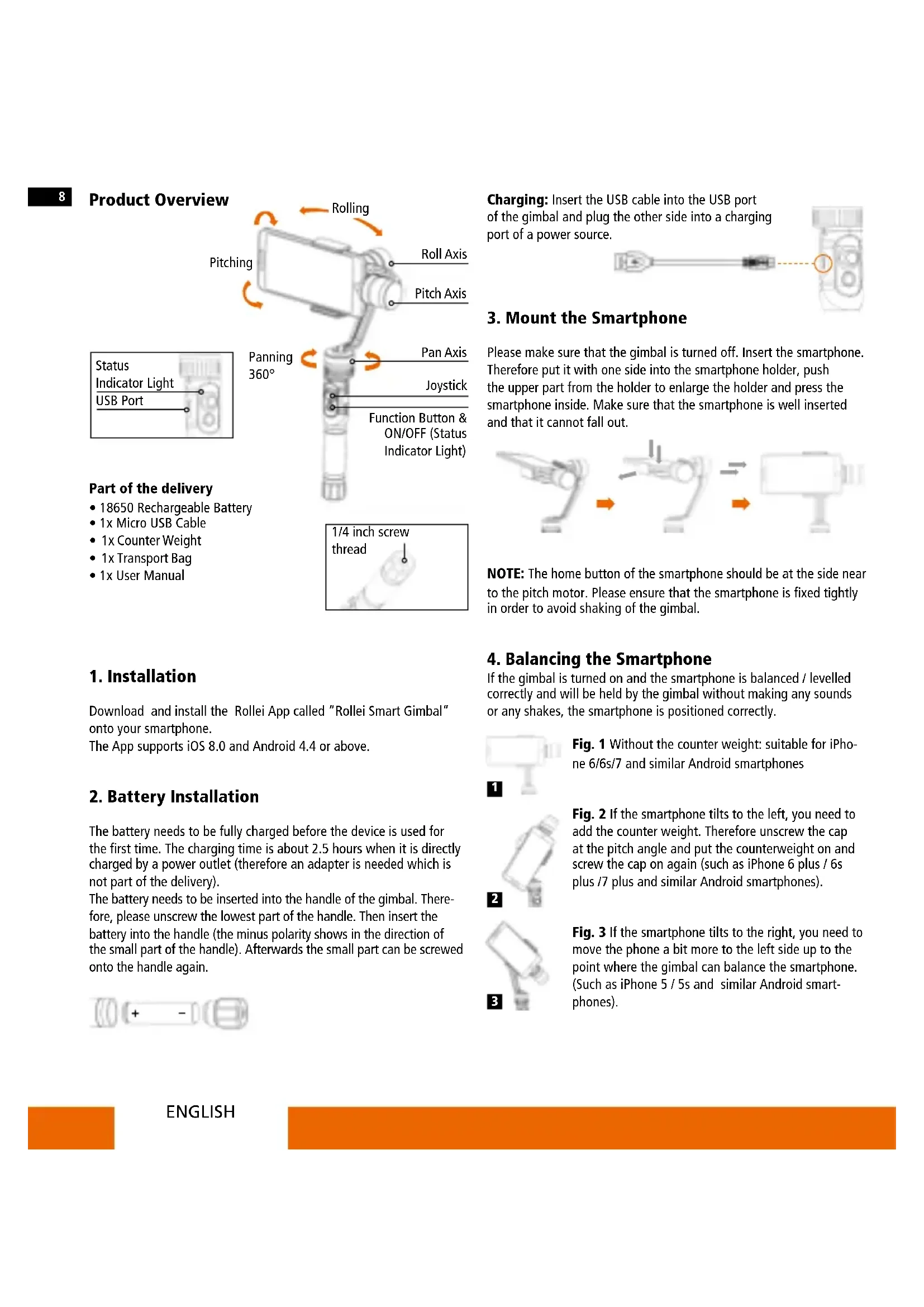

If the gimbal is turned on and the smartphone is balanced / levelled correctly and will be held by the gimbal without making any sounds or any shakes, the smartphone is positioned correctly. Fig. 1 Without the counter weight: suitable for iPho- ne 6/6s/7 and similar Android smartphones Fig. 2 If the smartphone tilts to the left, you need to add the counter weight. Therefore unscrew the cap at the pitch angle and put the counterweight on and screw the cap on again (such as iPhone 6 plus / 6s plus /7 plus and similar Android smartphones). Fig. 3 If the smartphone tilts to the right, you need to move the phone a bit more to the left side up to the point where the gimbal can balance the smartphone. (Such as iPhone 5 / 5s and similar Android smart- phones). Product Overview

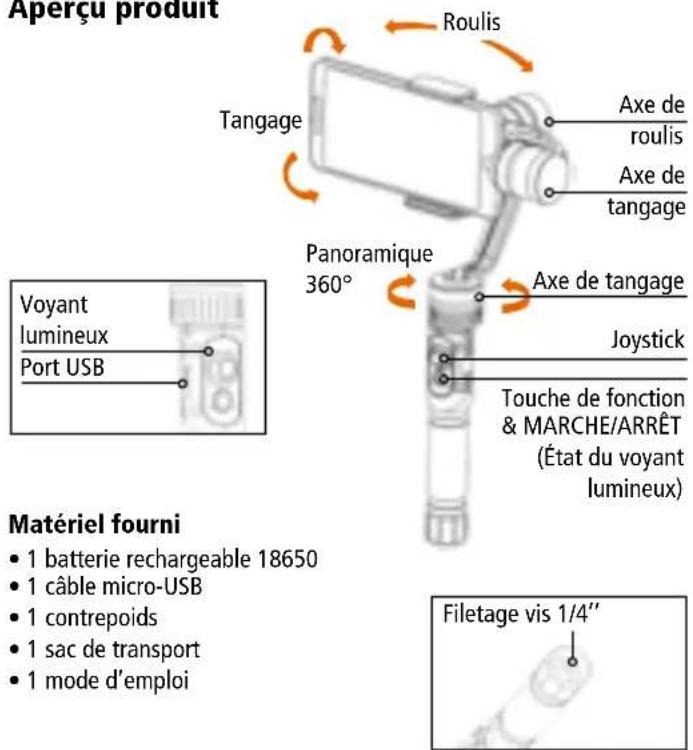

Charging: Insert the USB cable into the USB port of the gimbal and plug the other side into a charging port of a power source. Function Button & ON/OFF (Status Indicator Light) Roll Axis Pitch Axis Pan Axis Joystick Pitching Rolling Panning 360° Part of the delivery

• 18650 Rechargeable Battery

Basic working modes of the gimbal

7. Controls Instruction

Left/Right: Adjustment of panning angle Up/Down: Adjustment of pitching angle as well as Zoom in or zoom out A Signal Indicator Light

• Flashing: Zoom in/out with the joystick

• Flashes twice: Panning and pitching mode

• Flashes for three times: Lock mode

• Keeps flashing: Low battery/ Charging

• LED light constant on: Charge finished Function Button

• Single Press: Take a photo (with Rollei app)

• Double Press: Start video (with Rollei app)

• Long press (for about 3 seconds): Power on / off 5-Way Joystick Middle button: Switch the working mode

• Single Click: Panning Mode Following

• Double Click: Panning and Pitching Mode Following

• Triple Click: Lock Mode Following

• Quartic Click: Vertical Screen Mode (Quartic click to quit)

• Long press for 3 seconds: Zoom in/out by joystick (single tap to quit)

• Long press for 6 seconds: Enter the initialization Working Mode Instruction Panning Mode The phone can move to the left or right smoothly along with the handheld moving. The pitching and rolling directions are fixed / locked. Panning and Pitching Mode The phone can move to the left or right and pitch up and down smoothly along with the handheld moving. The rolling direction is fixed / locked. Lock Mode The phone stays in its current position. The panning, pitching and rolling axes are all fixed / locked. Vertical Screen Mode The phone will be held in the vertical position which can be used for live streaming

5. Connection with the Rollei App

1. Make sure that your smartphone is well positioned in the smart-

• function on your smartphone.

2. Start the Rollei APP on your smartphone that you have downloaded

before and choose the correct model.

3. Start the gimbal by pressing the function button for about

3 seconds until the indicator light starts flashing.

4. When the gimbal is working it is connected to the smartphone

directly (follow the instructions shown on the display of your smart- phone). You can then use the device and all functions of the app.

5. To turn the gimbal off also press the function button for about

3 seconds. The smartphone will not be levelled anymore if the device is off.

Material Aluminum Weight 403 g/359 g (with/without battery) Folding Size 305x125x97 mm (HxWxD) Pitch Axes 320° Roll Axes 320° Pan Axes 360° Charging Voltage 4.5 V – 6.0 V Operating Time 4 hours Suitable for iPhone* 5, 5s, SE, 6, 6s, 7, 6 plus, 6s plus, 7 plus Samsung Galaxy, Huawei and further Android smartphones up to 6“ screen diagonal (max. weight 75–200 g)

10. Calibration (Initialization)

If the gimbal is in the following conditions, please calibrate it:

• The pitch angle is not levelled with the horizontal surface.

• The roll angle is not parallel to the horizontal surface.

• Under the lock mode, the panning angle is drifting. Calibration Operation Instruction:

1. Turn the gimbal on and wait at least 3 seconds.

2. Press the middle button of the joystick of the gimbal for more than

6 seconds until all motors are stopped and the LED indicator light of the function button will light up and will be constantly on.

3. Put the gimbal into the position which is shown in picture 1 and

keep the gimbal and the platform stationary. Take a look at the LED indicator light, until the light flashes three times and then remains constantly on. That means the calibration of this position is finished. Now do the calibration for the other position, shown in the pictures from 2 to 6.

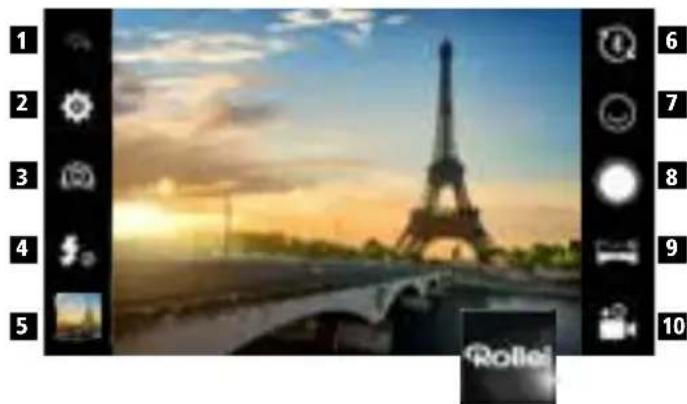

Main Functions of the Rollei App

1. Back Button: Push this button to return to the start screen of the

2. Settings: Here you can adjust the following settings: video qua-

lity, countdown for face tracking, countdown for taking pictures with the joystick, sound, exposure compensation).

3. Camera Mode: Press this sign to switch between the front and

4. Flash: Press this sign to change the flash mode

(off, automatic, on).

5. Photos: Press the picture to enter your picture gallery.

• Connection: This sign indicates whether your smartphone is connected via Bluetooth

• with your gimbal. If the devices are not connected a red dot with a cross inside will be next to the Bluetooth

7. Face Detection: Press this button and choose the face detection

function you would like to use: single face, two faces, a group of people, off.

8. Photo Release Button: By pressing this icon you can manually

9. Panoramic Mode: By pressing this button you can choose

between three panoramic modes: Centered panorama: If you choose the centered panorama the gimbal will start the panorama shot from the position where it is will go left for 180° and then back to the starting point and from there 180° to the right. Afterwards the panorama will be stitched so that the starting point will be the center within the picture. 180° panorama: If you choose 180° panorama the gimbal will start the panorama from its current position and will make a 180° rotation and then end the shot. 360° panorama: If you choose 360° panorama the gimbal will start the panorama from its current position and will make a 360° rotation and will end the shot at its starting point.

• Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high tempera- ture environment, if battery leaks or bulges, stop continue to use.

• Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type.

• Keep the battery out of reach of children.

• Batteries may explode if exposed to naked fire. Never dispose of batteries in a fire.

• Disposed of used batteries observing local regulations.

• Before disposing the device, please remove the battery. Conformity The Manufacturer hereby declares that the CE marking was applied to the Rollei Pro Smartphone Gimbal in accordance with the basic requi- rements and other relevant provisions of the following CE Directives: EMC directive 2014/30/EU LVD directive 2014/35/EU RoHS directive 2011/65/CE RED directive 2014/53/EU 2012/19/EC WEEE Directive The EC Declaration of Conformity can be requested from the address specified on the Warranty card. *The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rollei is under license. Other trademarks and trade names are those of their respective owners. Smartphones not included in delivery. ”iPhone“ is registered trademark of Apple Inc. Attention: Please keep the platform horizontal and after positi- oning the gimbal on the platform. Keep the gimbal as well as the horizontal platform stationary. Put the function button face up in order to take a look at the LED indicator clearly.

4. The light will turn off after you complete the last face calibration

(shown in picture 6). Attention: If the light is constantly on after you fully completed the six steps of calibration, then the calibration has not been successful. Please turn the gimbal off and do the calibration again.

5. Turn off the gimbal after calibration is done.

6. Turn on the gimbal again and check if the gimbal has now the cor-

rect position. If his is not the case, then do the calibration operation again until the gimbal works normally.

1. Please install and use the product according to the manual!

2. Please reconfirm the gimbal and the smartphone are well installed

before turning them on!

3. Keep the battery away from fire and hot places!

4. Any illegal purpose while using this device is prohibited. Users

will be responsible for all behavior of purchasing and using the products.

5. For any unknown sources or usage, we will not provide any service.

Disposal Dispose of packaging: For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equip- ment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable ta- ke-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city of- fice, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.12 FRANÇAIS Touche de fonction
