MTE 570 - Tankless Water Heater AEG - Free user manual and instructions

Product type	Instantaneous water heater
Brand	AEG
Model	MTE 570

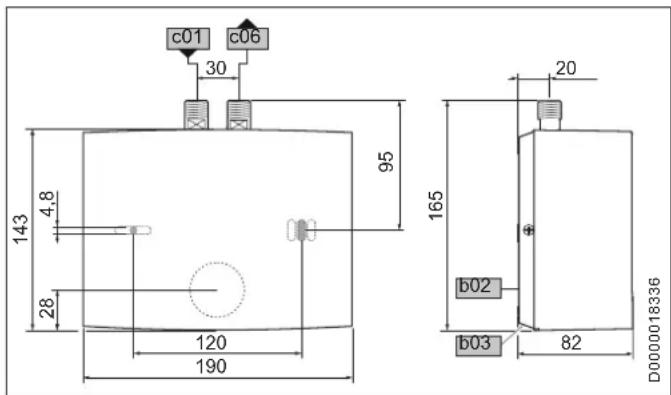

Dimensions (H x W x D)	143 x 190 x 82 mm
Weight	1.5 kg
Electrical supply	200-240 V ~, 50/60 Hz, 1/N/PE
Nominal power (at 230 V)	5.7 kW
Protection rating	IP25
Protection class	Class I
Housing material	Synthetic material
Color	White
Heating system	Bare wire, scale-resistant
Hot water temperature range	30 - 50 °C
Maximum permissible pressure	1 MPa (10 bar)
Minimum draw-off rate	> 2.2 l/min
Maximum draw-off rate (adjustable)	3.2 l/min
Hot water production (Δθ 25 K)	3.2 l/min
Nominal capacity	0.1 L
Main functions	Electronic regulation, constant outlet temperature, automatic power reduction, suitable for hand washing, anti-scale system
Care and cleaning	Clean with a damp cloth; regularly descale the jet regulator; have the electrical safety checked by an installer
Safety	Safety pressure switch, burn protection (outlet temperature > 43 °C), safety shutdown in case of fault
Spare parts	Special jet regulator SR5 (ref. 270582), cold water inlet filter, connection hose
Repairability	Maintenance reserved for qualified installer; possible replacement of power cable (4 mm²)

Frequently Asked Questions - MTE 570 AEG

The device does not start when the hot water tap is open. What should I do?

First check that the device is powered on (circuit breaker or socket). If the jet regulator is scaled or dirty, clean it or replace it with a specific model (SR5 for MTE 570). If the cold water inlet filter is clogged, clean it after shutting off the water supply. As a last resort, the safety pressure switch may have tripped: cut off the power, reduce the pressure in the pipe, then switch back on.

How do I set the maximum water temperature?

The maximum temperature is set using the potentiometer inside the device. Caution: first cut off the power supply on all poles. Remove the cover, adjust the potentiometer with a screwdriver to the desired temperature (factory setting: 38 °C), then refit the cover.

How do I clean and maintain the water heater?

Use a damp cloth to clean the exterior. Do not use abrasive products. Regularly descale the special jet regulator with a commercial product or replace it. Have the electrical safety checked by a qualified installer periodically.

What is the annual energy consumption?

The annual electricity consumption is 478 kWh according to draw-off profile XXS. The energy efficiency class is A.

The hot water does not reach the desired temperature. What should I do?

First check if the maximum temperature is set too low in the device (have it adjusted by an installer). If the device has reached its power limit, reduce the draw-off rate by partially closing the tap.

Can I install the device myself?

Installation, commissioning, and maintenance must only be carried out by a qualified installer. Observe local regulations and applicable standards. The device must be connected to earth and protected by an all-pole disconnection device.

What should I do in case of a water leak?

Immediately close the cold water shut-off valve and cut off the power supply. Check the hydraulic connections (they must be tightened with a 14 mm wrench while holding the device-side part). If the leak persists, contact an installer.

How do I drain the device in case of frost risk?

Close the cold water shut-off valve, open the draw-off tap, then loosen the device's hydraulic connections. Caution: drained water may be very hot. Protect the device from frost after draining.

What accessories are supplied with the device?

Supplied: a filter in the cold water inlet, a special jet regulator SR5 (code 270582), a 3/8" 500 mm connection hose with gaskets, a 3/8" T-connector, and an AEG logo for sink mounting.

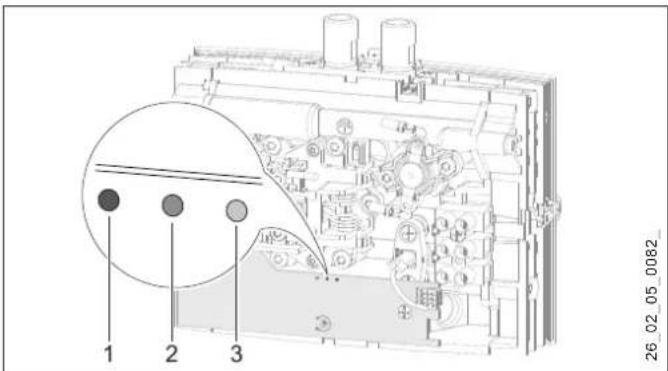

The red indicator light is on, what does it mean?

The red indicator light indicates a fault. Refer to the Troubleshooting chapter of the manual. Possible causes include a tripped safety pressure switch, a heating system fault, or a clogged filter. Cut off the power and contact an installer if necessary.

USER MANUAL MTE 570 AEG

Electronically controlled small instantaneous water heater

Operation and installation 29

1. General information 29
   1.1 Safety instructions 29
   1.2 Other symbols in this documentation 29
   1.3 Units of measurement.. 30
2. Safety 30
   2.1 Intended use 30
   2.2 General safety instructions 30
   2.3 Test symbols 31
3. Appliance description.. 31
4. Settings 32
5. Cleaning, care and maintenance 32
6. Troubleshooting 32

INSTALLATION

1. Safety 33
   7.1 General safety instructions 33
   7.2 Instructions, standards and regulations 33
2. Appliance description.. 33
   8.1 Standard delivery 33
   8.2 Accessories 33
   9.Preparations 34

3. Installation 34
   10.1 Installation site 34
   10.2 Installation options 34
   10.3 Connecting the power supply 37

4. Commissioning 37
   11.1 Initial start-up 37
   11.2 Appliance handover 37
   11.3 Recommissioning 38
   11.4 Settings 38

5. Shutting down 40
6. Troubleshooting 40
7. Maintenance 41
8. Specification 42
   15.1 Dimensions and connections 42
   15.2 Wiring diagram 43
   15.3 Increasing the temperature 44
   15.4 Application areas 45
   15.5 Details on energy consumption 45
   15.6 Data table 46

GUARANTEE

ENVIRONMENT AND RECYCLING

Special information

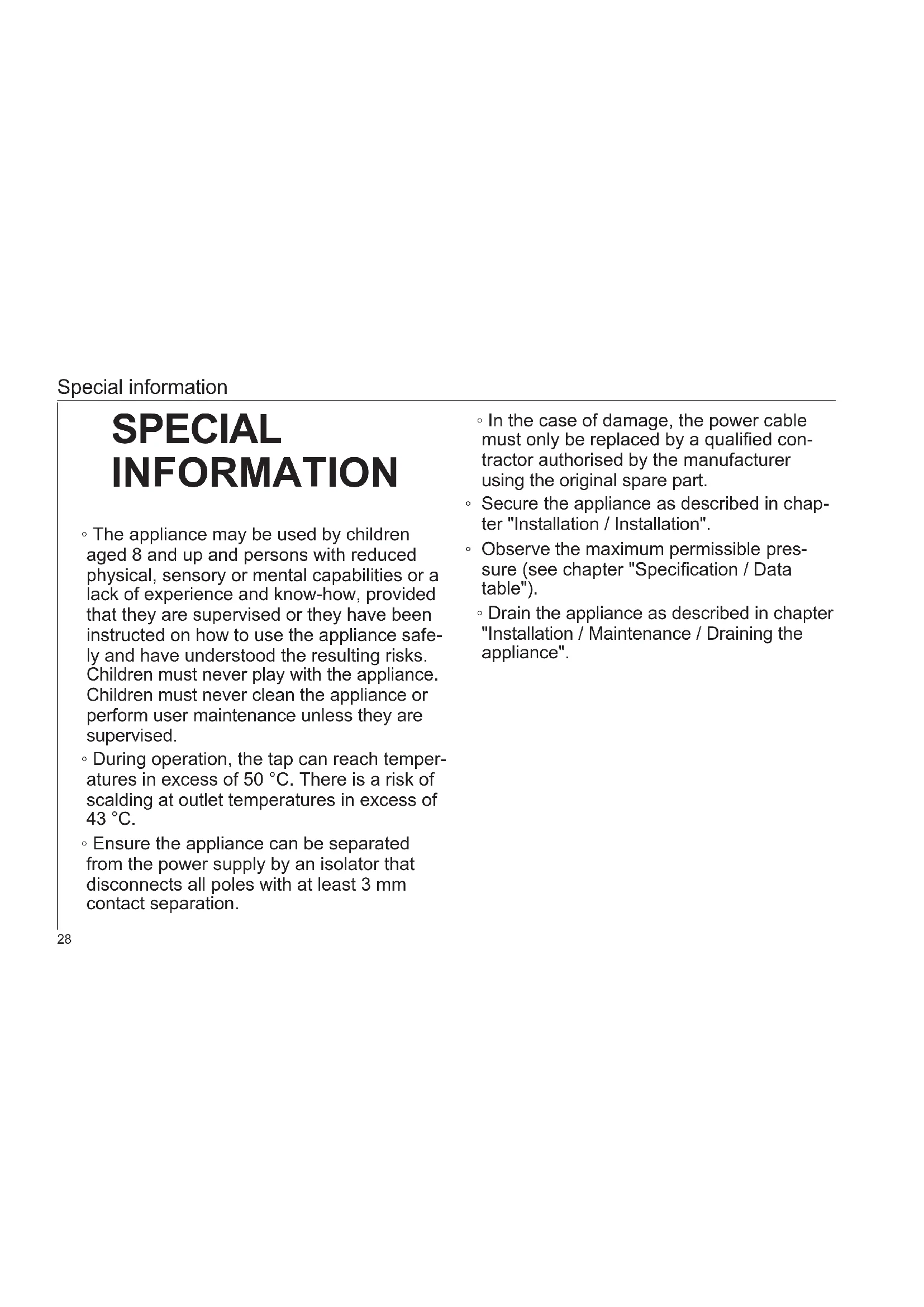

SPECIAL INFORMATION

The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
During operation, the tap can reach temperatures in excess of 50^ . There is a risk of scalding at outlet temperatures in excess of 43^ .
- Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation.

In the case of damage, the power cable must only be replaced by a qualified contractor authorised by the manufacturer using the original spare part.
- Secure the appliance as described in chapter "Installation / Installation".
Observe the maximum permissible pressure (see chapter "Specification / Data table").
Drain the appliance as described in chapter "Installation / Maintenance / Draining the appliance".

OPERATION

1. General information

The chapter "Operation" is intended for appliance users and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference.

Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk

Here, possible consequences are listed that may result from failure to observe the safety instructions.

» Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
!	Injury
	Electrocution
	Burns (burns, scalding)

1.1.3 Keywords

KEYWORD	Meaning
DANGER	Failure to observe this information will result in seri-ous injury or death.
WARNING	Failure to observe this information may result in seri-ous injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

Notes are bordered by horizontal lines above and below the text. General information is identified by the symbol shown on the left.

» Read these texts carefully.

Operation - for users and contractors

Symbol
!	Material losses (appliance damage, consequential losses and environ-ronmental pollution)
	Appliance disposal

» This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note Unless specified otherwise, all dimensions are given in mm.

2. Safety

2.1 Intended use

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

This appliance is suitable for heating domestic hot water or for reheating preheated water. The appliance is designed for one hand washbasin.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

2.2 General safety instructions

DANGER Scalding

During operation, the tap can reach temperatures in excess of 50^ . There is a risk of scalding at outlet temperatures in excess of 43^ .

WARNING Injury

The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

DANGER Electrocution

Any damaged power cables must be replaced by a qualified electrician. This prevents potential hazards from arising.

Material losses Protect the appliance and tap against frost.

Material losses

Only use the special aerator provided. Prevent scale build-up at the tap outlets (see chapter "Cleaning, care and maintenance").

2.3 Test symbols

See type plate on the appliance.

Country-specific approvals and certifications: Germany

In line with [German] State Building Regulations, a general test certificate has been issued for these appliances, as verification of their suitability regarding noise emissions.

AEG

HOL

DIN 4109

P-IX 7508/1

MPANRW.

3. Appliance description

The electronically controlled small instantaneous water heater maintains a constant outlet temperature up to its output limit, irrespective of the inlet temperature.

This appliance has been factory-set to the outlet temperature required for washing hands. Once this temperature has been reached, the PCB automatically reduces the output. The output is matched to the required temperature, this prevents the temperature being exceeded.

The appliance heats the water directly at the draw-off point as soon as the tap is opened. The short pipe runs ensure that energy and water losses are minimal.

The DHW output depends on the cold water temperature, the heating output and the flow rate.

The bare wire heating system is suitable for hard and soft water areas. This heating system has a low susceptibility to scale build-up. The heating system ensures quick and efficient DHW provision at the hand washbasin.

Your qualified contractor can adjust the maximum temperature and flow rate (see chapter "Commissioning / Settings").

Fitting the special aerator supplied provides an optimum water jet.

Operation - for users and contractors

4. Settings

The appliance heating system switches on automatically as soon as you open the DHW valve at the tap or activate the sensor of a sensor tap. The water is heated. The water temperature can be adjusted at the tap:

For initial flow rate and flow rate limiting, see chapter "Specification".

Increasing the temperature

» Reduce the flow rate at the tap.

Reducing the temperature

» Open the tap further or add more cold water.

Following an interruption of the water supply

See chapter "Commissioning / Recommissioning".

5. Cleaning, care and maintenance

» Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.
» Check the taps/valves regularly. Limescale deposits at the spouts can be removed using commercially available descaling agents.

Have the electrical safety of the appliance regularly checked by an electrician.
» Regularly descale or replace the special aerator (see chapter "Appliance description / Accessories").

6. Troubleshooting

Problem Cause Remedy
The appliance will not start despite the DHW valve being fully open.	No power to the appliance.	Check the fuses/ MCBs in your fuse box.
	The aerator in the tap is scaled up or dirty.	Clean and/or descale the aerator or replace the special aerator.
	The water supply has been interrupted.	Vent the appliance and the cold water inlet line (see chapter "Settings").
The required temperature is not being reached.	The maximum temperature set inside the appliance is too low.	Have your qualified contractor adjust the maximum temperature.
The appliance is at its	output limit.	Reduce the flow rate.

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000 / 0000-00000).

INSTALLATION

7. Safety

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

Material losses

Observe the max. permissible inlet temperature. Higher temperatures may damage the appliance. You can limit the inlet temperature by means of a central thermostatic valve.

7.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

The specific electrical resistance of the water must not fall below that stated on the type plate. In a linked water network, factor in the lowest electrical resistance of the water (see chapter "Specification / Data table"). Your water supply utility will advise you of the specific electrical water resistance or conductivity.

8. Appliance description

8.1 Standard delivery

The following are delivered with the appliance:

Sieve inside the cold water inlet
Special aerator "SR"
Connection hose 3/8, 500 mm long, with gaskets
Tee 3/8
Company logo for oversink installation
^ 念 for the connection as pressure-tested appliance

8.2 Accessories

Special aerator "SR"*

SR 3: Part number 289591 for MTE 350 and MTE 440
SR 5: Part number 270582 for MTE 570 and MTE 650
* For use in thread M22/M24.

Non-pressurised taps

AHS 50 Sensor tap for washbasins

AHO 40 MTH Wall mounted tap for oversink installation
AHu 40 MTH Twin lever basin tap
AHEu 40 MTH Mono lever basin tap

Pressure-tested tap

ADS40 Sensor tap for washbasins

9. Preparations

Flush the water line thoroughly.

Water installation

A safety valve is not required.

Taps

» Use suitable taps (see chapter "Appliance description / Accessories").

Note

Fitting the special aerator supplied provides an optimum water jet.

10. Installation

10.1 Installation site

Install the appliance in a room free from the risk of frost and near the draw-off tap.

Ensure that the lateral fixing screws for the cover are always accessible.

The appliance is suitable for undersink installation (water connections at the top) and oversink installation (water connections at the bottom).

DANGER Electrocution

The adjusting screw for setting the flow rate is 'live', and the IP25 protection is only given when the appliance back panel is fitted.

Always fit the appliance back panel.

10.2 Installation options

10.2.1 Undersink installation

Non-pressurised, with non-pressurised tap

26_02_05_0086

Pressure-tested, with pressure-tested tap

26_02_05_0094

Appliance installation

Note

» Mount the appliance on the wall. The wall must have a sufficient load-bearing capacity.

» Undo the cover fixing screws by two turns.
» Undo the snap fastener using a screwdriver.
» Remove the appliance cover with the heater towards the front.

» Using pliers, break out the knock-out for the power cable in the appliance cover. Correct the contours with a file if necessary.
» Use the appliance back panel as a drilling template.

Secure the appliance back panel to the wall with suitable rawl plugs and screws.

Installation - for contractors

» Route the power cable through the cable entry in the back panel.
» Hook in the appliance cover with the heater at the bottom.
» Click the heater into place using the snap fastener.

Secure the appliance cover with the cover fixing screws.

Tap installation

Install the tap. For this, also observe the tap operating and installation instructions.

Material losses

» When making the connections, counter the torque on the appliance using a size 14 spanner.

Pressure-tested tap

Note

» Fit the 3/8 connection hose provided and the 3/8 tee.

10.2.2 Oversink installation, non-pressurised, with non-pressurised tap

Tap installation

» Install the tap. For this, also observe the tap operating and installation instructions.

Material losses

» When making the connections, counter the torque on the appliance using a size 14 spanner; see chapter "Installation alternatives / Under-sink installation".

Appliance installation

» Fit the appliance to the tap with the water connections.

10.3 Connecting the power supply

DANGER Electrocution

Carry out all electrical connection and installation work in accordance with regulations.

DANGER Electrocution

Ensure that the appliance is earthed.

Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation.

DANGER Electrocution

The appliances are delivered with a power cable (MTE 350 with plug).

Connection to a permanent power supply is possible, provided the fixed cable has a cross-section that is at least equal to that of the standard power cable of the appliance. A maximum cross-section of 3 × 6 ~mm^2 may be used.

If the appliance is installed over the sink, route the power cable behind the appliance.

Material losses

When making the connection to a standard safety socket (in the case of a power cable with plug), ensure that the socket is freely accessible after the appliance has been installed.

Material losses

Take note of the type plate. The specified voltage must match the mains voltage.

Connect the power cable as shown in the wiring diagram (see chapter "Specification / Wiring diagram").

11. Commissioning

11.1 Initial start-up

Fill the appliance by running the tap several times until the pipework and appliance are free of air.
» Carry out a tightness check.
Insert the power cable plug, if present, into the standard safety socket or set the fuse/MCB.
» Check the function of the appliance.
In the case of oversink installation, affix the company logo supplied over the existing company logo.

11.2 Appliance handover

» Explain the appliance function to users and familiarise them with its operation.
» Make users aware of potential dangers, especially the risk of scalding.
» Hand over these instructions.

11.3 Recommissioning

Material losses

Following an interruption of the water supply, recommission the appliance by carrying out the following steps, in order to prevent irreparable damage to the bare wire heating system.

» Isolate the appliance from the power supply. Pull the power cable plug, if present, from the socket, or remove the fuse/reset the MCB.
See chapter "Initial start-up".

11.4 Settings

You can alter the maximum flow rate and temperature.

DANGER Electrocution

The flow rate and temperature may only be adjusted if the appliance is isolated from the power supply.

» Isolate all poles of the appliance from the power supply.

DANGER Electrocution

The adjusting screw for changing the flow rate and the potentiometer for setting the temperature are live if the appliance has not been isolated from the power supply.

» Remove the appliance cover.

Setting the maximum temperature

Factory setting: 38^

» Using a screwdriver, set the potentiometer to the maximum required temperature.
» Fit the appliance cover.

Limiting the flow rate

Factory setting: Maximum flow rate

» Using the adjusting screw, set the maximum required flow rate:
Lowest flow rate = wind the screw in as far as it will go.
- Highest flow rate = wind the screw out as far as it will go.
» Fit the appliance cover.

12. Shutting down

Isolate the appliance from the power supply by means of the fuse/MCB in your fuse box or by pulling the power cable plug from the socket.

Drain the appliance (see chapter "Maintenance").

13. Troubleshooting

Problem Cause Remedy
The appliance will not start despite the DHW valve being fully open. The flow rate is set	The aerator in the tap is scaled up or dirty.	Clean and/or descale the aerator or replace the special aerator.
	too low.	Increase the flow rate.
	The sieve in the cold water line is blocked.	Clean the sieve after shutting off the cold water inlet line.
	The heater is faulty.	Check the resistance of the heating system and replace the appli- ance if required.
	The safety pressure limiter has responded.	Remedy the cause of the fault. Isolate the appliance from the power supply and de- pressurise the water line. Activate the safe-ty pressure limiter.
The required tem- perature is not being reached.	The appliance is at its output limit.	Reduce the flow rate.

LED indicators

1 Illuminates red in the case of a fault
2 Illuminates yellow during heating operation
3 Flashes green if the PCB is receiving power

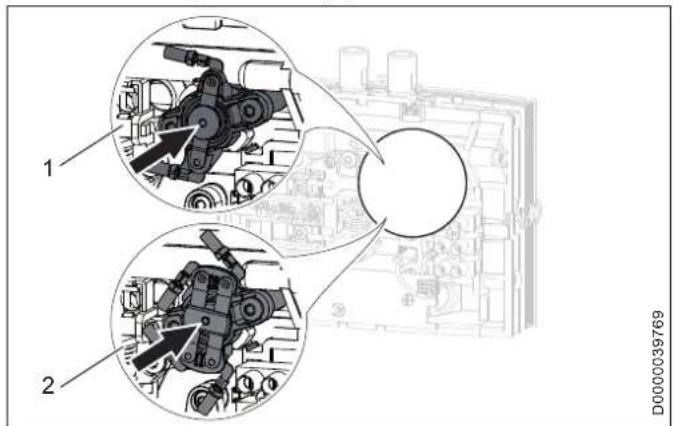

Activating the safety pressure limiter

1 1-pole safety pressure limiter MTE 440 / MTE 570
2 2-pole safety pressure limiter MTE 350 / MTE 650

14. Maintenance

DANGER Electrocution
Before any work on the appliance, disconnect all poles from the power supply.

Draining the appliance

DANGER Scalding
Hot water may escape during the draining process.

If the appliance needs to be drained for maintenance or to protect the whole installation when there is a risk of frost, proceed as follows:

» Close the shut-off valve in the cold water inlet line.
» Open the draw-off valve.
» Undo the water connections on the appliance.

Installation - for contractors

Cleaning the strainer

You can clean the fitted strainer after removing the cold water supply pipe.

Checking the earth conductor

» Check the earth conductor (in Germany e.g. BGV A3) on the earth conductor contact of the power cable and on the appliance connector.

Appliance storage

Store the dismantled appliance in a room free from the risk of frost, as water residues remaining inside the appliance can freeze and cause damage.

Replacing the power cable for the MTE 570

If replacing the cable for the MTE 570, use a power cable with 4mm^2 cross-section.

15. Specification

15.1 Dimensions and connections

b02 Entry electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet	Male thread	G 3/8 A

15.2 Wiring diagram

15.2.1 MTE 350

1/N/PE ~ 200-240 V

1 Safety pressure limiter
2 Pressure differential switch
3 PCB with outlet temperature sensor

15.2.2 MTE 440 and MTE 570 1/N/PE 200-240 V

1 Safety pressure limiter
2 Pressure differential switch
3 PCB with outlet temperature sensor

Material losses

In the case of a permanent power supply, connect the power cable according to the designations on the socket terminals.

Installation - for contractors

1 Safety pressure limiter
2 Pressure differential switch
3 PCB with outlet temperature sensor

15.3 Increasing the temperature

At 230V / 400V the following water temperature increases occur:

X Flow rate in l/min
Y Temperature increase in K
1 3.5kW - 230V
2 4.4 kW - 230 V
3 5.7kW - 230V
46.5kW-400V

Example MTE 350 with 3.5 kW
Flow rate l/min 2.0
Increasing the temperature K 25
Cold water supply temperature °C 12
Maximum possible outlet temperature	°C	37

Note

An outlet temperature of 50^ can be achieved with the lowest possible flow rate and the following cold water inlet temperatures:

MTE 350 > 17^
MTE 440 > 18^
MTE 570 > 13^
MTE 650 > 8^

15.4 Application areas

For the specific electrical resistance and specific electrical conductivity, see "Data table".

Standard specifica-tion at 15 °C			20 °C			25 °C
Spec. resist-ance ρ ≥	Spec. conduc-tivity σ ≤		Spec. resist-ance ρ ≥	Spec. conduc-tivity σ ≤		Spec. resist-ance ρ ≥	Spec. conduc-tivity σ ≤
Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm
1000	100	1000	890	112	1124	815	123	1227
1300	77	769	1175	85	851	1072	93	933

15.5 Details on energy consumption

Product data complies with EU regulations relating to the Directive on the ecodesign of energy related products (ErP).

		MTE 350	MTE 440	MTE 570	MTE 650
		231003	231004	231216	232770
Manufacturer		AEG Haustechnik	AEG Haustechnik	AEG Haustechnik	AEG Haustechnik
Load profile		XXS	XXS	XXS	XXS
Energy efficiency class		A	A	A	A
Annual power consumption	kWh	478	478	478
Energy conversion efficiency	%	39	39	39	40
Sound power level	dB(A)	15	15	15	15
Special information on measuring efficiency		None	None	None	None

15.6 Data table

MTE 350 MTE 440 MTE 570 MTE 650
231003 231004 231216 232770
Electrical details
Rated voltage	V	200	220	230	240	200	220	230	240	200	220	230	240	380	400
Rated output	kW	2,7	3,2	3,5	3.8	3,3	4,0	4,4	4.8	4,3	5,2	5,7	6.2	5,9	6,5
Rated current	A	13,3	14,5	15,2	15.8	16,7	18,2	19,1	20	21,6	23,6	24,7	25.8	15,5	16,3
Fuse	A	16	16	16	16	20	20	20	20	25	25	25	32	16	20
Frequency	Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50	50
Phases		1/N/PE				1/N/PE				1/N/PE				2/PE
Specific resistance ρ15≥ (at ∅cold ≤25 °C)	Ω cm	1000				1000				1000				1000
Specific conductivity σ15≤ (at ∅cold ≤25 °C)	μS/cm	1000				1000				1000				1000
Specific resistance ρ15≥ (at ∅cold ≤50 °C)	Ω cm	1300				1300				1300				1300
Specific conductivity σ15≤ (at ∅cold ≤50 °C)	μS/cm	770				770				770				770
Max. mains impedance at 50 Hz	Ω	0,091	0,083	0,079	0,076	0,072	0,065	0,063	0,06	0,056	0,051	0,049	0,047
Max. mains impedance at 380 V / 50Hz	Ω													0,236
Max. mains impedance at 400V / 50Hz	Ω													0,225
Connections
Water connection		G 3/8 A				G 3/8 A				G 3/8 A				G 3/8 A
Application limits
Max. permissible pressure	MPa	1				1				1				1
Max. inlet temperature for reheating	°C	50				50				50				50
Values
Max. permissible inlet temperature	°C	60				60				60				60
Temperature setting range, DHW	°C	30-50				30-50				30-50				30-50
ON	l/min	>1,5				>1,8				>2,2				>2,2
Pressure drop at flow rate	MPa	0,05				0,06				0,07				0,07
Flow rate for pressure drop	l/min	1,5				1,8				2,2				2,2
Flow rate limit at	l/min	2,3				2,8				3,2				3,2
DHW delivery	l/min	2,0				2,5				3,2				3,7
Δθ at DHW delivery	K	25				25				25				25
MTE 350 MTE 440 MTE 570 MTE 650
Hydraulic data
Rated capacity I 0,1 0,1 0,1 0,1
Versions
Oversink installation X X X X
Undersink installation	X X X X
Open vented type	X X X X
Sealed unvented type	X X X X
IP-Rating		IP25				IP25				IP25				IP25
Protection class		1				1				1				1
Insulation block		Plastic				Plastic				Plastic				Plastic
Heating system heat generator		Bare wire				Bare wire				Bare wire				Bare wire
Cap and back panel		Plastic				Plastic				Plastic				Plastic
Colour		white				white				white				white
Dimensions
Height	mm	143				143				143				143
Width	mm	190				190				190				190
Depth	mm	82				82				82				82
Weights
Weight	kg	1,5				1,5				1,5				1,5

Guarantee - Environment and recycling

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

Table des matieres

REMARQUESPARTICULIERES

UTILISATION

MTE 350 MTE 440 MTE 570 MTE 650
380V / 50Hz'de maks.®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®	0,236
400V / 50Hz'de maks.®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®	0,225
Bağlantilar
Su®, G 3/8 A G 3/8 A G 3/8 A G 3/8 A	A
Uygulama sinirları
Izin verilen maks. basınç MPa 1 1 1 1
Sonradan isitma】,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”	°C	50	50	50	50
Değerler
Izin verilen maks.--,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”,”	°C	60	60	60	60
Sicak su sicutlikayar aralişi	°C	30-50	30-50	30-50	30-50
Açık	lt/dk	>1,5	>1,8	>2,2	>2,2
Débideki basınç kaylı	MPa	0,05	0,06	0,07	0,07
Basınç kaybinindebisi	lt/dk	1,5	1,8	2,2	2,2
Debi sinirlama	lt/dk	2,3	2,8	3,2	3,2
Sicak su performansı	lt/dk	2,0	2,5	3,2	3,7
Gösteride Δθ	K	25	25	25	25
Hidrolik verileri
Nominal kapasite	I	0,1	0,1	0,1	0,1
Modeller
Montaj Türu lavabo Üstü		X	X	X	X
Montaj Türu lavabo altı		X	X	X	X
Açık tasarım		X	X	X	X
Kapali tasarım		X	X	X	X
Koruma Türü (IP)		IP25	IP25	IP25	IP25
Koruma sinifi	1 1 1 1
Izolasyon bloğu		Plastik	Plastik	Plastik	Plastik
Isitma sistemi isi kaynmiş		Çıplak tel	Çıplak tel	Çıplak tel	Çıplak tel
Kapak ve arka panel		Plastik	Plastik	Plastik	Plastik
Renk		beyaz	beyaz	beyaz	beyaz
Boyutlar
Yüzseklik mm 143 143 143 143
En mm 190 190 190 190
Derinlik mm 82 82 82 82 82
Ağırkıclar
Ağırkı	kg	1,5	1,5	1,5	1,5

Garanti

Urzhumskaya street 4,

building 2

129343 Moscow

Tel. [phone]

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]

AEG is a registered trademark used under license from AB Electrolux (publ).

Irrum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve d'erreurs et de modifications

techniques . Onder voorbehand van vergissingen en technische wijzigijen ! Salvo error o modificacionticafia ! Rattill misstagcoh techniek , vindering firthelb1 Excepo erio au alterpene ticoine Zantrotone zinny technique jowentuiplo blady | Omuly a

oc technikma and inga forhems ! Exepei eio oiae tachica ZsniZzone zhiyane tectnichz fentwahie bdy 1my

BozMOxHbI texHcckn kMHeHn. Chbya lechnicz zmeny suVyhradene! 1505
