USER MANUAL MTD 650 AEG

Hydraulically controlled small instantaneous water heater

Operation and installation 24

1. General information 26
   1.1 Safety instructions 26
   1.2 Other symbols in this documentation 26
   1.3 Units of measurement 27
2. Safety 27
   2.1 Intended use 27
   2.2 General safety instructions 27
   2.3 Test symbols 28
3. Appliance description.. 28
4. Settings 28
5. Cleaning, care and maintenance 29
6. Troubleshooting 29

INSTALLATION

1. Safety 30
   7.1 General safety instructions 30
   7.2 Instructions, standards and regulations 30
2. Appliance description.. 30
   8.1 Standard delivery 30
   8.2 Accessories 30
   9.Preparations 31

3. Installation 31
   10.1 Installation site 31
   10.2 Installation options 31
   10.3 Connecting the power supply 33

4. Commissioning 34
   11.1 Initial start-up 34
   11.2 Appliance handover 34
   11.3 Recommissioning 34

5. Shutting down 34
6. Troubleshooting 35
7. Maintenance 36
8. Specification 37

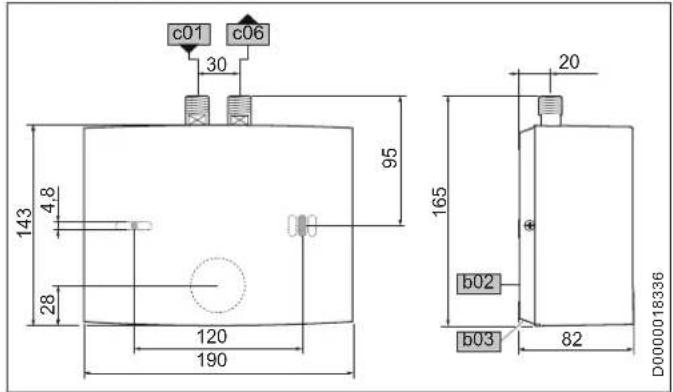

   15.1 Dimensions 37

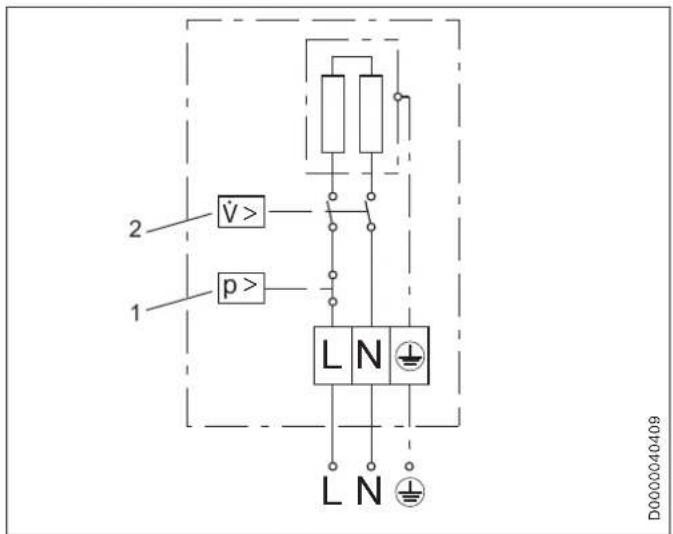

   15.2 Wiring diagram 37

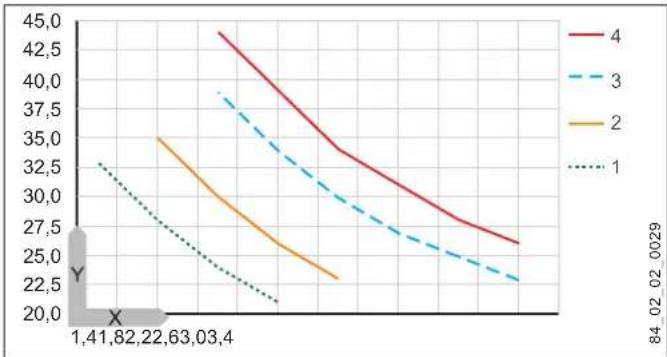

   15.3 Increasing the temperature 39
   15.4 Application areas 39
   15.5 Details on energy consumption 40
   15.6 Data table. 40

GUARANTEE

ENVIRONMENT AND RECYCLING

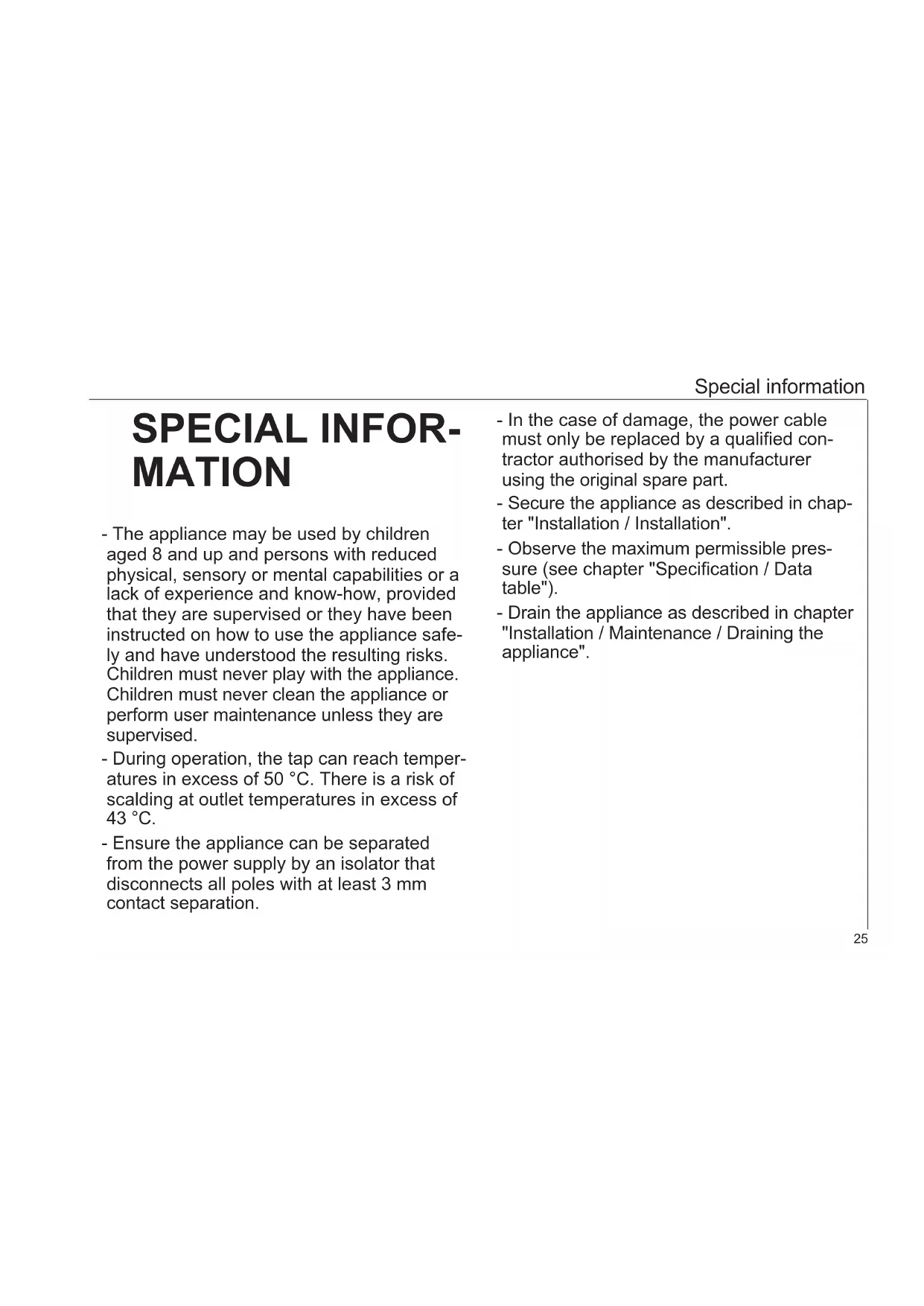

SPECIAL INFORMATION

• The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
• During operation, the tap can reach temperatures in excess of 50^ . There is a risk of scalding at outlet temperatures in excess of 43^ .

• Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation.

• In the case of damage, the power cable must only be replaced by a qualified contractor authorised by the manufacturer using the original spare part.

• Secure the appliance as described in chapter "Installation / Installation".
• Observe the maximum permissible pressure (see chapter "Specification / Data table").
• Drain the appliance as described in chapter "Installation / Maintenance / Draining the appliance".

Operation - for users and contractors

OPERATION

1. General information

The chapter "Operation" is intended for appliance users and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference.

Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk

Here, possible consequences are listed that may result from failure to observe the safety instructions.

» Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
!	Injury
	Electrocution
	Burns (burns, scalding)

1.1.3 Keywords

KEYWORD	Meaning
DANGER	Failure to observe this information will result in seri-ous injury or death.
WARNING	Failure to observe this information may result in seri-ous injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

Notes are bordered by horizontal lines above and below the text. General information is identified by the symbol shown on the left.

Read these texts carefully.

Symbol
!	Material losses (appliance damage, consequential losses and environmental pollution)
	Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note Unless specified otherwise, all dimensions are given in mm.

2. Safety

2.1 Intended use

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

This appliance is designed to heat DHW. The appliance is designed for one hand washbasin.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

2.2 General safety instructions

DANGER Scalding

During operation, the tap can reach temperatures in excess of 50^ There is a risk of scalding at outlet temperatures in excess of 43^

WARNING Injury

The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

DANGER Electrocution

Any damaged power cables must be replaced by a qualified electrician. This prevents potential hazards from arising.

Material losses

Protect the appliance and tap against frost.

Material losses

Only use the special aerator provided. Prevent scale build-up at the tap outlets (see chapter "Cleaning, care and maintenance").

Operation - for users and contractors

2.3 Test symbols

See type plate on the appliance.

Country-specific approvals and certifications: Germany

In line with [German] State Building Regulations, a general test certificate has been issued for these appliances, as verification of their suitability regarding noise emissions.

3. Appliance description

The hydraulically controlled small instantaneous water heater heats the water directly at the draw-off point. The heating system starts automatically when the tap is opened. The short pipe runs ensure that energy and water losses are minimall.

The DHW output depends on the cold water temperature, the heating output and the flow rate.

The bare wire heating system is suitable for hard and soft water areas. This heating system has a low susceptibility to scale build-up. The heating system ensures quick and efficient DHW provision at the hand washbasin.

Fitting the special aerator supplied provides an optimum water jet.

4. Settings

The appliance heating system switches on automatically as soon as you open the DHW valve at the tap or activate the sensor of a sensor tap. The water is heated. The water temperature can be adjusted at the tap:

For the start volume, see chapter "Specification / Data table / On".

Increasing the temperature

» Reduce the flow rate at the tap.

Reducing the temperature

» Open the tap further or add more cold water.

Following an interruption of the water supply

See chapter "Commissioning / Recommissioning".

5. Cleaning, care and maintenance

» Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.

Check the taps/valves regularly. Limescale deposits at the spouts can be removed using commercially available descaling agents.
Have the electrical safety of the appliance regularly checked by an electrician.
» Regularly descale or replace the special aerator (see chapter "Appliance description / Accessories").

6. Troubleshooting

Problem Cause Remedy
The appliance will not start despite the DHW valve being fully open.	No power to the appliance.	Check the fuses/ MCBs in your fuse box.
	The aerator in the tap is scaled up or dirty.	Clean and/or descale the aerator or replace the special aerator.
	The water supply has been interrupted.	Vent the appliance and the cold water inlet line (see chapter "Settings").

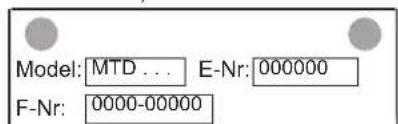

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000 / 0000-0000).

INSTALLATION

7. Safety

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

Material losses

Observe the max. permissible inlet temperature. Higher temperatures may damage the appliance. You can limit the inlet temperature by means of a central thermostatic valve.

72 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

The specific electrical resistance of the water must not fall below that stated on the type plate. In a linked water network, factor in the lowest electrical resistance of the water (see chapter "Specification / Data table"). Your water supply utility will advise you of the specific electrical water resistance or conductivity.

8. Appliance description

8.1 Standard delivery

The following are delivered with the appliance:

^ Sieve inside the cold water inlet
^ Special aerator "SR"
Connection hose 3/8, 500 mm long, with gaskets
Tee 3/8

*for the connection as pressure-tested appliance

8.2 Accessories

Special aerator"SR"*

^a SR 3: Part number 289591
for MTD 350 and MTD 440
^ SR 5: Part number 270582
for MTD 570 and MTD 650

• For use in thread M22/M24.

Pressure-tested tap

ADS 40 Sensor tap for washbasins

Non-pressurised taps

^a AHS 50 Sensor tap for washbasins

^ AHu 40 MTH

Twin lever basin tap

^a AHEu 40 MTH

Mono lever basin tap

9. Preparations

Flush the water line thoroughly.

Water installation

A safety valve is not required.

Taps

» Use suitable taps (see chapter "Appliance description / Accessories").

Note

Fitting the special aerator supplied provides an optimum water jet.

10. Installation

10.1 Installation site

Install the appliance in a room free from the risk of frost and near the draw-off tap.

Ensure that the lateral fixing screws for the cover are always accessible.

The appliance is only suitable for undersink installation (water connections at the top).

DANGER Electrocution

Protection rating IP25 is only ensured if the appliance back panel is fitted.

Always fit the appliance back panel.

10.2 Installation options

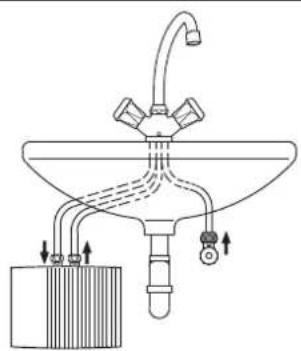

Undersink installation, pressure-tested, with pressure-tested tap

2602050041

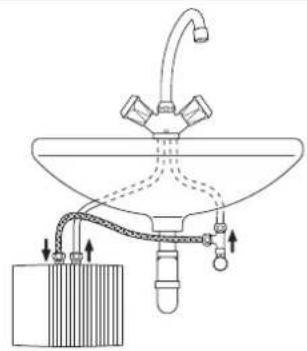

Undersink installation, non-pressurised, with non-pressurised tap

2602050086

Installation - for contractors

10.2.1 Appliance installation

Mount the appliance on the wall.

Note

The wall must have a sufficient load-bearing capacity.

26-02-05-0042

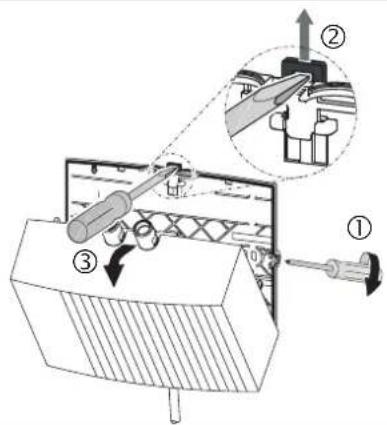

» Undo the cover fixing screws by two turns.
» Undo the snap fastener using a screwdriver.
» Remove the appliance cover with the heater towards the front.

00000000000000000000000000000

» Using pliers, break out the knock-out for the power cable in the appliance cover. Correct the contours with a file if necessary.

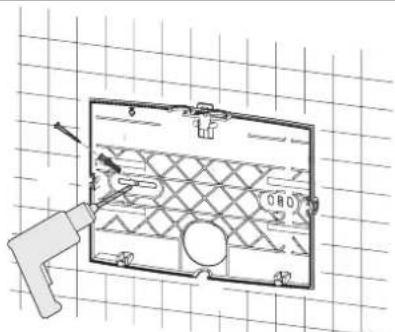

» Use the appliance back panel as a drilling template.

Secure the appliance back panel to the wall with suitable rawl plugs and screws.

0000000000000000000000000000000

» Route the power cable through the cable entry in the back panel.

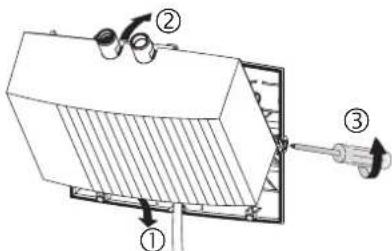

» Hook in the appliance cover with the heater at the bottom.
» Click the heater into place using the snap fastener.
» Secure the appliance cover with the cover fixing screws.

10.2.2 Tap installation

Material losses

When making the connections, counter the torque on the appliance using a size 14 spanner.

Pressurised connection

» Fit the 3/8 connection hose provided and the 3/8 tee.
» Install the tap. For this, also observe the tap operating and installation instructions.

Non-pressurised connection

» Install the tap. For this, also observe the tap operating and installation instructions.

10.3 Connecting the power supply

DANGER Electrocution

Carry out all electrical connection and installation work in accordance with regulations.

DANGER Electrocution

Ensure that the appliance is earthed.

Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation.

DANGER Electrocution

The appliances are delivered with a power cable (MTD 350 with plug).

Connection to a permanent power supply is possible, provided the fixed cable has a cross-section that is at least equal to that of the standard power cable of the appliance. A maximum cross-section of 3 × 6 ~mm^2 may be used.

Material losses

When making the connection to a standard safety socket (in the case of a power cable with plug), ensure that the socket is freely accessible after the appliance has been installed.

Material losses

Take note of the type plate. The specified voltage must match the mains voltage.

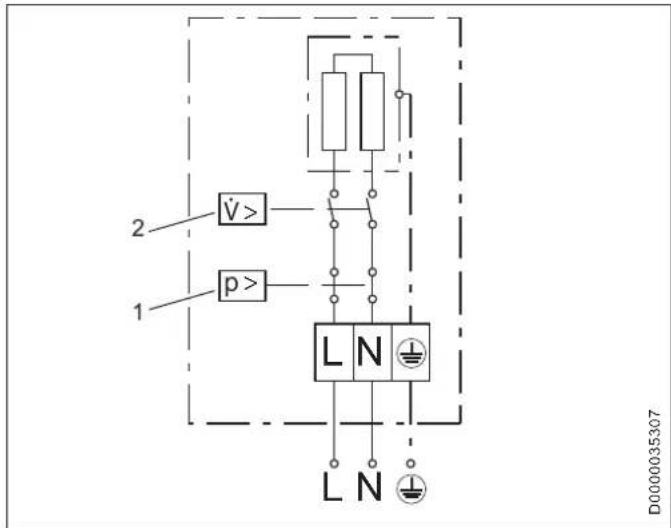

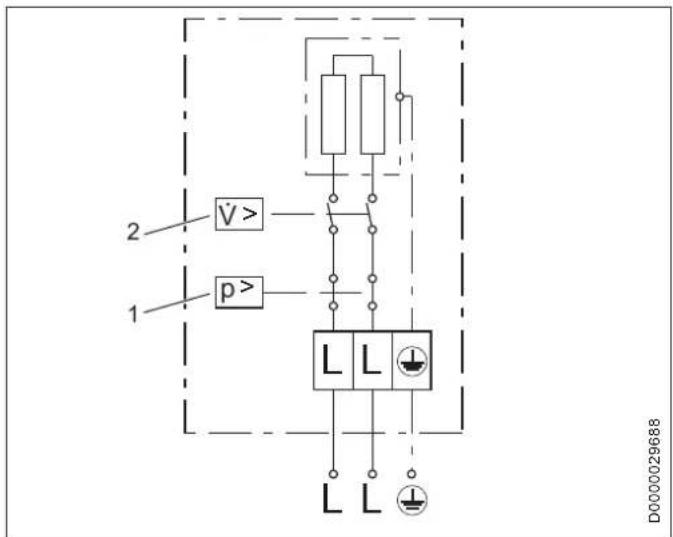

» Connect the power cable as shown in the wiring diagram (see chapter "Specification / Wiring diagram").

11. Commissioning

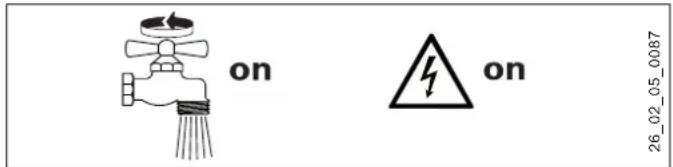

11.1 Initial start-up

Fill the appliance by running the tap several times until the pipework and appliance are free of air.
» Carry out a tightness check.
» Insert the power cable plug, if present, into the standard safety socket or set the fuse/MCB.
» Check the function of the appliance.

11.2 Appliance handover

Explain the appliance function to users and familiarise them with its operation.
» Make users aware of potential dangers, especially the risk of scalding.
» Hand over these instructions.

11.3 Recommissioning

Material losses

Following an interruption of the water supply, recommission the appliance by carrying out the following steps, in order to prevent irreparable damage to the bare wire heating system.

» Isolate the appliance from the power supply. Pull the power cable plug, if present, from the socket, or remove the fuse/reset the MCB.
» See chapter "Initial start-up".

12. Shutting down

» Isolate the appliance from the power supply by means of the fuse/MCB in your fuse box or by pulling the power cable plug from the socket.

Drain the appliance (see chapter "Maintenance").

13. Troubleshooting

Problem Cause Remedy
The appliance will not start despite the DHW valve being fully open.	The aerator in the tap is scaled up or dirty.	Clean and/or descale the aerator or replace the special aerator.
	The sleeve in the cold water line is blocked.	Clean the sleeve after shutting off the cold water inlet line.
	The heater is faulty.	Check the resistance of the heating system and replace the appliance if required.
	The safety pressure limiter has responded.	Remedy the cause of the fault. Isolate the appliance from the power supply and depressurise the water line. Activate the safety pressure limiter.

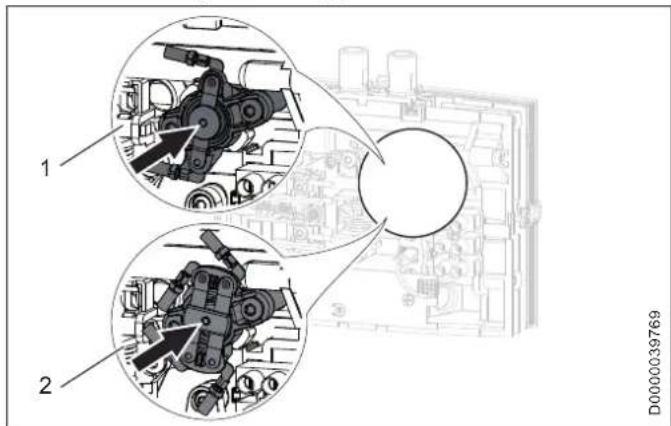

Activating the safety pressure limiter

1 1-pole safety pressure limiter MTD 440 / MTD 570
2 2-pole safety pressure limiter MTD 350 / MTD 650

14. Maintenance

DANGER Electrocution Before any work on the appliance, disconnect all poles from the power supply.

Draining the appliance

DANGER Scalding Hot water may escape during the draining process.

If the appliance needs to be drained for maintenance or to protect the whole installation when there is a risk of frost, proceed as follows:

» Close the shut-off valve in the cold water inlet line.

Open the draw-off valve.
» Undo the water connections on the appliance.

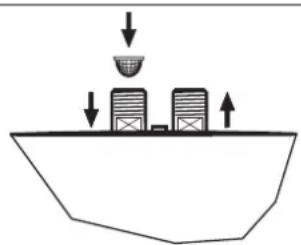

Cleaning the strainer

You can clean the fitted strainer after removing the cold water supply pipe.

26_02_05_0065

Checking the earth conductor

» Check the earth conductor (in Germany e.g. BGV A3) on the earth conductor contact of the power cable and on the appliance connector.

Appliance storage

Store the dismantled appliance in a room free from the risk of frost, as water residues remaining inside the appliance can freeze and cause damage.

Replacing the power cable for the MTD 570

If replacing the cable for the MTD 570, use a power cable with 4mm^2 cross-section.

15. Specification

15.1 Dimensions

b02 Entry electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A

15.2 Wiring diagram

15.2.1 MTD 350 1/N/PE 200-240 V

1 Safety pressure limiter
2 Pressure differential switch

Installation - for contractors

15.2.2 MTD 440 and MTD 570 1 / N / P E 200 - 240V

1 Safety pressure limiter
2 Pressure differential switch

Material losses

In the case of a permanent power supply, connect the power cable according to the designations on the socket terminals.

15.2.3MTD650 2/PE\~380-415V

1 Safety pressure limiter
2 Pressure differential switch

15.3 Increasing the temperature

At 230V / 400V the following water temperature increases occur:

X Flow rate in l/min
Y Temperature increase in K
1 3.5kW - 230V
2.4.4 kW - 230 V
3 5.7kW - 230V
4 6.5kW - 400V

Example MTD 350 with 3.5 kW
Flow rate l/min 2.0
Increasing the temperature K 25
Cold water supply temperature °C 12
Maximum possible outlet temperature °C 37

Note An o

An outlet temperature of 50^ can be achieved with the lowest possible flow rate and the following cold water inlet temperatures:

°MTD 350>18°C
^ MTD 440 > 21°C
°MTD 570 > 22°C
°MTD 650 > 15°C

15.4 Application areas

For the specific electrical resistance and specific electrical conductivity, see "Data table".

Standard specifica- tion at 15 °C			20 °C			25 °C
Spec. resist- ance ρ ≥	Spec. conduc- tivity σ ≤		Spec. resist- ance ρ ≥	Spec. conduc- tivity σ ≤		Spec. resist- ance ρ ≥	Spec. conduc- tivity σ ≤
Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm
1100	91	909	970	103	1031	895	112	1117

15.5 Details on energy consumption

Product data complies with EU regulations relating to the Directive on the ecodesign of energy related products (ErP).

MTD 350 MTD 440 MTD 570 MTD 650
		222120	222121	222122	232790
Manufacturer		AEG Haustechnik	AEG Haustechnik	AEG Haustechnik	AEG Haustechnik
Load profile		XXS	XXS	XXS	XXS
Energy efficiency class		A	A	A	A
Annual power consumption	kWh	478	478	478	467
Energy conversion efficiency	%	39	39	39	40
Sound power level	dB(A)	15	15	15	15
Special information on measuring efficiency		None	None	None	None

15.6 Data table

MTD 350 MTD 440 MTD 570 MTD 650
		222120			222121			222122			232790
Electrical details
Rated voltage	V	220	230	240	220	230	240	220	230	240	380	400	415
Rated output	kW	3,2	3,5	3,8	4,0	4,4	4,8	5,2	5,7	6,2	5,9	6,5	7,0
Rated current	A	14,5	15,2	15,8	18,2	19,1	20	23,6	24,7	25,8	15,5	16,3	16,9
Fuse	A	16	16	16	20	20	20	25	25	32	16	20	20
Frequency	Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50
Phases		1/N/PE			1/N/PE			1/N/PE			2/PE
Specific resistance ρ15≥ (at9cold ≤25 °C)	Ω cm	1100			1100			1100			1100
Specific conductivity σ15≤ (at9cold ≤25 °C)	μS/cm	909			909			909			909
Specific resistance ρ15≥ (at9cold >25 °C)	Ω cm	1100			1100			1100			1100
Specific conductivity σ15≤ (at9cold >25 °C)	μS/cm	909			909			909			909
Max. mains impedance at 50 Hz	Ω							0,394	0,377	0,361

MTD 350 MTD 440 MTD 570 MTD 650
Connections
Water connection G 3/8 A G 3/8 A G 3/8 A
Application limits
Max. permissible pressure 1 1 1	1
Values
Max. permissible inlet tempera-ture	°C	35	35	35	35
ON	l/min	>1,6	>2,0	>2,6	>2,6
Pressure drop at flow rate		0,05	0,06 0,08 0,08
Flow rate for pressure drop	l/min	1,6	2,0	2,6	2,6
Flow rate limit at	l/min	2,2	2,8	4,3	4,3
DHW delivery	l/min	2,0	2,5	3,2	3,7
Δθ at DHW delivery	K	25	25	25	25
Hydraulic data
Rated capacity	I	0,1	0,1	0,1	0,1
Versions
Undersink installation		X	X	X	X
Open vented type		X	X	X	X
Sealed unvented type		X	X	X	X
IP-Rating		IP25	IP25	IP25	IP25
Protection class		1	1 1 1
Insulation block		Plastic	Plastic	Plastic	Plastic
Heating system heat generator		Bare wire	Bare wire	Bare wire	Bare wire
Cap and back panel		Plastic	Plastic	Plastic	Plastic
Colour		white	white	white	white
Dimensions
Height	mm	143	143	143	143
Width	mm	190	190	190	190
Depth	mm	82	82	82	82

Installation - for contractors / Guarantee - Environment and recycling

MTD 350 MTD 440 MTD 570 MTD 650
Weights
Weight kg 1,4 1,4 1,4 1,4

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

Table des matieres

REMARQUESPARTICULIERES

UTILISATION

Urzhumskaya street 4,

building 2

129343 Moscow

Tel. [phone]

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]

AEG is a registered trademark used under license from AB Electrolux (publ).
