USER MANUAL RA202 OREGON SCIENTIFIC

Turn ON the Watch (First-Time Use Only)

Switch between Main Modes

Set the Compass Sensor Calibration

View Compass Displays

Set the True North Calibration

Warnings and Care Instructions

INTRODUCTION Thank you for selecting the Oregon Scientific™ Outbreaker Sailor Compass / Outbreaker Sailor Compass Medium (RA202 / RA282) watch as your product of choice. This precision device includes the following features:

• Highly accurate chronometer clock with calendar and backlight

• Adjustable declination angle

• Compass sensor calibration

• True north calibration

• Bearing tracking system

• Sailing timer with laps - Counts up and down

• Altitude measurement with alarm alert and bar chart display

• Barometric pressure measurement with sea level line chart display

• Temperature measurement

• Weather forecast with 4 displays

• Water resistant up to: - 50 metres RA202 - 30 metres RA282

• Daily alarm This manual contains important safety and care information, and provides step-by-step instructions for using this product. Read the manual thoroughly, and keep it in a safe place in case you need to later refer to it. IMPORTANT

• The measurement functions built into the RA202 / RA282 are not meant to substitute professional measurement or industrial precision devices. Values produced by this watch should be considered as reasonable representations only.

• When engaging in mountain climbing or other activities in which losing your way can create a dangerous or life-threatening situation, always be sure to use a second compass to confi rm direction readings.

• Oregon Scientifi c™ assumes no responsibility for any loss, or any claims by third parties that may arise through the use of this watch.3

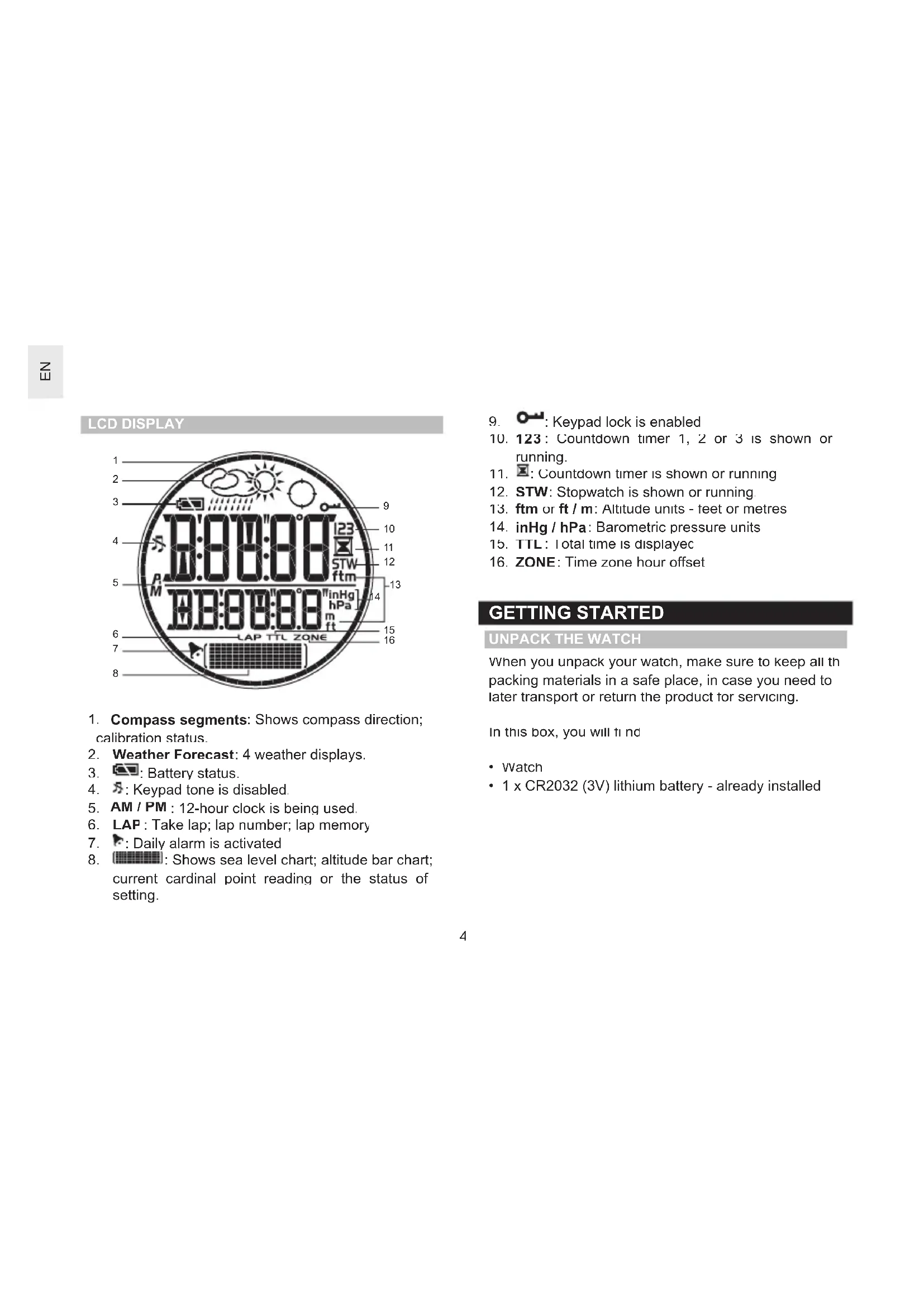

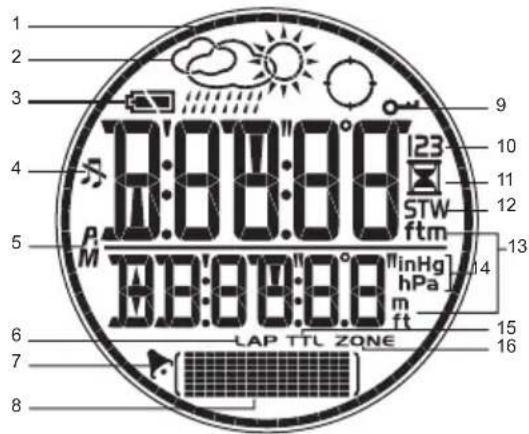

N / S / E / W : Cardinal points - north, south, east and west.

: Turn ON backlight for 3 seconds; lock / unlock the keypad.

MODE : Switch to another display; quick exit during any setting mode.

Bubble level : Use to position watch on a level plane.

ST / SP : Start / stop timer and stopwatch.

: Countdown timer 1, 2 or 3 is shown or running.

running. : Countdown timer is shown or running.

STW : Stopwatch is shown or running.

inHg / hPa : Barometric pressure units.

TTL : Total time is displayed.

When you unpack your watch, make sure to keep all the packing materials in a safe place, in case you need to later transport or return the product for servicing. In this box, you will fi nd:

• 1 x CR2032 (3V) lithium battery - already installed

Compass segments : Shows compass direction; calibration status.

: Keypad tone is disabled.

AM / PM : 12-hour clock is being used.

: Daily alarm is activated.

: Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Daily alarm is activated. : Shows sea level chart; altitude bar chart; current cardinal point reading or the status of a setting. LCD DISPLAY5

TURN ON THE WATCH (FIRST-TIME USE ONLY) Press any key for 2 seconds to activate the LCD display. BATTERIES The watch uses a 1 x CR2032 lithium battery, which has already been installed. See below for battery warnings. NOTE Heavy use of the backlight, altitude alarm Heavy use of the backlight, altitude alarm and sailing timer will reduce the battery service life signifi cantly. If you need to replace the battery, we highly recommend that you contact the retailer or our customer service department.

ICON The watch battery is low The watch battery is low - - Appears when the battery is too low - - Appears when the battery is too low to operate the sensor. “- -” is shown instead of temperature, altitude, barometer and compass values. The bar and line charts will also be To replace the watch battery:

1. Locate the battery compartment on the back of the

2. Using a coin, as shown above, twist the compartment

lid counter-clockwise until it clicks out of place.

3. With your fi nger, remove the old battery.

4. Insert the new battery with the + side upwards.

5. Replace the battery compartment lid by twisting it

clockwise until it is fi rmly in place. NOTE When you replace the batteries it is important When you replace the batteries it is important to re-calibrate the magnetic sensor and altitude or sea level. (See “Set the Altitude” or “Set the Altitude Alarm / Sea Level / Weather Icon” section.)6

There are 4 main modes: Clock, Altimeter-Barometer, Sailing Timer and Compass. Each main mode displays a banner screen telling you which mode you are entering. After 1 second the banner screen is automatically replaced by the main mode screen. Press MODE to switch between the 4 main modes.

Non-rechargeable and rechargeable batteries must be disposed of properly. For this purpose, special containers are provided for non-rechargeable and rechargeable battery disposal at communal collection centres.

• Batteries are extremely dangerous when swallowed! Therefore, keep batteries and the article away from infants. If a battery has been swallowed seek immediate medical advice.

• The batteries supplied must not be recharged, reactivated by any other means, dismantled, put into fi re or short-circuited.7

UNIT The real-time clock is the default display for the watch.

MODE to switch to Clock Mode.

SET until the fi rst setting fl ashes.

to change the setting. Hold to speed through the options. Press SET to confi rm the setting and move on to the next one.

4. Repeat step 3 to change other

settings for this mode. To set the clock: The order of the clock settings is:

• Temperature Unit - °C / °F NOTE The clock is programmed with a 50-year auto- The clock is programmed with a 50-year auto- calendar, which means you do not need to reset the day and date each month.8

Clock with Temperature

Within the Clock Mode there are 7 different screen displays. To switch between them:

MODE to navigate to the Clock Mode.

SELECT to scroll through the different clock screen displays. Clock with Date Clock with Clock with Seconds Altitude Clock with Date Clock with Clock with Seconds Altitude Clock with Date Clock with Clock with Seconds Altitude Clock with Sea Clock with Local Clock with Clock with Level Pressure Timer Level Pressure Timer Level Pressure Timer NOTE When wearing the watch, When wearing the watch, the temperature measured could be affected by body heat. To acquire an accurate temperature reading, remove the watch from your wrist and wait for about 15 minutes before taking the SET THE DAILY ALARM / TIME ZONE / KEYPAD TONE From any of the 7 clock screen displays you can set the:

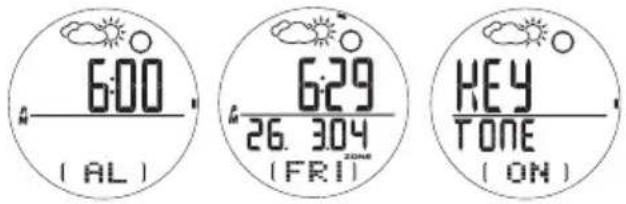

Daily Alarm - When activated the alarm will go off daily at the set time

Time Zone Offset - Offsets the time setting when you are in a different time zone (+ / - 23 hours)

Keypad Tone - When set to ON the keypad will sound when pressed9

FUNC to select daily alarm, time zone or keypad tone.

SET to enter setting mode for the daily alarm and time zone only.

to change the setting.

SET to confi rm the setting. Once the setting is complete the display will return to the previous clock display screen. ALARM SOUND The alarm will sound for 1 minute and the backlight will fl ash for the fi rst 10 seconds.

TURN THE ALARM SOUND OFF

Press any key to turn the alarm sound OFF. The alarm will automatically reset itself unless you deactivate it.

ACTIVATE / DEACTIVATE THE ALARM

Press MODE to navigate to Clock Mode. Press SET , then press

to activate or deactivate the alarm. shows when the alarm is activated.

The altimeter measures altitude in either metres or feet. The watch is equipped with an intelligent barometer that determines altitude by the built-in sensor with the advanced Baro-compensation technology. The sensor can also distinguish the differences between pressure caused by the changes in physical altitudes and pressure caused by weather conditions. This smart distinction eliminates discrepancies and makes the altimeter reading more accurate than most of the average devices available on the market.10

MODE to switch to Altimeter-Barometer Mode.

SET until the fi rst setting fl ashes.

to change the setting. Hold to speed through the options. Press SET to confi rm the setting and move on to the next one.

4. Repeat step 3 to change other

settings for this mode. The order of the altitude settings is:

• Altitude unit - metres / feet

• Altitude height To effectively set the altimeter you need to know the correct altitude. To do this:

• Obtain a topographical map; fi nd your location and its related altitude reading.

• Set the sea level pressure on your watch. IMPORTANT

• This unit employs a semiconductor pressure sensor that could be affected by temperature change. While taking the altitude measurement, ensure that the unit is not exposed to sudden temperature changes.

• It is recommended to calibrate the altitude or sea level pressure regularly to maintain the accuracy of the watch.

The altitude bar chart at the bottom of the display shows the altitude history. It consists of 7 rows and 14 columns. The latest reading is entered in the right hand column and always at the height of the 4th row. Therefore, all the other readings will adjust their position to refl ect the latest reading. NOTE 1 row = 20m (20m = 65.6ft) 1 row = 20m (20m = 65.6ft) 1 column =1 min11

Look at your watch to see what your current altitude level is, then look at the bar chart to see the changes in altitude. See the table below for how to read the bar chart in more detail.

1. Altitude level 400m.

User walking on a fl at road

Within the Altimeter-Barometer Mode there are 5 different altitude screen displays. To switch between them:

MODE to navigate to the Altimeter-Barometer Mode.

SELECT to scroll through the different altitude screen displays. Altitude with Altitude with Altitude with Clock Sea Level Local Pressure Altitude with Altitude with Altitude with Clock Sea Level Local Pressure Altitude with Altitude with Altitude with Clock Sea Level Local Pressure Altitude with Altitude with Altitude with Altitude with Timer Temperature Timer Temperature12

to change the setting.

SET to confi rm the setting. ALTITUDE ALARM The ascending or descending altitude alarm will be turned on when the set altitude is reached during an ascent or descent respectively. Press any key to stop the alarm sound. If the set value is reached again, the alarm will be re-activated. NOTE Setting the altitude affects the sea level Setting the altitude affects the sea level pressure. SEA LEVEL For an accurate reading, you must fi rst calibrate the sea level pressure. Once the sea level pressure is calibrated, the altitude will automatically calibrate to the reference altitude using the built-in auto-calibration function. When you set the sea level on your watch it adjusts the altimeter to the current altitude. Information on the current sea level pressure can be found in newspapers, local news and radio reports, or on the Internet. NOTE It is necessary to re-calibrate the sea level It is necessary to re-calibrate the sea level pressure or altitude if the product is placed in a pressurised cabinet such as an aeroplane. SET THE ALTITUDE ALARM / SEA LEVEL / WEATHER ICON From any of the 5 altitude screen displays you can set the:

Weather Icon - 1 of 4 displays to choose from

FUNC to select altitude alarm, sea level or weather icon.13

WEATHER FORECAST This product forecasts the weather for the next 12 to 24 hours within a 30-50 km (19-31 mile) radius. The weather forecast is based on barometric pressure trend readings.

SUNNY PARTLY CLOUDY RAINY

CLOUDY NOTE If the watch is subjected to fl uctuating altitude If the watch is subjected to fl uctuating altitude levels the weather forecast may disappear. Simply stay at the same altitude for 5 minutes and the weather forecast will reappear. NOTE The manufacturer is not responsible for any The manufacturer is not responsible for any inconveniences caused by faulty weather forecast.

The sailing timer has 3 countdown timers and a stopwatch:

The countdown timers have sound alerts to help you track time at the start of a race. And, a single key press is all it takes to make quick adjustments to the timer i.e. press

to increase or decrease your timer to the nearest minute. It is also equipped with a lap timer.

SET THE SAILING TIMER

To change the sailing timer settings:

MODE to navigate to Sailing Timer Mode.

SET to reset the previous timer you were using. Press and hold SET again to enter setting mode where you can select any timer.

to choose 1 of the 3 timers, then press SET to select it.14

Save lap Press LAP while the stopwatch (lap function can is running only be used in stopwatch mode) NOTE The stopwatch and lap times are stored in the same memory. The memory has capacity for 99 readings or 99 hrs, 59 mins View total time / 1. Stop timer / stopwatch. Press lap memory SET to view memory record

to scroll through memory records

SET to view total time

to view lap time (at

least 1 lap must have been taken) Delete 1 memory

SET to view memory record records

The latest memory will show as “M1” Save lap Press (lap function can is running memory has capacity for 99 readings or 99 hrs, 59 mins View total time / 1. Stop timer / stopwatch. Press lap memory

4. If you are in timer 1 (user-

to enter the values you require. If you want to use the stopwatch function, simply change all values to zero. Once you have set the timer you wish to use, you can perform the following functions: TIMER 1, 2, 3 / INSTRUCTION STOPWATCH Start / stop Press ST / SP Pause / resume Press ST / SP Edit time while Press

to make the timer timer is running increase or / decrease to the nearest minute Reset timer / Stop timer / stopwatch. Press and stopwatch hold SET TIMER 1, 2, 3 / INSTRUCTION Start / stop Press Pause / resume Press Edit time while Press timer is running increase or / decrease to the nearest minute Reset timer / Stop timer / stopwatch. Press and stopwatch hold15

to select the memory record you wish to view

to delete 1 memory or all records

SET to confi rm SET to confi rmSET 4.Press record you wish to view

NOTE When any countdown timer has reached When any countdown timer has reached zero, it will beep and automatically start to count up in stopwatch timer. NOTE In the Sailing Timer Mode, only one of the In the Sailing Timer Mode, only one of the timers can be used at a time.

SAILING TIMER SOUND ALERT

The countdown timer advises you of the countdown status with a series of beeps.

min 5 sets of 2 beeps

sec Continuous beeps

sec 1 beep each sec 0 sec 1 long beep

COUNTDOWN TIME AT THE: SOUND ALERT

min 2 beeps min 5 sets of 2 beeps min 2 beeps sec Continuous beeps sec 2 beeps sec 1 beep each sec 0 sec 1 long beep

SEA LEVEL PRESSURE DISPLAY

The sea level history can be viewed as a measurement reading in hPa / inHg or as a line chart. It consists of 7 rows and 14 columns. The latest reading is entered in the right hand column and always at the height of the 4th row. Therefore, all the other readings will adjust their position to refl ect the latest reading. NOTE 1hPa=0.02953inHg 1hPa=0.02953inHg Look at your watch to see what your sea level pressure is, then look at the line chart to see the changes in pressure. See the table below for how to read the line chart in more detail.16

The compass shows the bearing in degrees together with 16 cardinal points. The outer circumference of the display consists of 60 segments, which graphically show the bearing, (one lit segment indicates North, three lit segments indicate South). The bubble shows you when the compass is fl at so you can take an accurate reading. Simply look directly over the bubble and position the small bubble in the centre of the circle. The compass display is active for 30 seconds at a time. After this, the compass will go into power saving mode and “

” will appear on the display. To re-activate the compass, press SELECT

NOTE Always take bearings in the open air, not inside Always take bearings in the open air, not inside buildings, tents, caves, or other shelters.

4hPa. (Decrease of 2hPa)

4. Sea pressure level

9hPa, (Increase of 5hPa)

5. Sea pressure level

4hPa, (Decrease of 5hPa)

NOTE Compass readings should be performed away from magnetic materials. Avoid large magnetic objects, power lines, loudspeakers, electric motors etc. If the compass is exposed to large magnetic forces reset the calibration.

SET THE COMPASS SENSOR CALIBRATION

The compass should be calibrated:

• Before you use it for the fi rst time.

• When the battery is replaced.

• Before you leave for an extended outdoor activity.

• Whenever it is exposed to a strong magnetic source, extreme cold weather, or you suspect that other environmental conditions have affected the compass readings.

• If you notice that the compass is not showing the direction correctly. To set the compass sensor calibration:

MODE to switch to Compass Mode.

SET until you see the screen opposite.

Rotate the watch counter- clockwise at the same speed as the segments that are moving around the circumference. The rotation is fi nished when you have completed 1 1/4 turns and the screen display opposite appears. NOTE For successful calibration, it is important to hold For successful calibration, it is important to hold the compass level during the calibration process. Simply lay it on a fl at surface such as an over-turned drinking glass on a table.

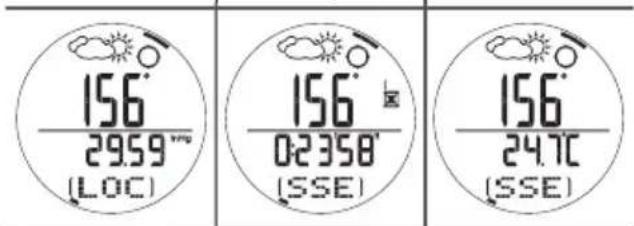

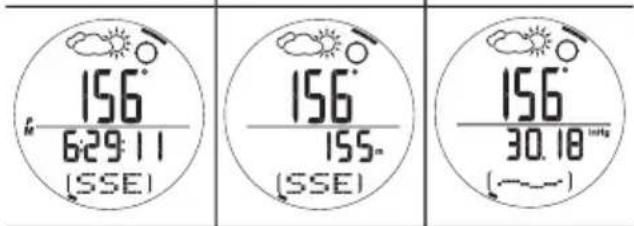

VIEW COMPASS DISPLAYS

Within the Compass Mode there are 5 different compass screen displays. To switch between them:

MODE to navigate to the Compass Mode.

SELECT to scroll through the different compass screen displays.18

The bearing tracking system can be set to lock on a specifi c bearing you wish to follow. By locking the bearing you can see when you deviate from your course and how much you need to correct it to get back on track.

1. In any compass display screen,

press SET until the screen opposite appears.

SET to enter setting mode.

• The top number shows your previous locked bearing.

• The bottom flashing number shows your current bearing.

3. Move the compass until the bearing you wish to lock

SET to confi rm the setting.

SET to lock the setting.

7. In the Compass Mode, the locked value will appear

at the bottom of the display instead of the cardinal reading. Compass with Compass with Compass with Compass with Compass with Compass with Compass with Compass with Compass with Clock Altitude Sea Level Clock Altitude Sea Level Clock Altitude Sea Level Compass with Compass with Compass with Compass with Compass with Compass with Compass with Compass with Compass with Local Pressure Timer Temperature Local Pressure Timer Temperature Local Pressure Timer Temperature From any of the 5 compass screen displays you can set the:

Bearing Tracking System - Select ON / OFF; set bearing

Declination - Select ON / OFF; set declination angle

True North Calibration - Select ON / OFF; set true north calibration19

Once the bearing tracking system has been set, the compass segments on the display will show how far you deviate from your locked course. See the examples below:

The locked bearing is 94° and the current bearing is 94°

2. Current compass bearing

3. Locked compass bearing

1. Your locked bearing is 94° and

your current bearing is 120°.

2. Current compass bearing

3. Locked compass bearing

The compass segments now show the angle between your locked bearing and your current bearing. Therefore, you need to change the direction you are on to get back onto your locked bearing course.

Declination is the angle between where a compass needle points (magnetic North Pole) and the true North Pole. The declination angle can vary from 0-30 degrees East (E) or West (W) and can be found on most maps or on the Internet. When you set the declination angle on the compass you compensate for the difference between true north and magnetic north. This makes the compass reading more accurate.

1. In any compass display screen,

press SET until the screen opposite appears.

SET to enter setting mode.

to change the setting.

When you do not know the declination angle, the true north calibration function can be used to compensate for the difference between magnetic and true north. All you need to know is the direction of true north (this can be found from landmarks in your immediate vicinity). Setting the true north calibration makes the compass reading more accurate. To set the true north calibration:

1. In any compass display screen,

press SET until the screen opposite appears.

SET to enter setting mode.

3. Turn the compass to the position

of true north and press SET

NOTE If the declination function is turned ON, the If the declination function is turned ON, the true north function is automatically turned OFF and vice-versa.

toggle between ON / OFF. BACKLIGHT To turn the backlight ON for 3 seconds:

2. Press any other key while the light is on and it will

extend the light time by another 3 seconds. NOTE The backlight does not work when the low The backlight does not work when the low battery icon The backlight does not work when the low The backlight does not work when the low is shown and will return to normal once the batteries are replaced. KEYPAD LOCK To turn the keypad lock ON or OFF:

• Press and hold for 2 seconds to toggle between ON and OFF. When it is set to ON the for 2 seconds to toggle between icon will appear on the display.21

Sea level pressure setting 900 to 1100 hPa /

To ensure you receive the maximum benefi t from using this product, please observe the following guidelines:

• Clean the product with a soft, slightly moistened cloth. Do not use abrasive or corrosive cleaning agents, such as gasoline, chlorine, perfume, alcohol, hair spray, etc., as these may cause damage.

• Avoid pressing the keys with wet fi ngers, under water, or in heavy rain, as this may allow water to gain entry into the electrical circuitry.

• Do not subject the product to excessive force, shock, dust, temperature changes or humidity. Never expose the product to direct sunlight for extended periods. Such treatment may result in malfunction.

• Do not tamper with the internal components. Doing so will terminate the product warranty and may cause damage. The main unit contains no user-serviceable parts.

• Do not touch the exposed electronic circuitry, as there is a danger of electric shock.

• Do not scratch hard objects against the LCD display as this may cause damage.

• Take precautions when handling all battery types.

• Remove the batteries whenever you are planning to store the product for a long period of time.

• When replacing batteries, use new batteries as specifi ed in this user manual.

• Do not use in hot water.

• When disposing of this product, do so in accordance with your local waste disposal regulations.23

Visit our website ( www.oregonscientifi c.com www.oregonscientifi c.com ) to learn more about Oregon Scientifi c products such as digital cameras; MP3 players; children’s electronic learning products and games; projection clocks; health and fi tness gear; weather stations; and digital and conference phones. The website also includes contact information for our customer care department in case you need to reach us, as well as frequently asked questions and customer downloads. We hope you will fi nd all the information you need on our website, however if you’d like to contact the Oregon Scientifi c Customer Care department directly, please visit: www2.oregonscientifi c.com/service/support www2.oregonscientifi c.com/service/support

© 2005 Oregon Scientifi c. All rights reserved. 086L003677-0181
