Brand	Electrolux
Model	CE6010GR
Product type	Kitchen hood
Usage	Domestic
Width (estimated)	60 cm
Minimum safety distance above cooking surface	650 mm
Air outlet diameter	120 mm or more
Power supply	220-240 V, earthing mandatory
Bipolar switch required	Contact opening min. 3 mm
Number of motor speeds	3 (low, medium, high)
Lighting	Replaceable bulb same type/same power
Grease filter	Washable metal (monthly)
Active charcoal filter	Not washable, replace every 3 months (filtering version)
Extraction version	Extraction (external) or filtering (recirculation)
Control	Mechanical switches (light, motor, speed)
Surface cleaning	Damp cloth + neutral liquid detergent or denatured alcohol
Fire risk	Do not leave open flames, monitor frying
Gas cooking compatibility	Respect higher distance if prescribed by hob manufacturer

Frequently Asked Questions - CE6010GR ELECTROLUX

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. If the gas hob specifies a higher distance, this must be respected.

How to clean the metal grease filters?

Wash the metal filters once a month with warm water and mild detergent. Do not bend them and let them dry before reinstalling.

When should the active charcoal filter be replaced?

The active charcoal filter cannot be washed and must be replaced every three months. In filtering version, it is essential for air recirculation.

Can I use the hood above a gas hob?

Yes, but you must provide sufficient room ventilation (max depression 0.04 mbar). Also respect the safety distance of 650 mm or more if the hob requires it.

How to replace a defective bulb?

Open the metal suction grille, check that the bulb is properly screwed. If it needs replacing, use a bulb of the same type and same wattage.

Can the hood operate in recirculation mode (without external evacuation)?

Yes. To do so, set the conversion button to filtering position and install the active charcoal filter (not supplied with the extraction version).

How to open the suction grille?

Move the spring-loaded side stops towards the center of the hood, then pull the grille forward. To unhook it completely, pull the right part and pass it through the opening.

Which speed to choose for cooking?

Use minimum speed for continuous quiet ventilation, medium speed for normal use, and maximum speed for strong steam emissions.

What to do if the power cord is damaged?

Have it replaced by the manufacturer or authorized after-sales service to avoid any risk of electric shock.

Can I flambé food under the hood?

No, do not prepare flambéed food under the hood: risk of fire.

USER MANUAL CE6010GR ELECTROLUX

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

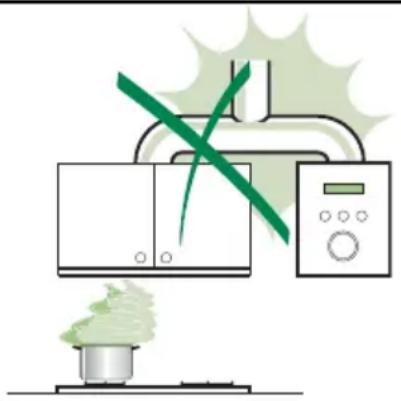

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

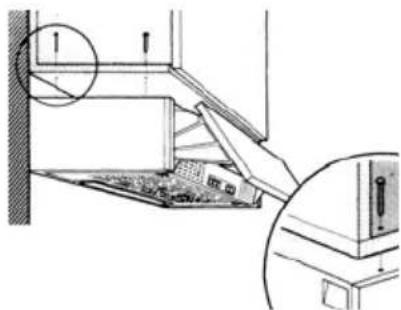

FIXING OF THE HOOD UNDER THE CABINET

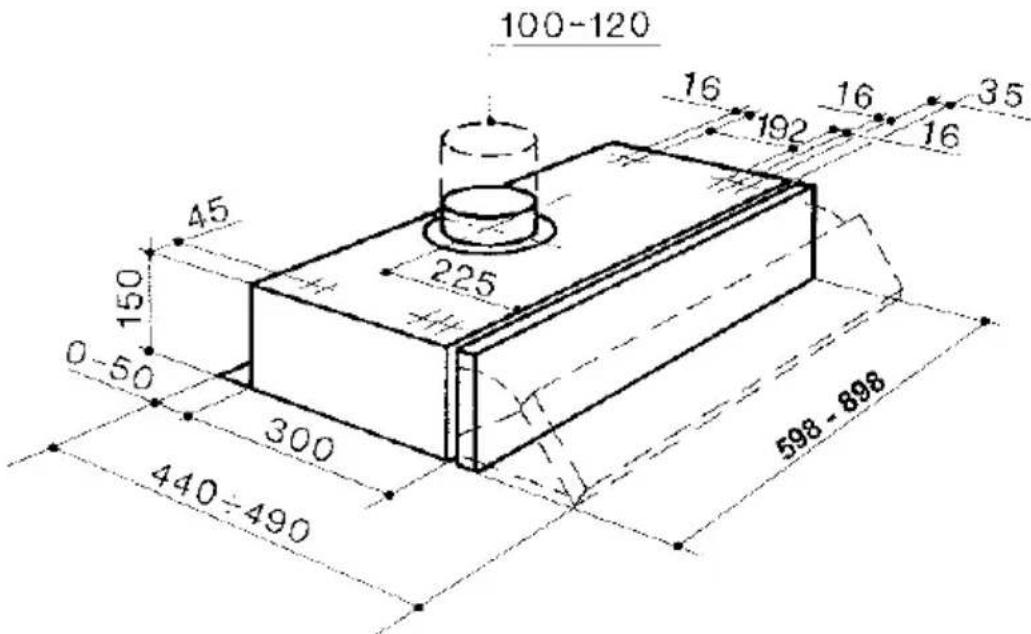

• To drill the cabinet follow the indications given in the dimensional drawing in the chapter which regards hood dimensions.
• To fix the hood onto the cabinet use the 44,4mm long screws inserting and tightening them from the inside of the cabinet.

Connection to air outlet

AIR OUTLET IN THE DUCTING MODE

When installing the hood in ducting version, basing on the installer's choice, a rigid or a flexible pipe is used in order to connect the hood to the air outlet piping.

• Insert the flange on the hood body outlet.
• Open the metal grid and make sure that the conversion knob is in the ducting position.
• Connect the hood to the air outlet piping with a pipe.
  Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.
• Remove the charcoal filter if present.

AIR OUTLET IN THE RECYCLING MODE

• Open the metal grid and make sure that the conversion knob is in the recycling position.

• Place the charcoal filter. The charcoal filter is not supplied together with the hood. (Hoods with two motors needs to be equipped with two charcoal filters).

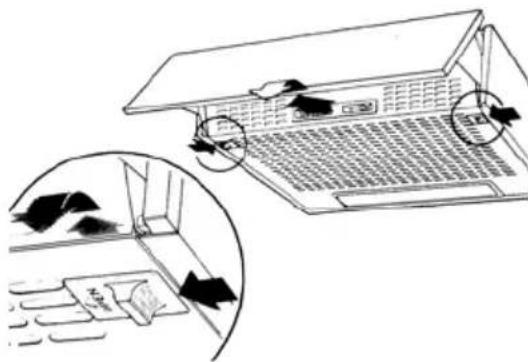

INSTRUCTIONS ON OPENING THE SUCTION GRILL

• Slide the side stops towards the centre of the hood and at the same time pull the grill forwards.

• The grill will drop down, turning on the two rear pins, and will remain hanging from them.

• To disconnect it completely, pull the right hand part of the grill forwards slightly so that the pin comes out of the grill through the slot formed on the body of the hood.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm..

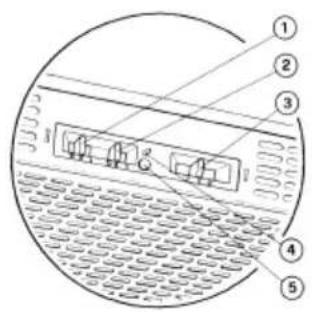

Control board

1 Lighting On/off lighting system.

2 Motor On/off motor.
3 Speed Speed control:

1. Minimum speed, particularly silent, continuous air exchange, suitable in presence of only few cooking vapours and odours.
2. Medium speed, due to an optimum relation between hood extraction capacity and the noise level, it is suitable for most of the cooking conditions.
3. Maximum speed, suitable for the cooking conditions when vapours and smells are of the utmost emission even for a longer time.

OPTIONAL

4 Microswitch Microswitch, which is activated by the movement of the visor. It switches on and off the hood basing on the conditions which have been earlier established with the sliders of the control panel.
5 Led Led indicating when the motor is on.

GREASE FILTER

Regular maintenance and cleaning will ensure good performance and reliability, while extending the working life of the hood. Special attention should be taken to keep the grease filter clean at all times and the charcoal filter (recirculation model) should be replaced regularly. To remove filters for subsequent cleaning and replacement first open the metal grille panel.

This retain the solid grease particles. It is fitted onto the reverse side of the lower grille panel and can be either of a synthetic material or metallic. Maintenance of the grease filter varies according to the type used: synthetic grease filters should not be washed and should be replaced every three months. The metal grease filters should be washed once a month in hot water using mild detergent or liquid soap. It should not be bent and should be left to dry before being refitted. The filter is easily removed from grille by pushing the spring wire clips to one side and removing.

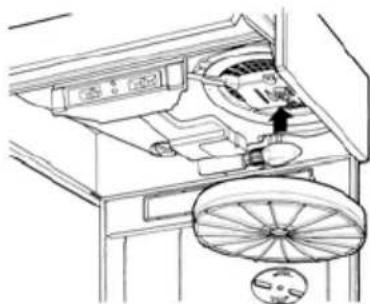

CHARCOAL FILTER

In the recycling mode the charcoal filter absorbs smells and odours. The charcoal filter cannot be cleaned and should be replaced at least every six months or more frequently if the hood is used consistently.

To replace the charcoal filter, support the filter with one hand, remove the round disk through the centre of the charcoal filter and rotate it till the filter will come away.

Replace by reversing the operation.

WARNING! It is a possible fire hazard if the filters are not cleaned and replaced as recommended.

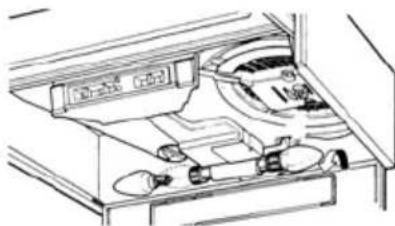

WORKTOP ILLUMINATION

If a lamp fails to function at any time, open the metal grille panel and check that the lamp is fully screwed into the holder.

When changing the lamp, an identical replacement must be fitted to ensure a safe working of the hood.

CLEANING

The metalwork should be cleaned regularly, at least once a month, using household cleaners and polish. Never use abrasives.

IMEMISVÖRE AVAMISE JUHISED

PiJ Yac BCTaHOBJeHHB iIBiHOOI BNTXKKN IJI INpHeIHHaHH BNTXKKN IO KaHJIy IJI BAIBeEHN HIOBITP Ha BNOip cIIeuaJIcTa, IIO BHKOHyc BCTaHOBJeHHBHKOPHCOTByctbcj KOpCTKa aO rhUka Tpyoka.

BcTaBTe 1JIaHeHb B OTBip Ha KOpIYci BHTJxKN.
- BiikpnHe MeTaJeBy rpaTy Ta IepeKoHaITeC8, lo pyka 3HaxOJIHTbcB IIIOJOKeHHI BiJIBeJIeHHJ.
- IIpncnHaHTe BNTJkK y IIO kaHaIy IJIa BiBBeHHeNHa IOBITpy 3a IIOIOMOIO TOY6KN.
3aKpinitb Tpy6ky, BnKOpHcTObYIOuHN Heo6XiHy KJIbKicTB Tpy6HHX XOMyTIB. BOHH He IocTaauIOTbcpa30m i3 BHTJIKKOIO.
- BntarHitb ByrijbHH jIbTp (y pa3i HaABHocTi).

KAHAJI IJIY BNBDEEHNIOBITPBAPEXIMI PEUPKUYLAII

BikpnTe MeTaJIeBy rpaTky Ta nepeKoHaITeCya 3naXOHTbc BIOJIOKeHH peuHPKyJIaII.
ΠΟmicitb ByrilbHHH iJbTp. ByrilbHHH iJbTp He nocTaHaEcpa3OM i3 BHTaKKOIO. (BHTaKKN 3 DBOMA ABHryHAMCIIID OCHaUyBaTH DBOMa ByrilbHMn iJbTpamn.)

IHCTPYKzii 3 BIDKPNTTBCMOKTYBAJIbHOI PEiITKN

Iepemictb6okobiyiopnBHaipmkyIOeHTpy BHTJKKN OJHOaCHO IOTARHITbpeITKY BIEpeJ.
- Peiitka onyctntbce DOHN3y, TpHMAOCHc Ha IBOX 3aTHIX IIIhDfTx, i3aJIINITbcB HcITn Ha HIX.
ДяТOrO II06 BiI'eHAtN III IOBHCIO,NotrHITb IpaBy YactHy peiITKn TPOXn BIIpeE, TaK II06 IIIHTBHNIOB 3 peiITKn Yepe3 IIIJINHy, IIOTBOPNJacR B KOpNyci BHTJIKN.

ENEKTPNCHI 3'6DAHNN

• IIikJIOHITb BHTaKKy IOpo3eTKn Chepe3 IBOIOJIIOCHN BHMHKaY 3 KOHTaKTTHM 3a3OpOM IOHaIMeHIIe 3 MM.

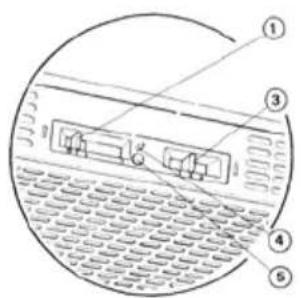

Panaelb ynpablinnna
