GB Cordless Cleaner Instruction Manual
F Aspirateur sans Fil Manuel d'instructions
D Akku-Staubsauger Betriebsanleitung
I Aspiratore a Batteria Istruzioni per l'uso
NL Snoerloze stofzuiger Gebruiksaanwijzing
E Aspiradora sin Cable Manual de instructiones
P Aspirador a Bateria Manual de instruções
DK Akku Stovsuger Brugsanvising
S Sladdlos Dammsugare Bruksanvisning
N Batteristøvsuger Bruksanvisning
SF Akku-Pölynimuri Käyttoohje
GRΦopntn nλεκτρικ ὄκούπa Oδnyiες χρησεως

4093D

1

2

3

4

5

6

7

8

9

10

11 12

13 14

15

Symbols

The followings show the symbols used for the equipment. Be sure that you understand their meaning before use.

Symboles

n dutiliser l'outil.

Symbole

• Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material! In observance of European Directive 2002/96/EC on waste electric and electronic equipment, 2006/66/EC on batteries and accumulators and waste batteries and accumulators and their implementation in accordance with national laws, electric equipment and battery pack that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Explanation of general view

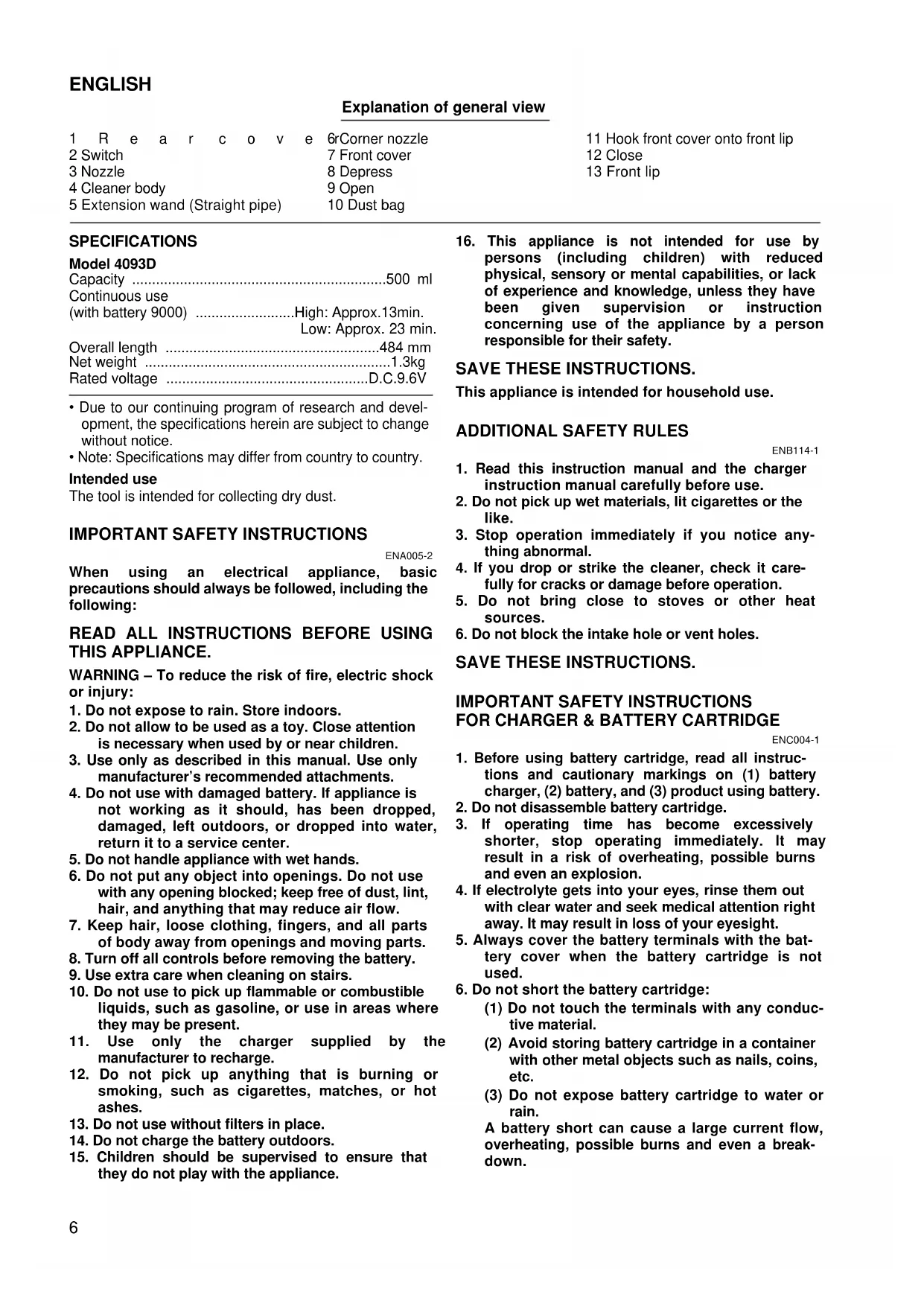

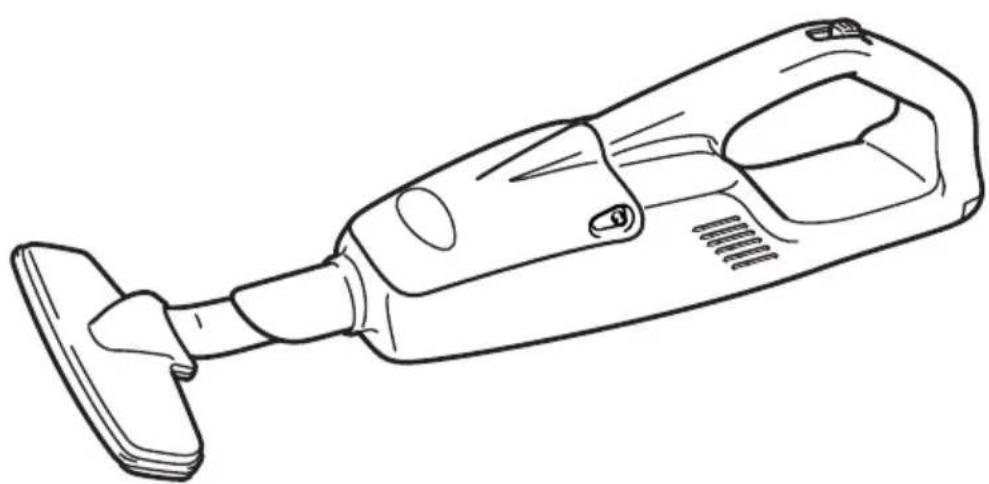

1	R e a r c o v e	6rCorner nozzle
2	Switch	7 Front cover
3	Nozzle	8 Depress
4	Cleaner body	9 Open
5	Extension wand (Straight pipe)	10 Dust bag

11 Hook front cover onto front lip
12 Close
13 Front lip

SPECIFICATIONS

Model 4093D

Capacity 500 ml

Continuous use

(with battery 9000) .High: Approx.13min.

Overall length 484 mm

Net weight 1.3kg

Rated voltage D.C.9.6V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

Intended use

The tool is intended for collecting dry dust.

IMPORTANT SAFETY INSTRUCTIONS

ENA005-2

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING - To reduce the risk of fire, electric shock or injury:
1. Do not expose to rain. Store indoors.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
3. Use only as described in this manual. Use only manufacturer's recommended attachments.
4. Do not use with damaged battery. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
5. Do not handle appliance with wet hands.
6. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
7. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
8. Turn off all controls before removing the battery.
9. Use extra care when cleaning on stairs.
10. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
11. Use only the charger supplied by the manufacturer to recharge.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filters in place.
14. Do not charge the battery outdoors.
15. Children should be supervised to ensure that they do not play with the appliance.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS.

This appliance is intended for household use.

ADDITIONAL SAFETY RULES

ENB114-1

1. Read this instruction manual and the charger instruction manual carefully before use.
2. Do not pick up wet materials, lit cigarettes or the like.
3. Stop operation immediately if you notice anything abnormal.
4. If you drop or strike the cleaner, check it carefully for cracks or damage before operation.
5. Do not bring close to stoves or other heat sources.
6. Do not block the intake hole or vent holes.

SAVE THESE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER & BATTERY CARTRIDGE

ENC004-1

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Always cover the battery terminals with the battery cover when the battery cartridge is not used.
6. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ - 40^ (50^ - 104^) . Let a hot battery cartridge cool down before charging it.
4. Charge the Nickel Metal Hydride battery cartridge when you do not use it for more than six months.

OPERATING INSTRUCTIONS

Installing or removing battery cartridge (Fig. 1)

• Always switch off the cleaner before insertion or removal of the battery cartridge.

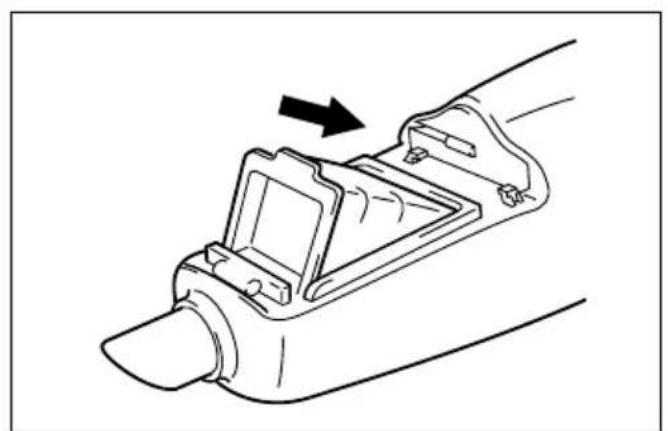

• To remove the battery cartridge, remove the rear cover from the cleaner by pushing it in the direction of the arrow and then withdraw the battery cartridge from the cleaner.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the cleaner and slip it into place. Then close the rear cover.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Switch action (Fig.2)

CAUTION:

• Always be sure that the dust bag or paper pack is installed properly in the cleaner before use. Improper installation may allow dust to enter the motor, resulting in malfunction of the cleaner.
• Always switch off the cleaner after each use to prevent damage to the cleaner and to lengthen the service life of the batteries.

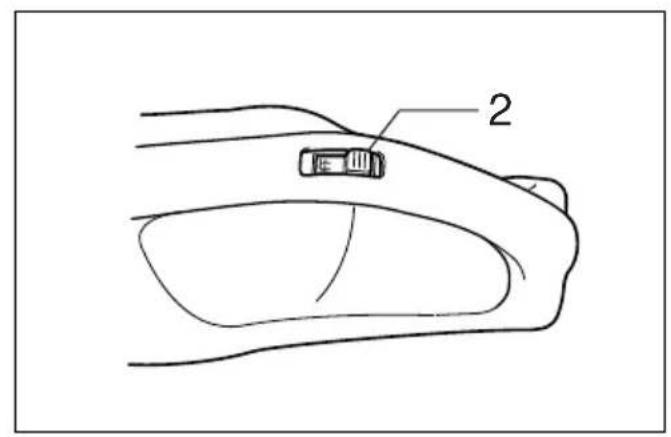

This cleaner can be operated in "standard" and "strong" suction. For standard suction, slide the switch forward to the LOW position. For strong suction, slide the switch further to the HIGH position.

To stop the cleaner, slide the switch back to the OFF position.

Cleaning (Suction)

Nozzle (Fig.3)

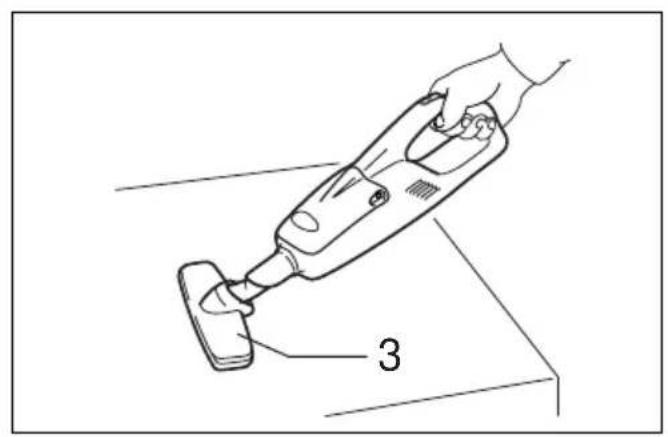

Attach the nozzle to clean off tables, desks, furniture, etc. Nozzle slips on easily.

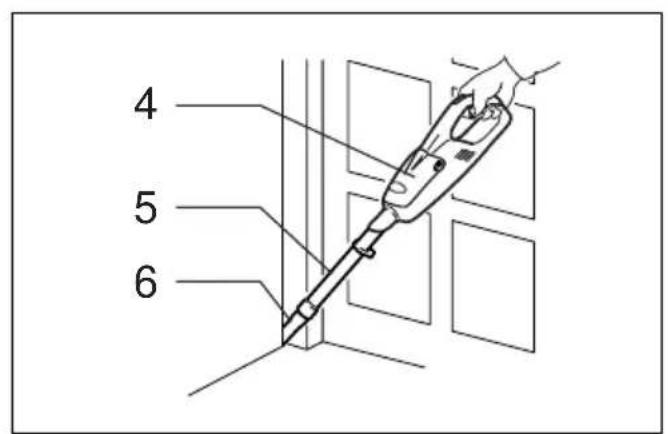

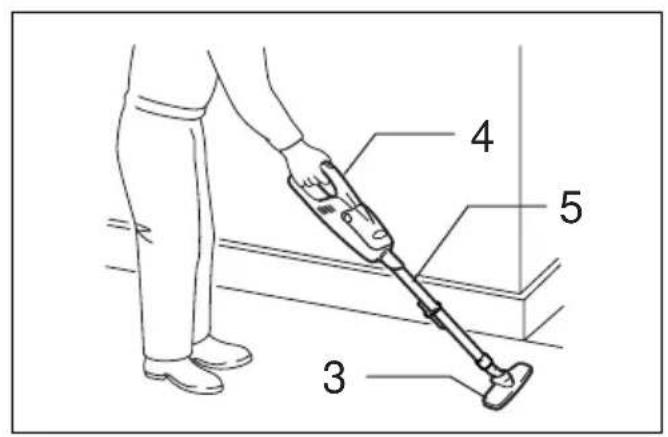

Nozzle+ Extension wand (Straight pipe) (Fig.4)

The extension wand fits in between the nozzle and the cleaner itself. This arrangement is convenient for cleaning a floor while standing erect.

Corner nozzle (Fig. 5)

Fit on the corner nozzle for cleaning corners and crevices of a car or furniture.

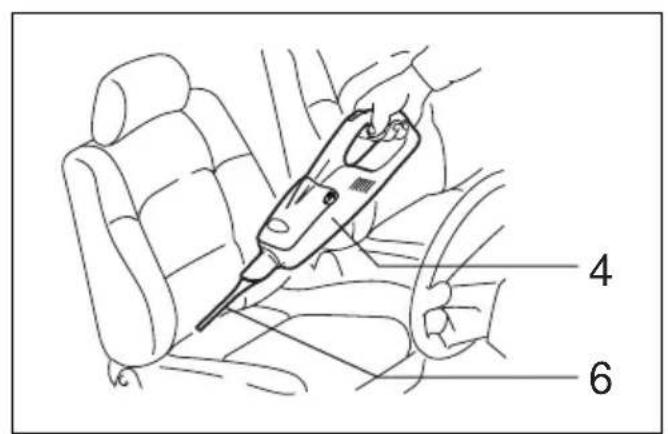

Corner nozzle+ Extension wand (Straight pipe) (Fig. 6)

In tight quarters where the cleaner itself cannot squeeze in, or in high places hard to reach, use this arrangement.

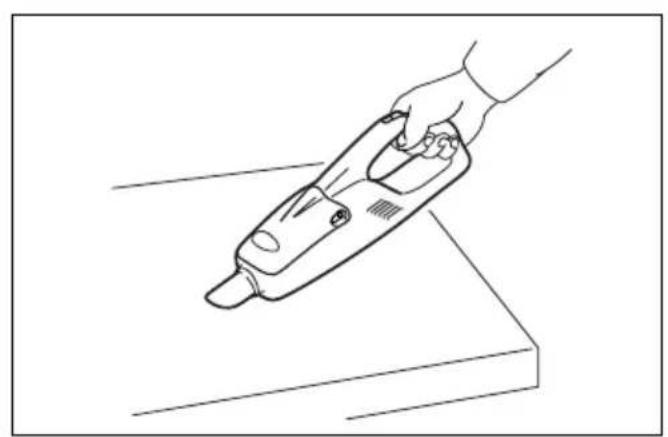

Cleaning without nozzle (Fig.7)

You can pick up powder and dust without nozzle.

Dust disposal

CAUTION:

Empty the cleaner before it becomes too full, or the suction force weakens.

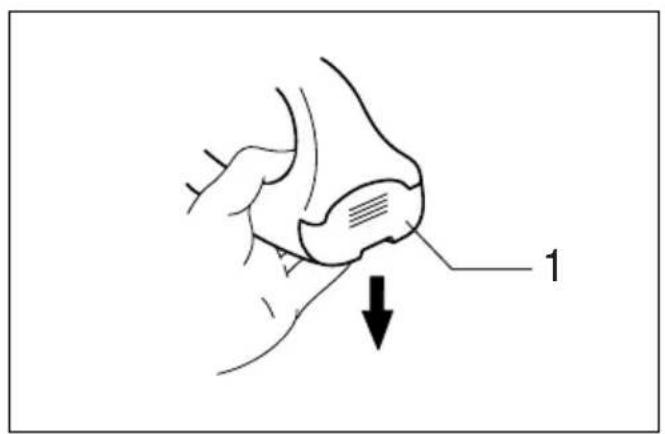

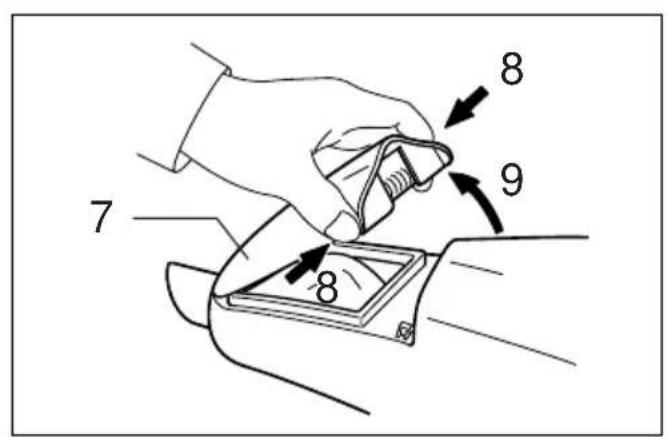

Depress the buttons and open the front cover. (Fig. 8)

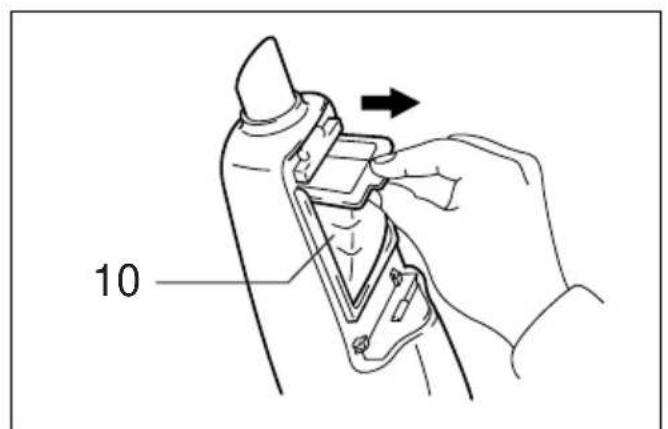

Take the dust bag out of the cleaner carefully so that the contents will not spill out. Empty the contents out of the dust bag. (Fig.9)

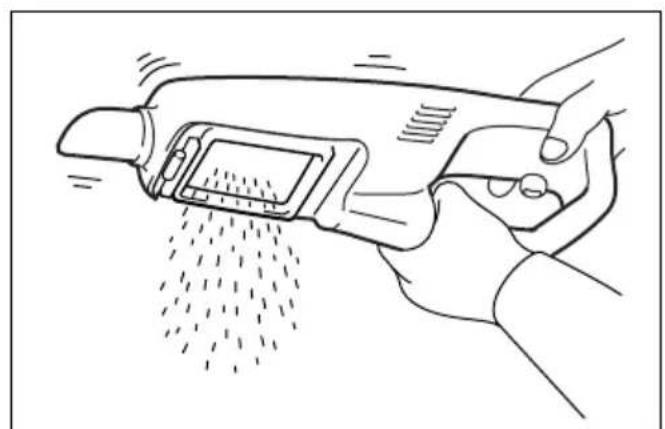

Also empty out the dust inside the cleaner itself. Failure to do so may cause the sponge filter to be clogged or the motor to be damaged. (Fig. 10)

Installing dust bag

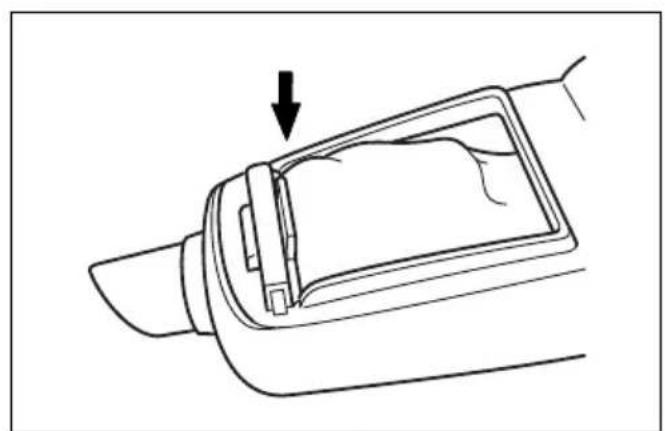

Place the dust bag into the cleaner cavity. (Fig.11)

Insert the holder of the dust bag all the way into the slots in the cleaner cavity. (Fig. 12)

CAUTION:

Forgetting to install the dust bag, failure to insert the holder of the dust bag all the way into the slots or using a broken or ripped bag, may allow dust to get into the motor. This may result in motor failure.

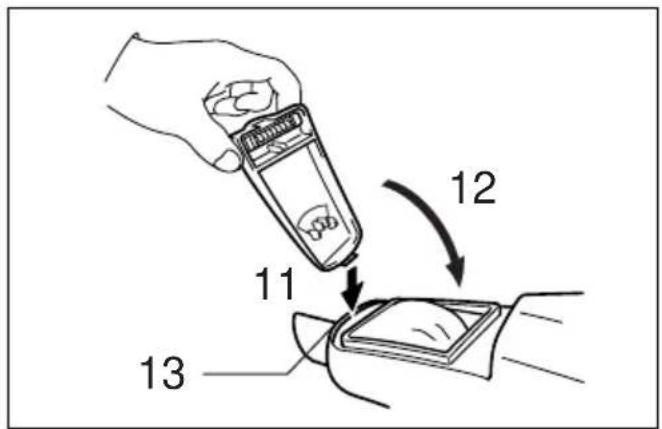

Hook the front cover onto the front lip of the cleaner.

Then close the front cover. (Fig.13)

NOTE:

• When installing the paper pack, follow the same procedures for the dust bag.
• Always unfold a new paper pack before installing it on the cleaner.

MAINTENANCE

CAUTION:

Always be sure that the cleaner is switched off before carrying out any work on the cleaner.

After use (Fig.14)

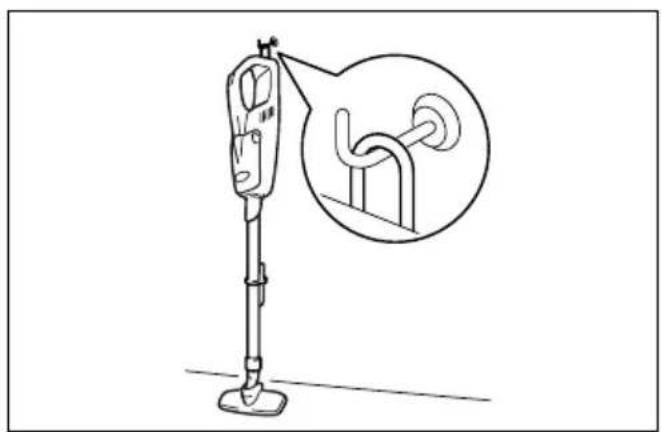

When storing the cleaner, hang it from a nail using the convenient hanger in back.

Cleaning (Fig.15)

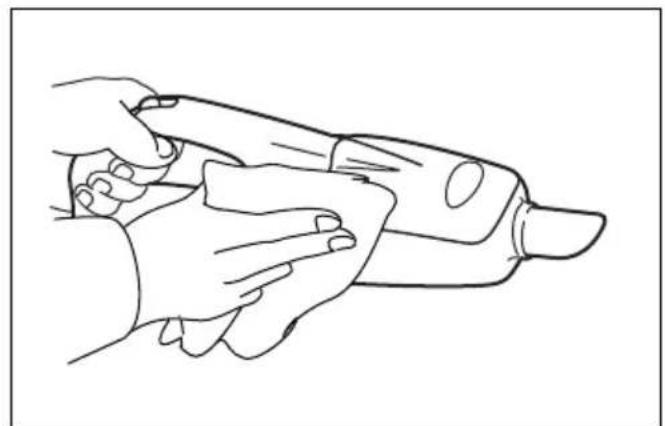

From time to time wipe off the outside (cleaner body) of the cleaner using a cloth dampened in soapy water. Never use gasoline, benzine, alcohol, thinner or the like. Discoloration or cracks may result.

Wash the dust bag in soapy water occasionally. Dry it out thoroughly before use. An insufficiently dried bag may cause poor suction and shorten the service life of the motor.

To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

ACCESSIONS

CAUTION:

These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

• Extension wand (Straight pipe)
• Nozzle
• Nozzle for carpet
• Corner nozzle
• Shelf brush
• Flexible hose
• Paper pack
• Battery cover
• Various type of Makita genuine batteries and chargers

Descriptif

1 Couvercle arrête

6 Bec suceur

2 Interrupteur

7 Couvercle avant

3 Suceur plat

8 Appuyer

Zuoula yia diatnpn oevio n 0n aataipao
