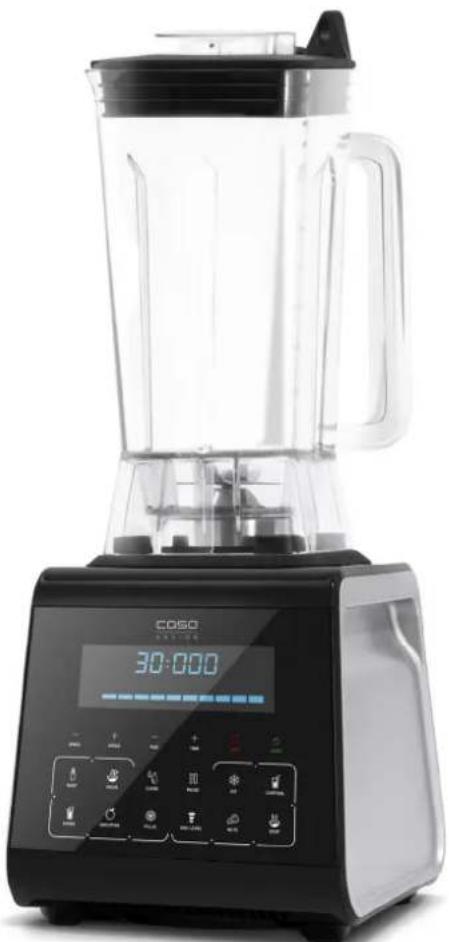

B3000 - Blender CASO - Free user manual and instructions

Product type	Blender / Mixer
Brand	CASO
Model	B3000 (B 3000 Touch)
Dimensions (L x H x D)	20 x 52 x 22 cm
Net weight	5.13 kg
Power supply	220-240 V, 50 Hz, 1400 W
Touch screen	Yes
Automatic programs	8 programs: baby, salsa, shake, smoothie, cocktail, nuts, soup, ice
Speed setting	10 levels (1 to 9 + H)
Timer	0 to 8 minutes
Pulse function	Yes
Cleaning program	Yes (CLEAN button)
Overheating protection	Yes
Overload protection	Yes
Reset button	Yes (Reset under the base)
Removable parts	Measuring cup, lid, pusher, blender, insulation mat
Maintenance	Automatic cleaning program; do not immerse the base
Warranty	24 months

Frequently Asked Questions - B3000 CASO

How to use the automatic programs?

Select one of the 8 programs (baby, salsa, shake, smoothie, cocktail, nuts, soup, ice) using the touch screen. Then choose the mixing level (1 to 3) with the Mix-Level button, then press START. The program runs automatically.

What to do if the appliance stops suddenly?

The stop may be due to overheating or overload protection. Unplug the appliance, press the Reset button located under the base, then plug it back in. If the problem persists, wait at least 45 minutes for the motor to cool down.

How to clean the blender effectively?

Use the CLEAN program: pour a quarter of water with 2-3 drops of dish soap into the blender, select CLEAN and press START. After the cycle, wipe with a soft cloth. The lid, measuring cup, and pusher can be washed with water.

Can you blend hot ingredients?

Yes, but with caution. Make sure the lid is properly closed. Fill at most one third of the blender, start at low speed and increase gradually. For soup, the program heats food by friction between 60°C and 80°C.

What are the available programs?

The automatic programs are: baby, salsa, shake, smoothie, cocktail, nuts, soup, and ice. Each program adjusts speed and pauses for optimal results.

How to adjust speed and time manually?

Use the SPEED + and - buttons to choose a level from 1 to 9 or H, then TIME + and - to set the duration from 0:00 to 8:00. Press START to start blending. The Pulse function allows temporary maximum speed.

How to assemble the blender correctly?

Place the measuring cup in the lid by turning clockwise until the triangle indicates the closed lock. Put the lid on the blender and check that the insulation mat rests properly on the base. To remove, turn the measuring cup counterclockwise.

What to do in case of overheating?

If the appliance stops due to overheating, unplug it immediately, press Reset, and let it cool for at least 45 minutes before reuse. Also reduce the amount of ingredients if the problem recurs.

How to use the Pulse function?

Hold down the PULSE button: the appliance runs at maximum speed as long as you press. Release to stop. This function cannot be used during an automatic program.

What are the essential safety precautions?

Never immerse the base in water, use only the original lid, do not touch moving blades, unplug before cleaning, and do not leave the appliance unattended while operating. Repairs must be carried out by a professional.

USER MANUAL B3000 CASO

9 Garantie 27
10 Technische Daten 27
11 Rezepte 28
12 Operating Manual 32
12.1 General 32
12.2 Information on this manual 32
12.3 Warning notices 32
13 Safety 33
13.1 Intended use 33
13.2 General Safety information 33
13.3 Dangers due to electrical power 37
13.4 Limitation of liability 38
13.5 Copyright protection 38
13.6 Commissioning 38
13.7 Safety information 38
13.8 Delivery scope and transport inspection 38
13.9 Unpacking 39
13.10 Disposal of the packaging 39
13.11 Setup location requirements: 39
13.12 Electrical connection 39
14 Design and Function 40
14.1 Overview and assembling 40
14.2 Rating plate 40
15 Operation and Handing 41
15.1 Before first use 41
15.2 How to use 41

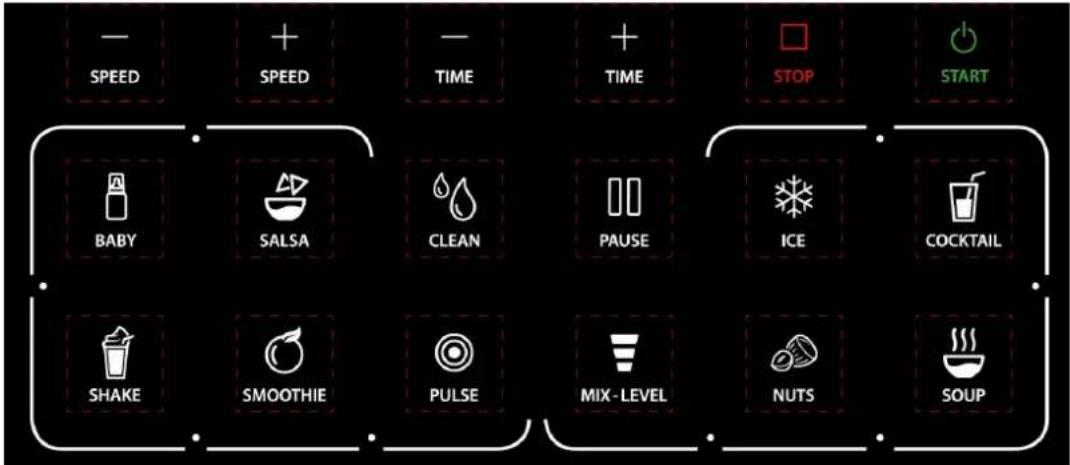

15.2.1 Touch-panel and functions 41
15.2.2 Automatic mixing programs 42
15.3 Overheating and current overload protection: 44
16 Cleaning and Maintenance. 44
16.1 Safety information 44
16.2 Cleaning 45
17 Troubleshooting 45
17.1 Security advices 45

Original Operating Manual

Blender B 3000 Touch

Item No.3615

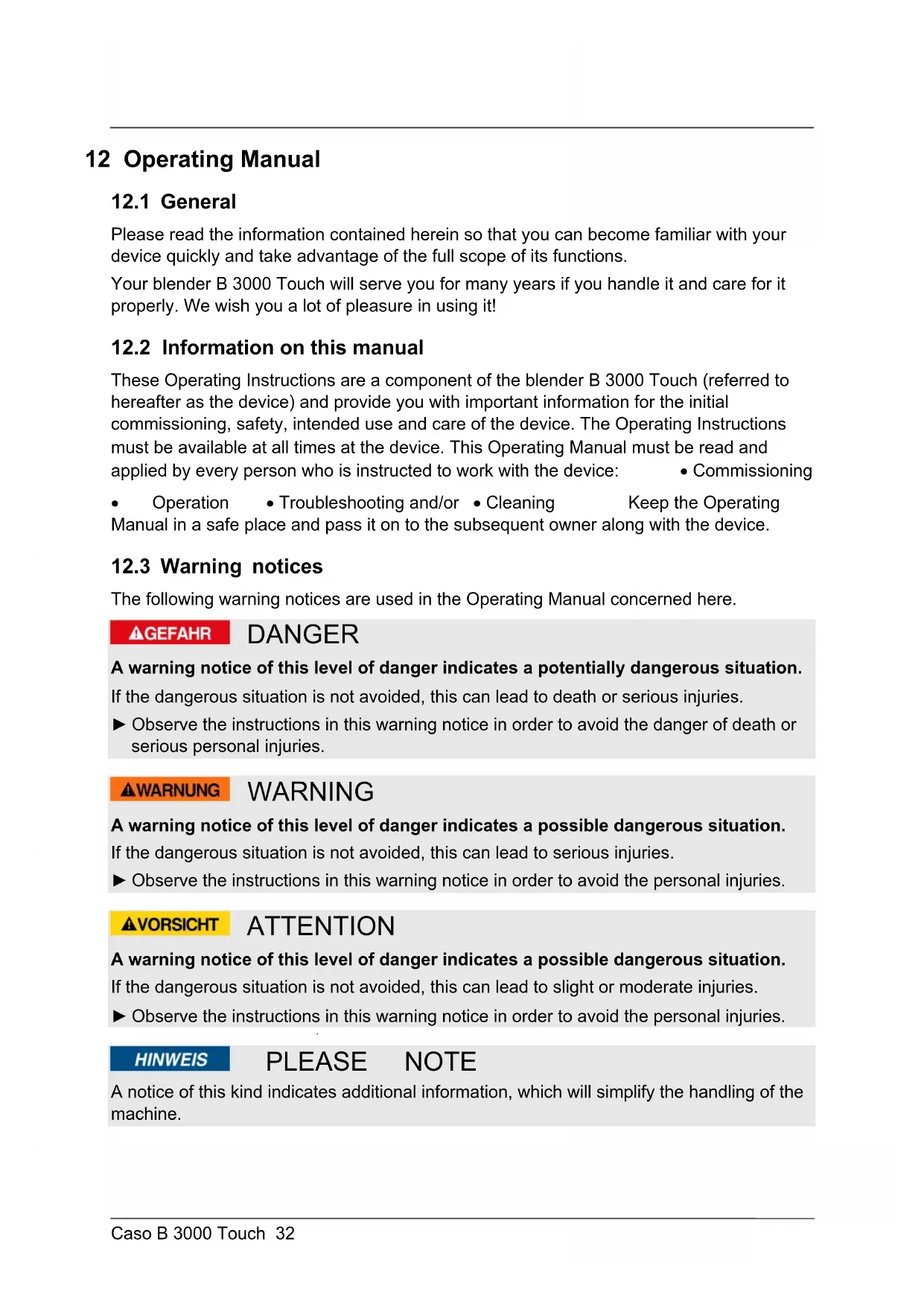

12 Operating Manual

12.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your blender B 3000 Touch will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.2 Information on this manual

These Operating Instructions are a component of the blender B 3000 Touch (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning

Operation

• Troubleshooting and/or - Cleaning

Keep the Operating

Manual in a safe place and pass it on to the subsequent owner along with the device.

12.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE

NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

13 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

13.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Mixing of smoothies, drinks, sauces, baby food, etc.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

13.2 General Safety information

HINWEIS

Please

note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and if they understand the hazards involved.

HINWEIS

Please note

Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Do not leave the device unsupervised when it is in operation.
Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.
Device is not intended to be operated by means of an external timer or separate remote-control system.

HINWEIS

Please note

Operate the device only with tightly closed lid with measuring cup (middle part of the lid) to avoid any injury caused by splashing ingredients.
Press the lid gently by hand when starting the mixing process.
- When processing hot ingredients (for example soup) and making hot drinks please be sure that lid is closed tightly. It is recommended to add small amount of water first, then according to personal preference to add more water. You should not exceed 1/3 of capacity and you should not use highest speed at the beginning. Please adjust from low speed to high speed, or use "pulse" function to operate.
- Please fill in liquid and soft food first, hard food or ice cubes later.
After mixing process is done press the stop-button, please take away the jar only after the blender has stopped running completely, otherwise the device could be damaged.
Press immediately the stop-button when you notice a burning smell. This can happen when anti-vibration pad ist not placed well or when device was overheated (for example due to overloading).
- When making fruit sauce, sesame paste or other thick food, fill in minimum of 150ml and maximum of 300ml . In order to avoid overheating or burning operate the device not more than 2 minutes with such food. When you fill in too much or overheating protection has reacted, please wait, until the motor has cooled down, before you use device again. Also reduce the food quantity in this case.
- When the food is thick, start with lowest speed and then switch to higher speed. If device still cannot stir the food, take

the jar from the base and use the pusher to stir until the mixture loosens and then restart mixing operation.

HINWEIS

Please note

• Please take away the jar only when the blender stopped running completely.

WARNING

Warning

Avoid contacting moving parts (blades).
The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
- Keep hands and utensils out of jar while blending to reduce the risk of severe injury to persons or damage to the blender. A pusher may be used but only when the blender is not running.
Blades are sharp. Handle carefully. Be careful emptying the device and during cleaning.
The use of attachments not recommended by the manufacturer may cause a risk of injury to persons.
If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
The device is intended only for the processing of food.
The device is not suitable for continuous operation. After 8 minutes of operation the device should cool down for 20 minutes.
Do not operate the device with empty jar.
- Do not fill in ingredients with large temperature differences, to avoid damage of the device.
Do not remove the blades from the jar.

▲WARNUNG

Warning

For your own safety:

Never operate the device without the original lid that is part of delivery scope. In addition do never put your hand into the blender jug during operation.

13.3 Dangers due to electrical power

GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
Powercord and base should not be immersed in water (or other liquids) and should not come in contact with such liquids, to avoid short circuit or electric shock. Please contact the customer service when water has entered into the base.
- To avoid electric shock: Do not use wet cloth to wipe the plug. Do not touch the plug with wet hands.

13.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observation of the manual

Uses for non-intended purposes

• Technical alterations, modifications of the device

• Improper repairs

• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

13.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13.6 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.7 Safety information

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

Packaging materials may not be used for playing. There is a danger of suffocation.

13.8 Delivery scope and transport inspection

As a rule, the blender B 3000 Touch is delivered with the following components:

• Measuring cup (middle of the lid)

• lid -pusher

• jar with blades

• anti-vibration pad - base with motor

• operating Instructions

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.9 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

13.10 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.11 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.12 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

In this chapter, you'll find important information on the design and function of the device.

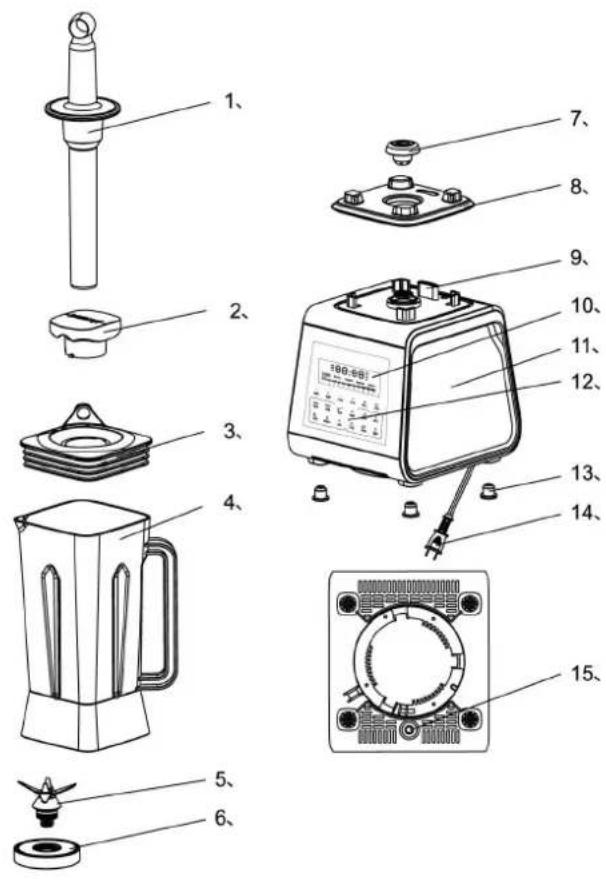

14.1 Overview and assembling

1. pusher
2. measuring cup (middle part of the lid)
3. lid 4. jar 5. blades
   6.sealing ring 7.drive shaft
4. anti-vibration pad 9. safety switch
5. display 11. base with motor
6. touch-panel 13. feet
7. power cord with plug
8. reset-button

Assembling:

Place the measuring cup (middle part of lid) into the lid so that the triangle points to the open lock-symbol and turn the measuring cup (middle part of lid) clockwise, until the triangle points to closed lock-symbol. Place the lid with measuring cup (middle part of lid) into the jar. Check that the anti-vibration pad is placed well on the base. For removing take the lid at the handle and turn the measuring cup (middle part of lid) open lock-symbol

HINWEIS Please note: Use of pusher Take the measuring cup (middle part of lid) out off the lid and insert the pusher. With the pusher you can push the ingredients into the jar. Use the pusher only when the device is not working.

14.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Before first use

Clean the device, see "cleaning".

15.2 How to use

15.2.1 Touch-panel and functions

HINWEIS

Please note

You can hear a signal tone when device has accepted the entry.

SPEED - / + adjust the speed

TIME - /+ - adjust the time

STOP - to stop the program

START- to start the program

CLEAN - To choose the cleaning program. It runs on highest speed level.

START: Starts the chosen mixing process. The button is flashing. When the chosen time has expired the button lights constantly. The device changes to default 30 seconds at speed 3, this is shown on the display, all buttons are illuminated.

STOP: Stops the chosen program. The display turns to initial state and all buttons are illuminated.

PAUSE: Suspend the chosen program, the PAUSE button flashes, when you press PAUSE button again the program will be continued.

PULSE: As long as you press the PULSE button the device will work on highest speed level. The button is flashing, all other buttons are illuminated. The pulse function is shown in the display. You cannot use the pulse function with automatic mixing programs.

• SPEED increases in manual mode the speed level 1-2-3- ...-9-H.
• SPEED reduces in manual mode the speed level H-9----3-2-1.
• TIME / - TIME: setting the time from 0:00 to 8:00 respectively from 8:00 to 0:00 in following steps:

1-60 seconds in 5 seconds steps 1-2 minutes in 10 seconds steps

2-8 minutes in 20 seconds steps When you press button for 3 seconds you can set the time faster. It can be set a maximum of 8 minutes. The respective time button flashes.

CLEAN: To choose the cleaning program. It runs on highest speed level.

Mix-level: To choose the mix-level from 1 to 3. As higher the chosen level is as longer the automatic program will work and as "finer" the mixing result will be.

When you have already chosen a program you cannot use mix-level for changes.

Manual mode

Adjust with TIME the desired time and with SPEED the desired speed level then press START to start the mixing process. With PULSE function you can switch to highest speed level at every time.

All speed levels, including PULSE function will start on lowest level and switch to faster levels.

15.2.2 Automatic mixing programs

Choose one of automatic mixing programs (see table), then use button mix-level to choose the desired level and start with START:

Program/ Name	Function
	Level 1 Level 2	Level 3
Baby Food	- speed level 7 for 10sec	- speed level 7 for 10sec	- speed level 7 for 10sec
	- pause for 2sec	- pause for 2sec	- pause for 2sec
	- speed level H for 20sec	- speed level H for 30sec	- speed level H for 40sec
Salsa	- speed level 5 for 10sec	- speed level 5 for 10sec	- speed level 5 for 10sec
	- pause for 2sec	- pause for 2sec	- pause for 2sec
	- speed level H for 10sec	- speed level H for 10sec	- speed level H for 10sec
	- pause for 2sec	- pause for 2sec	- pause for 2sec
	- speed level H for 10sec	- speed level H for 10sec	- speed level H for 10sec
		- pause for 2sec	- speed level H for 10sec
		- speed level H for 10sec	- speed level H for 10sec
Shake	- speed level 6 for 10sec - pause for 2sec - speed level 8 for 10sec - pause for 2sec - speed level H for 10sec	- speed level 6 for 10sec - pause for 2sec - speed level 8 for 10sec - pause for 2sec - speed level H for 10sec - pause for 2sec - speed level H for 10sec	- speed level 6 for 10sec - pause for 2sec - speed level 8 for 10sec - pause for 2sec - speed level H for 10sec - pause for 2sec - speed level H for 10sec
Smoothie	- speed level 7 for 10sec - pause for 2sec - speed level 9 for 10sec - pause for 2sec - speed level H for 10sec	- speed level 7 for 10sec - pause for 2sec - speed level 9 for 10sec - pause for 2sec - speed level H for 20sec	- speed level 7 for 10sec - pause for 2sec - speed level 9 for 10sec - pause for 2sec - speed level H for 30sec
Cocktail	- speed level H for 20sec - pause for 2sec - speed level H for 20sec	- speed level H for 25sec - pause for 2sec - speed level H for 25sec	- speed level H for 30sec - pause for 2sec - speed level H for 30sec
Nuts	- speed level H for 5sec - pause for 2sec - speed level 5 for 5sec - pause for 2sec - speed level 5 for 5sec	- speed level H for 10sec - pause for 2sec - speed level 5 for 10sec - pause for 2sec - speed level 5 for 10sec	- speed level H for 15sec - pause for 2sec - speed level 5 for 15sec - pause for 2sec - speed level 5 for 15sec
Soup	- speed level 5 for 15sec - pause for 2sec - speed level H for 15sec - pause for 2sec - speed level 8 for 180sec	- speed level 5 for 15sec - pause for 2sec - speed level H for 15sec - pause for 2sec - speed level 8 for 360sec	- speed level 5 for 15sec - pause for 2sec - speed level H for 15sec - pause for 2sec - speed level 8 for 480sec
Ice	- speed level H for 13 sec. - pause for 2 sec. - speed level H for 10 sec.	- speed level H for 13 sec - pause for 2 sec. - speed level H for 8 sec - pause for 2 sec. - speedlevel H for 10 sec	- speed level H for 13 sec - pause for 2 sec. - speed level H for 8 sec - speed level H for 8 sec - pause for 2 sec. - speedlevel H for 10 Sec

Please note

With program soup, depending on the mix-level, the food will be heated up to 60^ - 80^ due to friction.

HINWEIS Please note

This device must not idle nor be overfilled, because the motor will overheat and gets damaged.
Do not leave the device unsupervised when it is in operation.
Remove power plug first before pouring out the food.

▲WARNING Warning

For your own safety:

Never operate the device without the original lid that is part of delivery scope. In addition do never put your hand into the blender jug during operation.

15.3 Overheating and current overload protection:

When the device was operating for longer time or was overloaded then the motor can overheat and the overheating protection reacts. The device will stop automatically.

When the blades are blocked, the ingredients are too sticky, there is not enough liquid in the jar or when the device was overloaded then the device can be overcharged. The overload protection reacts. The device will stop automatically.

When the device has stopped automatically:

Pull the plug, then press reset button below the device. Plug in again, if device is working normally you can go on, if not pull the plug again. Let the device cool down for at least 45 minutes. Now you can use the device again.

If you have any problem with this device, do not disassemble it by yourself. Always contact the service department or after-sale service department.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

A VORSICHT Attention

Please observe the safety instructions, before cleaning your device

Unplug the device when not in use and before any cleaning.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
The blades are really sharp. Handle them with care.
Please observe that the bottom of the jar do not has any contact with moisture.

16.2 Cleaning

Cleaning program „CLEAN“

Fill in water up to a maximum of 1/3 capacity and at 2-3 drops of cleaning solution. Choose the cleaning program with button CLEAN and start with START.

The indicator will light up in the display and the device is working on highest speed level. You can hear a signal tone when the end of program is reached. Press the stop button and pull the plug from socket. Wipe the inner jar dry with a soft cloth.

Clean the surface of the jar and base with a soft cloth.

Lid, measuring cup (middle part of lid) and pusher can be cleaned under running water.

Dry all components with a soft cloth.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

17.1 Security advices

AVORSICHT Attention

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

Problem	Solution
The device does not start.	Please check whether the power plug is properly plugged. Please check whether the device is assembled well.
The device has shut down.	The overheating or current overload has reacted. Pull the plug, then press reset button below the device. Plug in again, if device is working normally you can go on, if not pull the plug again. Let the device cool down for at least 45 minutes. Now you can use the device again.
Ingredients were not mixed. Food is too thick.	When the food is thick start with a low speed and switch carefully to higher speed. However if device cannot stir the ingredients, take the jar from the base stir with the spatula until the mixture loosens and then restart the mixing process.

AVORSICHT Attention

If above mentioned steps don't solve the problem, please contact your customer service.

17.3 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery.

All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Device Blender B 3000 Touch
Item No.: 3615
Mains data 220-240 V, 50 Hz
Power consumption 1400 W
External measurements (W x H x D): 20 cm x 52 cm x 22 cm
Net weight 5,130 kg

20 Recipes

You can prepare many different healthy smoothies with the B 3000, especially green smoothies. Use for smoothies the automatic program for smoothies.

So the ingredients are rapidly crushed to obtain flavors and nutrients. Smoothies contain many nutrients and can be a healthy snack.

If you use wild herbs, make sure that they are not toxic.

Nutritional vitamins are mainly located in the peel. Use organic fruits and organic vegetables, so that you can use the peel.

Always fill soft and liquid ingredients first, then the harder ingredients. Wash the fruit and vegetables and cut it into pieces. Fill the ingredients into the mixing bowl and mix them at the highest level, until the desired consistency is reached.

HINWEIS Please note

Add to all recipes water as desired.
Alternatively, you can also use cold green tea and various fruit juices.

green smoothies

spinach banana mango smoothie

2 handfuls of spinach
1 ripe mango
2 bananas

parsley power

1 bunch of parsley.
1 apple
1 banana
1 cucumber

classic green smoothie

2 handfuls of spinach
1 banana, 1 sweet apple
1 / 2 soft avocado
1/4 unpeeled organic lemon

banana spinach smoothie

3 bananas, 50g cucumber

50 g spinach

if desired, cress or sprouts

fruit smoothies

berry salad smoothie

1 handful field salad or iceberg salad
1 handful of spinach
3 handful of berries (raspberries,
strawberries, blackberries, currants)
1 banana

wildbeeries

3 handful of berries (raspberries, strawberries, blackberries, currants)

1 peeled orange
some pulp of vanilla bean, alternatively you can use vanilla sugar
2 ice cubes

peach berry smoothie

120 g erdbeer yogurt
100 g peaches, 100 g strawbeeries
100 g crushed ice

blueberry smoothie

75 g frozen blueberry,
100 ml fat-free milk
100 g vanilla yogurt, a little honey if desired

start in to the day

1 handful of radish leaves
1 ripe banana or two large peeled kiwis
1 apple

a little lemon juice and oil

100 ml mineral water or cold green tea

vitamin power

1/4 sweet pineapple, 1 ripe banana
1 peeled orange, 1 peeled kiwi
1 handful endive or other seasonal salad
1 tsp wheatgrass powder
1 glass of mineral water or green tea

wild herbs smoothie

1 handful of wild herbs (sorrel, dandelion, stinging nettle, ...)
1 banana, 1 ripe pear
14 avocado, juice of 12 lemon
1 / 4 peeled organic orange

use the peel of the organic orange for garnish

spicy smoothies

radish smoothie

12 bunch of radishes, 12 package cress juice of 12 lemon

130 ml buttermilk or yogurt
12 tsp noble sweet paprika spice
1 pinch of salt

bloody mary

2 ripe tomatoes

1 red paprika without seeds
1 stalk celery (you can also add some of the leaves)

1 handful beetroot leaves
1 handful field salad or spinach
1 pinch of sea salt

cress smoothie

1 orange, 12 cucumber
12 ripe mango, juice of one lemon
1 package cress

orange red smoothie

1 peeled orange
150 g strawberries or mixed red berries

apple kiwi smoothie

1 little apple, 1 peeled kiwi
4 strawbeeries
160 g fett free strawberry yogurt
80 ml apple juice

melon salad power

2 handfuls of field salad or salad of the season
1 / 2 ripe honeydew melon

juice of 12 lemon, 1 banana

autumn smoothie

50 g tomatoes
75 g pitted and halved plums or damsons
50 g bluebeeries
5-10 g of fresh ginger

1 pinch of cinnamon, 1/2 tsp vanilla
100 ml coconut milk optionally mixed with almond milk
1 tablespoon sugar syrup

melon mix smoothie

100 g galia melon
100 g honeydew melon
100 g watermelon without seeds
1 / 2 cucumber, 50g crushed ice

orange mix

1 small peeled grapefruit
2 peeled oranges
150 ml of carrot juice
4 tablespoons yogurt or low-fat quark
1 tsp oil

buttermilk smoothie

1 ripe peach
90 g watermelon without seeds
60 ml buttermilk

tomato smoothie

1 tomato, 1/2 red or orange paprika
1 handful of arugula
1 tablespoon pesto, 100g crushed ice

100 ml of tomato juice

salt, pepper and spices as desired

tabasco, parmesan as desired

vegetable smoothie

1 red or yellow paprika
1 tomato
1 / 2 cucumber
1 small zucchini, 2 carrots
1 pinch of salt

specials

"hugo" special

12 squeezed peeled lime
1 / 2 glass gescrushtes ice
5 cl elderflower syrup

mineral water or sparkling wine

mint leaves for garnish

kiwi pear smoothie

2 ripe pears (about 100 g)
2 ripe peeled kiwis
juice of organic lime
use the peel of the organic lime for garnish

coconut mango smoothie

3 mangos,200 ml coconut milk

juice of one lime

coconut flakes for garnish

tropical smoothie

150 g pineapple,
150 g mango
150 g peeled orange
1 banana

specials

gazpacho

1 / 4 cucumber
1/2 red paprika
3 cherry tomatoes
1 / 4 chili without seeds
1 beef tomato without peel
1 peeled garlic clove
1 dried tomatoe
50 ml cold vegetable stock
2 tsp oliveoil,2 tsp italian herbs
10 ml olive oil,
1 tsp white balsamico vinegar

croutons for garnish

Mode d'emploi

Mixeur B 3000 Touch

N°. d'article 3615

21 Mode d'emploi

21.1 Généralités

25.3 Protection anti-surchauffe et protection anti-surcharge

Smoothies aux fruits

Smoothie salute de baies

1bospeterselie,1appels,

1 banaan, 1 komkommern

Classic green smoothie

2 handen bladspinazie, 1 banaan,

1 zoete appel, 12 zachte avocado

1/4 ongeschilde biocitroen

Bananen spinazie smoothie

3 bananen, 50g komkommmer

50 g spinazie, Naar wens tuinkers of kiemen

De dag beginnen
