USER MANUAL MX 1000 CASO

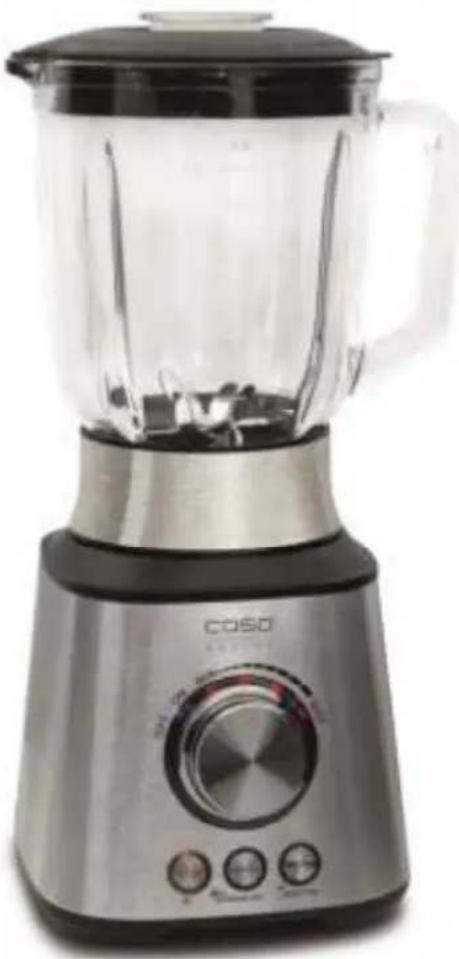

Standmixer MX1000 (3617)

Exterior view of a modern kitchen blender with clear glass and black lid (no visible text or symbols)

CE SGS GS Househouse

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Internet: www.caso-germany.de

8 Entsorgung des Altgerätes 21
9 Garantie 21
10 Technische Daten 22
11 Operating Manual....24
11.1 General 24
11.2 Information on this manual....24
11.3 Warning notices....24
11.4 Limitation of liability 25
11.5 Copyright protection 25
12 Safety 25
12.1 Intended use....25
12.2 General Safety information....26
12.3 Dangers due to electrical power....28
12.4 Commissioning....28
12.5 Safety information ....29
12.6 Delivery scope and transport inspection....29
12.7 Unpacking....29
12.8 Disposal of the packaging....29
12.9 Setup location requirements: 29
12.10 Electrical connection....30
13 Design and Function .... 30
13.1 Overview and assembling....31
13.2 Features....32
13.3 Rating plate 32
14 Operation and Handing 32
14.1 Before initial use....32
14.2 How to use....32
14.2.1 Blending 32
14.2.2 Function P (pulse) 32
14.2.3 Function CRUSH ICE....33
14.2.4 Function SMOOTHIE 33
14.3 Overheat protection....33
15 Cleaning and Maintenance....33
15.1 Safety information ....33
15.2 Cleaning....33
16 Troubleshooting....34
16.1 Security advices....34

Exploded view diagram of a blender with numbered parts for identification


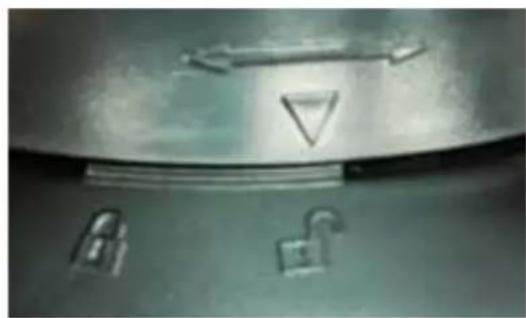

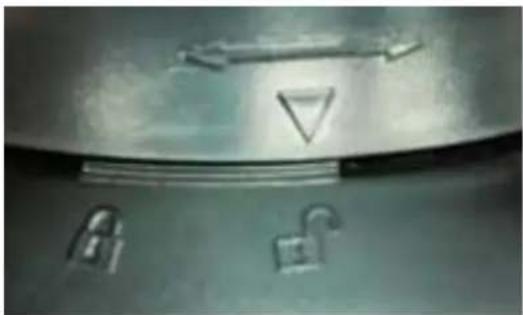

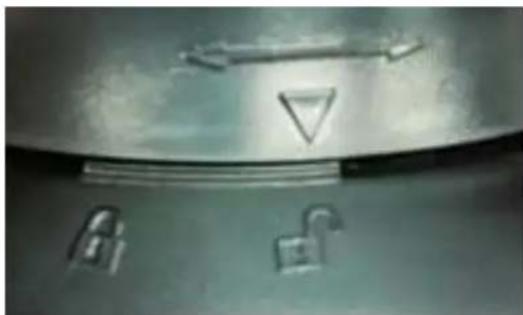

Close-up of a metallic kitchen counter with three key icons (lock, padlock, and triangle) on the surface, no readable text or symbols.

4.2 Funktionen

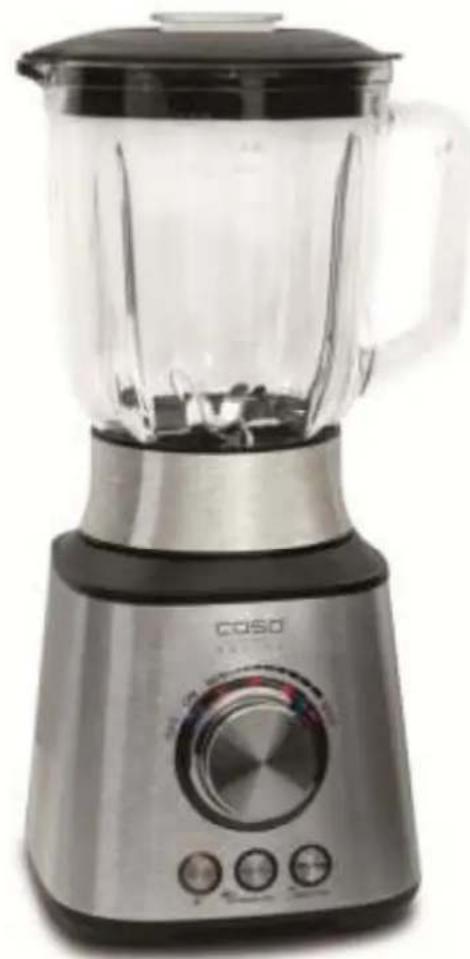

Original Operating Manual Blender MX1000 (3617)

Exterior view of a modern kitchen blender with clear glass and black lid (no text or symbols visible)

CE SGS GS Digital For Connecticut -

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your blender MX1000 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the blender MX1000 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation

- Troubleshooting and/or

- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

ΔGEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

- Improper repairs

- Technical alterations, modifications of the device

- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Crushing up ice cubes
• Mixing of smoothies, drinks, sauces, baby food, etc.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Children are not allowed to use this device. Keep the device and its cord out of reach of children. Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.

HINWEIS

Please note

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.
▶ Flashing lights indicate that the device is ready to operate.

▲WARNUNG

Warning

▶ Avoid contacting moving parts (blades).
The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
▶ Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A spatula may be used but must be used only when the blender is not running

▶ Blades are sharp. Handle carefully.

▶ To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

▶ Always operate blender with cover in place.

The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons.

▶ When blending hot liquids, remove center piece of two-piece cover.

▲WARNUNG

Warning

If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
▶ Be careful when handing the sharp cutting blades, when you empty the bowl and during cleaning.
These appliances can cause injuries if they are misused.

12.3 Dangers due to electrical power

▲GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

12.4 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

▲WARNUNG

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

As a rule, the blender MX1000 is delivered with the following components:

- Blender jug

- Blades

- Blade base

- Blender lid

- Top lid

- Spatula

- Main machine

- Operating Instructions

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.

▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.7 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
  • The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
  • Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

In this chapter, you'll find important information on the design and function of the device.

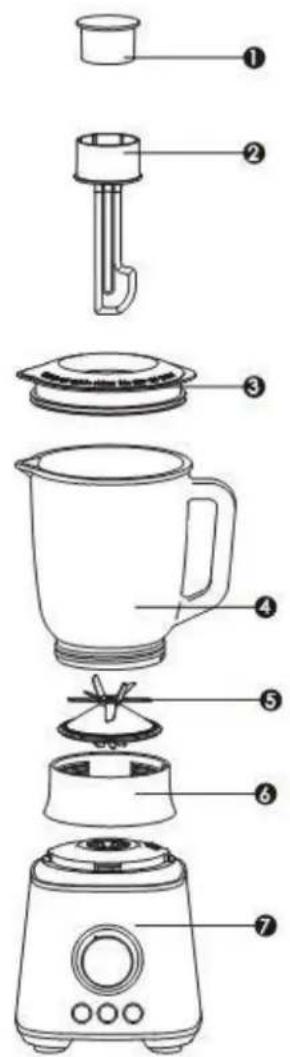

13.1 Overview and assembling

1. Top lid
2. Spatula
3. Blender lid
4. Blender jug
5. Blades
6. Blade base
7. Main machine

HINWEIS

Please note

▶ Use the spatula only when the device is not working.

Exploded view diagram of a blender with numbered parts for identification

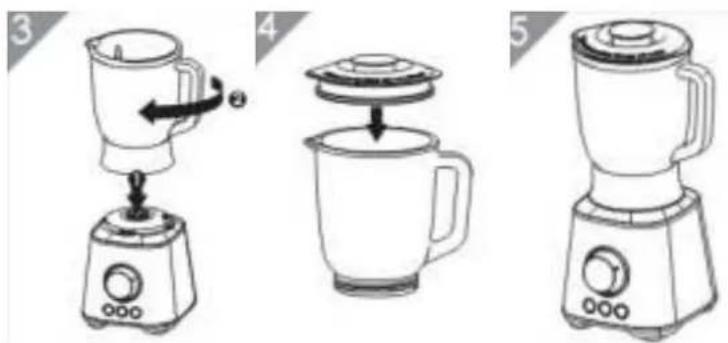

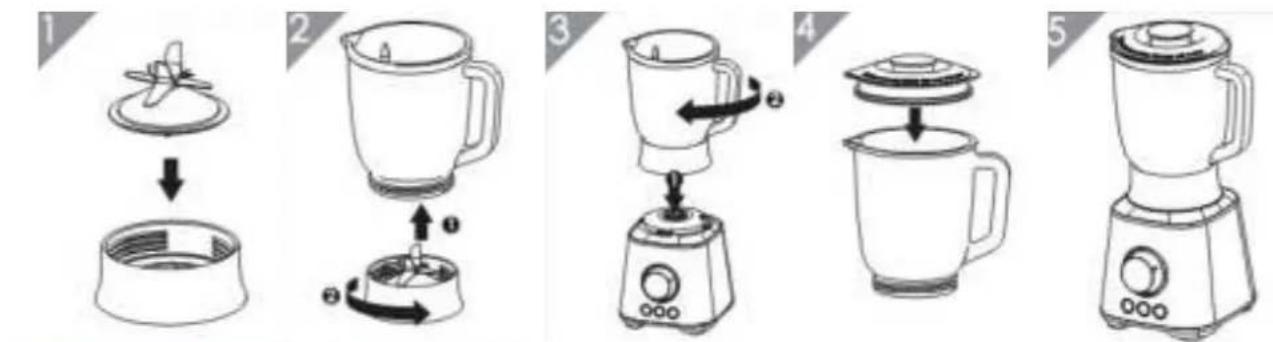

Assemble the device as follows:

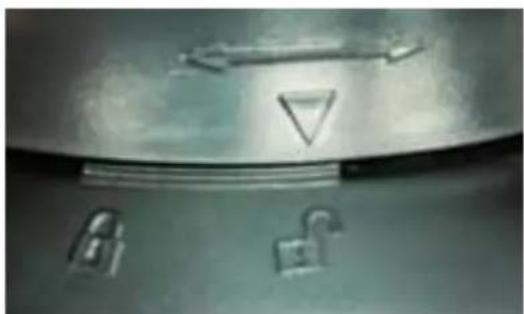

Close-up of a metallic kitchen pot with a triangular warning symbol and two lock icons below (no readable text or symbols)

Put the blender jug with blade base (see picture 3) on the main machine so that the arrow shows on the open lock symbol. Turn the blender jug clock wise so that the arrow is positioned above closed lock symbol.

13.2 Features

1. The device has many functions: Ice crushing, mixing smoothies and other drinks, making of sauces, etc. – you have the choice, be creative.
2. Simple and refined design, easy to use and to clean.
3. High rotating speed electrical motor with overheat protection – high efficiency, time and energy saving, increases service life of the motor.
4. Safety switch ensures safe and reliable operation

13.3 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Before initial use

1. The device is featured with a safety protection device. The motor does not work when blades/blade base are not correctly installed.
2. Clean all dismountable parts (refer to "cleaning and maintenance")
3. Please follow carefully overview and assembling
4. Care is needed when handling cutting blades, especially when removing the blade from the bowl, emptying the bowl and during cleaning.

14.2 How to use

14.2.1 Blending

1. Clean all the parts which will touch the food.
2. Put the raw materials into blender jar, add some water according to personal preference (but not more than 60 %), then put the blender cover on and put the top cover on the feeding hole.
3. Insert the plugt into the outlet.
4. Turn the control dial to the desired speed (min - max) for blending.
5. Mix the ingredients for 2 minutes and pause at least for 1 minute.

1. Press and hold the button (P) or press it several times, until the food reaches your desired consistency. The device is working as long you press the button.
2. Operate the pulse function for ca. 1 minute and pause at least for 1 minute.

14.2.3 Function CRUSH ICE

1. Fill the jug with ice cubes.
2. Press the button CRUSH ICE, the machine will work discontinuously lasting for 1 min to make the food reaches your desired consistency.

14.2.4 Function SMOOTHIE

1. Fill the jug with fruits and/or vegetables as well as enough liquid.
2. Press the button SMOOTHIE, the machine will keep working for 1 min to make the food reaches your desired consistency.

HINWEIS

Please note

▶ Don't remove the lid during operation.
This device must not idle nor be overfilled, because the motor will overheat and gets damaged. Fill the unit up to maximum of 60 percent.
▶ When you want to blend only liquid you can fill the device up to maximum marking.
▶ Do not leave the device unsupervised when it is in operation.
▶ Remove power plug first before pouring out the food.

14.3 Overheat protection

In order to prolong the device's service life, an overheat protecting unit is installed. If the motor runs too long or overloaded, the temperature reaches the warning value and the motor will stop automatically. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again.

If you have any problem with this device, do not disassemble it by yourself. Always contact the service department or after-sale service department.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT

Attention

Please observe the safety instructions, before cleaning your device

▶ Unplug the device when not in use and before any cleaning.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
▶ The blades are really sharp. Handle them with care.

15.2 Cleaning

1. It is recommended to use the machine often to keep the motor clean and dry.

2. Please keep the device at a dry and will ventilated place to avoid the motor from getting wet and moldy.

3. Don't dip device into water. Only wipe it with a wet cloth. The other parts (spatula, lids, etc.) can be directly cleaned with water.

4. The blades are very sharp. In order to avoid injury please put them under water tap to wash them. Do not wash them by hand.
5. It is recommended to dismantle the blades and drop a little bit of edible oil to the blade shaft to improve the lubrication.
6. Add warm water and detergent into the jug. Cover it with the lid and mix for 30 sec. Rinse out with clear water.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

16.1 Security advices

▲VORSICHT

Attention

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Problem	Solution
The device does not start.	Please check whether the power plug is properly plugged.Please check whether the assembly is done according to assembly methods.
The unit has shut down.	The overheat protection was activated.Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again.

▲VORSICHT

Attention

▶ If above mentioned steps don't solve the problem, please contact your customer service.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Device Blender MX1000
Item No.: 3617
Mains data 220 -240 V, 50-60 Hz
Power consumption 1000 W
External measurements (W x H x D): 20,2 x 40,1 x 21,6 cm
Net weight 4,15 kg

Mode d'emploi

Exterior view of a modern kitchen blender with clear glass lid and control buttons (no text or symbols visible)

CE SGS GS House Windmill

20 Mode d'emploi

20.1 Généralités

Diagram showing a mechanical component being processed into a cylindrical container (no text or symbols)

Illustration of a blender with a handle and internal components, showing a step-down view (no text or symbols)

Illustration of a blender with a handle and control knob, no text or symbols present

Line drawing of a blender with lid and handle, no text or symbols present

Line drawing of a blender with handle and front panel (no text or symbols)

Close-up of a metallic object with a triangular symbol and three padlocks on its surface (no text or symbols visible)

Exploded view diagram of a blender with numbered parts for identification

23.2 Fonctions

Exterior view of a modern kitchen blender with clear glass lid and control buttons (no text or symbols visible)

CE

30 Istruzione d'uso

30.1 In generale

Diagram showing exploded view of a mechanical device with labeled parts in English

Simple line drawing of a container with arrows indicating direction (no text or symbols)

Close-up of a metallic pot with three lock icons and a triangular warning symbol (no text or labels)

Exterior view of a modern kitchen blender with clear glass and black casing (no visible text or symbols)

CE SGS GS Gaspec® Concentrated -

Exploded view diagram of a blender with numbered parts for identification

Close-up of a metallic surface with three key icons (lock, lock, and triangle) and no visible text or symbols.

43.2 Funciones

Exterior view of a modern kitchen blender with clear glass lid and control buttons (no text or symbols visible)

CE

Exploded view diagram of a kitchen blender with numbered parts for identification

Diagram illustrating a cooking process with a blender and a ladle, showing step 1 and step 2 of the setup.

Diagram showing three-step cooking process of a blender: pressing, adding to lid, and adding to base.

Close-up of a metallic surface with three metallic symbols: a triangular lock, a padlock, and a square lock (no text or labels visible)
