USER MANUAL HB 2200 ro CASO

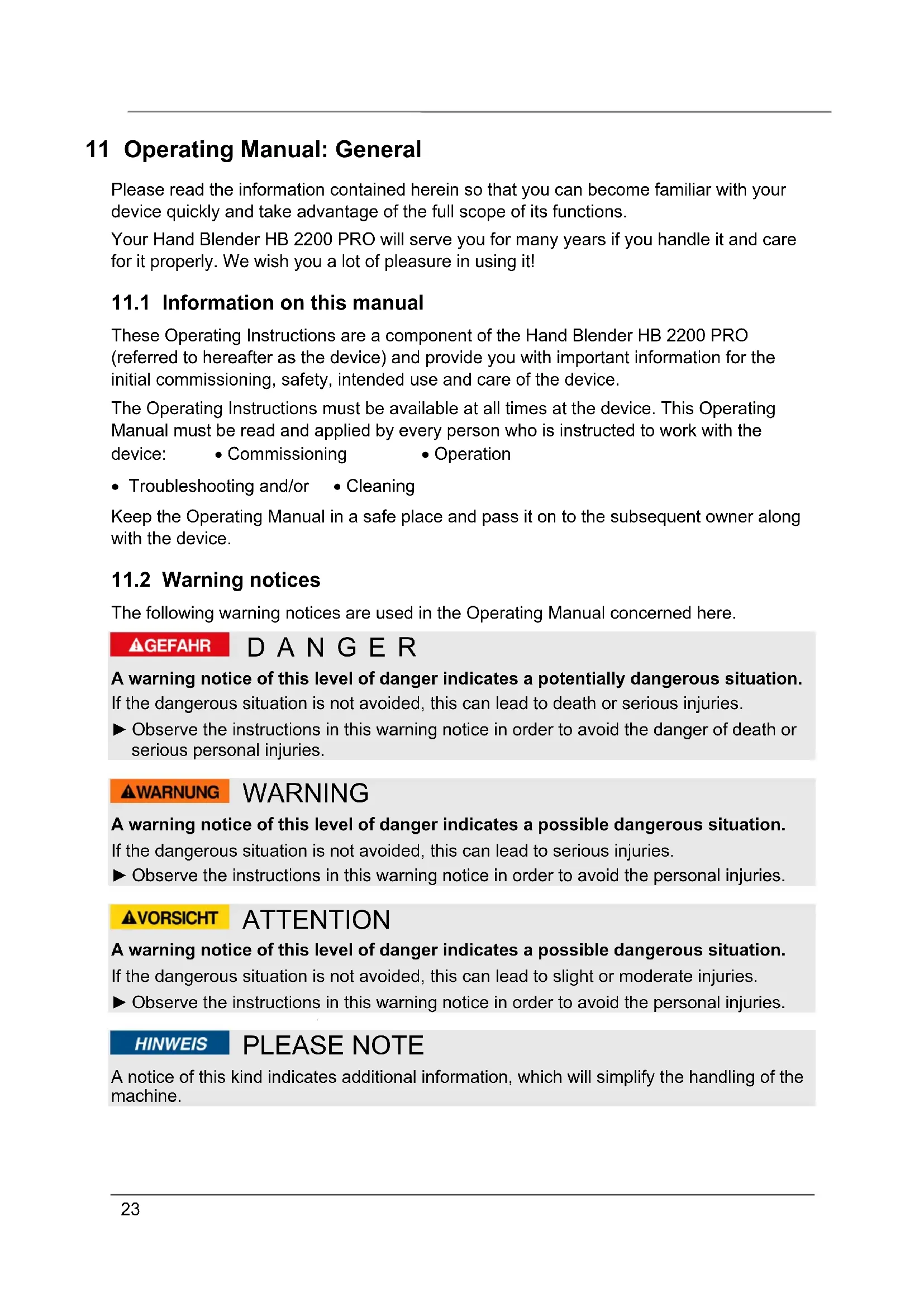

Item No.360223 11 Operating Manual: General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Hand Blender HB 2200 PRO will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.1 Information on this manual

These Operating Instructions are a component of the Hand Blender HB 2200 PRO (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.2 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.24

11.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.4 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for Shredding, slicing, chopping and grinding food Blending liquids and soft food Mashing up cooked food. . This device is intended for use in the household and for similar applications such as: in kitchens for employees in shops, offices, and other commercial areas; in B&Bs, in agricultural estates; by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.25 Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► This appliance is not allowed to be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. ► Children shall not use this device. Keep the device and its cord out of children’s reach. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children. ► Do not leave the device unsupervised when it is in operation.26 Please note ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

12.3 Sources of danger

12.3.1 Danger of injury

Danger Careless use of the appliance may result in injury. Observe the following warnings to avoid injury ► Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher. ► Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp. ► If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades. ► Be sure the parts are properly assembled to original base and in place. ► Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.27 Danger ► Do not use the appliance to process superhard food, such as for example rock candy, brown sugar, myristica fragrans or coffee bean. ► After 1 minute operation: Let the device cool down for 2 minutes. Stop for half an hour after 5 cycles.

12.3.2 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.28

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

As a rule, the Hand Blender HB 2200 PRO is delivered with the following components: motor unit with blender bar multiblades whisking disc meat cutter operating instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.29

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: Place the device on a firm and even work surface. Do not use the unit outdoors. Choose the setup location in such a way that children cannot reach the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 13 Design and Function In this chapter, you'll find important information on the design and function of the device.30

13.1 Overview and assembly

1. Motor unit with blender bar

2. Base with storage section for blades:

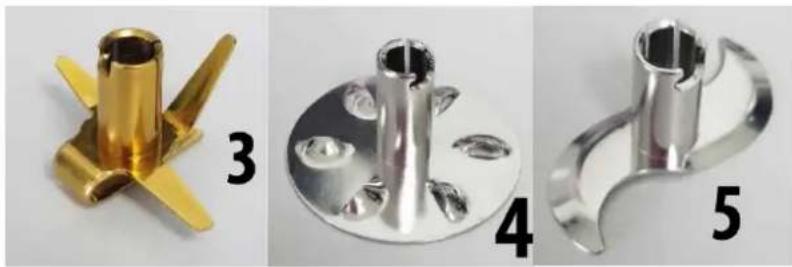

3 multiblades 4 Whisking disc 5 Meat cutter 6 Stainless steel fork for the replacement of the blades

The rating label with the connection and performance data can be found on the back of the device. 14 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Before initial use

1. Thoroughly clean the parts that come into contact with food before you use appliance

for the first time (see chapter 'cleaning').

14.2 Preparing for use

1. Let hot ingredients cool down before you chop them, before you process them (max.

temperature 80°C).31

2. Cut large ingredients into pieces of approx. About 2 cm.

3. Assemble the appliance properly before you put the plug in the wall socket.

Turn the appliance so that the blades face upwards. Lift the blades off upwards with the stainless steel fork as shown in the photo. Attach the desired blade and push it down with the fork until it clicks into place DANGER ► Exercise caution when using the blades, they are sharp. Danger of injury.

Functions: blending liquids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes. mixing soft ingredients, e.g. pancake batter or mayonnaise. pureeing cooked ingredients, e.g. for making baby food. Assembly and use:

1. Put the ingredients in a jar.

2. Select the desired blade:

Use the multi-purpose blade for chopping and pureeing food. Use the whirling disc for the mixing / whisking of foods. Use the meat knife for the chopping of meat. Secure the selected blade.

3. Put the plug in the wall socket.

4. Immerse the blade guard completely in the ingredients.

5. Press the on/off switch on the top of the appliance.

6. Move the appliance slowly up and down and in circles to process the foods until the

desired level of consistency is reached. 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.32

15.1 Safety information

Attention Please observe the safety instructions, before cleaning your device ► The blades are really sharp. Handle them with care. ► Do not immerse the main device in water.

1. Unplug the appliance.

Remove the blades and clean them under running water with a mild detergent. Dry them thoroughly and store the blades in the storage section in the base. Wipe the main appliance with the blender with a damp cloth and then dry it thoroughly. Please note ► For quick cleaning, pour warm water with some dish soop in a jar, insert the blender bar and let the appliance operate for approx. 10 seconds. 16 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Security advices

Attention ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Fault To Rectify The device does not start. Please check whether the power plug is properly plugged. The unit has shut down. The overheat protection was activated. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again. Attention ► If above mentioned steps don't solve the problem, please contact your customer service.33 17 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 18 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 19 Technical Data Device Hand Blender HB 2200 PRO Item No.: 3602 Mains data 230 V / 50 Hz Power consumption 170 W External measurements (W x H x D): 70 x 340 x 100 mm Net weight 1 kg34
