B1800 - Blender CASO - Free user manual and instructions

USER MANUAL B1800 CASO

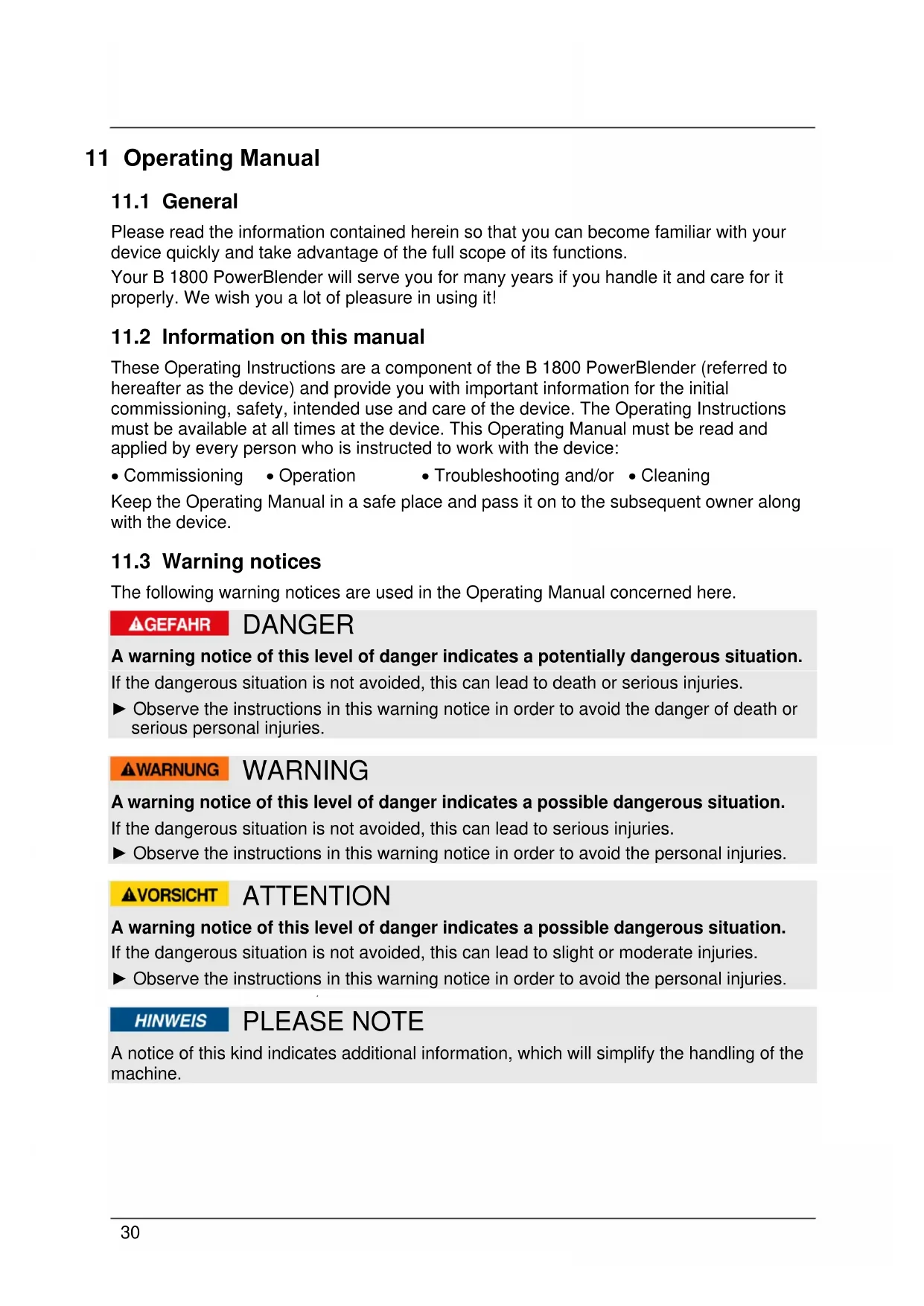

Only included in the B 1800 PowerBlender set (3618):30 11 Operating Manual

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your B 1800 PowerBlender will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the B 1800 PowerBlender (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.31

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for

• Mixing smoothies, shakes, sorbets, baby food, mixing cooked vegetables for soups, sauces, dips etc. as well as drinks and crushing of ice cube in the blender jar B 1800 PowerBlender-Set (3618):

• Chopping / grinding nuts, coffee beans, herbs / spices etc. with the grinder

• Mixing smoothies, shakes, sorbets, baby food, mixing cooked vegetables for soups, sauces, dips etc. as well as other drinks with the Mix & Go bottle. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.32 Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► Do not use the device if the blades are bent or damaged. ► This appliance must not be used by children. The appliance and its connecting cable must be kept away from children. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children. ► The appliance may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards. ► Do not leave the device unsupervised when it is in operation. ► Do not operate the device with any of the supplied containers without liquid or food. ► Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.33 Please note ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance. ► For your own safety, only use manufacturer accessories and spare parts suited to your machine. ► Do not remove the containers from the motor unit during operation.

12.3 Sources of danger

12.3.1 Danger of injury

Danger Careless use of the appliance may result in injury. Observe the following warnings to avoid injury ► Avoid contacting moving parts (blades). ► The use of spare parts / accessories not recommended or sold by the manufacturer may cause fire, electric shock or injury. ► Keep hands and utensils out of jar / grinder while blending to reduce the risk of severe injury to persons or damage to the blender.34 Danger ► The blades of blade base and blades of grinder can be sharp. Handle them carefully. For your own safety: Never operate the device without the original lid that is part of delivery scope. ► Be careful when filling in and processing hot liquid, as it can splash out. ► Hold the blander jar and the chopper by the handle, as well as the Mix & Go bottle with a suitable oven glove when you have processed hot food. ► The middle part of the lid of the blender jar should remain in placen when mixing hot liquids so that hot liquids cannot splash out. ► If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.

12.3.2 Dangers due to electrical power

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.35

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

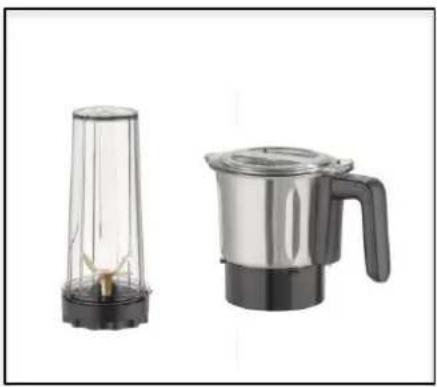

As a rule, the B 1800 PowerBlender (3619) is delivered with the following components:

• blender jar with lid • middle part of lid of blender jar • blade base

• motor unit • pusher • operating instructions The article B 1800 PowerBlender set (3618) is delivered with following additional components:

• grinder with lid • Mix & Go bottle with lid Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.36

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.

• Do not use the device outdoors.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 13 Design and Function In this chapter, you'll find important information on the design and function of the device.37

13.1 Overview and assembling

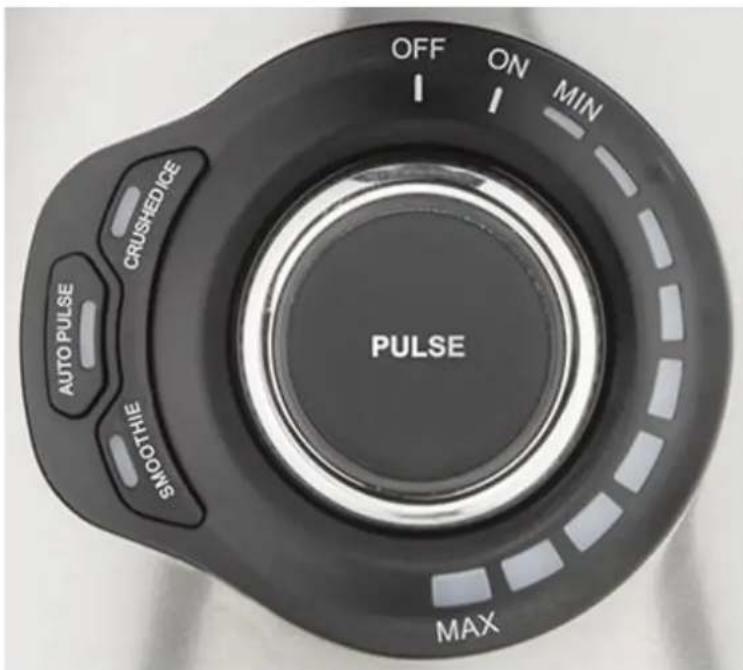

Knob OFF – switches device off ON – setting so that you can use the function buttons MIN-MAX: Stepless adjustment of the speed Individually adjustable (device switches off (for safety) after approx. 10 minutes for the blender jar & after approx. 1 minute for the grinder / Mix & Go bottle. Then turn the device to OFF, and you can use it again. Function buttons button PULSE: MAX speed as long as button is pressed button CRUSHED ICE press this button to start the function button AUTO PULSE press this button to start the function button SMOOTHIE press this button to start the function

screw the blade base. Turn the blender jar again, so that the blade base is at the bottom.

2. Place the blender jar on the motor unit, as shown on photo 2, tighten clockwise.39

3. Place the lid of the blender jar, place the middle part and turn the lid clockwise towards

the handle Only included in the B 1800 PowerBlender set (3618): Mix & Go bottle Turn the Mix & Go bottle, tightly screw the blade base. Turn the Mix & Go bottle again, so that the blade base is at the bottom. Place the Mix & Go bottle on the motor unit, as shown on photo 2, tighten clockwise. Grinder Place the grinder on the motor unit, as shown on photo 2, tighten clockwise. The device can only be switched on if it is correctly assembled.

The rating plate with the connection and performance data can be founded beneath the device. 14 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.40

14.1 Before first use and before each use

Clean the device as described under cleaning and maintenance.

14.2 Use of blender jar / Mix & Go bottle

1. Put the food in the blender jar / Mix & Go bottle, add some liquid as desired.

Fill the blender jar / Mix & Go bottle up to a maximum of 60 %.

2. Assemble the blender jar / Mix & Go bottle as described under “assembly”.

4. Turn the knob to the desired speed (MIN-Max) or use the function button for mixing.

You can use the function buttons for both blender jar and the Mix & Go bottle.

14.2.1 CRUSHED ICE function

1. Fill the ice cubes step by step into the blender jar, so that no cluster of ice will be

the icecubes. You can stop the process at any time by pressing the button ICE CRUSHED again or by turning knob to OFF.

14.2.2 AUTO PULSE function

For example for the preparation of shakes, sorbets, baby food, mixing cooked vegetables for soups, sauces, dips etc.

your food. You can stop the process at any time by pressing the button AUTO PULSE again or by turning knob to OFF. Warning ► Avoid the risk of burns: Please check the temperature of the food before you give it to your baby. This can easily be done on the back of your hand.

14.2.3 SMOOTHIE function

For the preparation of creamy smoothies from fruits and vegetables.

food. You can stop the process at any time by pressing the button SMOOTHIE again or by turning knob to OFF.

3. Keep the PULSE button pressed until the desired consistency is reached.41

14.3 Use of the grinder

1. Put the food which you want to grind into the grinder.

2. Assemble the grinder as described in “assembly”.

desired consistency is reached. Please note ► This device must not idle nor be overfilled, because the motor will overheat and gets damaged. Fill the unit up to maximum of 60 percent. ► For hot food (up to a maximum of 80 ° C) only the blender jar can be used. ► Do not leave the device unsupervised when it is in operation. ► Remove power plug first before pouring out the food.

14.4 Overheat protection

In order to prolong the device’s service life, an overheat protection is installed. If the motor runs too long or overloaded, the temperature reaches the warning value and the motor will stop automatically. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again. If you have any problem with this device, do not disassemble it by yourself. Always contact the service department or after-sale service department. 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

Attention Please observe the safety instructions, before cleaning your device ► Unplug the device when not in use and before any cleaning. ► Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher. ► The blades of blade base and blades of blade grinder can be sharp. Handle them carefully.

1. Fill the blender jar / Mix & Go bottle / grinder halfway with hot water, add a few drops of

detergent and let the device mix for 30 seconds with AUTO PULSE function. Rinse out the blender jar / Mix & Go bottle / grinder thoroughly with lukewarm water and dry it.

2. You can clean all components EXCEPT the motor unit with running water and a litte

3. Blender jar, lid of the blender jar, middle part of lid of the blender jar as well as the

Mix & Go bottle and its lid can be cleaned in the dishwasher.42

4. When you clean the blade base or the blades in the grinder then use AUTO PULSE

function or carefully clean them with a brush, as they can be sharp, please handle them carefully.

5. You can wipe the motor unit carefully with a damp cloth.

16 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Security advices

Attention ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Problem Solution The device does not start. Please check whether the power plug is properly plugged. Please check whether the assembly is done according to assembly methods. The unit has shut down. The overheat protection was activated. Pull out power supply plug and wait for the motor to cool (round about 30 minutes), then use again. Please note ► If above mentioned steps don't solve the problem, please contact your customer service. ► Please clean the device before sending it to customer service. 17 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.43 18 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 19 Technical Data Device B 1800 PowerBlender-Set (3618) B 1800 PowerBlender (3619) Mains data 220 V - 240 V; 50 Hz / 60 Hz Power consumption 1800 W External measurements (W x H x D): 220 x 435 x 190 mm

Accessories only included in the PowerBlender Set (3618) Grinder 200 x 135 x 130 mm Mix & Go bottle Ø 950 x 215 mm Net weight
