USER MANUAL PSTK 800 B2 PARKSIDE

Translation of original operation manual

NL BE

DECOUPEERZAAG MET PENDELSLAG

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Translation of the original instructions Page 11

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Entsorgung

General Power Tool SafetyWarnings 13

1.Work area safety 13
2. Electrical safety 13
3. Personal safety 13
4. Power tool use and care 14
5. Service 14

Safety instructions specifically for jigsaws 14
Original accessories/additional equipment 15
Information on saw blades 15

Initial operation 16

Fitting/changing the saw blade 16
Fitting the guide fence 16
Connecting the sawdust extraction appliance 16
Fitting the splinter guard 16

Operation 16

Setting the cutting angle 16
Setting the stroke rate 16
Setting the pendulum stroke 17
Switching on/off 17
Switching the laser/working light on/off 17
Sawdust blowing function 17

Maintenance and Cleaning 17

Kompernass Handels GmbH warranty 18

Service 19

Importer

Disposal 19

Translation of the original Conformity Declaration 20

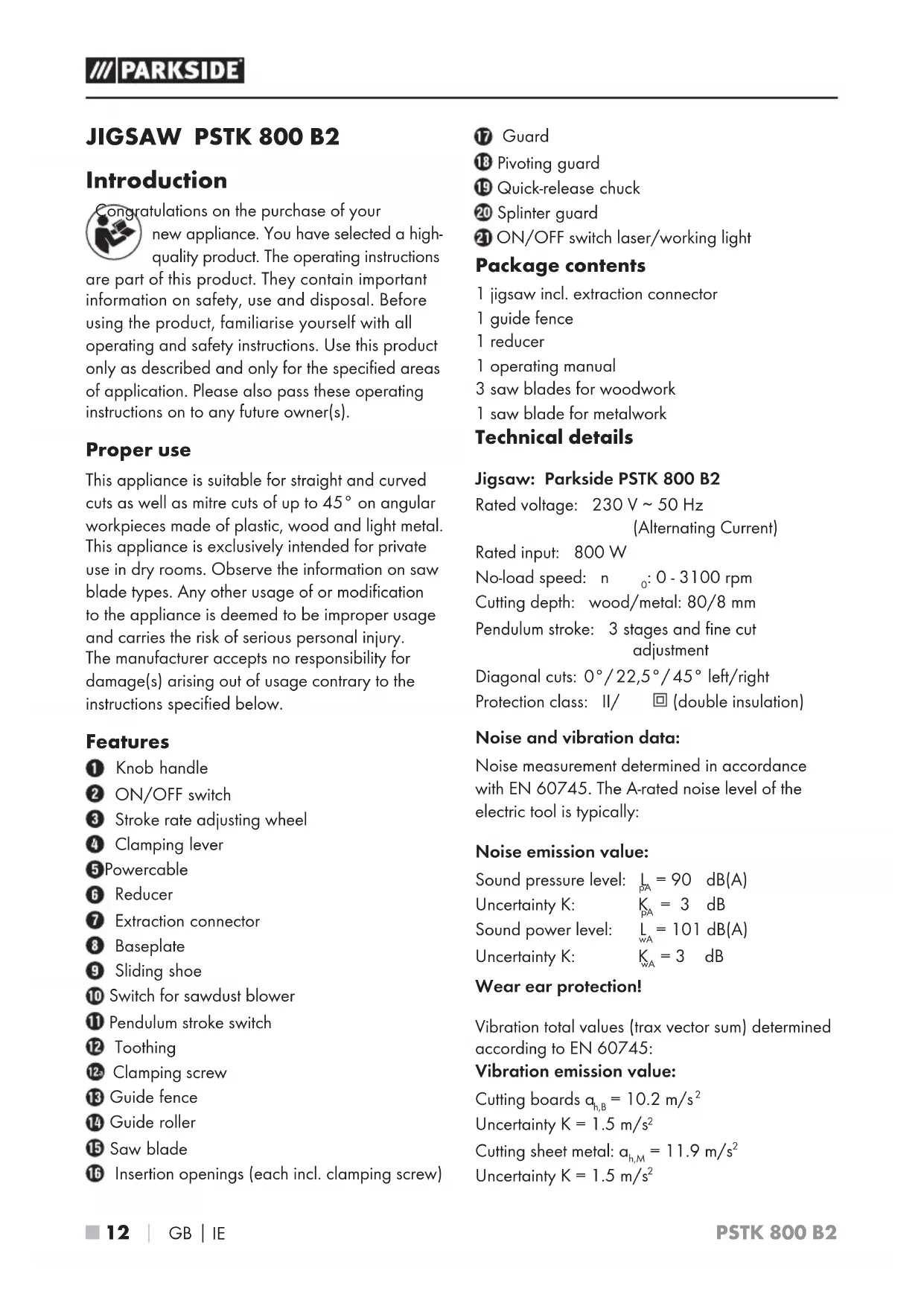

JIGSAW PSTK 800 B2

Introduction

tulations on the purchase of your new appliance. You have selected a highquality product. The operating instructions

are part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Please also pass these operating instructions on to any future owner(s).

Proper use

This appliance is suitable for straight and curved cuts as well as litre cuts of up to 45^ on angular workpieces made of plastic, wood and light metal. This appliance is exclusively intended for private use in dry rooms. Observe the information on saw blade types. Any other usage of or modification to the appliance is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) arising out of usage contrary to the instructions specified below.

Features

Knob handle
ON/OFF switch
3 Stroke rate adjusting wheel
4 Clamping lever
5Powercable
6 Reducer
7 Extraction connector
8 Baseplate
9 Sliding shoe
Switch for sawdust blower
Pendulum stroke switch
12 Tooting
12 Clamping screw
13 Guide fence
14 Guide roller
15 Saw blade
16 Insertion openings (each incl. clamping screw)

Guard
16 Pivoting guard
19 Quick-release chuck
20 Splinter guard
21 ON/OFF switch laser/working light

Package contents

1 jigsaw incl. extraction connector
1 guide fence
1 reducer
1 operating manual
3 saw blades for woodwork
1 saw blade for metalwork

Technical details

Jigsaw: Parkside PSTK 800 B2

Rated voltage: 230V 50Hz (Alternating Current)

Rated input: 800 W

No-load speed: n 0-3100 rpm

Cutting depth: wood/metal: 80/8 mm

Pendulum stroke: 3 stages and fine cut adjustment

Diagonal cuts: 0^ / 22,5^ / 45^ left/right

Protection class: II/ (double insulation)

Noise and vibration data:

Noise measurement determined in accordance with EN 60745. The A-rated noise level of the electric tool is typically:

Noise emission value:

Sound pressure level: _pA = 90 K_pA = 3 L_wA = 101 K_wA = 3 dB(A) Uncertainty K: bSound power level: dSound power level: dB(A) Uncertainty K: wA

Wear ear protection!

Vibration total values (trax vector sum) determined according to EN 60745:

Vibration emission value:

Cutting boards a_h,B = 10.2 m/s^2 Uncertainty K = 1.5 m/s^2

Cutting sheet metal: a_b,M = 11.9 m/s^2 Uncertainty K = 1.5 m/s^2

WARNING!

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the electric tool and may be higher than the value specified in these instructions in some cases. The vibration load could be underestimated if the electric tool is regularly used in such a way.

NOTE

Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool SafetyWarnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions specifically for jigsaws

Hold the electric tool by the insulated handles when you are carrying out work during which the electric tool may come into contact with concealed power cables or its own power cable. Contact with a live cable may also cause metal parts of the appliance to become live and lead to electric shock.
- Keep your hands away from the sawing area. Do not reach underneath the workpiece. Contact with the saw blade may result in injury.
- Keep your hands away from the stroke rod and the quick-release chuck. Contact with these components may result in a crushing injury.
Always switch on the electrical power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback.
When sawing, ensure that the baseplat is in contact with the workpiece.

After completing your work, switch the electric tool off and do not pull the saw blade out of the cut until the tool has come to a standstill. This avoids kickbacks, and allows you to put the tool down safely.

Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or cause a kickback.

Do not try and slow the saw blade down after switching off by applying lateral pressure. The saw blade can be damaged, break or cause a kickback.

■ Immobilise the workpiece securely. Use clamps/ vices to hold the workpiece firmly. This is much safer than simply holding it in your hand.

Always run the power cord away from the appliance to the rear.

Never work on moistened materials or wet surfaces.

Hazards caused by dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction appliance.

Wear a dust mask.

■ Ensure there is sufficient ventilation.

NING! Protect yourself from laser radiation!

P max.: < 1 mW·λ: 650 nm·EN 60825-1:2014

Never look directly into the laser beam or into the opening from which it emerges.

WARNING!

Looking at a laser beam through optical instruments (e.g. magnifying glasses etc.) can cause eye injuries.
Caution! If operating and adjustment equipment is used or procedures other than those specified here are carried out, this may result in hazardous radiation exposure.

Never aim the laser beam at reflective surfaces, people or animals. Even brief visual contact with a laser beam can result in eye injuries.

Original accessories/additional equipment

Only use the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

Information on saw blades

The Parkside basic equipment includes saw blades for use with wood and metal.

• 3 saw blades for general wood cuts
• 1 saw blade for light metals up to 3mm

NOTE

You can also use any other saw blades provided they are fitted with a suitable mounting (single-lug shank).

Saw blade type

suitable unsuitable

Initial operation

Fitting/changing the saw blade

Always remove the plug from the power socket before working on the appliance.

Remove the pivoting guard.
Turn the quick-release chuck and hold it in this position.
Press the required saw blade into the quick-release chuck 19 as far as the limit stop.
Release the quick-release chuck - it must return to its initial position. The saw blade is now locked.

WARNING! The saw blade teeth must point forwards at this point (see foldout page)!

Replace the pivoting guard back onto the device.

Fitting the guide fence

The guide fence can be fixed on the left or right of the appliance.

Undo both the clamping screws on the insertion openings 16.
Push the guide fence into the insertion openings 16
Retighten the two clamping screws.

Connecting the sawdust extraction appliance

Push the reduce 6 into the extraction connector 7 until it is secured.
Attach an approved dust and sawdust extractor to the reducer 6 or extraction connector 7 directly.

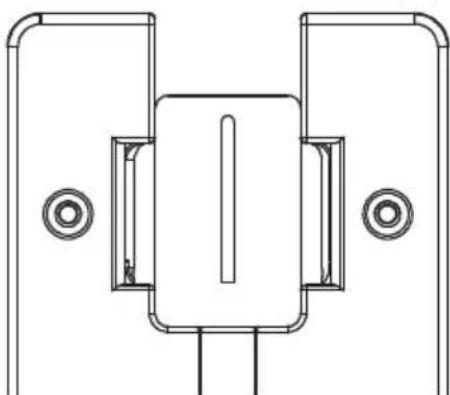

Fitting the splinter guard

The splinter guard 20 can prevent the tearing up of the surface when sawing wood. The splinter guard 20 can only be used with certain sawblade types and only at a cutting angle of 0^ .

Press the splinter guard into the sliding shoe from below (arrow facing upwards).

Operation

Setting the cutting angle

Push the clamping level forward and pull the baseplate the front.
Adjust the cutting angle to 0^ / 22,5^ / 45^ with the aid of the markings on the baseplate 8. Push the baseplate 8o the rear so that the locking pin engages in the toothing 12
Push the clamping level backwards.

NOTE

With a cutting angle of 22,5^ / 45^ the pivoting guard must be removed beforehand! If the baseplate cannot be locked well by clamping lever 4 remove the extraction connector, 7 then tighten the clamping screw 12a with hex key.

Setting the stroke rate

Use the stroke rate preselection adjusting wheel set the required stroke rate.

Setting the pendulum stroke

You can use the pendulum stroke switch to set the pendulum movement of the saw blade 15. You can achieve fine, clean cut edges without pendulum movement (setting "0"). Switch the pendulum movement off when working on thin workpieces. You can achieve an increasingly fast workrate with activated pendulum stroke (settings 1-3).

Switching on/off

Switching the appliance on:

Slide the ON/OFF switch forward to the position "l".

Switching the appliance off:

Slide the ON/OFF switch ② backward to the position "0".

Switching the laser/working light on/off

On/off switch:

Press the ON/OFF switch 21ntil the required function is active.

LASER and WORKING LIGHT WORKING LIGHT LASER SWITCH OFF

Sawdust blowing function

Switching the sawdust blowing function on:

Slide the sawdust blower function switch in the position

Supporting the extraction function:

Slide the sawdust blower function switch in the position "0".

Maintenance and Cleaning

ING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any

work.

The appliance must always be clean, dry and free from oil or grease.
To clean the casing, use a soft dry cloth.

WARNING!

To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
Replace the saw blade as soon as its teeth are blunt and proper sawing is therefore no longer possible.
Clean the appliance after completing your sawing work.
Remove any dirt (e.g. sawdust). If necessary, clean the saw blade mounting with a brush or blow it out with compressed air.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN282403

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

Packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

t dispose of electric tools in your normal domestic waste!

As required by European Directive 2012/19/EU, worn-out electric tools must be collected separately and fed into an environmentally compatible recycling process.

Your local communal or municipal authorities can provide information on how to dispose of the worn-out appliance.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, DE-44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and the EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009 / A11: 2010

EN 60745-2-11: 2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2: 2014

EN 61000-3-3:2013

Type designation of machine: Jiqsaw PSTK 800 B2

Year of manufacture: 12 - 2016

Serial number: IAN 282403

Bochum, 14/12/2016

CE

Semi Uguzlu - Quality Manager -

Subject to technical changes in the course of further developments.

Table des matieres

Introduction 22

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

Directive Machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

• Responsible qualite -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidace

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

KOMPERNASS HANDELS GMBH, responsible

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

Eliminação

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
