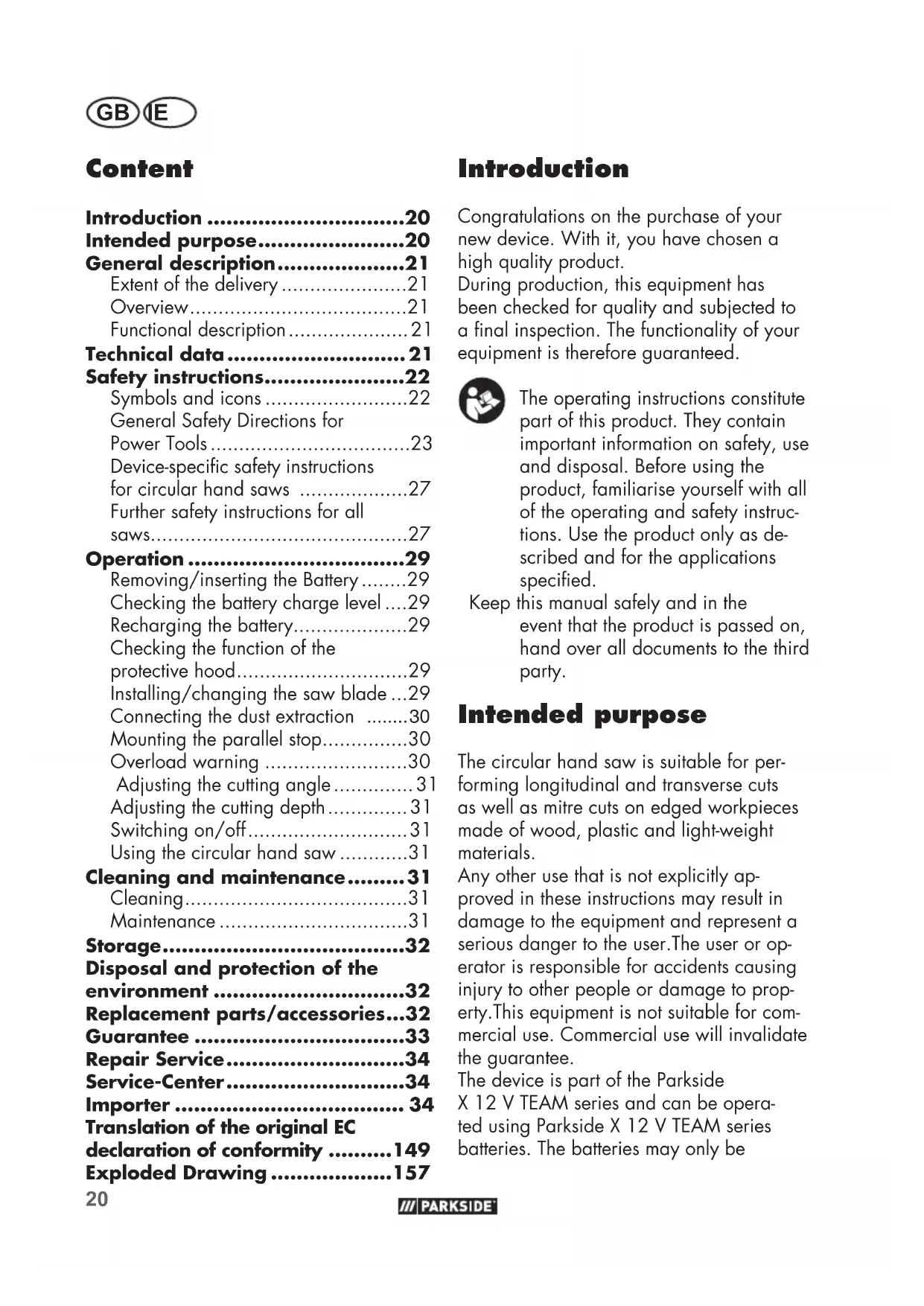

• Content Introduction p. 20
• Intended purpose p. 20
• General description p. 21
• Extent of the delivery p. 21
• Overview p. 21
• Functional description p. 21
• Technical data p. 21
• Safety instructions p. 22
• Symbols and icons p. 22
• General Safety Directions for Power Tools p. 23
• Device-specic safety instructions for circular hand saws p. 27
• Further safety instructions for all saws p. 27
• Operation p. 29
• Removing/inserting the Battery p. 29
• Checking the battery charge level p. 29
• Recharging the battery p. 29
• Checking the function of the protective hood p. 29
• Installing/changing the saw blade p. 29
• Connecting the dust extraction p. 30
• Mounting the parallel stop p. 30
• Overload warning p. 30
• Adjusting the cutting angle p. 31
• Adjusting the cutting depth p. 31
• Switching on/off p. 31
• Using the circular hand saw p. 31
• Cleaning and maintenance p. 31
• Cleaning p. 31
• Maintenance p. 31
• Storage p. 32
• Disposal and protection of the environment p. 32
• Replacement parts/accessories p. 32
• Guarantee p. 33
• Repair Service p. 34
• Service-Center p. 34
• Importer p. 34
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instruc- tions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended purpose The circular hand saw is suitable for per- forming longitudinal and transverse cuts as well as mitre cuts on edged workpieces made of wood, plastic and light-weight materials. Any other use that is not explicitly ap- proved in these instructions may result in damage to the equipment and represent a serious danger to the user.The user or op- erator is responsible for accidents causing injury to other people or damage to prop- erty.This equipment is not suitable for com- mercial use. Commercial use will invalidate the guarantee. The device is part of the Parkside X12VTEAM series and can be opera- ted using Parkside X12VTEAM series batteries. The batteries may only be Translation of the original EC declaration of conformity p. 149
• Exploded Drawing GB IE p. 157

charged using chargers from the Parkside X12VTEAM series. General description An illustration of the most important functional compo- nents can be found on the fold-out pages. Extent of the delivery Carefully unpack the appliance and check that it is complete: - Cordless circular hand saw - Parallel stop - Adapter for dust extraction (2-part) - Allen key - Saw blade (pre-mounted) - Storage case - Instruction Manual Battery and charger are not inclu- ded. Overview 1 Switch lock 2 ON/OFF switch 3 Battery release button for battery pack 4 Battery pack 5 Cutting depth scale 6 Retaining screw 7 Baseplate 8 Saw blade 9 Protective hood 10 Parallel stop holder 11 Parallel stop 12 Buttery screw for parallel stop holder 13 Buttery screw for cutting angle preselection 14 Cutting angle scale 15 Spindle lock 16 LED working light 17 Shavings ejector 18 Battery display LED 19 Overload warning indicator 20 Adapter for dust extraction 20a Reducer 21 Clamping ange 22 Clamping screw 23 Pull lever for protective hood 24 Allen key 25 Charge level indicator LED 26 Control LED 27 Quick charger 28 Cutting depth reference mark 29 Cutting angle reference mark Functional description The cordless circular hand saw with 2-stage gearbox features overload protec- tion, a spindle lock and a battery charge level indicator. Technical data Cordless Circular Saw ................................. PHKSA 12 B3 Motor voltage U .......................... 12 V Idling speed n

Sound pressure level

= 3 dB Sound power level

= 3 dB Vibration (a h, W

Temperature........................... max 50 °C Charging process .................. 4 - 40 °C Operation ..........................-20 - 50 °C Storage ................................ 0 - 45 °C Attention! An up-to-date list of battery compatibility can be found at: www.lidl.de/akku This device must be operated with the following rechargeable batteries: PAPK12A1, PAPK12A2, PAPK12B1, PAPK12B2. This type of battery may only be charged with the following chargers: PLGK12A1, PLGK12A2, PLGK12B2. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The specied vibration emission value can also be used for a provisional assessment of the load.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are limiting the working hours. For this purpose all parts of the operating cycle have to be con- sidered (for example, times when the electric tool is switched off and times when it is switched on but running without any load). Safety instructions Ensure that the safety instructions are ob- served when operating the appliance. Symbols and icons Symbols on the appliance: Carefully read these operating in- structions. Wear safety goggles! Wear breathing protection! Wear hearing protection! Do not use any damaged saw bla- des 26 mm / 0° Maximum cutting depth 85 mm15 mm Saw blade designation This device is part of the Park- side X12VTEAM series Electrical appliances must not be disposed of with the domestic waste. Symbols in the manual Warning symbols with in- formation on damage and injury prevention.GB IE

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and re- frigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operation of the power tool in a damp environment is unavoi- dable, please use a residual cur- rent circuitry. The use of a residual current circuitry reduces the risk of an electric shock. Use a residual current circuitry with a rated residual current of 30 mA or less. Hazard symbol with infor- mation on the prevention of personal injury caused by electric shock. Instruction symbols with information on preventing damage. Help symbols with information on improving tool handling. General Safety Directions for Power Tools WARNING! Read all safety notices, instructions, illustra- tions and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless power tool).

a) Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.GB IE

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appro- priate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising pow- er tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related haz- ards. h) Do not allow yourself to be lulled into a false sense of se- curity and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the re- chargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such pre- ventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool carefully. Check for misalignment or bindingGB IE

of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in un- expected situations.

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other bat- teries. b) In the power tools, use only the batteries designed for the pur- pose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking bat- tery uid may cause skin irritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batter- ies can be unpredictable and lead to re, explosion or risk of injury. f) Do not expose batteries to re or elevated temperatures. Fire or temperatures over 130°C can cause an explosion. g) Follow all instructions for charg- ing and never charge the bat- tery or the battery-powered tool outside the temperature range stated in the operating instruc- tions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re.

a) Have your power tool serviced by a qualied repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never repair damaged batter- ies. All battery repairs should be car- ried out by the manufacturer or author- ised customer service centres only.GB IE

INSTRUCTIONS a) Do not use any accessories (see section “Spare parts/accesso- ries”) that are not recommended by PARKSIDE. This can result in elect- ric shock or re.

CIRCULAR SAW a) Do not use grinding discs. b) Select the right saw blade based on the material you will saw. Saw blades that are intended for cut- ting wood or similar materials must comply with EN 847-1. Only use the saw for cutting wood, plastic and light- weight materials c) Only use saw blades with a speed designation that meets the specied speed for your ap- pliance or higher. d) Only use saw blades with a dia- meter of 85mm corresponding to the markings on the saw bla- de. e) Make sure the tips of the saw teeth do not overheat. f) When sawing plastic, make sure the plastic does not melt. g) Pay attention to the maximum cutting depth. (see technical data) h) When sawing, wear a dust mask.

i) Always wear hearing protection!

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Cuts b) Ear damage if working without ear pro- tection. c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro- magnetic eld which, under certain circumstances, may impair the func- tionality of active or passive medical implants. To reduce the risk of seri- ous or lethal injuries, we recommend that persons with medical implants consult their doctor and the manu- facturer of their medical implant before operating the machine. Observe the safety informa- tion and notes on charging and proper use as shown in the instruction manual for your battery and char- ger from the Parkside X12VTeam series. A detailed description of the charging process and further informa- tion can be found in the sepa- rate operating instructions.GB IE

Device-specic safety instructions for circular hand saws SAFETY INSTRUCTIONS FOR ALL SAWS, SAWING METHOD

DANGER! Do not put your hands in the cutting area or on the saw blade. If you hold the saw with both hands, they cannot be injured by the saw blade. b) Do not reach underneath the workpiece. The protective hood cannot protect you from the saw blade under the workpiece. c) Adjust the cutting depth to the thickness of the workpiece. Less than one full tooth height should be visible below the workpiece. d) Never hold the workpiece you want to saw in your hands or over your leg. Secure the workpiece in a sturdy support. It is important to fasten the workpiece securely to minimise the risk of physical contact, the saw blade jamming and loss of control. e) Hold the electric tool by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring. Contact with a live wire also causes a charge in metal parts of the electric tool and results in an electric shock. f) When performing longitudinal cuts, always use a stop or a straight edge guide. This improves the cutting precision while minimising the possibility of the saw blade jamming. g) Always use the right size saw blades with the appropriate locating holes (e.g. diamond or round). Saw blades that do not t in the saw tting parts run unevenly and lead to a loss of control. h) Never use damaged or incorrect saw blade washers or screws. The saw blade washers and screws were designed specically for your saw to ensure optimal performance and dependability. Further safety instructions for all saws

SPRING-BACK – CAUSES AND

CORRESPONDING SAFETY INSTRUCTIONS

• Spring-back is the sudden reaction caused by a jammed, stuck or improperly aligned saw blade resulting in an out-of-control saw lifting and moving out of the workpiece and towards the operator.

• If the saw blade snags or gets caught in the closing sawing gap or sticks, it will jam, and the motor force will kick the saw back towards the operator.

• If the saw blade is twisted in the saw cut or incorrectly aligned, the teeth of the rear edge of the saw blade can jam in the wood surface, causing the saw blade to move out of the sawing gap and the saw to recoil in the direction of the operator. Spring-back is caused by wrongly or incorrectly operating the saw. It can be avoided by suitable precautionary measures, such as those described below. a) Hold the saw rmly and bring your arm into a position in which you can resist the spring-back force. Always hold onto the side of the saw blade and never align the saw blade with your body. In the event of a spring- back, the circular saw can kick back, but the operator can keep control overGB IE

the spring-back forces using suitable precautionary measures. b) If the saw blade jams or you interrupt your work, switch the saw off and keep it still in the workpiece until the saw blade has come to a full stop. Never try to remove the saw from the workpiece or pull it back as long as the saw blade is moving, as otherwise it may spring back. Identify and correct the cause of the saw blade jamming. c) If you want to restart a saw that is in the workpiece, centre the saw blade in the sawing gap and check whether the teeth are jammed in the workpiece. If the saw blade jams, it can move out of the workpiece or cause spring-back when the saw is restarted. d) Support large plates to reduce the risk of spring-back due to a jammed saw blade. Large plates can bend under their own weight. Plates must be supported on both sides, not only near the sawing gap, but also at the edge. e) Do not use any blunt or damaged saw blades. Saw blades with blunt or improperly aligned teeth cause increased friction, saw blade jamming and spring-back due to an excessively tight sawing gap. f) Before sawing, x the cutting depth and cutting angle settings. If the settings change during sawing, the saw blade can jam, resulting in spring-back. g) Be particularly careful when sawing existing walls or other areas where you cannot see what is there. During sawing, the cutting saw blade can jam in hidden objects and cause spring- back.

FUNCTION OF THE BOTTOM PROTECTIVE

HOOD a) Before each use, check whether the bottom protective hood closes properly. Do not use the saw if the bottom protective hood does not move freely or close right away. Never clamp or bind the bottom protective hood in an open position. If the saw accidentally falls to the ground, the bottom protective hood may be bent. Open the protective hood using the pull lever and make sure that it moves freely and does not touch the saw blade or other parts at all cutting angles and depths. b) Check the function of the springs for the bottom protective hood. If the bottom protective hood and spring do not work properly, have the saw serviced before using it. Damaged parts, sticky deposits or accumulations of chips cause the bottom protective hood to work with a delay. c) Only open the bottom protective hood by hand for special cuts, such as “plunge and angular cuts”. Open the bottom protective hood with the pull lever and release it as soon as the saw blade cuts into the workpiece. For all other sawing, the bottom protective hood should work automatically. d) Do not place the saw on the work bench or the oor if the bottom protective hood is not covering the saw blade. An unprotected saw blade that is still running will move the saw in the direction opposite of the cutting direction and cut whatever is in its way. Pay attention to how long the saw blade remains running.GB IE

Operation Removing/inserting the Battery

1. To remove the battery (4) from the ap-

pliance, press the release button (3) on the battery and pull out the battery.

2. To insert the battery (4), place it on the

guide track and push it into the appli- ance. It will audibly snap in. Checking the battery charge level The battery’s (4) charge level is indicated by the charge state indicator (18). The LEDs indicate the battery’s charge level, when the device is in operation. Press and hold the power button (2). red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged Recharging the battery Allow a hot battery to cool before charging. Charge the battery (4) when only the red LED on the level indicator is illuminated. Charging time (hours) PAPK12A1 PAPK12A2 PAPK12B1 PAPK12B2 PLGK12A1 1 2 PLGK12A2 1 2 PLGK12B2 0,5 1

1. Remove the battery (4) from the appli-

2. Plug the battery charger (27) into a

3. Insert the battery (4) in the charging

compartment of the battery charger (27).

4. After charging is complete, a green

light will be illuminated permanently. You can now disconnect the charger (27) from the mains supply.

5. Unplug the battery charger (27) from

the mains. Checking the function of the protective hood

• Pull the pull lever for the protective hood (

23) back as far as it will

go. The protective hood (9) must move freely without jamming and jump back to the original position automatically when the pull lever for the protective hood (

• Always keep the protective hood (9) free of sawdust to keep it from jamming the mechanism. Installing/changing the saw blade Switch off the device and remove the battery before carrying out any work.

1. Set the cutting depth to the minimum

position, 0mm (using the retaining screw (6) ).

2. Using the pull lever for the protective

hood (23), move the protective hood back and switch the device off.

3. Press and hold down the spindle lock

4. Loosen the clamping screw (22) with

5. Now, remove the clamping screw (22)

and the clamping ange (21).

6. Pull the pull lever for the protective

hood (23) all the way back and hold the protective hood (9) in this position.

7. Carefully remove the saw blade (8)

from the device from below.

8. Install the saw blade (8) in the reverse

order. WARNING! The arrow on the saw blade must match the direction ar- row (direction of travel, marked on the protective hood). Make sure that the saw blade is suitable for the speed of the tool. Connecting the dust extraction There are three options for connecting the permitted dust and shavings extraction. Depending on the diameter of the hose for the dust and shavings extraction, select one of the following options:

• Connecting the dust and shavings extraction directly

1. Connect the dust and shavings

extraction directly to the shavings ejector (17).

• Connecting the dust and shavings extraction to the adapter (20) 1 Place the dust extraction adapter (20) on the shavings ejector (17).

2. Connect the dust and shavings ex-

traction to the adapter (20).

• Connecting the dust and shavings extraction to the adapter (20) and reducer (20a)

1. Place the dust extraction adapter

(20) on the shavings ejector (17). 2 Place the reducer (20a) on the dust extraction adapter (20).

3. Connect the dust and shavings ex-

traction to the adapter (20). When working with materials that produce dangerous dust, connect the device to an appropriate, tested dust class M suction device. Mounting the parallel stop

1. Loosen the buttery screw for the pa-

rallel stop holder (12) and insert the parallel stop (11) in the parallel stop holder (10).

2. Set the desired cutting width using the

scale on the parallel stop and the reces- ses on the bottom side of the baseplate (see also Fig. D). The left recess on the bottom of the baseplate is for cutting angle setting 0°. The right recess on the bottom of the baseplate is for cutting angle setting 45°.

3. Retighten the buttery screw for the par-

allel stop holder (12). Overload warning

• If the device is in danger of being da- maged, the overload warning indicator

Adjusting the cutting angle You can set the cutting angle using the cut- ting angle scale (14).

1. Loosen the buttery screw of the cutting

angle preselection (13).

2. Set the desired angle on the cutting

angle scale (14) based on the top edge of the reference mark (29).

3. Retighten the buttery screw (13).

When performing an angle cut, hold the device tightly with both hands (for better control of the device). Adjusting the cutting depth Set the cutting depth approx. 3mm larger than the material thickness. This achieves a clean cut.

1. Loosen the retaining screw (6) and set

the desired cutting depth on the cutting depth scale (5) based on the reference mark (28).

2. Retighten the retaining screw (6).

Switching on/off Switching on:

1. Press the switch lock (1) to the left or

right and hold it down.

2. Press the ON/OFF switch (2). The LED

work light (16) lights up. Once the ma- chine has started up, you can release the switch lock (1). Switching off:

1. Release the ON/OFF switch (2).

Using the circular hand saw

1. As described under Switching on and

off, turn on the device and place the front edge of the baseplate (7) on the material.

2. Align the machine to the parallel stop

(11) or a drawn line. Cleaning and maintenance Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury! Turn off the appliance and, before doing any servicing, remove the battery. Perform the following cleaning work regu- larly. This will guarantee long and reliable use. Cleaning Do not spray the appliance with water and do not im- merse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably dam- age the appliance. Maintenance The appliance cleaner is maintenance free.GB IE

• Store the equipment in a dry place well out of reach of children.

• The storage temperature for the battery is between 0°C and 45°C. Avoid ex- treme cold or heat during storage to en- sure the battery output is not adversely affected. Disposal and protection of the environment Remove the battery from the device and recycle the device and packaging in an environmentally-friendly manner. Instruction on how to dispose of the rechargeable battery can be found in the separate inst- ruction manual. Machines do not belong with do- mestic waste.

• Remove the rechargeable battery befo- re disposing of the device!

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

• Defective units returned to us will be disposed of for free. Replacement parts/accessories Spare parts and accessories can be obtained at www.grizzlytools-service.eu If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 34). Saw blade HW 20 x 1,1 mm x Ø85 mm x Ø15 mm 13800399GB IE

Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. Saw blade) or to cover damage to break- able parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN359691_2101) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec-GB IE

tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center
