USER MANUAL AC2401 Eurom

Thank you very much for choosing a EUROM appliance. You have made a good choice! We hope that the appliance functions to your full satisfaction.

To get the best out of your appliance, it is important that you carefully and completely read and understand the user manual before using the appliance; the information contained is intended to protect you and your environment!

Save the manual so that you can also consult it in the future. Save the packaging: that's the best way to protect your appliance when you store it off season. In addition, if you ever give your appliance to someone else, provide this person with the user manual and packaging.

We wish you lots of pleasure with the AC2401!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This user manual was prepared with utmost care. Nevertheless, we reserve the right to improve the manual and to adjust it technically at any time.

General

De EUROM AC2401 caravan air-conditioner has the following three features:

• The appliance is portable.
• The appliance provides continuous cooling.
• The appliance automatically drains the condensed water.

Technical data

Connection voltage	220-240V / 50Hz
Power consumption	450W
Current consumption	2A
Cooling capacity	750W (2559BTU)
Compressor type	Rotating
Cooling liquid	R134a (220 gr)
Protection level of the outdoor unit	IP24
Net weight	20,5 kg
Dimensions: indoor unit	18.5 x 39.5x 36 cm
outdoor unit	20 x 44 x 38 cm

EUROM

POWERFULPRODUCTS

AC2401

Art.nr. 380019

Voltage

220-240V/50Hz

Stroomverbruik

450 Watt

Koelvermogen

2559 BTU

Koelvloeistof

R134a (220gr)

Persdruk

1.42 MPa

Onderdruk

0.34 MPa

Max.toegestane druk

15 MPa

Buitenunit

IP24

Batchno.

★★★☆☆女女☆

FOR CARAVAN USE ONLY

EUROM-KOKOSSTRAAT 20-8281JC-GENEMUIDEN-NETHERLANDS

EUROM

POWERFULPRODUCTS

AC2401 swiss

Art.nr.379990

Voltage

220-240V/50Hz

Stroomverbruik

450 Watt

Koelvermogen

2559BTU

Koelvloeistof

R134a (220gr)

Persdruk

1.42 MPa

Onderdruk

0.34 MPa

Max.toegestane druk

15 MPa

Buitenunit

IP24

Batchno.

★★★★★★

FOR CARAVAN USE ONLY

EUROM-KOKOSSTRAAT 20-8281JC-GENEMUIDEN-NETHERLANDS

SafetyWarnings

GeneralWarnings

1. This appliance is suitable for use only in caravans and campers.
2. Make sure that at all times (also during transport) the entire appliance stands upright. If nevertheless, the entire appliance has been lying horizontally (partly), wait 2 hours before you use it. This is the timespan needed by the compressor to do its job correctly.

3. Use the appliance only when the indoor and outdoor units stand or hang horizontally/spirit-level.

4. If you want to use the indoor and/or outdoor unit standing upright, make sure that it stands on a firm, even and horizontal surface.

5. If you want to use the supplied brackets for hanging the indoor and/or outdoor unit, check that the indoor and/or outdoor unit is hanging horizontally/spirit-level before using it.

6. Make sure that the plug and socket are visible and accessible at all times.

7. Do not place any objects on the appliance.

8. Do not leave an operating appliance unsupervised, also not for a few seconds!

9. The inside of the appliance contains hot and/or incandescent and sparking parts.

Do not use the appliance in the immediate vicinity of gas cylinders or gas pipes. This can cause an explosion or fire! Maintain a distance of at least 1 metre.

1. Do not use the appliance near fuels, lightly flammable materials or materials that could easily explode. Furthermore, do not use paint, cleaning sprays, insect repellent sprays, etc. on or near the appliance; this can warp the plastic or damage the electric parts.

2. Do not use the appliance:

3. near a source of fire

4. near splattering oil

If possible, prevent the indoor and outdoor units from being exposed to full sunlight.

1. Do not block or partially block the grids for incoming or outgoing airflows; provide free space of 30~cm .
2. Do not cover the appliance: this can cause a fire!
3. Do not stick fingers or objects, such as pens, etc. through the grids. Warn children in particular about this danger.
4. Make sure that the fan is not blocked.
5. Children, unauthorised persons and house pets must be supervised.
6. This appliance is not a toy; therefore children must not play with it.
7. The appliance can be operated by children over the age of 8 and by people with physical, sensory or mental disabilities or who lack knowledge and experience, only if they are supervised or are given instructions on how to use it safely and if they understand the risks involved.
8. Unsupervised children may not carry out cleaning and maintenance tasks.
9. If you hear a strange sound, smell a strange odour or see smoke, take the plug out of the socket.
10. Do not operate the appliance if you notice damage to the appliance, electric cable, plug or cooling pipe or if it is functioning poorly, if it has fallen over or malfunctions in any way. Return the entire appliance to your supplier or a certified electrician for checking and/or repair. Always demand original parts.
11. The appliance (including the electricity cable, plug and cooling pipe) may be opened and/or repaired only by a person qualified to do so.

Electric safety

1. This appliance is suitable for use only in caravans and campers.
2. Use only a plug mounted on the appliance by the manufacturer and no other means of connection!
3. This appliance must be connected according to national wiring codes.
4. Before use, check whether the socket that you want to use is earthed, shows no faults and whether the voltage on the socket matches the voltage shown on the type plate of the appliance. Damage caused by faulty voltage is not covered by the warranty!
5. If the appliance is not being used or if you are cleaning it or carrying out maintenance or if you want to move it, first switch it off and then take out the plug from the socket. Always move and/or transport the appliance gently!
6. In addition, when you start using the appliance, the following applies: first put the plug into the socket.
7. The outdoor unit has an IP24 protection rating against moisture/water, which means downpour resistance of up to 10 litres per minute. Yet, we advise you not to hang the outside part in the rain in order to prevent damage and/or accidents. Electricity and water never go well together.
8. The interior part does not have a protection rating against moisture/water. Never use the interior part in damp or wet environment and do not splash water or any other liquid on or into the interior part.
9. Try as best as possible to avoid using extension cords. If this is unavoidable, then use a cord with sufficient capacity (minimum 3 × 1.5 mm^2 ) and don't put it close to walking paths!
10. Do not move the appliance by pulling the electric cable or cooling pipe and hold the plug in your hand when you unplug it.
11. Do not pull, warp or change the electric cable and/or cooling pipe or submerge these under water. Pulling or incorrect use of the electric cable will damage the appliance and can result in an electric shock.
12. Do not use the appliance or switch it off immediately and remove the plug from the socket, if the electric cable, plug, cooling pipe or the appliance itself is damaged, broken or malfunctions. The appliance, plug and/or cable must be repaired/replaced by an electrician or a similarly qualified person. Repairs by unqualified individuals are not covered by the warranty and could result in dangerous situations!

Description

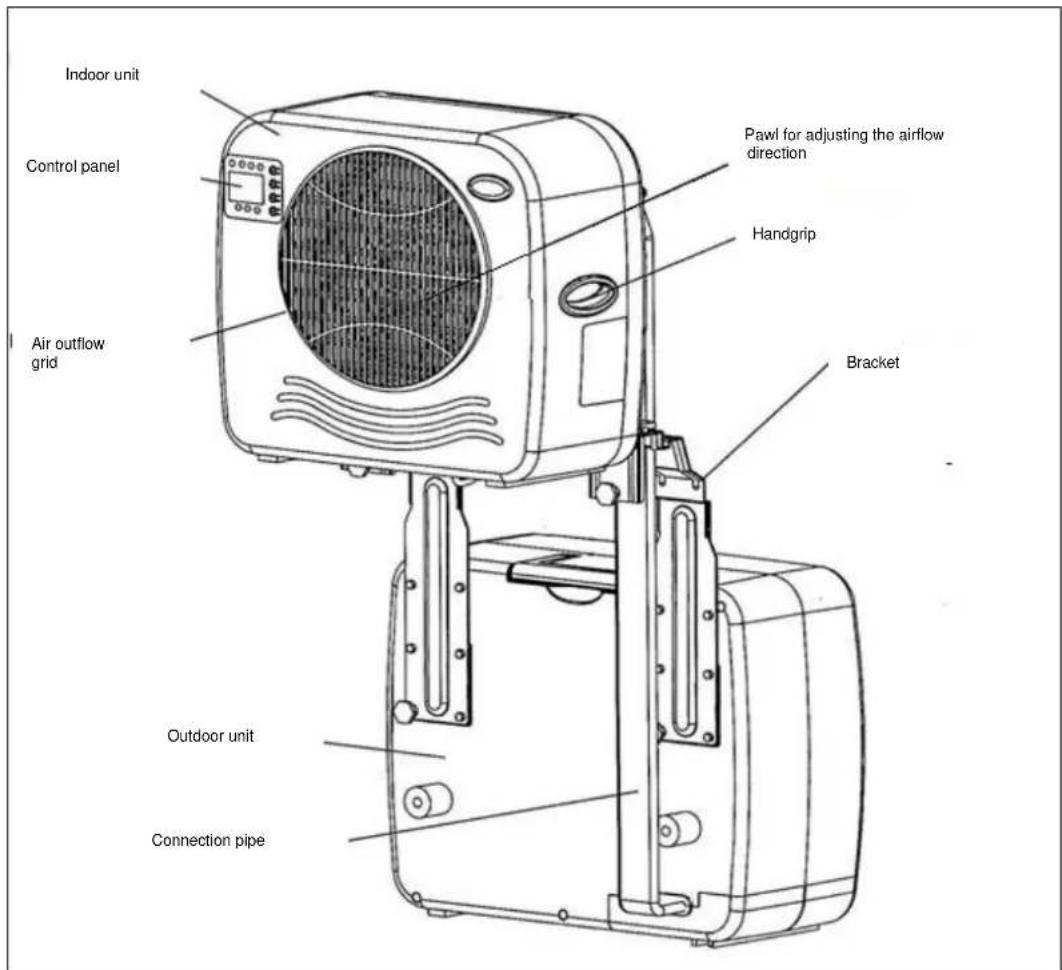

Indoor- and outdoor unit

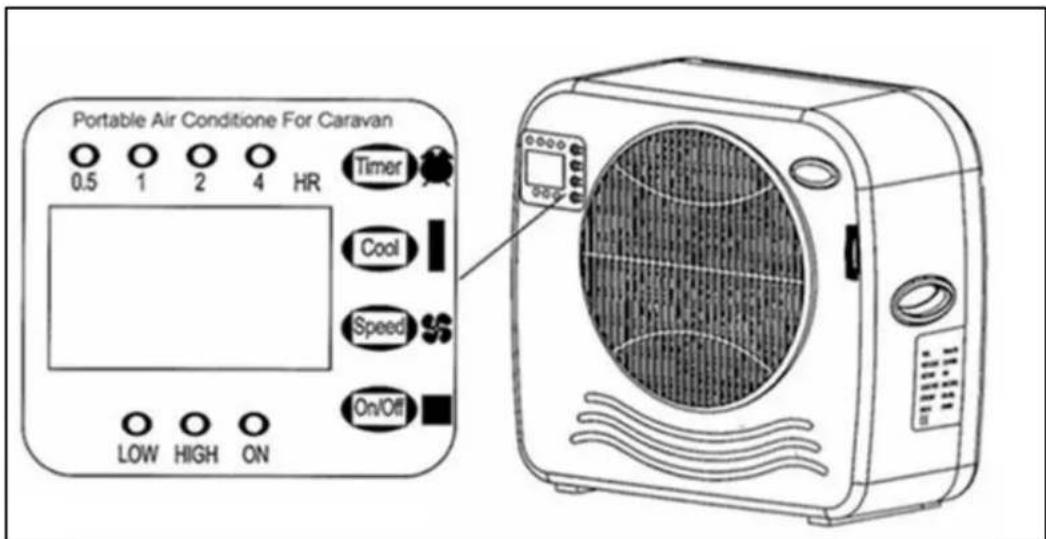

Control panel, see section on 'Use' for an explanation of the control panel.

Installation

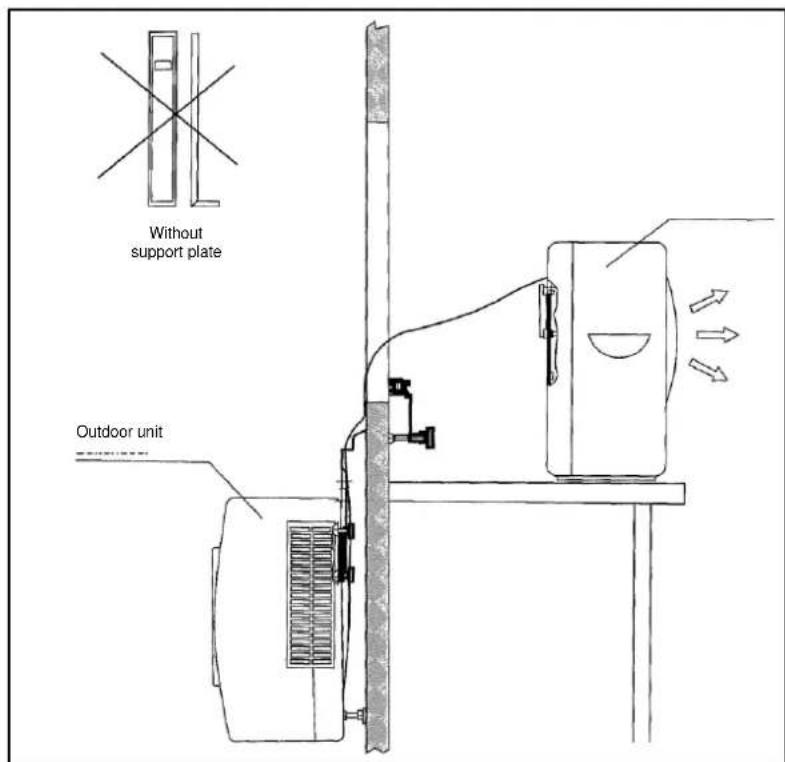

Installation without support plate

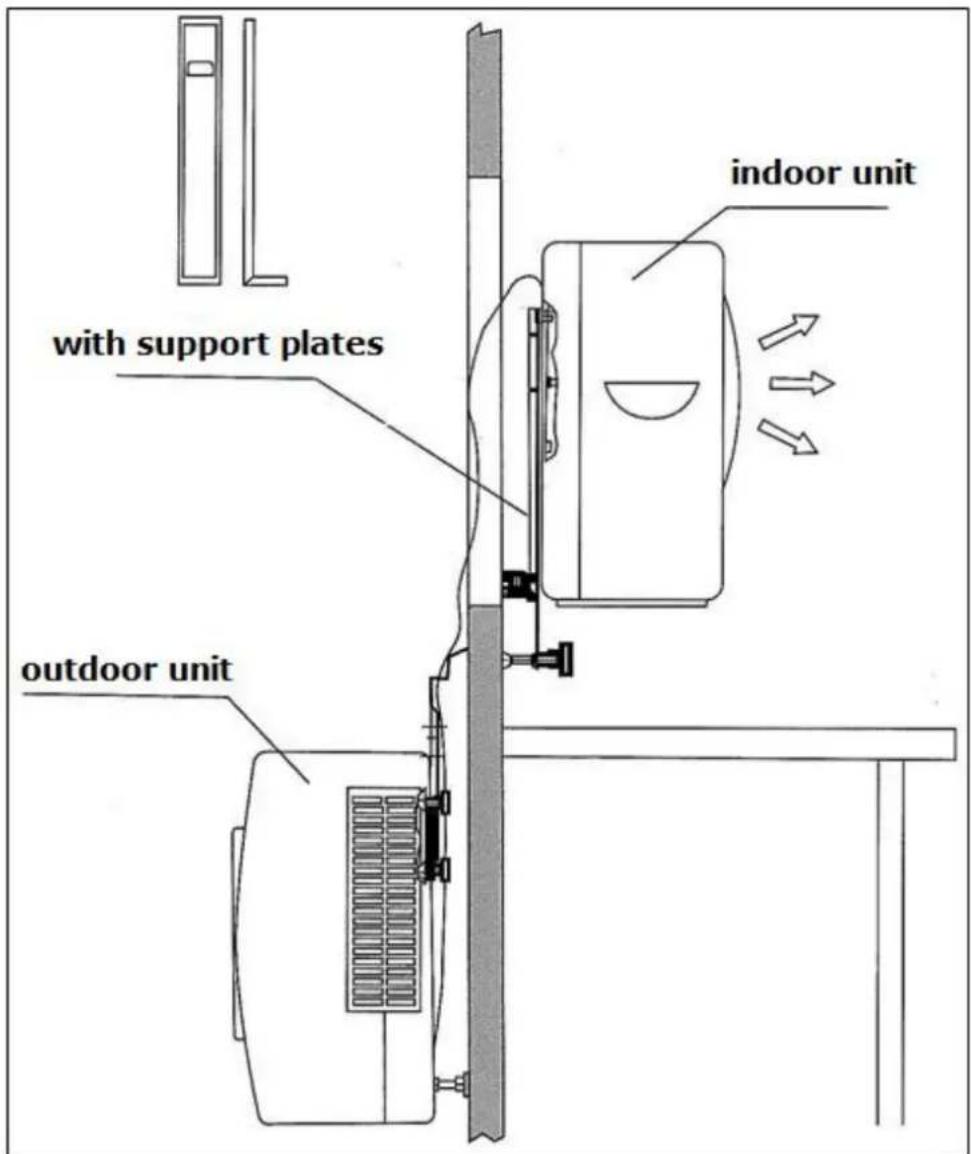

Attach the large brackets to the outdoor unit of the air-conditioner by crosswise tightening two screw caps per bracket. (Two screw caps are already present in their place and two screw caps are supplied separately with the appliance).

Hang the outdoor unit on its place on the window. Place the indoor unit on a table or something similar. Watch out: on the interior side of the large brackets is a removable block. This had to be removed in certain caravans (with thicker walls or window frames).

At the indoor side, attach the support plates to the brackets using the female-threaded knobs. Now you can slide the indoor unit over the support plates.

Use

Before use, take into account that:

• The EUROM AC2401 works at an ambient temperature of maximum 42^ on high fan speed (high speed) and maximum 38^ on low fan speed (low speed).
• The appliance is not hanging crooked or tilted.
• Both sealing caps on the rear side of the indoor unit are mounted. Watch out: if the sealing caps are not placed correctly, the condensed water from the indoor unit is not drained to the outdoor unit and this water consequently leaks from the indoor unit. Watch out: chance of water damage.
• The airflows entering and leaving the appliance are not blocked.

• While travelling, you do not hang the EUROM AC2401 uninstalled.

• The appliance is not placed close to a source of heat or exposed to direct sunlight.

• Windows and doors are shut and curtains or shutters are closed during the hottest hours of the day.
  The filters are clean.

Instructions

• Remove the packaging materials and keep these out of the reach of children.
• Check whether the appliance does not have any damage. Do not operate a damaged or defective appliance, but turn to your supplier.
• Check whether the socket, which you want to use for connecting the air-conditioner, is for 220-240V-50Hz.
• Insert the plug into the socket. The buzzer will send three signals to indicate that the appliance is ready for operation (READY).

ON/OFF button

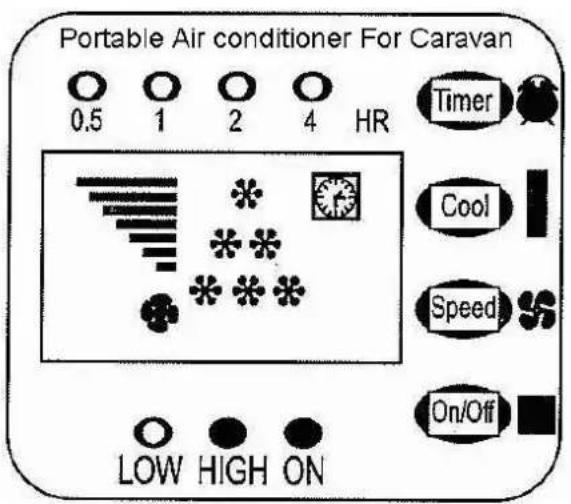

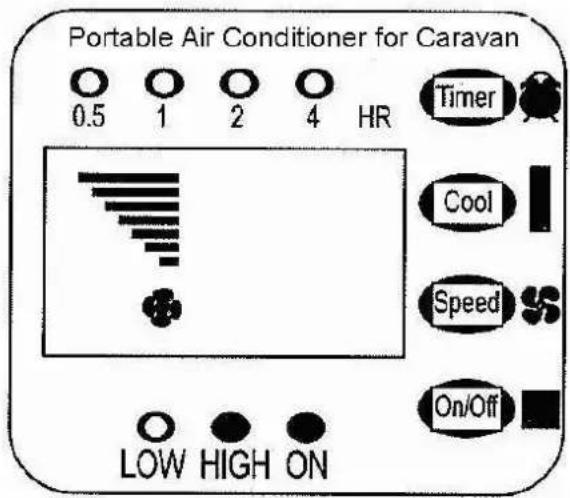

Press on the ON/OFF button. The ON and the HIGH lights will go on and you will see six (6) stars on the screen. The appliance is now operating continuously on high capacity.

SPEED button

Press on the SPEED button to set the fan speed on High or Low. The corresponding light will go on.

Cooling button (cool)

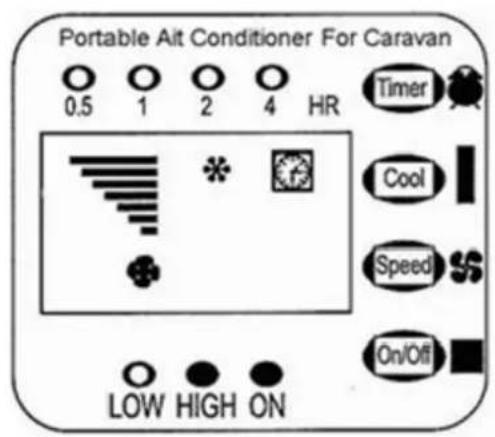

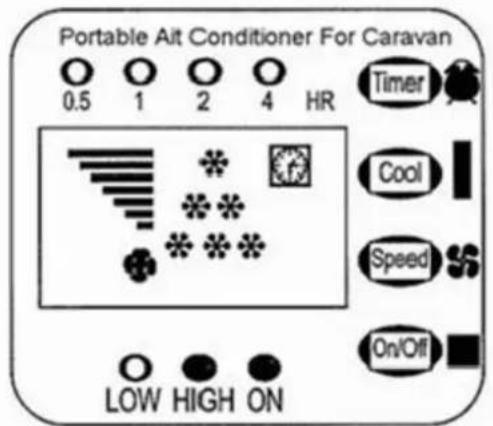

Press on the COOL button (the button that cools) to set the ambient temperature to 28^ . The screen will display a single star (Fig. 3).

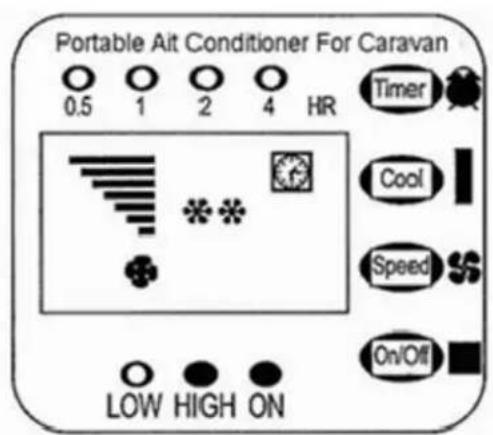

Press again on COOL to set the ambient temperature to 25^ . The screen will display two (2) stars (Fig. 4).

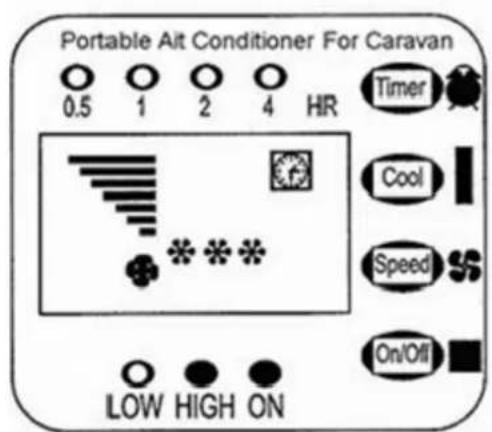

Press again on COOL to set the ambient temperature to 22^ . The screen will display three (3) stars (Fig. 5).

Press again on COOL if you want to set the ambient temperature below 22^ . The screen will display six (6) stars to indicate that the air-conditioner is working continuously (Fig. 6).

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Timer

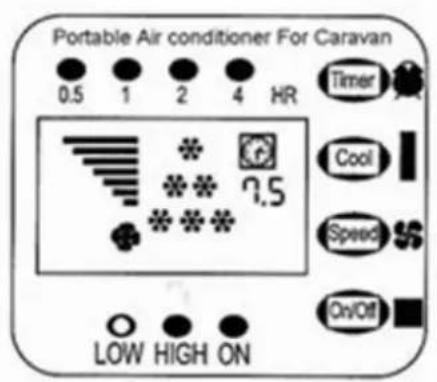

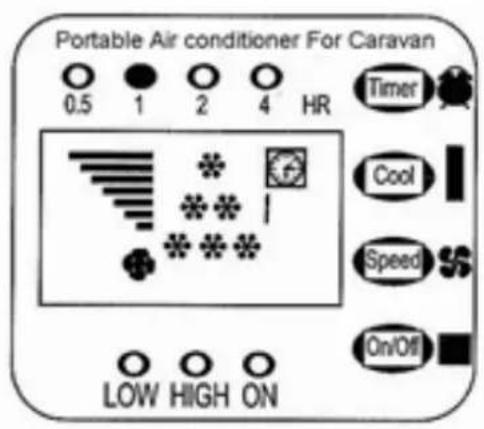

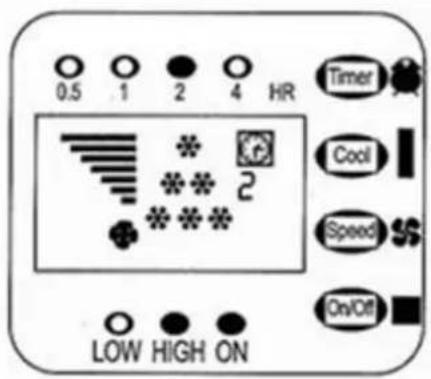

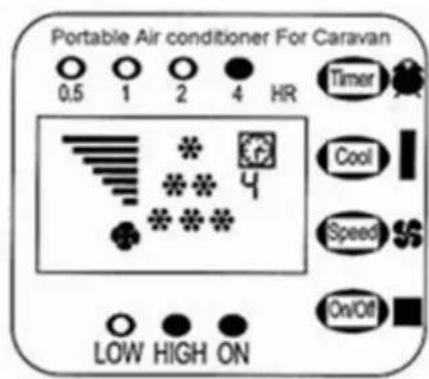

Operating time can be set from 0.5 to 7.5 hours by pressing the TIMER button 1 to 5 times. The time set is displayed on the screen. At the end of the period set, the air-conditioner will automatically switch off (Fig. 7-11).

Fig.7

Fig. 8

Fig.9

Fig. 10

Fig. 11

Automatic drainage of condensed water

As soon as the condensed water in the collection tray in the indoor unit reaches a certain level (0.8 litres), the pump will automatically discharge the water to the condenser in the outdoor unit. In the outdoor unit, the water partially evaporates together with the discharge of warm air. The remaining water is discharged through a drainpipe at the underside of the outdoor unit.

In case of interruption, you will hear a buzzer (alarm) for 20 seconds and the appliance will switch off. By removing the plug from the bottom side of the indoor unit, the water can be drained and subsequently you can use the appliance again. Whenever you want to move the indoor unit, it is wise to first drain the water from the indoor unit by removing one of the sealing plugs. Otherwise, you run the risk that water leaks into the indoor unit while moving the appliance.

Maintenance

• First switch off the appliance and remove the plug from the socket.

• Clean the top surface of the appliance regularly with a vacuum cleaner or with a well-wrung moist cloth. After cleaning, place the appliance in a cool and shaded area with mild airflow to let it dry.

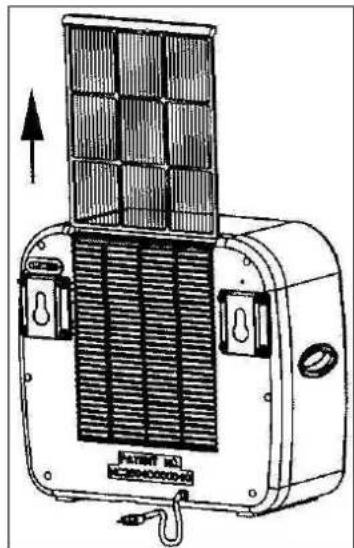

• Pull the frame with the filter at the top side out of the appliance and clean the filter with a vacuum cleaner or clean water. Let it dry (as described above) before returning the filter to its place.

• Do not use alcohol, benzene, scouring agents or any other agents for cleaning!

Disposal

Within the EU, this symbol means that this product cannot be disposed of together with the usual household refuse. Disused appliances contain valuable materials that can and must be reused in order not to harm health and the environment by unregulated refuse collection. Bring the unused appliance to the collection point designated for that purpose or turn to the company where you bought the appliance. They can make sure that as many components of this appliance as possible will be reused.

CE declaration

See page 102.

Dank

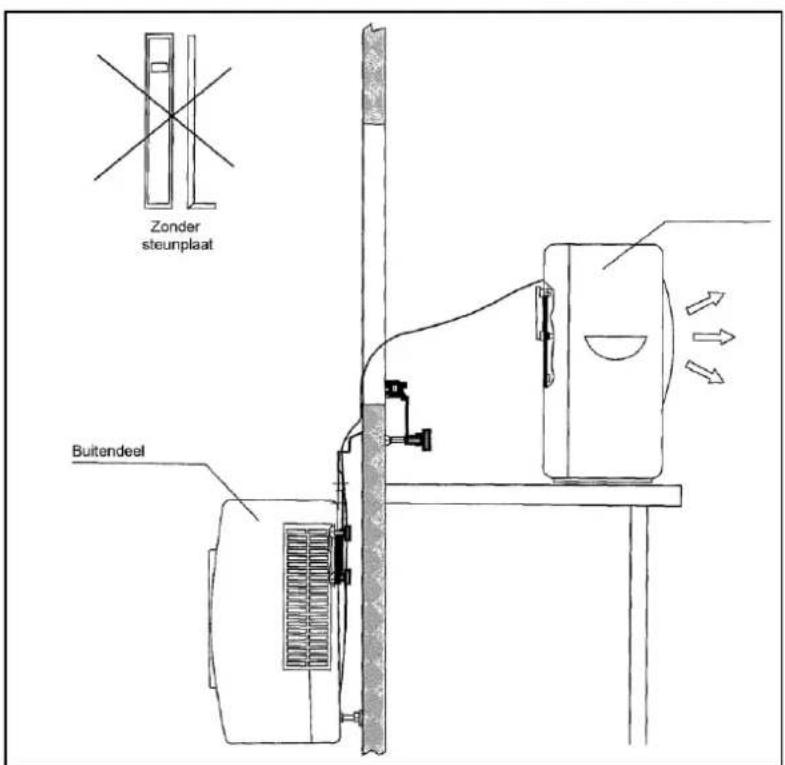

Installation sans plaque de support
