Thanks

Thank you for choosing a EUROM air conditioner / dehumidifier. You have made a good choice! We hope that it will function to your full satisfaction.

To get the best out of your air conditioner / dehumidifier, it is important that you read and understand this operating manual carefully and thoroughly before use. Pay particular attention to the safety instructions; they are mentioned to protect you and your environment!

Then keep the operating manual for future reference. Also keep the packaging: that is the best protection for your air conditioner / dehumidifier during off-season storage.

And if you ever transfer the air conditioner / dehumidifier to someone else, please supply the operating manual and packaging.

We wish you a lot of fun with your new air conditioner / dehumidifier.

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically.

Symbol statement

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Three black-and-white icons: open book, open book with 'i' symbol, and open notebook with wrench (no text or symbols)

• This appliance is filled with Propane gas R 290. Follow strictly the manufacturer's instruction concerning use and repairs!
• Before using the machine, carefully read this entire instruction manual.
• Do not install, operate or store the device in a room smaller than 9,7m^2 .

Product description

Technical specification

Cooling capacity	10000 BTU/hour2800 Watt
Max. power usage	1110 Watt
Air displacement max.	340 m3/uur
Connected power	220-240V~50Hz
Noise level	Min 48dB(A) / Max 65dB(A)
Cooling fluid	R290/200g
Class of insulation	IP20
Fan settings	3
Operating temperature	18-35°C
Fuse	F, 250V AC, 2A
Waste pipe	∅ 165mmx1500mm
Net weight	26 kg
Dimensions	470 x 370 x 764 mm

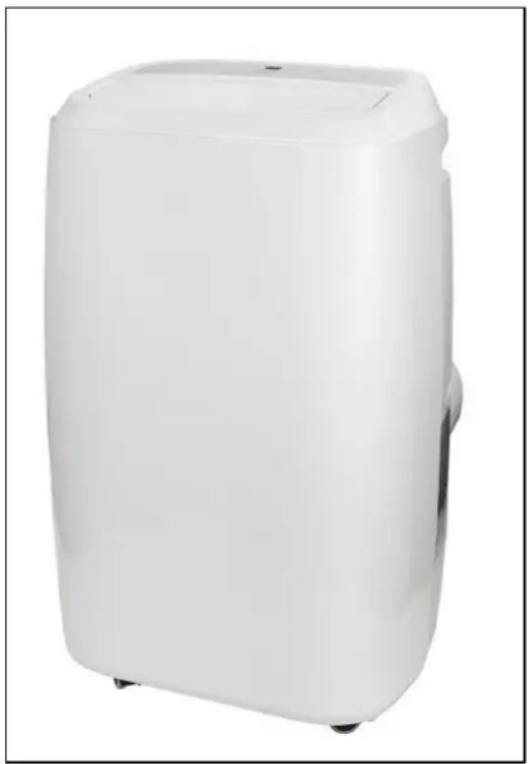

Product image

White portable air conditioner unit with closed lid and wheels (no visible text or symbols)

Safety Warnings

Read all safety warnings and other instructions. Failure to follow all instructions can cause injury or material damage

General safety warnings

• This unit is exclusively intended for household use.
• Always ensure (even during transport!) that the unit remains upright. If the unit has been lying on its side, wait 2 hours before using. This time is required in order for the compressor to function correctly.
• Ensure that the unit is always placed on a sturdy, flat and horizontal surface.

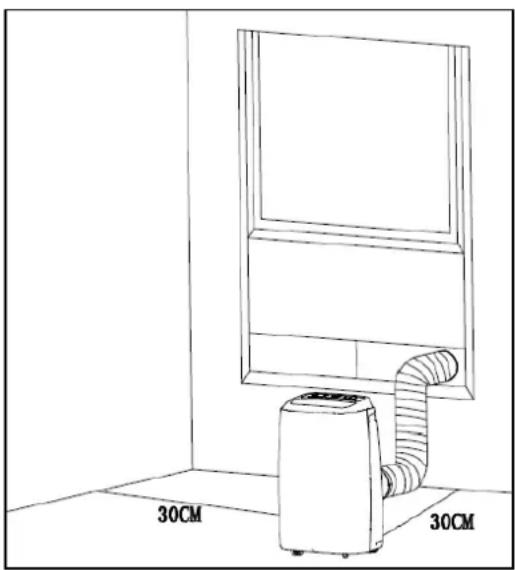

• Ensure that the unit has a free space of at least 30 cm on each side.

Line drawing of a room interior with a portable air conditioner unit and a large window (no text or symbols)

• Make sure that the plug and socket remain visible and accessible at all times.
• Do not place any objects in front of the air conditioning unit.
• Never leave a functioning device unsupervised, not even for a moment!
• Do not use the air conditioning unit in the vicinity of flammable or explosive substances or fuels. Never use any paint, cleaning sprays, anti-insect sprays or similar near the unit; this could deform the plastic or cause electrical damage.

• Do not use the appliance:

• close to a fire source;

• close to splashing oil;
• in direct sunlight;
• with splashing water;

• in a bathroom or at a swimming pool.

• Never block the grilles for incoming or outgoing air (not even partially). In order to prevent over-heating, never cover the device!

• Never insert fingers or objects such as pens into the device via the grilles and ensure that the ventilator does not become blocked.
• Children, incapacitated persons and pets should be supervised.

- This appliance is not a toy, so children should not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Avoid children coming into contact or playing with the device.

- Cleaning and user maintenance shall not be made by children without supervision.

- Remove the plug from the socket when you hear strange noises, smell a strange smell, when there is smoke.

- Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts.

- The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.

Electrical safety

- The air conditioning unit is only suitable for indoor use.

- Only use the plug that is installed on the device in the factory and no other form of connector!

- The appliance shall be installed in accordance with national wiring.

- Before use, check that the electrical outlet you want to use is earthed, has no defects, and that the power supply to the electrical outlet corresponds to that on the rating plate of the appliance. Damage caused by a faulty voltage is not covered by the warranty!

- If the appliance is not being used, or if you are cleaning, servicing or moving it, switch it off first and then unplug the appliance. Always move and / or move the device quietly!

- Even when you start using the appliance: firstly plug in the mains, then the switch to the ON position and only then use the control button!

- Do not use the device in a damp or wet environment, near a bath, shower or swimming pool and do not splash water, oil or any liquid on or in the appliance.

- Avoid using extension cords as much as possible. If this is unavoidable, use a cord with sufficient capacity (at least 3 × 1.5 ~mm^2 ) and keep it outside the walking route!

- Do not move the appliance by pulling on the electrical cable and take the plug in your hand if you want to take it out of the socket.

- Do not pull on, deform or modify the electrical cable or immerse it in water. Pulling or misuse of the electrical cable will cause damage to the device and cause an electric shock

- If the electrical cable, plug or the appliance itself is damaged, broken, or malfunctions, do not use it or switch it off immediately and remove the plug from the socket. Device, plug and / or cable must be repaired / replaced by an electrician or similarly qualified person. Repairs by inexperienced people will invalidate the warranty and can cause dangerous situations!

Safety in relation to coolant R290

• This device contains the coolant R290. R290 is a coolant that complies with the relevant European Directives. Never perforate the coolant circuit. R290 is flammable (GWP 3)!
• Never use substances other than those recommended by the manufacturer for the defrosting process.
• This device must be used and stored in a room that does not contain sources of ignition, such as open flames or gas and electrical devices in operation.
• Do not perforate any of the components of the cooling circuit and do not set light to the device
• If the device is installed, working or stored in an un-ventilated you must take measures to prevent fire or explosions caused by leaked coolant. Ensure that there are absolutely no sources of ignition (such as fire, heaters, sparking electrical equipment, lit cigarettes, etc.) in the same room!
• The device must be stored in such a way that mechanical defects are prevented.
• Do not install, operate or store the device in a room smaller than 9.7m^2 .
  • R290 is odourless, which means that you cannot smell leaks!
• Persons working on the cooling circuit must be in possession of the correct qualifications that state the person in question is competent to use coolant in accordance with a special evaluation that is recognised by the sector association.
• The repairs must be executed on the grounds of the recommendations of the manufacturer of the device. Maintenance and repairs that require the assistance of other qualified persons must be executed under supervision of someone who is specialised in the use of flammable coolant.

Maximum effect

• Never exceed the recommended area to be cooled.
• Do not place the unit in the vicinity of a heat source or in direct sunlight.
• Close windows and doors and keep curtains or hatches closed during the sunniest hours in the day
• Keep filters clean
• Modify temperature and ventilation settings once the area has reached the required condition.

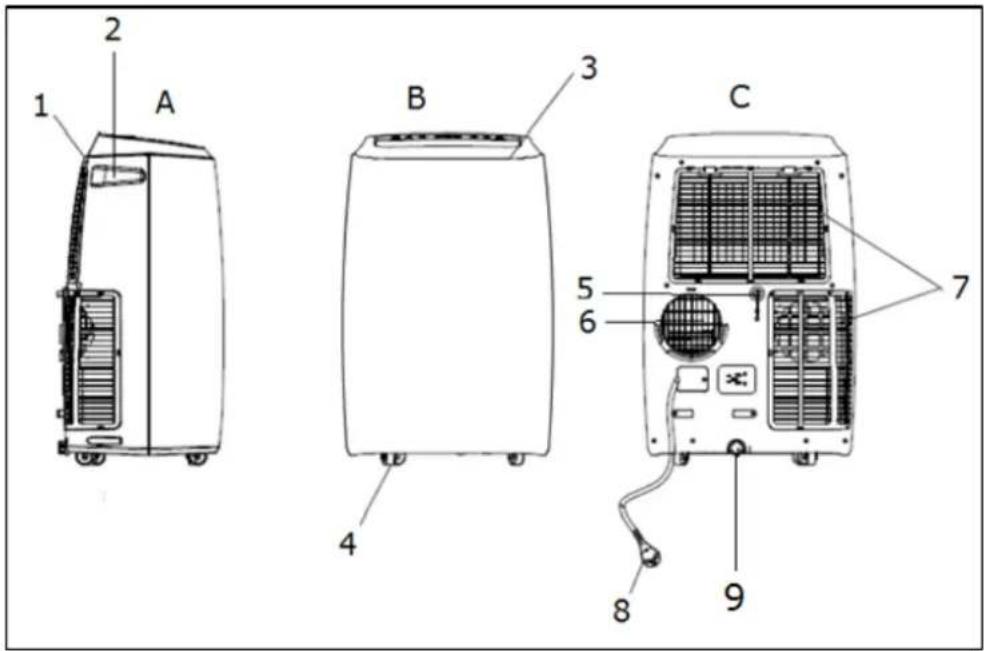

Description

Airconditioning / dehumidifying

A. Side
B. Front
C. Back

1. Panel
2. Handle
3. Controlpanel
4. Caster wheel
5. Water drainage high
6. Air outlet
7. Air inlet
8. Elektrical cable with plug
9. Water drainage low

1 2 A B 3 4 5 6 7 8 9 C

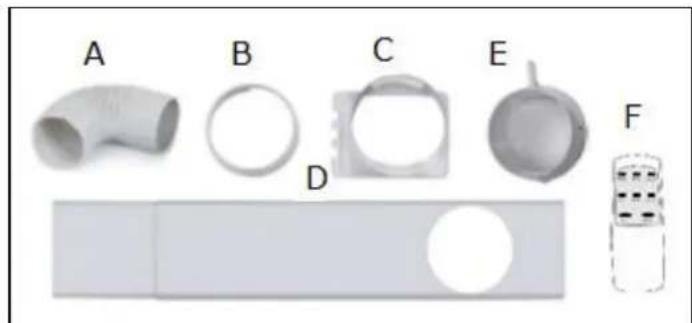

Accessories

A. Outlet hose
B. Connector window panel
C. Connector air conditioner
D. Window panel
E. Cover wall-connection
F. Remote control

Collection of 3D-printed mechanical parts and a plastic component, no text or symbols visible

Installation

The Coolsilent is a mobile airconditioning/dehumidifying units that can be moved from room to room. Install as follows:

• Remove all packaging material, keep it away from children and ensure that the unit remains in an upright position.
• Before use, check that all accessories are present and that there is no damage to the accessories or the unit itself. Do not use a damaged unit; take it back to your supplier!
• Place the unit on a sturdy, flat, dry and horizontal base near an electrical socket and a discharge point for hot air, e.g. a window that can be opened slightly. Make sure that the unit has at least 50 cm of free space on all sides and take all safety instructions into account.

Line drawing of a simple indoor air conditioner unit mounted on a wall, with dimension labels (30CM) indicating height and width (no text or symbols on the device itself)

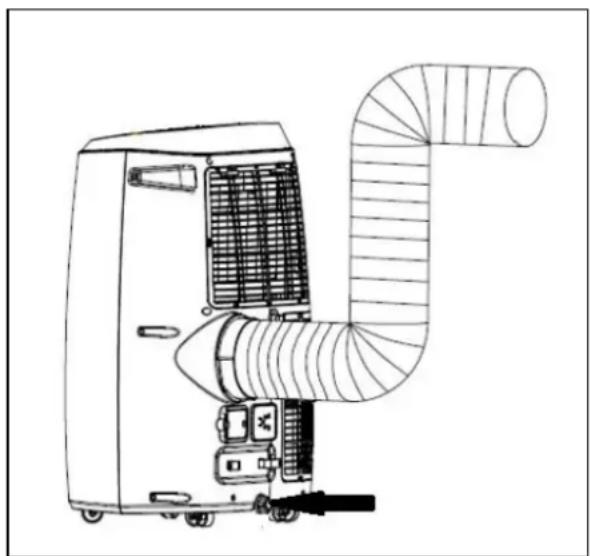

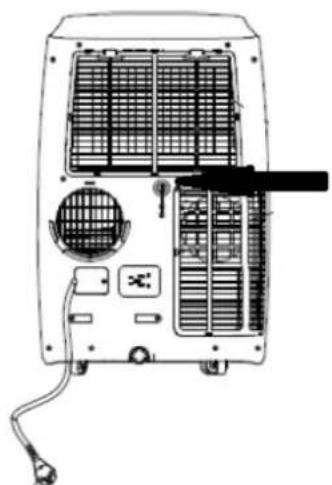

- To use the dehumidification function, connect the water drainage hose to the water drainage point (9). This hose should lead to a bucket or drain. The hose should not run upwards! Your unit is now ready for use.

Technical line drawing of a portable air conditioner unit with cooling fans and ventilation slots (no text or labels)

- In order to use the cooling function, you do not need to connect the water drainage hose. Check that the sealing plugs of the water outlet connections are installed.

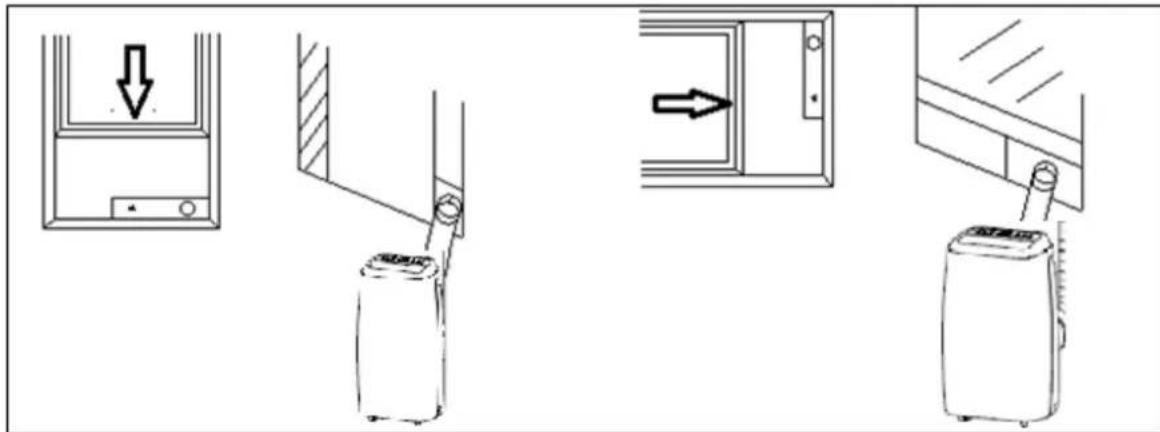

- Place window panel in the window opening, see diagram. The length of the window panel can be adjusted from 67.5 to 123 cm.

- Screw on the connector for the air conditioner on one end and the connector for the

Diagram showing four steps of a refrigerator door opening process: opening, lifting, opening with directional arrow, and lifting the refrigerator.

window panel on the other end of the outlet hose.

- Slide the connector for the air conditioner into the appropriate slot on the rear of the unit.

- Secure the other end of the outlet hose in the window panel opening so that it can remove hot air outside.

- You can also hang the outlet hose out of an open window; this method is less efficient however.

- Avoid bends or pinches in the pipe. These will lead to a build-up of damp, waste air which can cause leaks, overheating or lead to the air conditioning unit switching off.

- Warning! Do not use your air conditioner before it is installed according to the instructions described above!

- Warning! Ensure that no water can enter the device!

- Warning! The length of the drain pipe is specially adapted to the technology of this air conditioning. Do not replace it, therefore, and do not extend it with its own hose, as this can negatively affect the functioning of the air conditioner. The hose can be stretched, but in order to achieve an optimal effect you should keep the length as short as possible.

- Remember your intrusion prevention!

Working

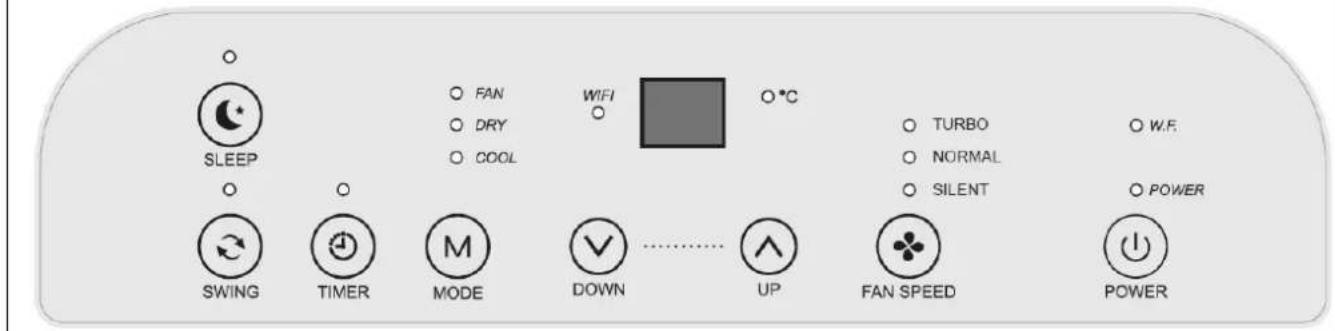

Image controlpanel

SLEEP SWING TIMER MODE DOWN UP FAN SPEED POWER FAN DRY COOL WIFI °C TURBO NORMAL SILENT W.F. POWER

Image remote control

SPEED TEMP+ MODE SLEEP TEMP- TIMER SWING POWER

Button		Funtion
Power		On/Off switch
Mode		Function selectorCool, dehumidify or fan
Timer		Start and stop at a present time
Fan Speed		Set fan speed
Temp + (UP)		Temperatur selection high
Temp - (DOWN)		Temperatur selection low
Sleep		Switch on night function
Swing		Switch on Swing function
W.F. (just controlpanel)		Light 'Tank full' (Water Full)

Before using the air conditioner, check:

• That it has been installed according to safety instructions
• That it is not damaged or broken
• That the electrical socket that you wish to use has the same voltage as is given on the unit's specification plate (220-240V / 50Hz)
• That no other devices are connected to the same socket If this has all been checked, you can insert the plug into the socket.

The control panel en the remote control have basically the same buttons.

At the back of the remote control, insert two batteries (AAA-1.5V) into the appropriate compartment.

Switch the device on with the 'power' button.

1. Cooling function

➢ Press the 'Mode' button until the 'Cool' light is shown on the display.
The display shows 25°C.
➢ Set the required temperature with the Temp+(Up)/Temp-(Down) button. The display shows the configured temperature. The temperature can be set between 16 and 31°C.
➢ Press the 'Speed/Wind' button to set the ventilator speed at silent, normal or turbo.
Observe an interval of at least 3 minutes between every on/off.

2. Dehumidification function

➢ Press the 'Mode' button until the 'Dry' light is shown on the display.
➢ Check if the water discharge is connected correctly (see page 9).
The display automatically shows 2°C below the room temperature.
The temperature cannot be changed.
The ventilator speed is automatically set to normal.
Observe an interval of at least 3 minutes between every on/off.

3. Ventilation function

➢ Press the 'Mode' button until the 'Fan' light is shown on the display.
The display shows 25°C.
➢ Set the power to low (silent), medium (normal) or high (turbo) with the 'Fan Speed' button.
The temperature cannot be changed.

4. Timer function

➢ Start automatically: the air conditioning is off. Press on Timer and select the required time with Temp+(Up)/Temp-(Down). When the display is set at, for instance, 4 the air conditioning will start in 4 hours.
➢ Stop automatically: the air conditioning is on. Press on Timer and select the required time with Temp+(Up)/Temp-(Down). When the display is set at, for instance, 8 the air conditioning will stop in 8 hours.
The timer can be set from 1 to 24 hours.

5. Swing function

➢ Press the 'Swing' button, the light on the display lights up.
The flap on top swings continuously from the top to the bottom.
By pressing the button again you switch off the function.
The flap remains in the last position.

6. Night function

➢ Press on the 'Mode' button until the 'Cool' light shows on the display.
➢ Set the required temperature.
➢ Set the fan speed to silent.

➢ Press the 'Sleep' button, after 1 hour the temperature is reduced by 1^ C and after 2 hours increased by 2^ C.
The device continues operating in this mode.

Water outlet

During the cooling process, the device removes water from the air. This largely evaporates but any excess water is collected in the water reservoir. If the water reservoir in the device is full, the compressor and the motor will stop automatically and the 'water tank full' light (W.F.) will come on. In this event, switch the air conditioning unit off and remove the plug from the socket. Empty the water tank by removing the cap from the water drainage point (see picture) and draining the tank into a drain or receptacle. Do not forget to replace the cap again afterwards! You can then switch the air conditioning unit back on.

When dehumidifying, more water is

removed from the air. This is why you must connect a hose to the water drainage hose during dehumidifying and run this to a drain (at a lower point).

Line drawing of a portable air conditioner unit with ductwork and control panel (no text or symbols)

LED display

The display shows the configured temperature or the timer settings. If the timer function is used then the display briefly shows the new values after which the display returns to the configured temperature.

The display also shows the error codes, see further on in this manual.

Operation via the app

The Cool Perfect WIFI can, via Wi-Fi, also be operated with an app. See the separate app instruction for this.

Additional comments

• When you start the Cool Perfect and opt for a specific function or change function, the ventilator will work but the compressor will not start immediately: the latter to protect the internal components. The symbol that belongs to the configured function blinks on the display, a sign of the 'waiting mode'. This can last 3 to 4 minutes.
• In case of prolonged strong cooling, ice accretion can occur on the interior of the Cool Perfect. You notice this because the device performs less. To solve this you switch off the device and give it time to defrost.
• When the required cooling or heating temperature has been attained, the Cool Perfect will continue ventilating but the compressor discontinues operating.

Safety

The Coolsilent 100 is fitted with an overheating safeguard that switches the unit off if it overheats. If this should occur, you must remove the plug from the socket and leave the equipment to cool for at least 30 minutes. Remove the cause of overheating - has the device been (partially) covered? Is it too close to a wall or another obstacle, preventing it sucking in or dispelling sufficient air?

You can then use the device normally again but keep an eye on it for the first 30 minutes to ensure there are no further problems. If the device is showing signs of problems or the overheating recurs, even though there is no obvious assignable cause, ask your supplier or a recognised electrician to check/repair the unit.

Cleaning and maintenance

Note! Before cleaning or carrying out maintenance work on the air conditioning unit, always switch off and remove the plug from the socket! Regular cleaning is vital in order to keep the unit in good working order!

Cleaning the housing

Use a soft, damp cloth to wipe the housing.

Never use aggressive cleaning products, petrol, detergent, chemically-impregnated cloths or other cleaning solutions. These could damage the housing. Never spray the unit and ensure that water never penetrates the device! Dry the unit with a soft cloth.

Cleaning of the filters

Clean the filters every two weeks; air conditioning with dirty filters does not operate properly. One filter is located behind the air intake grid at the back. You can easily open this grid and remove the filter. The other filter is on the side / rear. Remove both screws on top of the filter for this and remove the filter from the device. Use a vacuum cleaner or tap the filters lightly to remove loose dust and dirt. Then rinse the filters clean in, at most, lukewarm water (not warmer than 40°C.), potentially with a mild, neutral cleaning agent. Let the filters dry thoroughly in the shade before placing them back. Attention! Never operate the air conditioning without filters!

End of season cleaning

If the device is to be stored for a long period, you must take the following measures!

• Remove the condensed water. Run the unit for a few hours on fan function so that the unit is completely dry inside.
• Then switch the air conditioning unit off and remove the plug from the socket.
• Clean the filters and reposition them or replace with a new ones.
• Unscrew the waste pipe from the device in order to prevent damage.
• Pack the air conditioning unit in its original packaging or in a plastic bag and place in a dry place for storage. Place a heavy object on the unit.
• Store the device in a room smaller than 9,7m^2 .

Troubleshooting and Error codes Troubleshooting

The unit does not start if I press the ON/OFF button

• Is the plug in the socket?

• Is the earth leakage circuit breaker engaged? No power?

• Is the water tank full? Empty it.

• The room temperature is lower than the set temperature; amend the set temperature.

The unit doesn't seem to be very effective

• Measure the outlet temperature; this must be approx. 10° cooler than room temperature.
• Is there direct sunlight? Shut the curtains.
• Are windows or doors open? Shut them.
• Are there too many people in the room? They produce heat!
• Is the space too big?
• Is there an object in the room that is generating (a great deal of) heat? Switch it off or remove it.
• Are the filters dusty or covered in dirt? Clean them.
• Is the air inlet or outlet (hose) blocked? Make sure there is free air flow.

The unit is making a noise

• Is the surface underneath the machine sturdy and even?
• The flow of coolant in the unit also produces a little noise. This is perfectly normal.

The unit switches itself off

- The overheating safeguard may have switched the unit off. See 'Safety'.

Error codes

Error code	Cause	What to do
E0	Error temperature sensor	Have it replaced. The unit works without temperature setting.
E2	Wasser tank is full	Switch the unit off and empty it manually. Switch it on again.

Warning: Never attempt to repair the device yourself!

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

CE conformity Statement

Hereby declares

Eurom, Kokosstraat 20, 8281 JC Genemuiden-NL

that the below mentioned

air conditioner/dehumidifier

brand

EUROM, type Coolsilent 100

meets the LVD guideline 2014/35/EU and the EMC guideline 2014/30/EU and complies with the following norms:

LVD 2014/35/EU:

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-40:2003+A11:2004

+A12:2005+A1:2006+A2:2009

+A13:2012

EN 62233:2008

EMC 2014/30/EU:

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

RED 2014/53/EU

Genemuiden 19-12-2018

W.J. Bakker, Alg. Dir.

alaker.

Merci 48

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazardous materials or hazard zones.

Illustration of open books, an open book with an open icon, and an open notebook with a wrench (no text or symbols)

White portable air conditioner unit with closed lid and wheels (no visible text or symbols)

Line drawing of a room interior with a large air conditioner unit and a 30cm dimension label (no text or symbols on the device itself)

Collection of 3D-printed mechanical parts and a plastic bag, no text or symbols present

Installation

Line drawing of a room interior with a portable air conditioner unit connected to a window (no text or symbols)

Line drawing of a portable air heater unit with fan, vent, and control panel (no text or symbols)

Diagram illustrating door lock mechanism with labeled components and directional arrows indicating movement

Line drawing of an air conditioner unit with ductwork and fan (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.
