USER MANUAL PWS 125 D3 PARKSIDE

Translation of the original instructions

NL BE

HAAKSE SLIJPER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

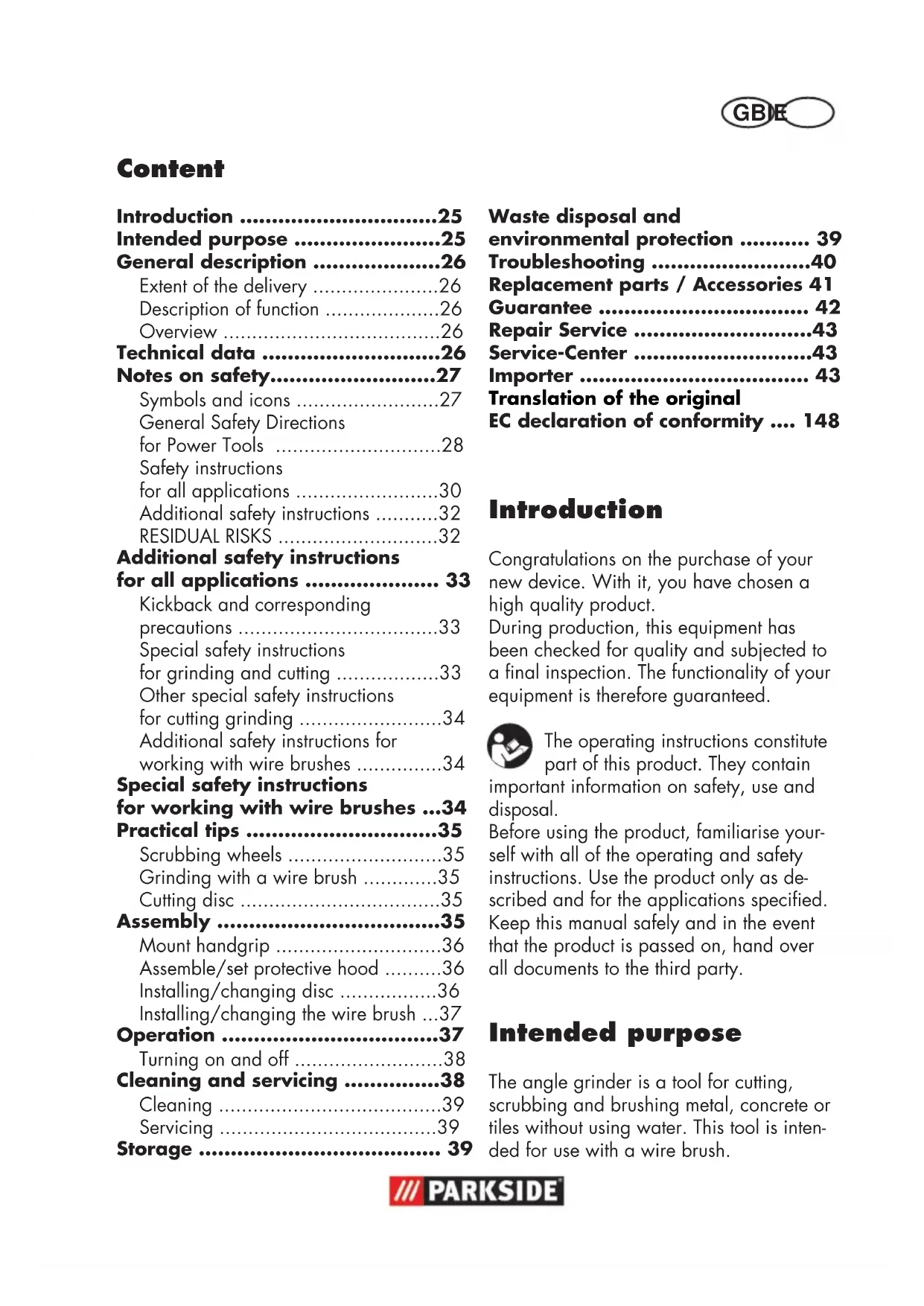

Extent of the delivery 26

Description of function 26

Overview 26

Technical data 26

Notes on safety. 27

Symbols and icons 27

General Safety Directions

for Power Tools 28

Safety instructions

for all applications 30

Additional safety instructions 32

RESIDUALRISKS 32

Additional safety instructions for all applications 33

Kickback and corresponding precautions 33

Special safety instructions for grinding and cutting 33

Other special safety instructions for cutting grinding 34

Additional safety instructions for working with wire brushes 34

Special safety instructions for working with wire brushes ...34

Practical tips 35
Scrubbing wheels 35

Grinding with a wire brush 35

Cutting disc 35

Assembly 35

Mount handgrip 36

Assemble/set protective hood 36

Installing/chang disc 36

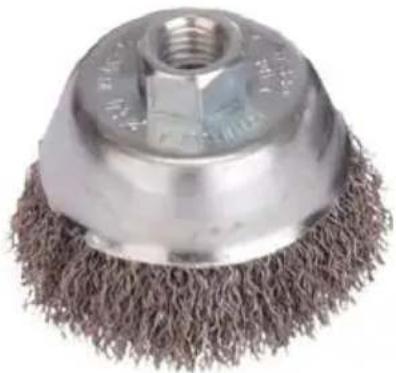

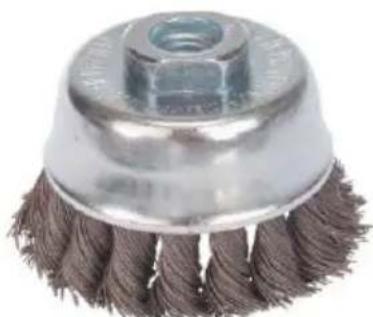

Installing/changing the wire brush ...37

Operation 37 Turning on and off 38

Cleaning and servicing 38

Cleaning 39

Servicing 39

Storage 39

Waste disposal and environmental protection 39

Troubleshooting 40

Replacement parts / Accessories 41

Guarantee 42

Repair Service 43

Service-Center 43

Importer 43

Translation of the original EC declaration of conformity .... 148

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain

important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The angle grinder is a tool for cutting, scrubbing and brushing metal, concrete or tiles without using water. This tool is intended for use with a wire brush.

GBE

The device is not intended for any other types of applications (e.g. grinding with unsuitable grinding tools, grinding with a coolant solution, grinding or cutting hazardous materials such as asbestos). The device is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The tool is to be used by adults. Children over the age of 16 may not use the tool except under supervision. The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

General description

See the front fold-out page for illustrations.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Device
• Handgrip
• Protective hood
• Chuck key
• Cutting disc
• Carbon brushes
• Instructions for use

Description of function

The angle grinder is made for cutting, scrubbing or brushing metal. There is a special disc for each of the separate applications. Please refer to the information from the disc manufacturer.

Please refer to the descriptions below for information about the operating devices.

Overview

1 Handgrip

2 Threads for handgrip
3 Speed regulator
4 Switch block
5 On/off switch
6 Maintenance coverage
7 Screw
8 Threads for handgrip
9 Spindle stop button
10 Power plug
11 Cutting disc
12 Carbon brushes
13 Chuck key
14 Protective hood

15 Mounting flange

16 Clamping nut
17 Mounting spindle

18 Adjustment nut

19 Tightening lever

20 Compression spring

21 Carbon brush
22 Groove for compression spring
23 Connection
24 Contact shoe
25 Contact plug

Technical data

Angle grinder PWS 125 D3:

Rated input voltage ...230-240 V~, 50 Hz
Power input 1200 W

ldling speed (n)3000-12000 min Dimensions of the cutting/

roughing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . thickness of the cutting/

roughing discs .max.6 mm Grinding spindle thread..M14

Thread length

of the grinding spindle... max. 12 mm

Safety class

Protection category IP 20

Sound pressure level

(L_pA) 93,2 dB(A); K_pA = 3 dB

The vibration values represent maximum values which have been determined with the supplied blade. The actual vibration values may vary depending on the used accessories.

The vibration values are still affected by the handling for the user's.

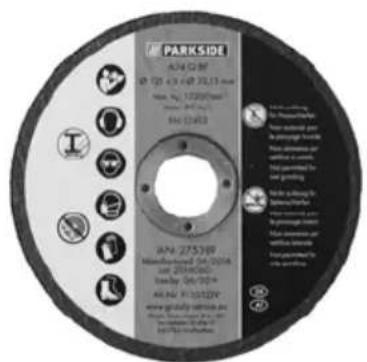

Cutting disc (included):

ldling speed n. 12200 min

Disc speed max. 80m / s^

Outer diameter 125 mm

Bore hole 22,23 mm

Thickness 3 mm

• The grinding disc must keep a rotational speed of 80 m/s.

Levels of noise and vibration were determined according to the norms and regulations in the declaration of conformity.

The vibration emission value has been measured according to a standardised testing method and may be used for comparison with another electric tool.

The indicated vibration emission value may also be used for an introductory assessment of the exposure.

Warning:

The vibration emission value whilst actually using the electrical tool may vary from the given values independently of the type and way in which the electric tool is used.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual exposure under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the electric tool is turned off, and those during which it is turned on but running without a load).

Notes on safety

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire. Please read all these instructions before using this electric tool and please keep the safety instructions.

Symbols and icons

Symbols on the device:

Warning!

Risk of injury from the rotating tool! Keep hands away.

Warning! Electric shock hazard. Always unplug the device before working on it.

Read the manual!

Wear ear protection

Wear eye protection

Wear breathing protection

Risk of cuts! Wear cut-resistant gloves.

Safety class II

Electrical machines do not belong with domestic waste.

Other symbols on the cutting disc:

Do not use for side grinding

Do not use for wet grinding

Do not use defective discs

Suitable for metal

Wear safety shoes

Symbols used in the instructions:

Hazard symbols with information on prevention of personal injury and property damage

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

General Safety Directions for Power Tools

WARNING! READ ALL SAFETY DIRECTIONS AND INSTRUC

TIONS. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety :

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety :

CAUTION! The following states how to avoid accidents and injuries due to electric shock:

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water

entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Use a circuit breaker with a current limit of 30 mA or less.

Personal safety:

CAUTION! The following states how to avoid accidents and injuries:

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
  If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care :

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery

GBE

pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service:

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for all applications

Common safety instructions for grinding, working with wire brushes and cutting grinders:

• This electric tool is to be used as a grinder, wire brush and cutting grinder. Follow all safety instructions, directives, illustrations and facts which you receive with the device. If you do not follow these instructions, an electrical shock, fire and/or serious injury may occur.
• This electric tool is not suitable for sanding and polishing. Using the electric tool in ways for which it is not intended may cause hazards and injuries.
• Do not use any accessories that are not specifically intended and recommended for this electric tool by the manufacturer. Simply because an accessory can be attached to your electric tool does not guarantee safe operation.
• The allowable rotation speed of the attachment tools must be at least as high as the highest rotation speed indicated on the electric tool. Accessories that run faster than the allowable speed can break and fly apart.
• The outside diameter and thickness of the attachment tool must correspond to the dimensions indicated for your electric tool. Attachment tools which are wrongly dimensioned cannot be sufficiently shielded or controlled.
• Attachment tools with threaded attachment must fit the threading of the grinding spindle ex

actly. For attachment tools which are mounted through a flange, the diameter of the hole in the attachment tool must fit the mounting diameter of the flange.

Attachment tools which cannot be precisely attached to the electric tool turn unevenly, vibrate very strongly and can ultimately lead to a loss of control.

• Never use damaged attachment tools. Check attachment tools such as grinding discs for chipping or cracks, grinding plates for cracks, wear or strong abrasion and wire brushes for loose or broken wires before using them. If the electric tool or the attachment tool falls off, check whether it is damaged or, use an undamaged attachment tool. If you have checked the attachment tool and attached it, keep yourself and any nearby persons beyond the level of the rotating attachment tool and allow the device to run for 1 min. at the highest rotational speed. Damaged tools usually break during this test period.

• Wear personal safety equipment. Depending on the application, use full face shields, eye protection or safety goggles. In so far as it is appropriate, wear dust masks, ear protection, gloves or special aprons which keep small grinding and material particles away from you. Eyes should be protected from the foreign matter which can be caused to fly during the various applications. Dust or breathing masks should filter the dust that is created during operation. If you are exposed to loud noise for a long time, you may suffer hearing loss.

• Ensure that other people are at a safe distance to your working area. Anyone who enters the working area should wear personal protective equipment. Broken bits from the piece being worked or broken attachment tools can fly away and cause injuries even beyond the direct working area.

• Hold the electric tool only by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

• Keep the cord away from the rotating attachment tool. If you lose control of the device, the power cord can become separated or caught and your hand or arm may be pulled into the rotating attachment tool.

• Never put the electric tool down before the attachment tool has come to a full stop. The rotating attachment tool can come into contact with the surface upon which it is set, whereby you could lose control of the electric tool.

• Never allow the electric tool to run while you are carrying it. Your clothing may accidentally come into contact with the rotating attachment tool and get caught and the attachment tool could drill into your body.

• Clean the ventilation slots of your electric tool routinely. The motor air pulls dust into the housing and, should too much metallic dust collect, could cause electrical hazards.

• Never use the electric tool near flammable material. Sparks could ignite this material.

GBE

• Do not use attachment tools which require liquid coolant.

Using water or another liquid coolant could lead to electrical shock.

Additional safety instructions

• Connect the appliance only to a power socket with a residual current circuit breaker of rated residual current no more than 30mA .
• Keep power cords and extension cords away from the disc. If they are damaged or cut through, immediately pull the plug from the outlet. Do not touch the cable before it has been disconnected from the power supply. Risk of electric shock!
  If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.
• Only use grinding discs where the indicated rotational speed is at least as high as what has been specified on the name plate of the device.
• Carry out a visual inspection of the grinding disc before use. Do not use any damaged or deformed grinding discs. Replace any damaged or worn grinding discs.
• Make sure that the sparks produced by grinding do not present a danger, e.g. reach people or ignite flammable substances.
• Always wear safety goggles, safety gloves, respiratory protection and ear protection when grinding, brushing and cutting.

• Never keep the fingers between the grinding disc and spark protection or in close proximity to the protective hoods. There is a risk of crushing.

• The rotating parts of the device cannot be covered due to functional reasons. Therefore, proceed cautiously and hold the workpiece firmly in order to avoid slipping which could cause your hands to come into contact with the grinding disc.

• The workpiece gets hot during grinding. Do not touch the machined area, allow it to cool down. There is a risk of burning. Do not use coolants or the like.
  If you are tired or have consumed alcohol or tablets, do not work with the device. Always have a break on time.

• Switch the device off and remove the mains plug

• to loosen a blocked insertion tool,

• if the connection line is damaged or entangled,
• in case of unusual sounds.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Lung damage if suitable respiratory protection is not worn.
b) Hearing damage if suitable ear protection is not worn.
c) Damage to health due to

• touching the area of the grinding tool which is not covered;
• ejection of parts of workpieces or damaged grinding discs.

d) Health injuries which result from swinging hand and arm, in the event that the device is used over a longer period of time or is not used and maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain

circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Additional safety instructions for all applications

Kickback and corresponding precautions

Kickback is the sudden reaction from a chopping or blocked grinder attachment such as a grinding disc, grinding plate, wire brush etc. Chopping or blocking leads to sudden stopping of the rotating attachment. This causes an uncontrolled electric tool to accelerate in a direction counter to the rotational direction of the attachment tool. If, for example, a grinding disc cuts into the workpiece or blocks it, the edge of the grinding disc that digs into the workpiece can get caught and, through that, break off the grinding disc or cause a kickback. The grinding disc then moves towards or away from the operator, depending on the direction of rotation of the disc at the blocked spot. Here, the grinding discs can also break. A kickback is caused by wrongly or incorrectly operating the electric tool. It can be avoided by suitable cautionary measures, such as described below.

a) Hold the electric tool very firmly and bring your body and your arm into a position in which you can resist the kickback force. Always use the supplemental handle if available to give you the best control over kickback force or reaction time during acceleration. The operator

can master the kickback and reaction force through suitable precautions.

b) Never bring your hands near a rotating attachment tool. The attachment tool can run over your hand in the kickback.
c) Keep your body away from the area in which the electric tool would move during a kickback. The kickback drives the electric tool in the counter-direction to the rotation of the grinding disc at the blocked spot.
d) Work particularly cautiously in corner areas or where there are sharp corners etc. Prevent the attachment tools from recoiling from the workpiece and jamming. The rotating attachment tool tends to jam when near corners, sharp edges or when it recoils from such. This causes a loss of control or kickback.
e) Do not use chain or toothed saw blades. Such attachment tools frequently cause a kickback or loss of control over the electric tool.

Special safety instructions for grinding and cutting

a) Use only grinders which have been approved for your electric tool and the protective hood intended for these grinders. Grinders which are not intended for the electric tool may not be sufficiently shielded and are unsafe.
b) Depressed Center grinding wheels must be pre-assembled so that their surface not above the level of the edge of the guard stands out. An improperly mounted grinding wheel, which extends beyond the level of the edge of the guard, not sufficiently shielded.
c) The protective hood must be securely attached to the electric tool and adjusted so that the greatest level of safety is reached, i.e., the smallest possible

GBE

amount of the grinder is exposed to the operator. The protective hood should protect the operator from broken bits and accidental contact with the grinder.

d) Grinders may only be used for the recommended attachment options. For example: Never grind with the side surface of a cutting disc. Cutting discs are for cutting material using the edge of the disc. Pushing sideways on these grinders can break them.
e) Always use undamaged clamping flanges of the correct size and shape for the grinding disc you selected. Suitable flanges support the grinding disc and thus reduce the danger of the grinding disc breaking. Flanges for cutting discs can be distinguished from flanges for other grinding discs.
f) Do not use worn grinding discs for larger electric tools. Grinding discs for larger electric tools are not set up for the higher rotation speeds of smaller electric tools and can break.

Other special safety instructions for cutting grinding

a) Avoid blocking the cutting disc or pressing down too hard. Do not make any excessively deep cuts. Overloading the cutting disc increases wear and its tendency to tilt or block and, with that, to kickback or break the grinder.
b) Avoid the area in front of and behind the rotating cutting disc. When you move the cutting disc by itself in the workpiece, in the event that the electric tool kicks back with the rotating disc, it can spin directly towards you.
c) If the cutting disc jams, or you interrupt your work, switch the device off and hold it until the disc has come to a full stop. Never try to pull the cutting disc

out of the cut while it is still running, because it can kick back. Identify and correct the cause of the jamming.

d) Do not switch the electric tool on again as long as it is in the workpiece. Allow the cutting disc to first reach its full rotational speed before you carefully resume with the cutting. Otherwise, the disc may catch, spring away from the workpiece or cause a kickback.
e) Support plates or workpieces to reduce the risk of kickback from a jammed cutting disc. Large workpieces may bend under their own weight. The workpiece must be supported on both sides of the disc, near the cutting disc as well as also at the edge.
f) Be particularly careful for pocket cuts in existing walls or other areas where you cannot see what is there. The cutting disc may cause a kickback when it cuts into gas or water lines, electrical lines or other hidden objects.

Additional safety instructions for working with wire brushes

Special safety instructions for working with wire brushes:

• Be aware that the wire brushes also lose wire pieces during typical use. Do not overload the wires by pressing down too hard. Flying wire pieces can very easily penetrate thin clothing and/or your skin.
• If a protective hood is recommended, do not allow the wire brushes and the protective hood to touch each other. The diameter of plate and cup brushes can enlarge if too much pressure and centrifugal force is exerted.

Practical tips

When selecting the tool, ensure that its specified permissible rotation speed is at least as high as the maximum rotation speed specified on the angle grinder.

When selecting the disc, pay attention to the maximum permissible diameter and the maximum permissible thickness.

Pay attention to the thread size M14 when selecting the brush.

Scrubbing wheels

Never use a cutting wheel for scrubbing!

The device must only be operated with the protective hood mounted when the rough grinding wheel is used.

Exert only moderate pressure on the workpiece. Move the device evenly back and forth.

A working angle of 30^ to 40^ achieves the best results for scrub grinding.

Grinding with a wire brush

Ensure that you observe the permissible speed when selecting the wire brush. The permissible rotation speed of the wire brush must be at least as high as the highest rotation speed indicated on the angle grinder.

Wear protective goggles: wires may become released!

Suitable for rough rust removal, cleaning weld seams and removing paint.

Press the wire brush with medium force onto the workpiece to be processed. Do not exert excessive strain on the wire brush by pressing down too hard.

Cutting disc

Never use a scrubbing wheel for cutting!

The device must only be operated with the protective hood mounted when the cutting disc is used.

Only certified, fibre-reinforced cutting or grinding discs may be used.

In general, work with small scrubs. Exert only moderate pressure on the workpiece.

Always work in the counter-direction. This ensures that the device is not pushed out of the cut through lack of control.

Assembly

Caution! Risk of injury!

Ensure that you have sufficient space in which to work, and that you do not endanger other people.

• All hoods and protective devices must be assembled properly before commissioning.

• Disconnect the mains plug before changing the setting on the device

Mount handgrip

The device must only be operated with the handgrip mounted.

Depending on the method of working, tighten the handgrip (A 1) on to the handgrip thread on the left (A 8), right (see illustration A) or top (2) of the device.

Assemble/set protective hood

Adjust the protective hood such that any sparks or detached parts cannot hit either the user or any bystanders.

The protective hood must also be positioned such that the sparks cannot ignite combustible parts, including those in the surroundings.

1. Press the spindle stop button (A 9).
2. Turn the mounting spindle (B 17) until the spindle lock fixed the mounting spindle. Keep and continue to hold down the spindle lock button (A 9)
3. Release the clamping nut (B 16) with the chuck key (A 13). You can release the spindle lock button (A 9).
4. Take off the locknut (B 16) and the adapter flange (B 15) from the spindle flange (B 17).
5. Open the tightening lever (C 19).
6. Place the protective hood (A 14) on the positioning holes.
7. Turn the protective hood (A 14) into the working position. The closed side of the protective hood must always face the operator.

8. Close the tightening lever (C 19) again. The protective hood should not be able to be turned any more.

9. Install the locknut (B 16) and adapter flange (B 15) in reverse order.

10. Readjust the position of the protective hood if you find during use that it does not provide optimum protection.

If needed, the tension on the adjustment nut (C 18) can be set. Use the chuck key (A 13) for this.

Installing/changing disc

1. Press the spindle stop button (9).
2. Turn the mounting spindle (17) until the spindle lock fixed the mounting spindle. Keep and continue to hold down the spindle lock button (9)
3. Release the clamping nut (16) with the chuck key (13). You can release the spindle lock button (9).
4. Set the desired disc onto the mounting flange (B 15). label on the disc should always face the device.

If the rotary direction is indicated on your disc, ensure that it corresponds to the rotary direction of the angle grinder when mounting. This is indicated on the device next to the spindle stop button (9)

Ensure that the flange (15) is placed on the device in such a way that the recesses in the flange grip into the edge of the device. The mounting spindle (B 17) must turn simultaneously when you turn the flange.

1. Set the clamping nut (16) on the mounting spindle (17) again. The flat side of the clamping nut must face the attach

ment tool if the thickness of the disc receptor is < 5mm

If the thickness of the disc receptor is ≥ 5 mm, turn the clamping nut.

See illustration B.

1. Press the spindle stop button (9) and turn the mounting spindle (17), until the spindle toggle button holds the spindle flange in a fixed position. Pull the clamping nut (16) tight again using the chuck key (13).

You can let go of the spindle lock button (9).

Installing/changing the wire brush

1. Press the spindle stop button (9).
2. Turn the mounting spindle (17) until the spindle stop button holds the mounting spindle in a fixed position. Keep the spindle stop button (9) depressed.
3. Release the wire brush with a combination wrench (not included in the scope of delivery). You can now release the spindle stop button (9).
4. Place the desired wire brush onto the mounting spindle.
5. Press the spindle stop button (9) and rotate the wire brush on the mounting spindle (17). Tighten the wire brush using a combination wrench. You can now release the spindle stop button (9).

Operation

Caution! Risk of injury!

ways remove the mains plug before working on the tool.

Only use grinding discs and accessories recommended by the manufacturer. Using other attachment tools and other accessories can represent a risk of injury for you.

Only use accessory parts which bear information about the manufacturer, type of connection, dimension and permitted number of revolutions.
- Only use accessory parts where the printed rotational speed is at least as high as what has been specified on the name plate of the device.
- Do not use any broken, cracked, or otherwise damaged grinding discs.
- Never operate the device without protective equipment.
Support the plates or workpieces in order to reduce the risk of kickback from a jammed cutting disc. Large workpieces may bend under their own weight. The workpiece must be supported on both sides of the disc, not only near the cutting disc, but also at the edge.

Keep your hands away from the disc when the device is in operation. Risk of injury.

Information on replacement:

Never operate the device without protective equipment.

• Ensure that the rotation speed stated on the tool is the same or higher than the nominal idle speed of the device.
• Ensure that the tool dimensions match those of the device.
• Only use flawless discs (ringing test: when you strike the grinding disc with a plastic hammer, it results in a clear sound).
• Never re-drill a locating hole which is too small to make it larger.

GBE

• Never use separate bushings or adapters in order to make grinding discs with a hole that is too large fit the device.
• Do not use any saw blades.
• To clamp the grinding tools only use the clamping flange provided. The pads between the clamping flange and the grinding tools must be made of elastic materials e.g., rubber, soft cardboard etc.
• Reassemble the device completely after replacing the tool.

Switch the device off and remove the mains plug. Allow the device to cool down.

Wear protective gloves when changing the tool so as to avoid injuries from cuts.

The clamping nut must not be screwed too tightly so as to avoid breaking the disc and nut.

Turning on and off

Make sure that the power supply voltage matches the voltage rating indicated on the device's type plate.

Connect the machine to the power supply.

1. Press the on switch (A 4) to start the device. Press the on/off switch (A 5).
2. To turn it off, release the on-off button. The device turns off.

After switching on the device, wait until the device has reached its max. speed. Only then should you start with the work.

The tool still runs even after the device has been switched off. Risk of injury.

Trial run:

Always carry out a trial run without a load before carrying out your first procedure as well as after every tool change. Switch the device off immediately if the tool is not rotating smoothly, if considerable vibration occurs, or if you hear abnormal noises.

Cleaning and servicing

Pull the mains plug before any adjustments, maintenance or repair.

Have any work on the device that is not described in this instruction guide performed by a professional. Only use original parts. Allow the device to cool off before any maintenance or cleaning is undertaken. There is a risk of burning!

Always check the device before using it for obvious deficiencies such as loose, worn or damaged parts, correct the positioning of screws or other parts. Examine the grinding disc in particular. Exchange the damaged parts.

Cleaning

Do not use any cleaning agent or solvent. Chemical substances can etch the plastic parts of the device. Never clean the device under running water.

Thoroughly clean the device after every use.
- Clean the ventilation openings and the surface of the device with a soft brush or cloth.

Servicing

Replacing carbon brushes

Switch off the appliance and disconnect the power supply. Let the appliance cool down.

1. Loosen the screw (A7) of the maintenance cover (A6).
2. Remove the maintenance cover (A 6).
3. Lift the compression spring (20) out of the groove for the spring (22) the carbon brush (21).
4. Remove the contact plug (25) of the contact shoe (24).
5. Pull out the brush (21) from the guide.
6. Insert a new carbon brush (21) into the guide.
7. Place the connector (23) in a bow in the groove for the compression spring (22) past. Lead the connector (23) through the side opening of the leadership.
8. Slide the contact plug (25) on the contact shoe (24).

9. Replace the compression spring (20) on the nut of the compression spring (22) the carbon brush (21).

10. Reattach the screw (A 7) the maintenance cover (A 6)

11. Repeat the procedure 1 to 10 on the other side of the unit. The carbon brushes are always in pairs to share.

Storage

• Store the appliance in a dry place well out of reach of children.
  Grinding discs must be dry and stored upright and should never be stacked.

Waste disposal and environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electrical machines do not belong with domestic waste.

• Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
  Defective units returned to us will be disposed of for free.

Troubleshooting

Always unplug the shredder before working on it. Risk of electric shock!

Problems Possible Cause Error correction
Device doesn't start	Mains voltage missingMain circuit breaker is tripped	Check the socket, mains cable,line, mains plug, repairs to be carried out by qualified electrician if necessary, check main circuit breaker.
	On/off switch (A 5) may be defective	Repair by Customer Care
	Engine faulty
Grinding tool does not move although the engine is running	Grinding disc nut is loose	Tighten grinding disc nut (see „Changing disc“)
	Workpiece, remaining workpieces or remaining grinding tools block drive	Remove blockages
Engine is slower and stops	Device is overloaded through workpiece	Reduce pressure on grinding tool
		Workpiece unsuitable
Grinding disc does not rotate smoothly, abnormal noises can be heard	Grinding disc nut is loose	Tighten grinding disc nut (see „Changing disc“)
	Grinding disc is defective Change grinding disc	grinding disc

Replacement parts / Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 43). Please have the order number mentioned below ready.

Cutting disc Item.-No.: 91103229

Cup brush, crimped wire Item.-No.: 91103213

ldling speed _0 max.12200 min Disc speed max.80 m/s Outer diameter 125 mm Bore hole .22,23 mm Thickness cutting/roughing discs max.6 mm

ldling speed _0 max.12500 min1
Disc speed max.52 m/s
Spindle thread .M14

Cup brush, braided wire Item.-No.: 91103214

ldling speed _0 max.12500 min Disc speed max.50 m/s Spindle thread .M14

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. grinding disc, the clamping flanges) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 287952) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
  After consultation with our customer service, a product recorded as defective

can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB

Service Great Britain

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 287952

IE

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 287952

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Puisance absorbee 1200 W

Vitesse de rotation

Translation of the original EC declaration of conformity
We hereby confirm that the Angle Grinder Design Series PWS 125 D3 Serial Number 201803000001 - 201803221177 conforms with the following applicable relevant version of the EU guidelines :
2006/42/EC • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN 60745-2-3:2011/A13:2015 EN 55014-1:2006/A2:2011 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 30.03.2018	Christian Frank (Documentation Representative)

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
