USER MANUAL FR 30 SM 45 BC TOUCH Ghibli & Wirbel

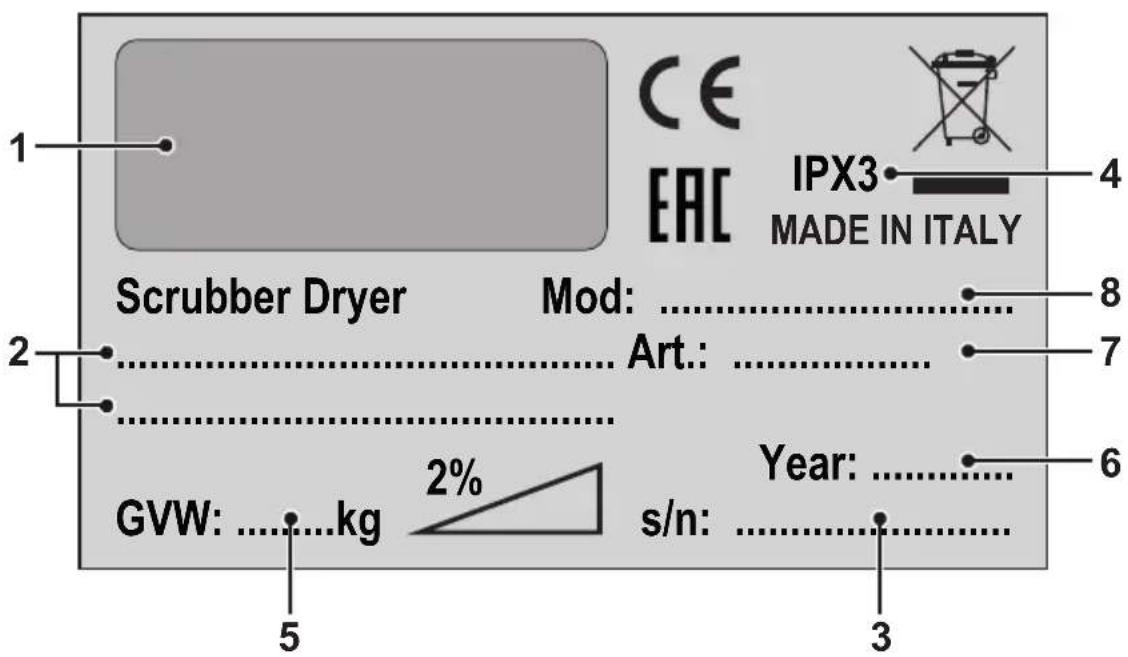

Manufacturer Electrical characteristics Serial N° Degree of protection

Weight in running order Year of manufacture Item code Model

Dear Customer, Thank you for choosing one of our cleaning products. The floor scrubber dryer that you have purchased has been designed to satisfy the user in terms of ease of use and reliability over time. We are aware that in order for a good product to stay that way, over time, it requires continuous updates aimed at meeting the expectations of those who use it on a daily basis. For this reason, we hope that you will not only be a satisfied customer but also a partner who does not hesitate to give us your opinions and ideas originating from your personal day-to-day experience. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 1 02/03/18 08:36www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

5.1.a Charging the battery using the on board battery charger (if present) EN-6

• The washing width is intended with the machine operating and the brush pressed down. Type of use Operator on ground Characteristics Power supply Battery Power supply voltage See technical data plate Installed load 600 W Forward movement Manual Washing width * 430 mm Drying width 650 mm Theoretical hourly working capacity 1720 m

Front rubber wiper element 39.0129.00 Rear rubber wiper element 39.0130.00 Optional accessories

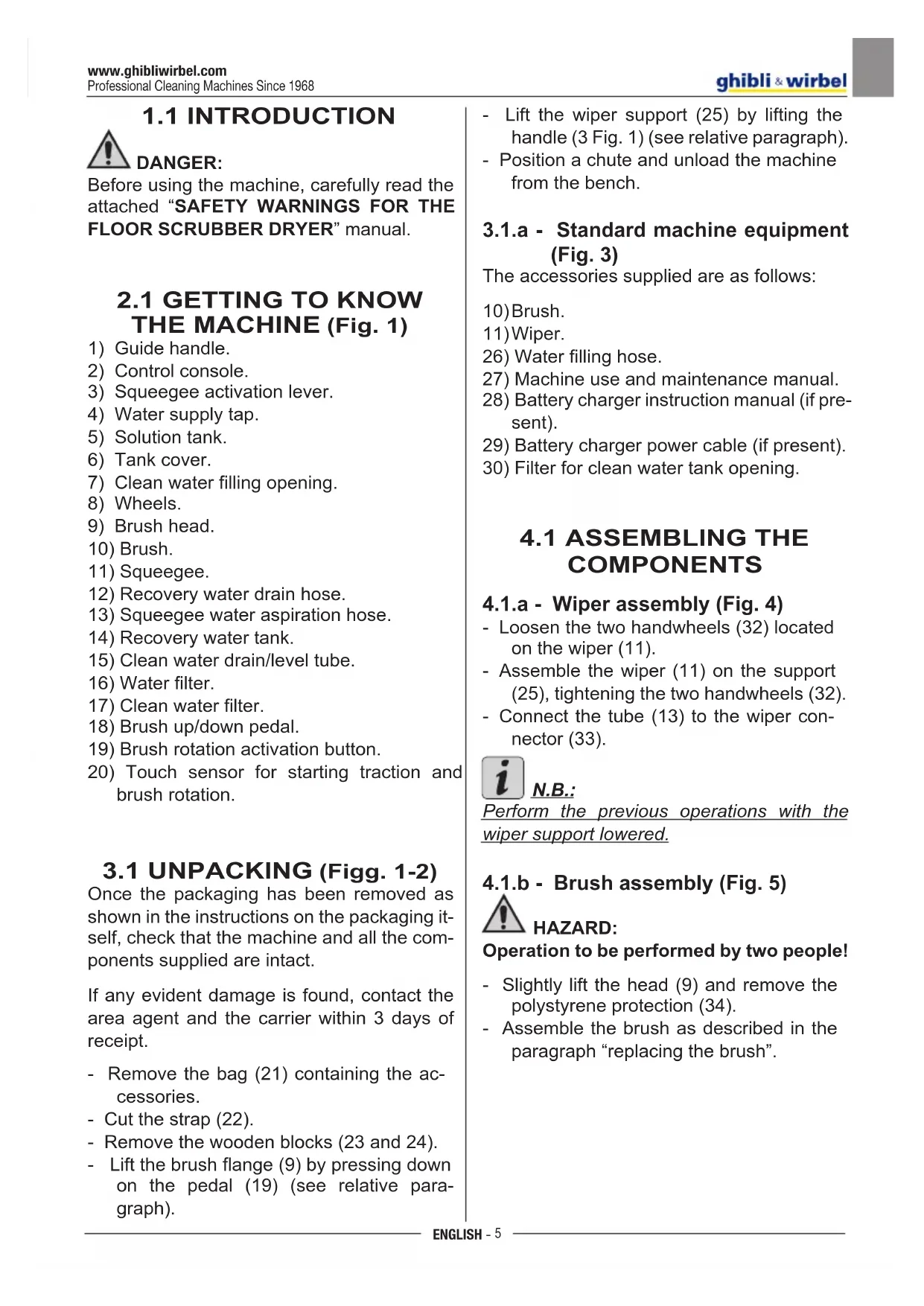

Before using the machine, carefully read the attached “SAFETY WARNINGS FOR THE FLOOR SCRUBBER DRYER” manual.

7) Clean water filling opening.

12) Recovery water drain hose.

20) Touch sensor for starting traction and

3.1 UNPACKING (Figg. 1-2)

Once the packaging has been removed as shown in the instructions on the packaging it- self, check that the machine and all the com- ponents supplied are intact. If any evident damage is found, contact the area agent and the carrier within 3 days of receipt. - Remove the bag (21) containing the ac- cessories. - Cut the strap (22). - Remove the wooden blocks (23 and 24). - Liftthebrushange(9)bypressingdown on the pedal (19) (see relative para- graph). - Lift the wiper support (25) by lifting the handle (3 Fig. 1) (see relative paragraph). - Position a chute and unload the machine from the bench.

3.1.a - Standard machine equipment

(Fig. 3) The accessories supplied are as follows:

28) Battery charger instruction manual (if pre-

30) Filter for clean water tank opening.

- Loosen the two handwheels (32) located on the wiper (11). - Assemble the wiper (11) on the support (25), tightening the two handwheels (32). - Connect the tube (13) to the wiper con- nector (33). N.B.: Perform the previous operations with the wiper support lowered.

4.1.b - Brush assembly (Fig. 5)

HAZARD: Operation to be performed by two people! - Slightly lift the head (9) and remove the polystyrene protection (34). - Assemble the brush as described in the paragraph “replacing the brush”. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 5 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

4.1.c - Installing and connecting the

THE CLEAN WATER TANK ARE EMPTY. - Disconnect the plug (35). - Press the button (36) and lift the tank (14) until completely overturned. - Position the batteries (37) as shown in thegureandconnectthemasshownon the chart in Fig. 6 using the cables sup- plied. - Tighten the terminals (38) using an insu- lated wrench. - Lower the tank (14) until a coupling “click” is heard. - Connect the plug (35) to the relevant socket (39). N.B.: The battery must be connected by special- ised personnel.

Charge the batteries in rooms which are well-ventilated and comply with applica- ble regulations in the country of use. For safety-related information, follow what is described in chapter 1 of this manual.

For information and warnings about the battery and on board battery charger (if present) follow what is described in the battery charger manual enclosed with this document.

When the machine leaves the factory, it is calibrated to operate with gel batteries. If other types of batteries are installed, see the paragraph “Parameter setting”. The use of gel batteries with calibration for acid or other batteries is prohibited. NOTE: 10 hours are needed for complete battery charging. Avoid partial recharges.

5.1.a - Charging the battery using the

on board battery charger (if present) (Fig. 7) - Move the machine close to a mains elec- tricity socket.

It is important to first connect the cable (41) to the socket (42) and then connect the cable (41) to the power socket. - Take the cable (41) from its seat and con- nect it to the socket (42) on the machine, then connect the other end to the mains power socket. - Check that the green LED (43) flashes 2 times and then goes from the color “Green” to continuously lit “Red”.

Make sure that the mains electrical volt- age is compatible with the battery charg- er’s operating voltage (230 Vac for the Eu- ropean market; 115 Vac for the American market; 50/60 Hz). - Leave the batteries to charge until the “Green” LED (43) lights up, then remove the power cable (41) and put it away. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 6 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

noid Press the switch (47), it enables the rota- tion of the brush and the opening of the solenoid valve; the operation of the same is controlled by the sensor (20). To stop the supply of water, close the tap (4).

4) Water quantity adjustment tap

- Turn the tap (4) counter-clockwise to increase the quantity of water or turn it clockwise to decrease it.

48) Status indicator battery discharge

Lights when the switch (45) is pressed, indicating the charge status of the bat- tery. - When the LED (49) is illuminated, it in- dicates that the battery charge status is at maximum. - When the LED (50) is illuminated, it in- dicates that the battery charge status is at about half. - When the LED (51) is illuminated (red LED), it indicates that the battery charge status is at minimum. With low battery (red LED (51) lit), the machine turns off or does not start; it is necessary to recharge the battery.

5.1.b - Charging the battery using an

external battery charger (Fig.

It is important to first connect the plug (35) to the socket (44) of the battery charger and then connect the battery charger to the mains socket, otherwise the batteries will not charge. - Move the machine close to the battery charging station. - Remove the battery plug (35) from the system socket (39). - Connect the battery plug (35) to the ex- ternal battery charger socket (44). - Once battery charging is complete, re- connect the battery plug (35) to the sys- tem socket (39).

Acting on the sensor (20), with the switch (45) “ ” and the switch (52) “ ” in- serted, it starts the rotation of the brush and the water supply.

Pressing the switch to “I”, it inserts volt- age to the circuits, enabling commands and their switches. To remove power to the circuits, repress the switch.

46) Aspirator start switch “ ”

The operation of the switch is enabled from the switch (45) “ ” in position “I”. Press the switch (46) “ ”, starts the op- eration of the vacuum cleaner. To turn off the fan, press the switch (46), the turbine will continue to function for a few seconds in order to aspirate the liq- Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 7 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

AMPLE (Fig. 9) Setting a washing cycle with brushes and drying. - Press the switch (47) to enable the rota- tion of the brush and the water supply. - Press the switch (46) to start the vacuum cleaner.

Only add clean mains water to the tank at a temperature no greater than 50°C. - Remove the hose (26) supplied, connect one end (31) to a tap and insert the other end (52) in the tank (5). - Check that the tap (53) is open. - Turn on the tap and fill the tank (5). - The level of water contained in the tank is displayed on the transparent tube (15). - Pour the detergent fluid in the tank. NOTE: Use non-foamy detergents only. For the quantities, follow the instructions provided by the detergent manufacturer according to the type of dirt.

If the detergent comes in contact with the eyes and/or skin or if swallowed, refer to the use and safety information booklet provided by the manufacturer of the de- tergent.

- Check that the exhaust tube (12) of the recovery tank is properly coupled and properly sealed. - Check that the connector (54) on the squeegee (11) is not blocked and that the hose is connected correctly. - Check that the clean water exhaust tube (15) is correctly coupled to the supports and that the tap (53) is open. - Press the switch (45) and check the bat- tery charge on the indicator discharge (48).

8.1.b - Preparing the machine and

choosing the cycle (Fig. 9-12) - Press the switch (45 Fig.9) in position “I”. - Release the lever (3 Fig. 12) and lower it;theoorsqueegee(11Fig.12)islow- ered. - Press the pedal (19 Fig. 12), detach it from the clamp, and lift it, the brush (10 Fig. 12) is lowered. Working cycle: - The machine can perform 4 working cy- cles: Drying only cycle: - To run the drying cycle press the switch (46 Fig. 9), you start the vacuum cleaner. Brushing only cycle: - To make only the brushing cycle press the switch (47 Fig. 9) to enable the rota- tion of the brush. Press the control loca- ted on the handle to start the rotation of the brush. Washing, brushing cycle: - Press the button (47 Fig. 9) to enable the rotation of the brush Press the control, positioned on the han- dle, to start the rotation of the brush. Washing, brushing, drying cycle: - Press the switch (46 Fig. 9) to start the vacuum cleaner, the button (47 Fig. 9) to enable the rotation of the brush and the water supply. Press the control on the handle to start the rotation of the brush and the water supply. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 8 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

- After starting the machine and chosing the type of cycle, start cleaning, by push- ing the machine using the handle (1 Fig.

1) and acting on the sensor (20, Fig. 1).

NOTE: Pay attention to particularly delicate floors; do not use the machine while it’s stopped and the brush rotation on. For particularly dirty spots, adjust the traction speed to “0” so the brush will rotate in the same position, without straining the traction motor. NOTE: The proper cleaning and drying of the oor is done by pushing the machine forwards; if you go backwards the machine will not perform drying; in this phase, always lift the wiper to avoid damaging the blades. - If necessary, adjust the quantity of wash- ing water using the tap (4 Fig. 1). - Check the battery charge via the dis- charge indicator (48 Fig. 9).

8.1.d - End of use and switching off

(Fig. 9-13) - At the end of the cleaning, before turn- ing off the machine, stop the water supply and the rotation of the brush, using the switch (47 Fig. 9). - Lift up the brush by pressing the pedal (19Fig.13)asfarasitwillgo,ttingitin the designated slot. - Continue with the aspiratr inserted to suck all the liquid present on the floor, then turn off the vacuum off cleaner by pressing the switch (46 Fig. 9). - Lift the squeegee (11 Fig. 13) by lifting the lever (3 Fig. 13).

Always lift the wiper and the end piece after finishing the cleaning operations be- cause this avoids the deformation of the rubber blades and of the brush hairs. - Press the switch (45 Fig. 9) to turn off the machine.

If the machine will not be used for a few days, it is recommended to disconnect the plug (35 Fig. 7-8) from the relative socket.

8.1.e - Maximum recovery tank water

level alarm (Fig. 14) If during use of the machine, the vacuum cle- aner is switched off, it means that the level of liquid in the recovery tank has reached the maximum level. Go to the water drainage station and drain the recovery tank as shown in the relative paragraph. NOTE: For the proper operation of the level sensors it is required to properly clean the inside of the tank (14 Fig. 14). Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 9 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

RECOVERY WATER (Fig. 15) At the end of the washing cycle or when the recovery water tank (14) is full, it is neces- sary to empty the tank by proceeding as fol- lows: NOTE: To dispose of the recovery water, comply with the standards in force in the country in which the machine is used. - Position the machine near to a drain out- let. - Disconnect the hose (12) from the sup- port. - Remove the cap (56) from the hose (12) and drain all the water contained in the tank. NOTE: The amount of water that comes out can be modulated by pressing on the end of the tube (12). - Put the cap (56) back on the hose (12) and reposition it on the relative support.

All maintenance operations must be per- formed with the machine off and tanks empty. OPERATIONS TO PERFORM DAILY

At the end of the washing operations, it is compulsory to drain and clean the clean water tank (5) to prevent deposits or scal- ing. After draining the recovery water tank, drain the clean water tank as follows: - Position the machine over a drain outlet. - Disconnect the tube (15) from the hooks, close the tap (53), lower the tube to the ground on the drain outlet, open the tap (53) and let the water drain completely. - Wash the inside of the tank, leaving the drain hose open and adding clean water through the top opening. - When cleaning is complete, lift the tube (15), leaving the tap (53) open; couple the tube in its recesses. - To completely drain the water from the tank (5) disconnect the tube (57) from the quick connector (58) then turn the con- nector downwards, letting the water drain completely; or remove the filter cover (59).

10.1.b - Cleaning the recovery water

At the end of the washing operations, it is compulsory to clean the recovery wa- ter tank to prevent deposits or scaling and the proliferation of bacteria, odours or mould. - Drain the recovery water as shown in the relative paragraph, positioning the ma- chine over a drain outlet. - Remove the cover (6). - Leaving the hose (12) lowered and the cap off, pour water into the tank (14) Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 10 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

through a hose, cleaning it until clean wa- ter comes out of the drain hose. - Clean the level probes (55) using a damp cloth, taking care not to deform them. - Replace all the components in reverse order.

In order to clean the squeegee correctly (11), it is necessary to remove it as follows: - Disconnect the hose (13) from the squee- gee (11). - Loosen the knobs (32) and remove the squeegee (11). - Wash the squeegee and in particular the rubber blades (60) and the inside of the aspiration connector (33). NOTE: If, during washing, it is clear that the rubber blades (60) are damaged or worn, it is neces- sary to replace them or turn them over. - Replace all the components in reverse order. OPERATIONS TO PERFORM WHEN NECESSARY

10.1.d - Cleaning the clean water fil-

ter (Fig. 18) NOTE: Before cleaning the lter, make sure the clean water tank is empty. - Unscrew and remove the cover (59). - Remove the filter (17) and wash it in run- ning water. - Refit the filter (17) in its seat, then tighten the cover (59).

10.1.e - Replacing the brush (Fig. 19)

It is necessary to replace the brush when it is worn more than 2 cm or it must be replaced depending on the type of floor to be washed; to replace it proceed as follows: - Lift up the brush using the pedal as shown in the relative paragraph. - Insert a hand under the brush holder unit (9); to release the brush, turn it abruptly in the direction of rotation. - Replace the brush, coupling it manually to the brush holder flange (9). - Lowerthebrush-holder ange (9)using the pedal, as shown in the relative para- graph. - Press the switch (45 Fig. 9) to enable the commands. - Press the switch (47 Fig. 9) to enable the rotation of the brush. - Adjust the sensor (20) located on the handle to start brush rotation.

10.1.f - Replacing the squeegee rub-

ber blades (Fig. 20) When it becomes clear that drying the floor is difficult or traces of water remain on the floor, it is necessary to check the wear on the squeegee rubber blades (60): - Remove the squeegee unit (11) as in- dicated in the “Cleaning the squeegee” paragraph. - Press the locking device (67) and open the handle (68). - Remove the two rubber mounting strips (69) and remove the outer rubber (70). - Loosen the two turnbuckles (71) and re- move the locking bar (72) and the inside rubber (73). NOTE: When the rubber blades (70) or (73) are worn on one side, on one occasion they may be turned over. - Replace or turn over the rubber blades (70) or (73) without inverting them. - Replace all the components in reverse order. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 11 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

NOTE: It is possible to have two types of rubber blade. Para rubber blades for all types of floor and polyurethane rubber blades for mechanical workshop floors which are dirty with oil.

10.1.g - Cleaning the recovery water

tank (Fig. 21) Remove the upper cover to access inside the recovery water tank. - Loosen the knob (75) and remove the fil- ter (76). - Wash the filter (76) with running water and replace it in the machine, tightening the knob (75).

Replace the blown fuse with one with the same amperage. - Remove the plug (35) from the socket (39). - Remove the cover (61) unscrewing the screws (62). - Unscrew the two screws and remove the casing (77). Fuse (74) - 5A Electronic card protection. - Replace the cover (77). - Put the cover (61) back on. Fuse (63) - 75A Battery fuse. - In order to replace the fuse on the posi- tive pole of the battery, do the following:

Check for the recovery tank to be empty. - Disconnect the plug (35). - Press the button (36 Fig. 6) and lift the tank (14) until completely overturned, then replace the fuse (63 Fig. 6).

10.1.i - Wiper adjustment (Fig. 23)

- It is possible to adjust the height of the wiper and adjust the incidence of the blades on the floor. Height adjustment - Lower the wiper, using the lever. - Loosen the screw (55) and lift or lower the wheel (55a) until the wiper is in the desired position, then tighten the screw (55). If you wish to restore the original position (from factory) of the wheel, proceed as fol- lows: - Loosen the screw of the wheel, so that it can slide freely in the slot. - With the wiper lowered, adjust the in- cidence of 0 degrees, so that the flaps are perpendicular to the floor and not crushed. - Place a thickness of about 3mm (eg. Two coins from 10 cents) under the wheel and tighten the locking screw strong. Incidence adjustment - Lower the wiper, using the lever. - Start the aspirator and proceed for a few metres, then turn off the aspirator and stop the machine. - Check the incidence of the rubber (60) blades. Fig. A = too low Fig. B = too high Fig. C = correct position - Use the grey knob (64) for adjustment, turning it anticlockwise to increase the incidence and in the other direction to de- crease it. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 12 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

The machine leaves production with a standard conguration for operation with “Sonnenschein” gel batteries.

Disconnect the battery plug from the socket. - Remove the cover (61 Fig. 22) by un- screwing the screws (62 Fig. 22). Standard conguration with Sonnen- schein gel batteries - Remove the cap (66) located under the batter charger (16). - Position the switches (SW1 and SW2) as showningure“A”. Itispossibletomodifythecongurationas follows: Conguration for acid batteries - Remove the cap (66) located under the battery charger (16). - Position the switches SW1 and SW2) as showningure“B”. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 13 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

No water comes out. Tank empty. Solenoid valve enabling switch not pressed. Tap turned off. Filter blocked. Solenoid valve does not work. Fill the tank. Press the switch. Open the tap Clean the filter. Call the technical support service. Insufficient floor cleaning. Unsuitable brushes or deter- gent. Brush worn. Use brushes or detergents which are suitable for the type of floor or dirt to be cleaned. Replace the brush.

PROBLEM CAUSE SOLUTION

Pressing the switch (45) “ ”, the machine does not work. Low battery. Main fuse blown. The battery’s plug is still lo- cated in the charger’s outlet. Check that the battery is charged. Replace the main 50A or 75A fuse. Place the plug correctly. The brush does not rotate. Function card damaged. The touch sensor on the handle is defective. Brush motor damaged. Brush switch not pressed or failure. Replace. Replace. Replace. Press the appropriate switch or replace it. Aspirator does not work. Function card damaged. Intake motor damaged. Vacuum switch not pressed or failure. Recovery tank full. Replace. Replace. Press the appropriate switch or replace it. Empty, wash and clean the tank. The machine does not dry well, leaving traces of water on the floor. Aspirator off. Aspiration tube blocked. Dirty wiper. Recovery tank full. Dirty water filter clogged. Squeegee rubber blades worn. Start up the aspirator. Check and if necessary clean the aspiration tube that connects the squeegee to the recovery tank. Clean the wiper. Empty the recovery tank. Clean the filter. Replace or turn over the squeegee rubber blades. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 14 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -

No water comes out. Tank empty. Solenoid valve enabling switch not pressed. Tap turned off. Filter blocked. Solenoid valve does not work. Fill the tank. Press the switch. Open the tap Clean the filter. Call the technical support service. Insufficient floor cleaning. Unsuitable brushes or deter- gent. Brush worn. Use brushes or detergents which are suitable for the type of floor or dirt to be cleaned. Replace the brush.

During the warranty period all defective parts will be repaired or replaced, free of charge. All parts affected by tampering or misuse will be excluded from the warranty. In order to enable the warranty procedure please contact your dealer or a relevant service center by presenting the valid purchase documents. Man_FR30SM45TOUCH_49026500_1ed_02-2018_10L.indd 15 02/03/18 08:37www.ghibliwirbel.com Professional Cleaning Machines Since 1968 ENGLISH -
