USER MANUAL FW50EZ20L SONY

Remote Control and LCD Monitor. . . .6

Pro settings. 7

BRAVIA Signage Free. 8

Control functions 10

RS-232C 10

IP control 11

Installing the LCD Monitor to

the Wall. 12

Troubleshooting. 13

Specifications. 14

About Manuals

This LCD Monitor comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• LCD Monitor installation and setup.

Reference Guide (this manual) / Safety Information

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help

Find more troubleshooting and other useful information directly from your LCD Monitor. Press HELP on the remote control to display a list of topics.

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https:// www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] [System] [About] [Legal information] [Notices and licences].

Note

• Before operating the LCD Monitor, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

Location of the identification label

Labels for the LCD Monitor Model No., Production Date (year/ month) and Power Supply rating are located on the rear of the LCD Monitor or package.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types FW-75EZ20L, FW-65EZ20L, FW-55EZ20L, FW-50EZ20L, FW-43EZ20L are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types FW-75EZ20L, FW-65EZ20L, FW-55EZ20L, FW-50EZ20L, FW-43EZ20L are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo : 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the LCD Monitor in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

The LCD Monitor should be installed near an easily accessible mains socket.

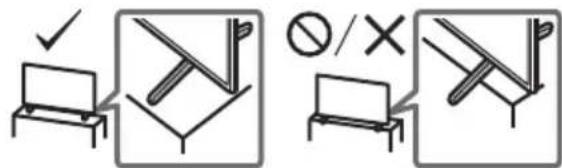

- Place the LCD Monitor on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
Install the LCD Monitor where it cannot be pulled, pushed, or knocked over.

• Install the LCD Monitor so that the LCD Monitor's Table-Top Stand does not protrude out from the LCD Monitor stand (not supplied). If the Table-Top Stand protrudes out from the LCD Monitor stand, it may cause LCD Monitor set to topple over, fall down, and cause personal injury or damage to the LCD Monitor. (Models with Table-Top Stand only)

Transporting

• Before transporting the LCD Monitor, disconnect all cables.
• Two or more persons are needed to transport a large LCD Monitor.
• When transporting the LCD Monitor by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the LCD Monitor, hold it firmly from the bottom.
• When handling or mounting the LCD Monitor set, do not lay down the LCD Monitor (for applicable LCD Monitor model only).

• When transporting the LCD Monitor, do not subject it to jolts or excessive vibration.
• When transporting the LCD Monitor for repairs or when moving, pack it using the original carton and packing material.

Topple prevention (models with Table-Top Stand only)

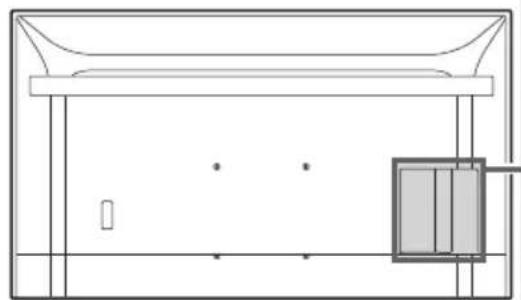

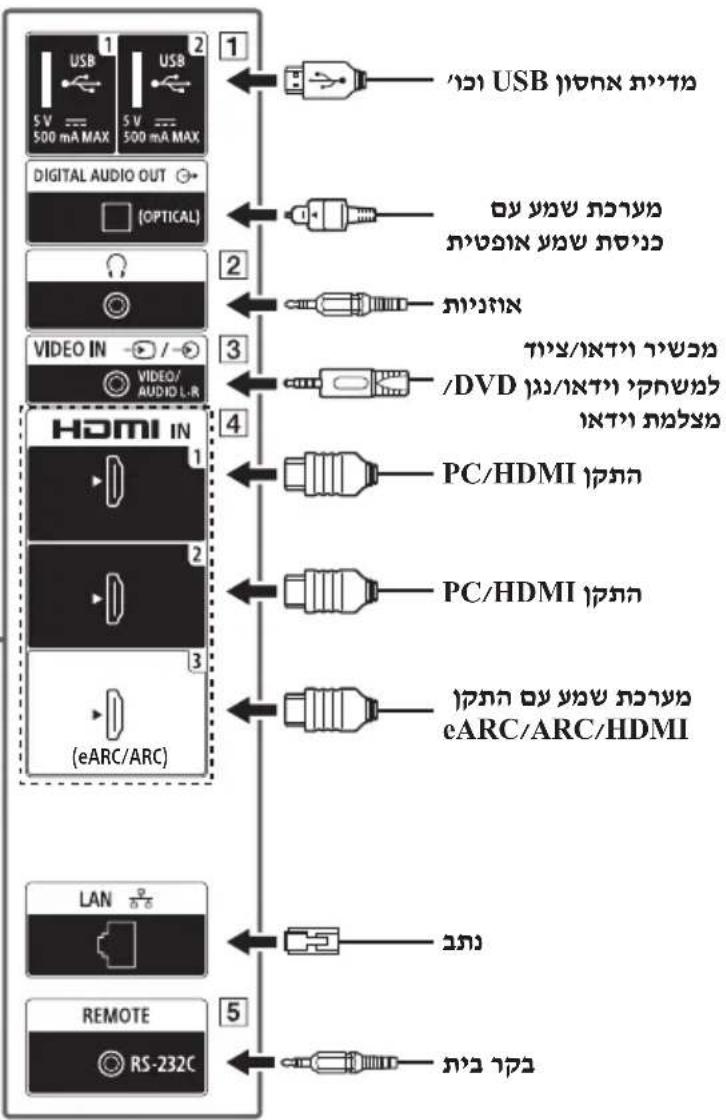

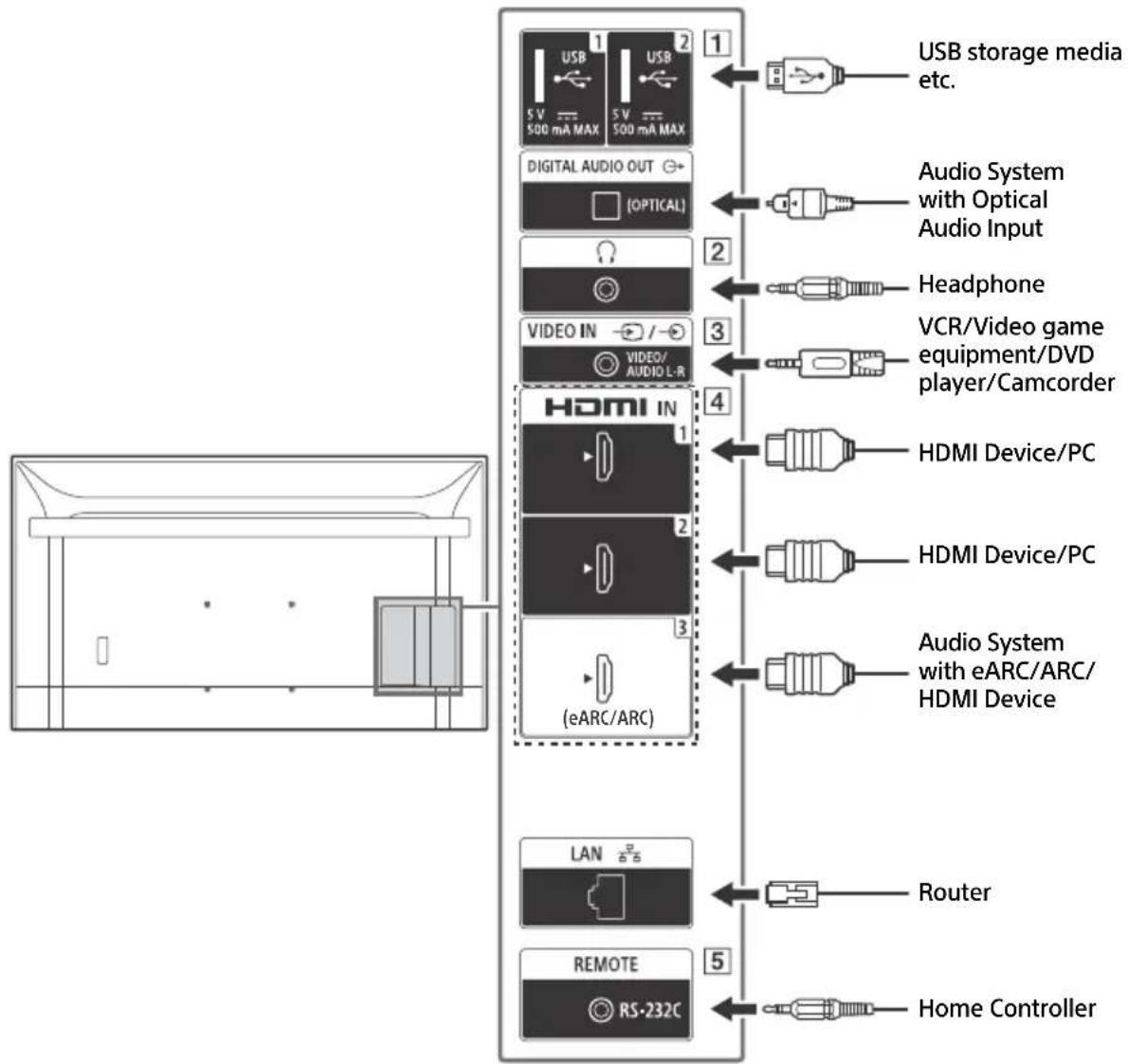

• Terminals and labels may vary depending on region/country/LCD Monitor model.

1 -USB

USB

2

• Connecting a large USB device may interfere with other connected devices beside it.

2 (Headphone)

Supports 3-pole stereo mini jack only.
- You cannot output sound from both the headphone and the LCD Monitor speakers at the same time.

3

ID

EO

IN

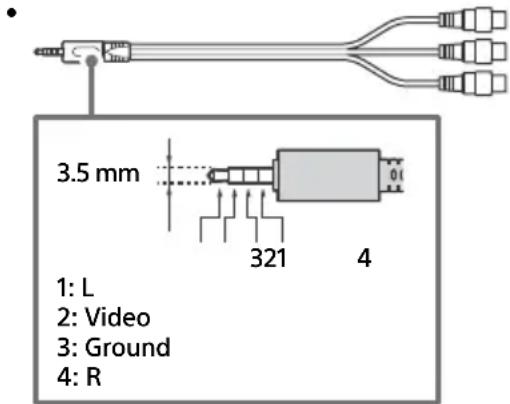

• For a composite connection, use an Analogue Extension Cable (not supplied).

HDMI IN 1/2/3

• HDMI interface can transfer the digital video and audio on a single cable.
  HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route LCD Monitor audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the LCD Monitor, and receive audio from the LCD Monitor via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• Use the HDMI cable with Ethernet to connect audio system with eARC.

5 REMOTE RS-232C

• Terminal for serial communication. For details, see "Control functions".

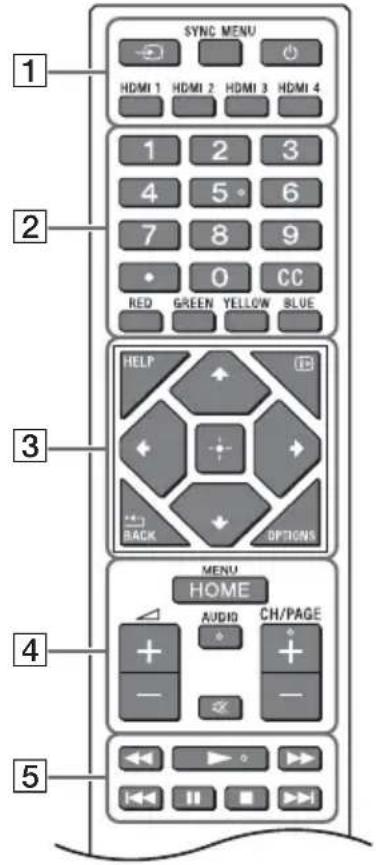

Remote Control and LCD Monitor

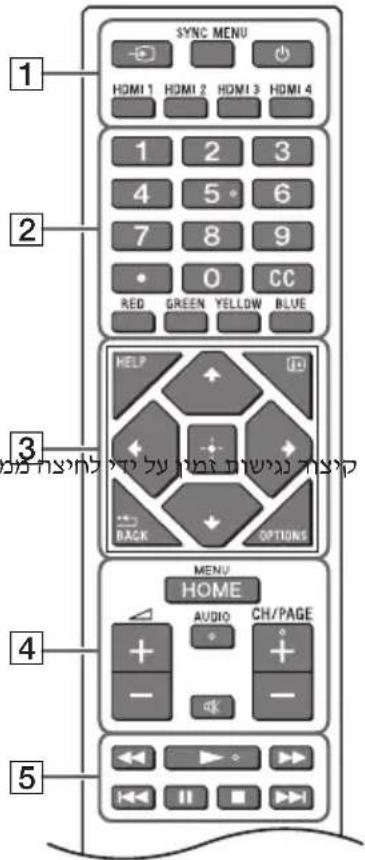

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/LCD Monitor model/LCD Monitor settings.

Input select): Display and select the input source, etc.

SYNC MENU: Display the BRAVIA Sync Menu.

(Power)

HDMI 1/2/3/4

Number buttons

dot)

CC

Colour buttons

3 HELP: Display the Help menu.

(Screen display): Display information.

一 / BACK

OPTIONS: Displays a list of functions that can be used at that time.

/ / / (Navigation D-Pad): On screen menu navigation and selection.

4 HOME/MENU

+/(Volume)

AUDIO*: Select the sound of multilingual source or dual sound (depend on programme source).

(Mute)

CH/PAGE +/-

5

(6)

Remote Control sensor / LED

• Accessibility shortcut is available by pressing and holding AUDIO.

Pro settings

In [Pro settings], you can use various convenient functions for professional use.

How to use Pro settings

1 Press the HOME/MENU button on the remote control.
2 Go to [Settings] [Pro settings], then select the desired settings.

For each setting, refer to the following.

Initialise Pro settings

All changes will be discarded, and default settings will be restored.

Install APK

Install the APK file for the Android TV app to the display using a USB storage media.

1 Select [Pro settings] [Install APK].
2 Select an APK.

Note

• This menu is displayed only when the .apk file exists in the USB storage media.

PC input optimisation

Show the typical PC format in full screen by keeping the aspect ratio.

1 Select [Pro settings] [PC input optimisation].
2 Change the settings. The default setting is Off.

Wake-up on signal

a) Automatically turn on the LCD Monitor and switch input when an HDMI input is connected.
b) Automatically turn off the LCD Monitor when the HDMI input is disconnected.

1 Select [Pro settings] [Wake-up on signal].
2 Select the option.

[Disable] (Default): The function is disabled.

[Always enabled]: Both function a) and b) are enabled.

[Input change only]: Only function a) is enabled.

[Specified hours]: You can specify the start/end time during which the function is enabled.

Lock settings

You can protect the settings of [Pro settings] by using a PIN.

1 Select [Pro settings] [Lock settings].
2 Set the PIN by following the instruction on the screen.

Initial input source

Set the input that is displayed when the LCD Monitor is turned on.

1 Select [Pro settings] [Initial input source].
2 Select a primary input source.

Power Scheduling

Set the times for the LCD Monitor to turn on and off automatically, including a schedule to run periodically (daily or weekly).

1 Select [Pro settings] [Power Scheduling].
2 Select the time / the day of week to turn on and off.

Periodic restart

Restart the LCD Monitor at a set time. This can schedule periodic restarts (daily or weekly). You can select whether a restart should be executed or not while the display is on. It is recommended to schedule a periodic restart of the LCD Monitor to maintain system stability.

1 Select [Pro settings] [Periodic restart].
2 Turn on [Periodic restart] function.
3 Set the time, the day of week to restart the LCD Monitor.
4 Select whether a restart should be executed or not while the LCD Monitor is on.

Display/Remote controls

Enable or disable the buttons on the LCD Monitor or the remote control.

1 Select [Pro settings] [Display/Remote controls].
2 Select an option.

[Display control]: Enable or disable the buttons on the display.

[IR remote control]: Enable or disable the buttons on the IR remote control.

External inputs

Define which input sources are available.

1 Select [Pro settings] [External inputs].
2 Select an input.
3 Select an option.

[Use with labels]: The input info label appears on the screen.

[Use without labels]: The input info label does not appear on the screen.

[Not use]: The input is disabled in Pro mode.

BRAVIA Signage Free

Allows you to playback movies and still images that are stored on a USB storage media, insert the USB device into a USB port on the LCD Monitor.

Supported files and formats

Video format*1*2

MP4AVC,MP4AVC/HEVC(.mp4)

MPEG TS AVC/MPEG2 (.m2ts)

*1 Maximum supported resolution is 3840 × 2160 for a 4K model and 1920 × 1080 for a 2K model.

*2 Frame rate is 30 fps.

Photo format

JPEG*1(.jpg,.jpeg)

BMP*2(.bmp)

PNG*2(.png)

GIF*2 (.gif)

*1 Maximum supported resolution is 3840 × 2160 for a 4K model.

*2 Maximum supported resolution is 1920 × 1080 for a 2K model.

Audio format

MP3 (.mp3) (44.1 kHz, 48 kHz) (2 channels)

AAC (.m4a) (44.1 kHz, 48 kHz) (2 channels)

What to prepare

Format the USB storage media file system using NTFS or FAT32 option.

Start BRAVIA Signage Free

Select [BRAVIA Signage Free] on the [Home] screen of the LCD Monitor.

The first time you open [BRAVIA Signage Free], the [Basic settings] screen is displayed.

Next time, the registered contents are displayed.

You can display the [Basic settings] screen when you press and hold the 1 button on the remote control for more than 3 seconds.

If you enable [Lock settings], to view [BRAVIA Signage Free], enter the PIN code.

Basic settings screen settings

[landscape/Portrait], [Transition effect], and [Text].

If you enable the [Presentation mode], you can manually select the previous or next content with the left/right button on the remote control.

Slideshow playback

Slideshow playback will playback content alphabetically that is stored on the USB storage media.

1 Create a "media" folder in the root folder of the USB storage media and copy the contents.
2 Insert the USB storage media to a USB port on the LCD Monitor.
3 Go to [Home] [BRAVIA Signage Free], to display the [Basic settings] screen. To show the [Basic settings] screen, press and hold the 1 button on the remote control for more than 3 seconds.
4 Set the [Play mode] to [Slideshow].
5 Select [Start].

Create playlist and play

A playlist can be created that specifies the order of playback for the contents stored on the USB storage media.

1 Create a "media" folder in the root folder of the USB storage media and copy the contents.
2 Insert the USB storage media to a USB port on the LCD Monitor.
3 Go to [Home] [BRAVIA Signage Free], to display the [Basic settings] screen. To show the [Basic settings] screen, press and hold the 1 button on the remote control for more than 3 seconds.
4 Press the RED button on the remote control to create the playlist and display the [ Playlist settings] screen. You can check the colour button function at the bottom of the screen.
5 Enter the playlist name via on-screen keyboard.
6 Select the content. You can add the content by choosing ([+]
7 Select [OK]. The Playlist is saved, and the [Basic settings] screen is displayed.

8 On [Basic settings] screen, set the [Play mode] to [ Playlist] and select the playlist name to playback, then select [Start].

[ \text{Playlist schedule playback} ]

You can set the playback schedule for the playlist.

1 Go to [Home] [BRAVIA Signage Free], to display the [Basic settings] screen. To show the [Basic settings] screen, press and hold the 1 button on the remote control for more than 3 seconds.
2 On the [Basic settings] screen, press the GREEN button on the remote control. The [Schedule settings] screen is displayed.
3 On the [Schedule settings], press the RED button on the remote control, and create the new schedule.
4 Select [OK]. The Schedule is saved, and the [Basic settings] screen is displayed.
5 On the [Basic settings] screen, set the [Play mode] to [Scheduled], then select [Start].

Note

The time/date settings of the LCD Monitor must be correct.

Copy the contents to the LCD Monitor's internal storage

You can copy the contents from the USB storage media to the LCD Monitor's internal storage. You can playback the contents from the LCD Monitor's internal storage by changing the [Storage] setting to [Internal storage] on the [Basic settings] screen.

1 On the [Basic settings] screen, press the YELLOW button on the remote control. The [Content management] screen is displayed.
2 Press the GREEN button on the remote control to import content. Press the RED button on the remote control to delete content. Press the YELLOW button on the remote control for multiple selections.

Bulk import / Bulk export

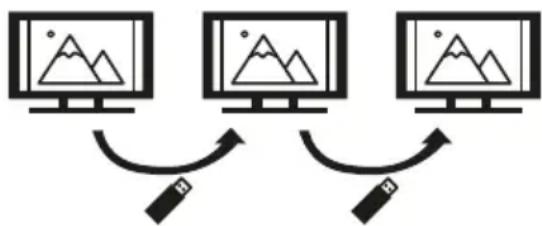

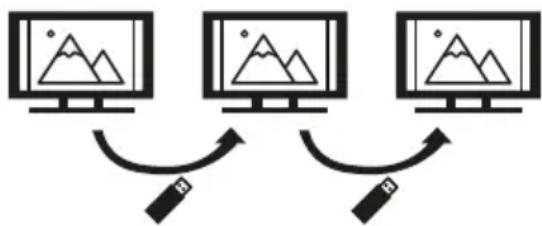

You can copy the settings and content from one LCD Monitor to another using the [BRAVIA Signage Free] software.

EI

1 Connect the USB storage media to the LCD Monitor.
2 Go to the [Basic settings] screen, select [Bulk import] or [Bulk export]. [Bulk import]: Import the settings and content from the USB storage media [Bulk export]: Export the settings and content to the USB storage media
3 Select [OK] to perform Bulk import / Bulk export.

Auto start playback

1 Copy "autorun.txt" file to "sony" folder and contents to "media" folder of the USB storage media.
2 Connect the USB storage media to the LCD Monitor after turned on.
3 Signage playback starts when mains lead is plugged in again.

Control functions

RS-232C

You can control the LCD Monitor from an external service via RS-232C. The RS-232C connection is briefly explained in this page.

Interface

Establish the RS-232C connection to the LCD Monitor by using a 3.5mm stereo mini plug.

When establishing the RS-232C connection, make connection settings as below.

Baud rate 9600 bps

Data 8 bit

Parity None

Start bit 1 bit

Stop bit 1 bit

Flow control None

Data format

We introduce the data format for the RS-232C communication below.

(a) Requests from the controller to the LCD Monitor

No. Item Value
1	H	e	a	d	e	r	0
2	Category		0x00	(fixed)
3	Function		0xXX
4	Length		0xXX	(=Data X+1 byte)
5	Data 1		0xXX
:	:		0	x	XX
:	:		0x	X	X
X+4	Data X		0xXX
X+5 Check Sum		0xXX

(b) Responses from the LCD Monitor to the controller

No. Item Value
1	H	e	a	d	e	r	0
2 Answer 0x00 Completed (Normal End)
			0x01 : Limit Over (Abnormal End-Exceed maximum value)
			0x02 : Limit Over (Abnormal End-Exceed minimum value)
			0x03 : Command Canceled (Abnormal end)
			0x04 : Parse Error (Data Format Error)
3	C	h	e	c	k	S	u

Command example

Examples of RS-232C communication command are explained below.

Control	Head	Category	Function	Length	Data 1	Data X	Checksum
Power on/off	0x8C	0x00	0x00	0x02	0x00 (off)	-	0x8E
					0x01 (on)	-	0x8F
HDMI input selection	0x8C	0x00	0x02	0x03	0x04 (HDMI)	0x01 (#1)	0x96
						0x02 (#2)	0x97
						0x03 (#3)	0x98
						0x04 (#4)	0x99

For more details on RS-232C, please contact your sales representative.

IP control

You can control the LCD Monitor via IP from an HTML5/Android application on the external device. You can manage and monitor information of input/power, control the LCD Monitor such as input source and volume.

Supported IP protocol

Protocol name	Layer	Format	Authentication	Explanation
Simple IP control	TCP	Byte stream	N/A	Only typical functions are supported.

LCD Monitor settings

When using [IP control], set the LCD Monitor as follows first.

Go to [Settings] [Network and Internet] [IP control].

For Simple IP control,

• Enable [Simple IP control].

For more details on [IP control], please contact your sales representative.

Installing the LCD Monitor to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your LCD Monitor model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Monitor, especially to determine the strength of the wall for withstanding the LCD Monitor's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
• Wall-Mount Bracket SU-WL850
• Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the LCD Monitor. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the LCD Monitor or cause it to fall, etc.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand (models with Table-Top Stand only). Keep the screws away from small children.
• Only for limited region/country/model.

Using the optional Wall-Mount Bracket (except SU-WL850 or SU-WL450) (not supplied)

This LCD Monitor's instruction manual only provides the steps to prepare the LCD Monitor for Wall-Mount installation before it is installed on the wall.

Your LCD Monitor can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the LCD Monitor, the LCD Monitor may require detaching the Table-Top Stand (models with Table-Top Stand only).

Prepare the LCD Monitor for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Monitor, especially to determine the strength of the wall for withstanding the LCD Monitor's weight.

• The screws for installing the Wall-Mount Bracket to the LCD Monitor are not supplied.

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please refer to below illustration.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, LCD Monitor does not respond, or network is lost, do the following steps.

1 Restart your LCD Monitor by pressing the power button on the remote control for about five seconds and select [Restart]. The LCD Monitor will restart. If the LCD Monitor does not recover, try unplugging the mains lead then press the power button on the LCD Monitor and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the LCD Monitor for about 40 seconds until the LCD Monitor turns off.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your LCD Monitor to the Internet and perform a software update. Sony recommends you to keep your LCD Monitor software updated. Software updates provide new features and performance improvements.

When you plug in the LCD Monitor, the LCD Monitor may not be able to turn on for a while even if you press the power button on the remote control or the LCD Monitor.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED

Backlight

Sound output (W)

10+10

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 5.0

Frequency range (MHz) (Output power (dBm))

Wireless LAN (LCD Monitor)

2400-2483.5 (<20.0), 5150-5250 (<23.0),

5250-5350 (<20.0), 5470-5725 (<20.0),

5725-5850 (<13.9)

Bluetooth® (LCD Monitor)

2400-2483.5 (<10.0)

Input/Output jacks

VIDEO IN

Video/Audio input (mini jack)

HDMI IN 1/2/3 (HDCP 2.3-compatible)

Video:

4096× 2160p (50, 60 Hz)*1, 4096 × 2160p

(24 Hz), 3840 × 2160p (50, 60 Hz)*, 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i, PC

Formats

Audio:

In eARC (Enhanced Audio Return Channel) mode

7.1 channel linear PCM: 32/44.1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

Except eARC mode

Two channel linear PCM: 32/44.1/48 kHz

16/20/24 bits, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*2

In eARC mode

7.1 channel linear PCM: 32/44.1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio)

(Stereo mini jack)

Headphone

1,2

USB port 1 and 2 support High Speed USB (USB 2.0)

品 LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

REMOTE

RS-232C, mini jack

This jack is for receiving the external control signal.

Power, Product Fiche and others

Power requirements

220V-240VAC,50Hz

Screen size (measured diagonally) (Approx.)

(cm/inches)

FW-75EZ20L:189.3/75

FW-65EZ20L:163.9/65

FW-55EZ20L:138.8/55

FW-50EZ20L:125.7/50

FW-43EZ20L:108.0/43

Standby power consumption ^3*4 (W)

0.50

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output Rating

500 mA (for USB 1/2)

Dimensions (Approx.) (w× h× d) (cm)

FW-75EZ20L: 168.6 × 96.9 × 7.2

FW-65EZ20L: 146.2 × 84.2 × 7.1

FW-55EZ20L: 124.3 × 72.1 × 7.1

FW-50EZ20L: 112.6 × 65.3 × 7.0

FW-43EZ20L: 97.2 × 56.7 × 7.0

Mass (Approx.) (kg)

FW-75EZ20L:30.4

FW-65EZ20L: 20.4

FW-55EZ20L: 15.3

FW-50EZ20L: 12.1

FW-43EZ20L:9.3

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 (except

FW-50EZ20L/43EZ20L),SU-WL450

Table-Top Stand: FWA-ST1L (FW-43EZ20L only),

FWA-ST2L (FW-50EZ20L only), FWA-ST3L

(FW-65EZ20L / 55EZ20L only)

Operating temperature: 0^ - 40^

Operating humidity: 10% -80% RH (non-condensing)

1 Refer to the on screen menu to set [HDMI signal format].
2 Connect your audio system to the HDMI IN 3 to route LCD Monitor audio to your audio system.
3 Specified standby power is reached after the LCD Monitor finishes necessary internal processes.
4 Standby power consumption will increase when your LCD Monitor is connected to the network.

Note

• Optional accessories availability depends on countries/region/LCD Monitor model/stock.
• Design and specifications are subject to change without notice.
  Some of the on-screen instructions may not apply to your LCD Monitor model.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
• Vewd® Core. Copyright 1995-2023 Vewd Software AS. All rights reserved.
• Google, YouTube and Android TV are trademarks of Google LLC.
• Wi-Fi®, Wi-Fi Alliance® and Wi-Fi Direct® are registered trademarks of Wi-Fi Alliance.
• Wi-Fi CERTIFIED™ and Wi-Fi CERTIFIED 6™ logos are certification marks of Wi-Fi Alliance.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Group Corporation and its subsidiaries is under license.
• Apple, Apple Home, AirPlay and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries and regions. To use AirPlay and Apple HomeKit with this TV, the latest version of iOS, iPadOS, or macOS is recommended.
  Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.
• All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

FW-75EZ20L (1589637), FW-65EZ20L (1589636), FW-55EZ20L (1589635), FW-50EZ20L (1589634), FW-43EZ20L (1589633).

Table des matières

AVIS IMPORTANT. 2

MP4AVC,MP4AVC/HEVC(.mp4)

MPEG TS AVC/MPEG2 (.m2ts)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Formats PC

Audio :

En mode eARC (Enhanced Audio Return

Channel)

16/20/24 bits, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)2

En mode eARC

DIGITAL AUDIO OUT (OPTICAL)

FW-43EZ20L : 108,0 / 43

Protocol IP admitting

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Formatos de PC

Audio:

En el modo eARC (Enhanced Audio Return

Channel)

PCM lineal de 7,1 canales: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

16/20/24 bits, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*2

En el modo eARC

PCM lineal de 7,1 canales: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

En el modo ARC

PCM lineal de dos canales: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Toma digital optica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio)

(imitoma estereo)

Auricular

1,2

*2 De framerate is 30 fps.

Fotoformaat
JPEG*1(.jpg, .jpeg)
BMP*2(.bmp)
PNG*2(.png)
GIF*2(.gif)

Importeren in bulk / Exporteren in bulk

U=kunt deinstallingen en inhoud van deene LCD-monitoraardeanderekopiernen met de [BRAVIA Signage Free]-software.

https://www.roy.eu/support

Bluetooth® (LCD-monitor)

2400-2483,5 (<10,0)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Pc-formaten

Audio:

In eARC (Enhanced Audio Return

Channel)-modus

7,1-kanaals lineaire PCM: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

Behalve eARC-modus

Tweekanaals lineaire PCM: 32/44,1/48 kHz

16/20/24 bits, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*2

In eARC-modus

7,1-kanaals lineaire PCM: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

In ARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L:97,2×56,7×7,0

Gewicht (ong.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L: 12,1

FW-43EZ20L:9,3

Andere

Optionele accessoires Wandmontagesteun: SU-WL850 (behalte FW-50EZ20L / 43EZ20L), SU-WL450 Tafelstandaard: FWA-ST1L (alleen FW-43EZ20L), FWA-ST2L (alleen FW-50EZ20L), FWA-ST3L (alleen FW-65EZ20L / 55EZ20L)

https://www.roy.eu/support

Bluetooth® (LCD-Monitor)

2400-2483,5 (<10,0)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Computerformate

Audio:

Im eARC (Enhanced Audio Return

Channel)-Modus

7,1-Kanal linear PCM: 32/44,1/48 kHz 16 Bit

Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

AuBer eARC-Modus

Zwei Kanäle, lineares PCM: 32/44,1/48 kHz

16/20/24 Bit, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel (nur HDMI IN 3)*2

Im eARC-Modus

7,1-Kanal linear PCM: 32/44,1/48 kHz 16 Bit

Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

ImARC-Modus

DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

LAN

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L:97,2×56,7×7,0

Gewicht (Ca.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L:9,3

Sonstiges

Sonderzubehör

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Formatos PC

Áudio:

No modo eARC (Enhanced Audio Return

Channel)

PCM linear do canal 7,1:32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

Exceto no modo eARC

PCM linear de doit canais: 32/44,1/48 kHz

16/20/24 bits, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3)*2

No modo eARC

PCM linear do canal 7,1: 32/44,1/48 kHz

16 bits, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

No modo ARC

PCM linear de doit canais: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital otica (PCM linear deinous

canais: 48 kHz 16 bits, Dolby Audio)

(Mini-tomada estereo)

Auscultador

1,2

As portas USB 1 e 2 suportam High Speed USB (USB 2.0)

品 LAN

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L: 97,2 × 56,7 × 7,0

Peso (Aprox.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L: 12,1

FW-43EZ20L:9,3

Outros

https://www.roy.eu/support

LAN wireless (Monitor LCD)

2400-2483,5 (<20,0), 5150-5250 (<23,0),

5250-5350 (<20,0), 5470-5725 (<20,0),

5725-5850 (<13,9)

Bluetooth® (Monitor LCD)

2400-2483,5 (<10,0)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Format PC

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*2

In modalità eARC

PCM lineare 7,1 canali: 32/44,1/48 kHz 16 bit

Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

In modalità ARC

DIGITAL AUDIO OUT (OPTICAL)

500 mA (per USB 1/2)

Dimensioni (circa) (l× a× p) cm

FW-43EZ20L:97,2×56,7×7,0

Peso (circa) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L:9,3

Altri

/ / / (Navigerings-D-Pad):

Menynavigering och-val paskarmen.

4 HOME/MENU

+ / - (Volym)

(Skaermvisining): Vis information.

/BACK

/ / / (Navigering D-Pad):

https://www.sony.eu/support

Bluetooth® (LCD-skaerm)

2400-2483,5 (<10,0)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

Pc-formater

Lyd:

I eARC (Enhanced Audio Return

Channel)-tilstand

7,1-kanals linear PCM: 32/44,1/48 kHz

16 bit, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

To-kanals lineer PCM: 32/44,1/48 kHz 16/

20/24 bit, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel (kun HDMI IN 3)*2

I eARC-tilstand

7,1-kanals linear PCM: 32/44,1/48 kHz 16 bit

Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

IARC-tilstand

To-kanals linear PCM: 48 kHz 16 bit, Dolby

Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals linear PCM:

48 kHz 16 bit, Dolby Audio)

(Stereo-minijack)

Hovedtelefoner

1,2

USB-port 1 og 2 understotter High Speed USB (USB 2.0)

品 LAN

10BASE-T/100BASE-TX-stik

500 mA (for USB 1/2)

Mäl (Ca.) (b × h × d) (cm)

FW-75EZ20L: 168,6×96,9×7,2

FW-65EZ20L: 146,2× 84,2× 7,1

FW-55EZ20L: 124,3× 72,1× 7,1

FW-50EZ20L: 112,6 × 65,3 × 7,0

FW-43EZ20L: 97,2 × 56,7 × 7,0

Vægt (Ca.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L: 9,3

Andre

Ekstraudstyr

MP4AVC,MP4AVC/HEVC(.mp4)

MPEG TS AVC/MPEG2 (.m2ts)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

PC-muodot

Audio:

eARC (Enhanced Audio Return

Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (vain HDMI IN 3)*2

eARC-tilassa

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L: 97,2 × 56,7 × 7,0

Paino (Noin) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L: 12,1

FW-43EZ20L: 9,3

Muita tietoja

Lisavarusteet

FWA-ST2L (vain FW-50EZ20L), FWA-ST3L (vain

FW-65EZ20L/55EZ20L)

Initialiser Pro-innstlinger

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

PC-formater

Lyd:

I eARC (Enhanced Audio Return

Channel)-modus

7,1kanal lineaer PCM:32/44,1/48 kHz

16 biter, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

Unntatt eARC-modus

Tokenals lineaer PCM: 32/44,1/48 kHz 16/

20/24 biter, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*2

I eARC-modus

7,1 kanal lineaer PCM: 32/44,1/48 kHz 16 biter,

Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

IARC-modus

Tokenals lineaer PCM: 48 kHz 16 biter, Dolby

Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokenans lineær PCM:

48 kHz 16 biter, Dolby Audio)

(1) (minijack, stereo)

Hodetelefon

1,2

500 mA (for USB 1/2)

Mäl (ca.) (b × h × d) (cm)

FW-75EZ20L: 168,6× 96,9× 7,2

FW-65EZ20L: 146,2× 84,2× 7,1

FW-55EZ20L: 124,3× 72,1× 7,1

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L: 97,2 × 56,7 × 7,0

Vekt (ca.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L:9,3

Annet

Tilleggsutstyr

Veggmoneringsbrakett: SU-WL850 (gjelder

Pilot i Monitor LCD 6

Pro Ustawienia. 7

BRAVIA Signage Free. 8

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i,

formaty komputerowe

Audio:

W trybie eARC (Enhanced Audio Return

Channel)

7,1 kanalow,liniowe PCM:32/44,1/48 kHz

16 bity, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*2

W trybie eARC

7,1 kanalów, liniowe PCM: 32/44,1/48 kHz

16 bity, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

W trybie ARC

DIGITAL AUDIO OUT (OPTICAL)

FW-43EZ20L), FWA-ST2L (tyIko model

FW-50EZ20L), FWA-ST3L (tylko model

FW-65EZ20L / 55EZ20L)

Temperatura robocza: 0^ - 40^

Wilgotnosc robocza: 10% - 80% wilgotnosci wzglednej (bez kondensaksi)

https://www.sony.eu/support

AkoounoTe to exyepidio odnyiw nou npextal me tnv Entoixia Bao nia to ovtelo aoc. Aataiteiai enapknc epieipia yia tnv eykaotaoan autnctnC Oovnc LCD kai elikotepa ia vao poooiopiotei n avtoxntou toixou nou tha ouykpatei to bapoc tnc Oovnc LCD.
H Sony 2ev avaalauapei kauia euOuvnya tuyov znua ntpauuataoio nou evdexetau va pokanthei ao laavthetaevouc xepioouc n akataaanyn EykataoTao.
H EkyataoTaon OToV Toixo npEeI v a paymuTooiTeiAtu mOvo aTc EElikkeUmevo PPOOWIKO.
- Iα λόγοις ασφαλείας, συστήνεται n xρήση των εξαρτημάτων τής Μου, μεταξύ των Αποίων περιλαβάνονται:

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i, PC

Mopfec unooyiotn

'Hxoc:

λειτουργία eARC (Enhanced Audio

Return Channel)

rpaumkoPCM7,1kvaalw:32/44,1/

48 kHz 16 bit, Dolby Digital, Dolby Digital

Plus, Dolby TrueHD, Dolby Atmos

EαipεiαιηλειοργίαeARC

PαμικοPCMδuokαvλιωv:32/44,1/

48 kHz 16/20/24 bit, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (óvo yα HDMI IN 3)*2

Eeapetai n λειοργia eARC

PCM 7,1 kανλιων: 32/44,1/48 kHz

16 bit, Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

EeipεiαιηλειούργαARC

P C M 8o kavaaiv: 48 kHz 16 bit,

Dolby Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Katavaawon evepyelaocKaTaotaon

avαμονης34(W)

0,50

500 mA (Y1α USB 1/2)

( ) ( × × ) (cm)

FW-75EZ20L:168,6×96,9×7,2

FW-65EZ20L: 146,2× 84,2× 7,1

FW-55EZ20L: 124,3× 72,1× 7,1

FW-50EZ20L: 112,6 × 65,3 × 7,0

FW-43EZ20L:97,2×56,7×7,0

Bapoc (Nepiou) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L: 9,3

Aa

LCD Monitor duvara monte

etme 12

Sorun Giderme. 13

Spesifikasyonlar 14

Kilavuzlar Hakkinda

MP4AVC,MP4AVC/HEVC(.mp4)

MPEG TS AVC/MPEG2 (.m2ts)

*1 Maksimum destabilkelen收费标准, 4K modeli和地区 3840 × 2160 ve 2K modeli和地区 1920 × 1080 dir.

Kablosuz LAN (LCD Monitor)

2400-2483,5 (<20,0), 5150-5250 (<23,0),

5250-5350 (<20,0), 5470-5725 (<20,0),

5725-5850 (<13,9)

Bluetooth® (LCD Monitor)

2400-2483,5 (<10,0)

GiriçÇiikşJaklari

一 / 一 VIDEO IN

Video/Ses girisi (mini jak)

HDMI IN 1/2/3 (HDCP 2.3-uyumlu)

Video:

4096× 2160p (50, 60 Hz)*d, 4096× 2160p

(24 Hz), 3840 × 2160p (50, 60 Hz)*, 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i 480p, 480i, PC

Formatlari

Ses:

eARC (Enhanced Audio Return Channel)

modunda

7,1 kanalogrusal PCM: 32/44,1/48 kHz

16 bit, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, Dolby Atmos

eARC modu harc

iki kanal dogrusal PCM: 32/44,1/48 kHz 16/

20/24 bit, Dolby Audio

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3)*2

eARC modunda

7,1 kanalogrusal PCM: 32/44,1/48 kHz

16 bit, Dolby Digital, Dolby Digital Plus, Dolby

TrueHD, Dolby Atmos

ARC modunda

Iki kanal dogrusal PCM: 48 kHz 16 bit, Dolby

Audio, Dolby Atmos

DIGITAL AUDIO OUT (OPTICAL)

Dijital optik jak (iki kanalogrusal PCM: 48 kHz

16 bit, Dolby Audio)

(Stereo Mini Jak)

Kulakhlik

1,2

1 ve 2 USB portu High Speed USB'yi (USB 2.0) destekler

LAN

FW-50EZ20L:112,6×65,3×7,0

FW-43EZ20L: 97,2 × 56,7 × 7,0

Aigrlik (yakl.) (kg)

FW-75EZ20L:30,4

FW-65EZ20L: 20,4

FW-55EZ20L:15,3

FW-50EZ20L:12,1

FW-43EZ20L: 9,3

Diger

Opsiyonel aksesuarlar

Duvar Aski Aparati: SU-WL850 (FW-50EZ20L /

43EZ20L haric), SU-WL450

Bluetooth SIG, Inc.
Sony Group
Corporation HomeKit AirPlay, Apple Home,

Apple Inc.
Apple HomeKit- AirPlay-
macOS ,iPadOS ,iOS

n nn nnnn nnnn HEVC .patentlist.accessadvance.com

·

.0nnn

100

(COMMISSION DELEGATED REGULATION (EU) 2019/2013)

,(1589636) FW-65EZ20L,(1589637) FW-75EZ20L, (1589634) FW-50EZ20L,(1589635) FW-55EZ20L. (1589633) FW-43EZ20L

（）（y×x×n）（）

7.2× 96.9× 168.6 :FW-75EZ20L

7.1× 84.2× 146.2 :FW-65EZ20L

7.1× 72.1× 124.3 :FW-55EZ20L

7.0× 65.3× 112.6 :FW-50EZ20L

7.0× 56.7× 97.2 :FW-43EZ20L

（）（）

30.4:FW-75EZ20L

20.4:FW-65EZ20L

15.3:FW-55EZ20L

12.1:FW-50EZ20L

9.3:FW-43EZ20L

07NN

0777777777

FW-43EZ20L)FWA-ST1L:

FW-50EZ20L)FWA-ST2L

FW-65EZ20L/55EZ20L FWA-ST3L

40^ - 0^ ：n

Dolby Audio, 24/20/16

eARC/ARC (Enhanced Audio Return Channel/

^2* (HDMI IN 3) (Audio Return Channel

eARC

kHz 48/44.1/32:7.1 PCM

,Dolby Digital Plus ,Dolby Digital ,16

Dolby Atmos, Dolby TrueHD

ARC

16 kHz 48: PCM

Dolby Atmos ,Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

kHz 48: yy-77 PCM) yyy

(Dolby Audio, 16

（NNTPOyPn）

High Speed USB-2-USB 1

(USB 2.0)

LAN

000)100BASE-TX/10BASE-TONN

nynnnnnn,nuynnynnn

Pn nnwn nnnnnnnnnnnn

（）

REMOTE

ypv,RS-232C

nnnnnnnnnnn nn nnnnnnnnnnnnnnnnn

ynnn nn,

n

• 50,AC 240-220

• 25.12.27 by (1) 25 × 25 to 25 × 25 by 25 × 25 by 25 × 25 by 25 × 25 by 25 × 25

65/163.9：FW-65EZ20L

COMMISSION 58.8FW-55EZ20L

50/125.7:FW-50EZ20L

43/108.0:FW-43EZ20L

(1)

0.50

（）（）（）

2160 × 3840

N2

(USB 1/2 500 mA

y

HDMI High-Definition, HDMI

HDMI wynwnMultimedia Interface

HDMI

HDMI Licensing

.Administrator, Inc.

Dolby

double-D-nDolby Audio,Dolby

Dolby Licensing

Corporation

VewdCore. Copyright 1995-2023 Vewd

Software AS. All rights reserved.

#

y

nNNLEDnn,（）LCDn

(UN) UNUN

10 + 10

wnn nn

IEEE 802.11a/b/g/n/ac

Bluetooth 5.0 nV

(dBm) n (MHz) o nn

(LCD x)wnn LAN

(23.0 > )5250 - 5150,(20.0 > )2483.5 - 2400

(20.0 > )5725 - 5470,(20.0 > )5350 - 5250

(13.9>5850-5725

(LCD x) Bluetooth

(10.0 > )2483.5 - 2400

N/70

VIDEO IN

(ypnn) ywnn np

(HDCP 2.3)HDMI IN 1/2/3

:NT

(尼 24)2160p× 4096,^(y n 60,50)2160p× 4096

25,24)2160p×3840，*（7n60,50)2160p×3840

,50)1080i,24p/1080,(7n60,50,30)1080p,(7n30

576i,576p,24p/720,(n60,50,30)720p,(n60

y001,480p

：y

eARC (Enhanced Audio Return Channel)

kHz 48/44.1/32:777y7.1 PCM

,Dolby Digital Plus, Dolby Digital, 16

Dolby Atmos ,Dolby TrueHD

#

nynyN,nyTn:nnny

wnnynN LCD-n,nnnp nnn,

.0NnOyynnyy

1 by

nVvwnnnnnnnnnnnnn

yLDN.

pno,wnnN LCD-n on.

nnp nnnn nnnnnnnnnnnn

mpt nnu n. LCD-n nyonn by

40-LCD-nnynnnnyn

LCD-ny

2 HELP

.

1. nnnn

LCD-n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

yON 0pOoN noT y. noTyo

.0y

，LCD-nnnnnn

ybn by ynbn on ox on no ppa 5 NnW

LCD-nx by pinnn oya yonn

1

nnpnn nnnn nn nnnn nn nnnn nn nnnn

pn nnnnyn

nppnnnyy, npn nnnn npnnn y nnnn LCD-n x x 7y nn (npn nn)

• nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

nnpnn npnn nnnn pnn npnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

• nnnny

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

17

• 影响：声带的传播,传播的介质 P50

-125 ONN

·

.

·

.72

-7777N

: ,Sony

SU-WL85

SU-WL49

·n

LCD- n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn.

JNJY

y

1nnynn

27y30x00（）

0x01nynnn：

（n

0x02nynn：

（nynn nnnnnnnnnnnnnnnnn

0x03(xnDy) nynntp：

0x04(0)

3nnpo

777777
RS-232C nwnpnnnpn npn

0x8E	-	0x00 (#0)				0x8C0x00	0x000x02
0x8F	-	0x01 (#0)
0x96	0x01 (#1)	0x04 (HDMI)				0x8C0x00	0x020x03
0x97	0x02 (#2)
0x98	0x03 (#3)
0x99	0x04 (#4)

.，RS-232C mnn

IP

/obpn yynnnn nn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

LCD-n x 1

IP
LCD-

wnnn nn nnnn nn nnnn

yohnnn nn nyn

yynnnn nn n nn nn nn nn nn nn

, [BRAVIA Signage Free] - [n] n 1 .[n]n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n.

GREEN 2

1.LCD-nHsRn
2 nVnNn,nnn

[100]

4
5 (pwn)

[nnnn]nwnn nn nnnn, [nnnn]

.

y b y nn nn nn nn np

LCD-7

NNN pTn nn n npynn

LCD-nxwwnnUSB-n

ywnnnn nn yynn 0nnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

2 nNnLCD-n 15B

1 1

YELLOW

2

RED by 185

YELLOW

.

nipnu nynn nyon

yINNINNNN N yNINNINN N yN INNINN N.

"media" USB- n

LCD-n

[BRAVIA Signage Free] [n] nyn. [n] nyn] nn nyn 3- nyn 1 nyn by nyn

3

y yannn nynnynnn nn. USB-n nnn nn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnn

n nn n

BRAVIA Signage Free

yINNINININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININ IN

070000000000000

211N7777727

(.mp4)MP4AVC/HEVC,MP4AVC (m2ts)MPEGTSAVC/MPEG2

.2K 1080×1920-14K

[nnn] [n]

*1

*2.30 fps N

(.jpeg, jpg) ^1* JPEG

(.bmp) 2^* BMP

(.png) 2^* PNG

(.gif) ^2* GIF

*1

.4K

2

.LCD-n

[BRAVIA Signage Free] [n] 3
[nnn] nn n nn
[nnn] nn nn
3-1 nn nn 1 nn nn nn

2 USB- n NnN USB-n nnnn nn nn .2K

y

(2) (kHz 48, kHz 44.1) (.mp3) MP3 (2) (kHz 48, kHz 44.1) (.m4a) AAC

#

USB-n nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

RED 4
yynn nn yynnn nynnnn nn.

. 10n n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

Tn nn nnnn .[n] n

[πνν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν] [πν]

BRAVIA Signage Free 1

[BRAVIA Signage Free] nwnn LCD-n w [n]

BRAVIA Signage] nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

nnu [nuva nnu]nu nn 1 3-7 7nu 1nu nnu nnu

y, [nyn] nynn nn nON np nynn [BRAVIA Signage Free] nN .PIN

nno nnn nn no

.000000000000000000000000000000000000000000000000000000

n nn nnn

.

[Pro nnn]n nn 1

1

y yynn ypn yynn : [nynn yynyn] .

yin n yopn yonnn : [ynnn ywnyn] .

.Proynv np:[wnyn]

Pro

nynnnn nn nnnn [Pro nnn] .

Pro mnnn nn nnnn

1. HOO

n nn,Pro nnn] - [n nn] 2

.0n 0y

Pro nnnn nn

1

APK 17

Android TV APK .USB

1.[APK]
2.APK

.USB

unn 1

TIN NINNINNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

[wnn]←[Pro nT]n nn 1

2.

nnnnnnnnnnn

NIN V'VUNO 77y57

a (obp)

HDMI

b (HDMI)

.

1. [m]
   2.

.

.ynybn (b npn (a npn : [n] .ynyn (a npn : [np

y/nnnnn nn n y: [ny]

ywnnynnnnnnnnnnn

#

by [Pro nTn] nTn by nn Twno .PIN np w

1. (n) nn

ywnn PIn-n np nn 7

MENU/HOME 4

（ynuyn）-+

AUDIO

(1)

（pwn）※

-/+CH/PAGE

（y）

6

LED/ pinn vivu

7

*.AUDIO by

LCD

npnnn,ynnnn nnnn nn

/nnn nn nnnn nn nn nn nn nn nn

LCD- n nn/LCD-nn

,0pnpn npnnn nn n : (oepnna)

.

BRAVIA:SYNC MENU

.Sync

（n）

HDMI 1/2/3/4

（nnp）

CC

y

.

yDx:(Tnynnnn）

BACK

ynv mnpn npn nyn:OPTIONS

nno:（nnn no）

.7000

REMOTE RS-232C 5

n7,075.77v77v77n

"np

RX TX GND

USB2,USB1

1

-

1.17000000000000

(51)

2

.

·

·

LCD-

VIDEO IN-3

( 10 + 1) × 10 + 1 = 117

L:1

177 : 2

n7nn:3

R:4

HDMI IN 1/2/3 4

INTTNNN

ywn

HDMI IN 3 eA

Audio Return Channel/Audio Return

Channel)

HDMI IN 3- yyn nn

nynLCD-n ywnn

HDMI-nnnynnnyy.

ARC/ARC

nTTLCD-nxynyvbpH LCD-n

HDMI

HDMI eARC/ARC-

.DIGITAL AUDIO OUT (OPTICAL)

HDMI

.eARC ynn noyn

7

LCDn

#

000000
LCD
by + 12 = 8

TnDn mynLCD-n by y

.
LCD-728

（）

HE

1,2,3 10( 2)

in n

-NNNN,

0777777777777777

（）

TnOn by ynn nnyn. 7y Sony nn nn

nannnnn nn n npnnnnnnn nn

mnnnnnnpnnpn npny SONY

(https://www.sony.net/tv-software-licenses/)

←[nN]←[nV]←[nT]bN.

[wnynnnn]←[yynny]

#

"nnnyy" nyynnnn np,LCD-n nnnyan

#

3. 6 LCD
4. Pro mnnn

8 BRAVIA Signage Free

10
10 RS-232C

11 IP

ybnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

#

（）

nLCD-7ywnnnn nn nnnn nn nnnn

7

nwnnynn

177 7y7y7y7y7

,FW-75EZ20L mnnn nn nny Sony Corporation

FW-43EZ20L,FW-50EZ20L,FW-55EZ20L

ynnn nn by nyn vopun. 2014/53/EU nnnn

:NNN 7777777777777777

https://compliance.sony.eu

ywnnnnynny by nnon mnnnnn nn, nnn

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, -w

IE,IT,LV,LT,LU,MT,NL,PL,PT,SK,SI,ES,SE,UK

UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS

: mnp,ME

nppnn nn x by ynn nn nnn

LCD-nnnn nnny

Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn

.

HIGH-DEFINITION MULTIMEDIA INTERFACE

AUDIO
