USER MANUAL Brüssel 48275 UNOLD

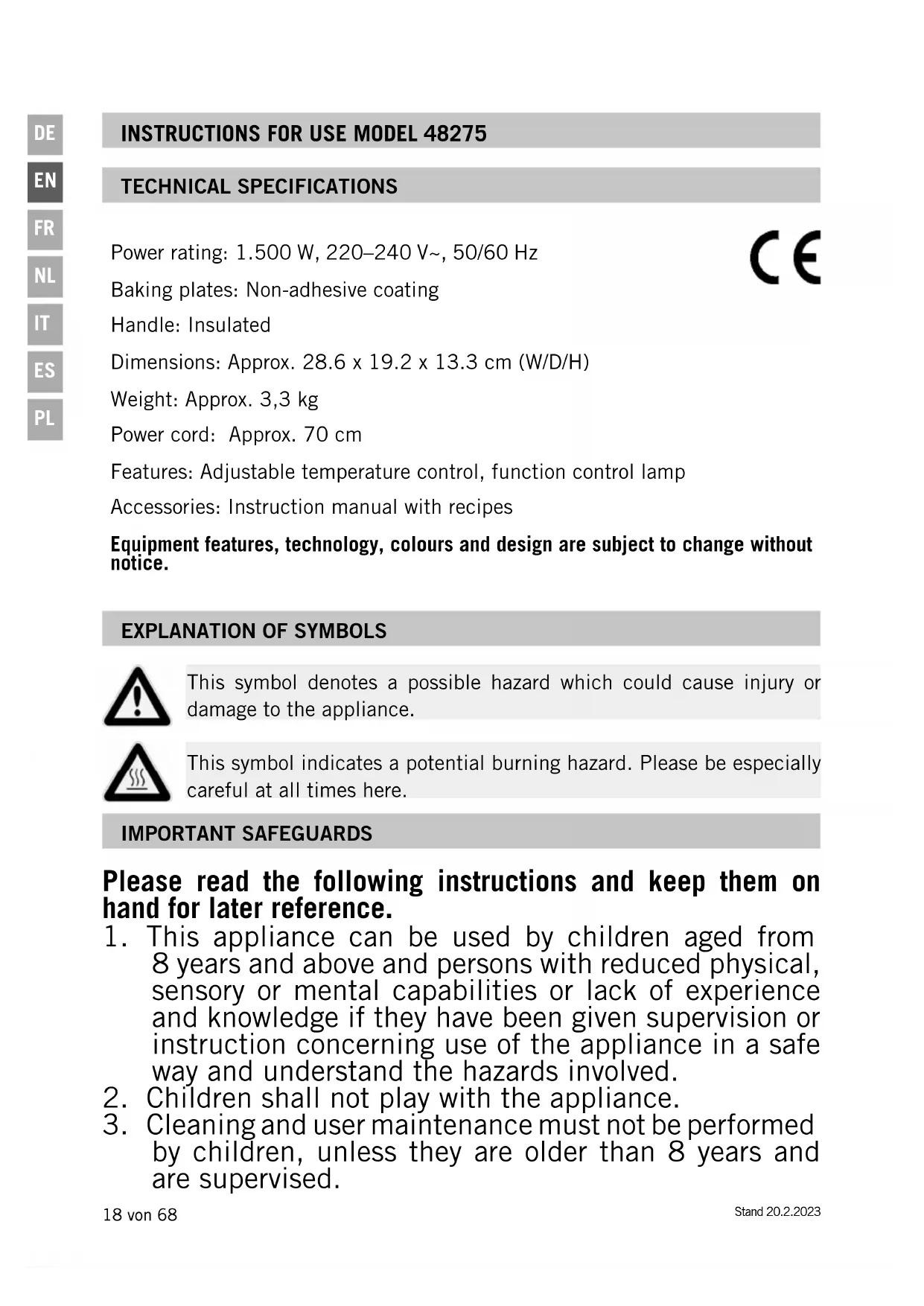

Instructions for use Model 48275

Technical Specifications. 18

Explanation of symbols. 18

Important Safeguards. 18

First use 21

Using the appliance 22

Cleaning 23

1. Recipes 23

Guarantee Conditions 25

Waste Disposal/Environmental Protection ... 25

Service 17

Specification technique 26

1 Handle
2 Lid with glass cover
3 Housing
4 temperature controller
5 indicator light

F Page 26

Baking plates: Non-adhesive coating

Handle: Insulated

Dimensions: Approx. 28.6 × 19.2 × 13.3 cm (W/D/H)

Weight: Approx. 3,3 kg

Power cord: Approx. 70 cm

Features: Adjustable temperature control, function control lamp

Accessories: Instruction manual with recipes

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years.

5. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
6. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.
7. Do not operate this appliance with an external timer or remote control system.
8. Never immerse the appliance or the lead cable in water or other liquids.
9. Do not clean the appliance in a dishwasher.
10. Never leave the appliance unattended when it is operating and keep it out of reach of children.
11. Unplug the appliance from the wall socket after use, before cleaning or when problems appear during operation.
12. Place the appliance on an uncluttered and even surface.
13. Never place or use the appliance and the lead cable near hot surfaces.
14. Never touch the appliance or lead cable with wet hands.
15. This appliance is intended for domestic and similar use such as:

■staff kitchen areas in shops, offices and other working environments;
agricultural enterprises;
- by clients in hotels, motels and other accommodation facilities;
- bed and breakfast accommodations and holiday homes.

1. Use the appliance only indoors.
2. Uncoil the power cord completely to prevent overheating.

3. Make sure that the lead cable does not hang over the edge of the worktop, since this can cause accidents, for example if small children pull on the cable.

4. Never wrap the lead cable around the appliance, but around the cable storage on the bottom of the base.

5. Always disconnect the lead cable from the wall socket pulling on the plug, never on the cable.
6. Make sure that the lead cable does not touch the hot appliance.
7. Do not use the appliance near flammable liquids. Fire hazard!
8. Never use the appliance for defrosting food - fire hazard!
9. Do not overheat your cookware for cooking, broiling or baking to prevent the formation of smoke, which may be hazardous to small animals (e.g. birds) with a respiratory system that is particularly sensitive. We recommend that you do not keep birds in the kitchen.
10. Use the appliance in a well-ventilated area. Leave at least 10 to 15 cm of space on each side of the appliance to allow for power air circulation.
11. The appliance becomes hot during operation. Please use the handles or pot holders when moving the appliance.
12. Do not leave the appliance unattended when it is still hot. Risk of burns!
13. Open the lid completely when placing the dough onto the waffle plates or removing the waffles. Otherwise the lid may fall down. Risk of burns and injury!
14. For safety reasons never cover the appliance or the waffle plates with paper, plastic film or other foreign material. Otherwise the risk of fire hazard exists!
15. Never touch the waffle plates during operation or shortly afterwards with any part of the body or heat sensitive objects.
16. Do not store the appliance when it is still hot.
17. Check the plug and lead cable regularly for wear and damage. In case the lead cable or other parts present damages, please send the appliance to our after-sales service for inspection and repair.

18. Unauthorised repairs can constitute serious risks for the user and void the warranty.

19. If the lead cable is damaged, it must be replaced by the manufacturer or its after-sales service or a similarly qualified person in order to avoid any hazard.

CAUTION: The appliance becomes very hot during operation!

Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

FIRSTUSE

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Clean all parts with a damp cloth, as described in the chapter "Cleaning and care".
4. Close the appliance and connect the plug to a wall socket (220-240 V~, 50/60 Hz). The indicator lights up.
5. Turn the temperature control to the intermediate position to start to preheat.
6. Heat the appliance up for a couple of minutes without dough, in order to eliminate possible manufacturing residues. Make sure the room is well ventilated during this process. After the initial heating process the appliance might show signs of wear, which do not affect its features and do not constitute a reason for rejection. non-stick coated, greasing is only necessary before the very first use).
7. The appliance may generate a slight smell when first using it, which is absolutely normal.
8. Before first use, slightly grease both waffle plates with heat resistant grease like margarine, for example, using a pastry brush (as the waffle plates are non-stick coated, greasing is only necessary before the very first use).
9. The first waffle should not be used and should be thrown away.

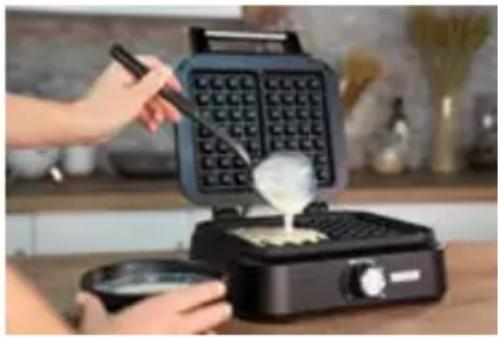

USING THE APPLIANCE

1. Close the appliance and place the plug in a power socket (220-240 V~, 50/60 Hz). The indicator lamp in the temperature control lights up.
2. Turn the temperature control to the desired position between "Min" and "Max". Preheating begins, and the indicator lamp is lit red. Once the appliance has reached the pre-set temperature, the indicator lamp lights up green.
3. Now, use a ladle to add batter to each centre of the lower baking surface. Always fill both baking surfaces to prevent damage to the appliance.
4. The batter will spread evenly when you close the appliance. Always make sure to add the right amount of batter. If you add too little

batter, the top of the appliance will not be seated properly; the top side of the waffles will then not be as brown as the bottom side. If the batter overflows, the excess will be caught in the channel and baked as well. When baking is complete, you can simply remove this surplus rim from the waffle.

1. Close the appliance immediately after filling in batter to allow the waffle to be browned evenly on the top and the bottom.
2. The waffles are now being baked.
3. Open the appliance carefully and remove the finished waffle. Refrain from using metal objects as they might scratch the coating of the baking plates.
4. If the waffle is not browned enough, close the appliance again and keep repeating steps 5 through 7 until the waffle has been browned to your satisfaction.
5. Notice about the baking lights: When it is green, the indicator lamp signals that the temperature has been reached again, but not that the waffle is finished. The baking time of the waffle varies with the batter you use and with your personal taste. Therefore, always check before taking the waffle out if the waffle has been baked to your satisfaction. Our experience has shown that Brussels Waffles are finished after baking for approx. 6 to 8 minutes.
6. To make more waffles, close the appliance and wait until the indicator lamp lights up green. Proceed with steps 2 to 9 until you have used up all the batter.
7. When finished baking, set the control to "0" and unplug the appliance. Only then can you be sure the appliance is safely switched off.

Caution: The appliance will remain very hot for an extended time after use!

CLEANING

Before cleaning, always turn off the appliance by switch to the ,0" position, and unplug it from the electrical outlet.
Allow the appliance to cool before cleaning it.

1. Never immerse the appliance into water or any other liquid.
2. It is best to clean the baking surface while it is still warm with a soft brush or with a damp cloth.
3. Never use pointed or hard objects. They would scratch the antistick coating.
4. The appliance must be completely dry before using it again.
5. If necessary, wrap the power cord around the cord storage on the bottom side of the appliance so that you can store it without taking up much space.

RECIPES

You can also make all recipes with whole-wheat flour or whole-meal spelt flour instead of sifted cake flour. In this case use approx. 15% more liquid and let the batter stand for 30 min. before starting to make waffles.

For flavour variations you can add approx. 2 cl of rum or Amaretto, 1 TBSP of grated lemon peel, 12 bottle of butter vanilla flavouring. 3 TBPS of finely chopped nuts or almonds. You can vary the flavour of savoury waffles by adding 2-3 TBSP of finely chopped herbs, grated cheese or boiled ham, 1 TPSP curry, caraway or 1 TBSP of flax seed. For many recipes there is no need to grease the waffle plates. Waffle batter that contains little or no grease, requires greased waffle plates. Use a brush to apply heat-resistant margarine to the plates (do not use diet margarine). If you separate the eggs, beat the egg white until it is stiff, and then fold it into the batter, you will get particularly fluffy and airy waffles (not with yeast dough). Please note that Belgian waffles will be thicker than conventional waffles and consequently take slightly longer to cook. Each of the recipes makes approx. 8 to 10 waffles.

If you want to use stevia instead of sugar, simply replace the tbsp specification for sugar with a tsp specification for stevia (e.g. replace 5 tbsp sugar with 5 tsp stevia. Caution: In this case the dough will be somewhat thinner).

Honey or syrup is used like sugar. In this case the sweetening effect is not as strong, however browning of the waffles is more pronounced.

SWEET WAFFLES

Basic recipe - Waffles

Makes 10-12 waffles

250 g butter, 200 g sugar, 1 package vanilla sugar, 5 eggs, 400 g flour, 12 package baking powder, 3 Tbsp milk

Beat butter, sugar and vanilla sugar until foamy, stir in eggs individually, add flour, baking powder and milk, and beat the mixture to form a smooth batter.

Heat up the waffle maker and select a level between 4 and 6 depending on the desired degree of browning. Wait until the red and the green indicator lights are illuminated. Fill in 1/3 of the batter (approx. 2-3 Tbsp per individual waffle).

Close the appliance and bake waffles until the desired browning.

Apple waffles

Basic recipe, in addition 3 red apples

Quarter apples, remove core, grate in fine strips, stir into the batter. Continue as described above.

Cinnamon waffles

Basic recipe, in addition stir 1 tsp cinnamon into the batter. Continue as described above.

Cocoa waffles

Basic recipe, in addition stir 1 12 Tbsp cocoa powder and 2 Tbsp milk into the batter.

Nut waffles

Basic recipe, in addition stir 100g ground nuts and 5 Tbsp milk into the batter. Important: Lightly toast the ground nuts in a pan without oil, stir constantly.

SALTY WAFFLES

Cheese waffles

120 g soft butter, 3 egg yolks, 3 tbsp condensed milk 1/8 l milk, 12 tsp salt, 1 pinch of sugar, 75 g grated cheese, 200 g flour, 3 whipped egg whites, 1 grated onion

Beat butter with eggs, add milk, condensed milk, egg yolks, sugar, salt, cheese and flour and prepare a smooth dough. Add whipped egg white. Add onions immediately before baking to provide that the dough becomes bitter. Eventually add 1 tbsp of chopped parsley.

Carrot waffles

150 g soft butter, 2 tbsp sugar, 4 eggs, 100 g finely grated carrots, 1 pinch of cinnamon, 1 pinch of salt, 250 g flour

Prepare a smooth batter of all ingredients. Try zucchini instead of carrots.

WAFFLES FOR PEOPLE SUFFERING OF A GLUTEN ALLERGY

Corn waffles

3 eggs, 50g soft butter, 3 tbsp honey, 1 tbsp maple syrup, 150ml milk, 200g corn flour, 100g sliced almonds

Make a smooth dough of all ingredients and leave for about 15 minutes before baking. Please grease the waffle plates carefully!

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendingung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODELE 48275

SPÉCIFICATION TECHNIQUE

Puissance: 1.500 W, 220-240 V~, 50/60 Hz

CONDITIONS DE GARANTIE
