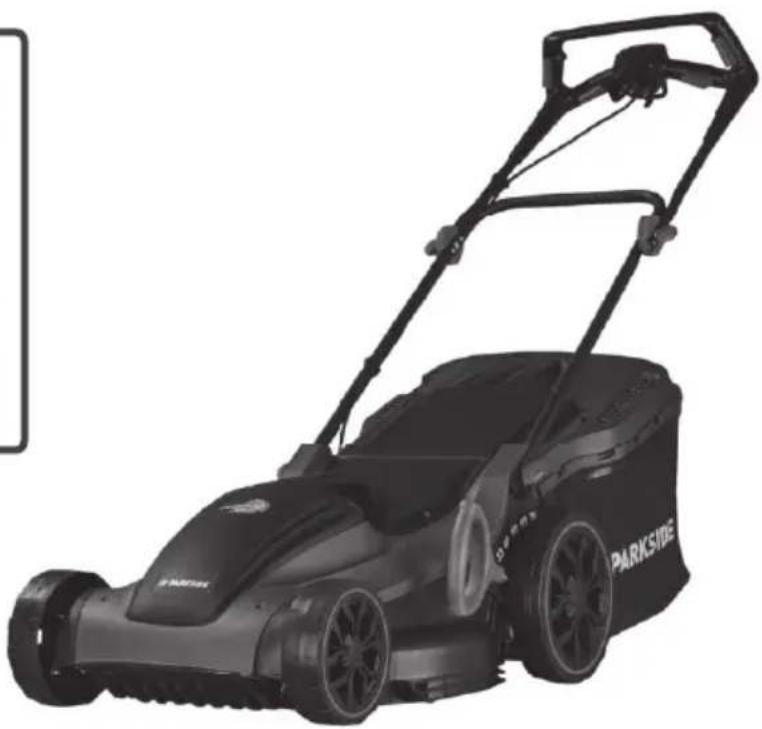

Black lawn mower with 'PARKSIDE' branding, no visible text or symbols on the device itself

Translation of the original instructions

NL BE

Elektrische grasmaaier

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

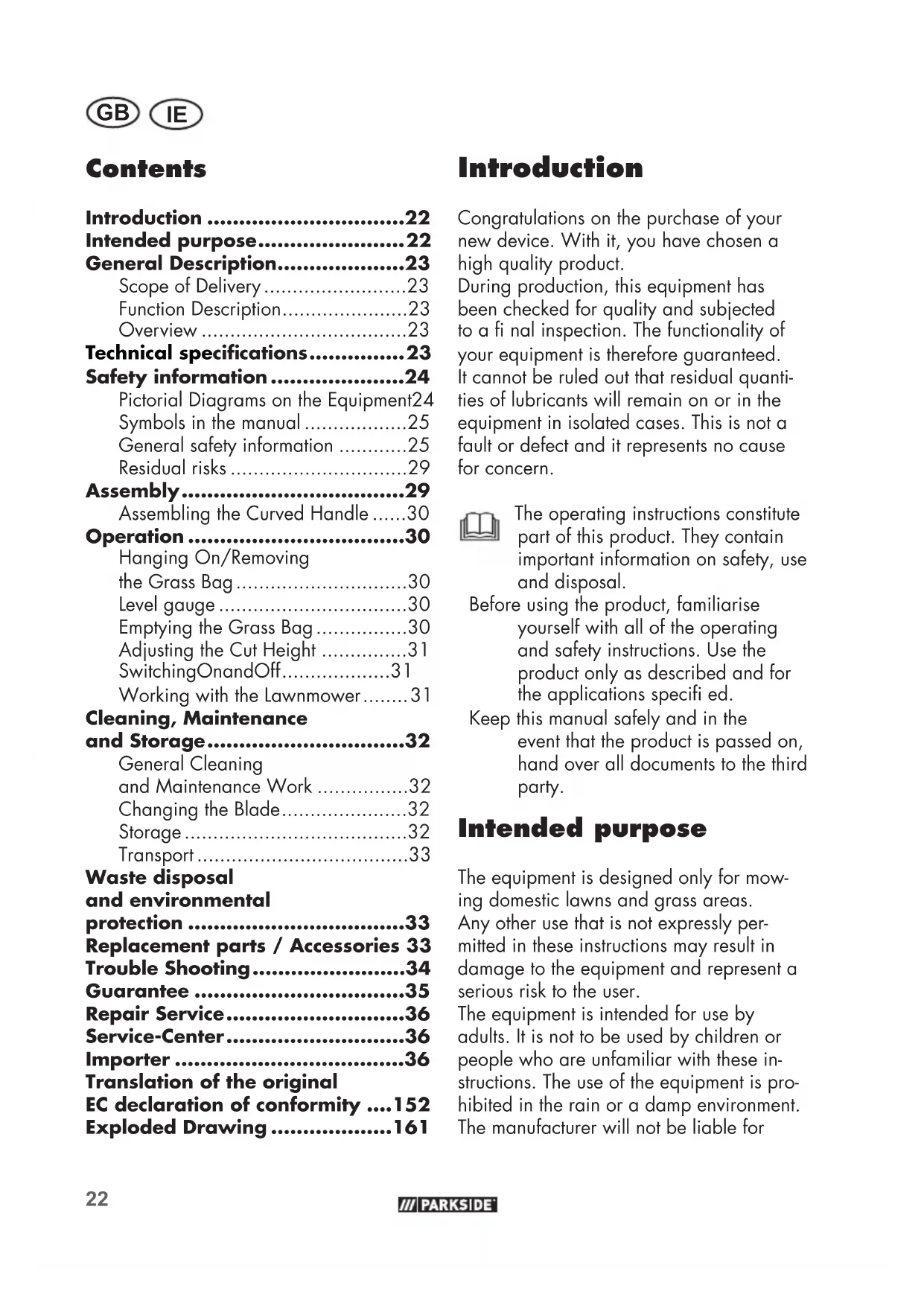

GB / IE Translation of the original instructions Page

Service-Center......20

Importeur ......20

Fehlersuche....21

Original-EG-

Intended purpose......22

General Description......23

Scope of Delivery 23

Function Description......23

Overview 23

Technical specifications......23

Safety information......24

Pictorial Diagrams on the Equipment24

Symbols in the manual 25

General safety information ......25

Residual risks 29

Assembly....29

Assembling the Curved Handle .....30

Operation 30

Hanging On/Removing

the Grass Bag 30

Level gauge 30

Emptying the Grass Bag ....30

Adjusting the Cut Height 31

SwitchingOnandOff......31

Working with the Lawnmower......31

Cleaning, Maintenance and Storage....32

General Cleaning and Maintenance Work ....32

Changing the Blade....32

Storage 32

Transport 33

Waste disposal and environmental

protection 33

Replacement parts / Accessories 33

Trouble Shooting....34

Guarantee 35

Repair Service....36

Service-Center......36

Importer 36

Translation of the original EC declaration of conformity ....152

Exploded Drawing ......161

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The equipment is designed only for mowing domestic lawns and grass areas.

Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.

The manufacturer will not be liable for

damages caused by use other than for the intended purpose or by incorrect operation.

General Description

Scope of Delivery

Carefully remove the equipment from the packaging and check whether the following parts are complete:

• Electric lawnmower and U-shaped handle with appliance cable
• Lower bar
• Lawn bag
• 2 Wing nuts with washers and carriage bolts
• 2 wing nuts for fastening the handle/lawnmower housing
• 2 cable holders
• Instruction Manual

Function Description

The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, release button, collision guard, and grass bag. Additionally, the equipment is height adjustable to 7 levels and has smooth-running wheels. For the function of the operating parts, please refer to the descriptions below.

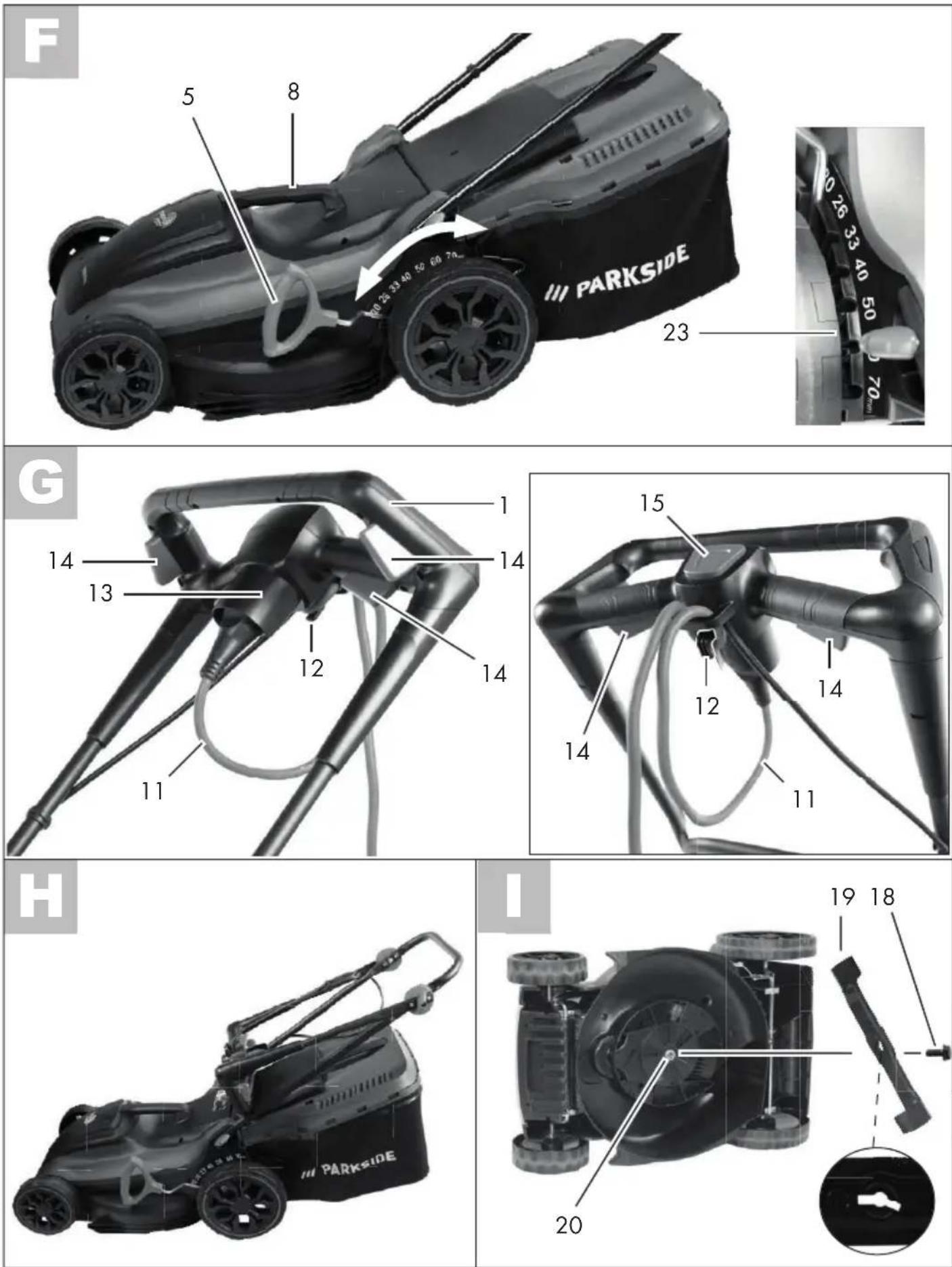

Overview

1 Curved handle

2a Wing nut, washer

2b Wing nut

3 Lower bar

4 Grass bag

5 Cut heigh t adjusting lever

6 Wheels

7 Lawnmower housing

8 Handle

9 Collision guard

10 Cable holder

11 Power cable (sold separately)

12 Cable strain relief

13 Power cable outlet

14 Release button

15 Start button

16 Screws

17 Level gauge

18 Blade screw

19 Blade

20 Motor spindle

21 Appliance cable

22 Lower grip on grass collection bag

23 Height setting mechanism

Technical specifications

Electric Lawnmower ..PRM 1800 A2

Motor input power 1800 W

Mains voltage....230 V\~, 50 Hz

Idling speed ....3250 min ^-1

Blade width....Approx. 440 mm

Cut height 20 - 70 mm

Protection class ...... □ II

Protection type....IPX4

Weight 17 kg

Lawn bag volume......ca. 55 l

Sound pressure specification

(L_pA) 75.5 dB(A); K_pA = 1.8 dB

Noise level specification

measured (L_WA) ..94.5 dB(A); K_WA = 1.8 dB

guaranteed 96 dB (A)

Vibration on the handle

(a_h) 2.5 m/s²; K=1.5 m/s²

GB IE

This device is designed for operation on a power supply network with a system impedance (Internal resistance of the mains) Zmax at the transfer point (domestic connection) of a maximum of 0.3433 Ohms.

The user must ensure that the device is operated only on a power supply network that fulfi Is this requirement.

If necessary, the local power supply company can be asked for the system impedance.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

The noise and vibration values have been determined in accordance with the standards and regulations specified in the declaration of conformity.

Safety information

This section covers the basic safety regulations when working with the electric lawnmower.

Pictorial Diagrams on the Equipment

Caution!

Read the operating instructions carefully.

Wear eye and ear protection.

Risk of injury from parts being thrown up;

o nearby people away from the mower.

Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury! ch off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.

Danger of damaged power cable.

Keep the power cable away from the cutting blade!

Caution!

lawnmower blade continues to run after switching off.

Scale cutting height

ing circle

Noise level specification I_WA in dB.

Protection class II (Double insulation)

Do not dispose of electrical equipment in domestic waste.

Level gauge on grass catcher:

Flap open: grass catcher empty

Flap closed: grass catcher full

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols with information on preventing damage.

Pull out the mains plug.

Wear hand protection.

Help symbols with information on improving tool handling.

General safety information

This equipment may cause serious injury in the case of

improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Preparation:

- This device can be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience or knowledge if they are supervised or have been instructed in how to use the device safely and understand the associated dangers.

- Before using the unit, carefully read through the instruction manual and familiarise yourself with all of its controls.

- Prior to use, always check the connecting cable and extension cable for signs of damage or wear and tear. If the cable gets damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED. Do not use the machine, if the cable is worn or damaged. Damaged mains power cables increase the risk of electric shock.

- Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.

- Do not use the equipment when people and particularly children

or pets are nearby.

- Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance must not be carried out by children.

- The operator or user is responsible for accidents, injuries to other people or damage to the property of others.

- Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up. This can result in serious injury.

- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Avoid wearing loose clothing with hanging laces or belts. There is a risk of injury!

- Before use, always perform a visual inspection to check whether the cutting blades, fastening bolts and the whole cutting unit are worn out or damaged. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets. This ensures that the equipment remains safe.

- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts

will immediately invalidate the guarantee.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

Observe the noise protection and local regulations.

- Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools. Risk of injury from cuts.

- Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Water entry into the equipment increases the risk of electric shock. Work only in daylight or with good lighting. Accident hazard!

- Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work. A moment of carelessness when using the equipment can result in serious injury.

- When working, ensure a firm stance, particularly on slopes. This enables you to control the equipment better in unexpected situations. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel

on the slope. Do not work on excessively steep slopes.

- Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards. There is a risk of personal injury.

- Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades. Contact with the cutter can result in injury.

- When starting or turning the motor on, the lawnmower must not be tilted, unless it is required to lift the lawnmower in the process. In doing so, tilt it only as far as absolutely necessary and lift it only on the side facing away from the user. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.

- Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.

- Do not start the motor when standing in front of the emission duct.

Caution! Danger! The blade continues to run after switching off. There is a risk of injury.

- The equipment is not to be lifted or transported while the motor

is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.

- Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

- Do not leave the equipment unattended in the workplace.

- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.

- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.

- Do not use the equipment near infl ammable liquids or gases. Non-observance will result in a risk of fi re or explosion.

- Do not lift or carry the equipment when the motor is running. Risk of injury from cuts.

- Switch off the equipment and disconnect the plug. Make sure that all moving parts have come to a complete stop:

- Whenever you leave the machine,

• Before cleaning the ejection hole or removing blockages,
• When the equipment is out of use,
• Before checking, cleaning or working on the equipment,
• If the power cable is damaged or frayed,
• if a foreign object has been hit by the device. Check for damage to the lawnmower and carry out the necessary repairs before switching on again and working with the lawnmower.

If the lawnmower starts to vibrate abnormally, an immediate check must be carried out.

- carry out a search for damage;

- perform the necessary repairs of damaged parts;

- make sure that all nuts, bolts and screws are properly tightened.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during mowing.

Maintenance and Storage:

• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out

only by customer service centres that we have authorised.

- Keep the equipment in a dry location and out of reach of children.

- Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.

- Wear protective gloves when changing the cutting device.

- Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts.

When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.

Many accidents are caused by poorly maintained equipment.

• Check that only replacement tools authorised by the manufacturer are used.
• During maintenance of the cutting blades, be aware that they can be brought into motion even when the power supply is switched off.
• Worn or damaged information signs must be replaced.
• Replace worn or damaged parts for safety reasons. Use only original spare parts and accessories.
• Allow the motor to cool down before you put the machine into storage. Risk of burns!

Electrical Safety:

- Ensure that the mains voltage matches the specifications on

the rating plate.

- Connect the equipment only to a socket that has a RCD (Residual Current Device) with a trip current of no more than 30 mA.

- Avoid bodily contact with earthed parts (e.g. metal fences, metal posts). There is an increased risk of electric shock if your body is earthed.

- Use only authorised power cables of H05RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.

- To fix on the power cable, use the cable suspension intended for the purpose.

- Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.

The extension cable can be accidentally severed. Risk of electric shock!

- Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.

- Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.

- Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Injuries caused by moving parts;
b) Ear damage if working without ear protection;
c) Lung damage, if suitable respiratory protection is not worn;
d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic fi eld which, under certain circum- stances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Assembly

Disconnect the plug before any work on the equipment. There is a risk of injury.

Assembling the Curved Handle

For a simple holmm installation, select cutting height 20 mm (see „Adjusting the cutting height“).

1. Remove the two pre-installed butterfly nuts (2b) from the lawnmower housing (7). Insert the lower bar (3) into the slot on the lawnmower housing (7).

2. Fix the bottom bar (3) using the two screws and butterfly nuts (2b).

1. Fix the curved handle (1) to the lower beam (3) with the enclosed carriage bolts (16) and two wing nuts with washers (2a).

2. Clip the cable holders (10) onto the lower bar (3) and the U-shaped grip (1) and use them to fix the appliance's cable in place (21).

3. Adjust the angle of the curved handle (1) by loosening the wing nuts with washers (2a) and selecting one of the three recommended settings, which are shown next to the wing nut (see detail illustration).

By releasing the two wing nuts with washers (2a) for fastening the handle, you can fold the bow-type handle (1) downwards to store the device. Ensure that the appliance's cable (21) is not trapped.

Operation

Hanging On/Removing the Grass Bag

1. To hang on the grass bag (4), lift the collision guard (9) and hang on the grass bag. Fold the collision guard (9) onto the grass bag (4). It holds the grass bag in the correct position.

2. To remove the grass bag (4), lift the collision guard (9) and detach the grass bag. Fold the collision guard (9) back onto the mower housing.

Do not work with the lawn-mower without the collision guard or lawn box. There is a risk of injury.

Level gauge

The level gauge (17) is located on the side of the grass catcher (4).

Flap (17) open: grass catcher (4) empty

Flap (17) closed: grass catcher (4) full

The level indicator (17) works when the device is in operation.

Emptying the Grass Bag

Also use the lower grip on the grass collection bag (22), to help to shake out the grass collection bag (4).

Adjusting the Cut Height

Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.

1. Hold the cut height adjusting lever (5) and guide it past the indent to the desired cut height setting.

2. The handle (8) may be used to help, in order to prevent to mower rolling away.

20 mm - Position 1

26 mm - Position 2

33 mm - Position 3

40 mm - Position 4

50 mm - Position 5

60 mm - Position 6

70 mm - Position 7

The correct height is around 25 – 40 mm for a decorative lawn and around 30 – 60 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Observe the noise protection and local regulations.

Switching On and Off

1. Insert the power cable plug into the socket (13) on the curved handle (1).
2. To relieve the strain, form a loop with the end of the power cable (11) and hang this into the strain relief (12).
3. Connect the equipment to the power supply.

4. Before switching on, ensure that the equipment is not in contact with any objects.

5. To switch on, press the start button (15) and one of the release buttons (14) on the U-shaped handle (1). Keep one of the release buttons (14) constantly pressed.

6. To switch off, let the release button (14) go.

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn.

The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• Start mowing near the socket and work away from the socket.
  • Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on "Cleaning, Maintenance and Storage".

GB IE

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Cleaning, Maintenance and Storage

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade.

Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops. There is a risk of injury.

General Cleaning and Maintenance Work

Do not hose down the lawn- mower with water.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
- After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Oil the wheels from time to time.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.

- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the Blade

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Switch off the equipment, disconnect the plug and wait until the blade stops.
2. Turn the equipment over.
3. Use sturdy gloves and hold the blade firmly (19). Turn the blade screw (18) anticlockwise off of the motor spindle (20) using a screwdriver (AF 13 mm).
4. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly.

Storage

• Keep the equipment dry and out of reach of children. Loosen the wing nuts and fold down the handle bar so the equipment takes up less space. See the diagramm H. The machine cable must not be jammed when you do this.
• Allow the motor to cool before storing the equipment in a confined space.
• Do not cover the equipment with nylon bags as moisture could build up.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Transport

Before transporting the device, switch it off, pull out the mains plug and wait for the blade to come to a stop. There is a risk of personal injury.

- Use the handle (8) to transport or move the device.

Waste disposal and environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have fi nished with them.

The apparatus can not be disposed of with regular household or bulk waste.

• Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• You can find out more about waste collection sites and times through your local administration offi ce or waste disposal company.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Replacement parts / Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 36).

Item Instruction Manual	Item Exploded Drawing	Description Order number
A 4 53 Grass bag	91105232
I 19 11	Spare blade (manufacturer's designation: GL01BX.00.06 SKB)	13700303

1 Trouble Shooting

Problem Possible	Cause Fault Fixing
Equipment does not start	Power is off	Check the socket, cable, wire and plug and have any repairs carried out by an electrician
	Defective start lever (A 15)	Repair by customer services
	Worn carbon brushes
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (19) blunt	Have the blade (19) sharpened or replace it
	Blade (19) area blocked Clean the equipment
	Blade (19) assembled incorrectly	Install the blade (19) correctly
Blade (19) fails to turn	Blade (19) blocked by grass Remove the grass
	Blade screw (18) loose Tighten the blade screw (18)
Strange noises, rattling or vibrations	Blade screw (18) loose Tighten the blade screw (18)
	Blade (19) damaged Replace the blade (19)
Level indicator (E 17) does not work	Contamination	Cleaning with a soft brush. The level indicator must close by itself, if it was opened.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blade) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 373339_2104) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

GB IE

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail] IAN 373339_2104

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 373339_2104

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Maintenance/Stockage ......49

Service-Center......55

Importateur ....55

Service-Center....71

Importeur ....71

Volume grasvangmand, ......ca 55 l

Geluidsdrukniveau

$$ \left(L _ {p A}\right) \dots 7 5, 5 \mathrm{dB(A)}; K _ {p A} = 1, 8 \mathrm{dB} $$

Geluidsniveau

gemeten (L_WA) ..94,5 dB(A); K_WA = 1,8 dB

Service-Center......88

Importer 88

Service-Center....103

Dovozce....103

Service-Center....118

Dovozca....118

Reparationsservice......132

Service-center 132

Importør 132

Fejlsøgning 133

Technical diagram of a car body assembly with numbered parts, showing exploded and assembled views of the component.

informativ · informative · informatif · informační informatief · pouczający · informatívny · informativo

20210827_rev02_sh

GRIZZLY TOOLS GMBH & CO. KG

FSC www.fsc.org RECYCLED Aus Recycingmaterial FSC® C156362

FSC www.fsc.org RECYCLED Made from recycled material FSC® C156362
