USER MANUAL GCMT 3060 LD EINHELL

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

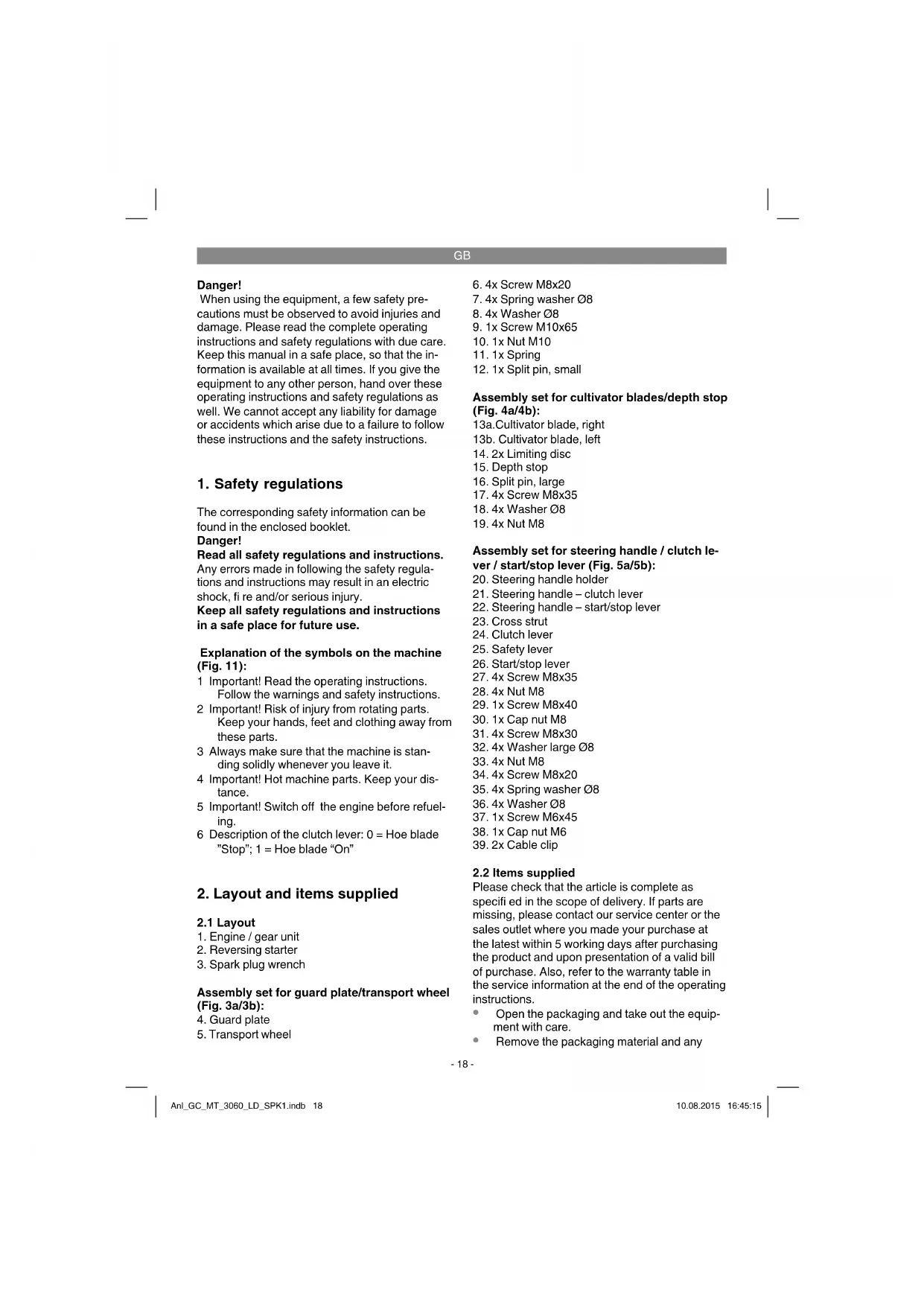

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Explanation of the symbols on the machine (Fig. 11):

1 Important! Read the operating instructions. Follow the warnings and safety instructions.
2 Important! Risk of injury from rotating parts. Keep your hands, feet and clothing away from these parts.
3 Always make sure that the machine is standing solidly whenever you leave it.
4 Important! Hot machine parts. Keep your distance.
5 Important! Switch off the engine before refueling.
6 Description of the clutch lever: 0 = Hoe blade "Stop"; 1 = Hoe blade "On"

2. Layout and items supplied

2.1 Layout

1. Engine / gear unit
2. Reversing starter
3. Spark plug wrench

Assembly set for guard plate/transport wheel (Fig. 3a/3b):

1. Guard plate

2. Transport wheel

3. 4x Screw M8x20

4. 4x Spring washer 08
5. 4x Washer 08
   9.1x Screw M10x65
6. 1x Nut M10
7. 1x Spring
8. 1x Split pin, small

Assembly set for cultivator blades/depth stop (Fig. 4a/4b):

13a.Cultivator blade, right
13b. Cultivator blade, left
14.2x Limiting disc
15. Depth stop
16. Split pin, large
17.4x Screw M8x35
18.4x Washer 08
19.4x Nut M8

Assembly set for steering handle / clutch lever / start/stop lever (Fig. 5a/5b):

1. Steering handle holder
2. Steering handle - clutch lever
3. Steering handle - start/stop lever
4. Cross strut
5. Clutch lever
6. Safety lever
7. Start/stop lever
8. 4x Screw M8x35
   28.4x Nut M8
   29.1x Screw M8x40
9. 1x Cap nut M8
   31.4x Screw M8x30
10. 4x Washer large 08
    33.4x Nut M8
11. 4x Screw M8x20
12. 4x Spring washer 08
13. 4x Washer Ø8
14. 1x Screw M6x45
15. 1x Cap nut M6
    39.2x Cable clip

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any

GB

packaging and/or transportation braces (if available).

Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safetyinstructions

3. Proper use

The machine is designed for digging over beds and fi elds. Be sure to observe the restrictions in the additional safety instructions.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Engine: 4-stroke engine, 139 ccm
Engine rating: 3 kW / (4) hp
Engine working speed: 3600 rpm
Working width: 60 cm
Hoe blade diameter: 26 cm
Forward gear: 1
Starting system: Reversing starter
Fuel: Regular unleaded petrol
Engine oil: approx. 0.6 (10W30)
Tank capacity: approx. 2.2 l
Vibration a_w .. 6.1 m/s
K uncertainty 1.5 m/s
Weight: 36 kg
Spark plug: LG F6TC
LDA sound pressure level 84 dB(A)
K_ba uncertainty 3 dB
Lwa sound power level 95 dB(A)

5. Before starting the equipment

Assembling the guard plate and the transport wheel

1. Arrange the components properly as described in section 2.1 Layout.
2. Fit the transport wheel (5) to the engine/gear unit (1) as shown in Fig. 3c.
3. Fit the guard plate (4) as shown in Fig. 3d.
4. Fit the spring (11) and the small split pin (12) as shown in Fig. 3e.

Assembling the cultivator blades and the depth stop

1. Arrange the components properly as described in section 2.1 Layout.
2. Fit the right cultivator blade (13a), the left cultivator blade (13b) and the limiting discs (14) (Item 14) as shown in Fig. 4c. Make sure that the sharp side of the cultivator blade (Fig. 4d/ Item A) faces in the direction of rotation.
3. Fit the depth stop (15) as shown in Fig. 4e and secure in position with the large split pin (16). We recommend securing the depth stop in the middle position of the 3 possible positions when you begin your work. If you want to change the working depth, move the depth stop by sliding it up or down.

GB

Assembling the steering handle, clutch lever and start/stop lever

1. Arrange the components properly as described in section 2.1 Layout.
2. Fit the steering handle holder (20) as shown in Fig. 5c/5d.
3. Fit the steering handle clutch lever (21) and the steering handle start/stop lever (22) as shown in Fig. 5e.
4. Fit the cross strut (23) as shown in Fig. 5f.

5. Fitting the clutch lever (24) is easy if you observe the following steps:

6. Push the Bowden wire sleeve (Fig. 5g/Item A) into the eyelet (Fig. 5g/Item B). Adjust the Bowden wire to maximum length by turning the lock nuts.

7. Attach the Bowden wire (Fig. 5h/Item C) to the clutch lever (24) and fit the clutch lever to the steering handle. Check that the safety lever is correctly seated. Carry out a function test. Pull the safety lever (25) to the clutch lever as shown in Fig. 6d. The clutch lever will be released and can be actuated.

8. Adjust the length of the actuator cable as described in section 7.2.4.

9. Fit the start/stop lever (26) as shown in Fig. 5i.
10. Fit the cable clip (39) as shown in Fig. 5k.

Caution! You must fill in engine oil and fuel before you start up for the first time.

• Check the fuel and engine oil levels and top up if required.
  Make sure that the ignition cable is secured to the spark plug.
• Check the area immediately around the power cultivator.

6. Operation

• Set the depth stop (Fig.4e/Item 15) to the desired depth and secure with the split pin
• Swing up the transport wheel and make sure that the bolt of the latch is engaged in the mount at the front (Fig. 6a-6b).
• You can adjust the steering handle to your physical size. To do so, undo the screws(Fig. 6c), adjust the bracket and retighten the screws.
  To start the star-type hoes, pull up the safety lever (25) and press and hold down the clutch lever (24) (Fig.6d). Releasing the clutch lever will bring the star-type hoes to a stop (if they do not stop, readjust the clutch cable).

Starting the engine

1. Ensure that the ignition cable is connected to the spark plug.
2. Stand behind the power cultivator. Move the engine start/stop lever (Fig.7/Item 26) to position M. If the engine has already warmed up, move the engine start/stop lever to the "Hare" position.
3. Start the engine using the reversing starter (Fig. 1/Item 2). To do this, pull out the handle by approx. 10 - 15cm until you feel a resistance) and then start the engine with a sharp tug.

Note! Never allow the actuator cable to snap back.

Note! In cold weather, it may be necessary to repeat the starting process several times.

Stopping the engine

Move the engine start/stop lever (26) into the STOP position.

7. Cleaning, maintenance, storage and ordering of spare parts

Danger!

Pull out the spark plug boot before doing any cleaning and maintenance work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
  Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

7.2 Maintenance

Please note: Switch off the unit immediately and contact an authorized dealer:

In the event of unusual vibrations or noise.
If the engine appears to be overloaded or misfires.

GB

7.2.1 Air fi iter maintenance

• Check and clean the air filter before every use, and replace it if necessary.
• Remove the filter element (Fig. 8a-8b).
• Do not use abrasive cleaning agents or petrol to clean the element.
  Clean the element by tapping it on a flat surface.
• Assemble in reverse order.

7.2.2 Spark plug maintenance

Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug

after every 50 hours of operation.

Pull off the spark plug boot (Fig. 9) with a twist.
- Remove the spark plug (Fig. 9/Item D) with the supplied spark plug wrench.
- Assemble in reverse order.

7.2.3 Changing the oil and checking the oil level (before using the machine)

The motor oil is best changed when the motor is at working temperature.

Take out the dip stick (Fig. 10a / Item E).
- Open the drain screw (Fig. 10a / Item F) and allow the warm oil to drain into a drip tray.
- Close the drain screw again when all the waste oil has been drained.
- Fill up with engine oil as far as the top mark on the dip stick (Fig. 10b/H).
- Important: Do not screw the dip stick when you check the oil level, simply insert it as far as the thread (H = Max. / L = Min.).
- Dispose of the waste oil properly.

7.2.4 Adjusting the Bowden wires

In the working setting it should be possible to push the clutch lever up to the push bar without this requiring much effort. If the Bowden wire is too taut for this, it must be extended. To do this, undo the lock nut opposite the main cable, extend the screw connector and then tighten the lock nut again (see Fig. 5g). If the star-type hoes no longer rotate then the screw connector will have to be shortened again (as described above).

7.2.5 Power cultivator gearing

The gear unit is driven by a V-belt. The gear unit can be repaired if this should become necessary. If repairs are necessary, please contact our customer service center.

GB

9. Troubleshooting guide

Warning: Switch off the engine and pull out the ignition cable before making any checks or adjustments.

Warning: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remember that the exhaust and other parts will get hot. Do not touch these parts as these may burn you.

Fault Possible causes Remedy
The unit does not operate smoothly and vibrates intenu-sively	- Bolts loose - Spark plug defective	- Check bolts - Replace spark plug
The engine does not start	- Spark plug defective - Fuel tank empty	- Replace spark plug - Top up fuel
Engine does not run smoothly	- Air fiiter dirty - Spark plug soiled or defective	- Clean the air fiiter - Clean or replace the spark plug
Drive power falls - Clutch play too large - V-belt loose	- Adjust clutch cable - Contact authorized customer ser-vice
The engine will not start or dies after a short period of time	- Spark plug foul - No fuel	- Clean or replace spark plug - Top up fuel

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*	Spark plug, air filter, cultivator blade, V-belt, coupling, fuel filter
Consumables*
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
  Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.

GB

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fit tted. This also applies if an on-site service is used.

8. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Chere cliente, cher client,

5. Pre puštanja u pigeon

Montaza zašitnog limi i transportnog točka

1. Postavite delove kao sto je opisano pod tackom 2.1 Opis uredaja.
2. Transportni tocak montiraje (5) na motor/pre-nosnik (1) kako je prikazano na sl. 3c.
3. Zašitni lim (4) montirajte na nacin prikazan na sl. 3d.
4. Oprugu (11) i malu sigurnosnu rascepku (12) montirajte kao sto je prikazano na sl. 3e.

Montaza noza za kultivisanje i granicnika dubine

1. Postavite delove kao sto je opisano pod tackom 2.1 Opis uredaja.
2. Nož za kultivisanje desno (13a), nož za kultivisanje levo (13b) i grančine pločice (14) montirajte kao sto je prikazano na sl. 4c. Pri tom pripazite da ostrá strana nožaPokazuje (sl. 4d/pol. A) u smeru vrtnje.
3. Montirajte graničnik dubine (15) kao što je príkazano na sl. 4e i pričvrstite ga u odredeni položaj s velikom sigurnosnom rascepkom (16). Za početak rada preporucamo da se graničnik dubine postavi u srednj di tri moguça položaja. Ako je dubina rada promenjena, premiste graničnik dubine u gornji ili donji položaj.

RS

Montaža drške za upravljanje, poluge spojke i poluge za startovanje/zaustavljanje

1. Postavite delove kao sto je opisano pod tackom 2.1 Opis uredaja.
2. Drza drske za upravlanje (20) montiraje kao sto je prikazano na sl. 5c/5d.
3. Montirajte drsku za upravljanje - polugu spojke (21) i drsku za upravljanje - polugu za startupanje/zaustavljanje (pol. 22) kao sto je prikazano na sl. 5e.
4. Poprečni podupirac montirajte (23) kao što je prikazano na sl. 5f.
5. Montaza poluge spojke (24) izvodi se jegnos-tavno u sledecim koracima: - Gurnite ovojnicu sajie (sl. 5g/Pos. A) u ušicu (sl. 5g/Pos. B). Namestite sajlu na maksimal-nu dužinu okretanjem kontranavrtke. - Okacite sajlu (sl. 5h/Pos. C) na polugu spojke (24) i montiraje polugu spojke na drsku za upravljanje. Pri tom pripazite da se sigurnos-na poluga pravilnfo ksira u svojem položaju. Proverite da li radiispravno. Povucite sigurnosnu polugu (25) prema poluzi spojke kao sto je prikazano na sl. 6d. Poluga spojke deblokirana je i moze sePokreteni.
6. Namestite duzinu uzeta kako je opisano u odeliku 7.2.4
7. Montirajte polugu za startovanje/zaustavljanje (26) kao sto je prikazano na sl. 5i.
8. Montirajte stezaljku za kabl (39) kao sto je prikazano na sl. 5k.

Paznja! Kod prvog pustanja u rad morate da sipa- te motorno ulje i gorivo.

Proverite stanje goriva i motornog ulja pa ih po potrebi dopunite.
Proverite je li kabl za paljenje pričvršćen na svecicu.
- Procenite neposrednu okolinu motokultivatora.

6. Rukovanje

• Podesite granicnik (sl.4e/pos. 15) na tačnu dubinu i osigurajte ga rascepkom.
  Zakrenite transportni točak prema gore i pri-pazite na to da se rasterski zavoranj fiksira u prihvataču prema napred (sl. 6a-6b).
• Drskuzavodenje mozete da prilagodite telesnoj visini. Za to olabavite zavrtnje (sl.6c), podesite konzolu i ponovno pritegnite zavrtnje.
  Da bistestavili zvezdaste nozeve u pigeon pavucite sigurnosnu polugu (25) prema gore,

pritisnite polugu spojke (24) prema dole i drzite (sl.6d).Nakon pustanja poluge spojke, zvezdasti nozevi se zaustavlju (ako se ne zaustave, treba podesiti sajlu spojke).

Startovanje motora

1. Proverite da li je kabl za paljenje spojen na svecicu.
2. Stanite iza kultivatora. Postavite polugu motora za startovanje/zaustavljanje (sl. 7/pol. 26) u polojazj. Kod vruceg motora postavite polugu za startovanje/zaustavljanje motora u polojazj Zec.
3. Pokrenite motor pomocu reverzibilnog startera (sl. 1/pol. 2). Za to izvucite ručku oko 10 -15 cm (dok ne osetite otpor) i zatim povucite snažnim trazjem.

Napomena! Nemojte pustiti da sajla za startovanje skoči u početni polojaz.

Napomena! Tokom hladnog vremena moze biti potrebno da se više puta ponovi postupakPokretanja.

Zaustavljanje motora

Stavite polugu za startovanje/zaustavjanje motora (26) u položaj STOP.

GB explains the following conformity according to EU directives and norms for the following product

□90/396/EC_2009/142/EC

89/686/EC_96/58/EC

2011/65/EC

2006/42/EC

Annex IV

Notified Body: Notified Body No.:

Reg.No.

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured LMA = 93 dB (A); guaranteed LMA = 95 dB (A)

P=3KW;L/0=cm

Notified Body:

2004/26/EC

Emission No.: e1197/68SA2012/46315000

Standard references: EN 709; EN ISO 14982

Subject to change without notice

Archive-File/Record: NAPR009515

Documents registrar: Markus Johl

Wiesenweg 22, D-94405 Landau/Isar

-87-

EH 08/2015 (01)
