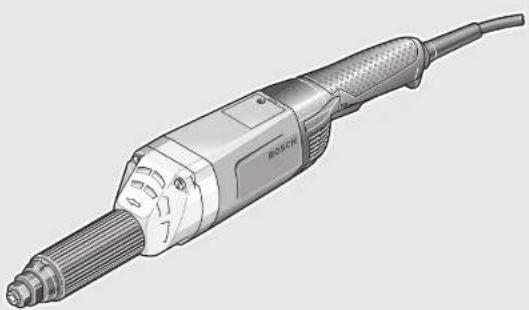

USER MANUAL GGS 18 H Professional BOSCH

OBJ_BUCH-1048-005.book Page 2 Tuesday, April 12, 2016 11:57 AM3 | 1 609 92A 2NY | (21.3.16) Bosch Power Tools

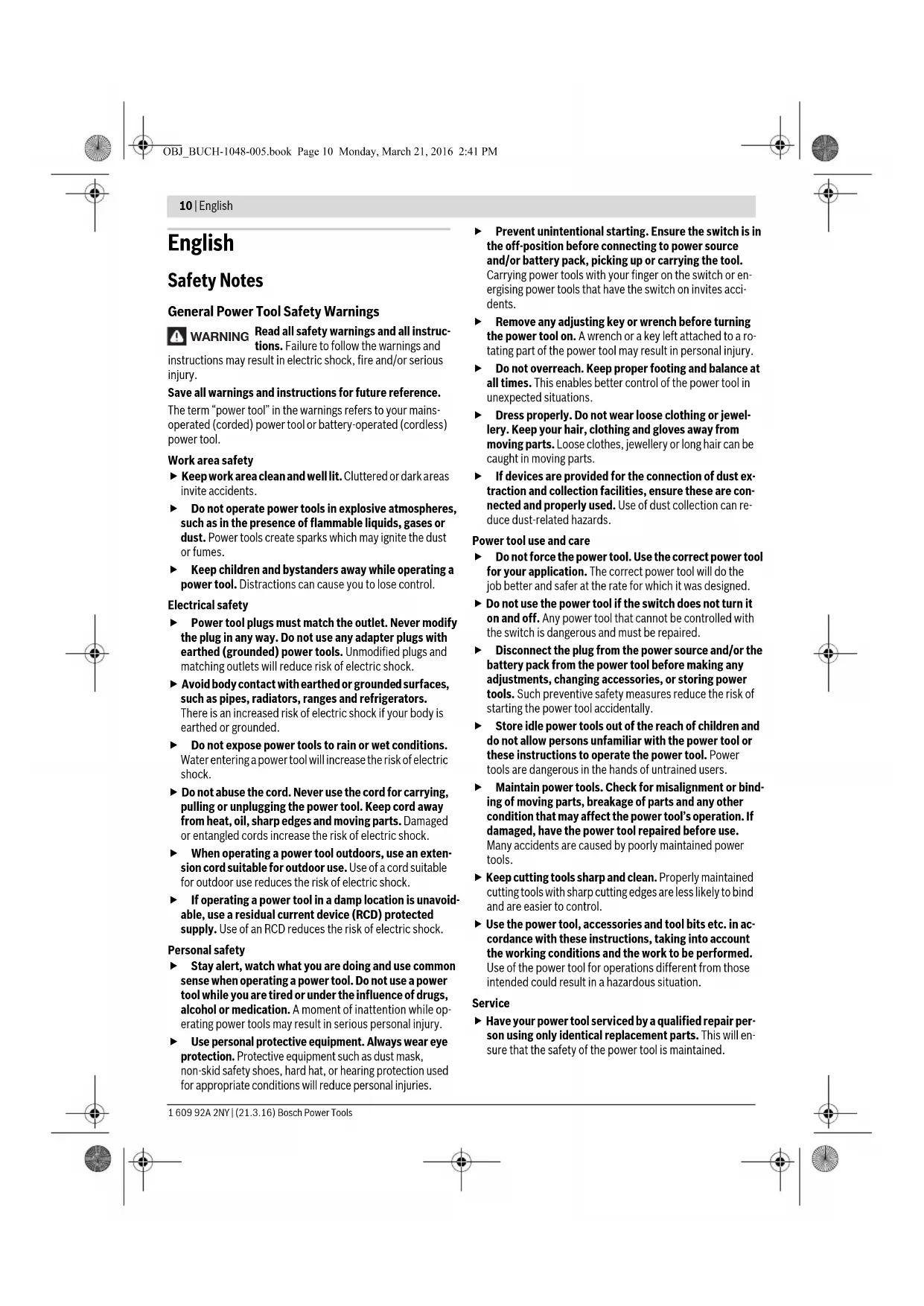

*Accessories shown or described are not part of the standard de- livery scope of the product. A complete overview of accessories can be found in our accessories program. OBJ_BUCH-1048-005.book Page 12 Monday, March 21, 2016 2:41 PMEnglish | 13 Bosch Power Tools 1 609 92A 2NY | (21.3.16) Technical Data Noise/Vibration Information Sound emission values determined according to EN 60745-2-23. Typically the A-weighted noise levels of the product are: Sound pressure level 88 dB(A); Sound power level 99 dB(A). Uncertainty K=3 dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN 60745-2-23: Surface grinding (roughing): a

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Declaration of Conformity We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with all rele- vant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-23, EN 50581. Technical file (2006/42/EC) at: Robert Bosch Power Tools GmbH, PT/ETM9, 70538 Stuttgart, GERMANY Robert Bosch Power Tools GmbH70538 Stuttgart, GERMANYStuttgart, 01.01.2017 Assembly Before any work on the machine itself, pull the mains plug. Mounting the Grinding Tools (see figure A) – Clean the grinder spindle 2 and all parts to be mounted. – Hold the grinder spindle 2 on the spanner surfaces with the open-end spanner 7 (size 22 mm). – Loosen the collet 1 with the open-end spanner 6 (width across flats of 14 mm) by turning it counterclockwise. – Insert the clamping shaft of the grinding tool to the stop in- to the collet chuck 1. – Tighten the collet 1 with the open-end spanner 6 (width across flats of 14 mm) by turning it clockwise. The grinding tools must run completely concentrically. Do not continue to use damaged grinding tools that are out of bal- ance. If the grinding tools are out of balance they should be re- placed. Treat with a whetstone (accessory) or change. Using a whetstone, any particular special shape can be pro- duced out of the basic forms of the grinding accessory. Do not tighten the collet chuck as long as no grinding accessory is mounted. Otherwise, the collet chuck can become damaged. Only use grinding points with a matching shank diame- ter. A grinding point/accessory with a shank diameter that does not fit the tool holder (see “Technical Data”), can not be clamped properly and will damage the collet chuck. The application tool must be clamped at least 10 mm. The inner shank dimension L

can be used to calculate the maximum permitted speed of the application tool from the specifications provided by manufacturer of the application tool. It must not be less than the maximum speed of the power tool. Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered car- cinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials con- taining asbestos may only be worked by specialists. Die grinder GGS 18 H Article number 3 601 B09 2.. Rated power input W 1050 Output power W500 Rated speed min
